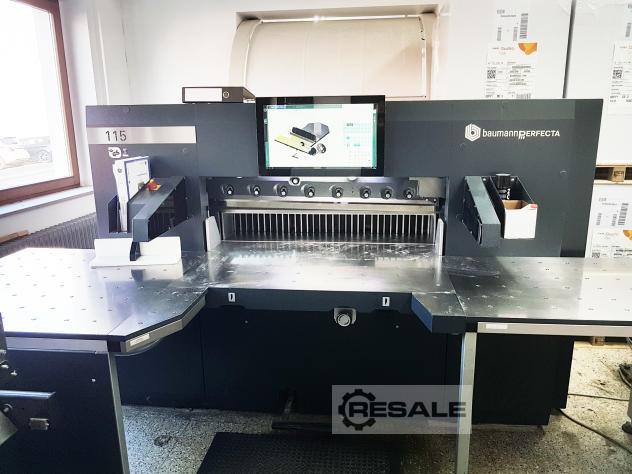

BaumannPerfecta 115
Age: 2022, installed 12/2022
Available: April 2026
• 24" tiltable color display touch screen
• Process visualization, real time Animation and displaying half and
full finished jobs
• Program steps in self‐explaining list • Electronically
adjustable backgauge speed and clamp pressure
• Automatic clamp pressure adjustment
• Pre‐selectable clamping time extension‐ 0 to 9,9 seconds
• Integration of Prepress data CIP3/CIP4 from existing customer
workflow (option)
• Structure of the surface in simple operating mode, list mode,
graphic mode
• Password protected user accounts
• Comprehensive diagnosis / service area
Cutting table width [mm] 1150
Rear table length [mm] 1150
Maximum clamp opening [mm] 165
Smallest cut/ with false clamp [mm] 20/77
Backgauge return speed [mm/s] 300
Cclamping force [kN] 2.5‐45
Safety pressing force [N] 300
Main drive power [kW] 4.0
Cutting table height [mm] 900
Dimensions (W x H x D) [mm] 2500 x 1660 x 2650
Net weight [kg] 3200

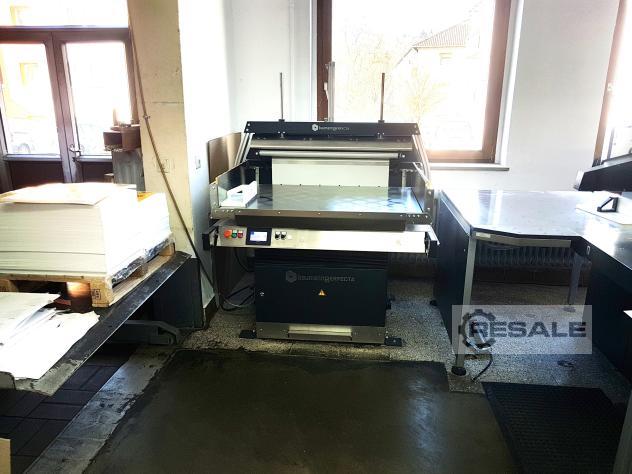

Jogger BaumannPerfecta BSB3L
Age: 2022, installed 12/2022
Available: April 2026
Germania
