Macchine a pressogetto ARBURG 520 H 1500-400

macchine per lavorazione della plastica / macchine a iniezione / Macchine a pressogetto

Fabbricante: ARBURG

Modello:520 H 1500-400

Tipo di macchina: Macchine a pressogetto

Numero di articolo: 168584583

Quantità: 1

Data: 16.01.2026

Anno di fabbricazione: 2015

Ore di servizio: 68946

Luogo: Land-es Spagna 08784 Piera

Prezzo:


Seller-item-No.:GEST-006

Clamping force: 1500 kN Screw diameter: 40 mm

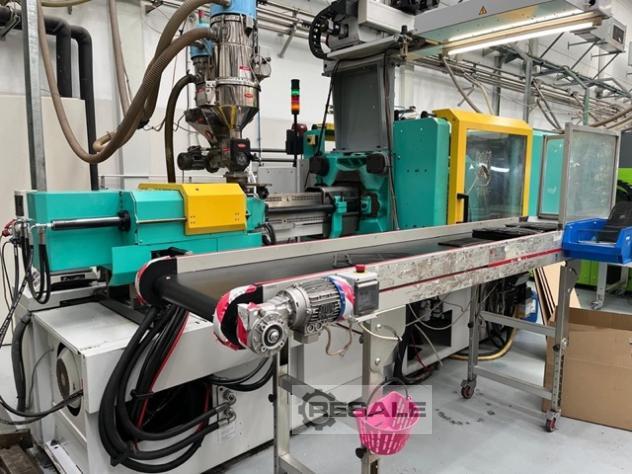

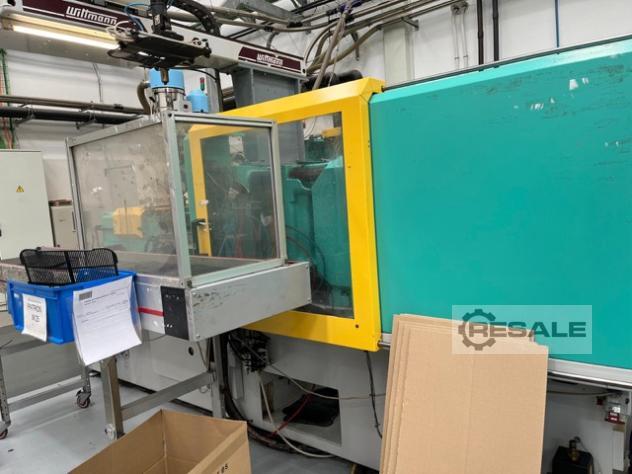

ARBURG ALLROUNDER 520 H 1500-400 (2015) Injection molding machine + WITTMANN ROBOT + Conveyor belt
In operation
Hours: 68946 h.
Clamping force: 1500 kN
Clamping unit 520 H
Opening force / stroke: 450 mm.
Fixed / variable mould mounting height: 250-550 mm.
Fixed / variable platen spacing: 700-1000 mm.
Column spacing: 520 x 520 mm
Mold clamping platens (width x height) 695 x 695 mm.
Weight of movable mould half: 1000 kg max.
Force – Ejector stroke: 40 kN – 175 mm
Idle cycle time: Conformt Min 1.5 – s- 364
Screw diameter: 40 mm.
Effective screw length: 20 L/D
Screw stroke: 160 mm.
Calculated injection volume: 201 cm3
Weight per injection: 184 g. Ps.
Material flow rate: 29 kg/h. PS
Injection pressure: 2000 T6164218 s-bar
Post-pressure time: 45-2000 s-bar
Injection flow: 214 cm3/s
Injection speed: 170 mm/s
Power – heating zones: 9.7 kW – 5
Oil capacity: 160 l.
Weight: 6700 kg.
Height: 2215 mm.
Length: 4672 mm.

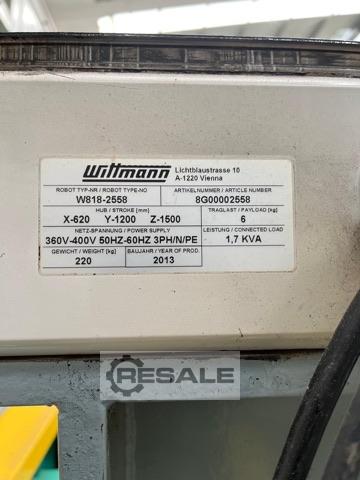

Complete installation also available: Injection moulding machine + WITTMANN W818-2066 (2013) Robot + Conveyor belt
Condividi questa macchina su Facebook:

Inchiesta

Commerciante di macchine?

Si prega di rimettere in opzione

Inviare la domanda desiderato?

Copia a voi?

Save input data

Clamping force: 1500 kN Screw diameter: 40 mm ARBURG ALLROUNDER 520 H 1500-400 (2015) Injection molding machine + WITTMANN ROBOT + Conveyor belt
In operation
Hours: 68946 h.
Clamping force: 1500 kN
Clamping unit 520 H
Opening force / stroke: 450 mm.
Fixed / variable mould mounting height: 250-550 mm.
Fixed / variable platen spacing: 700-1000 mm.
Column spacing: 520 x 520 mm
Mold clamping platens (width x height) 695 x 695 mm.
Weight of movable mould half: 1000 kg max.
Force – Ejector stroke: 40 kN – 175 mm
Idle cycle time: Conformt Min 1.5 – s- 364
Screw diameter: 40 mm.
Effective screw length: 20 L/D
Screw stroke: 160 mm.
Calculated injection volume: 201 cm3
Weight per injection: 184 g. Ps.
Material flow rate: 29 kg/h. PS
Injection pressure: 2000 T6164218 s-bar
Post-pressure time: T6164218 45-2000 s-bar
Injection flow: 214 cm3/s
Injection speed: 170 mm/s
Power – heating zones: 9.7 kW – 5
Oil capacity: 160 l.
Weight: 6700 kg.
Height: 2215 mm.
Length: 4672 mm.
Complete installation also available: Injection moulding machine + WITTMANN W818-2066 (2013) Robot + Conveyor belt

seller offer No. resale GEST-006
