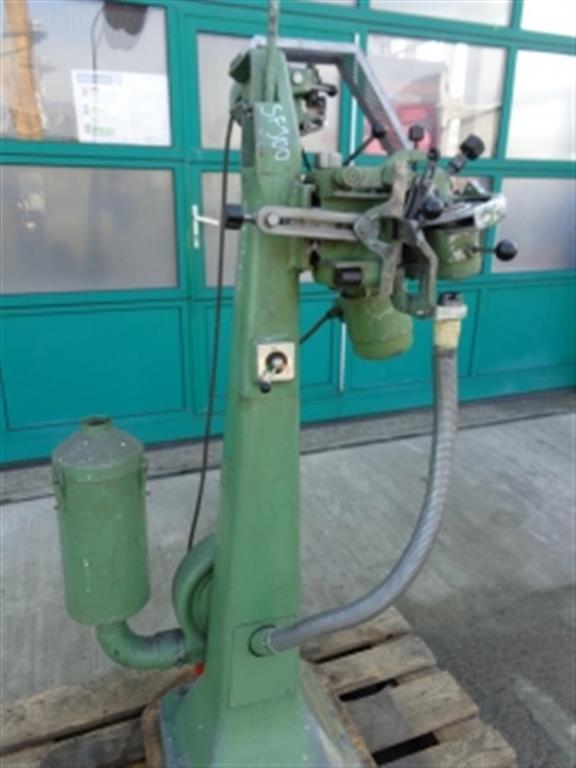

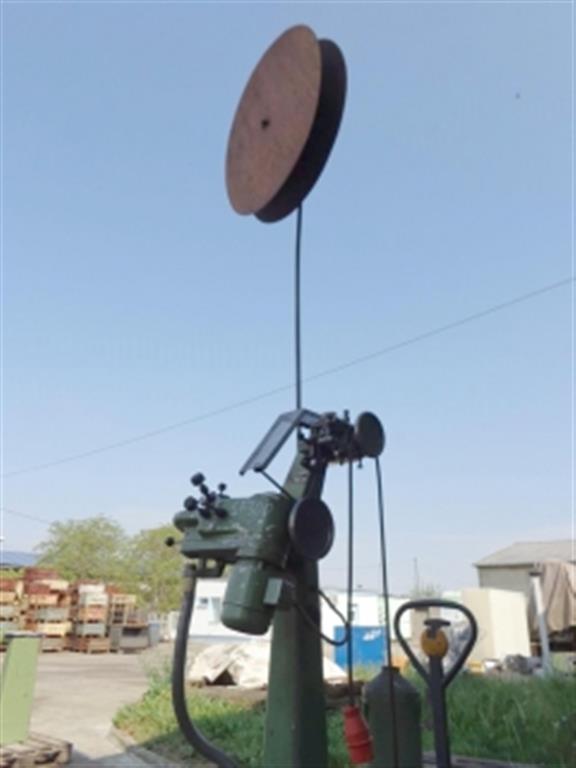

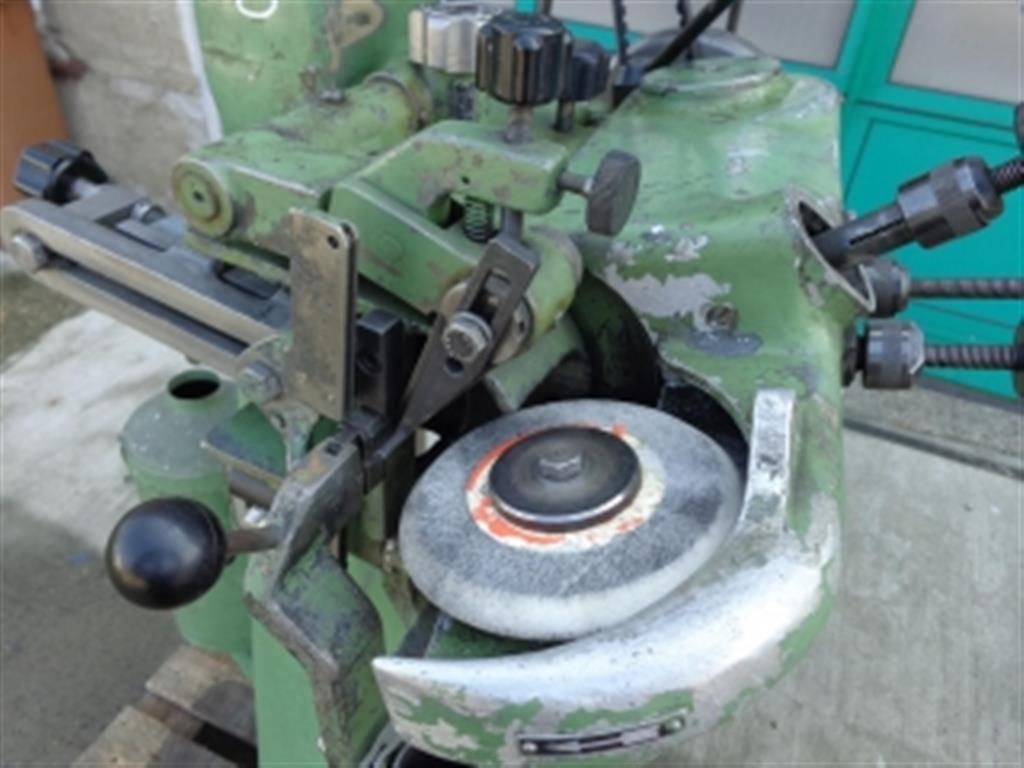

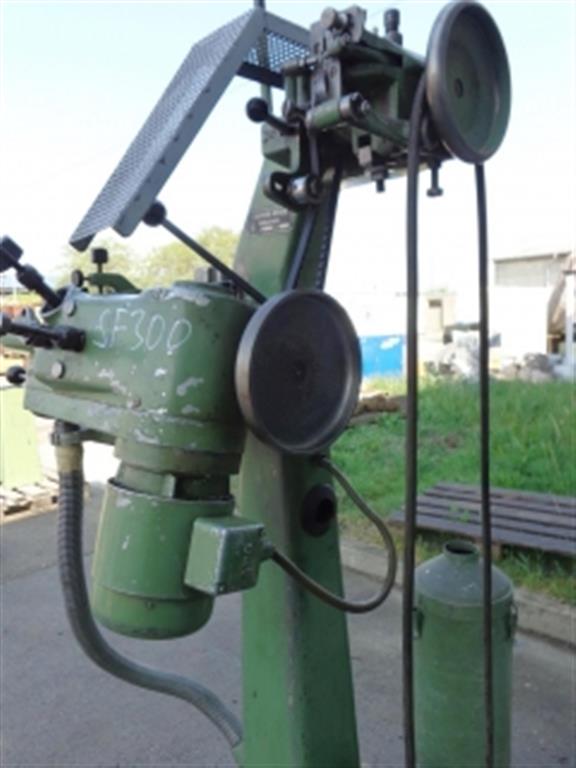

total power requirement:0,55 kw Overall size:800 x 900 x 1600 mm Weight:220 kg accessories::mit Absaugung 0,2 kw
uzunluk: ~ 700 mm genişlik: ~ 600 mm yükseklik: ~ 2.000 mm Vollmer Junior B otomatik bandtestere bıçaklarını bilemez için kullanılan bandtestere bileme makinesi. Bu reklamın verileri, LogoTech oHG'nin yazılım çözümü olan ModulMWS ile oluşturulmuştur.
Üretici: Vollmer, Tip: CMS 13M, Yıl: 1994, Deşik çapı: 5 - 50, Maksimum disk çapı mm cinsinden: 200, Minimum dış çapı mm: 20 - 525, Minimum-max. diş atışı MM: 26, Yıl :1994
Kullanılmış taşlama makinesi Vollmer CABG 50U – yapım yılı 1995 – Çok iyi durumda Satılık, kaliteli üretici Vollmer'den tam otomatik bir katrak testere bileme makinesidir. Makine çok iyi durumda, tamamen işlevseldir ve hemen kullanılabilir. Düzenli bileme ihtiyacı olan kereste fabrikaları veya ahşap işleme şirketleri için idealdir. Özellikler: Modeli: Vollmer CABG 50U Yapım Yılı: 1995 Makina tipi: Otomatik Gang Testere Bıçağı Bileyici Durum: Çok iyi, düzenli olarak servis yapılır Testere bıçağı genişliği: Yaklaşık 200 mm'ye kadar Testere bıçağı uzunluğu: Yaklaşık 1650 mm'ye kadar Eğim Açısı Ayarı: Yaklaşık –10 ila +25 Diş aralığı: Ayarlanabilir (testere bıçağının tipine bağlı olarak) Aşındırıcılar: CBN veya elmas taşlama taşları Öğütme döngüsü: Besleme ve geri dönüş dahil tam otomati ...
Dairesel testere bileme makinesi Vollmer Cne
Suitable for automatic, double-sided tooth flank grinding on carbide-tipped circular sawblades., Accessories:, Total enclosure,, Automatic tooth geometry measurement, DNC operation, Automatic central lubrication, Coolant level monitoring, Alphanumeric keypad, Control panel with color LCD display, Automatic grinding wheel compensation, Infinitely variable grinding speed and path for each machining surface on the tooth, Robot operation setup with automatic loading door, Oil and emulsion separator, Infinitely variable grinding wheel rotation speed from 14 to 36 m/s, Oil-cooled grinding attachment with central coolant supply, Automatic fire extinguishing system, Oil collection tray, Saw blade blow-off device (for removing excess coolant), Saw blade diameter without robot: 80 to 840mm, circular saw hole diameter: of 10 mm, tooth pitch: 6 to 180mm, sheet thickness: up to 14 mm, grinding path: ...
Suitable for simultaneous, automatic grinding of both tooth flanks on carbide-tipped circular saw blades., Accessories:, Motorized rake angle adjustment,, Coolant system,, Automatic central lubrication,, Machine light,, 2 grinding wheel holders,, 1 sawblade mounting bolt., sheet thickness: up to 8 mm, Tooth pitch: 6 to 120 mm, rake angle: - 15° to + 25°, Tangential free angle: 0° to 6°, Radial free angle: - 4° to +6°, Connection value: ca. 1,1 kW (400 V / 50 Hz), Weight: about 1150 kg, Grinding wheel diameter: Max. 125 mm, Bore diameter: 32 mm, Dimensions L x W x H: 1340 x 1400 x 2000 mm, colour: green, Circular saw outer diameter: 80 to 460 mm
Suitable for automatic, double-sided tooth grinding of carbide-tipped circular saw blades., Accessories:, Wet grinding attachment,, Motorized rake angle adjustment,, 2 grinding wheel holders,, 1 mounting bolt., Circular saw blade outer diameter: 80 to 1270 mm, Circular saw drill diameter: 10 - 220 mm, sheet thickness: up to 14 mm, Tooth pitch: 6-120 mm, Grinding path: max. 16 mm, Cross angle : -15° to +40°, Tangential free angle: 0 to 5°, Grinding speed: 0.5 to 6 mm/s, grinding wheel diameter: 125 mm, Connected load approx.: 3,6 kW (400 V / 50 Hz), Weight approx: 1300 kg, colour: green RAL 6011
Suitable for automatic, double-sided tooth grinding of carbide-tipped circular saw blades., Accessories:, Wet grinding attachment,, Motorized rake angle adjustment,, 2 grinding wheel holders,, 1 mounting bolt., Circular saw blade outer diameter: 80 to 1270 mm, Circular saw drill diameter: 10 - 220 mm, sheet thickness: up to 14 mm, Tooth pitch: 6-120 mm, Grinding path: max. 16 mm, Cross angle : -15° to +40°, Tangential free angle: 0 to 5°, Grinding speed: 0.5 to 6 mm/s, grinding wheel diameter: 125 mm, Connected load approx.: 3,6 kW (400 V / 50 Hz), Weight approx: 1300 kg, colour: green RAL 6011
Suitable for the automatic machining of PCD-tipped milling cutters, shank tools, disc-shaped tools such as saws, milling cutters etc. using the wire-electro-erosion process., Accessories: Total enclosure, Integrated loading system and tool magazine Automatic machining of up to 12 HSK 63 tools, Program for erosion across the tool center at the cutting edge and for free erosion, Hardware and software for DNC service, Gripper fingers for workpiece automation SK40/HSK63-A,E/HSK63-B,F, Adaptation to the A-axis on HSK63-A,E including 25 mm diameter test mandrel (HSK63 A,E system), Grinding mist extraction N 181, Cooling unit for dielectric fluid, Automatic fire extinguishing system, Measuring probes, Machine lamp, Automatic central lubrication, Cutter outside diameter: Max. 250 mm, Cutting length: Max. 260 mm, Shank tool diameter: 10-250 mm, Tool weight: Max. 20 kg, traverse: X-axis 275 mm, Y- ...
Suitable for the automatic machining of PCD-tipped milling cutters, shank tools, disc-shaped tools such as saws, milling cutters etc. using the wire-electro-erosion process., Accessories: Total enclosure, Integrated loading system and tool magazine Automatic machining of up to 12 HSK 63 tools, Program for erosion across the tool center at the cutting edge and for free erosion, Hardware and software for DNC service, Gripper fingers for workpiece automation SK40/HSK63-A,E/HSK63-B,F, Adaptation to the A-axis on HSK63-A,E including 25 mm diameter test mandrel (HSK63 A,E system), Grinding mist extraction N 181, Cooling unit for dielectric fluid, Automatic fire extinguishing system, Measuring probes, Machine lamp, Automatic central lubrication, Tailstock, Cutter outside diameter: Max. 250 mm, Cutting length: Max. 260 mm, Shank tool diameter: 10-250 mm, Tool weight: Max. 20 kg, traverse: X-axis ...
Suitable for the complete machining of rotationally symmetrical workpieces with cutting edges made of ultra-hard cutting materials. The workpieces can be picked up on the fly or between the centres (option)., Accessories:, Total enclosure, HR workpiece magazine (round magazine) for up to 16 workpieces up to 130 mm in diameter, 20 kg, or up to 8 workpieces up to 230 mm in diameter, 20 kg., Magazine disk for 16/8 HSK63-A,E workpieces with a diameter of 130/230 mm, up to 20 kg., Adapter to the A axis for HSK63-A,E., Automatic fire extinguishing system., N282 extraction system with 600 m³/h air flow., Automatic cover flap., Automatic central lubrication., Measuring probe., Cooling unit for dielectric fluid including cooling unit., HSK-A63 test mandrel., Workpiece diameter: up to 320 mm, workpiece length: up to 500 mm, workpiece weight: up to 25 kg, Holding mandrel: SK 50, Wire diameter: 0.1 ...
Suitable for automatic grinding of tooth faces and tooth backs on carbide-tipped circular saw blades., Accessories:, Total enclosure,, Device for central coolant supply with coolant pump 160 l/min,, Manual fire extinguishing system,, Electrostatic mist extractor,, Motorized adjustment of rake and clearance angles,, Standard software package for tooth geometries according to the program overview,, Automatic central lubrication,, 1 feed pawl pin ø 3 mm,, 1 mounting arbor Ø 10 mm for circular saws Ø 80 mm - 220 mm,, 1 grinding wheel mount for face grinding,, 1 grinding wheel mount for top grinding,, 1 set of calibration tools., Circular saws outside diameter: 80 to 650mm, sheet thickness: < 5mm, Blade thickness: < 5mm, Tooth pitch: 6 to 100mm, rake angle: - 10° to + 30°, radial relief angle: - 0° to + 6°, tooth height difference: any, Grinding wheel diameter: 125 mm, Centrebore dia ...
Description: 4-axis CNC controlled grinding machine, suitable for the automatic grinding of tooth faces and tooth backs on carbide-tipped circular saw blades., Accessories:, Coolant system,, Total enclosure,, Automatic central lubrication,, Hollow face grinding unit, mist extractor N183, Motor driven rake and clearance angle adjustment,, Machine lamp,, Oscillation grinding at tooth face and tooth clearance,, Multifunctions handwheel,, 2 grinding wheel flanges for face and top grinding,, 1 centering ring 40 mm,, 1 mounting mandrel., Circular saw hole diameter: 10 - 180 mm, Circular saw blade diameter: 80 to 840 mm, sawblade centrebore: 10 - 180 mm, Sheet thickness: up to 8 mm, Tooth pitch: up to 100 mm, mass: approx. 1660 kg, Rake angle: -10 ° to + 40 °, Clearance angle: from 5 ° to 45 °, Angled grinding on the back of the tooth: up to 45 °, Angled grinding on the tooth face: up to 1 ...
Universal machine for eroding and grinding various PCD tools up to 250 mm in diameter and 200 mm in length in production and service. Accessories: Full enclosure Measuring probe for complete measurement of the tools Workpiece carrier adaptation A-axis from SK 50 to HSK 63 A Loader for up to 6 eroding disk sets (tool changer) Alphanumeric keyboard Standard programs for measuring, eroding Cooling and cleaning device for dielectric Automatic fire extinguishing device Extraction N183 1 exchange element 1 flushing set 1 measuring mandrel 1 mounting flange for rotating electrodes, X axis travel: 440 mm, B-axis: +/- 15°, Y axis travel: 876 mm, Z-axis travel: 420 mm, E-axis swivel range: 210°, A-axis rotation range: 360°, workpiece carrier base: SK 50, workpiece length max.: 200 mm, Workpiece diameter max.: 250 mm, workpiece weight: 15 kg, Connected load approx.: 6.7 kW 400V/50 Hz, Weight app ...
Karbid uçlu dairesel testere bıçaklarının göğüs ve sırt öğütme makinesi; Yenilendi ve yeniden boyandı
Suitable for automatic grinding of tooth faces, tooth backs, and bases on carbide-tipped circular saw blades in a single setup. All common tooth geometries (flat, alternate, trapezoidal, etc.) can be ground automatically and in a single pass. Accessories: Full enclosure Measuring probe Grinding device with oil cooling Automatic fire extinguishing system Grinding mist extraction system N 183 Alphanumeric keypad Oil drip tray Machine light, saw diameter: 80-840 mm, Bore diameter: from 10 mm, sheet thickness: < 8 mm, Tooth pitch: 6 - 120 mm, Cutting length:
Otomatik daire testere bileme makinesi tamamen yenilendi. Tüm yaygın diş şekillerinin HM daire testere bıçaklarının tam otomatik bilemesi için. Yağ soğutma, yangın söndürme ekipmanları için donatılmıştı. Teknik veriler: Daire testereleri Ø robot ile 130 ile 600 mm arasında, robot olmadan 130 ila 840 mm, robot ile diş aralığı 8 ila 50 mm, robot olmadan 8 ila 120 mm. İstek üzerine yükleme robotu ND 230, çıkarma sistemi ile temin edilebilir.
Suitable for automatic, double-sided tooth flank grinding on carbide-tipped circular saw blades., Accessories:, Total enclosure., Coolant System,, Automatic central lubrication,, Expansion of diameter range from 80 – 1,430 mm, Circular sawblade outer diameter: 80 to 1430 mm, Circular sawblade bore diameter: 10 - 220 mm, sheet thickness: up to 14 mm, rake angle: -15° to +40°, Radial free angle: -6° to 6°, Tangential free angle: up to +8°, Grinding path: Max. 30 mm, Grinding speed: 0.5 - 20 mm/s, Tooth pitch: 6 - 120 mm, Grinding wheel diameter: 80 to 125 mm, Grinding wheel bore diameter: 32 mm, Connected load approx.: 3,6 kW (400 V / 50 Hz), Dimensions W x D x H approx.: 2395 x 1590 x 1970 mm, colour: green/grey, Weight approx: 1750 kg
Suitable for automatic machining of PCD-tipped milling cutters, shank tools, disc-shaped tools, and optionally profile tools using the disc electroerosion process. Accessories:, Total enclosure,, SK 40 or 50 workpiece carrier according to preference,, Cooling unit for dielectric,, Automatic fire extinguishing system,, Measuring probe,, SK 40 or 50 measuring mandrel depending on workpiece carrier,, Alphanumeric keyboard for data management,, Software package for peripheral machining of end mills and jointing cutters, linear machining in all common axis directions,, Software package for compact and radius machining, profile cutters in path-travel and plunge-cutting processes,, Software package for profile tools, 4-path program for peripheral electrodes,, Software package for circular saws for complete machining of tooth backs and flanks of all common geometries,, Automatic central lubricat ...
Suitable for automatic processing of PCD-tipped milling cutters, shank tools, disc-shaped tools such as Saws, milling cutters, etc. using the wire electro-erosion process. Accesories: Total enclosure,, Mist extractor, Probe,, Machine lamp,, Automatic central lubrication,, Coolant system dielectric fluid, Fire extinguishing system, Measuring mandrel, Alphanumeric keyboard, cutter outer diameter max: 250 mm, cutting length max.: 200 mm, shank tool diameter: 10 - 250 mm, cutting length: 200 mm, Outside diameter of disc-shaped tools max.: 250 mm, tool weight max.: 20 kg, X-axis travel: 220 mm, Y-axis travel: 300 mm, W axis travel: 200 mm, A-axis rotation range: 60 °, A-axis taper: ISO 40, E-axis swivel range: 120 °, number of revolutions: 80 - 2000 rpm., Dimensions L x W x H: 2235x2630x2130mm, mass: approx. 4500 kg, Connected load approx.: 400V / 50Hz / 4.5KW, colour: turquoise RAL 5021/gr ...
Suitable for automatic, double-sided grinding of tooth flanks on circular saw blades with carbide tips., Accessories:, Partial enclosure,, 1 sawblade holder,, Coolant system., Circular saw outer diameter: 260 to 2200 mm, Circular saw bore diameter: 25 to 220 mm, sawblade thickness: up to 20 mm, Tooth pitch: from 10 mm, rake angle: any, Radial free angle: up to 6°, Tangential free angle: up to 6°, Grinding path: up to 75 mm, Grinding speed: 0.5 to 6 mm(s), Working speed: up to about 10 teeth/min, Grinding wheel diameter: 125 mm, Grinding wheel bore diameter: 32 mm, Grinding wheel peripheral speed: 26 m/s, Cooling lubricant pump capacity: 250 l/min, Coolant Tank Content: approx. 190 l, Connected load approx.: 6,5 kW (400 V / 50 Hz), Dimensions W x D x H =: 3050 x 1890 x 2050 mm, Weight approx.: 2160 kg, colour: green
Suitable for the automatic grinding of HM circular saw blades on the face and top in one setting. All known tooth geometries (flat, alternate, trapezoidal teeth, etc.) can be ground automatically and in one pass., Accessories:, Total enclosure,, Coolant system,, Equipment for robot operation with automatic loading door, ND 230 loader, Measuring device for measuring saw blades, Chip breaker grinding attachment, Stepless variable grinding speed of the two grinding spindles from 1600 to 5500 rpm., Grinding speed and grinding path stepless adjustable for each machining surface on the tooth., Automatic central lubrication, Software package for oscillation grinding at rake and clearance angles, Automatic shut-off flap, Automatic fire extinguishing system, Electrostatic oil mist separator N281, Measuring tool, Sawblade holder with guide bushing Ø 16 mm Saw holder >ø180, Sawblade holder with g ...
Suitable for the automatic processing of PCD-tipped milling cutters, shank tools, disc-shaped tools such as saws, milling cutters etc. using the wire-electro-erosion process., Accessories:, Total enclosure,, Adaptation to A-axis on HSK63-A,E incl. test mandrel Ø 25 mm System HSK63 A,E, Integrated loading system and workpiece magazine for automated processing of up to 12 workpieces., Probe,, Automatic central lubrication,, Coolant system for dielectric fluid,, Automatic fire extinguishing system,, Mist extractor,, Machine lamp., Cutter outside diameter: Max. 320 mm, Shank tool diameter: 10-320 mm, Outside diameter disc-shaped tools: Max. 320 mm, Cutting length: max. 480 mm, Tool weight: max. 20 kg, X axis travel: 500 mm, Y-axis travel: 300 mm, W-axis travel: 200 mm, A-axis rotation range: 360 °, E-axis swivel range: 180 °, Required space for the machine: 2535 x 2200 x 2280 mm, Weight a ...
Suitable for the automatic processing of PCD-tipped milling cutters, shank tools, disc-shaped tools such as Saws, milling cutters etc. using the wire-electro-erosion method. Accessories:, Total enclosure,, Cooling unit for dielectric,, automatic fire extinguishing system,, Mist extractor, Probe,, Machine lamp,, automatic central lubrication,, Workpiece carrier ISO50,, Measuring mandrel,, Tailstock., Cutter outside diameter: Max. 250 mm, Cutting length: max. 260 mm, Shank tool diameter: 10 - 250 mm, Outside diameter disc-shaped tools: Max. 250 mm, Tool weight max.: 20 kg, X axis travel: 275 mm, Y-axis travel: 300 mm, W-axis travel: 200 mm, A-axis mounting cone: ISWO 50, E-axis swivel range: 180 °, Required space for the machine: 2535 x 2200 x 2220 mm, Weight approx.: 4500 kg, Connected load: 4.5 kW (400 V / 50 Hz), colour: gray RAL 7045/7047
Sharpeing makinesi Vollmer Daire testere bıçakları için Tip CHC 25 H Üretim yılı 1985 Göğüs, sırt ve serbest öğütme için otomatik bileme makinesi Karbid uçlu daire testere bıçakları Daire testereler Dış çapı 80 mm'den 810 mm'ye kadar Silindr çapları 10 mm'den 220 mm'ye kadar Bıçak kalınlığı 5 mm'ye kadar Diş aralığı 7 ila 100 mm arasında Tırmık açısı 6'dan 45'e Eğim öğütme dişi 45'e kadar geri çekilir Diş göğüsleri 15'e kadar Öğütme hızı 0.5 ile 6 mm/s arasında sonsuz değişken 18 dişe kadar çalışma hızı Taşlama makinesi çapı 125 mm Gaz çapı 32 mm Çevre hızı 26 m/s Soğutma sıvısı pompası akış hızı 40 l/d. Bağlı yük yaklaşık 1,6 kW Uygulama Alanları Bir tarafta, sola ve sağa açı olarak düz diş Değiştirilebilir diş, tavan dişi, trapezoidal düz diş, grup diş, Denge ...
Suitable for the automatic processing of PCD-tipped milling cutters, shank tools, disc-shaped tools such as Saws, milling cutters etc. using the wire-electro-erosion method. Accessories:, Total enclosure,, Cooling unit for dielectric,, automatic fire extinguishing system,, Mist extractor N181, Probe,, Machine lamp,, automatic central lubrication,, Workpiece carrier ISO50,, Measuring mandrel,, Cutter outside diameter: Max. 250 mm, Cutting length: max. 260 mm, Shank tool diameter: 10 - 250 mm, Outside diameter disc-shaped tools: Max. 250 mm, Tool weight max.: 20 kg, X axis travel: 275 mm, Y-axis travel: 300 mm, W-axis travel: 200 mm, A-axis mounting cone: ISWO 50, E-axis swivel range: 180 °, Required space for the machine: 2535 x 2200 x 2220 mm, Weight approx.: 4500 kg, Connected load: 4.5 kW (400 V / 50 Hz), colour: gray RAL 7045/7047
Universal machine for eroding and grinding various PCD tools up to 250 mm in diameter and 200 mm in length in production and service. Accessories: Total enclosure,, Extraction N183,, Cooling and cleaning device for dielectric,, Automatic fire extinguishing device,, Loader for erosion disc sets with CNC-controlled swivel arm for loading and unloading, 1 set of gripper fingers for workpiece automation HSK 63/SK40, Workpiece carrier adaptation A-axis from SK 50 to HSK 63 A,, 1 exchange element with flange,, 1 x flushing kit,, Test bar, X axis travel: 440 mm, B-axis: +/- 15°, Y axis travel: 876 mm, Z-axis travel: 420 mm, E-axis swivel range: 210°, A-axis rotation range: 360°, workpiece carrier base: SK 50, workpiece length max.: 200 mm, Workpiece diameter max.: 250 mm, workpiece weight: 15 kg, Connected load approx.: 6.7 kW 400V/50 Hz, Weight approx: 7000 kg, Dimensions W x D x H =: 1987 ...
Suitable for the automated machining of PCD-tipped milling cutters, end-cutting tools, and disc-shaped tools such as saws, milling cutters, etc., using wire EDM. Accessories: Total enclosure, External PC with contour management and Exprog software, Cooling unit for dielectric fluid, Automatic fire extinguishing system, Automatic central lubrication, Extraction system,, Measuring probe, Machine lamp, Workpiece carrier SK 40, Measuring mandrel SK 40, cutter outer diameter: Max. 320 mm, Shank tool diameter: 10-320 mm, Outer diameter disc-shaped tools: Max. 320 mm, Cutting length: max. 480 mm, X-axis travel: 500 mm, Tool weight: max. 20 kg, Y axis travel: 300 mm, Travel path W-axis: 200 mm, Machine space requirements: 2535 x 2200 x 2280 mm, A-axis rotation range: 360°, E-axis swivel range: 180°, Weight approx.: 4800 kg, Connected load: 5,4 kW, colour: grey RAL 7035/7043
