Used Van Dam 520-6, UV-COM, 6-Color Cup Printing Line, Age 1999:, Auto
Elevator Tray Feeder, Auto-cross feeder conveyor, Standard Van Dam
Goose Neck infeed to main print unit, Universal Screw Denester,
Mandrel Spin System, SOFTAL Corona Pretreater with Leak tester, Main
6-Color Print unit. Modern New Style Print Heads, Each Print head
consisting of : 8 x precision ground rollers, 2 x Oscillating Rollers
water cooled, Gear driven Fountain Rollers, Ink Well with Ink
Agitators, All six heads swing open for easy plate mounting and free
roller accessibility, All pressure and color register adjustment can
be made while printer is running, Easy access to product handling
areas and print area, No cup no print system, Double cup detection,

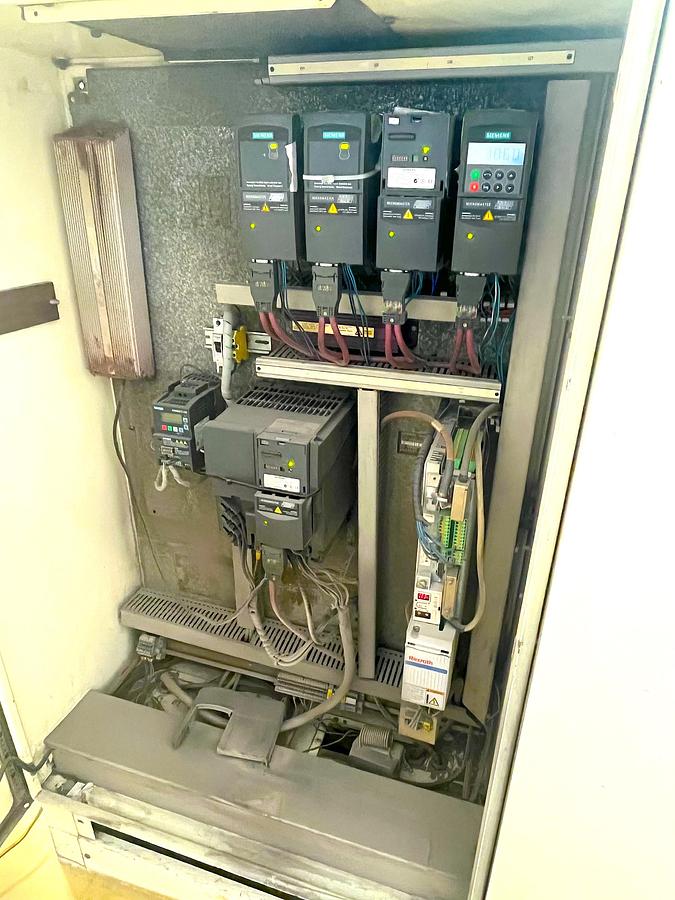

Main Inverter Drive. Speed continuously variable., UV-On Mandrel
Curing System: UVITERNO MONO-JUMBO-8015., Dual Timing Belt Take-Off,
Exact Count, dual chromed Screw Counter/ Stacker Unit, with Ejector
Tray, Min./ max. Cup height 30 - 150 mm, Min/ max. Cup-Rim diameter 50
- 135 mm, Max. printing length 415 mm, Max. Printing Width 150 mm,
Min./max. Taper 0 - 12°, Max. Production Speed 600 Cups/ min,

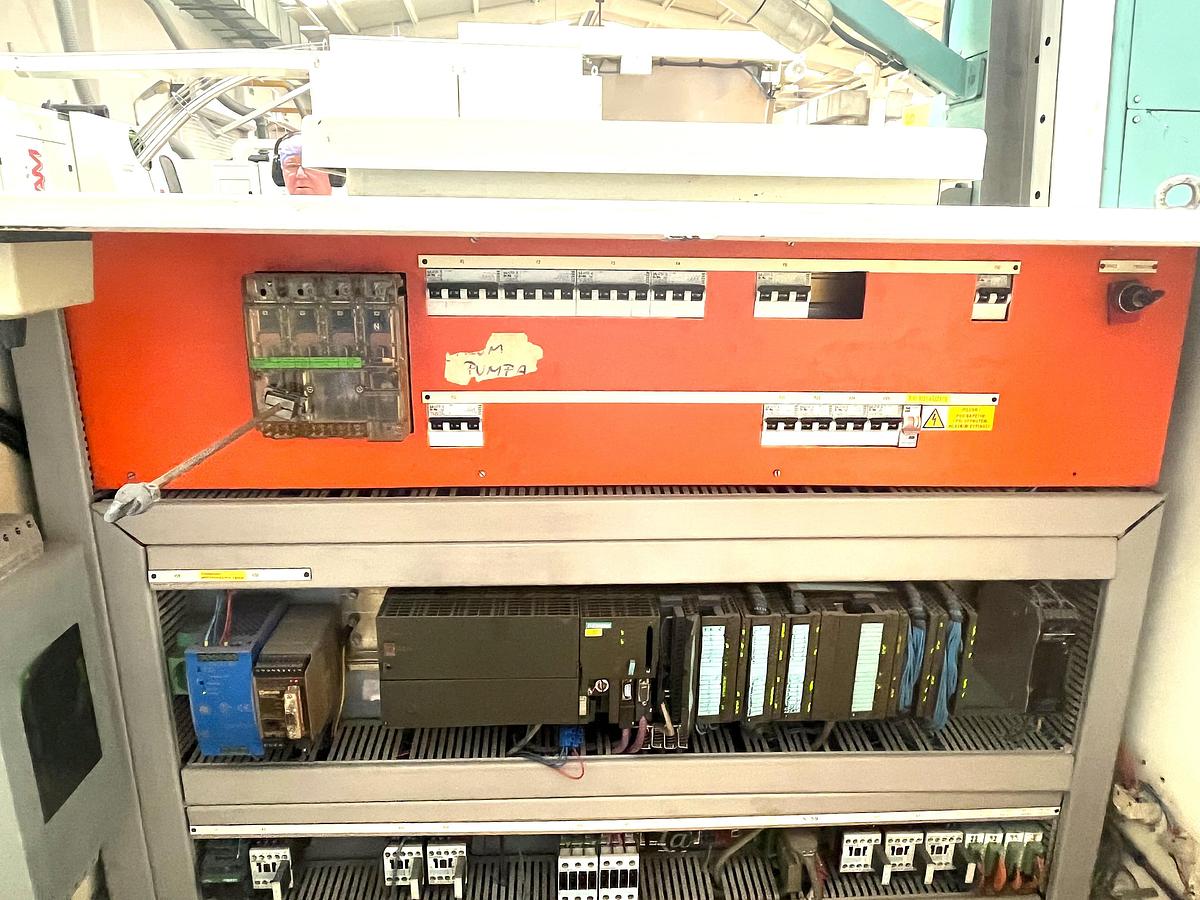

depending on Cup size and shape., SIEMENS SIMATIC TOUCH HM! with Touch

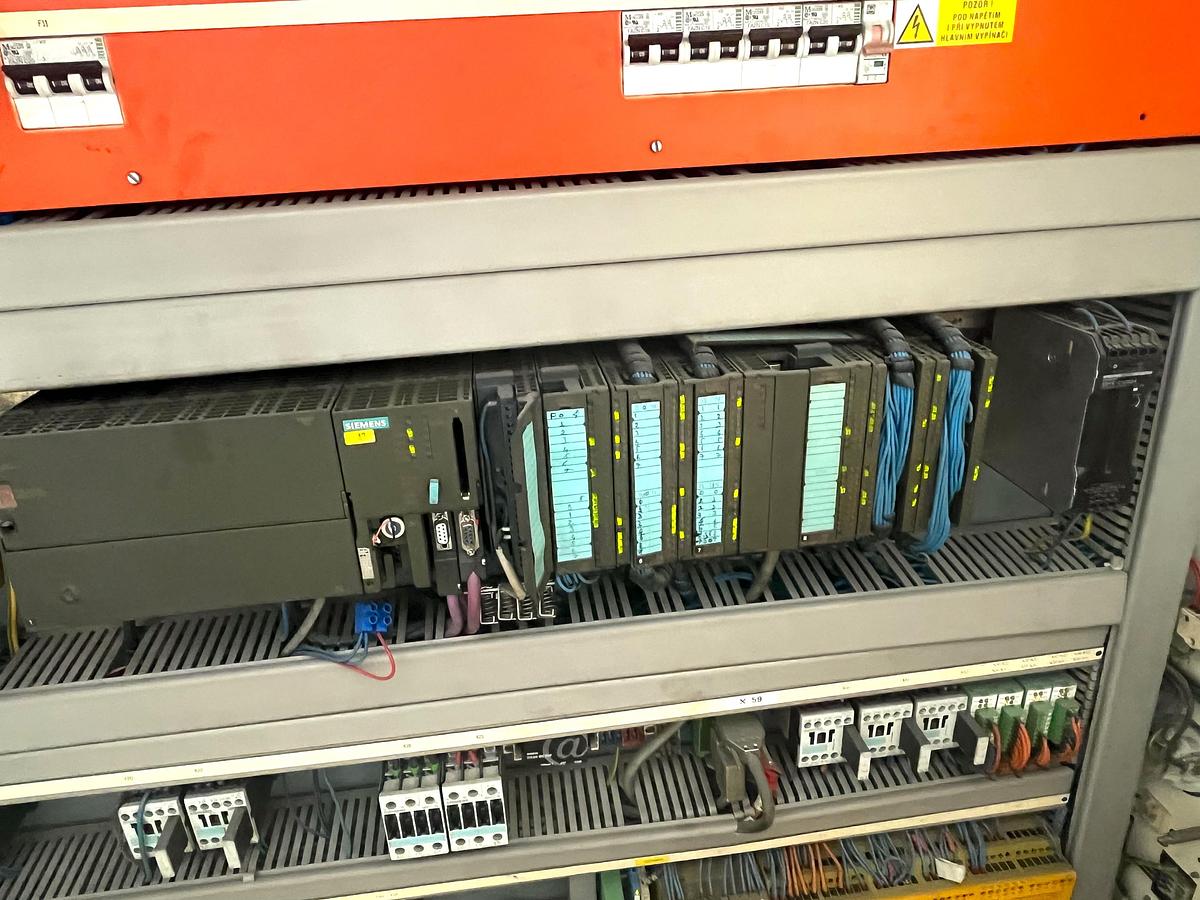

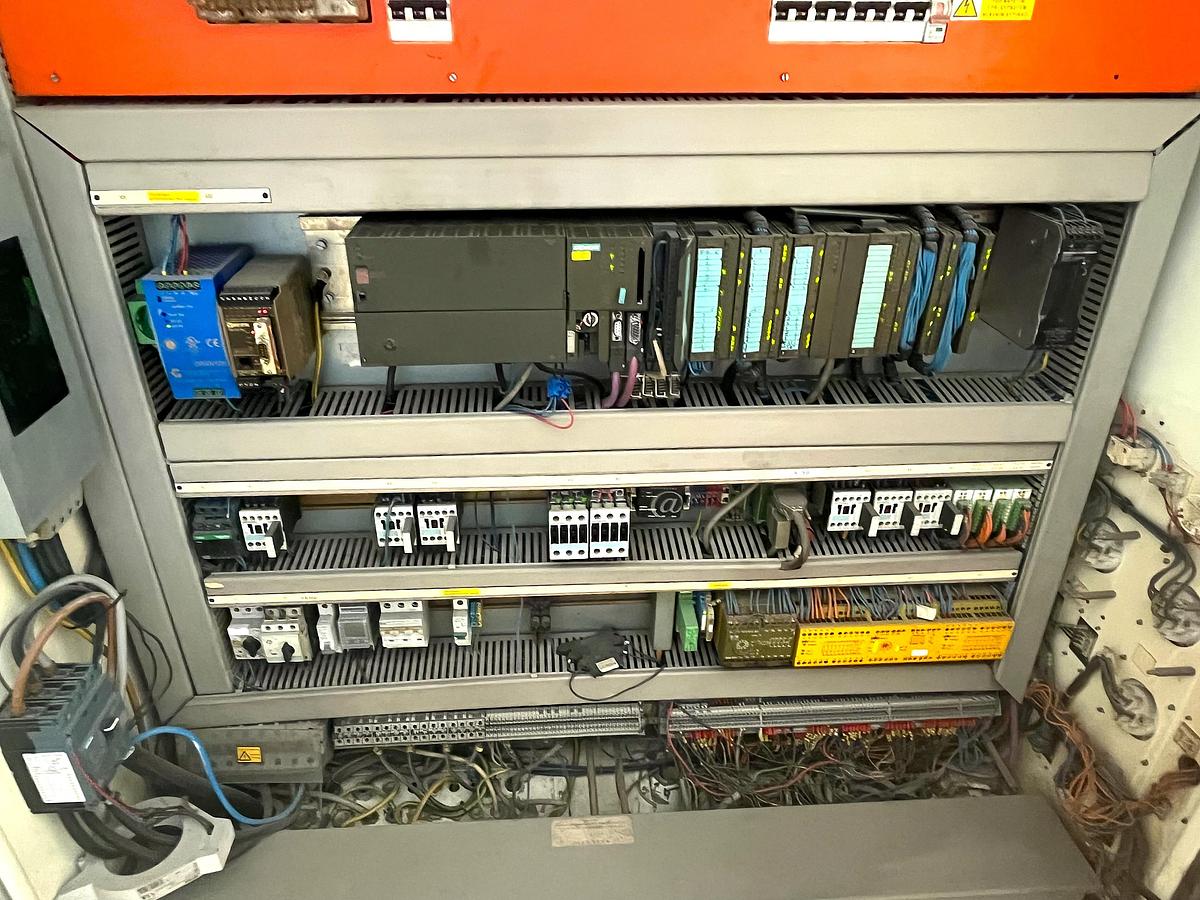

Controls and Color Display, SIEMENS S7 PLC Controls, Tool-Temp Chiller
HT-14-500H with Temperature controller, Integral Vacuum Pump, V. Good
Production Condition, continuously well maintained, Can be inspected
in production
