Welding Cell KUKA/GENIUS KR300-R2500/KR60-3/HWI408

metal çalışma makineleri / kaynak makineleri

Üretici: KUKA/GENIUS

model:KR300-R2500/KR60-3/HWI408

Makine türü: Welding Cell

madde-No: 168902613

miktar: 1

tarih: 02.04.2026

Üretim yılı: 2017

yer: Land-de Almanya Deutschland

fiyat:


Stoktaki makine:Hayır

Seller-item-No.:INNO31054

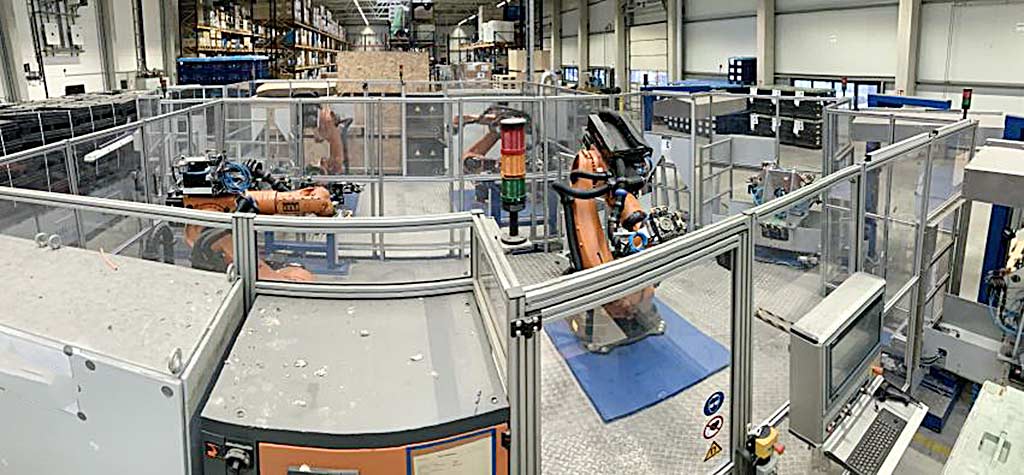

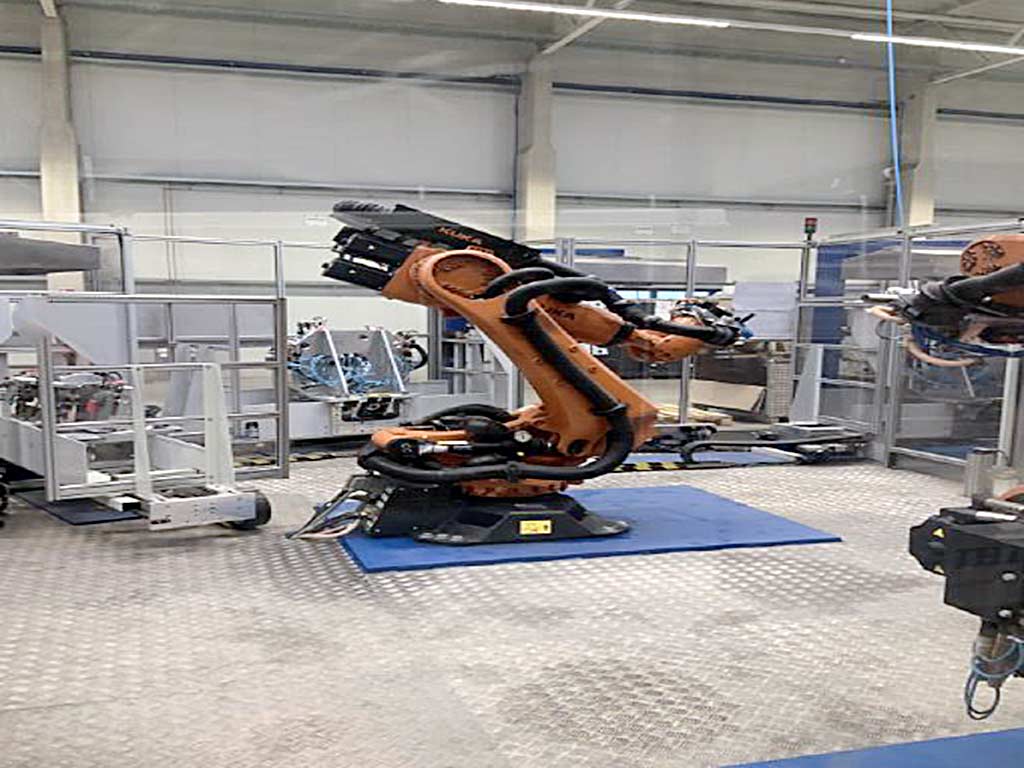

Two welding cells are available, each with two KUKA robots, one for workpiece handling and one for the welding process. 1) Welding process: resistance spot welding, robot: 2x KUKA KR 60-3, max. payload: 60kg, max. reach: 2033mm, repeatability: +/-0.06mm, controller: KR C4, axes: 6, power source: Genius HWI 408, max. output current: 600A, rated power: 80kVA, cell dimensions X/Y: approx. 7450mm/5250mm, robot hours 1/2: 4500h/8200h. 2) Welding process: resistance spot welding, robot: KUKA KR300 R2500, max. payload: 300kg, max. reach: 2496mm, repeatability: +/-0.6mm, controller: KR C4, axes: 6, power source: Genius HWI 408, max. output current: 600A, rated power: 80kVA, cell dimensions X/Y: approx. 7450mm/5250mm, robot hours 1/2: 2700h/6100h. Documentation available. An on-site inspection is possible. Individual sale possible.
