Hidrolik makas

Key data: 3050 mm, 12 mm, 1000 mm

Working length 3050 mm, sheet thickness at 400N/mm² up to 12 mm Cutting angle adjustable up to max 2.5 ° 16 Hold-down device Stroke rate 35 - 10 1/min Weight approx. 8500 kg Incl. NC backgauge and automatic adjustment of Cutting angle and cutting gap Footswitch, Manual Hydraulically operated machines are dispensed without oil filling!

Offer 24162 Specifications: - max. working width 3050 mm - max. cutting capacity - at 400 N/m² strength 6 mm - at 700 N/m² strength 4 mm - Adjustable cutting angle - Cutting gap adjustment via hand lever - Number of hydraulic hold-downs 14 pcs - Back gauge with positioning control AMADA 10 - 1000 mm - Front angle stop + support arm - Stroke rate 12 - 32 per/min - Drive 400 V / 12 kW - Table height approx. 800 mm - Space requirements incl. back gauge, without front support arms -ca. W 3800 x H 1950 x D 3200 mm - Transport width approx. 2200 mm - Weight approx. 6000 kg - With: - E - foot switch - Sheet metal holding -Mot. Material Conveyor Belt - Cutting length adjustment - Cutting line illumination

sheet width: 3050 mmplate thickness: 6,0 mmcutting angle: 0,5 - 3,0 °down holder: 18 Stückno. of strokes: 9 / 14 Hub/minback stop - adjustable: max. 750 mmControl: konv. engine output: 10,0 kWweight: 4800 kgrange L-W-H: 3750 x 1600 x 2450 mmFurnishing:- electro-hydraulic / slide-guided sheet metal shears- front control panel, left - easy to use- with electro-hydraulic cutting angle adjustment- with manual cutting gap adjustment, from the rear- electro-motorized back gauge 10-750 mm- with analogue position display + handwheel for fine adjustment- 1x extra long, robust side stop .. 3,000 mm- 1x extra long, robust support arm- 1x freely movable foot switch- front finger/encroachment protection- 2x EMERGENCY stop buttons at the front- User manual (PDF) Machine link:http://mhp.logotech.de/hpm/v7/Datenblatt/datenblatt.php?machineno =1008-9325333The data for this ad was created with ModulMWS  ...

sheet width: 3050 mmplate thickness: 6 mmdistance between columns: 3100 mmback stop - adjustable: 750 mmcutting angle adjustment: 0,5 - 3,0 °no. of strokes: 9 - 17 Hub/mintable height over floor: 775 mmtotal power requirement: 7,5 kWweight of the machine ca.: 4,5 tdimensions of machine L x W x H: 3,75 x 1,65 x 1,7 mAccessories: electr. back stop, angle front stop, table extensions, spare knivesThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Hydraulic guillotine shears Manufacturer Atlantic Type ATS3000 Year of construction 1996 max cutting thickness 6,0mm cutting length 3050mm New knife on machine in addition there are 2 knives plus 1 stump once new Machine is fully functional, has not been energized for 4 months Anschäge, circulation and documentation available.

Specifications: - max. working width 3050 mm - max. cutting capacity St 40 6 mm - Cutting angle adjustable mot. 0,5 - 3 ° - Cutting gap adjustment by hand - Number of hydraulic hold-downs 18 pcs -Mot. - Back gauge 10 - 750 mm - Front angle stop + support arms - Stroke rate depending on cutting angle and cutting length 9 - 17 per/min - Hydraulic drive 400 V / 7.5 kW - Table height 770 mm - Space requirements incl. back gauge, without front support arms -ca. W 3750 x H 1600 x D 1650 mm - Weight approx. 4500 kg - with: - E. - Foot - Switch - Cutting line illumination

sheet width: 3050 mmplate thickness: 12,0 mm STplate thickness: 8,0 mm VAno. of strokes: 7 - 14 Hub/mindown holder: 18 Stückcutting angle: 0,5 - 3,0 °work height max.: 930 mmback stop - adjustable: 1000 mmNumber of working hours: 18.822 htotal power requirement: 22,5 kWweight: 8.500 kgrange L-W-H: 4180 x 2030 x 2210 mmFurnishing:- Robust hydraulic, link-guided guillotine shears- Electro-motor backgauge with analogue display Fine adjustment via hand wheel, front left- Control panel, front left- manual cutting gap adjustment, from behind- electro-hydraulic cutting angle adjustment- Front finger protection- Stable front support table- 1x side stop with T-slot and millimeter scale- 3x support arms- 1x free moving footswitch- User manual (PDF) Machine link :http://mhp.logotech.de/hpm/v7/Datenblatt/datenblatt.php?machineno=100 8-9325234The data for this ad was created with ModulMWS - the sof ...

sheet width: 3050 mmplate thickness: 12 mmdistance between columns: 3100 mmtable height over floor: 900 mmcutting angle adjustment: 0,5 - 3 °no. of strokes: 6 - 13 Hub/minback stop - adjustable: 1000 mmdown holder: 18 Stoil volume: 350 ltotal power requirement: 22,5 kWweight of the machine ca.: 8 tdimensions of machine L x W x H: 3,96 x 2,38 x 2,22 mAccessories: electr. back gauge, spare knivesThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Type / type: ATSL 3013 Fabr./ make: Atlantic Year of construction/ year: 1992 Stock number: 0969 Sheet thickness with largest sheet width/ thickness at max. cutting length: 13 mm ( mild steel ) 6 mm ( stainless steel / high grade steel) Cutting length: 3050 mm Weight/ weight: approx. 8.6 t Specification: Backstop

sheet width: 3050 mmplate thickness: 6.0 mmcutting angle: 0.5 - 3.0 °down holder: 18 Stückno. of strokes: 9 / 14 Hub/minback stop - adjustable: 750 mmControl: SC7p engine output: 10.0 kWweight: 4800 kgrange L-W-H: 3750 x 1600 x 2450 mm from a maintenance workshop well maintained condition - checked annually ()Furnishing:- electro-hydraulic sheet metal shears - backdrop-guided- ATLANTIC NC control unit - model SC7p Target / actual information about the motorized back gauge Manual positioning possible via handwheel Digital display for backgauge position electro-hydraulic cutting angle adjustment Adjustable retraction from the back gauge before the start of the cut Front left control unit- electro-motorized back gauge 10-750 mm- manual cutting gap adjustment, from the rear- 1x front side stop, with mm scale- 3x front support arms- 1x freely movable foot switch- Finger protection at the fr ...

Hydraul. Table scissors, used, ready for demonstration under electricity       hydraulic plate shearer, used , under power, ready for operation Type: XTSL 3016 Fabr./ make : Atlantic Year of construction/ year: 1993 Sheet thickness with the largest sheet width/ thickness at max. cutting length: 16 mm ( structural steel / mild steel ) 12 mm ( stainless steel / high grade steel) Cutting width/ cutting length: 3100 mm Weight/ weight: approx. 14 t Specification: Rear stop / backstop

sheet width: 3050 mmplate thickness: 6 mmControl: SC5 back stop - adjustable: 750 mmtotal power requirement: 7,5 kWweight of the machine ca.: 4,5 tdimensions of the machine ca.: LTH 3,8 x 2,5 x 1,7 m- motorized backgauge- Electric cutting gap adjustment- electric Cutting angle adjustment- Footswitch- Front support arms 2.60 m.- pneumatic lifting device- Spare knife- Rear area monitoring optical sensorThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2560 mmplate thickness: 6.0 mmthickness at Niro-steel: 4.0 mmdistance between columns: 2600 mmdown holder: 12 Stückno. of strokes: 20 Hub/minoil volume: 160 ltr.cutting angle: 1.6 °Control: ELGO TYP 71 back stop - adjustable: max. 750 mmtotal power requirement: 11.37 kWweight: 3800 kgrange L-W-H: 3030 x 1910 x 1510 mm Current new price approx. 37.000 euros Special price on requestFurnishing:- Robust electric hydraulic swing cutter- Elgo type 71 digital control unit Driving back stop x = 750 mm play -free ball circuit spindle for back attack Speed 100 mm/sec- 1x side stop with a t-groove, flip stop and millimeter scale- 2x front reversing arms- Electrical cutting length limit Cutting length limitation to increase the number of lifts/min.- Manual interpretation- front finger/intervention protection- TIP operation with push buttons on the switch on the left- original operatin ...

sheet width: 3060 mmplate thickness: 8.0 mmthickness at Niro-steel: 6.0 mmdistance between columns: 3100 mmdown holder: 16 Stückno. of strokes: 10 Hub/minoil volume: 160 ltr.cutting angle: 1.6 °Number of working hours: ca. 2.100 hback stop - adjustable: 6.0 - 750 mmControl: total power requirement: 18.5 kWweight: 6300 kgrange L-W-H: 3900 x 2300 x 1630 mm from a maintenance workshop hardly used - only approx. 2.100 operating hours () New price approx. 40.000 euros Special price on requestFurnishing:- electro-hydraulic swing cutting shears- ELGO digital display model P9521, for electric back gauge Travel distance back gauge X = 750 mm Backlash-free ball screw for back gauge Back gauge beam can be automatically tilted up to maximum position for pushing extra long sheets through Travel speed 100 mm/sec- 1x stable side stop with T-slot, flip stop and millimeter scale- 2x front, stable supp ...

Offer 22408 Specifications: - max. working width 3050 mm - max. cutting capacity St 40 10 mm - Projection 270 mm -Cutting angle° - Cutting gap adjustment by hand - Number of hydraulic hold-downs 16 pcs - Mechanical backgauge 20 - 650 mm - Front angle stop + support arms - Stroke rate depending on cutting angle and cutting length 7 - 12 per/min - Hydraulic drive 400 V / 22 kW - Table height approx. 820 mm - Space requirements incl. back gauge, without front support arms -ca. W 3850 x H 2000 x D 2000 mm - Weight approx. 8500 kg - With: - E-foot switch - Cutting line illumination

sheet width: 3060 mmplate thickness: 10,0 mmthickness at Niro-steel: 6,0 mmback stop - adjustable: 5,0 - 1000 mmwork height max.: ca. 820 mmcutting angle: 2,4 °stroke: 7-12 p/min.down holder: 14 Stückoperating pressure: 360 barControl: ELGO oil volume: 200 ltr.voltage: 400 Vtotal power requirement: 22,0 kWweight: 9000 kgrange L-W-H: 4000 x 2300 x 2000 mmFurnishing :- robust / hydraulic swing shears- with ELGO digital control- electric backgauge 5.0 - 1,000 mm zero-backlash ball screw for backgauge Backstop beam can be automatically tilted up in max. position Speed 100mm/sec- 1x side stop- 2x front support arms- electrical cutting length limitation Cutting length limitation to increase the number of strokes/min.- manual cutting gap adjustment centrally operated on the right side stand- Machine side stand with overhang- Front support plates with ball rollers- front finger protection- Tip ...

Beyeler VE 6.5 x 4080 hydr. guillotine shears, Year of construction 1993, cutting width 4,000 mm, Backdrop-guided knife bar, Auto. Cut / angle adjustment Ermaksan, sheet thickness up to 10 mm, annual security check, Accessories spare knives,

offer 22537 Specifications: - working width 4040 mm - cutting capacity St 40 6 mm - Cutting angle hydro.adjustable 0.5 - 3 ° - Cutting gap adjustment hydr. - Number of hydraulic hold-downs 22 pcs -Mot. – Backgauge with positioning control 10 - 1000 mm - front angle stop + support arms - Stroke rate depending on cutting angle and cutting length 7 - 15 p/min - Hydraulic drive 400 V / 7.5 kW - Pneumatic connection 6 bar - Table height 770 mm - Space requirement approx. W 5100 x H 2250 x D 2150 mm - Weight approx. 9000 kg - with: - E-foot switch - Cutting line lighting - Pneumatically supported sheet metal lifting

sheet width: 2500 mmplate thickness: 3,0 mmdistance between columns: 2620 mmtrue cutting angle adjustable: - back stop - adjustable: 850 mmcutting gap adjustment: - mmtotal power requirement: kWweight of the machine ca.: 2,8 tdimensions: 3,2 x 1,8 x 1,7 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Hydraulic Shear COMESSA CP 316 Capacity: 3000 x 16 mm Back gear gauge travel: 1000 mm Throat depth: 500 mm Motor power: 35 CV Adjustable blades 4 cutting blade Voltage: 380 V Dimensions (L x W x H): 3500 x 2200 x 2400 mm Weight: 16,5 T

sheet width: 3100 mmplate thickness: 20 mmdistance between columns: mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mStocknumber 2110009Type of machine ShearMake DARLEYType GS 3100/20Build in 1987Type of control Incl. electric guidesheet widht 3100 mmPlate thickness 20 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Working width: 4100 mm sheet thickness: 6 mm radius: 100 mm rear gauge: 0-1000 mm power: 18.5 kW space: 4600 x 2200 x 1950 mm weight: 11000 kg

-Exhibition Machine- DERATECH Practica CNC hydraulic guillotine shears 3050 x 20 mm Available Model VAC-20 x 3050 mm Hydraulic kullissen-guided guillotine shears in robust design Cybelec CybTouch 8 controller Backgauge 1000 mm, foldable Angle stop 1000mm Support arms 1000 mm Knife for cutting VA material with 4 cutting edges Support table with ball rollers DWSQ0E Automatic cutting angle and cutting gap adjustment CE

Hydraulic guillotine shears - ordering machine (delivery time approx. 10-14 weeks) - incl. foot switch, touchscreen, rear installation room with light barrier monitoring, cutting gap automatic/electric, cutting angle automatic/electric, hydraulic hold-down, mot. Backgauge up to 1000 mm depth -Illustrations similar- Hydraulic plate shear - order machine (delivery time approx. 10-14 weeks) - incl. foot switch, touchscreen, rear set-up area with light barrier monitoring, automatic/electrical cutting gap, automatic/electrical cutting angle, hydraulic hold-down, mot. backgauge up to 1000 mm -images similar-

Guillotine shears type 3000x8

Hydraulic guillotine shears - ordering machine (delivery time approx. 10-14 weeks) - incl. foot switch, touchscreen, rear installation room with light barrier monitoring, cutting gap automatic/electric, cutting angle automatic/electric, hydraulic hold-down, mot. Backgauge up to 1000 mm depth -Illustrations similar- Hydraulic plate shear - order machine (delivery time approx. 10-14 weeks) - incl. foot switch, touchscreen, rear set-up area with light barrier monitoring, automatic/electrical cutting gap, automatic/electrical cutting angle, hydraulic hold-down, mot. backgauge up to 1000 mm -images similar-

sheet width: 3000 mmplate thickness: 10 mmdistance between columns: mmtotal power requirement: kWweight of the machine ca.: 9,8 tdimensions of the machine ca.: 4,15 x 3,55 x 2 mBrand: DurmaType: DHGM 3010Year of make: 2002Knife length: 3.000 mmPlate thickness: 10 mmElectric backstopMachine dimensions (lxwxh): 4.150 x 3.550 x 2.000 mmMachine weight: 9.800 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 3100 mmplate thickness: 6.0 mmthickness at Niro-steel: 4.0 mmdistance between columns: 3120 mmdown holder: 16 Stückoil volume: 200 ltr.cutting angle: 1° 30 no. of strokes: 15 Hub/mincontrol: ENC 100 table width: 500 mmthroat: 50.0 mmNumber of working hours: 912 htotal power requirement: 15.0 KWweight: 7650 kgrange L-W-H: 3810 x 2200 x 2050 mm from a maintenance workshop () very good / well-maintained condition (as new) with only 912 operating hours current new price ~ 45.000 euros Special price on request-------------------------------------------------- NC electro-hydraulic swing cutting shear with DURMA ENC 100M control manual cutting gap adjustment Incl. pneumatic sheet metal holding device for thin sheet metal cuts-------------------------------------------------- Furnishing:- robust electro-hydraulic swing cutting shears- including DURMA ENC 100M NC control unit Backg ...

sheet width: 3100 mmplate thickness: 10,0 mmthickness at Niro-steel: 6,0 mmdistance between columns: 3120 mmdown holder: 16 Stückoil volume: 200 ltr.cutting angle: 1°50 no. of strokes: 13 Hub/mincontrol: ENC 100M table width: 580 mmthroat: 50,0 mmtotal power requirement: 22,0 KWweight: 9300 kgrange L-W-H: 4200 x 2250 x 2100 mm from a maintenance workshop New price ~ 55.000 euros-------------------------------------------------- robust electro-hydraulic oscillating shears with DURMA ENC 100M NC control Manual cutting gap adjustment, via eccentric-------------------------------------------------- Furnishing:- electro-hydraulic oscillating shears- with DURMA ENC 100M control Backgauge preselection - X axis Number of pieces Cutting length limitation Swivel control, left front- motorized backgauge, travel = 1.000 mm (X axis) on ball screws Travel speed 200 mm/sec.- Manual cutting gap adjust ...

Maximum cutting length: 3080 mm Maximum sheet thickness during cutting: 6 mm Maximum cutting angle: 2 st Total power requirement: 11 kW Rear stop: 1000 mm Machine height: 1950 mm Machine length: 4100 mm Machine width: 2050/3650 mm Machine weight: 7980 t

offer 21001 Specifications: - working width 3050 mm - cutting capacity St 40 10 mm - Cutting angle 2 ° - Cutting gap adjustment by manual hand - Number of hydraulic hold-downs 17 pcs - Motor - Backgauge 20 - 1000 mm - front angle stop + support arms - Hydraulic drive 400 V / 22 kW - Table height approx. 900 mm - Space requirements incl. backgauge, without front support arms -ca. W 3900 x H 1950 x D 2250 mm - Weight approx. 7800 kg - with: - E-foot switch - Cutting line illumination - - Cutting length preselection

Key data: 1050 mm, 3 mm, 1000 mm

Max. cutting length: 1050 mm Max. sheet thickness: 3 mm steel Motorized backgauge up to 1000 mm with fine adjustment via handwheel Shear angle adjustment Knife sharpened Operating instructions Weight: approx. 1400 kg

sheet width: 1050 mmplate thickness: 3,00 mmdistance between columns: mmtotal power requirement: kWweight of the machine ca.: 1,40 tdimensions of the machine ca.: mMotorized back gauge up to 1000 mm with fine adjustment via handwheelShear angle adjustmentKnife sharpenedoperation manualThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 3050 mmplate thickness: 16,00 mmdistance between columns: mmcutting gap: 0,05 mmcutting angle adjustment: 1,4 °quantity of oil: 400 ltotal power requirement: 22 kWweight of the machine ca.: 9,20 tdimensions of the machine ca.: mCutting edges 2/4 – top/bottomCutting angle adjustable 1-4°Cutting gap fixed at 0.05mmDimensions approx. L 4.40 x W 2.15 (plus support arms) x H 2.20 m• Controlled backgauge 1000 mm• ELGO P8721 control• Automatic cutting angle adjustment• Foldable finger protection 1000 mm• Angle stop• Support armsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

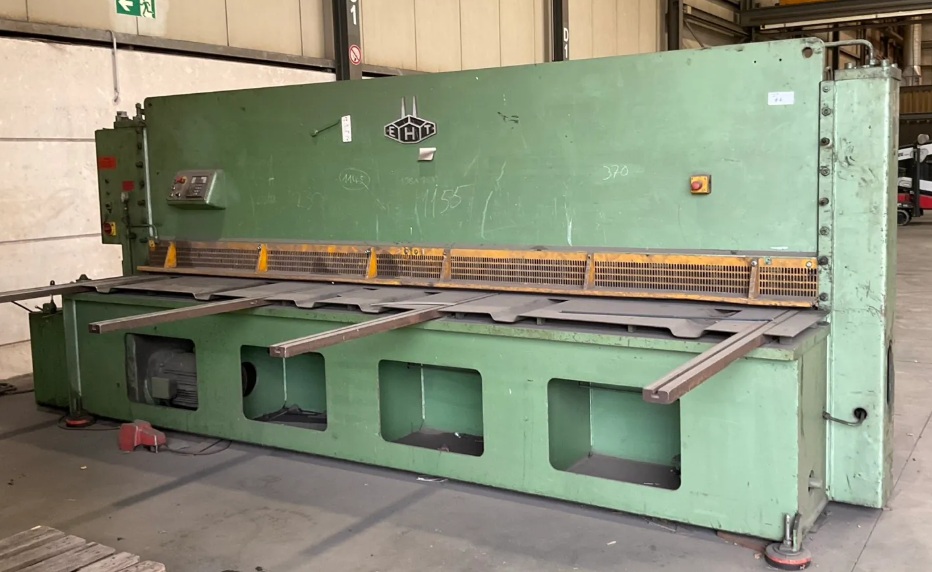

sheet width: / mmplate thickness: / mmdistance between columns: / mmManufacturer: EHTType: TSS 20-25Year of construction: 1994Max. Cutting length: 2250 mmMax. Sheet thickness: 20 mmStrip width min / max: 10/1000 mmDistance between the consoles: 2530Height above the ground: 900 mmTable length without extension arms: 3030 mmOil volume: 800 lMax. Pressure: 280 barOperating voltage: 400VControl voltage: 230 V.Nominal current: 87 A.Weight: 15.8 toDimensions L x W x H: 3500 x 2500 x 2400 mmAccessories / special equipmentPneumatic cutting gap adjustmentCutting length limitationRoller conveyor elevation bracketHand protection 1 bayMultitron control Multitron PS 80, ELCO 85 PLower knife height adjust ...

Technical data: -maximum cutting width 3050 mm -maximum cutting capacity at 45 KP / mm² 4 mm -hydr... Cutting angle adjustment - number of holders of 18 PCs -Speed up to 24 / min -front angle stop 1100 mm -3 PCs front support arms 750 mm -mot. Backgauge positioning control 5-1000 mm - sheet reversible - cutting line illumination -E - foot switch -Rear area protection with light barrier -Drive 400 V / 9.5 kW -Space requirement approx. B 3900 x H 1850 X 2100 mm -Weight approx. 5.7 t

sheet width: 5000 mmplate thickness: 6 mmdistance between columns: 5030 mmthroat: 340 mmweight of the machine ca.: 14 tdimensions of the machine ca.: 5500 x 2250 x 2200 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 3100 mmplate thickness: 10 mmrear stop: 1000 mmthroat: 350 mmcutting angle: 2,0 °down holder: 14 Stkno. of strokes: 13 Hub/mintotal power requirement: 22 kWdimensions of the machine ca.: 4050 x 2500 x 2170 mmweight of the machine ca.: 10575 kg-------------------------------------------------- ---------heavy electr. / hydraulic CNC swing cut shears with CYBELEC CNC touch screen control with electr. / hydr. Kerf adjustment-------------------------------------------------- ---------Furnishing:- CNC electr. / hydraulic swing cut shears- CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material preselection, including sheet thickness Cutting line lighting- motorized backgauge, travel = 1,000 mm (X axis) on ball screws autom. Can be folded up at max.travel, for longer cuts- 1x s ...

sheet width: 3100 mmplate thickness: 10 mmrear stop: 1000 mmthroat: 350 mmcutting angle: 2,0 °down holder: 14 Stkno. of strokes: 13 Hub/mintotal power requirement: 22 kWdimensions of the machine ca.: 4050 x 2500 x 2170 mmweight of the machine ca.: 10575 kg-------------------------------------------------- ---------heavy electr. / hydraulic CNC swing cut shears with CYBELEC CNC touch screen control with electr. / hydr. Kerf adjustment-------------------------------------------------- ---------Furnishing:- CNC electr. / hydraulic swing cut shears- CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material preselection, including sheet thickness Cutting line lighting- motorized backgauge, travel = 1,000 mm (X axis) on ball screws autom. Can be folded up at max.travel, for longer cuts- 1x s ...

sheet width: 3100 mmplate thickness: 10 mmrear stop: 1000 mmthroat: 350 mmcutting angle: 2,0 °down holder: 14 Stkno. of strokes: 13 Hub/mintotal power requirement: 22 kWdimensions of the machine ca.: 4050 x 2500 x 2170 mmweight of the machine ca.: 10575 kg-------------------------------------------------- ---------heavy electr. / hydraulic CNC swing cut shears with CYBELEC CNC touch screen control with electr. / hydr. Kerf adjustment-------------------------------------------------- ---------Furnishing:- CNC electr. / hydraulic swing cut shears- CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material preselection, including sheet thickness Cutting line lighting- motorized backgauge, travel = 1,000 mm (X axis) on ball screws autom. Can be folded up at max.travel, for longer cuts- 1x s ...

sheet width: 2100 mmplate thickness: 6 mmrear stop: 1000 mmcutting angle: 1,2 °down holder: 11 Stkno. of strokes: 28 Hub/minoil volume: 150 ltotal power requirement: 11 kWdimensions of the machine ca.: 3010 x 2100 x 1640 mmweight: 4500 kg Available from stock-------------------------------------------------- ---------electrical / hydraulic CNC swing cutting shear with CYBELEC CNC touch screen control with electric / hydr. Cutting gap adjustment-------------------------------------------------- ---------Furnishing:- CNC electrical / hydraulic swing cutting shears- CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material selection, including sheet thickness Cutting line lighting- motorized back gauge, travel = 1,000 mm (X axis) on ball screws automatic Can be folded up at maximum travel ...

sheet width: 2100 mmplate thickness: 6 mmrear stop: 1000 mmcutting angle: 1,2 °down holder: 11 Stkno. of strokes: 28 Hub/minoil volume: 150 ltotal power requirement: 11 kWdimensions of the machine ca.: 3010 x 2100 x 1640 mmweight: 4500 kg Machine as new, first commissioned in 2020Furnishing:- hydraulic swing cut- Shears with electric cutting gap adjustment- Touch screen controller- NC controller for backgauge preselection, cutting gap adjustment, number of pieces, cutting length and material preselection- 1 side stop- 2 front support arms- Cutting line lighting- Cutting length limitation- Foldable finger protection with limit switch- motorized back gauge, travel = 1000 mm- Ball rollers in the front support table- BOSCH/HOERBIGER hydraulic system- SIEMENS electrical system- Light barrier behind the machine- Footswitch- CE mark/declaration of conformity- Operating manual: machine and cont ...

sheet width: 3100 mmplate thickness: 6 mmrear stop: 1000 mmcutting angle: 1,2 °down holder: 14 Stkno. of strokes: 18 Hub/mintotal power requirement: 11 kWdimensions of the machine ca.: 4.000 x 2.100 x 1.640 mm-----------------------------------------------------------electr. / hydraulic CNC swing cut shears with CYBELEC CNC touch screen control with electr. / hydr. Kerf adjustment-----------------------------------------------------------F urnishing:- CNC electr. / hydraulic swing cut shears- CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material preselection, including sheet thickness Cutting line lighting- motorized backgauge, travel = 1,000 mm (X axis) on ball screws autom. can be folded up at max.travel, for longer cuts- 1x side stop- 2x front support arms- Ball rollers in the f ...

sheet width: 3100 mmplate thickness: 6 mmrear stop: 1000 mmcutting angle: 1,2 °down holder: 14 Stkno. of strokes: 18 Hub/mintotal power requirement: 11 kWdimensions of the machine ca.: 4.000 x 2.100 x 1.640 mm-----------------------------------------------------------electr. / hydraulic CNC swing cut shears with CYBELEC CNC touch screen control with electr. / hydr. Kerf adjustment-----------------------------------------------------------F urnishing:- CNC electr. / hydraulic swing cut shears- CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material preselection, including sheet thickness Cutting line lighting- motorized backgauge, travel = 1,000 mm (X axis) on ball screws autom. can be folded up at max.travel, for longer cuts- 1x side stop- 2x front support arms- Ball rollers in the f ...

Control Cybelec ... DNC 60 cutting length ... 2600 mm sheet thickness ... 8mm Drive... Hydraulic L x W x H ... 3550x2020x1850mm Machine weight... 6200kg Main engine power ... 15kW The machine is in good condition, possible to test under power.

sheet width: 3100 mmplate thickness: 6 mmrear stop: 1000 mmthroat: 350 mmcutting angle: 0,5 - 1,5 °down holder: 14 Stkno. of strokes: 16 - 24 Hub/mintotal power requirement: 11 kWdimensions of the machine ca.: 4100 x 2200 x 2190 mmweight of the machine ca.: 7060 kg-------------------------------------------------- ---------heavy electr. / hydraulic CNC swing cut shears with CYBELEC CNC touch screen control with electr. / hydr. Kerf adjustment-------------------------------------------------- ---------Furnishing:- CNC electr. / hydraulic swing cut shears- CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material preselection, including sheet thickness Cutting line lighting- motorized backgauge, travel = 1,000 mm (X axis) on ball screws autom. Can be folded up at max.travel, for longer c ...

sheet width: 3100 mmplate thickness: 6 mmrear stop: 1000 mmthroat: 350 mmcutting angle: 0,5 - 1,5 °down holder: 14 Stkno. of strokes: 16 - 24 Hub/mintotal power requirement: 11 kWdimensions of the machine ca.: 4100 x 2200 x 2190 mmweight of the machine ca.: 7060 kg-------------------------------------------------- ---------heavy electr. / hydraulic CNC swing cut shears with CYBELEC CNC touch screen control with electr. / hydr. Kerf adjustment-------------------------------------------------- ---------Furnishing:- CNC electr. / hydraulic swing cut shears- CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material preselection, including sheet thickness Cutting line lighting- motorized backgauge, travel = 1,000 mm (X axis) on ball screws autom. Can be folded up at max.travel, for longer c ...

FASTI guillotine shears Effective length: 1030mm Maximum sheet thickness: 2.5mm

sheet width - max.: 2035 mmplate thickness: 6.0 mm STplate thickness: 4.0 mm VAplate thickness: 8.0 mm ALUnumber of strokes - loaded: 20 Hübe/mincutting angle: 1.7 °work height max.: 900 mmNumber of working hours: 1.450 hControl: LENORD total power requirement: 11.0 kWweight of the machine ca.: 4100 kgrange L-W-H: 2416 x 2250 x 1760 mm Machine from prototype construction Machine with only approx. 1.450 operating hours ()Furnishing:- electro-hydraulic guillotine shears- electro-motorized backgauge with NC control unit (Lenord + Bauer)- electrical cutting length limitation- manual cutting gap adjustment- 1x stable side stop, with scale and tilting cam- 2x front support arms- 1x freely movable foot switch- Operating instructions (PDF) + circuit diagram Special accessories included:- pneumatic sheet metal holding device for thin sheet metal cuts Machine link:http://mhp.logotech.de/hpm/v7/D ...

cutting length: 3040 mm sheet thickness: 4 mm steel Motorized rear gauge with digital display up to 1000 mm Side stop and table lengths Cutting length limitation Cut edge illumination Weight approx. 4500 kg
