Fabricante:
(Categoria: 102)
turning diameter over bed:2600 mmturning diameter over slide rest:2200 mmturning length:5000 mmfaceplate:2050 mmnumber of spindle speeds:0,7 - 70 rpmtotal power requirement:ca. 22 kwHeight of centres: 1350 mmDistance between centres: 5000 mmSwing over cross slide: 2600 mmSpindle power: 30 HPSpindle speed: 0,7 - 70 rpmLongitudinal swiftControl on the carriageChuck: diam. 2050 mm
faceplate diameter:1000 mmswing diameter:1600 mmturning height:1200 mmmain drive:75 kWfaceplate speeds from - to:7 - 800 U/minmilling motor:25 kWmilling head speed:7 - 3000 U/minmilling spindle - taper:ISO 50cross rail adjustment - vertical:800 mmram head dimension:240 x 240 mmweight of the machine ca.:40 todimensions of the machine ca.:9 x 7,8 x 6,0 mMachine general overhould in 2004 and equiped with Siemens 840 D control- tool changer rack magazine- C-axis, live tooling, - Transmit function electronical Y-axis- angular milling head - complete splash housing - coolant device, chip conveyor
faceplate diameter:1400 mmswing diameter:2000 mmturning height:1270 mmmain drive:80 kWfaceplate speeds from - to:1 - 355 U/minmax. workpiece weight:6.000 kgmilling motor:37 kWmilling head speed:7 - 3000 U/minmilling spindle - taper:ISO 50cross rail adjustment - vertical:800 (8 x 100 mm) mmram head dimension:240 x 240 mmmax. ram stroke:1250 mmweight of the machine ca.:50 tototal power requirement:133 kVAdimensions of the machine ca.:11 x 5 x 6,4 mMachine general overhould in 2008 and equiped with CNC SIEMENS 840 D control- tool changer for 72 tools- C-axis, live tooling- angular- and straight tool holder head with CAPTO taper - Transmit function- complete splash housing - coolant device, chip conveyor- diverse accessories
:KVL-450 | KVL-600 | KVL-800| KVL-1100 turning diameter:450|600|800|1100 mmswing diameter:550|650|1000|1250 mmturning height:450|500|750/950|1000 mmspindle nose:A2-8|A2-8|A2-11|A2-15 table rotation speed:50-2500|50-2250|20-1500|20-600 U/minTravel of Ram (vertical):450|500|800 / 1000 (Opt.)|1000 mmTravel of ram (horiz.):300|340|500|700 mmrapid power traverse in X-and Z direction:20/24|20/24|20/20|10/10 m/minTool changer:8/10/12 mit vertikaler oder horizontaler Scheibe tool taper:VDI40/VDI50 oder Schaftaufnahme drive capacity - spindle motor:11/15|15/18.5|18.5/22|37/45 kWMachine height:2600|2910|4020|4605 mmweight of the machine ca.:4500|6000|13000|18000 kghydraulic motor:2,2 kWservo motor X-axis:1,6|1,6|4|7 kwservo motor Z-axis:3|3|7|7 kwcoolant pump drive:0,75+1,1|0,75+1,1|0,75+0,75+1,1|0,75+0,75+1,1 kW:35|40|50|70 kvaCNC controller:Siemens/Fanuc/Fagor CNC controls from:Siemens/Fanuc/Fag ...
turning diameter:300 mmswing diameter:350 mmturning height:275 mmx-axis:925 mmz-axis:250 mmclamping chuck diameter:200 mmFeed speed:30 m/min.total power requirement:45 kWweight of the machine ca.:7 tMachine was used just from time to time in the last years - very good condition!with CNC SIEMENS 840 D12-station turret head with driven toolingsworkpiece in and out conveyor beltcoolantattachment and chip conveyordiverse accessories
turning diameter over bed:1000 mmturning diameter over slide rest:745 mmturning length:3000 mmturning speed range:4,5 - 900 U/minspindle bore:110 mmmax. workpiece weight between centres:12500 kgtotal power requirement:30 kWweight of the machine ca.:9 tdimensions of the machine ca.:5,2 x 2,3 x 2 m3-axes digital readoutrapid feed, feed at upper support 350 mm 1 fixed steadyface plate diameter 1000 mmcoolant attachment
turning diameter:275 mmturning length:900 mmspindle passage:65 mmpower capacity at 100 % load:25/20 kWspindle turning speed range:1 - 5000 U/minspindle diameter in front bearing:110 mmc-axis:1 - 500 U/min.number of workpiece supports:4 tool turret:1 x-axis:290 mmy-axis:165 mmz-axis:360 mmb-axis:360 °rapid speed:18/30 m/minnumber of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mmtoolpiece turning speed range:8000 / 2000 U/minpower capacity:25% ED 5,8 kWtool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mmz-axis:600/950 mmy-axis:+/- 60 mmrapid speed:18/15/30 m/minnumber of driven tools:10 mmtoolpiece turning speed range:1 - 6000 U/minpower capacity:25% ED 5,8 kWtool taper:DIN 69880 40 x 63 total power requirement:95 kWweight of the machine ca.:16 tdimensions of the machine ca.:10,0 x 3,5 x 3,0 mwith CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000,Main and Sub spindle with C-axis1 ...
turning diameter:830 mmturning length:4000 mmturning diameter over bed slide:540 mmspindle bore:130 mmturning speed range:2 - 1600 U/minrapid speed:4 / 5 m/minfeed speeds:1 - 2000 mm/mintotal power requirement:55 kWweight of the machine ca.:7,5 tdimensions of the machine ca.:7 x 2,2 x 2 mwith Teach In controll R&D MTC-KMULTIFIX toolpost size Dcoolant attachment
turning diameter:500 mmturning length:1500 mmturning diameter over bed slide:290 spindle bore:71 mmturning speed range:3 - 2800 U/minrapid speed:10 / 5 m/minfeed speeds:1 - 2000 mm/mintotal power requirement:22 kWweight of the machine ca.:3,2 tdimensions of the machine ca.:3,0 x 1,6 x 2 mwith Teach In controll R&D MTC-KPARAT toolpost 1 fixed steday dia. 100 mm4 jaw face plate dia. 500 mmcoolant attachment

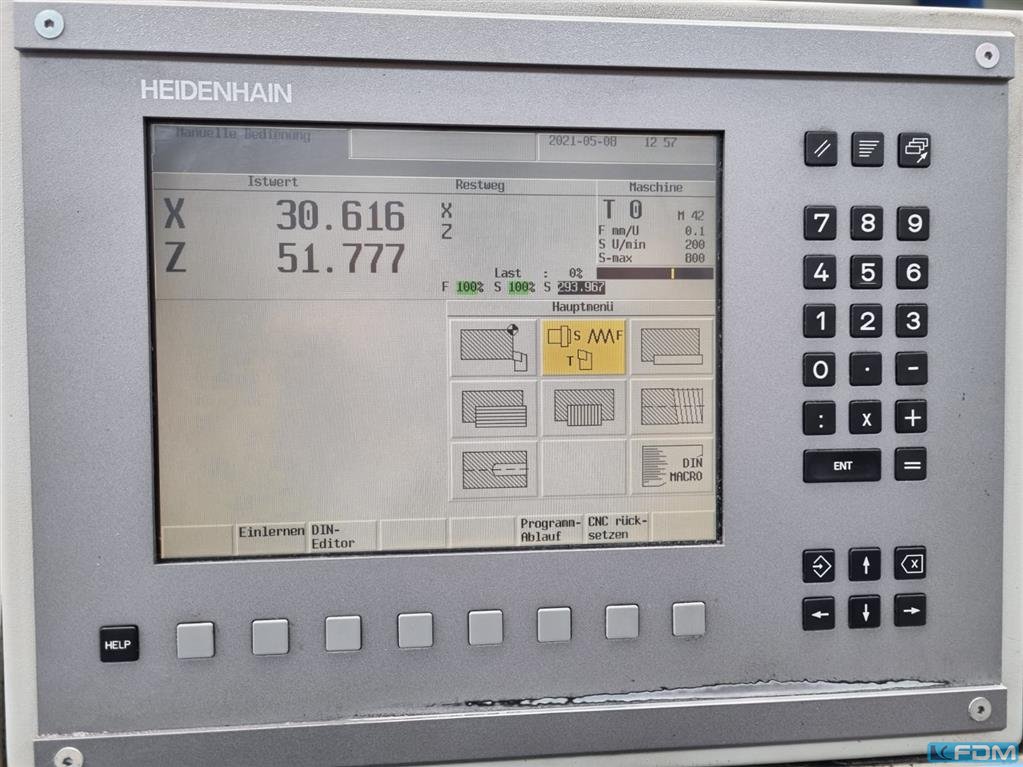

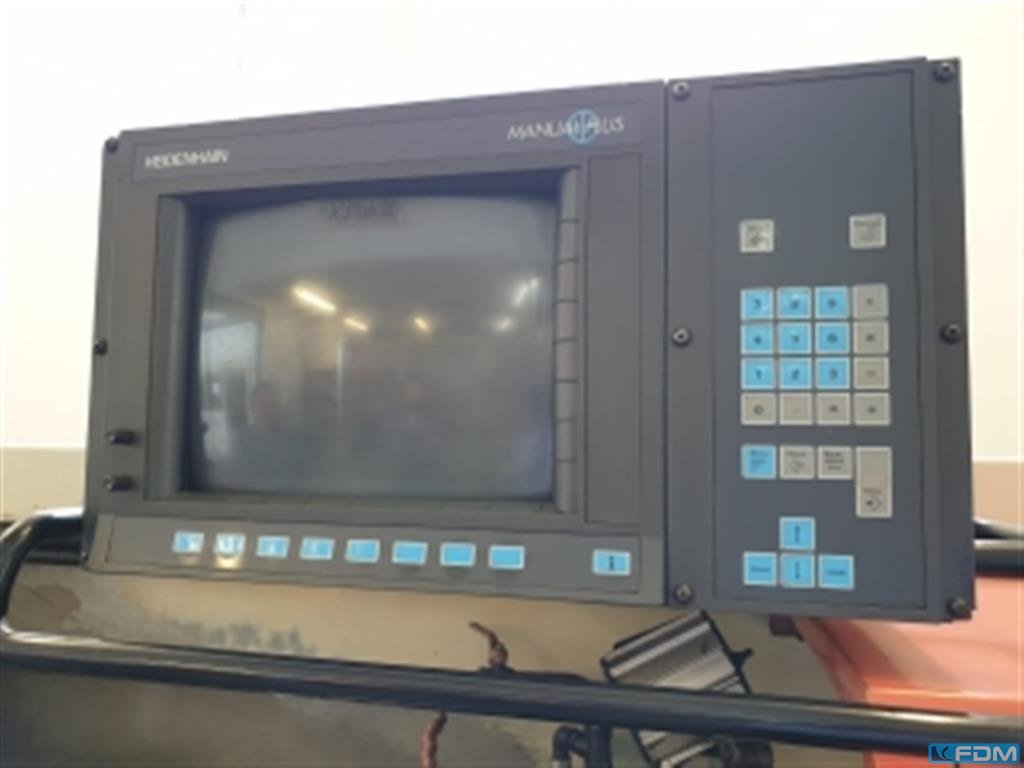

turning diameter:500 mmturning length:1500 mmspindle motor:16 kWSpindle RPM:1 - 2500 1/mintaper in tailstock MT:5 tailstock quill stroke:160 mmtailstock quill diameter:70 mmtotal power requirement:22 kWweight of the machine ca.:3,2 tdimensions of the machine ca.:3,2 x 1,8 x 1,4 mMachine with Heidenhain Manual plus control- Multifix quick tool change device- 3-jaw chuck- sliding splash door- various accessories.
turning diameter over bed:340 mmturning diameter over slide rest:190 mmturning length:700 mmspindle turning speed range:40 - 3000 U/minspindle bore:50 mm
turning diameter:65 mmturning length:80 mmtotal power requirement:30 kWspindle bore:79 mmspeeds:25 - 4500 U/minslide I - cross travel:155 mmslide II - cross travel:82 mmlongitudinal traverse (z-axis):280 / 130 mmweight of the machine ca.:6,5 tdimensions of the machine ca.:10,8 x 3,8 x 1,8 m
Spindle bore: 51mm; X/Y/Z-axis travel: 197/88,90/635mm Maximum swing over way covers: 673mm Maximum machining diameter: 313,7mm Maximum spindel speed: 5000 rpm; Turret type: BMT 55; Amount of tool places (driven): 12 (12); Driven tool speed: 8.000 rpm Control system: Fanuc 31i; Total dimensions LxWxH: 3300x2200x2150mm Equipped with: Marposs Tool pre setter, Marposs T25 taster, Knoll chip conveyor, Knoll paper filter, ISI oil mist filter, Habor / Turmoil cooler, Auction-ID: A1-43127-3
turning diameter over bed:500 mmturning diameter over slide rest:310 mmturning length:1500 mmspindle turning speed range:7 - 710 U/minfeed range:5,6 - 224 mm/mintotal power requirement:15 kWweight of the machine ca.:3,7 tdimensions of the machine ca.:2,9 x 1,4 x 1,6 mMachine with 2-axis digital readout- MULTIFIX quick tool change device- 3-jaw chuck
turning diameter:800 mmturning length:2965 mmmax. turning dia. over saddle:520 mmspindle bore:92 mmturning speed range:3 - 1800 U/minspindle head:Größe 11 total power requirement:37 kWweight of the machine ca.:6,5 tdimensions of the machine ca.:5,2 x 2,2 x 1,9 mTeach In Control MTC-K3-jaw chuck ROTAS Dia. 400 mmface plate RÖHM Dia. 630 mm4-station toolholder system PARAT 1 fixed steady coolant attachment and chip conveyor
turning diameter over bed:570 mmturning diameter over slide rest:365 mmturning length:2000 mmfeed per revolution:0,06 - 58 / 0,03 - 28 mmspindle turning speed range:11,2 - 2240 U/minspindle bore:62 mmspindle head:8 nach DIN 55022 total power requirement:15 kWweight of the machine ca.:4,8 tdimensions of the machine ca.:4,5 x 1,5 x 1,4 mwith digital readout HEIDENHAINrapid feed, MULTIFIX toolholder system fixed steady dia. 160 mm 3 jaw chuck RÖHM TR 250 coolant attachmentdiverse toolholders, diverse jaws
turning diameter: 400 mmturning length: 3000 mmcontrol: ECS greates pass round over bed: 800 mmcentre distance: 3000 mmtotal power requirement: 30 kWweight of the machine ca.: 7 tdimensions of the machine ca.: mEquipment:3 Chucks3 Steady restChip ConveyorThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning diameter: - mmturning length: - mmcontrol: M 730 BM total power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mCNC control:M 730 BMCenter distance: 500 mmMain spindle:Speed: 5000 rpmPower: 15/11 kW (15% duty cycle / constant)Bar diameter: 65 mmSub spindle:Speed: 6000 rpmPower: 11/7.5 kW (25% duty cycle / constant)Turret:12 stationsTool spindle speed: 10000 rpmPower: 5.5/3.7 kW (5 minutes / constant)Y-axis travel: +/- 50 mmEquipment:Machine with gantry loader:Left-hand installation, 14-station storage, 20-pallet workpiece storage,Double gripper conveyor3-jaw hydraulic KITAGAWA power chuck, 210 mm diameterHigh/low pressure chuck system for main and counter spindlesMABEO high-pressure pump with 1.5 MPa filter unitCoolant gunCoolant sprayer on the chuck for main and counter spindlesCoolant sprayer for the machine bed claddingOil mist separatorHinged bel ...
X1/X2-axis travel: 630/230mm Y-axis travel: 230mm Z1/Z2-axis travel: 1585/1530mm W-axis travel: 1530mm X1/X2/Y/Z1/Z2/W-axis rapid traverse: 38/38/26/38/38/30 m/min Maximum working length: 1524mm Maximum working diameter: 760mm Main spindle speed: 35-4.000 rpm Sub spindle speed: 35-4.000 rpm Main/sub spindle bore: 88mm Main/sub spindle power: 26 kW Milling spindle speed: 15-12.000 rpm Milling spindle power: 18,5 kW Toolholder type: C6 Positions in the toolmagazine: 80 Positions on turret: 9 Control system: Mazatrol 640MT Pro Equipped with: un-loading magazine, tool pre setter, Mayfran chip conveyor, paper filter, wetter oil mist separator, probe Auction-ID: A1-43127-9
turning diameter:1250 mmturning length:6000 mmspindle bore:130 mmTurning rate:5 - 710 U/min.turning diameter over bed slide:850 total power requirement:37/52 kWweight of the machine ca.:16 tdimensions of the machine ca.:12 x 4 x 2 mTeach In Controll HEIDENHAIN1 fixed steady
faceplate diameter:4000 mmswing diameter:4300 mmturning height:330 mmfaceplate turning speed range:1 - 92 U/minworkpiece weight:18 tfeeds:1 - 4000 mm/minmain drive motor:55 kWtotal power requirement:85 kVAweight of the machine ca.:64 tdimensions of the machine ca.:90, x 7,2 x 5,5 mwith CNC SIEMENS 840 D for 4 axis2 Vertical Supports tool Basic holderchip conveyor
faceplate diameter:4770 mmswing diameter:7000 mmturning height:1000 mmslide stroke:1000 mmworkpiece weight max.:100000 kgfaceplate turning speed range:2 - 20 U/minfeed speeds:1 - 10000 mm/minrapid traverse:10 m/minram head dimension:250 x 250 mmmain drive:100 kWtotal power requirement:200 kWwith CNC SIEMENS 840 D2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpmChip conveyor and coolant attachment
turning diameter:325 mmturning length:600 mmtotal power requirement:35 kWspindle drive:25 kWspindle turning speed range:5000 U/minspeeds of tool:4500 U/minrapid traverse X-axis:60 m/mindiverse toolholders:VDI 40 rapid traverse Z-axis:45 m/minweight of the machine ca.:6,5 tdimensions of the machine ca.:3,5 x 2,5 x 2,1 mMachine with SIEMENS 840 D control power line with shopturn- C and Y-axis, driven tools- bar loader IRCO ILS-RBK- coolant device with coolant throough revolving head- Revolver- counter spindle- chip conveyor- collet clamping - part catcher

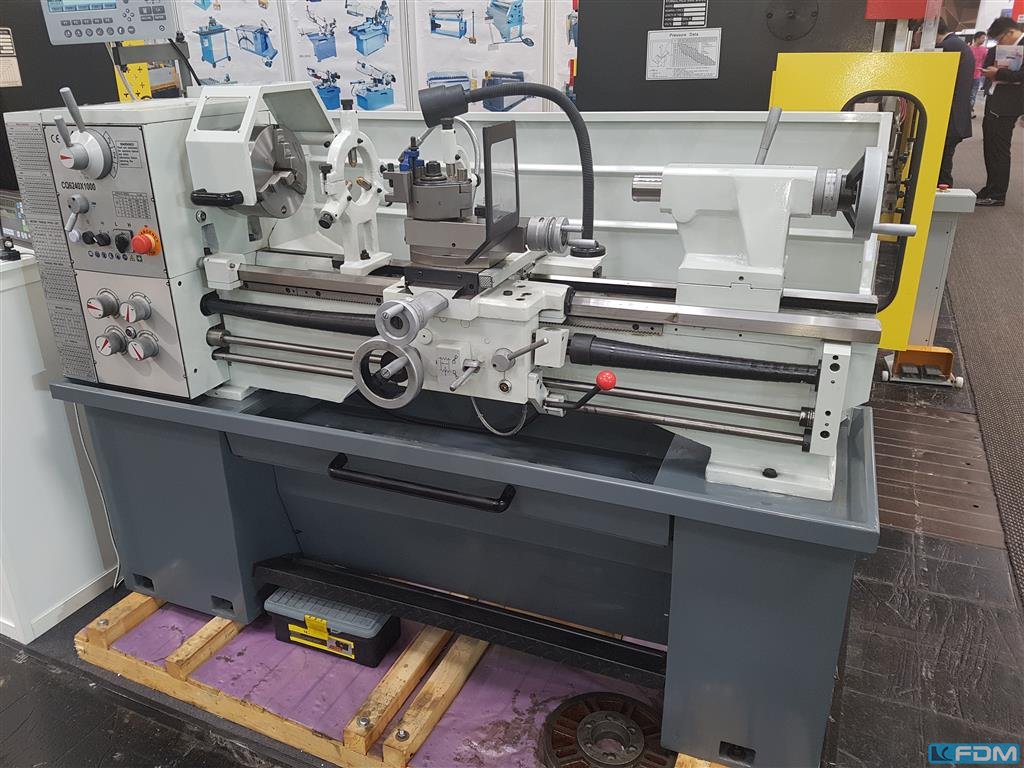

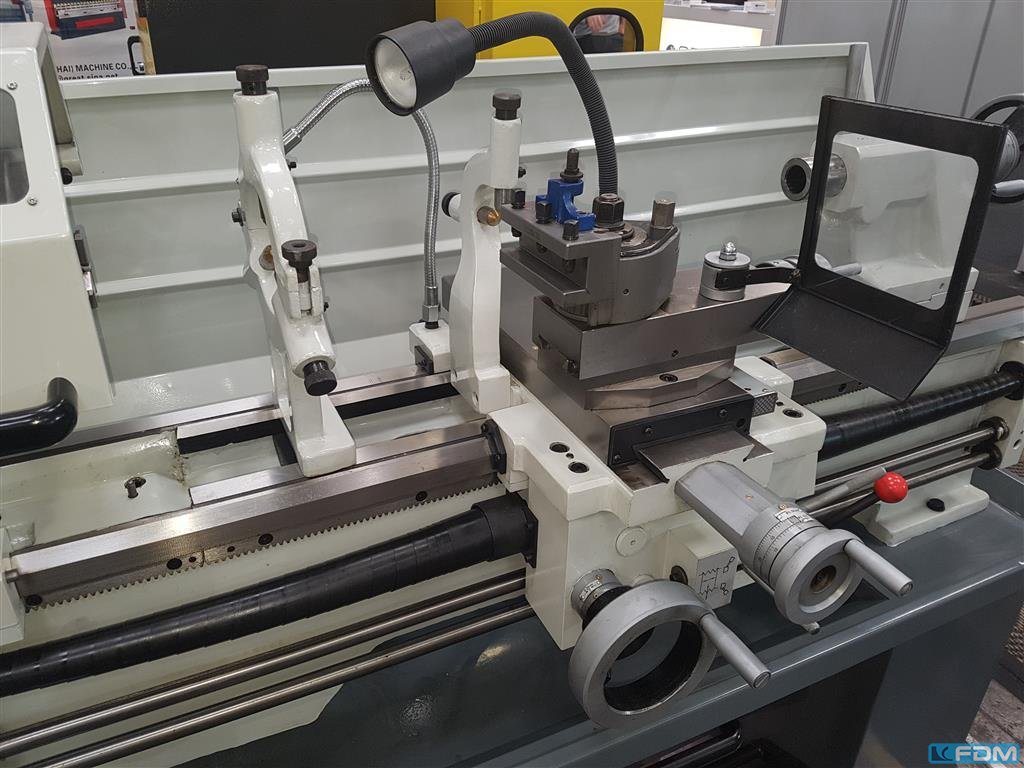

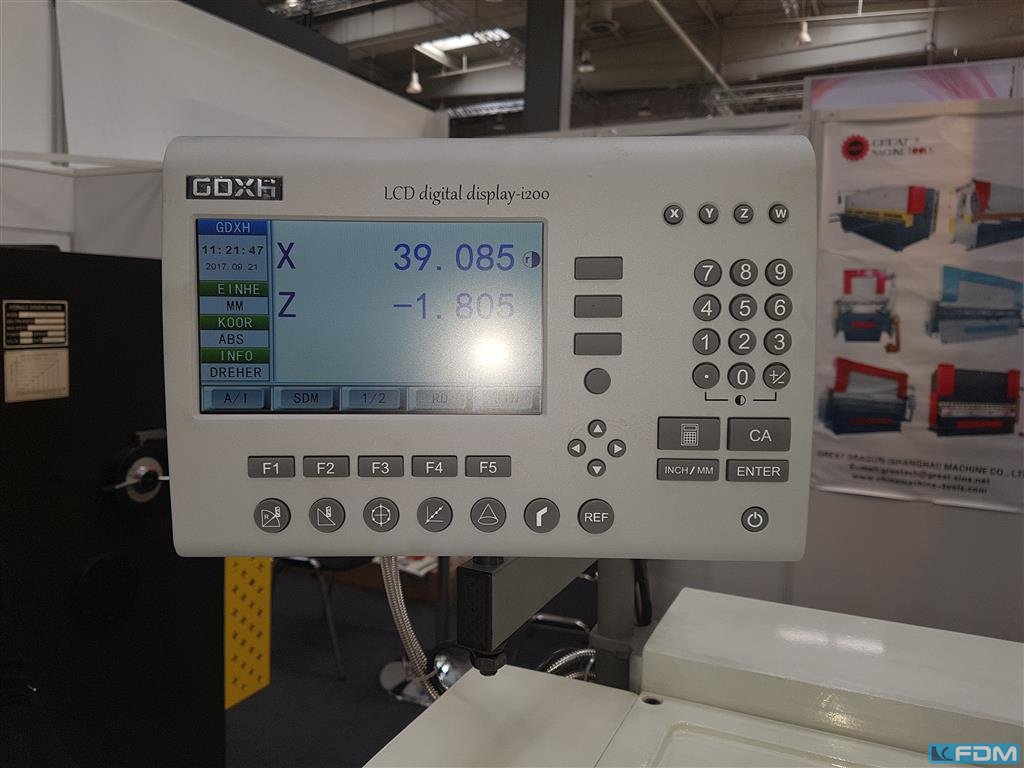

: neu : ca. 4 Monate ab Auftragse : Bulgarien : 44400 €: 848.04 €: 500 mm: 1500 mm: 250 mm: 80 mm: 300 mm: 400 mm: 8 : 80 M: 21 : 20-2000 1/min: 120 : 0.04 - 12 mm/U: 0.02 - 6 mm/U: 64 : 0.5 - 120 mm: 60 - 1/4 Gänge/: 0.125 - 30 : 240 - 1 : 315 mm: 130 mm: 90 mm: 5 MK: 230 mm: 7,5 kW: 3100 mm: 1250 mm: 1400 mm: 2820 kgdriven by manual transmission3-axes digital readoutquick change toolpostAmestra with 4 holders (3 square, 1 round)3-jaw chuck Bison 3204/DIN6350, Ø 250 mmspindle dead centerlongitudinal stop for 1 positioncoolant equipmentfull length rear splash guardleadscrew and shaft protectionsafety guard for the chucktoolholder guardlevelling bolts and platesquick release tailstocklow voltage machine lampoperating manualmachine according to ",CE",FURTHER TURNING LENGTHS: turning length1.000 mm € 43 420,00 turning length2.000 mm € 46 190,00 turning length3.000 mm € 5 ...
turning diameter:626 mmturning length:3000 mmTurning diameter:600 mmspindle bore:100 mmspindle turning speed range:2800 U/minweight of the machine ca.:18 tMachine overhold and retrofit in 2003 with SIEMENS 840 D control- NC steady rest- 12-fold revolving head- splash doors- tailstock- coolant device
faceplate diameter:2500 mmswing diameter:2500 mmswing diameter:2500 mmturning height:2500 mmturning speed range - faceplate:1,8 - 140 U/minworkpiece weight max.:15.000 kgfeeds: 0,03 - 6,3 mm/Urapid speed:2 m/mincross rail adjustment:2150 mmmax. ram stroke:1500 mmpower capacity:55 kWweight of the machine ca.:32 tdimensions of the machine ca.:4,1 x 7,6 x 6,0 m1 turret head1 RAM head
turning diameter over bed:930 mmturning diameter over slide rest:630 mmturning length:6000 mmturning dia. in gap:1250 mmspindle bore:95 mmturning speed range:8 - 800 U/mintotal power requirement:25 kWdimensions of the machine ca.:9 x 2 x 1,9 mfaceplate 2 steadiescoolant attachment taper turning attachment
faceplate diameter:1600 mmswing diameter:1800 mmturning height:1500 mmmax. ram stroke:1200 mmfaceplate turning speed range -stepless-:2,5 - 250 U/minworkpiece weight max.:10.000 kgram head dimension:240 x 240 mmfeed range:1 - 3000 mm/minpower capacity:45 kWweight of the machine ca.:20 tmodernized and overhauled in 2010 with CNC SIEMENS 840 D12 positions automatic toolchangertelescopic coverssplash guardingchip conveyorcoolant attachmentdiverse toolholders
faceplate diameter:5000 mmswing diameter:6100 mmturning height:2400 mmram stroke each side:1490 mmram head dimension:340 x 340 mmmax. workpiece weight:100.000 kgtotal power requirement:100 kWweight of the machine ca.:155 tfaceplate turning speed range:0,4 - 50 U/minwith 2 x 2 axes CNC SIEMENS 840 D
Power on hours: 9526 X/Z-axis travel: 400/400mm Spindle speed: 8.000 rpm Turret positions (driven): 16(8) Driven tool speed: 6.000 rpm Tool type: VDI16 Machine dimensions LxWxH: 2.300x1.200x1.700mm Machine weight: 2.300 kg Equipped with: part catcher, ISI oil mist separator Auction-ID: A1-43127-8
GK Werkzeugmaschinen GmbH
15.000 €
