Fabricante:
(Categoria: 102)

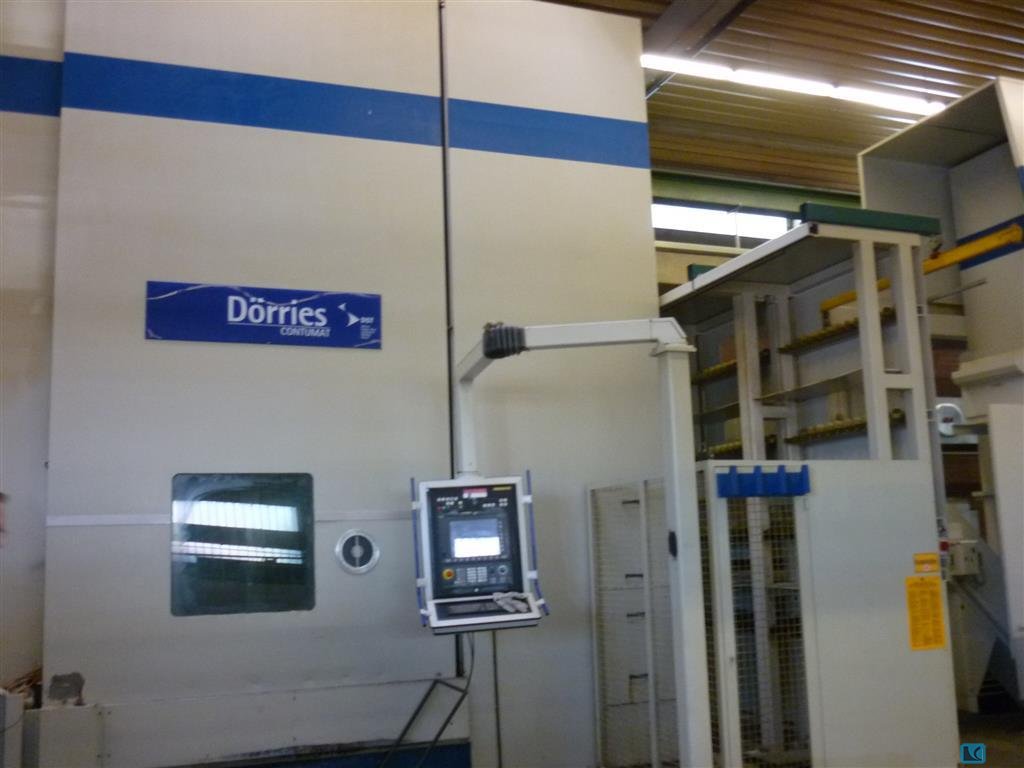

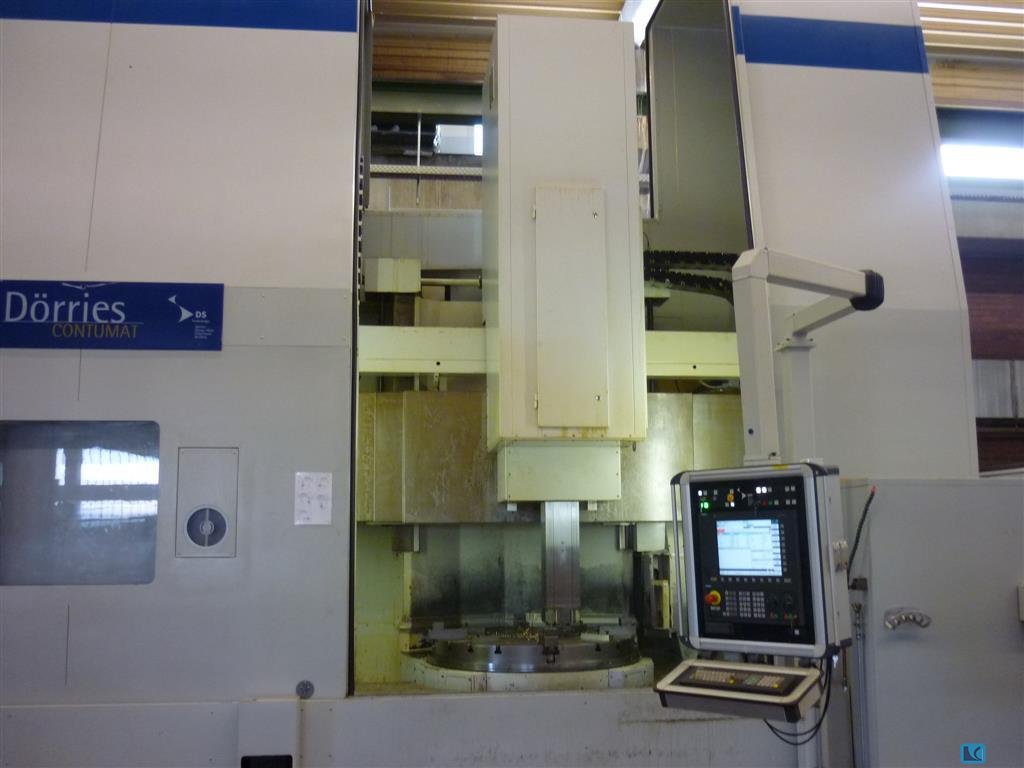

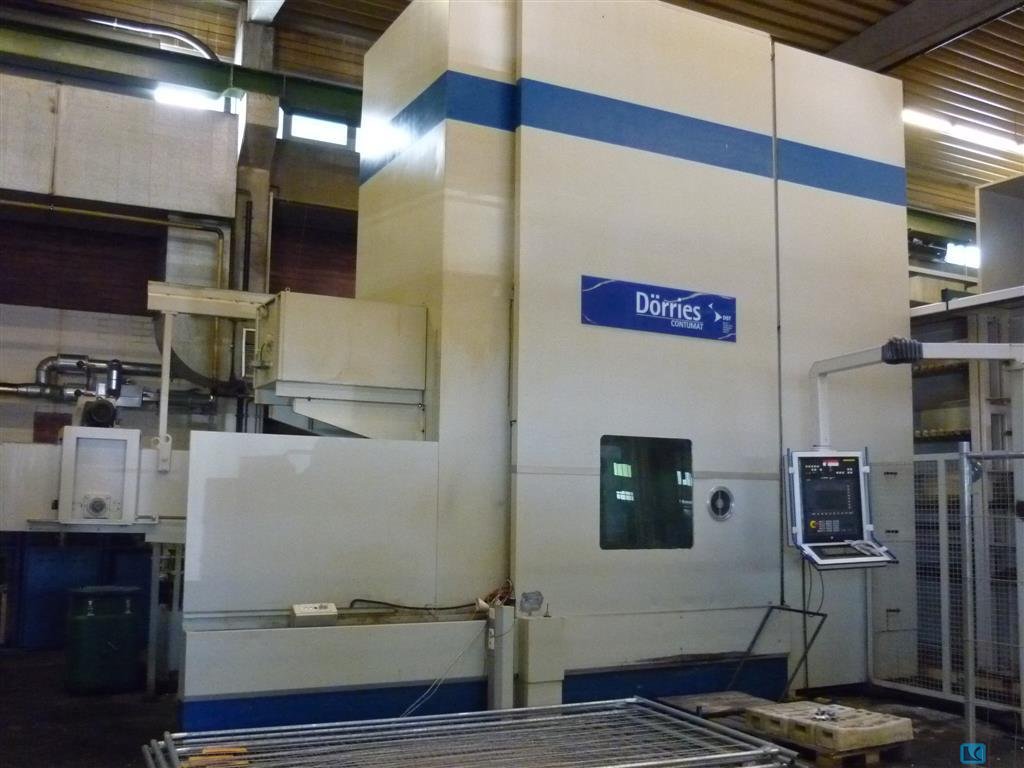

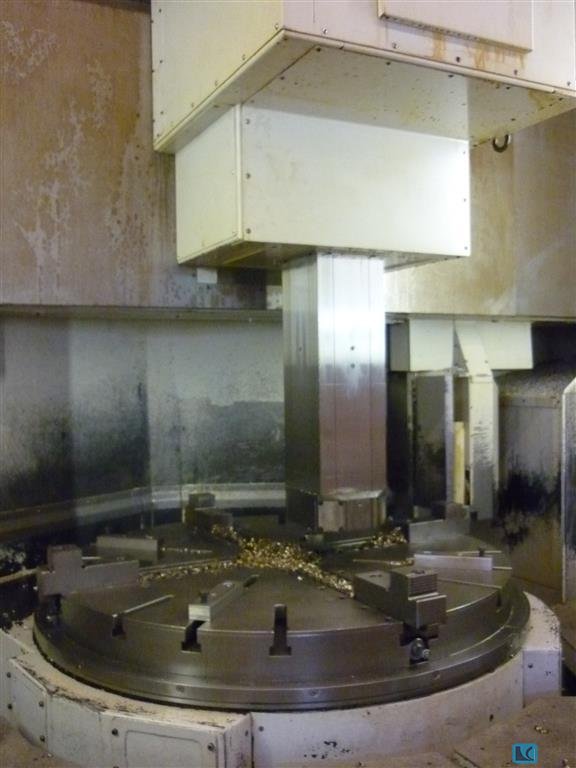

faceplate diameter: 1000 mmmax. torque on the spindle: 900 total power requirement: 17 kWweight of the machine ca.: 6,1 tdimensions of the machine ca.: mA vertical turning lathe with a fixed cross railThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
bar material dia.:38 mmturning length:350 mmturning speeds:7.000 / 7.000 U/minnumber of tools:30 (3 x 10) driven tools:ja / yes control:FANUC 31i-B5 rapid traverse:30 m/mintotal power requirement:10,5 kVAweight of the machine ca.:6,5 tdimensions of the machine ca.:2,50 x 1,45 x 1,75 plus Lademagazin mwork piece power:4 kWtoolpiece turning speed range:5.700 1/minmain spindle power:11 kWsub spindle power:7,5 kWCNC sliding headstock machine STAR ST 38,3 turrets,12 CNC Axis (X1/Z1/Y1/C1/X2/Z2/Y2/YA2/C2/X3/Z3/Y3,Fireextinguisher KRAFT und BAUER FB 703,partscatcher and conveyor belt (for long parts),LTA oilmist suction,chiller for oil,machining with oil as coolant,reading hours:approx. 14.500 hours "machine on", approx. 4.100 hours "machining"

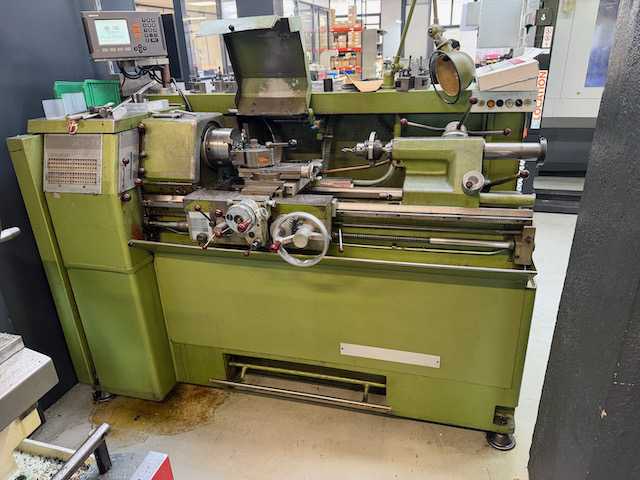

: gebraucht : 2015 : 1686 : prompt, Zwischenverkauf v : England : 14800 €: 1 : 330 mm: 1000 mm: 167 mm: 38 mm: 210 mm: 12 : 40 - 2500 1/min: 16 : 0.03 - 1 mm/U: 0.2 - 14 mm: 2 - 56 TPI Gänge/: 190 mm: 92 mm: 42 mm: 3 MK: 110 mm: 2,2 kW: 1940 mm: 1000 mm: 1550 mm: 685 kg3-axis digital read out Newall4-jaw chuck Bison diameter 160mm with inside and outside jawsQuick-change tool post with 1 holdCoolant deviceChuck protectionSteel holder protectionLead screw coverMachine lightManual brakeOperating manual in German with EC declaration of conformityThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
bar material dia.:65 mmturning length:644 mmturning dia. over bed:600 mmturning diameter over slide:430 mmy-axis:100 (+-50) mmturning speeds:2x 5.000 1/minpositive location each:2x C-Achse, 0,001° GradSub spindle:ja/yes turret (x-stations):2x 12 VDI 30 Pos.driven tools:2x 12 Pos.turning speeds:2x 4.000 1/mincontrol:FANUC 18 iTB total power requirement:30 kVAweight of the machine ca.:8 tdimensions of the machine ca.:3,5 x 2,5 x 2,3 mturning- milling center with Y-axis,collet device on main and subspindle,high pressure pumps 2x 14bar,parts catcher/conveyor,barloader ENTL 10-65,chip conveyor,lot of accessoriesapprox. 54.500 hours "machine on", 30.500 h "automatic", 14.000 h "feeding"
turning diameter:1000 / 700 mmturning length:3000 mmface slide travel:600 mmturning diameter over slide:700 mmturning speeds:1-1.800 1/mintransmission ratio:2 spindle:46 (60%) kWspindle bore:132 mmquill stroke:280 mmworkpiece weight max.:2.560 kgtotal power requirement:38 kWweight of the machine ca.:6 tdimensions of the machine ca.:5 x 2,6 x 1,9 mteach in lathe,PARAT tooling system,SCHUNK ROTA NC 500-160 hydr. power chuck,tailstock,chipconveyor
turning diameter:80 mmturning length:235 mmmax. bar capacity:42 mmpower capacity - driven tools:1 kWspeeds spindle 1:6000 1/minspeeds spindle 2:5000 1/minnumbers of turret head positions:8 posdrive capacity - spindle motor:SP1 11 / SP2 5,5 kWTools speed:60-6000 1/minweight of the machine ca.:ca. 3 tdimensions of the machine ca.:2,4 x 1,5 x 1,6 mHigh Performance CNC Turning- and Milling Center - chipconveyor- subspindle- live tools- C-axis- brake- partscatcher and partsconveyor- tool eye- barloader LNS HYDROBAR MINI-SPRINT approx. 5000 working hours
swing diameter:260 mmcontrol:840 D SIEMENSturning speeds:3.500 1/minspindle drive:36 / 28 kWchucking diameter:260 mmtravel -x axis:900 mmtravel -z axis:400 mmturret head:12 Pos.tool holder:VDI 40 rapid power traverse in X-and Z direction:100 / 30 m/mindimensions of the machine ca.:5,3 x 2,4 x 3,31 mCNC vertical lathe with 2 spindles,2x RÖHM power chucks dia. 315mm,
turning diameter:420 turning length:1230 mmswing over bed:700 mmswing diameter over slide rest:550 mmcentre distance:1390 mmy-axis:+/- 60 mmturning speeds:3500 1/minturret (x-stations):12 power capacity:22 / 18,5 kW:1 / 12 x BMT rapid traverse x + z axis:20 / 24 m/min:76 mmtotal power requirement:50 kVAweight:7,8 tdimensions of the machine ca.:4,10 x 2,05 x 2,21 mCNC lathe with Y-Axis and driven tools,C-axis,tool eye,hydraulic 3-chaw-juck D= 250 mm,reinforced pump 15 bar,pressure-compensated clamping cylinder ,2 step clamping pressure,prepared for steady (without steady),progr. tailstock (dragging device),live tool device (3,7 kW, 3.000 rpm),chipconveyor,1 pcs. live tool includedapprox. 15.500 working hours
bar material dia.:13 mmturning length:205 mmturning speeds:12.000 / 12.000 U/minnumber of tools:29 driven tools:ja / yes 19 control:FANUC 16 iT total power requirement:9 kVAweight of the machine ca.:1,7 tdimensions of the machine ca.:2,7 x 1,4 x 1,7 mCNC sliding headstock machine,subspindle,Year 2003 (0450)FANUC 16i-T control with 9 axes,9 axes (X / C1 / Y / E / B / A / X / c2),Main spindle, speed max. 12,000 rpm, C-axis,Counter spindle with collet, speed max. 12,000 rpm, C-axis,4-fold tool holder3 transverse drilling apparatusesRevolver with 8 stationsvarious additional tool holders, quills,Extinguishing system Kraft and BauerHigh pressure system SF-Systeme Büchele /SHD 150/ 150bar / 2 x 40 um /3 valves,Parts conveyor beltManuals Operation/Programming/Electrical/Spare PartsOperating tool machineUp to 29 turning tools and up to 19 attachments possible9.0KVATank capacity 170LLoading maga ...
turning diameter over bed:20 mmspindle passage:3-20 mmturning length:250 mmcontrol:FANUC 31 i-A main-spindle speed:10.000 1/minsubspindle speed:10.000 1/minMain spindle capacity:3,7 kWsubspindle power:2,2 kWnumber of tools:35 weight of the machine ca.:3,3 tdimensions of the machine ca.:2,11 x 1,2 x 1,89 mCNC sliding headstock turning/milling centre with B-axisControl system: Fanuc 31i-AMachining length: max. 250 mmNumber of controlled axes: 7 axes and max. 5 axes simultaneouslyB-axis: 0°-130° freely programmableRod passage: Ø 3 mm to max. Ø 20 mmDrive power main spindle: 3.7 kWDrive power counter spindle: 2.2 kWMain spindle speed: 10,000 rpmCounter spindle speed: 10,000 rpmC-axis: Main and counter spindleNumber of linear supports: 2 piecesTotal number of tools: 35 piecesDimensions (LxWxH) in mm: 2,110×1,200×1,885Weight: 3,300 kgConversion from long to short turningDeep hole drillin ...
: neu : ca. 4 Monate ab Auftragse : Bulgarien : 107870 €: 2038.74 €: 800 mm: 2000 mm: 400 mm: 260 mm: 560 mm: 560 mm: 318 MK: 12 : 8 - 400 1/min: 152 : 0.039 - 15 mm/U: 0.02 - 7.5 mm/U: 76 : 0.5 - 150 mm: 60 - 1/5 Gänge/: 0.125 - 37.5 : 240 - 4/5 : 410 mm: 150 mm: 105 mm: 6 MK: 225 mm: 11 kW: 6000 kgTheir main purpose is to process pipes. Accordingly, this type of machines is widely used in the oil industry.Oil country lathes have large capabilities of processing inner and outer cylindrical and conical threads on pipes with large diameters.The clamping of the pipes with two universals and stands allows the processing of long pipes.These lathes are suitable for producing elements and equipment for the oil industry, as well as for maintaining such facilities.Drive via gearboxElectrodynamic brake3-axis digital display FagorQuick-change tool holder Amestra type C, system like Multifix i ...
turning diameter:33 mmturning length:330 mmcontrol: 840 total power requirement:20 kWweight of the machine ca.:6 tdimensions of the machine ca.:3850,2000,2100 m17 axes3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axesBarfeederMachine On-time 58,133 hours
turning diameter:120 mmturning length:100 mmcontrol:Fanuc Spindle 1 power:7,5 kWSpindle 1 RPM:4500 1/minSpindle 2 power:7,5 kWSpindle 2 RPM:4500 1/minDistance between spindle noses:600 mmTurret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kWRPM of rotary tools turret 1:4000 1/minTurret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kWRPM of rotary tools turret 2:4000 1/minTravel x/z turret 1:250 / 300 mmTravel x/z turret 2:250 / 920 mmBar capacity spindle 1:51 mmBar capacity spindle 2:51 mmpower chuck:165 mm Spindle bore sp. 1:62 mmSpindle bore sp. 2:62 mmdimensions of the machine ca.:3700 x 2300 x 3000 mmweight of the machine ca.:5600 kgUsed CNC-2-spindle CNC turning and milling center with gantry loader- 2x 15 station turret-automatic gantry loader with turnaround station.14 station-magazin right sideMax. Parts size Ø 120 x 100 mmDoublegripper ...

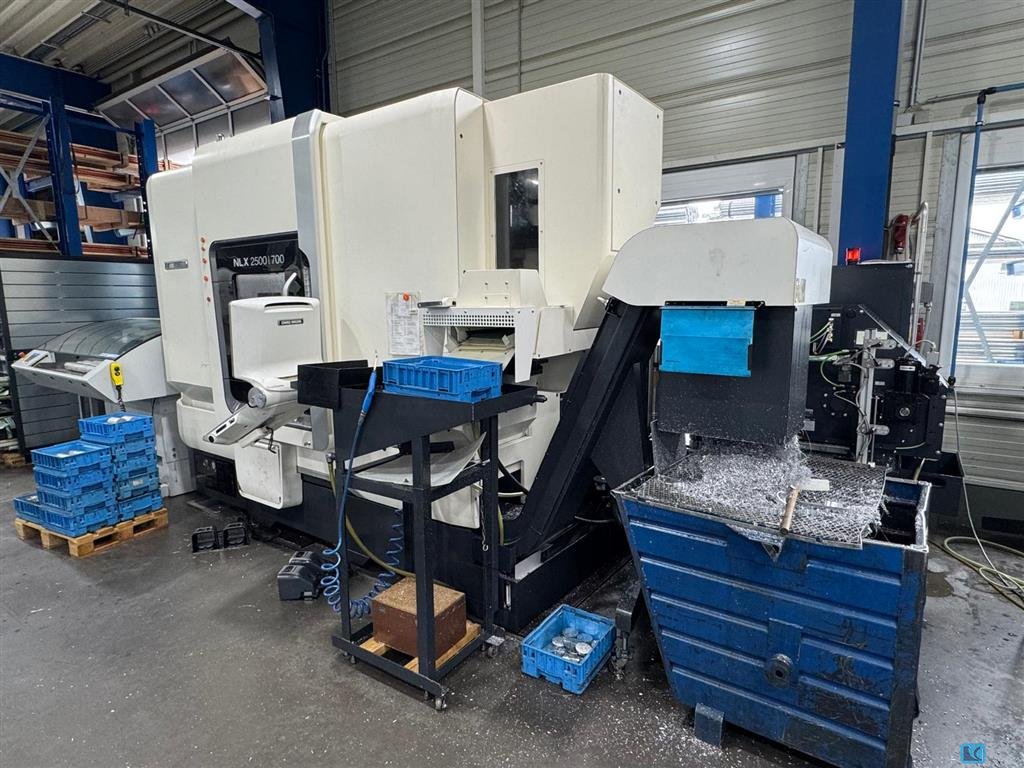

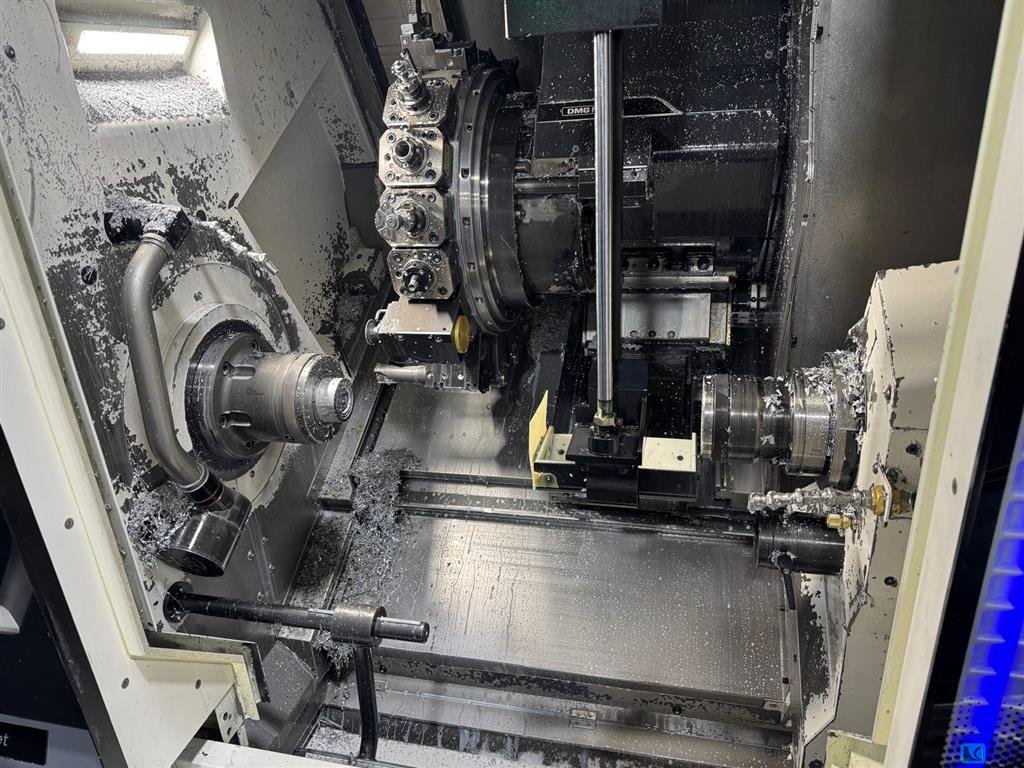

turning diameter:356 mmturning length:705 mmcontrol: CELOS M730 UM MAPPS swing dia.:742 mmstandard turning diameter:275 mmtravel -x axis:260 mmtravel -y axis:100 ( ±50) mmtravel -z axis:795 mmrapid travel - longitudinal/face:30 / 30 m/minRapid travel B-axis (parts transfer subspindle):734 m/minSpindle 1 RPM:4000 1/minSpindle 1 Power:15/18,5/18,5 kWSpindle 1 Torque:409/505 /599 NmSpindle 1 max. bar diameter:80 mmSpindle 2 RPM:4500 1/minSpindle 2 power:7,5/11 kWturret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min:3.7/5,5/5,5 kWtorque rotary tools:14 / 24 Nmtotal power requirement:38 kVAweight of the machine ca.:6,3 tdimensions of the machine ca.:4 (9) x 2,1 x 2,2 mParts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Milling Centre with Y-axi ...
turning diameter:370 mmturning length:200 mmSpindle 1 RPM:4000 1/mincontrol:Siemens 840 D Spindle 2 RPM:4000 1/minpower capacity:L / R 18/24 kWmax. torque on the spindle:630 nMC-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40Turret No.2 stations / rotary tools:12/12 VDI 40turning speed range - milling:3000 1/minpower capacity - milling spindle:8,8 kWtorque rotary tools:28 NmBar capacity spindle 1:85 mmtotal power requirement:65 kVAweight of the machine ca.:13 tdimensions of the machine ca.:5,7x2,4x2,1 mTravel x1:260 mmTravel x2:260 mmTravel Y1:600 mmTravel y2:600 mmPower Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

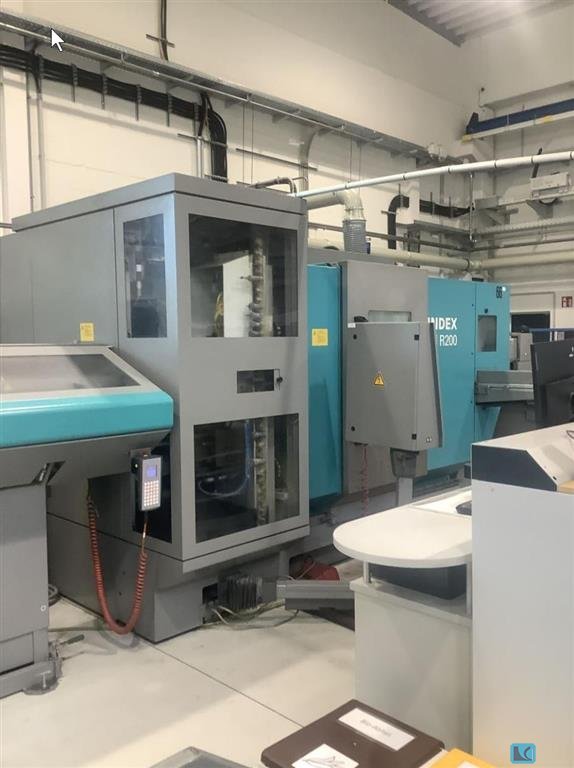

turning diameter:65 mmturning length:120 mmcontrol:Index C200-4D SL z-axis main spindle travel:390 mmz-axis subspindle travel:390 mmx-axis subspindle travel:600 mmTravel Y1:± 80 mmTravel y2:± 80 mmx-axis rapids:45 m/miny-axis rapids:15 m/minz-axis rapid travel:45 m/minSpindle 1 RPM:5000 1/minSpindle 1 Power:35,5/27,5 kWSpindle 1 Torque:170 /125 NmSpindle 2 RPM:5000 1/minSpindle 2 power:35,5/27,5 kWSpindle 2 torque:170/125 Nmc-axis:0,00014 °bar material dia.:65 mmspindle nose:AD 140 spindle bore:85 mmMilling spindle 1 RPM:18000 1/minMilling spindle 1 power:11 kWMilling Spindle1 torque:19 NmMilling spindle 2 RPM:18000 1/minMilling Spindle 2 power:11 kWMilling spindle 2 torque:19 NmB-axes swivel angle:230 °B-axes torque:440 NmB-axes angle resolution:0,001 °Milling spindle 1 & 2 tool magazine:80 HSK A40 Milling spindle 2 tool magazine static tools :6 x VDI 25 internal coolant system fee ...
turning length:400 mmtotal power requirement:45 kWweight of the machine ca.:4 tdimensions of the machine ca.:3,58 x 1,91 x 2,05 mspindle passage:45 mm
turning diameter:640 / 400 mmturning length:1500 mmcontrol:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mmSwivle angle milling spindle (B-axis):±120° interpol. °Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/minRPM milling spindle:12000 1/minpower capacity - milling spindle:12 / 23 kWTorque of milling spindle:100 NmTool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 sSpindle 1 RPM:4000 1/minSpindle 1 power:36/ 45 kWSpindle 1 Torque:730 NmSpindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/minSpindle 2 power:36 / 45 kWSpindle 2 torque:730 NmSpindle 2 max. bar diameter:90 c-axis:0,001 °Travel turret 2 x:225 mmTravel Turret 2 z:1595 mmRPM of rotary tools turret 2:4000 1/minno. of tools in turret 2:12 VDI 40 high-pressure pump:20 bartotal power requirement:110 kVAweight of t ...
turning diameter:500 mmturning length:1000 mmweight of the machine ca.:7,3 tdimensions of the machine ca.:6,5 x 4,45 x 2,21 m
turning diameter:670 mmturning length:1540 mmcontrol:F31iB5 Celos Fanuc 35iB5swing diameter max. over bed cover:700 mmTravel turret No.1 (milling spindle) x/y/z:495 / ± 150 / 1562(+164) mmRotation B-axis:-30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z:40/40/40 m/minRPM milling spindle:12000 1/minpower capacity - milling spindle:20,2/18,8 kWTorque of milling spindle:120 / 44 Nmtool taper milling spindle:Coromant Capto C6 Tool magazine for milling spindle (turret 1):76 Tool change time tool/tool, milling spindle:1,25 sSpindle 1 RPM:3000 1/minSpindle 1 Power:36 / 30 / 25 kWC-axis spindle 1:0,001 °Bar capacity spindle 1:102 mmSpindle 2 RPM:4000 1/minSpindle 2 power:26 / 22 / 15 kWC-axis spindle 2:0,001 °Bar capacity spindle 2:80 mmdimensions of the machine ca.:7,8 x 3,6 x 2,9 mLinear scales on axis:X, Y programmable steady:KLU-A530 & SLU-X3.2 Spindle 1 Chuck:Kitagawa 250 ...
turning diameter:500 mmturning length:1000 mmcontrol:Siemens 840 D spindle:42 / 28 kWspindle turning speed - stepless:31 - 4000 1/minmax. torque on the spindle:345 Nmc-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/minrapid traverse:10000 mm/minturret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/mindiameter of quill:90 mmquill stroke:80 mmtailstock quill taper ISO:SK 30 Tailstock Travel:600 mmPower rotary tools:3,5 kW:22,5 NmRotary tool holders:4 ax./ 4 rad. spindle passage:66 mmtotal power requirement:30 kWweight of the machine ca.:7,5 tdimensions of the machine ca.:8x 3 x 4 m

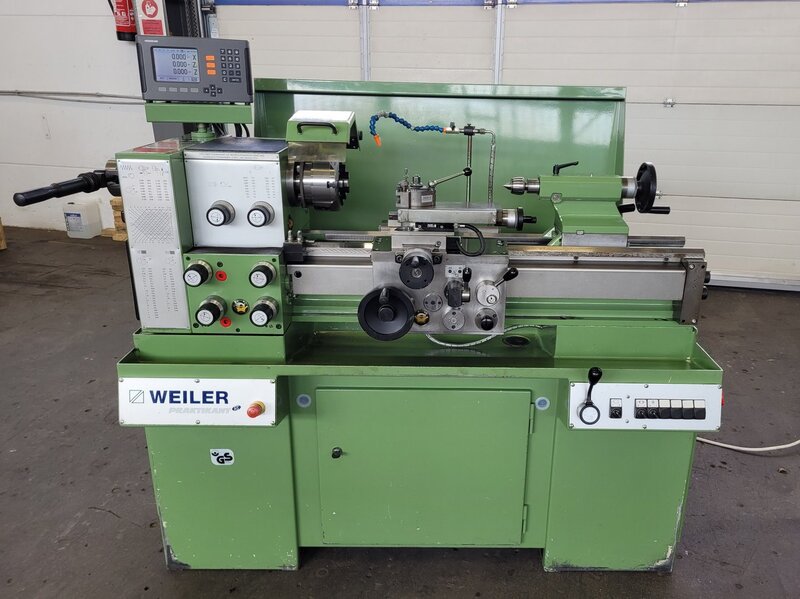

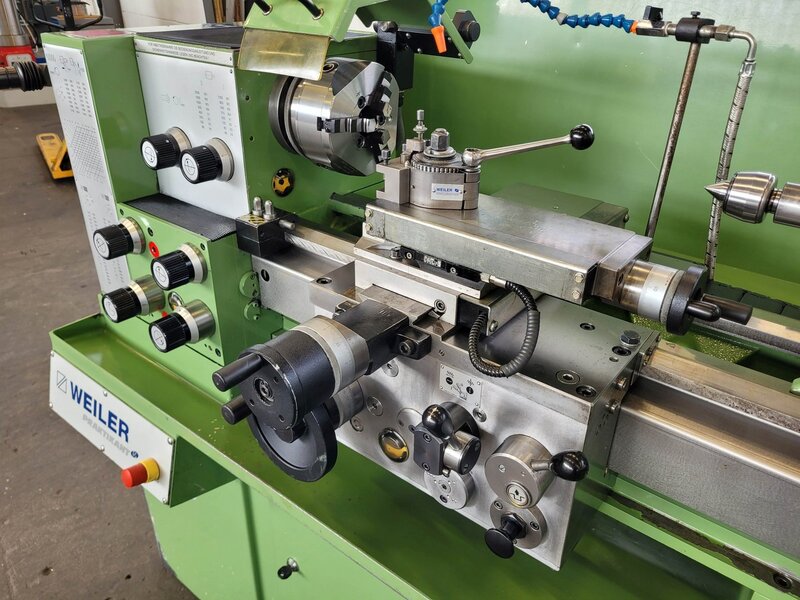

turning diameter over bed:350 mmturning diameter over slide rest:240 mmturning length:800 mmSpindle RPM:40 - 2000 in 8 Stufen 1/mintotal power requirement:3 kWSpindle bore:26 mmtailstock quill taper MT:MK 2 dimensions of the machine ca.:1,5 x 1,0 x 1,6 mweight of the machine ca.:1,9 tVery well maintened center lathe with accessories- 3-jaw, 4-jaw chuck- tailstock with center- 1 boring head- RAPID quick tool change device with 3 holder- saddle mounted steady rest- collant device- set of collets appr. 75% size B 32

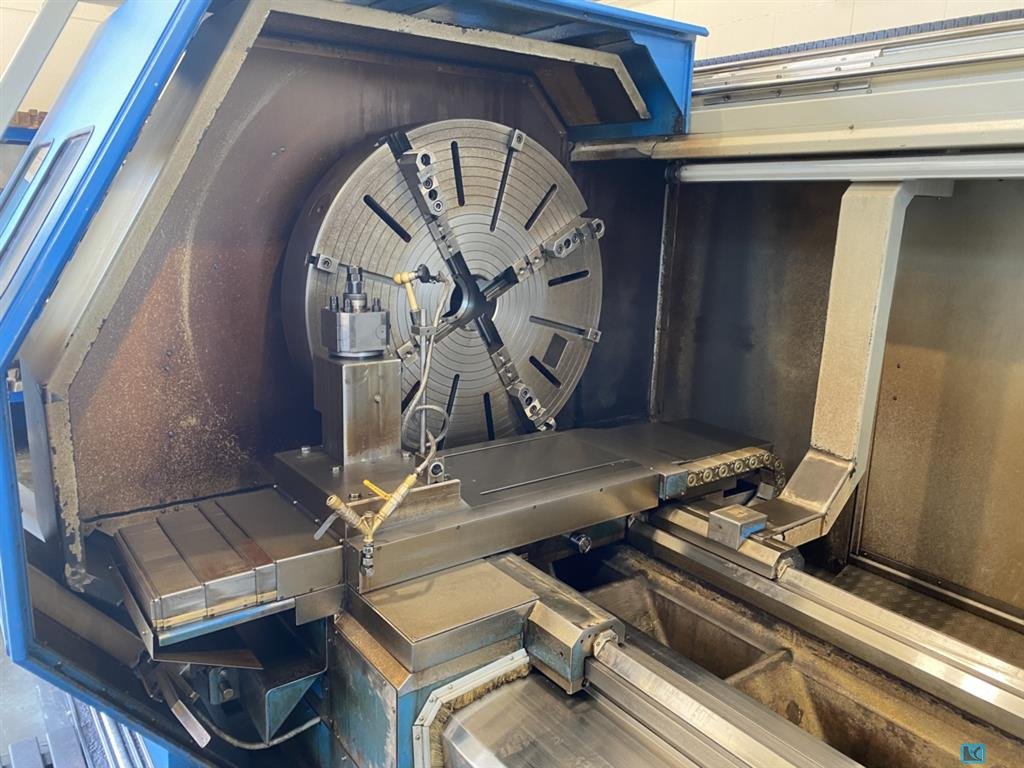

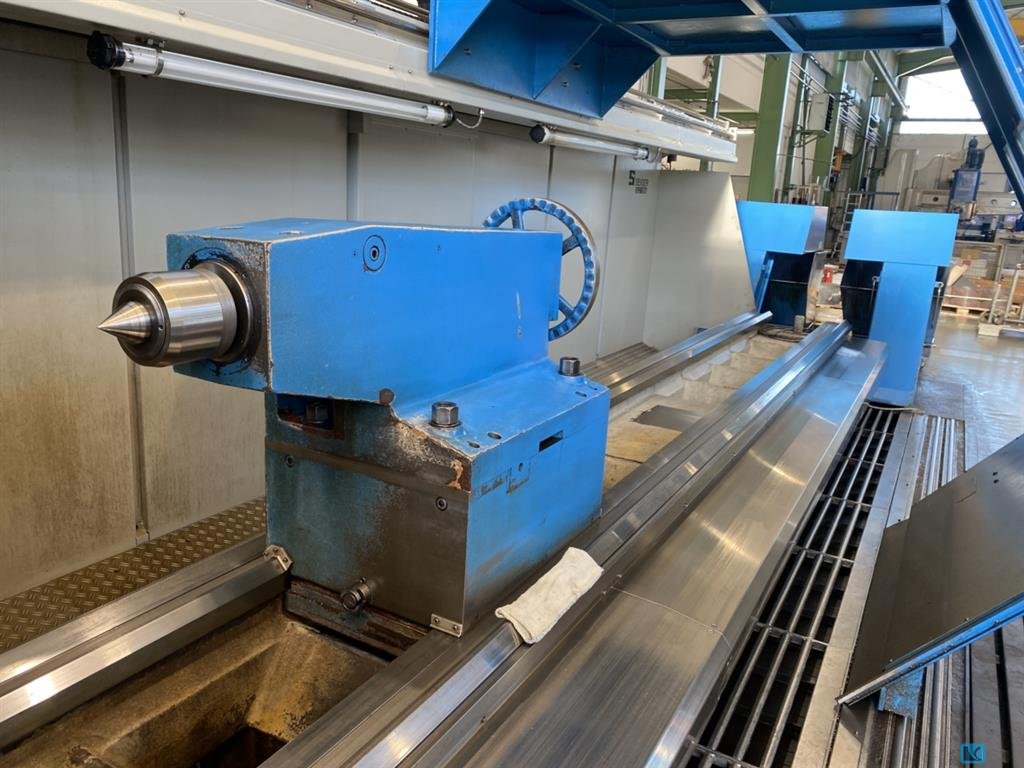

turning diameter:1600 mmturning length:12000 mmcontrol:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories.For further technical data and accessories, pls browse the Appendix.Parallellathe WMWmod. 4 GUIDE-WAYS¦ CNC: FAGOR 8050¦ bed: monolithic¦ centres height: 800 mm¦ centres distance: 12000 mm¦ swing over cross-slide: 1250 mm¦ turret: automatic 4 positions¦ tailstock: motorized¦ tailstock connection: hydraulic¦ platform: diam. 1000 mm¦ steady rests: nr.02¦ chip conveyorWarranty: noneTake advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.
turning diameter:1390 mmturning length:14000 mmweight of the machine ca.:13 tMore information can be found in the Appendix.
turning diameter over bed:100 mmturning diameter over slide rest:70 mmturning length:80 mmtotal power requirement:1,0 kWweight of the machine ca.:0,5 tdimensions of the machine ca.:0,7 x 0,6 x 1,2 mfacing lathe with manual feed, various accessories

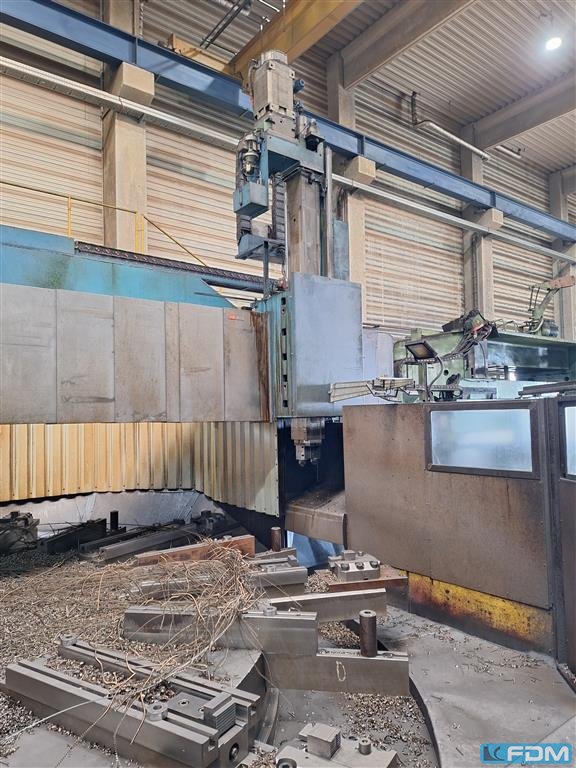

faceplate diameter:2000 mmswing diameter:2130 mmturning height:1400 mmram stroke range:1000 mmworkpiece weight:10 tfaceplate turning speed range:1 -200 U/minmain drive:60 kWtotal power requirement:95 kWweight of the machine ca.:24 tdimensions of the machine ca.:6,0 x 4,0 x 5,6 mwith CNC SIEMENS 840 DC-axis driven tooling 15/22 kWautomatic toolchnager 16-pocketsthrough spindle coolantsplash guarding and chip conveyor
faceplate diameter:1800 mmswing diameter:2000 mmturning height:1170 mmz-axis:1000 mmcross rail adjustment - vertical:800 mmfaceplate speeds::2,5 - 280 workpiece weight:12 tfeeds:1 - 6000 mm/minmax. torque on the faceplate:50000 Nmtotal power requirement:85 kWweight of the machine ca.:41 tdimensions of the machine ca.:5,6 x 4,8 x 4,6 mMachine retrofit and overhould in 2005 with SIEMENS 840 D powerline control- 6 jaw hydraulic power chuck- tool changer for 12 tools- chip conveyor, coolant attachment, splash housing- various tool holders
faceplate diameter:1000 mmswing diameter:1600 mmturning height:1200 mmmain drive:75 kWfaceplate speeds from - to:7 - 800 U/minmilling motor:25 kWmilling head speed:7 - 3000 U/minmilling spindle - taper:ISO 50cross rail adjustment - vertical:800 mmram head dimension:240 x 240 mmweight of the machine ca.:40 todimensions of the machine ca.:9 x 7,8 x 6,0 mMachine general overhould in 2004 and equiped with Siemens 840 D control- tool changer rack magazine- C-axis, live tooling, - Transmit function electronical Y-axis- angular milling head - complete splash housing - coolant device, chip conveyor
faceplate diameter:1400 mmswing diameter:2000 mmturning height:1270 mmmain drive:80 kWfaceplate speeds from - to:1 - 355 U/minmax. workpiece weight:6.000 kgmilling motor:37 kWmilling head speed:7 - 3000 U/minmilling spindle - taper:ISO 50cross rail adjustment - vertical:800 (8 x 100 mm) mmram head dimension:240 x 240 mmmax. ram stroke:1250 mmweight of the machine ca.:50 tototal power requirement:133 kVAdimensions of the machine ca.:11 x 5 x 6,4 mMachine general overhould in 2008 and equiped with CNC SIEMENS 840 D control- tool changer for 72 tools- C-axis, live tooling- angular- and straight tool holder head with CAPTO taper - Transmit function- complete splash housing - coolant device, chip conveyor- diverse accessories
