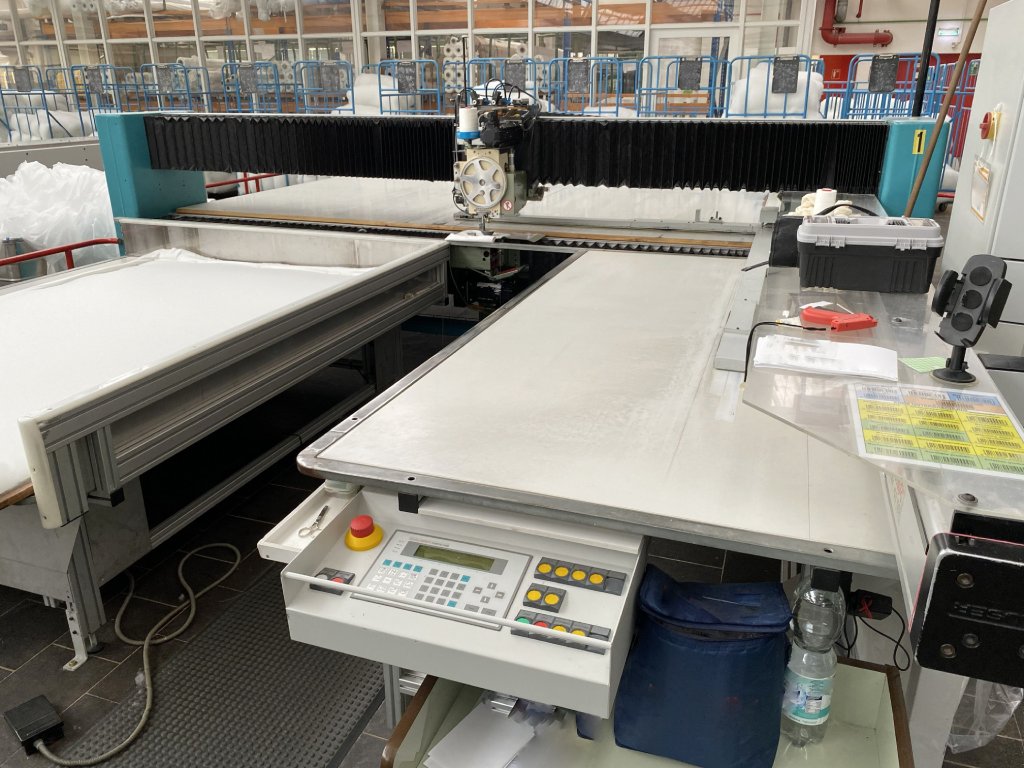

6 Stutznäcker single-needle lockstitch sewing automats are offered.
Outside frame size X/Y: 1900mm/2600mm, max. stitch rate:
2600stitches/min, sewing type: lockstitch, sewing head/gantry: Mammut

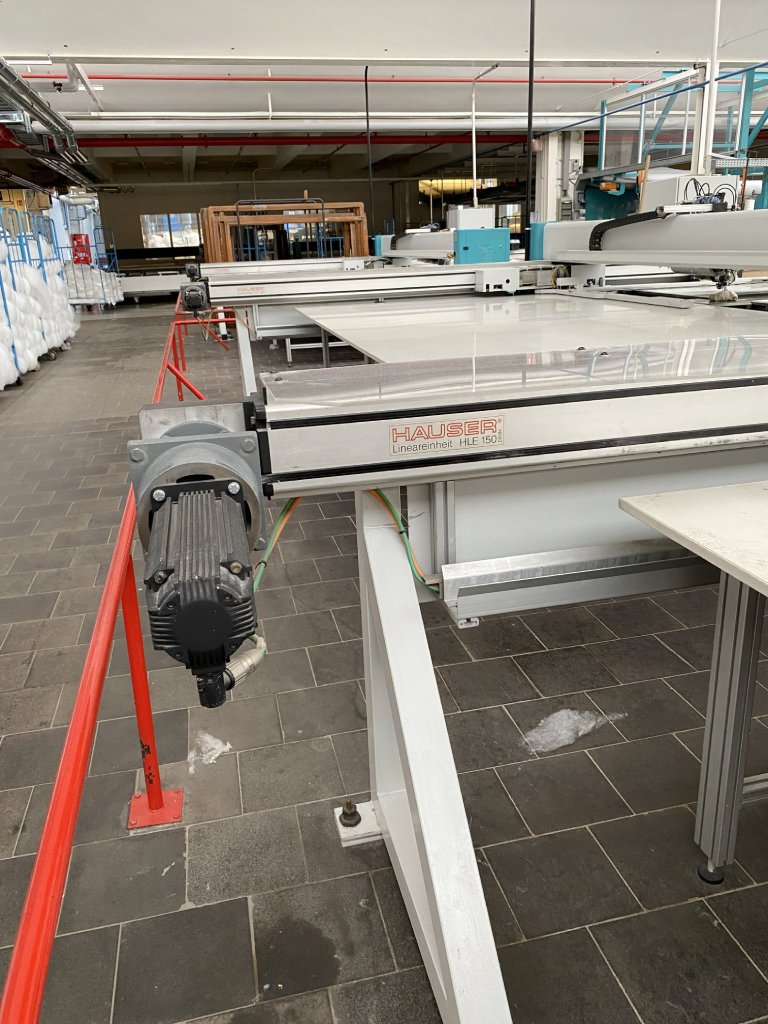

Class 750, linear unit X-axis: Hauser HLE 150 (installation position
right), Y-axis traverse: ball screws/linear guide rails, control
system: Hauser Comtac 2000. Equipment: Electronically synchronized
separate drive for needle and hook, pneumatic presser foot lift, upper
thread monitor, mounting brackets for clamping frames with pneumatic
holding grippers, frame coding for safety monitoring, coated table
plates as frame supports within the travel area, various frames, spare
hooks, electrical cabinet on the right, operator panel on the
right-hand side table and left-hand side table with pneumatically
lowerable table top (max. 200mm) and surrounding support for the
frame. Four sewing automats were retrofitted in 2007, two sewing
automats in 2006. Dimensions per machine X/Y: approx. 5000mm/7000mm,
weight: approx. 2000kg per machine. The machines are available between
April and July 2027. Inspection possible by appointment.
