Used BORELLI filling monoblock for oil 1500 BPH BORELLI GROUP RVP 12/1

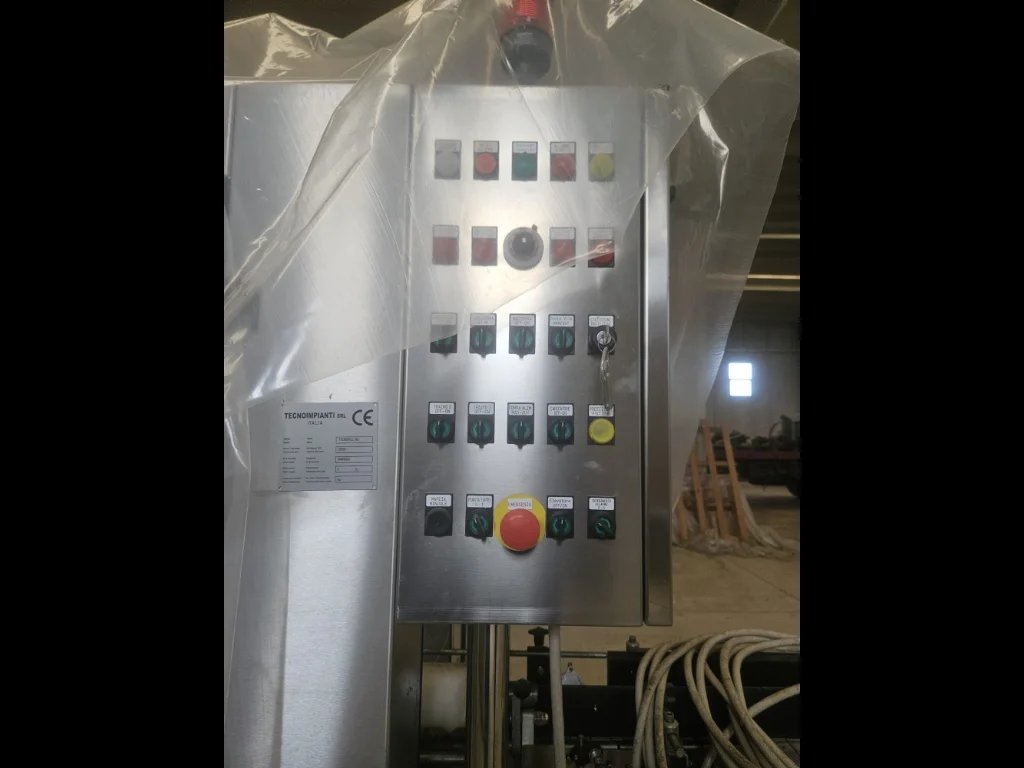

Technical Specifications & Performance DataThis Filling Monoblock is engineered for large-format container applications, combining a rotary filler and integrated capper in a compact footprint. Manufactured by BORELLI, the model RVP 12/1 offers reliable, repeatable performance for second hand industrial packaging needs and can be integrated into a used bottling line for beverage production or other liquid products.Manufacturer: BORELLIModel: RVP 12/1Year: 2006Production speed: up to 1,500 bph for 3.0L; 1,200 bph for 5.0LFiller configuration: 12 filling headsCapper configuration: 1 capping headContainer compatibility: Bottles and cansBottle diameter range: 55–120 mm (tolerance −0/+2 mm)Bottle height range: 240–370 mm (tolerance +3 mm)Supported can formats: 3.0L and 5.0LClosure type: Plastic cap FLEX-SPOUT, 39 x 20 mmMachine rotation: Counterclockwise (right-to-left)Conveyor chain width: 152 mmConveyor chain material: AISI 304 stainless steelWorking table height: 1,100 ± 50 mmDimensions (L x W x H): 2969 x 2120 x 3200 mmAdvanced Automation & Control SystemsDesigned for dependable operation, this monoblock features robust electrical and pneumatic essentials to support continuous-duty cycles in industrial packaging environments.Electrical supply: 400 V, 3-phase, 50 Hz; auxiliaries at 24 VElectrical consumption: max 6 kW during operationCompressed air consumption: 50 L/minSafety and noise: Capping noise < 70 dB(A), with temporary peaks < 80 dB(A)Insulation/safety class: Class 1 (CEI 536)IP protection: per CEI 529Production Line Integration CapabilitiesThis Filling Monoblock integrates seamlessly into complete packaging machinery layouts and used bottling lines. The counterclockwise rotation and right-to-left flow, along with a 152 mm stainless steel conveyor chain, allow straightforward interfacing with upstream and downstream equipment such as rinsers, labelers, and case packers.Inline or cell-based operation with standard conveyor connectionsFormat range engineered for 3.0L and 5.0L cans and large bottlesDesigned for PET and glass bottle handling, as well as aluminum cansMachine Condition & Maintenance HistoryThe machine configuration and specifications indicate an industrial-grade rotary filler-capper suitable for immediate integration in second hand and used bottling line projects. Built with stainless components and designed for low-noise capping, it supports stable operation in demanding production settings.Operational Performance & VersatilityOptimized for high-volume container formats, the 12-head filler and single-head capper deliver steady throughput at large sizes. The FLEX-SPOUT plastic closure format ensures secure application on compatible containers. The broad bottle diameter and height ranges provide adaptability across multiple large-format SKUs commonly found in industrial packaging.Consistent filling at 3.0L and 5.0L formatsLow-noise capping contributes to a safer, more comfortable work environmentStainless steel contact and conveyor materials for durability and hygieneInstallation Requirements & Site PreparationSite utilities and environmental parameters are clearly defined for efficient commissioning and sustained operation.Power: 400 V, 50 Hz, 3-phase; auxiliaries 24 VPower consumption: up to 6 kWCompressed air: 50 L/minRecommended room volume: ≥ 50 m³ with minimum 25 m³ air exchange via natural ventilationFootprint: 2969 x 2120 mm; Height: 3200 mmWorking height: 1,100 ± 50 mmSafety Standards & Compliance CertificationBuilt to European safety norms, this Filling Monoblock aligns with recognized standards for operator protection and environmental safety within industrial packaging and beverage production applications.Safety insulation Class 1 (CEI 536)IP protection in accordance with CEI 529Low-noise capping performance for improved workplace safetyHygienic construction with AISI 304 stainless steel conveyor components
seller offer No. resale M341
