HAGEMANN satılık ikinci el makine

Capacity: 9670l, weight: 2.3t, with agitator.

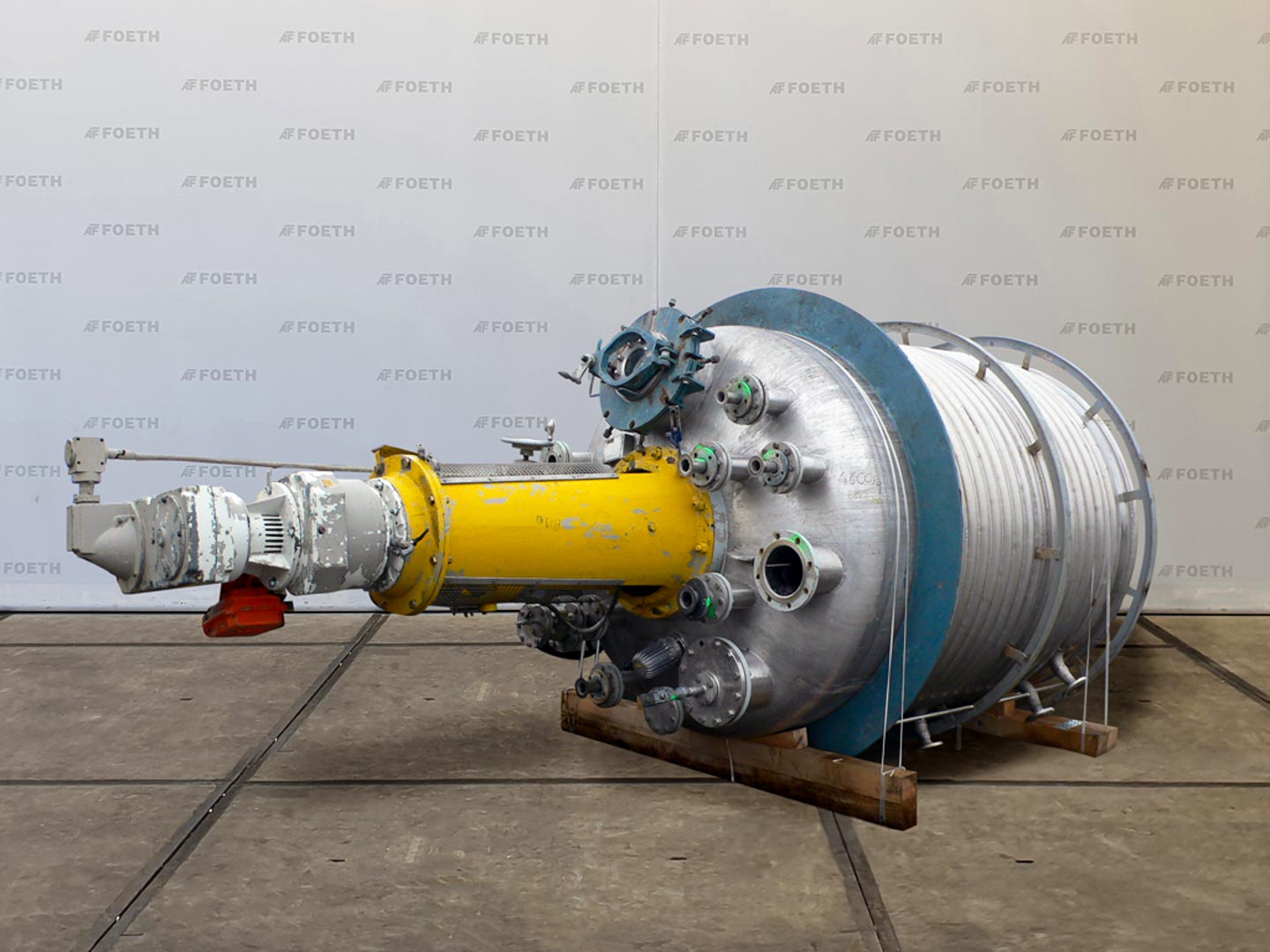

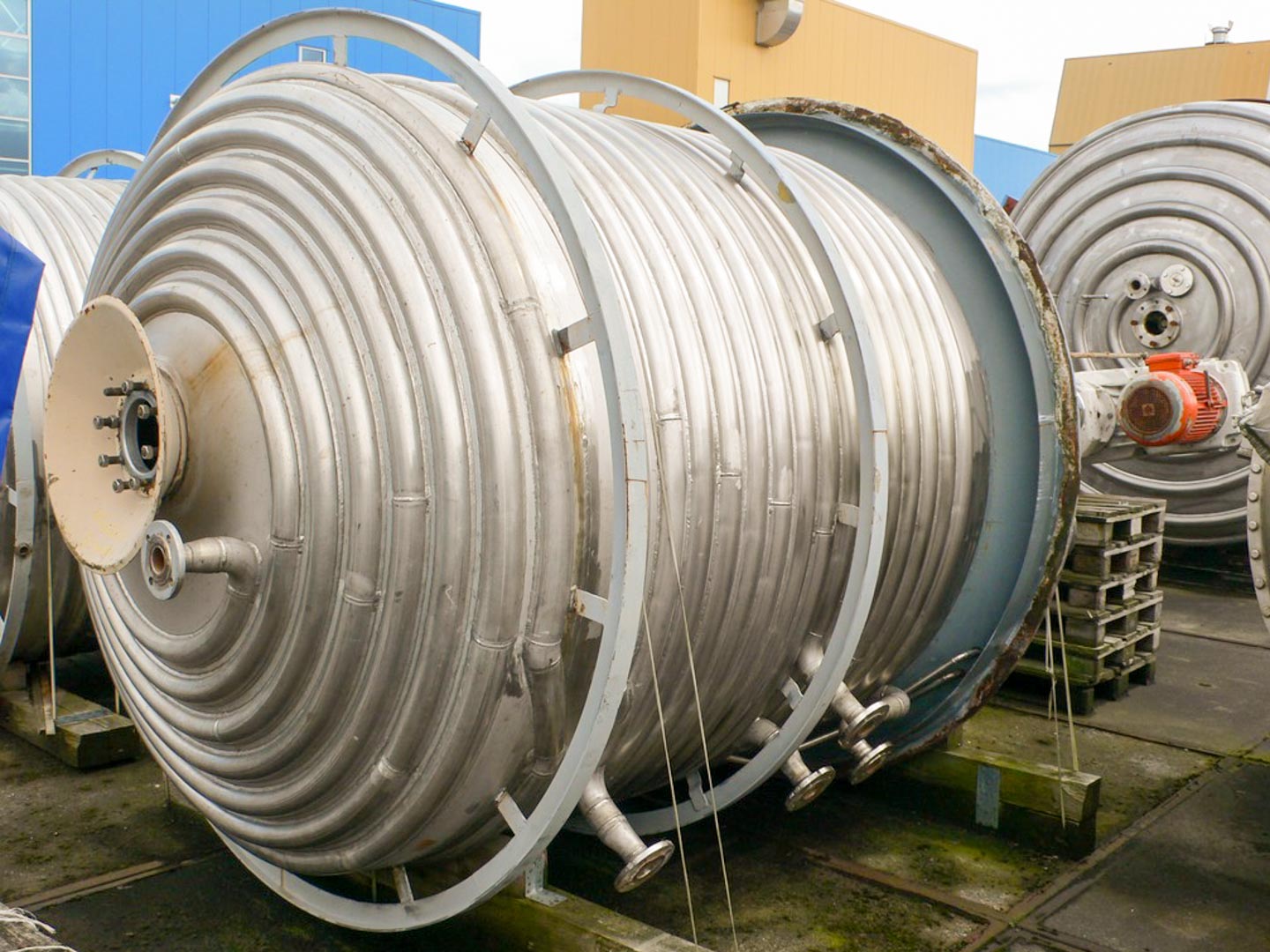

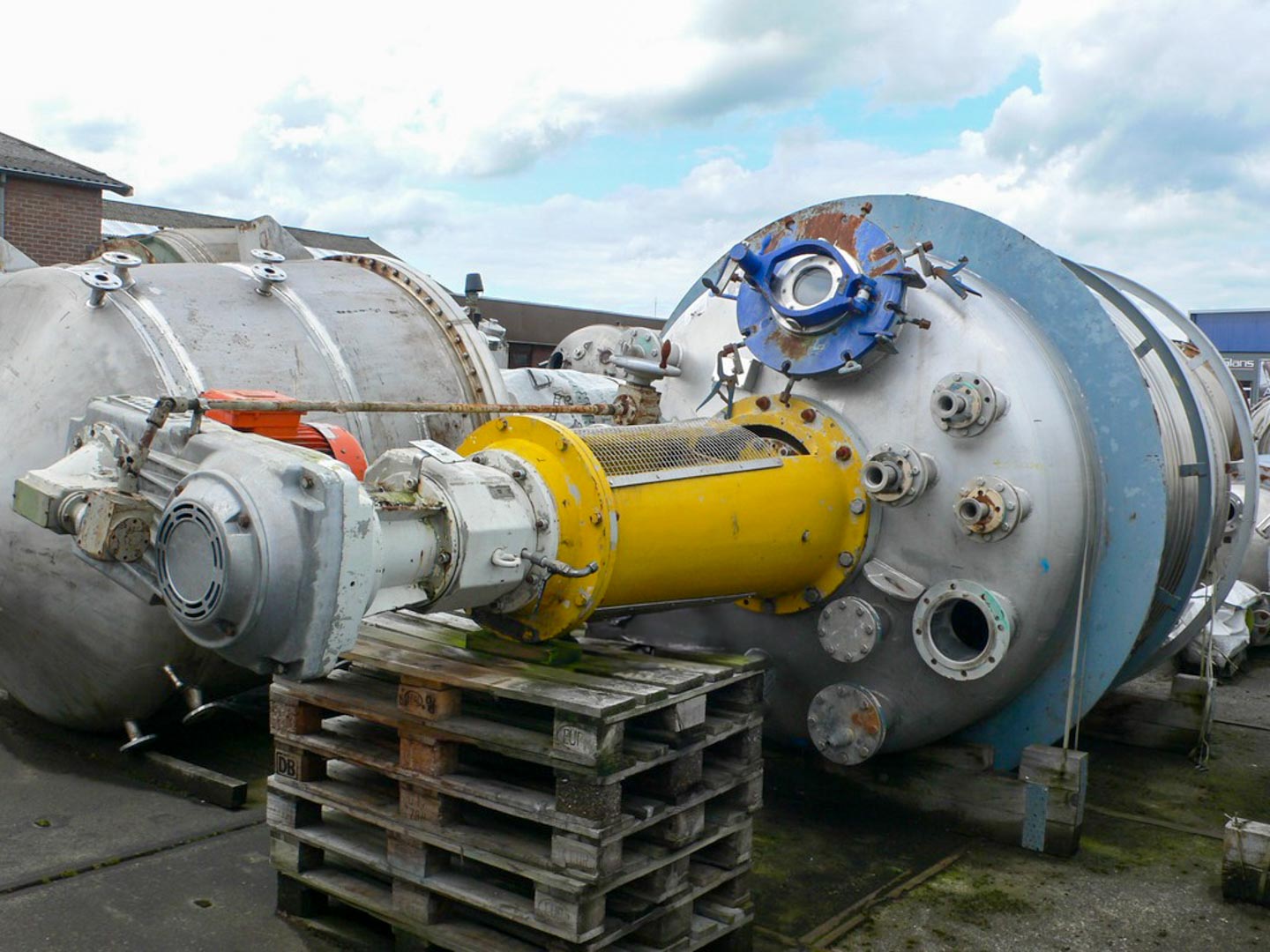

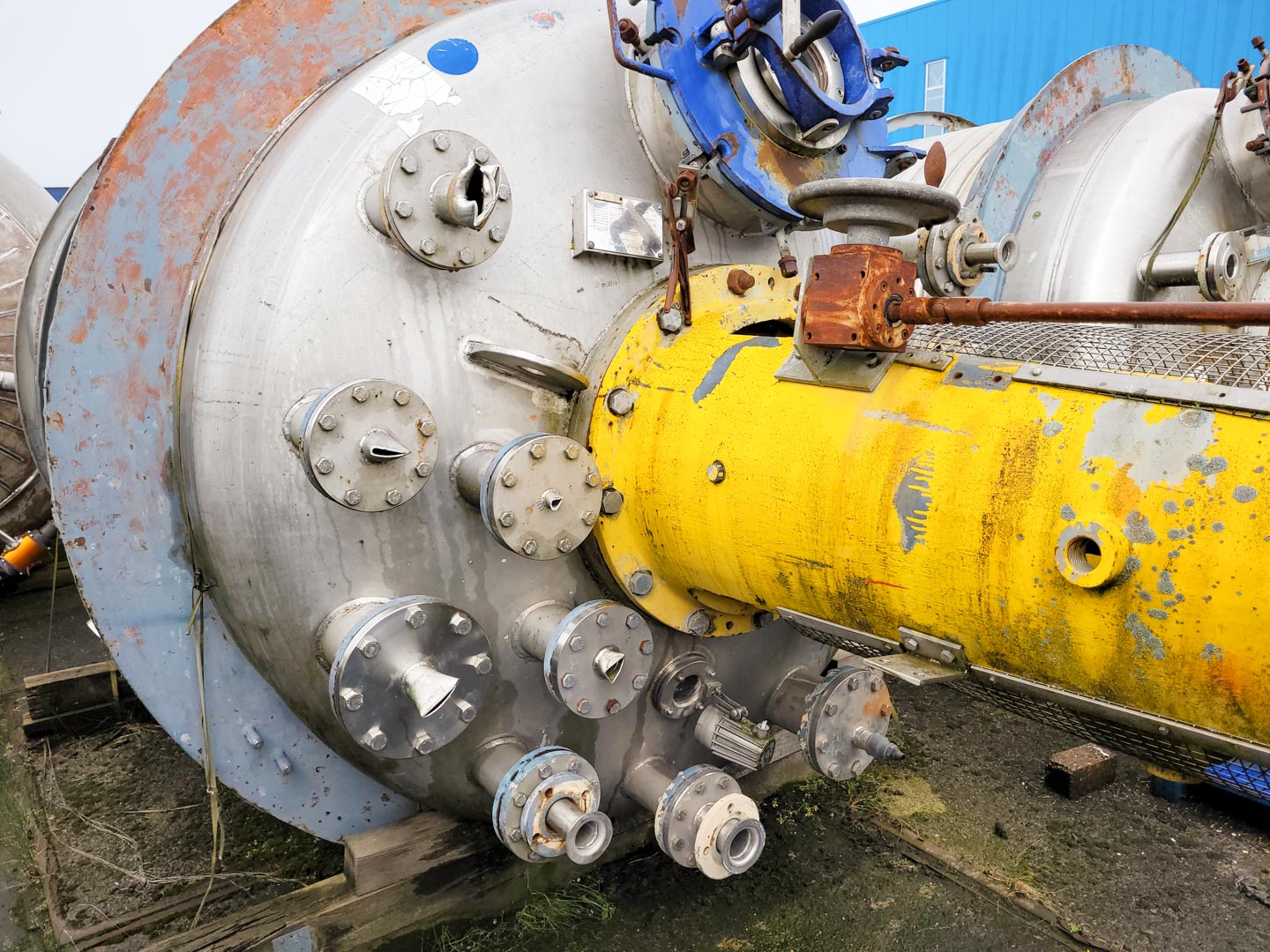

General SKU062E215 LocationBarneveld MakeHagemann GmbH Beckum No.87/0106 Year of construction1987 Pressure Working pressure3.2 Bar Vacuum possiblecheck Working pressure jacket16 Bar Main Features MaterialStainless steel Volume6300 Ltr. Motor17.5 KW Specified Features - Stainless Steel Reactor Reactor(1x) Capacity8200 l Useful capacity 6300 l Vessel sizesdia. 2000 x1800 mm Dished bottomcheck Dished top sidecheck Manholedia. 500 mm Top connections(13x) Outletdia. 170 mm Half coil jacketed(250 Ltr) Max. temperature200°C With paddle stirrercheck Motor17,5 kW (500 V, 1500 rpm (Ex)) Speed mixing shaft25-100 rpm Stainless Steel Reactors MaterialStainless steel 1.4439 (317LMN) Information Floorspace2,5 x 2,5 m Total height5,7 m ATEX compatiblecheckMinerals & inorganicAPIPlastic & polymersDyes & pigmentsAgrochemicalsSolid pharmaceuticsRubberLubricants & oleoOthe ...

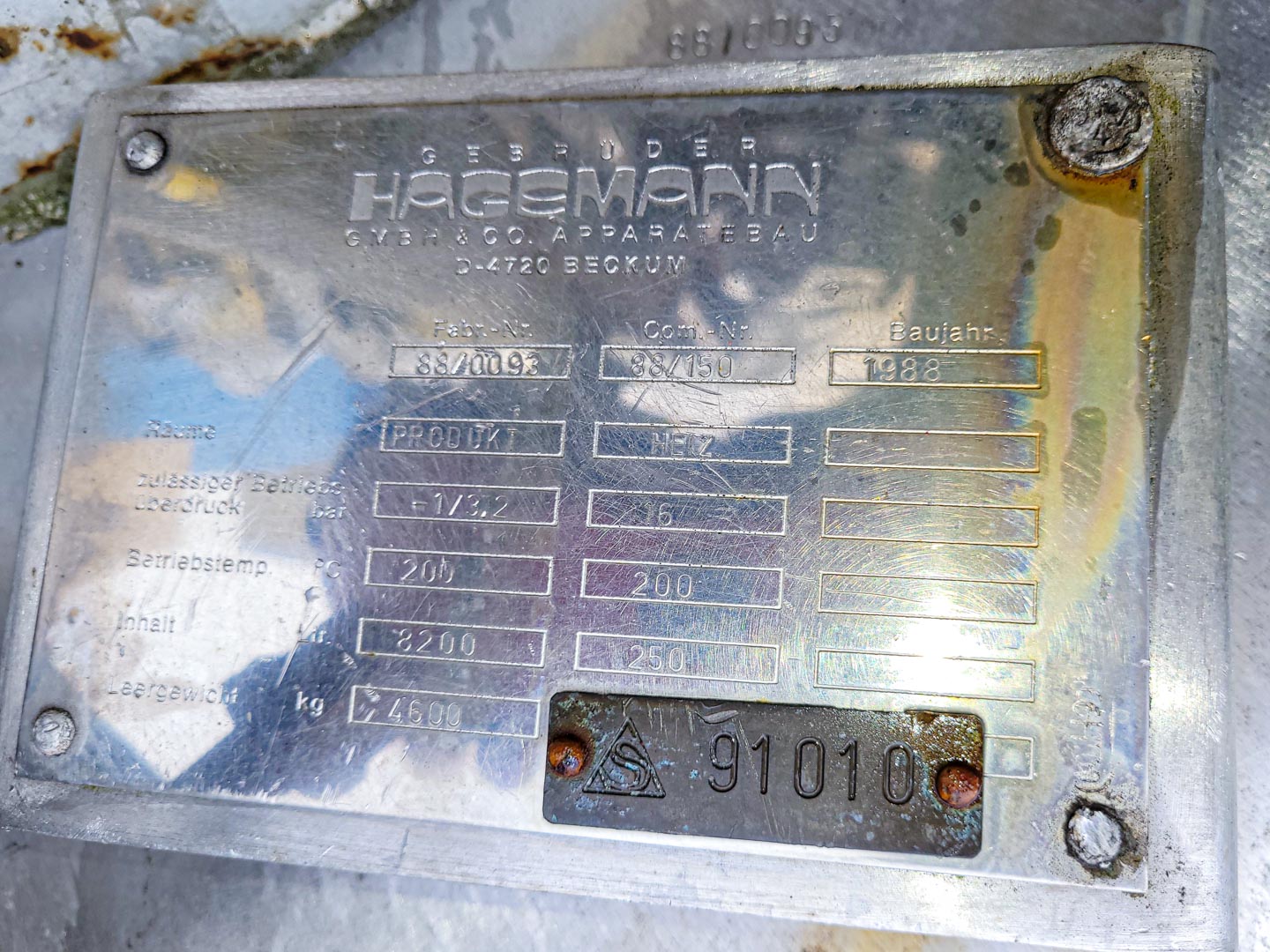

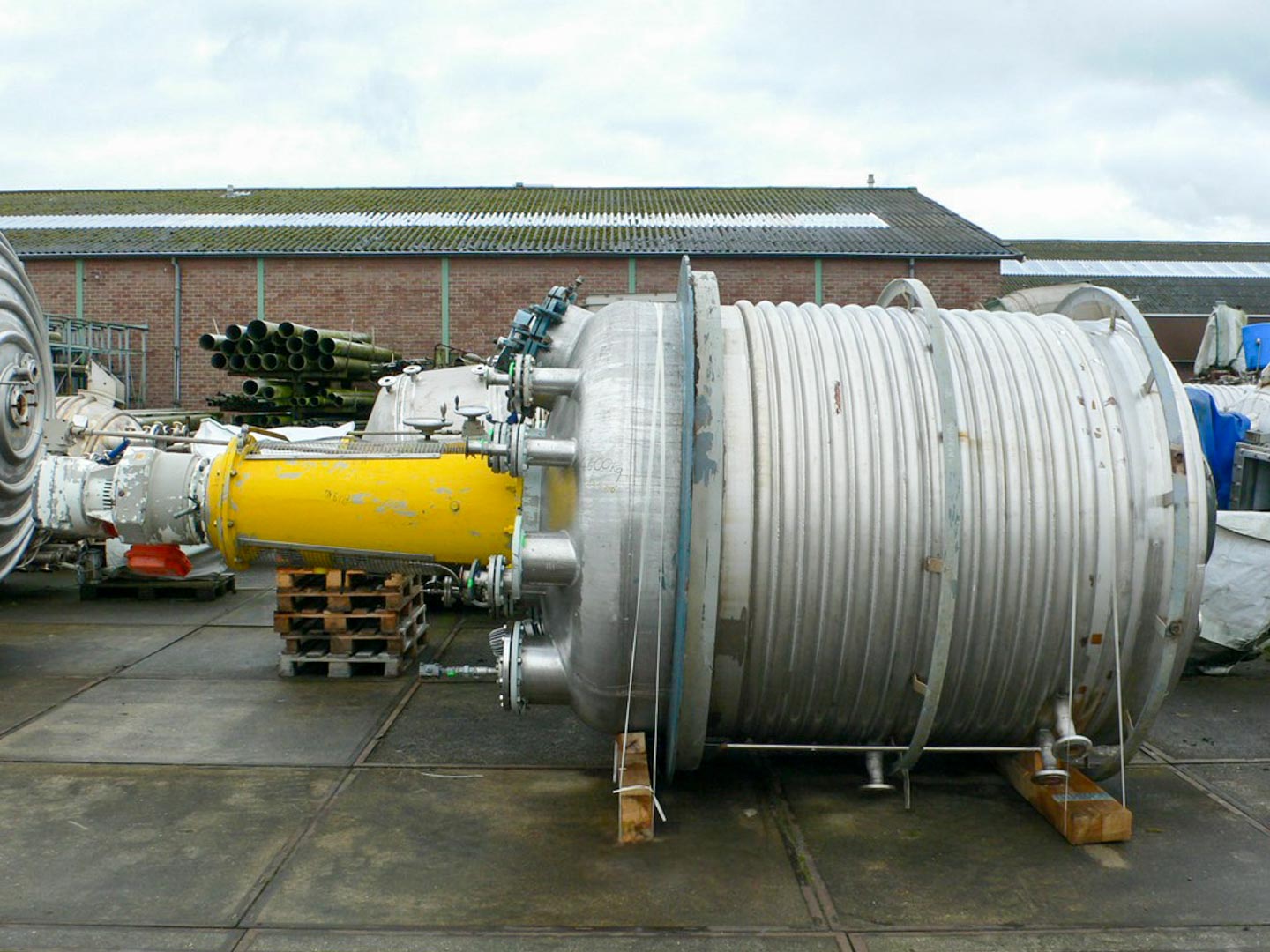

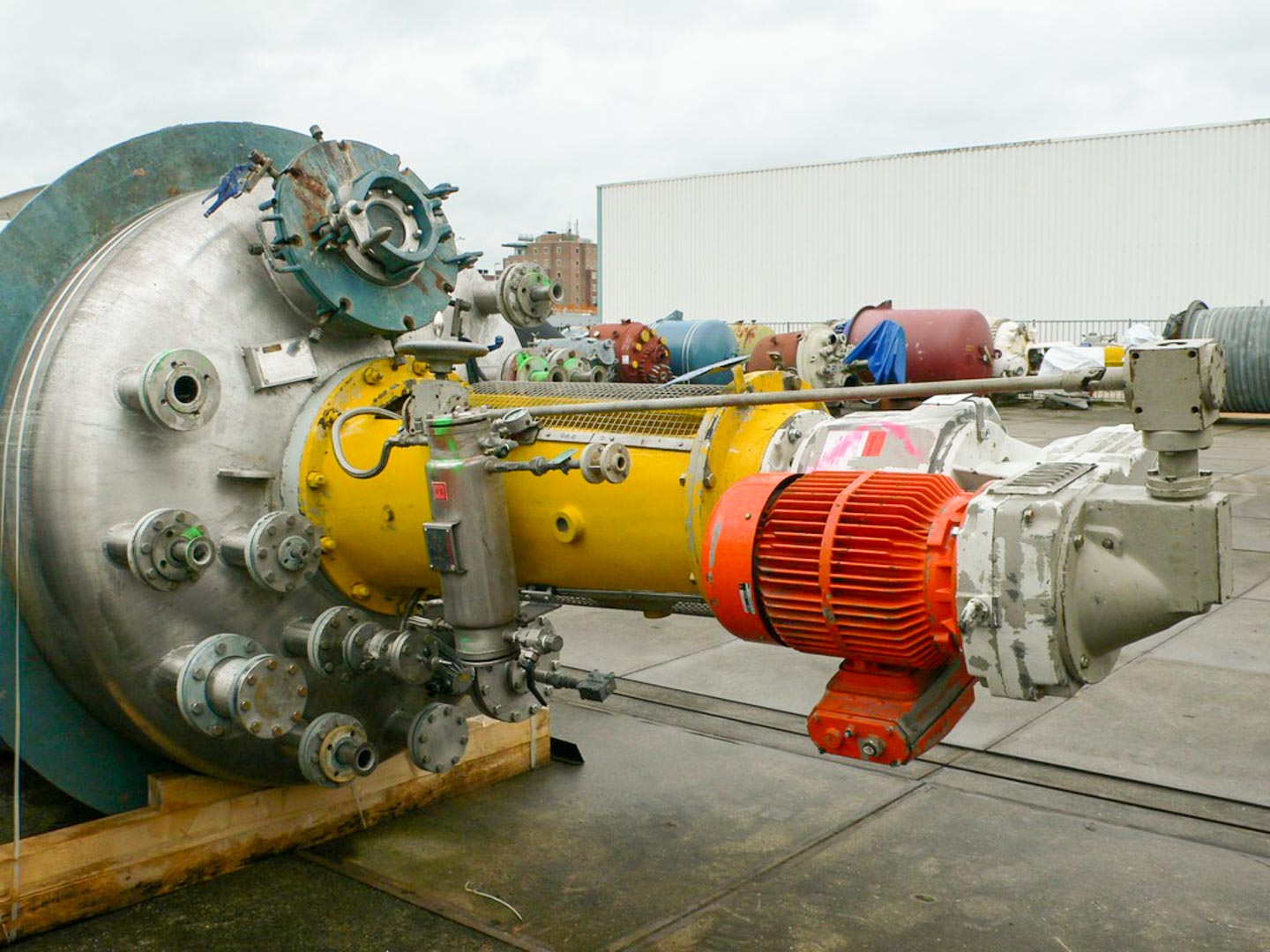

General SKU062E216 LocationBarneveld MakeHagemann GmbH Beckum No.88/0093 Year of construction1988 Pressure Working pressure3.2 Bar Vacuum possiblecheck Working pressure jacket16 Bar Main Features MaterialStainless steel Volume6300 Ltr. Motor17.5 KW Specified Features - Stainless Steel Reactor Reactor(1x) Capacitybruto 8200 Ltr. (netto 6300 Ltr) Vessel sizesDia. 2000 x 1800 mm Dished bottomcheck Dished top sidecheck Manholedia. 500 mm Top connections(13x) Outletdia. 100 mm Half coil jacketedcheck 250 Ltr. Max. temperature200°C With anchor stirrercheck Motor17,5 KW, (500 V, 1500 rpm (Ex)) Speed mixing shaft22-100 rpm Stainless Steel Reactors MaterialStainless steel 1.4439 (317LMN) Information Floorspace2,5 x 2,5 m Total height5,7 m Weight4600 kg ATEX compatiblecheckMinerals & inorganicAPIPlastic & polymersDyes & pigmentsAgrochemicalsSolid pharmaceuticsRu ...

conveyor belt, belt conveyor, transport belt, belt conveyor -Conveyor belt: Conveyor belt on solid stainless steel base, height adjustable -Speed: 14.5 m/min -Conveyor belt width: 385 mm -Conveyor belt length: 2195 mm -Motor/gearbox: Nord 0.55 kW see photo type plate -Total dimensions: 2215/630/H860 mm -Weight: 69 kg

Conveyor belt, belt conveyor, conveyor belt, belt conveyor -Conveyor belt with a small trough -Conveyor belt can be tilted sideways pneumatically -Drive motor: 0.37 kW 93 rpm -Band speed: 32 m/min -Belt width: 290 mm -Drive roller: Ø 100 mm -Conveying length: 3000 mm -Belt height: 800 mm -Number: 1x belt conveyor belts available -Price: per piece -Transport dimensions: 3000/700/H800 mm -Weight: 210 kg / piece

Conveyor belt, belt conveyor, conveyor belt, belt conveyor -Conveyor belt with a small trough -Conveyor belt can be pneumatically tilted sideways in both directions -Drive motor: 0.37 kW 93 rpm -Band speed: 32 m/min -Belt width: 300 mm -Drive roller: Ø 100 mm -Conveying length: 2500 mm -Roller conveyor length: 500 mm -Belt height: 980 mm -Number: 1x belt conveyor belts available -Price: per piece -Transport dimensions: 3060/700/H980 mm -Weight: 222 kg/piece
