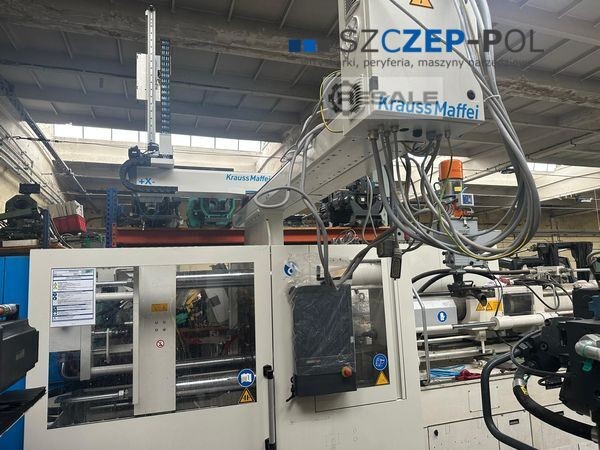

Injection molding machines KRAUSS MAFFEI KM 200-1400 CX

Clamping force: 2000 kN Krauss Maffei KM 200-1400 CX with the Krauss Maffei LRX Easy Control 100 robot / Operating hours: 12,000 h in automatic mode
Year of manufacture: 2018

Injection unit:
Screw diameter: 60 mm
Injection weight: 617 g
Spray pressure: 2007 bar
Dosing volume: 679 ccm

Clamping unit:
Clamping force: 200 t
Tiebar spacing: 560x560 mm
Size of the clamping plates: 915x915 mm
Ejector: hydraulic
Clamping unit: hydraulic

Control: MC6 - Touch Screen

Additional equipment:
Very good technical condition
Operating hours: 12,000 h in automatic mode
Euromap 67
Robot interface
Air Valve with Vacuum Measurement x 1
Hydraulic core pull x 3
Air Core Pull x 3
Control with hot runners x 10
Hardened injection unit - Bimetal
Energy-efficient machine – has a system with 3 hydraulic pumps with variable power
Parallel movements
Proportional valve on the injection unit – precise injection
Machine manufactured in December 2018, delivered to the customer in 2019

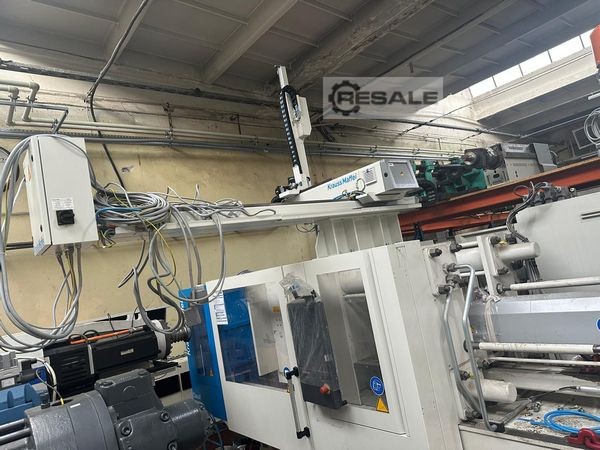

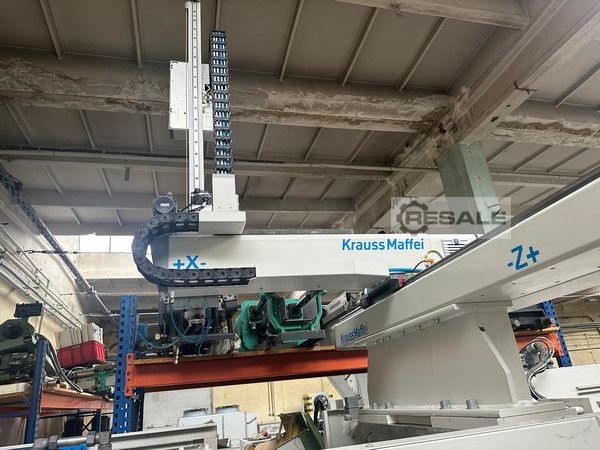

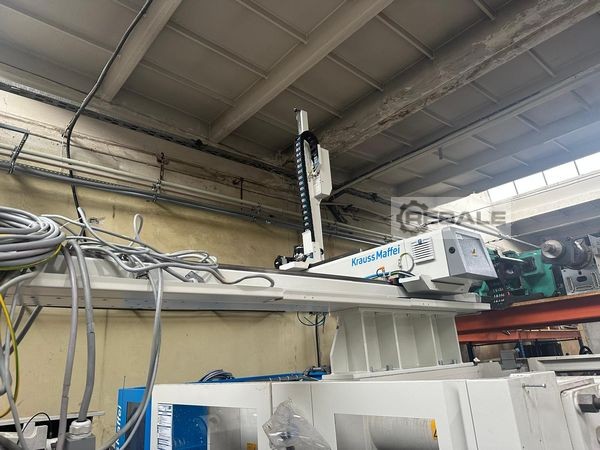

Krauss Maffei LRX Easy Control 100 robot
Year of Make: 2019
4-axis robot: 3 axes are driven by servo motors (electric); Axis C - pneumatic
Touch control S51231703 panel
The safety S51231703 package for robots
Robot with adapter, conveyor belt and protective housing
Purchase of the robot and the conveyor belt at an additional cost

Metrics:
Weight: 11500 kg
Length/Width/Height: 6.10x2.20x2.30 m

All offered machines are started by our service technicians before they are sold.
It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź.

Price: On request
seller offer No. resale 168403254
