饮料机 二手 出售 (2,137)

物品编号：Velo-400-20-MC - 使用带有19个滤芯板的酵母滤芯封闭边缘，总长度约2 300毫米 - 总过滤面积5.3平方米，总油量66升。 - 配备新型单丝滤布（编号1001.6439） - 配备隔膜泵 1800升/小时 - 带滴水盘 - 配备新型手动液压泵 - 压力开关、压缩空气连接、安全阀 - 按需要使用葡萄酒线 - 1年功能保�

Overview This high-pressure air compressor was manufactured in 2003 by the Belgian company Ateliers François (AF). The CE68 ASG model is designed to supply compressed air at 40 bar, specifically for PET bottle blowing applications. The compressor is still installed and electrically connected in Germany and is available immediately. Technical data Free air delivery: 2,100 m³/h (35 m³/min) Operating pressure: 40 bar Design pressure (PS): 42 bar Speed: 480 rpm Shaft absorbed power: 355 kW Voltage: 400 V Year of manufacture: 2003 Application: PET bottle blowing Scope of delivery 1 × High-pressure compressor 40 bar CE68 ASG 1 × Refrigeration dryer 1 × Electrical control cabinet Condition Still installed and electrically connected Available for inspection on site Availability Immediately available.

碳酸软饮料PET瓶装满系列 制造商：SIPA / PROCOMAC 制造年份：2009年 地点：德国 供应时间：自2026年10月起 该线路目前仍在运行，生产过程中可进行检查。 技术细节： 容量：约每小时12,500瓶 瓶装容量：500毫升、750毫升、1500毫升 琴颈处理： PCO 28 / 1881 额外750毫升，带运动帽（PCO 1881） 包括： 1. 8腔SIPA SFR 8吹气机 包括预备食品供给系统 包括冷水机，但无预制卸载装置 无高压压缩机 2. 气流输送机GEA Procomac 3. Tribloc GEA Procomac 50 / 70 / 12 配备50个冲洗站、70个加水阀和12个加水头 塑料螺丝盖 包括围绕机器类型的完整克莱恩房间 ISO 5”， 包括两个分拣单元， 包括填充后瓶子干燥站， 包括填充高度控制和填充后盖控制， 包括氮加量系统（适用于无二氧化碳产 ...

Overview This SIPA SFR 8 is an 8-cavity rotary stretch-blow moulding machine for PET bottles, built in 2009 by SIPA (Italy). It processes PET preforms into bottles of 0.5 l, 0.75 l and 1.5 l at an output of up to 12,400 bottles per hour. The blowing station is fully enclosed by safety guarding with viewing windows, and the machine is operated from a machine-mounted touchscreen control panel. It has been running as the stretch-blow moulder of a PET bottling line for mineral water and soft drinks, and is still installed and under power, so it can be inspected in production. Technical data Manufacturer: SIPA (Italy) Model: SFR 8 Year of manufacture: 2009 Machine type: rotary stretch-blow moulder for PET bottles Number of cavities: 8 Output: up to 12,400 bottles/hour Bottle formats: 0.5 l, 0.75 l and 1.5 l Neck finish: 28 mm / 1881 (short neck) Electrical connection: 400 V, three-phase Total ...

Overview This Ortmann + Herbst Hansa B 100/20 is a rotary filler-capper monoblock for glass bottles, originally built in 1994 and completely refurbished in Germany in 2013. It combines 100 filling valves with a 20-head aluminium screw capper in a single machine and reaches up to 30,000 bottles per hour with 750 ml glass bottles. The 2013 refurbishment covered the machines controls, drive and guarding: a new electrical system with Siemens S7 control and a Siemens SIMATIC MP377 12 touch panel, a new main bearing, and a new safety housing around the machine. Two change part sets are included, for 250 ml and 750 ml bottles. The machine is still installed and under power, so it can be inspected in its production environment. Technical data Manufacturer: Ortmann + Herbst Model: Hansa B 100/20 Year of manufacture: 1994, completely refurbished 2013 Machine type: rotary filler with screw capper,  ...

特色： 第3150卷 材料编号 V2A 最大工作超压0.99巴 总高度：3000毫米 直径1300毫米 外径1400毫米 2B内部的表面=IIIC接地 2B外的表面=IIIC接地 工作温度 20摄氏度 汽缸长度：2000毫米 描述： 表土： 拍板底 螺纹喷嘴 DN40 中央 螺纹喷嘴 DN40 侧 止回阀 圆柱体： 440 x 340椭圆形井盖 样品分头DN15 梯形钩 下扫CIP管DN40，带盘阀和压力表 带盘阀的螺纹焊接喷嘴DN25 带进出口的冷却盘管 3/4英寸 盲套法兰颈 DN125 底盘： 拍舌底/弧背 前引残留排水管，盘阀DN50，紧贴罐壁 三轮廓脚配卡洛特——高度可�

特色： 第2750卷 材料编号 V2A 最大工作超压2巴 总高度：2850毫米 直径1540毫米 外径1550毫米 2B内部的表面=IIIC接地 玻璃珠外表面喷砂 描述： 表土： 拍舌底/弧背 法兰盖直径450毫米 连接溢流管DN40横向出水 带碟阀的螺纹焊接喷嘴 DN65 螺纹焊接喷嘴 DN65 2个螺纹焊接套筒 DN25 圆柱体： 梯形钩 向下拉的CIP电缆DN40 4 x 冷却盘管，宽 70 毫米 温度传感器费舍尔 焊接套筒 DN15 底盘： 锥形底座，带35厘米高的冷却套 侧螺纹焊接喷嘴 DN32 三轮廓脚配卡洛特——高度可调 剩余排水DN50

Overview This M+F KEG-Technik MICROMAT M 1/1-F KeyKeg is a semi-automatic filling machine for one-way KeyKegs, built in 2011 by M+F KEG-Technik (Bottrop, Germany) and used in a Belgian brewery. The machine fills 20 l and 30 l KeyKegs at 50-60 kegs per hour. It became redundant when the brewery switched its production from one-way KeyKegs back to returnable stainless steel kegs. It has already been dismantled, is in storage and can be inspected on request. Technical data Manufacturer: M+F KEG-Technik Model: MICROMAT M 1/1-F KeyKeg Year of manufacture: 2011 Machine type: semi-automatic KeyKEG filling machine Capacity: 50-60 KeyKegs per hour Container formats: 20 l and 30 l KeyKEG Fitting type: KeyKEG fitting Connection voltage: 230/400 V, 50 Hz Equipment EC Declaration of Conformity (Machinery Directive 2006/42/EC) Technical documentation Condition Used. The machine has already been disman ...

Overview This SMI TF350 is a tray packing machine for PET bottles, built in 2009 by SMI (Italy). It forms cardboard trays from flat blanks and packs PET bottles at an output of 45 to 50 packs per minute. Tray forming is carried out with an integrated Nordson ProBlue 4 hot-melt adhesive unit. The machine is fully enclosed by a safety guard with large viewing panels and hinged access doors, and is operated from a control cabinet mounted on the machine frame. It has been running as the tray packer of a PET bottling line for mineral water and soft drinks, and is still installed and under power, so it can be inspected in production. Technical data Manufacturer: SMI (Italy) Model: TF350 Year of manufacture: 2009 Machine type: tray packer for PET bottles Output: 45 - 50 packs/min Adhesive system: Nordson ProBlue 4 hot-melt unit Packaging material: flat cardboard blanks Guarding: full safety enc ...

Overview This SMI SK 450 T is a shrink packer for PET bottles, built in 2009 by SMI (Italy). It collates bottles into pack formations, wraps them in shrink film and shrinks the film in the integrated heating tunnel, at an output of up to 45 packs per minute. It handles 0.5 l bottles in 3x3, 0.75 l bottles in 2x3 and 1.5 l bottles in 2x3 formats. The wrapping section is fully enclosed by safety guarding with viewing windows, and the machine is operated from a machine-mounted touchscreen control panel. It has been running as the shrink packer of a PET bottling line for mineral water and soft drinks, and is still installed and under power, so it can be inspected in production. Contrary to the pictures and videos, please note that the tray forming unit is no longer available. This unit has been removed and is no longer installed in the machine/line. Technical data Manufacturer: SMI (Italy) M ...

On behalf of our client, we are selling this SIG Asbofill ABF (Aseptic Bottle Filler), 10-Lane, PET bottle filling machine which is designed for the aseptic filling of liquid, non-carbonated, microbiologically sensitive high- and low acid products into prefabricated plastic bottles. The client bought a new and bigger aseptic filling machine for extension of his production capacities. This machine is recently dismantled and located in the warehouse of the dairy factory., The machine was used the last 8 years to fill protein shakes and milk related drinks (cold fill) at the current factory. Before it was used for fruit juices. Sterility Assurance Level (SAL) of 6-log reduction. Shell of life of the current products: 9 months. Capacity: 12.000 bottles/h @ 1.000 ml, 10.000 bottles/h @ till 1.500 ml and 8.000 bottles/h @ till 2.000 ml. Filling accurancy: ± 2 ml (filling volume 1.000 ml). Bot ...

Cleaning in Place” (CIP) system, consisting of the following components: - 400-liter stainless steel tank serving as a hydrostatic circulation tank - 7.5-kW feed pump (Packo) for pumping 25 m³/h against 4.1 bar - 4.0 kW return pump (Packo) for pumping 25 m³/h against 2.0 bar - Shell-and-tube heat exchanger (Weinbrenner) for heating a flow rate of 25 m³/h from 55 °C to 75 °C with 790 kW - 4-channel chemical dosing system (ProMinent) for lye, acid, disinfectant, and additive - Temperature measurement - Conductivity measurement (E+H) - Inductive flow meter (E+H) - Control cabinet with touchscreen display - Various piping and valves, Additional title: Cleaning system for cleaning pressurised tank cellars, Volume circulation tank: 400 l, Length: 2,5 m, Width: 3,0 m, Height: 2,9 m, Operation / Control: Simatic S7, Material: contact surfaces from stainless steel, Position: on stainless s ...

CIP system with a total of 7 tanks, including: - 1 tank with a capacity of 60 hl as a reserve water tank - 5 tanks, each with a capacity of 30 hl (manufactured in 1992), for acid, reserve water, Desi, and 2 x lye - 1 tank with a capacity of 20 hl (manufactured in 1992) for fresh water Additional system components: - 3 centrifugal pumps - Heat exchanger - Conductivity measurement - Various piping and valves, Additional title: 7-tank CIP system with pumps and heat exchanger, Volume stacked water tank: 6000 l, Volume 5 x tanks for cleaning solutions: 3000 l, Volume fresh water tank: 2000 l, Material: stainless steel, Position: vertical vessels each on 3 feet, Features: 7 x CIP tanks (comprising 1 x 60 hl, 5 x 30 hl and 1 x 20 hl); 3 x centrifugal pumps; heat exchanger; conductivity measurement; various pipework and valves

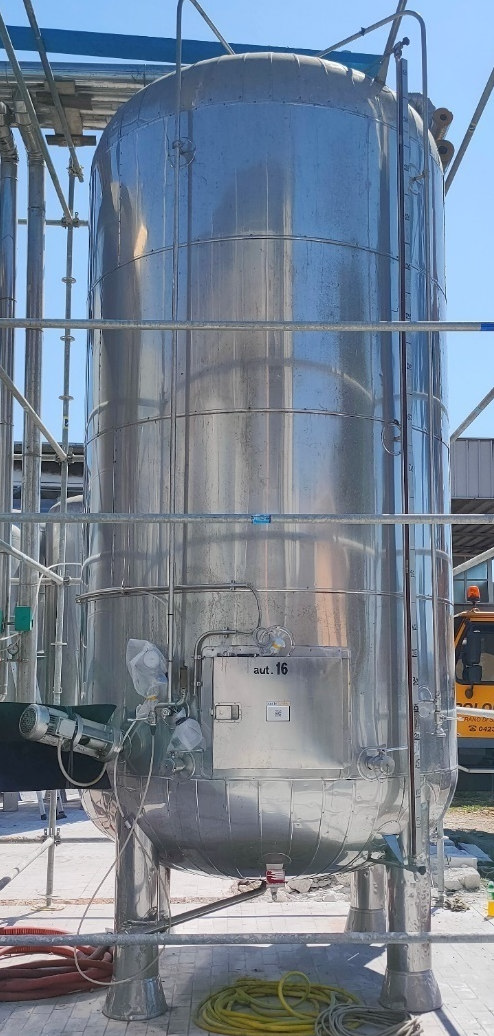

Vertical outdoor tank with insulation and cladding, most recently used as a storage tank for hot water., Additional title: vertical outdoor stainless steel tank with insulation, Gross volume: 80000 l, Material: Stainless steel 1.4571 (AISI 316Ti), Position: standing on a concrete plinth, Base construction: cylindrical tank with a dished dome, Features: Insulation; cladding; lifting eyes; cleaning pipe

vertical stainless steel tanks with insulation and cladding, most recently used as storage tanks for degassed water, Additional title: vertical, insulated stainless steel tanks, Gross volume each: 14340 l, Material: stainless steel, Position: each standing on 3 feet, Base construction: cylindrical frames, Features: outlet pipe with manual valve; overflow pipe ladder bracket; manhole

Bucher Press HP 3000 制造年份：1982年 适合加工苹果、梨、葡萄及其他水果。 产量：大约每小时2-3吨苹果，具体取决于产品和操作� ��件。 该机器曾用于德国的一家苹果酒生产设施。这台机器� ��经不再生产了。”

A vertical outdoor silo with a capacity of 340 hl for storing approximately 30 tonnes of wet spent grain. The conical silo is equipped with a spent grain pump and a discharge mechanism at a height of several metres for loading lorries. A dry-running rotary vane compressor (Becker, 2019) with 18 kW serves as a spent grain blower for conveying between the lauter tun and the spent grain silo., Additional title: vertical outdoor silo with spent grain blower and spent grain discharge, Capacity: 34000 l for appr. 30 t wet spent grain, Height: 14149 mm, Position: standing on tank scaffolding, Base construction: cylindroconical silo, Features: Spent grain blow; spent grain screw conveyor (heated); spent grain discharge; ladders and handrails on the upper deck

Complete beer clarification plant, comprising the following main components: - Diatomaceous earth cartridge filter (Filtrox, 1979) with a capacity of 27.1 hl and a filter area of 26.62 m². Diatomaceous earth filter based on the Twin Flow system. The diatomaceous earth filter has recently undergone a complete mechanical and electrical overhaul and has been fitted with additional measurement technology. - Cartridge membrane filter (H&K, 2011) with 24 filter cartridges and a filtration capacity of 200 hl/h - 2 trap filters - Buffer tank for unfiltered wine (Gross, 1979) with a volume of 61.5 hl - Buffer tank for filtered wine (Gross, 1979) with a volume of 10 hl - PVPP dosing vessel (1981) - Diatomaceous earth dosing vessel (1979), Additional title: Kieselguhr filter Twin Flow System, Filtration capacity: 200 hl/h, Filter area: 26 m², Max. operating pressure: 9 bar, Filter Cartridges: 135 ...

System for blending beer with degassed water and subsequent carbonation. The system is equipped with a product pump (Hilge), inductive-magnetic flow meters (E+H), control valves for blending (GEA) and CO2 dosing (Samson), a 4-way valve (GEA), and inline beer analysis technology (Anton Paar)., Additional title: Carboblender for precise mixing and carbonation, Capacity: 20000 l/h, Length: 3,40 m, Width: 1,20 m, Height: 2,50 m, Material: contact surfaces from stainless steel, Position: mounted on stainless steel frame, Features: Centrifugal pump; inline beer analyzer (Anton Paar); density measurement (Anton Paar); 2 x flow meters; 3 x control valves (for blending and CO2 dosing); 4-way valve; various piping; control cabinet with touch panel

Beer pasteurization plant. In the plate heat exchanger (APV, 1995), 200 hl/h of beer is first heated to 74 °C using hot water at 3 °C and held at that temperature for approximately 40 seconds in the holding section. Finally, it is cooled back down to 8 °C in the heat exchanger using cooled beer., Additional title: inline pasteurisation plant, Capacity: 20000 l/h, Operation / Control: Siemens S5, type Simatic S5-95U., Material: stainless steel, Features: plate heat exchanger; 2 pumps; inductive flow meter; control cabinet with digital control panel

A washing machine for cleaning glass bottles prior to beverage filling. The soiled empty bottles are loaded into bottle baskets and pass through the system for approximately 14 minutes. First, the bottles pass through a pre-soaking bath and a lye bath in the lower section, and are then rinsed in the upper section with lye, twice with hot water, cold water and finally fresh water. The cleaned bottles are discharged onto the bottle conveyor above the bottle inlet., Additional title: single-ended machine for cleaning glass bottles, Nominal capacity: 33000 Fl/h ; mechanical control range: 13.200 - 36.000 Fl/h, Number of basket holders: 269 pcs. ; of which 259 were filled – total number of bottles: 7.770 pcs., Processing time: 14,14 min, Heating / Cooling: 1.352.712 kJ/h, Water: 7,92 m³/h, Formats: 0,5 l NRW bottles, Material: housing from stainless steel, Position: in a cabinet on legs wi ...

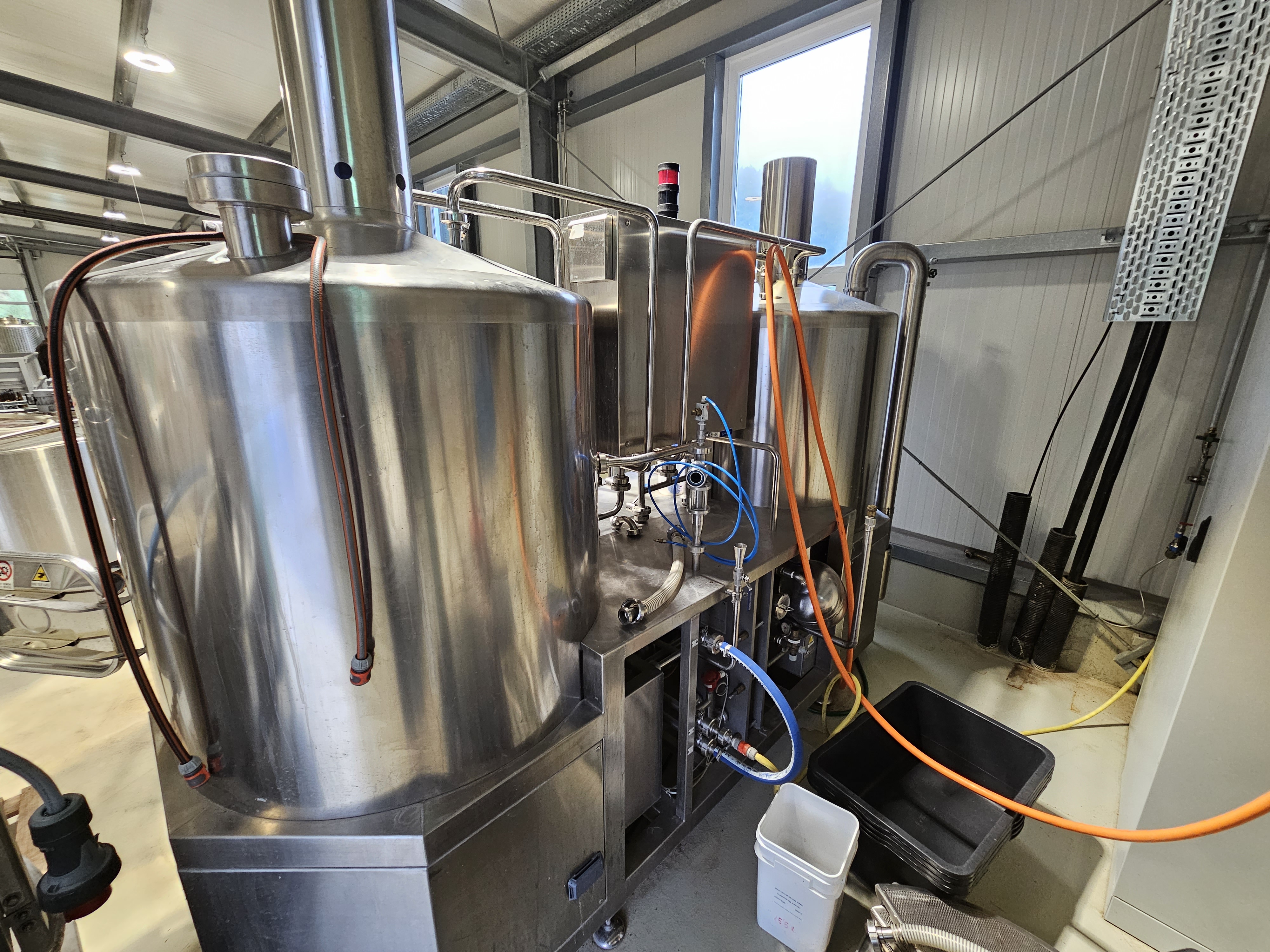

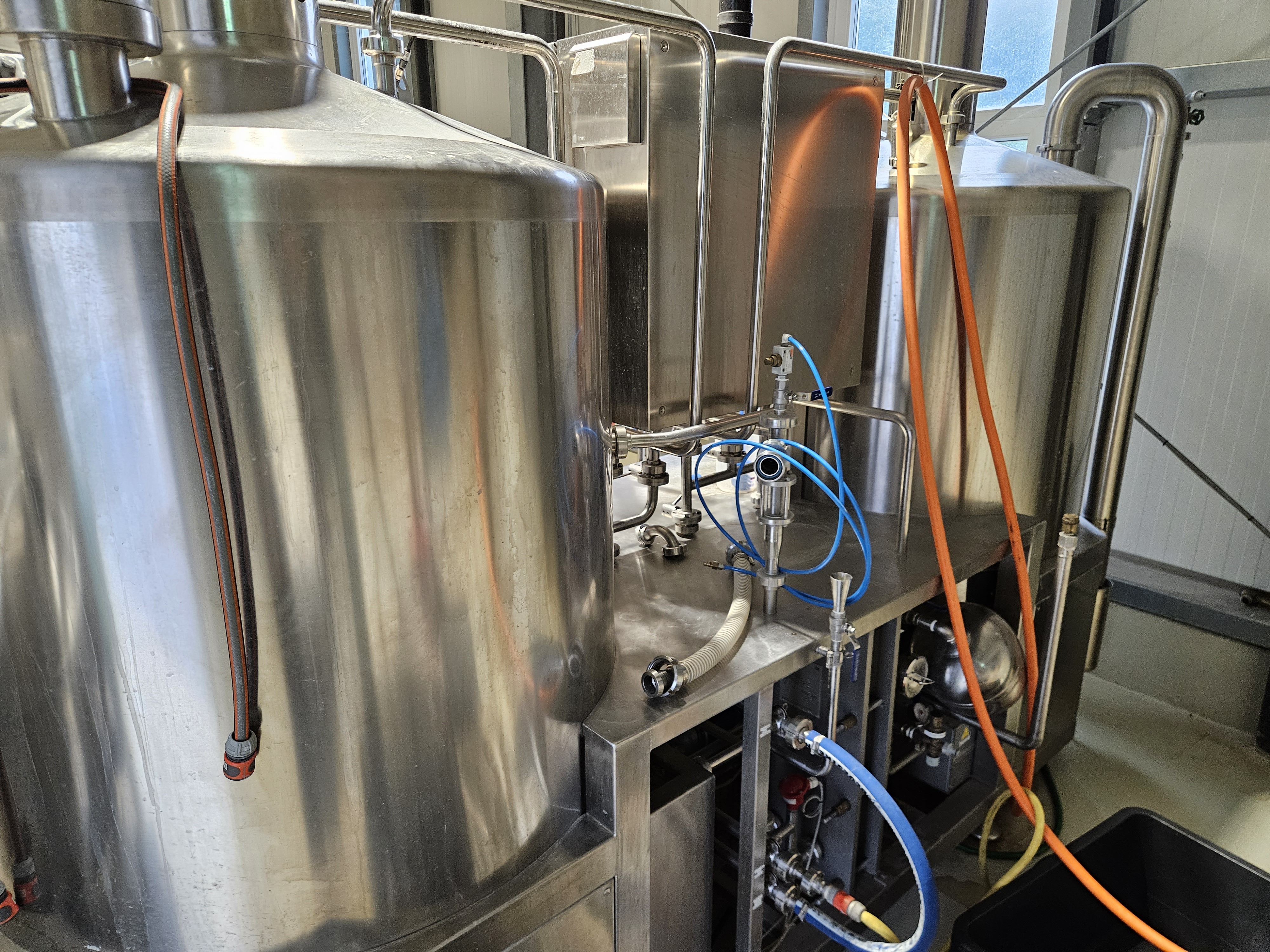

Compact pub brewery with a 2-vessel brewhouse, tanks, bottling equipment, and utility systems. The system consists of the following components: 1. Malt mill (Sommer, 2017) Roller mill on a painted steel frame with a capacity of approx. 400 kg/h of malt (2.2 kW motor power), featuring a mechanism for fine, rapid adjustment of the roller gap and a bagging spout at the bottom. 2. Brewhouse (Wengert, 2018) Two-vessel brewhouse with a mash/wort kettle and a lauter tun made of stainless steel with copper-clad lids. The kettle (nominal capacity: 500 l) is equipped with a top-driven two-blade propeller agitator and is fired by a gas burner (Weishaupt). The lauter tun is equipped with a rake, a drop floor, and a side spent grain flap with a chute. The brewhouse features a control system (Movonik, 2017) for automating temperature control and agitator speed. The brewhouse is mounted on a stainless  ...

特色 卷 1821 L 材料编号 V2A 工作温度：90摄氏度 总高度：2200毫米 直径1300毫米 描述 表土： 锥形底座 2只鶴眼 根据 DIN 11851 CIP 球的螺纹喷嘴 DN25 中央 接合1/2英寸 盖子 DN500 圆柱体： 绝缘材料 5厘米，密封焊接 带条形和刻度的半英寸电平指示器 根据DIN 11851后顶部，连接编号DN50 根据DIN 11851右侧，连接编号DN80 根据DIN 11851，连接DN50左转 DN50底部连接 PT 100 后轮 底盘： 倾斜锥形底部 中央残余排水 DN50 根据DIN 11851 底部内部加热盘管 法兰连接25 3英尺固定型�

特色 卷 3000 L 材料编号 V2A 总高度：3150毫米 直径1300毫米 操作压力 2 bar 描述 表土： 拍板底部/弧背 CIP球的CIP清洁 圆柱体： 带软管的水位指示器 20 毫米 井盖椭圆形 440 x 350 样品分头DN15 发酵果浆阀DN32，带压力表，与盘阀DN32交叉连接 底盘： 拍舌底/弧背 带盘阀的前吸管 DN65 三轮廓脚配卡洛特——高度可调

特色 第10160卷 L 测试压力 4.3 巴 最小/最大操作压力（HP）3 bar 最低/最高工作温度（TS）+50/-10摄氏度 总高度：4100毫米 直径2050毫米 垂直设计 2B内部的表面=IIIC接地 2B外的表面=IIIC接地 描述 表土： 拍舌底/弧背 2只鶴眼 圆柱体： 液位指示器配备DN20软管和条形及秤，配有DN20盘阀 梯形钩 井盖椭圆形 440 x 340 样品分头DN15 气闸板桩DN40，带气闸连接的压力释放阀 底盘： 拍舌底/弧背 带盘阀的前引残留排水管DN65 4 轮廓脚，带胡萝卜 - 高度可�

特色 工作压力3巴 工作温度 20摄氏度 材料编号 V2A 总高度：3900毫米 直径2000毫米 第8000卷 描述 表土： 拍板底部/圆顶背 中央连接 DN25 螺纹焊接套筒，具 CIP 性能 圆柱体： 带塑料软管DN25的液位指示器 井盖椭圆形 450 x 350 样品分头DN15 螺纹焊接套筒，带CIP管，带发酵旋阀，带压力表，横� ��节，盘阀DN25 底盘： 拍舌底/弧背 中央出水口DN65，残留排水管向前拉，盘阀DN65与罐壁� �平 4个带圆顶的小号脚 - 高度可�

特色 卷 10000 L 材料编号 V2A 工作超压范围 2.5 巴 工作温度2摄氏度 总高度：3900毫米 直径2000毫米 描述 表土： 拍舌底/弧背 线程连接 DN32 梯形钩 圆柱体： 带DN20软管的液位指示器 井盖椭圆形 440 x 340 样品分头DN15 带气流阀（带压力释放阀）和带盘阀的压力表（带盘� ��DN20，T型件带盘阀DN32） 底盘： 拍舌底/弧背 中央出口，残留排水管向前拉，盘阀DN65与罐壁齐平 4轮廓脚，带卡洛特鞋——高度可�

特色 第10600卷 L 材料编号 V2A 工作压力2巴 工作温度范围 2°C 总高度：3900毫米 直径2000毫米 描述 表土： 拍舌底/弧背 线程连接 DN32 梯形钩 圆柱体： 带DN20软管的液位指示器 井盖椭圆形 440 x 340 样品分头DN15 CIP管线，带气流阀，带压力释放阀和压力表 配备碟阀DN20及T型机件，配备碟阀DN32 底盘： 拍舌底/弧背 中央出口，残留排水管向前拉，盘阀DN65与罐壁齐平 4轮廓脚，带卡洛特鞋——高度可�

MEYPACK VP 451 tray and wrap-around packaging machineFully automatic machine for packing beverage cans into trays and wrap-around cartons.Products and formats:- 0.33-litre cans, Ø 66 x 115 mm, loose and in four-packs- 0.5-litre cans, Ø 66 x 168 mm, loose and in four-packsPack configurations for both can formats:- 4 x 6 loose cans in a wrap-around carton or tray- 3 x 4 loose cans in a wrap-around carton- 2 x 3 four-packs in a trayOutput:- Nominal output: 16,000 cans/h- Packaging output: 12 or 24 packs/min, including a 5% capacity reserveProduct handling:- Multi-lane bulk product infeed- Four-packs fed transversely on two lanes, with the openings facing sideways- Infeed height: approx. 1,150 mm ± 50 mm- Outfeed height: approx. 650 mm ± 50 mm- Trays and wrap-around cartons leave the machine broad side leadingOperating principle:The products are fed continuously in multiple rows, distrib ...

特色 第53800卷 材料编号 V2A 操作压力 2 bar 工作温度 20摄氏度 总高度：10870毫米 直径3260毫�
