number: 1x
tool adaptor: VDI 50
Shank diameter: 50
mm
tool adaptor: Capto C5
Torque: max. 100 Nm
Max. Speed:
6.000 min/-1
weight: 19,5 kg

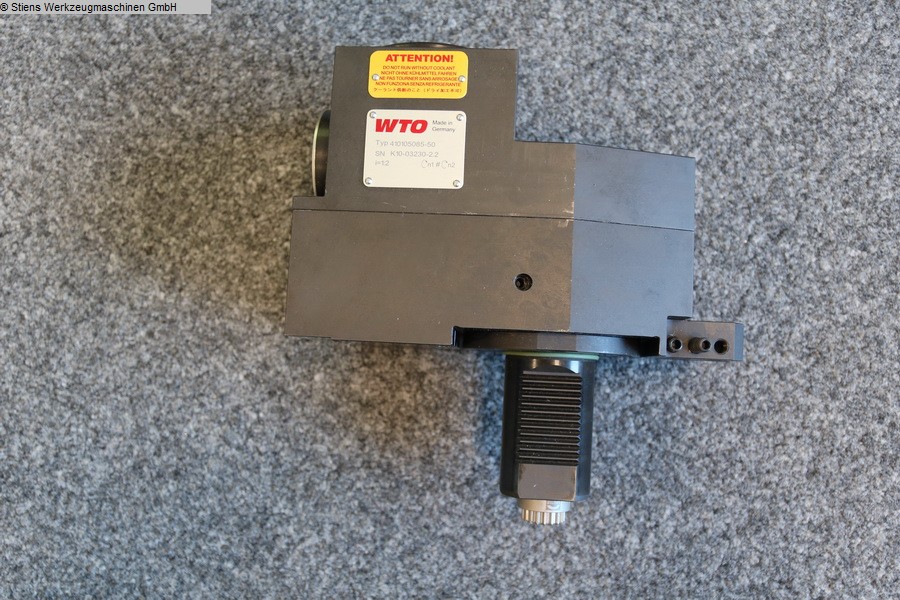

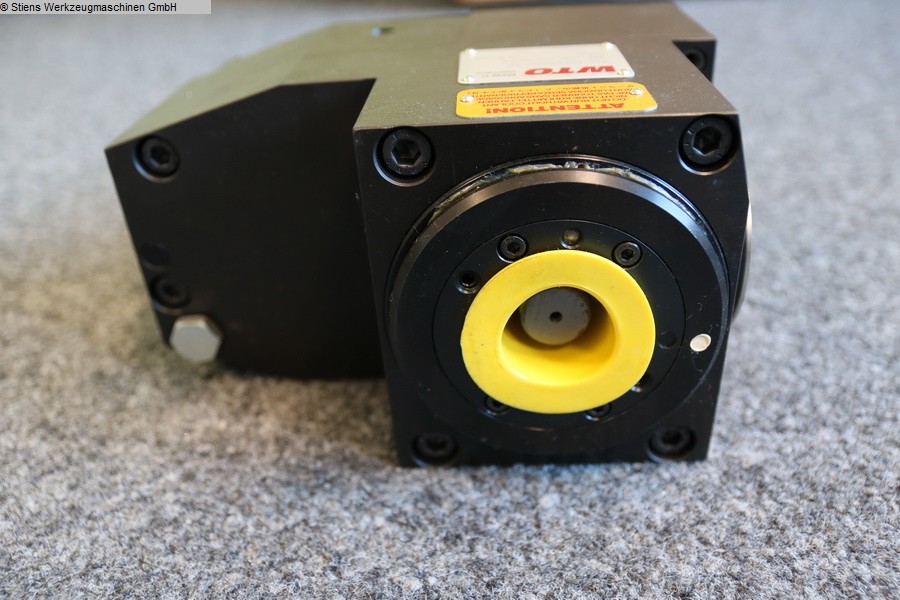

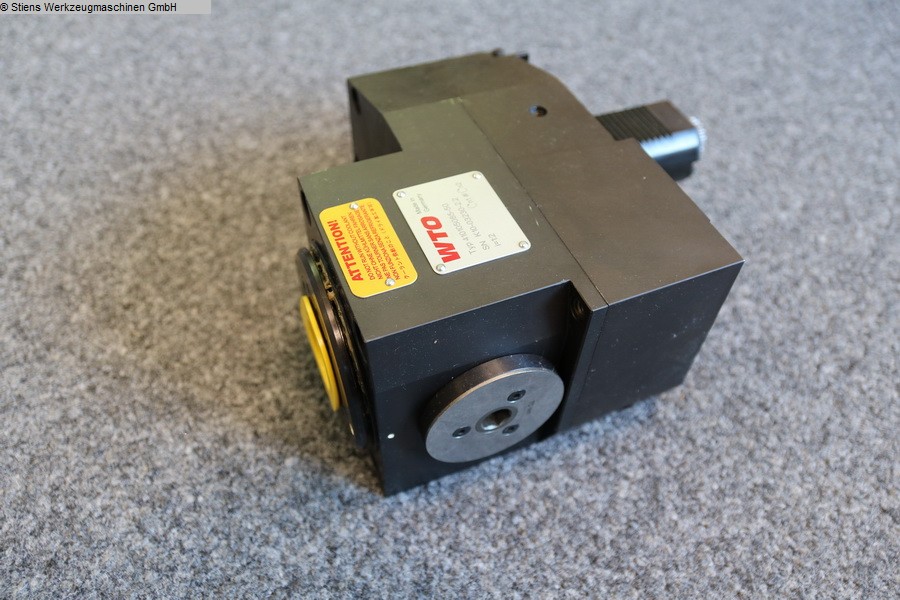

Driven Tool
WTO
410105085-50
- Drilling and milling unit
- Straight with
offset
- with Coromant Capto C5
- Internal and external
coolant supply
- Max. coolant pressure: 80 bar
----
MACHINE APPLICATION ----
DMG Mori CLX/CTX 750 V1/V3/V4, ecoTurn
650
DMG MORI CTX beta VDI50 disc turret
DMG CTX gamma VDI50
disc turret
EMCO Maxxturn 110 (VDI50)
GILDEMEISTER CTX 620
linear
GILDEMEISTER CTX 650 Ecoline
PITTLER PV 630, right-hand
turret
SAUTER disc turret VDI 50, DIN 5480, right-hand
VICTOR
VTurn-36/40/45/46CV (DIN5480)
- Machine interface:
VD50A
- Drive coupling: DIN5480
- i (n1:n2): 1:2
-
Direction of rotation: unequal
- Coolant supply: IK 80 bar
-
Functional length LF: 160 mm
- Cantilever length LPR: 160 mm
-
Functional width WF: 75 mm
The data for this
