Fabricante:
(Categoria: 107)

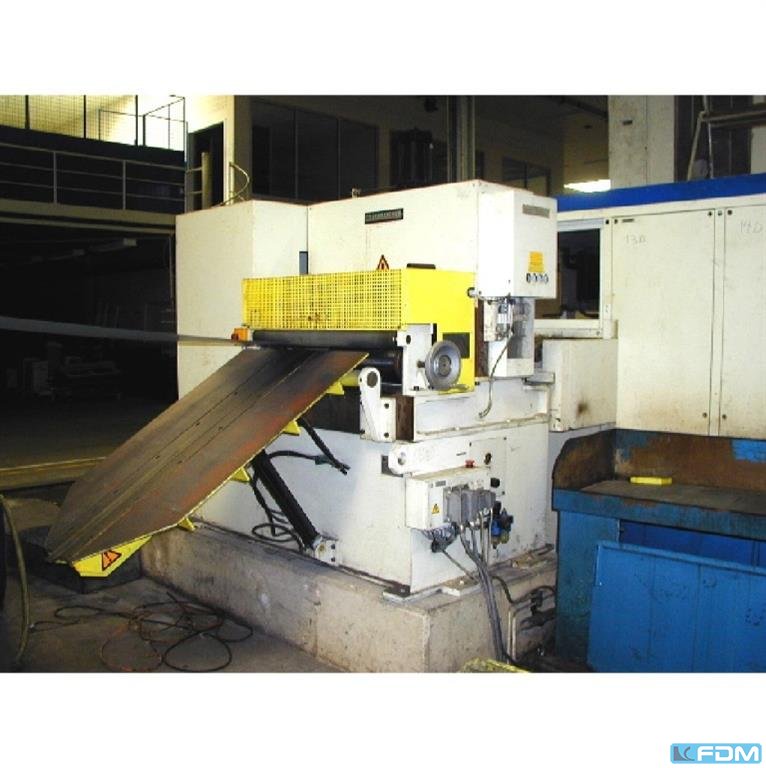

material width:500 mmcoil weight:3,0 tmaterial thickness:0,2 - 2,5 mmcoil internal diameter:470 - 530 mmcoil external diameter:1400 mmno. of straightening rolls:9 straightening roll diameter:40 mmnumber of inlet and outlet rolls:4 material cross-cut:1200 mm²speed:1,5 - 30 m/mindimensions decoiler (WxDxH):1,9 x 0,6 x 1,7 mweight decoiler:1,1 tdimensions straightener (WxDxH):3,3 x 1,3 x 2,7 mweight straightener:3,0 tstraightening machine:RYD 40 x 500 decoiler:DY 500 x 3000 coil lifting device:hydraulic rool feed:elektronic; AESL 500-2,8 threading device:hydraulic expansion:hydraulic
sheet width:400 mmplate length:500 mmplate thickness:4 mmtotal power requirement:0,5 kWPunching and Nibling machine with 6 x 3 mm nibling and 4 mm for cuting
material width:600 mmmaterial thickness: - 4,0 mmno. of straightening rolls:21 straightening roll diameter:30 mmmaterial cross-cut:1800 mm²speed:6 - 36 m/minPower capacity:4,5 kWWeight:2,0 tDimensions (WxDxH):1,5 x 2,0 x 1,9 m

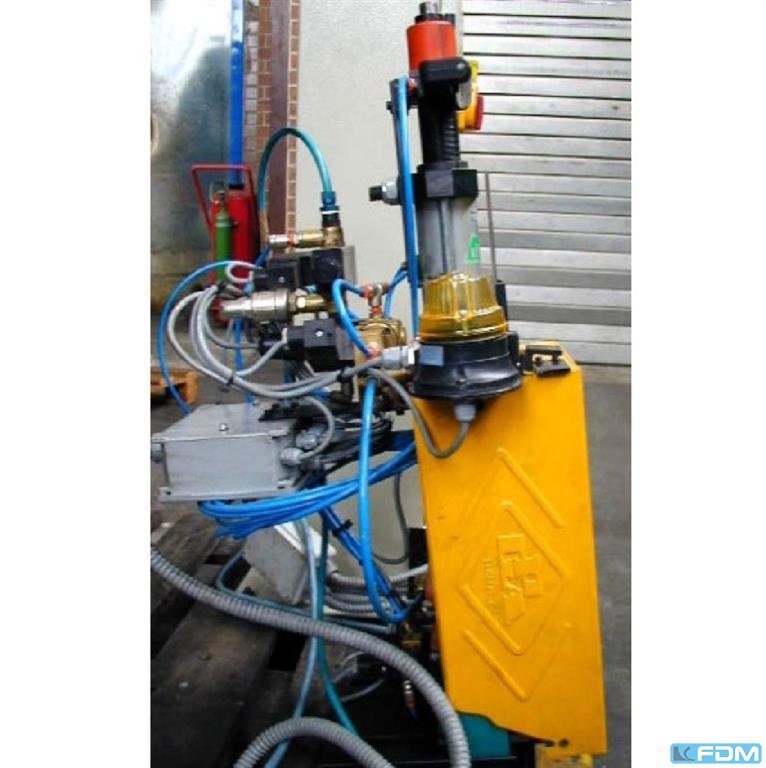

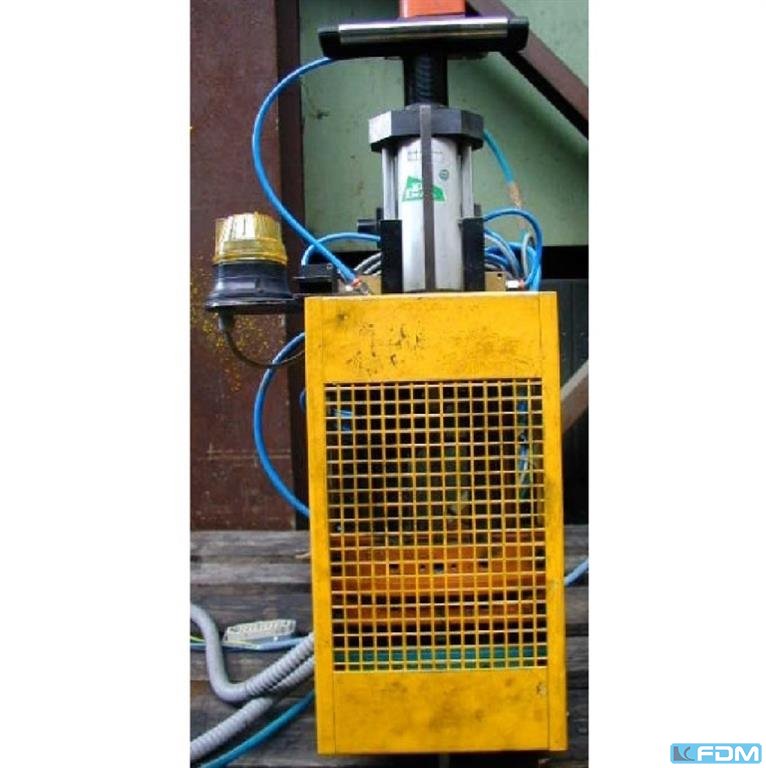

material width:70 mmmaterial thickness:0 - 1,5 mmfeed length:100 mmmaterial cross-cut:60 mm²feeding force:400 Nclamping force of feeding pincer:1300 Nair pressure - required:3 - 6 barWeight:0,01 tDimensions (WxDxH):0,4 x 0,4 x 0,7 m
sheet width:2000 mmplate thickness:1.8 mmControls:SIEMENS S7 PRESS DESIGN:. - frame design : H-frame :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - height above floor level:375 mmRAM:. - ram force:800 to - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /minRAM (MECHAN. PRESS):. - ram adjustment:350 mmTOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):3100 mm - Free passage between side columns (width):2560 mm - Free passage between side columns (height):1500 mmDECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. di ...
band width:1050 mmplate thickness:8 mmnumber of rolls:8 DECOILER:. - design : single coil :. - sheet width max:1050 mm - sheet width (min):150 mm - max. weight of coil:22 to - max. diameter of coil:2000 mm - min. internal diameter of coil:570 mmFEEDERS:. - feeder: type : roll feeder :. - sheet width max:1050 mm - sheet thickness max:150 mmLEVELER UNIT:. - sheet width max:1050 mm - sheet width (min):150 mm - sheet thickness max:8 mm - sheet thickness (min):2.5 mm - number of leveler rolls:8 - diameter of leveler rolls:96 mm - distance between leveler rolls:104 mm - diameter of feed rolls:160 mm - feed velocity min.:2 m/min - feed velocity max.:43.5 m/minELECTRICAL SPECIFICATIONS:. - mains voltage:400 V - mains frequency:50 HzTechnical description :Sheet metal unrolling and straightening system for thick sheet metal up to 8 mm, consisting of:- LAWECO COIL LO ...
: neu : 2025 : 090086 : prompt, Zwischenverkauf v : Türkei : 7400 €: 142.82 €: 1 : 197 mm: 4 mm: 2 mm: 20 1/min: 90 °: 4 kW: 890 mm: 780 mm: 1115 mm: 550 kgHydraulic driveAutomatic adjustment of the blade gap2 downholder2 gauges angle adjustableProtection cover, acrylic glassFoot pedalWaste boxAccording to ",CE", regulations User manual in English or GermanThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 12 Wochen ab Auftrags : Türkei : 16100 €: 309.12 €: 2050 mm: 3 mm: 35 1/min: 1.5 °: 750 mm: 3 kW: 800 mm: 520 mm: 2720 mm: 1575 mm: 1230 mm: 1900 kgThe machines feature a robust, welded steel frame for maximum cutting precisionMotorized back gauge 750 mm, ball screw spindles, NC control2 cutting edges on the upper blade and 2 cutting edges on the lower blade800 mm squaring arm with scale2 support armsMechanical downholderManual cutting gap adjustment on the frontCutting line illuminationFoot pedalEmergency stop buttonOperating manual with EC declaration of conformity.INCLUDES THE FOLLOWING OPTIONAL EQUIPMENT:Blades suitable for cutting stainless steelRear light barrier protectionThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 8 Wochen ab Auftragse : Spanien : 15600 €: 299.52 €: 55 to: 750 mm: 40x10 mm: 37 1/min: 5 kW: 1930 mm: 1200 mm: 1800 mm: 1885 kghydr. driveSupport table with stopOperating instructions in GERMAN and ENGLISHCNC options on requestWe have an extensive stock of punches and dies at your immediate disposal.WE HAVE MORE THAN 700 REFERENCES!The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

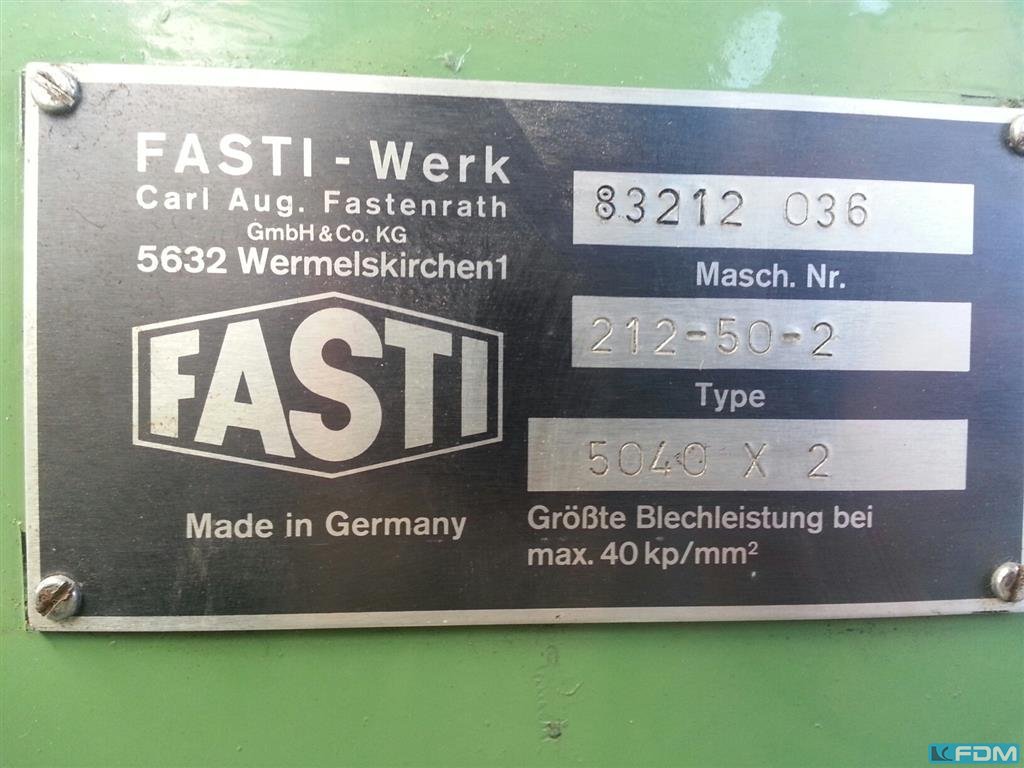

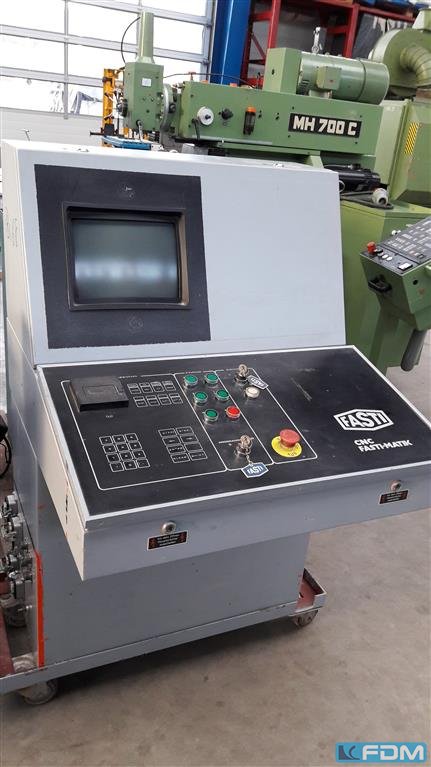

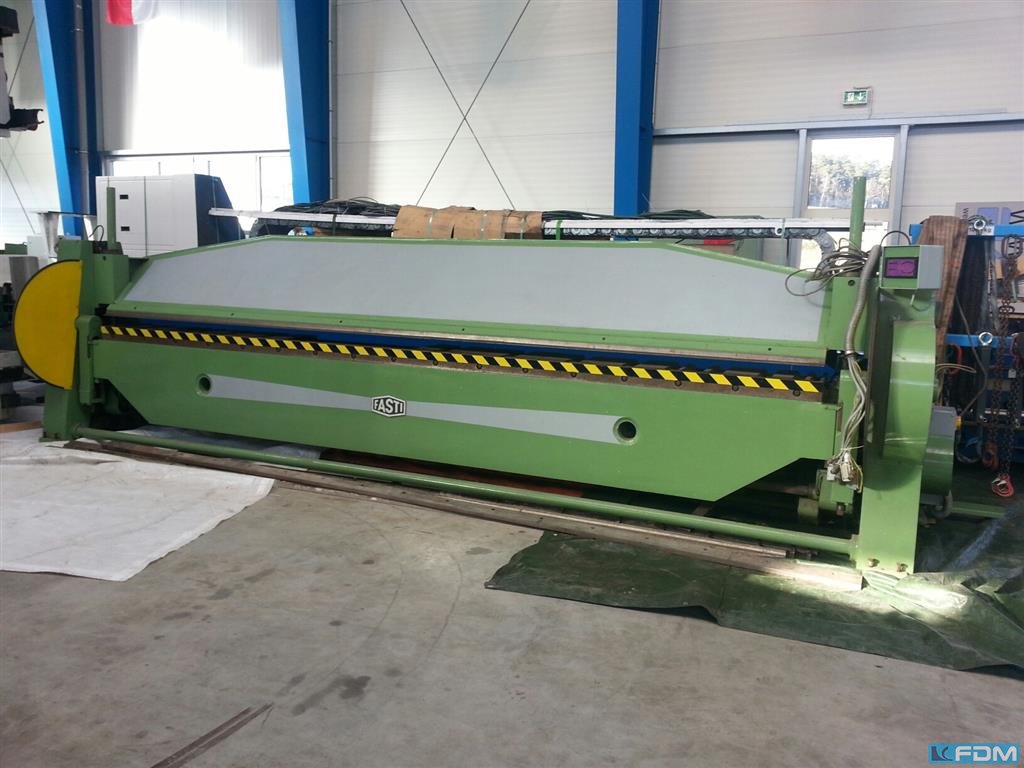

sheet width:5040 mmplate thickness:2 mmtotal power requirement:12 kWweight of the machine ca.:9,4 tdimensions of the machine ca.:6200× 1300 ×1900 mmworking width:5000 mmcontrol:Fasti Matik stroke of upper beam:500 mmadjustment of lower beam:u.Biegewange 80 mmcontrol cabinet:1000 x 850 x1450 mmDocuments:vorhanden
: neu : 2024 : 9739 : prompt, Zwischenverkauf v : Türkei : 22300 €: 428.16 €: 1 : 1 : 2030 mm: 6 mm: 6 mm: 5 mm: 170 mm: 4 kW: 3600 mm: 1020 mm: 1120 mm: 2400 kg3 rollsAsymmetrical rolls arrangement - with pre-bending2 driven rollsMotorized adjustment of lateral and clamping rollDigital read-out for lateral and clamping rollSwiveling top roll to the frontForward/reverse runHardened rollsMoveable control panelUser manual in GERMAN and ENGLISH(sample photo)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
material width:180 mmcoil weight:0,75 tmaterial thickness:2,0 - 6,0 mmcoil external diameter:400 - 1250 mmno. of straightening rolls:5 number of draw-in rolls:2 band speed:20 m/minpower requirement:4,0 kWweight:2,8 tdimensions (WxDxH):1,4 x 2,45 x 1,85 msnubber roll:pneumatic
: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 92100 €: 1740.69 €: 3100 mm: 16 mm: 10 mm: 350 mm: 10 1/min: 2 °: 14 : 61 to: 1000 mm: 200 mm/s: 37 kW: 410 l: 2 Stk.: 818 mm: 550 mm: 3580 mm: 4550 mm: 2250 mm: 3825 mm: 2250 mm: 15000 kgSwing cut constructionNC-preselection system D-touch 7 with touch screen for back gauge, cutting length, quantity, USB portMotorized back gauge 1000 mm on ball screws, folding upwardsClear control panel mounted on moveablearmHydraulic hold down pistons are arrangedclose to the cutting edgeFoot switchCentral, manual blade gap adjustmentCutting line illuminationBroad table with ballsPiece counterSingle and continous stokeFold up finger guard 1.000 mm1 squaring arm 1. 500 mm with scale,T-slot and tilting cam2 supporting arms 1.000 mm with T-slotSimple replacement and grinding of thebladesVariable adjustable cuttinglength for economic processingLower blade ...
: neu : 2026 : 070217 : Juni 2026, Zwischenverkau : Türkei : 4800 €: 500 kg: 1200 mm: 400 mm: 550 mm: 300 mm: 50 mm: 80 mm: 0.55 kW: 1400 mm: 1200 mm: 1550 mm: 190 kgmotorized drivemechanical adjustable coil mandrel with 4 jawsspeed control for decoiling speed aswell as acceleration- and deceleration timesphotoelectric proximity ensor SICK for sag controlALTERNATIVES (prices on request):Version with pneumatic pressure armVersion with brake, without motor, with or withaout pneumatic pressure armThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
material width:150 mmmaterial thickness:1,5 mmpower requirement:3,0 kWno. of straightening rolls:7 straightening roll diameter:50 mmnumber of draw-in rolls:4 weight:0,67 tDimensions (WxDxH):1,3 x 1,1 x 1,6 m
band width:2000 mmplate thickness:1.8 mmnumber of rolls:13 Controls:SIEMENS DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diameter of coil:2000 mm - min. internal diameter of coil:610 mmFEEDERS:. - sheet width max:2000 mm - sheet thickness max:2 mm - feeding step max.:4000 mmLEVELER UNIT:. - sheet width max:2000 mm - sheet width (min):400 mm - sheet thickness max:1.8 mm - sheet thickness (min):0.6 mm - number of leveler rolls:13 - diameter of leveler rolls:50 mm
material width:150 mmmaterial thickness:2,5 mmfeed length:100 mmcompressed air:6 barclamping force of fastening pincer:2000 Nclamping force of moving pincer:2000 Nfeeding force:1200 Nweight:0,1 tDimensions (WxDxH):0,35 x 0,85 x 0,5 m
material width:850 mmmaterial thickness:0,3 - 1,5 mmno. of straightening rolls:8 straightening roll diameter:40 mmnumber of draw-in rolls:2 diameter of draw-in rolls:160 mmmaterial thickness with 600 mm material width:1,9 mmmaterial thickness with 400 mm material width:2,3 mmspeed:5 - 25 m/minmin. material width:200 mmweight:2,8 tDimensions (WxDxH):1,6 x 2,2 x 2,3 m
: neu : ca. 6 Monate ab Auftragse : Taiwan : 56500 €: 1067.85 €: 3100 mm: 6.5 mm: Hydraulisch : 135 °: 4500 mm: 1750 mm: 2050 mm: 6800 kghydraulic drivenNC control for bending anglemanual back gauge 600 mmsharp rail 45° (in one piece)front angle beam 75 mmmechanical stop adjustment of upper beamclamping force adjustment of upper beamaccording to CE rulesALTERNATIVELY:versionAMH-K,withSECTIONEDsharp rail 45° OPTION:2 axes NC control with 7", touchscreen incl. motorized back gauge 800 mm (sample photos)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
material width:850 mmmaterial thickness:0,3 - 1,5 mmno. of straightening rolls:8 straightening roll diameter:40 mmnumber of draw-in rolls:2 diameter of draw-in rolls:160 mmmaterial thickness with 600 mm material width:1,9 mmmaterial thickness with 400 mm material width:2,3 mmspeed:5 - 25 m/minmin. material width:200 mmweight:3,1 tDimensions (WxDxH):2,2 x 1,5 x 2,8 m
material width:300 mmmaterial thickness:- 3,0 mmno. of straightening rolls:7 Stückstraightening roll diameter:60 mmweight:0,8 tDimensions (WxDxH):0,9 x 1,5 x 1,4 m

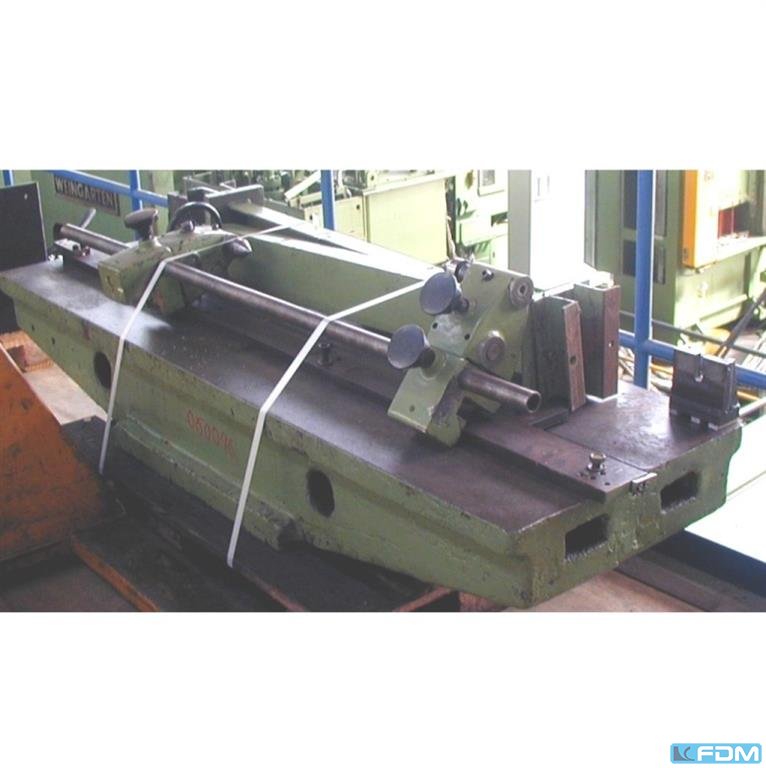

table length:2000 mmtable width:600 mmtable height:300 mmmounting surface:700 x 600 mmcentre distance:1200 mmcentre height:160 mmDimensions (WxDxH):2,0 x 0,6 x 0,3 m
: neu : ca. 12 - 14 Wochen ab Auf : Deutschland : 6400 mm: 1.5 mm: 2 mm: 6 ELECTROCINEMATIC DRIVE OF THE BENDING JOINTSmillmeter precise adjustment of the clamping beamBMS MULTI-Touchcontrolelectric powered rotary shearelectronic depth stopflexible material supportsinclined bending beamoptimized geometry of the clamping beamsafety equipment accoring to the control rules BG Germany3 year warranty on stands and tension arms.Quality Made in Germany.FURTHER MODELS FROM3 UP TO12 M LENGTH AND FROM 1,25 MM UP TO 2,00 MM BENDING CAPACITY ON REQUEST.OPTIONS: Extended depth 1.250 mm price on request Conical depth stop to bend conical profiles andnarrow/wide bendings for easy intermateing price on request clamping beam made out of hardox price on requestPrices ex works Germany.Transport and commissioningat customers place on request.The data for this ad was created with ModulMWS - the software solu ...
material width:380 mmcoil weight:1,0 tmaterial thickness:2,5 mmcoil external diameter:1000 mmno. of straightening rolls:7 straightening roll diameter:50 mmnumber of draw-in rolls:2 diameter of draw-in rolls:90 mmweight:0,8 tDimensions (WxDxH):0,8 x 1,3 x 1,7 m
: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 292500 €: 30 to: 3000x1500 mm: 3000 mm: 1500 mm: 70 m/Min: 60 m/Min: 120 m/Min: 40 mm: 1200 1/Min: 325 1/Min: 2800 1/Min: 6 mm: 3 mm: 3 mm: 1.5 mm: 28 : 0,1 mm: 0,05 mm: 22 U/Min: 150 U/Min: 200 kg: 940 mm: 6 bar: 88.9 mm: 15 kW: 180 l: 6650 mm: 7650 mm: 6300 mm: 8300 mm: 2310 mm: 18250 kgControl unit, Siemens Sinumerik 840 D SLCAD-CAM softwareProgramming on the control panelRemote diagnostic functionAutomatic clamp positioningNetwork Ethernet communicationAutomatic tool lubricationUPS for control panelMovable scrap boxBrush tableOil CoolerUSB DriverCommand pedalWeb cam for serviceReposition on X axisAlignment Tools for Index Station DManual nesting turret (27 stations without tool and holder): 11 x A-Station fix: 0,8-12,7 mm 11 x B-Station fix: 12,8 - 31,7 mm 2 x C-Station fix: 31,8 - 50,8 mm 1 x D-Station fix: 50,9 - 88,9 mm 3 x D-Station ...
material width:500 mmmaterial thickness:0,6 - 1,6 mmno. of straightening rolls:7 straightening roll diameter:60 mmnumber of draw-in rolls:2 + 2 inlet roll diameter:60 mmmax. material thickness:2,0 mmmaterial thickness at 150 mm material width:2,0 mmmaterial thickness at 500 mm material width:1,6 mmweight:0,5 tdimensions (WxDxH):0,8 x 1,0 x 1,2 m
material width:400 mmcoil weight:3,0 tmaterial thickness:0,5 - 4,0 mmcoil internal diameter:460 - 530 mmcoil external diameter:1500 mmno. of straightening rolls:9 straightening roll diameter:50 mmno. of lower support rolls:12 no. of upper support rolls:10 diameter of support rolls:90 mmmaterial cross-cut:1600 mm²speed of coil line:0 - 20 m/minpower requirement:35,0 kWweight:10,5 tdimensions (WxDxH):10,0 x 2,5 x 2,9 mstraightening machine:KRE 50.400/9 adjustment of straightening rolls :motoric insertion wedge:hydraulic adjustable decoiler:3000.1 snubber roll:hydraulic expansion:hydraulic sideway adjustment:motoric pivoting:manual roll feed:Servo; WVE 160/400 intermittant lifting:hydraulic
material width:300 mmmaterial thickness:0,6 - 2,5 mmno. of straightening rolls:7 straightening roll diameter:60 mmnumber of draw-in rolls:2 + 2 diameter of draw-in rolls:60 mmmax. material thickness:3,5 mmmaterial thickness at 30 mm material width:3,0 mmmaterial thickness with 300 mm material width:2,5 mmweight:0,3 tDimensions (WxDxH):0,9 x 1,0 x 1,1 m
material width:550 mmmaterial thickness:0,4 - 1,6 mmno. of straightening rolls:11 straightening roll diameter:60 mmnumber of draw-in rolls:4 diameter of draw-in rolls:60 mmband speed:4 - 50 m/minpower capacity:3,0 kWweight:1,7 tDimensions (WxDxH):2,5 x 2,0 x 1,7 m
material width:320 mmcoil weight:2,6 tmaterial thickness:0,5 - 2,0 mmcoil internal diameter:400 - 510 mmcoil external diameter:1200 mmno. of straightening rolls:7 straightening roll diameter:50 mmnumber of draw-in rolls:2 band speed:0 - 30 m/minpower capacity:1,5 kWweight:1,5 t
