usava
A máquina de rebarbação ERNST EG3M foi construída em 1988 na Alemanha. A usinagem superficial de peças com espessura máxima de 70 mm é realizada "seca" por meio de um rolo de lixa de remoção de rebarbas instalado na máquina e dois rolos de escova que se movem na direção oposta destinados ao arredondamento das bordas. Para evitar que a peça seja puxada para o centro da máquina de rebarbação ERNST EG 3 M, a chapa a ser rebarbada é pressionada na correia transportadora através de um rolo acionado em rolamentos de folga. A máquina de rebarbação automática ERNST EG 3/M 1400 também permite o uso de uma correia magnética para processar peças menores. O peso total da máquina de rebarbação é de 3500 kg. Dados técnicos da máquina de rebarbação ERNST EG3M - Espessura máxima da peça: 70 mm - Espessura mínima da peça: 1 mm - Comprimento mínimo da peça: 350 ...
usava

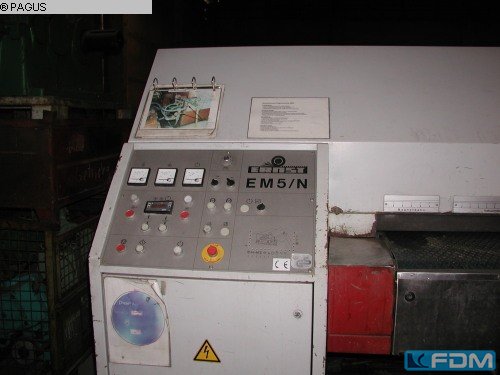

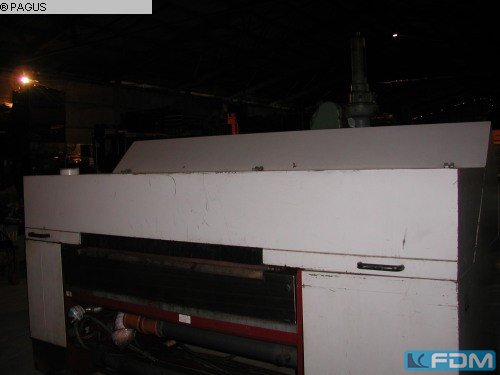

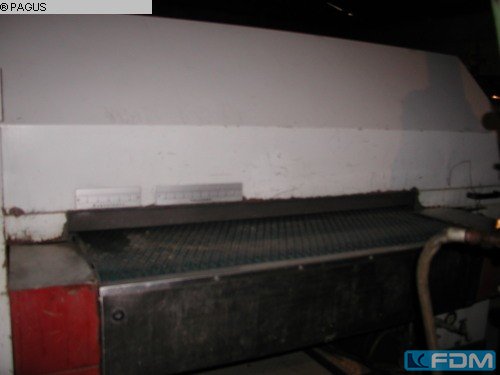

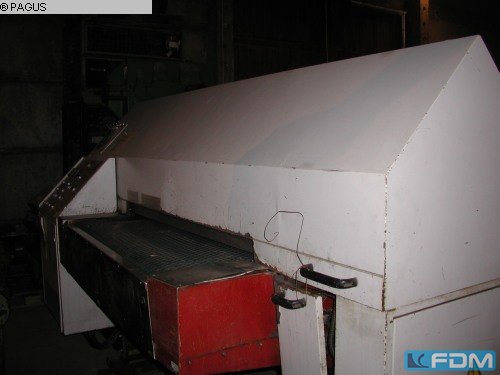

Máquina de rebarbação de chapa metálica Fabricante: ERNST Tipo: EM5/N900 Ano construção: 1999 Tipo de controle: convencional Largura de trabalho: 880 mm Altura da peça: 1-70 mm Diâmetro do tambor de moagem: 420 mm Peso aprox. da máquina: 2.800 kg Dimensões aprox.: 2.500 x 1.715 x1.675 mm Máquina automática de rebarbação de chapa metálica trabalhando no processo de moagem a úmido sistema de filtro magnético automático Lixamento molhado Instalações de lavagem e secagem Largura do maglev: 200 mm Comprimento mínimo das peças pequenas: 80 mm
usava
working width:1400 mm Workpiece thickness max.: 80 mm work height max.:1000 mm Feed speed:4m/min I Stufe, 8 II Stuf m/min. Required air-pressure:max. 5 bar voltage:50 Hz, 380 V workpiece length:320 mm workpiece thickness min.:1 mm weight of the machine ca.:3500 kg Documents:vorhanden
usava
working width:880 mm workpiece height:1- 70 mm work height max.:1000 mm Feed speed:4- 8 m/min. voltage:50 Hz, 400 V weight of the machine ca.:2.800 kg dimensions of the machine ca.:2500 x 1715 x1675 mm width:min. 350 mm Sanding cylinder diameter:420 mm electr. connected load:20 KW Required air-pressure:1 x R3/ 8 " pressure:5 bar tank:des Bandfilter ca.200 l automatic magnetic filter unit:vorhanden grinding tools:1540 x 900 mm accessories::9 Bänder Documents:vorhanden
usava
Description: Includes accessories such as replacement tips, dial gauge holder and more. (see pictures) Approx. Onsite Dimension. (l x w x h): 400 x 350 x 100 mm, weight approx.: 10 kg
usava
This ERNST EM5N II/L Deburring machine was manufactured in the year 2007.
usava
work piece width: 1500 mm plate thickness: 0,8 - 100 mm Brush width: 490 mm Brush diameter: 200 mm immersion travel: ca. 1.5 - 2.0 mm grinding speed: 200 - 1200 U/min band speed: 0,8 - 4.0 m/min work height max.: 950 mm Required air-pressure: 5.0 bar Air consumption: 80.0 l/min. number of brushing / polishing units: 8 Stück Control: NC Touch voltage: 400 V total power requirement: ca. 40.0 kW weight of the machine ca.: 6.100 kg. dimensions of the machine ca.: 3700 x 2750 x 2080 mm Well maintained condition with lots of accessories New price including accessories approx. 180.000 euros Special price on request Furnishing : - ERNST dry wide belt sanding machine TYP ATLAS ER ROTOR” Area of application: - Slag removal / deburring / edge rounding / finish grinding etc. - ERNST NC control including touch screen Control of the entire system graphically supported color terminal Adjustme ...
usava
Deburring machine Ernst Neptun Deburring machine was little used
usava
Manufacturer: Ernst, Type: 830-2, Monting of the machine: längs / längs / längs, Sanding width mm: 1.350, Sanding hight mm: 3 - 120, Number of sanding belts: 3, Sanding belt dimensions: 1.400 x 3.150, Band 1 Leistung kW : 11, Belt 1 shoe unit: yes, Band 1 Schleifbandgeschwindigkeit m/s : 2 - 10, Belt 2 shoe unit: yes, Band 2 Leistung kW : 11, Band 2 Schleifbandgeschwindigkeit m/s : 2 - 10, Band 3 Leistung kW : 18, Band 3 Schleifbandgeschwindigkeit m/s : 1 - 7, Frequency control of belts: 3, Continous adjustable feeding speed m/min: 8 - 30, Vacuum table: yes, Brushing unit: 3 kW, Diameter/ brush bristles: 200,
usava
Manufacturer: Ernst Funierschleifautomat, Type: 840-2, Year: 2003, Monting of the machine: Quer/lang/lang/lang/Bürste, Sanding width mm: 1305, Sanding hight mm: 3-120, Number of sanding belts: 4, Sanding belt dimensions: 2620 X 1350/5400 X 150, Table hight adjustment by engine: yes, Rollers: no, Band 1Querschleifaggregat: yes, Band 1 Leistung kW : 18,5, Band 2 Schuhaggregat: Simplex Schuh, Band 2 Kombiaggregat Walze/Schuh: no, Band 2 Leistung kW : 30, Band 3 Kombiaggregat Walze/Schuh: Simplex Schuh, Band 3 Leistung kW : 30, Band 4 Kombiaggregat Walze/Schuh: Duplex Schuh, Band 4 Leistung kW : 37, Elektronische Tastung mm: yes, Table hight adjustment by engine: yes, Continous adjustable feeding speed m/min: 13,5-60, Feeding engine kw: ca.4, Constant table hight: 880, Vacuum table: yes, Segment sanding shoe: yes, wast cleaning: yes, Ionising: yes, Weight in kg: 10200, Year :2003
usava
Fabricante: Ernst, Tipo: Vakuumventilator, Ano: 1993, Entrada de diâmetro mm: ca 120 mm, motor de potência kW: 2,5, Caudal aprox. m3/h: 1500, motor de acionamento do cinto V: sim, outlet side mm: ca.100, Ano :1993
usava
Fabricante: Ernst , Tipo: AB 1 1300, Ano: 1982, Controlo: não, Limpeza de ar comprimido: sim, Número de unidades: 2, Unidades montadas na vertical: sim, Transporte roll: sim, alimentação velocidade continuada ajustável: gekoppelt a Schleifmaschine, rotor jets: Kanal, TEXTO LIVRE: Arbeitsbreite 1400/Arbeitshöhe 80/tinta. Turbina, Ano :1982
usava
Fabricante: Ernst, Tipo: 830 J-2, Monting da máquina: quer / längs / längs, Lixar largura mm: 1380, Lixar o alto mm: 3 - 120, Número de correias de lixar: 3, lixar as dimensões do cinto: 5.400 x 150 + 3.150 x 1.400, unidades de lixar transversais: 1, Längsschleifaggregate: 2, Band 1 Leistung kW : 15, Band 2 Leistung kW: 30, Banda 3tung Leis kW : 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 37, 3 Velocidade de alimentação ajustável contínua m/min: 12 - 36, lixagem intermédia de laca: não, altura de mesa constante: ca 880, Mesa de vácuo: 7,5, Unidade de escovagem: 1,1, Peso em kg: 7.400,
usava
working width: 1380 mm workpiece height: 70 mm : total power requirement: 45 kW weight of the machine ca.: 5.500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
