Modelo
(Fabricante: FASTI)

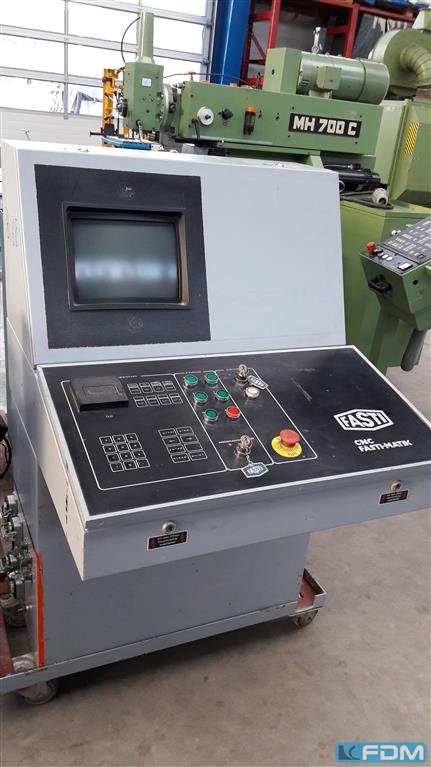

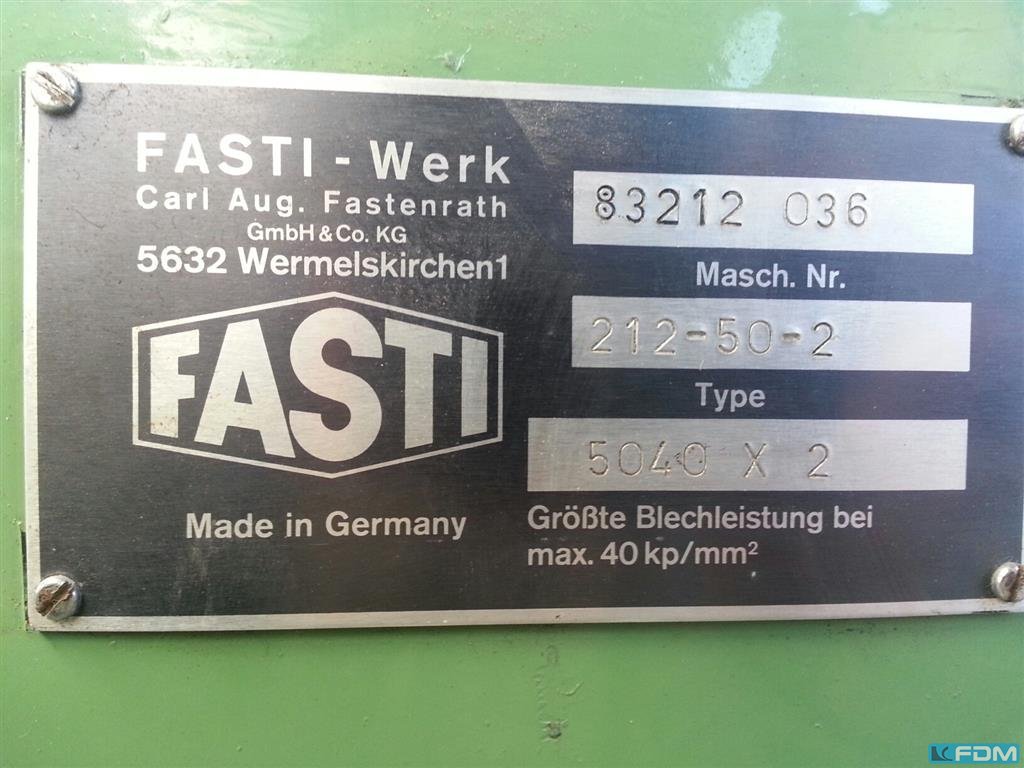

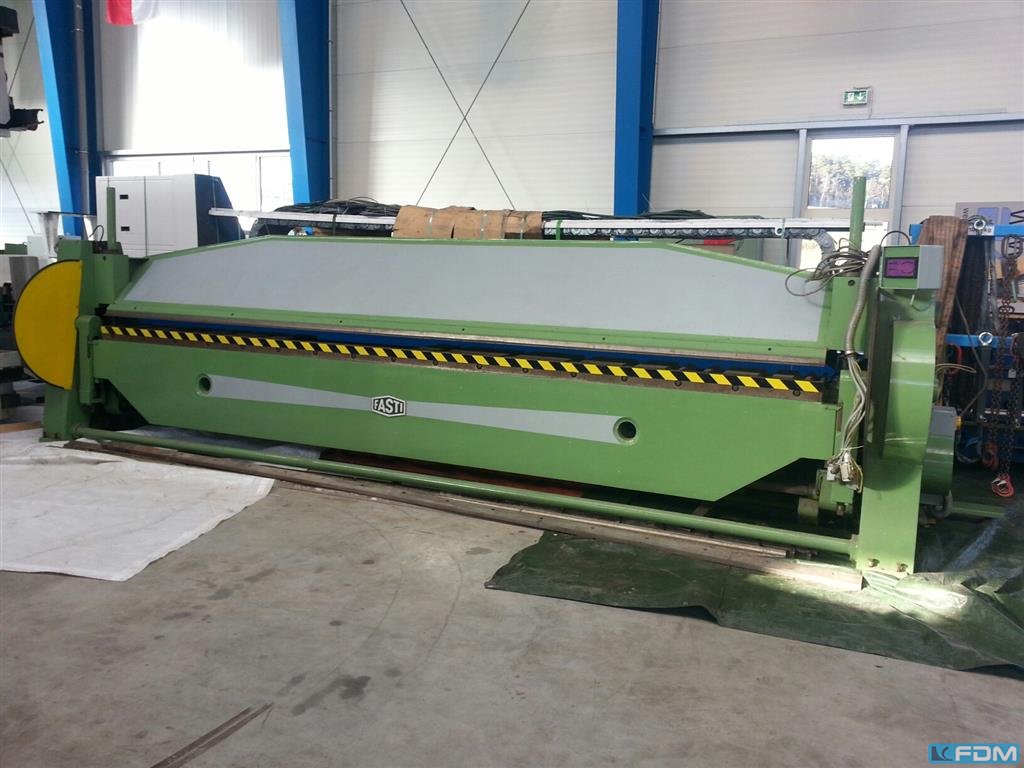

sheet width:5040 mm plate thickness:2 mm total power requirement:12 kW weight of the machine ca.:9,4 t dimensions of the machine ca.:6200× 1300 ×1900 mm working width:5000 mm control:Fasti Matik stroke of upper beam:500 mm adjustment of lower beam:u.Biegewange 80 mm control cabinet:1000 x 850 x1450 mm Documents:vorhanden
plate thickness: max. 3 mm distance betw. rolls: 125 mm throat: max. 500 mm weight: ca. 500 kg Material thickness at 40 kg/mm² tensile strength: max. 3 mm Working width: 500 mm Working depth: 450 mm Manual adjustment of the upper roller Roller center distance: 125 mm Continuously variable working speed: 3–15 m/min Stop skirt 1 set of rollers Forward/reverse operation via foot switch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width: 2040 mm plate thickness: 4,0 mm distance between columns: 2100 mm roll diameter: 150 mm total power requirement: 7,0 KW weight of the machine ca.: 2,2 t dimensions of the machine ca.: 2,95 x 1,0 x 1,75 mm Sheet metal bending machine with 3 rollers - 2 driven rollers - Rear roller electrically adjustable - Conical bending - Foot switch - Emergency stop device The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Manufacturer: Fasti Model: 902-315/40 Year of Manufacture: 1990.The machine was last retrofitted in 2019. Type of Machine : Bending Machine Technical Specifications - Total Weight : 25,000 kg - Nominal Pressing Force : 3150 kN - Stroke Length: 250 mm - Working Width: 4050 mm - Maximum Working Pressure: 30 MPa - Stopping Time: 71 ms - Two-Hand Release Safety Distance : 114 mm Find more here - / Contact us at -
sheet width - max.: 3035 mm plate thickness: 4.0 mm ST plate thickness: 2.5 mm VA plate thickness: 6.0 mm ALU number of strokes - loaded: 20 Hübe/min cutting angle: 1.7 ° work height max.: 900 mm Control: ELGO total power requirement: 8.5 kW weight of the machine ca.: 4400 kg range L-W-H: 3416 x 2250 x 1760 mm Equipment: - robust NC electro-hydraulic guillotine shears - NC electro-motorized backgauge with ELGO control unit TYPE 85 - Manual cutting gap adjustment - front support table incl. recessed grips - 1x stable side stop, with scale and tilting cam - 3x stable front support arms - 1x freely movable foot switch - front finger guard - Rear metal slide - EMERGENCY OFF button at the front - Operating instructions (PDF) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width: 3240 mm plate thickness: 2,00 mm distance between columns: mm total power requirement: kW weight of the machine ca.: 3,00 t dimensions of the machine ca.: m Manual and automatic bending operation possible Bending angle adjustable via potentiometer Upper beam stroke height and material thickness selectable via DIP switches Bending rail and machine in excellent condition The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width: 2040 mm plate thickness: 3,00 mm distance between columns: mm total power requirement: kW weight of the machine ca.: 2,30 t dimensions of the machine ca.: m Manual and automatic bending operation possible Bending angle adjustable via potentiometer Upper jaw stroke height and material thickness selectable via DIP switches Manual backgauge with spring fingers The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
serial number: 70212008 weight: 3,3 t working width: 2040 mm : 4 length: 2900 mm width: 1890 mm height: 1780 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width: 3040 mm plate thickness: 4 mm distance between columns: 3040 mm stroke of upper beam: 200 mm adjustment of lower and bend clamping: 100 mm total power requirement: 6,4/3 kW weight of the machine ca.: 6,3 t dimensions of the machine ca.: 4,3 x 1,2 x 1,8 m Condition: ready for operation: Electric 380 Volt: Control panel: Winkelvorwahl Holder for divided upper tools: Upper tool divided: 3040 x 120 mm Hnad control: Sheet metal shelf behind: Folding blade: Flat rail for folding beam: Motorized folding machine with double-sided bending beam drive, lower, upper and bending beam adjustable, drive motors as brake motors - slip clutches as overload protection, bending angle adjustment via potentiometer, individual switching for each work step by hand switch, SEGMENTED TOP RAIL 120 mm height (Photo 7).Please notice that such a machine now costs about €70.000,--. As usual, the ...
sheet width: 2040 mm plate thickness: 4,00 mm distance between columns: mm upper beam stroke: 350 mm total power requirement: kW weight of the machine ca.: ca.4,00 t dimensions of the machine ca.: m Manual and automatic bending sequence possible Bending angle adjustable via potentiometer Upper jaw stroke height and material thickness selectable via DIP switches Bending rail in excellent condition Manual backgauge with spring fingers The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width: 4040 mm plate thickness: 4,00 mm distance between columns: mm total power requirement: kW weight of the machine ca.: 7,50 t dimensions of the machine ca.: m Motorized adjustable backgauge with digital display up to 1000 mm Pneumatic sheet metal support Side fence and table extensions Cut length limiter Cut edge lighting The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width - max.: 1010 mm plate thickness: 4.0 mm ST plate thickness: 2.5 mm VA plate thickness: 6.0 mm ALU number of strokes - loaded: max. 20 Hübe/min cutting angle: 1.5 ° work height max.: 900 mm Control: ELGO total power requirement: 5.5 kW weight of the machine ca.: 2200 kg. from a maintenance workshop good condition () Equipment: - Robust NC electro-hydraulic guillotine shear - NC electro-motorized backgauge Includes NC ELGO positioning control TYP 85 - Electric cutting length limiter - Manual cutting gap adjustment - 1x side stop with scale - 2x support arms - 1x freely movable foot switch - Original operating instructions Special accessories included: - Pneumatic holding device for thin sheet metal blanks The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Folding machine FASTI type 2095-25-2,5Fabr. No. 94 295 004 Year of construction 1994Useful length 2540 mmmax. Sheet thickness 2.5 mmStroke of the upper beam 380 mmMotor power bending beam 2.2 kWWetz connection 400 Volt, 50 Hz- NC control FASTImatic FM100- one-piece pointed rail 135- controlled back gauge- continuous stop rail- controlled bending angle via control- electric foot switchesWeight 3000 kggood condition; used
Hydraulic guillotine shears FASTI type 509 - 25/4Masch. No. 5418 Year of construction 1991Cutting length 2535 mmCutting thickness 4 mmBack gauge 5-1000 mm (controlled)Cutting angle adjustableHydraulic pressure max. 290 barMotor power 7.5 kWNeching connection 400 volts, 50 Hz- Back gauge with positioning control ELGO ELECTRIC Type 85- Sheet metal holding device under the back gauge- Manual cutting gap adjustment with dial gauge display on the right and left- Stepless cutting length adjustment- Hydraulic
Pneumatic folding bending machine FASTI Type 606 - 11 - 1.0Folding machine for sheet metal folding pre-bendingFor making a fold bendFolding bending machine for thin sheet metal instead of press brakeFabr. No. 9166002 year of construction 1991Working length: 1100 mmMaterial thickness at 45 kg/mm² 1 mmCompressed air requirement 6 bar- pneum. Foot switch roller infeed via threaded toggle screwsSpace requirement L x W x H 1600 x 300 x 1050 mmWeight approx. 250 kggood conditionThe fold is the doubling of the sheet metal in the edge area, i.e. 1x folded around the
Universal Crimping Machine, Border FASTI Type 81504 - UBPB 1,5Masch. No. 828152 001 Year of construction 1982Sheet thickness max. 1.5 mmPlate thickness min. 0.5 mmBoard height max. 12 mmBoard height min. 4 mmThroughput speed 4 / 8 m/min. Roll diameter 60 mmmin. Inner radius of curvature for 90 elbow piece 100 mmDrive power 1.1 / 1.4 kWNerg connection 400 volts, 50 Hz- Sheet metal guide- Operating instructions (as copy)Space requirement L x W x H 700 x 610 x 1250 mmWeight 150 kg; used
Motor-driven circular shears FASTI type 502 - 10 - 2Masch. No. 9252 009 Year of construction 1992Material thickness max. 2 mm (400N/mm²)Maximum blank diameter 1000 mmMinimum blank diameter 100 mmCutting shaft speed 60 and 120 rpmCutting speed 12 and 24 m/min. Knife holder 20 mmKnife diameter 65 mmProjection of the clamping plate 720 mmProjection of the cutting wheel 280 mmMotor power 1.1 / 1.4 kWWeergized connection 380 volts, 50 Hz- 2 motor speeds- mechanical clamping tip-
Fasti 2040 x 5 mm Number of rolls: 3 rolls Roll capacity cold: 2040 x 5 mm Roll dia upside: 160 mm Power needed: 7,5 HP Length: 3250 mm Depth: 900 mm Hight: 1300 mm Weight: 3100 kg
Type: 108 Number of rolls: 3 rolls Roll capacity cold: 2540 x 2,5 mm Roll dia upside: 140 mm Dia under roll - side rolls: 140 mm Power needed: 5 kW Weight: 1760 kg
Type: 230 Maximale buighoek: 180° Max worklength: 2040 mm Max tickness: 1,5 mm Distance between clampblock -- ram: 100 mm Eletric motor (power): 0,75 kW Weight: 1000 kg
De plaatdikte is afhankelijk van het profiel. dop: 0,5 gt; 1,5 mm 7 stations vermogen: 2,4 kW gewicht: 430 kg
Hoort bij Lijn -gt; P.14d 15917
gt; cap: 5 ton gt; max width: 1100 mm gt; manual clamping gt; non-driven unit
Maior capacidade de folha em 400 N/mm² x 1000x2 16 Um plugue Comprimento 1,30 m Largura 0,4 m Altura 1,30 m Peso: 250 kg Ferramentas
Key data: 1030 mm, 2 mm
Tesouras guilhotina usadas do tipo Fasti 1030x2.5 Construído em 1969
Oferta 26084 Dados técnicos: - Largura máxima de trabalho 2040 mm - espessura máxima do material a 40 kg / mm² resistência 4 mm - Ajuste eletrónico do ângulo de flexão pré-selecionado 0 - 135 - Controlo automático de seguimento para um fluxo de trabalho completo - Maior largura/curso da viga superior 350 mm - Ajuste de altura - viga flexível 100 mm - A viga inferior 100 mm - Acionamento do travesseiro superior 400 V / 4 kW - Acionamento por feixe flexível 400 V / 4 kW - Ajuste da viga de flexão - Bitola traseira ajustável com volante manual - Botão de pé em E - Requisito de espaço com bitola traseira - Aproximadamente. L 3200 x H 1650 x D 2100 mm - Peso aproximado. 4500 kg
Key data: 1250 mm, 4 mm
Comprimento máximo de corte: 1250 mm Espessura máxima da chapa: 4 mm de aço Bitola de fundo controlada Extensões de batente lateral e de mesa Limitação do comprimento de corte Iluminação com borda cortada Barreira de luz para proteger a zona traseira Faca afiada Peso aprox. 2800 kg
Key data: 1020 mm, 3 mm
Comprimento máximo de flexão: 1020 mm Espessura máxima da chapa: 3,5 mm de aço Curvar o terreno do carril Peso: aprox. 1000 kg
Oferta 26017 Dados técnicos: - Projeção máxima: 250 mm - Profundidade de trabalho 217 mm - Distância do centro do rolo 80 mm - Espessura máxima do material a 40 kg/mm² resistência 1,75 mm - Velocidade de trabalho infinitamente ajustável - Rotação Direita + Esquerda - Transmissão 400 V 1,1 / 1,4 kW - Requisito de espaço aproximado. D 500 x D 1450 x D 655 mm - Peso aproximado. 250 kg - com: - E - pedal - Conjuntos de rolos - Avental âncora
