Szlifierka walcowa CNC (ROLL) Minakuchi NWT-300, wrzeciono ID, Fanuc O-GC, 30HP, nowy 1990 Całkowita pojemność maszyny: 32 cale x 120 cali Huśtawka: 32 cale Odległość między środkami: 120 cali Max. Huśtawka nad stołem: 32 cale Max. Średnica szlifowania: 30 cali Max. Waga obrabianego przedmiotu: 20000 funtów. Oszacowanie przy 32 calach x 120 calach Ściernica: 24 cale x 1,968 cala x 10 cali Max. Szerokość ściernicy: 1,968 cala Prędkość obrotowa wrzeciona: 1410/1530 obr./min Silnik koła wrzeciona: 30 KM Waga maszyny: około 30000 funtów Wyposażone: Sterowanie: Fanuc Series O-GC (parametry należy ponownie załadować) Zdalne pokrętło ręczne Fanuc Funkcje sterowania maszyną: Przełączniki włączania/wyłączania chłodziwa, TRYB: Off/Auto/Jog/Handle/Zero, Over Ride: 0-150%, Przyciski: PRC, HIX, Inping wrzeciona, Włącznik/wyłącznik OTR, St ...
Wieloosiowa szlifierka cylindryczna Naxos CNC Data wydania: 1987/2013 huśtawka: 630mm odległość głowicy roboczej twarzą do konika: 4850 mm maksymalny skok dla osi Z: 5000 mm odległość szlifowania koła głównego: 4520mm Skok zasypu osi X dla obu głów: 720mm Przybliżona waga między centrami: 4000 kg Wymagania mocy: 460/3/60 Maszyna ta została całkowicie zregenerowana zgodnie z nowymi specyfikacjami w 2013 roku i zainstalowana w 2014 roku. Rozebrano go do gołego odlewu, stołu / podstawy / głowic kół / głowicy roboczej i konika, a drugie drogi osi z zostały dopasowane i ponownie zakratowane. Dodano nową szafę elektryczną z nowym okablowaniem maszyny i nowymi komponentami, przewodami hydraulicznymi, przewodami powietrznymi i nowymi nośnikami. Nowe silniki Marathon 60HP do obu głowic ściernic. (Napędy w szafie są ustawione na 40 KM) Napędy wrzecion ...
WALDRICH SEIGEN WST IV H80 X 12000 SZLIFIERKA ROLKOWA ROK: 1981 / ZAINSTALOWANY 1982 MAKSYMALNA ŚREDNICA SZLIFOWANIA: 78" (1981,2 mm) Z KOŁEM O ŚREDNICY 32" (812,8 mm) ODLEGŁOŚĆ MIĘDZY ŚRODKAMI: 472.40 "(12000mm) MAKSYMALNA WAGA PRZEDMIOTU OBRABIANEGO: 176000 funtów (80t) KOŁO OD MAKSIMUM: 32.00" MAKSYMALNA SZEROKOŚĆ KOŁA: 4.00" ID KOŁA: 12.00" MOC WRZECIONA KOŁA: 27 - 59/59 KM KOMODA NA KOŁA: ROLKA MONTOWANA NA ŁÓŻKU SKOK GŁOWICY KOŁA: 25,60 " PODRÓŻ STOŁU: (SKOK GŁÓWKI KOŁA) 488,40"( 12405 mm) PRĘDKOŚĆ STOŁU: (PRĘDKOŚĆ GŁÓWKI KOŁA) 157,5 cala/min (4000 mm/min) PRĘDKOŚĆ OBROTOWA WRZECIONA KOŁA: 450 - 1800 OBR./MIN Bezstopniowa MOC GŁOWICY: 1.9 - 59/59 HP PRĘDKOŚĆ GŁOWICY ROBOCZEJ: .5 - 300 RPM SPOSOBY: ŻELIWO W PEŁNI HYDROSTATYCZNE PRZENOŚNIK OSADU: BRAK PŁYN CHŁODZĄCY: TAK SYSTEM FILTRACJI: KOMBINACJA 2 WKŁA ...
turning speeds: 24000 U/minfrequency: 0 Hzoutput: kwHigh Frequ. Grinding spindle,type:TSSV 150 - 15000/16, 16 kW,dia 150 x lgth 400,15.000rpmTSSV 150 - 15000/16, 16 kW,dia 150 x lgth 400,15.000rpmTSSV 150 - 24000/12, 12 kW,dia 150 x lgth 400,24.000rpmTSSV 150 - 24000/12, 12 kW,dia 150 x lgth 400,24.000rpmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
internal diameter: 120 mmgrinding depth: 200 mmswing diameter: mmtotal power requirement: 4 kWweight of the machine ca.: tdimensions of the machine ca.: mGrinding diameter, internal, max., approx. 3 - 120 mmGrinding depth, approx. 200 mmHeight of centres above rotating workpiece slide 132 mmMax. swing Ø in front of rotating workpiece slide, approx. 450 mmWork spindle admission 40 mmTable stroke, max. (Z axis) 480 mmWorkpiece cross adjustment (X axis) 50 mmTurret head cross adjustment (U axis) 50 mmWorkspindle head swivelling (B axis) -30 / +45 ° (manual)Speeds of workspindle, infinitely variable 75 - 1,300 rpmGrinding spindle speeds 9,500 - 150,000 rpmGrinding spindle drive 4 kWTotal electrical load, approx. 8 kW - 380 V - 50 HzWeight, approx. 3,000 kgAccessories / Special Features TRIPET (Bruetsch) CNC Control for 3 axes (Z, X and U) with electric hand wheel, with the usual pr ...
max. grinding diameter: 320 mmgrinding length: 500 mmworkpiece length: 700 mmtotal power requirement: 10 kWweight of the machine ca.: 4 tdimensions of the machine ca.: mHeight of centres 220 mmDistance between centres / clamping length 750 / 500 mmTable size 290 x 1,600 mmIntermediate table 110 x 1,200 mmX / Y / Z axes 500 / 320 / 320 mmFeed speeds, X, Y & Z axes 0.005 - 5 m/minGrinding head swivelling, vertical axis, manual 200 °Grinding head tilting, manual +/- 90 °Speed range of R axis, approx. 0 - 50 rpmGrinding spindle speeds, infinitely variable, approx. 2,000 - 12,000 rpmWorkpiece holding fixture 50 ISOIndexing 1 - 999 °Leads 0.5 - 10,000 mmSpindle drive 4 kWTotal electrical load, approx. 10 kW - 380 V - 50 HzWeight, approx. 4,000 kgAccessories / Special Features SCHÜTTE CNC Continuous Path Control for 4 axes with SIEMENS/BOSCH components and SIEMENS SPS Control, Mod ...

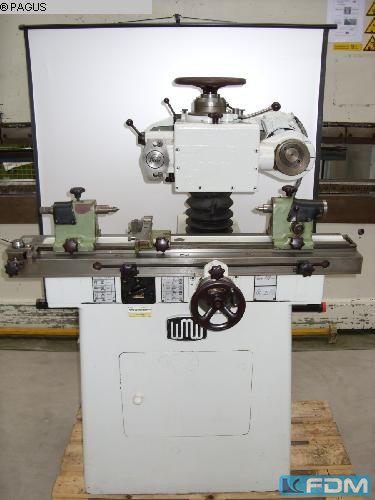

drill diameter: 32 mmdrill diameter: 32 mmdrilling length: 0 mmdrilling length: 0 mmlip angle: °lip angle: °total power requirement: kWtotal power requirement: kWweight of the machine ca.: tweight of the machine ca.: tdimensions of the machine ca.: mdimensions of the machine ca.: mUniversal Drill Bit Grinderlots of accessories The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: 450 mm Länge x-travel: 500 mmworkpiece height: . mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
workpiece diameter: 320 mmthreading length: 300 mmthread pitch: mmtotal power requirement: 90 kWweight of the machine ca.: 12000 kgdimensions of the machine ca.: mThread and worm grinder for steering wormsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sanding belt measurements: 150x2000 mm: 1400/2800 U/minband speed: 16,5/33 m/stotal power requirement: 3,4/4,5 kWweight: 190 kgMaximum grinding of pipes is possible:at 90 degrees max. 150 mm Øat 60 degrees max. 127 mm Øat 45 degrees max. 100 mm Øat 30 degrees max. 70 mm ØThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding wheel size: 200 x 25 mmShaft diameter: 20 mmturning speeds: 2.800 U/minsaw band speed: 20 m/stotal power requirement: 0,75 kWmachine weight ab.: 17 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 6 Monate ab Auftragse : 162430 €: 3069.93 €: 1200 mm: 730 mm: 1200 x 600 mm: 1200 x 600 mm: 1300 mm: 5 - 30 m/min: 0-2250 mm/min: 0,001-32 mm: 685 mm: 560 mm: 0-675 mm/min: 500-2200 1/min: 11 kW: 5.5 kW: 3.1 kW: 3.1 kW: 4790 mm: 3207 mm: 2305 mm: 8100 kg: 1150 kg: 1600 kg: 405 x 75 x 127 mm: 0,0001 mmiSurface control with Touch screen for 3 axes fully automatic surface and plunge grinding system10.4” TFT high resolution color control to ensure ease of operationRough increment, finish increment, spark out (0-9 times), and automatic grinding cycleCycle interrupt, flip over for part inspection &, final dimensions setWheelhead will rise up to end, start or reference positionnd table parks at left or right side after cycle is completedDisplay accuracy 0.0001mmI/O diagnosis &, alarm displayMax. table speed (X axis) 30 m/minIntegrated machine-body temperature controlDoub ...
max. width of grinding wheel: 50 mmratio: 0 max. dia. of grinding wheel: 400 mmtotal power requirement: 3 kWweight of the machine ca.: 1000 kgdimensions of the machine ca.: mPre-Dressing Device for Gear Grinding WheelsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 1010 mmgear width: 0 mmmax. module: min. module: total power requirement: 15 kWweight of the machine ca.: 9,5 tdimensions of the machine ca.: mMax. depth of tooth 10 mmMax. workpiece Ø (for clearance) 1,010 mmMax. external Ø of coupling 610 mmSliding base withdraw 216 mmMax. distance from grinding wheel to workpiece nose 90 - 430 mmMax. weight of workpiece, including clamp 500 kgNo. of teeth 32 to 150 Grinding wheel Ø, approx 152 - 320 mmGrinding wheel speeds, infinitely variable 0 - 3,600 rpmWork spindle bore 60 mm Total electrical load, approx. 15 kW - 380 V - 50 HzWeight, approx. 9,500 kgAccessories / Special Features Automatic roughing and finishing process via pre-settable counter andbuilt-in feed cam. Counter for number of teeth. Counter for number of dressing cycles. 2 built-on dressing units with three dressing diamonds for radius dressing, ...
workpiece diameter: 240 mmcentre distance: 0 mmhoning length max.: 500 mmmax. module: 5 total power requirement: 12 kWweight of the machine ca.: 5000 kgdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
width of the strips: 150 mmband length: 2000 mmband speed: 16,5/33 m/sectotal power requirement: 2,6/3,37 kWturning speeds: 1400/2800 U/minweight of the machine ca.: 95 kgEquipment / Accessories:- Removable dust catcher- Fine adjustment of the band adjustment- Sanding belt- Eye protection- Motor protection switch- Operation manual- Sanding table- working height adjustment- surface grinding padThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
honing diameter: 80 mmstroke: 280 mmthroat: 300 mmtotal power requirement: 6 kWweight of the machine ca.: 2,6 tHoning Ø 10 - 100 mmMax. honing depth, approx. 250 mmMax. spindle stroke 260 mmDistance between spindle and column 300 mmMounting height 1,000 mmTable size 350 x 500 mmHeight of table above floor 500 mmSpindle speeds in 2 steps, infinitely variable, approx. 85 - 300 rpm 170 - 600 rpmStroke speed, infinitely variable, hydraulic 0 - 23 m/minSpindle drive 2 kWTotal electrical load 6 kW - 380 V - 50 HzWeight 2,600 kg Accessories / Special Features Built-on 2-station tilting table which accommodates 2 workpieces. Mechanical workpiece clamping, using a manual lever. Hydraulic infeed of the tool. Switch-off via timer. Air measuring device (probably). Honing oil unit. Various splash shields, etc. Condition : Good. Machine can be inspected under ...
x-travel: 400 mmy-travel: 250 mmworkpiece height: 400 mmtotal power requirement: - kWweight of the machine ca.: 1,5 tdimensions of the machine ca.: 2 x 3 x 2 mNo. 0444Jig grinder HAUSER 3 SMWorking area: 400 x 250 x 4002-axis digital displayThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 215 mmgear width: 40,65 mmmax. module: total power requirement: 20 kWweight of the machine ca.: 10 tMax. external Ø of workpiece 215 mmTooth profile, height x width 16 x 40.65 mmNo. of teeth 5 - 200Max. tooth ratio 1 : 10Grinding wheel Ø 51 - 190 mmGrinding wheel speeds 1,000 - 6,000 rpmX Axis (horizontal) 152 mmY Axis (vertical) 178 mmZ Axis (slide base plate) 304 mmDistance from middle of machine to middle of workspindle 115 mmAxial speed 125 mm/secWorkpiece speeds 0 - 30 rpmWorkspindle bore, conical 3 29/32 inch Total electrical load 20 kW - 380 V - 50 HzWeight, approx. 10,000 kgAccessories / Special Features FANUC CNC Control, Model 150 MB, for 7 axes, with monitor and direct input. Automatic calculation of all workpiece and grinding parameters. Extensive coolant equipment with filter system, band filter, etc. Driven gri ...
max. wheel diameter: 2500 mmgear width: 1200 mmmax. module: 32 min. module: 3 total power requirement: 25 kWweight of the machine ca.: 60 tdimensions of the machine ca.: mGear , min. / max. 180 / 2,500 mmModule 3 - 32Helix angle, max. 10 - 35 °Gear width for straight gears 1,200 mmStroke length, approx. 100 - 1,200 mmNo. of strokes 80 - 350 /minStroke position adjustable 300 mmStroke speed 4 - 40 mmMax. weight of workpiece, approx. 18,000 kgMin. / max. no. of teeth 16 / 576Table size x bore 1,400 x 500 mmGrinding wheel Ø, approx. 500 mmGrinding wheel peripheral speed 34 m/sTotal electrical load, approx. 45 kW - 380 V - 50 HzWeight of machine, approx. 60,000 kgAccessories / Special Features: Hydrostatic guides in grinding slide, table and in all other guideways. Completely covered working area with sliding doors. Automatic grinding process for various cycles, with settings for rou ...

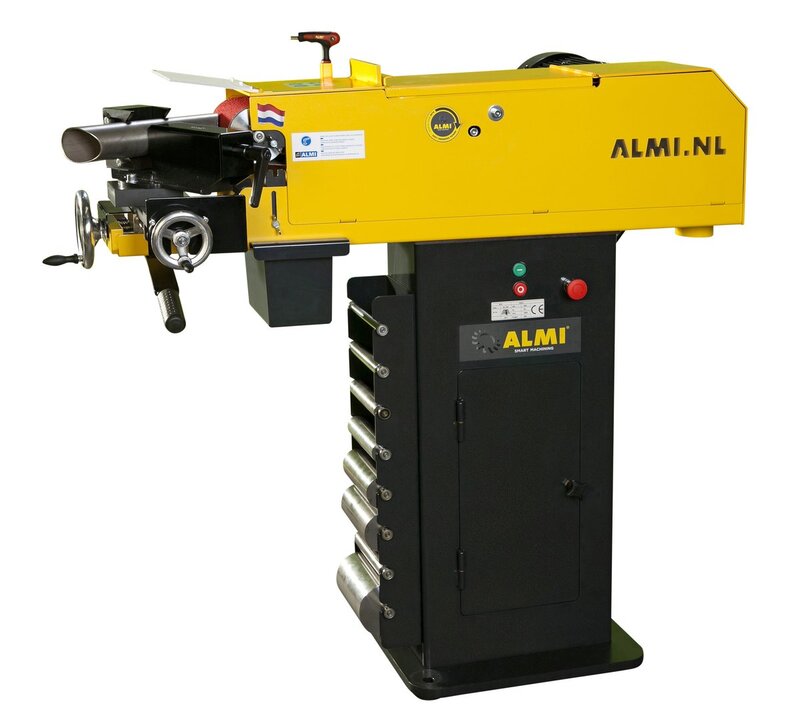

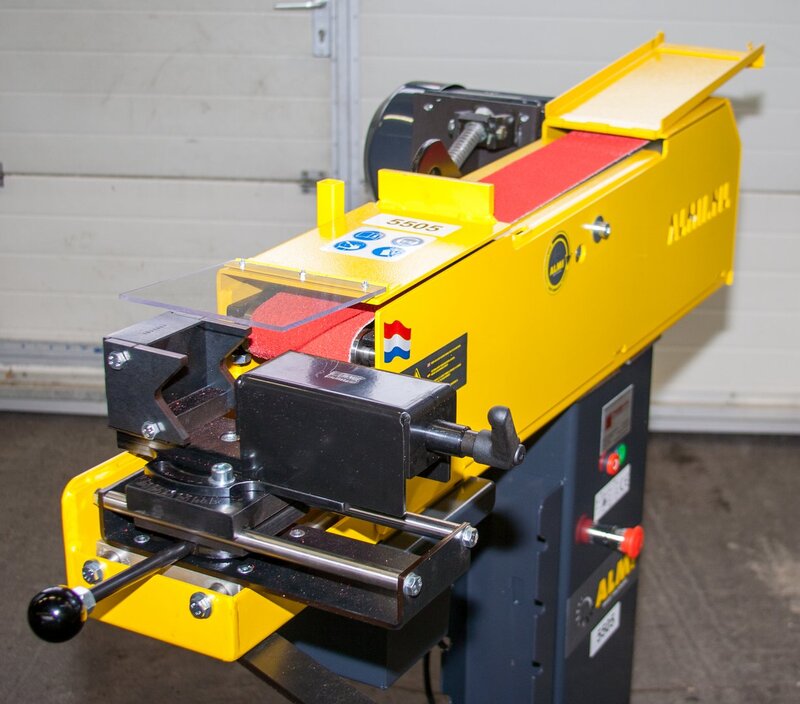

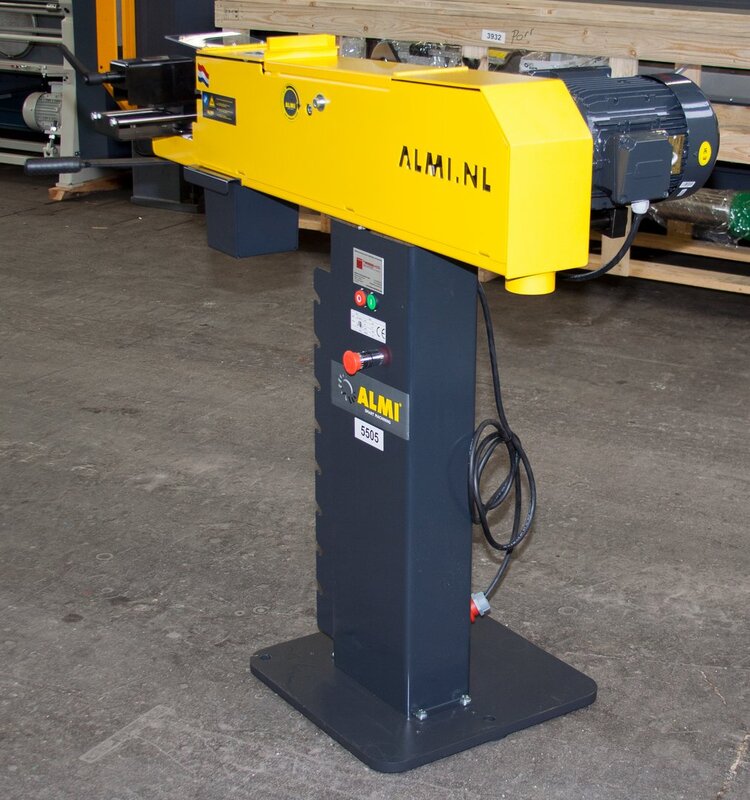

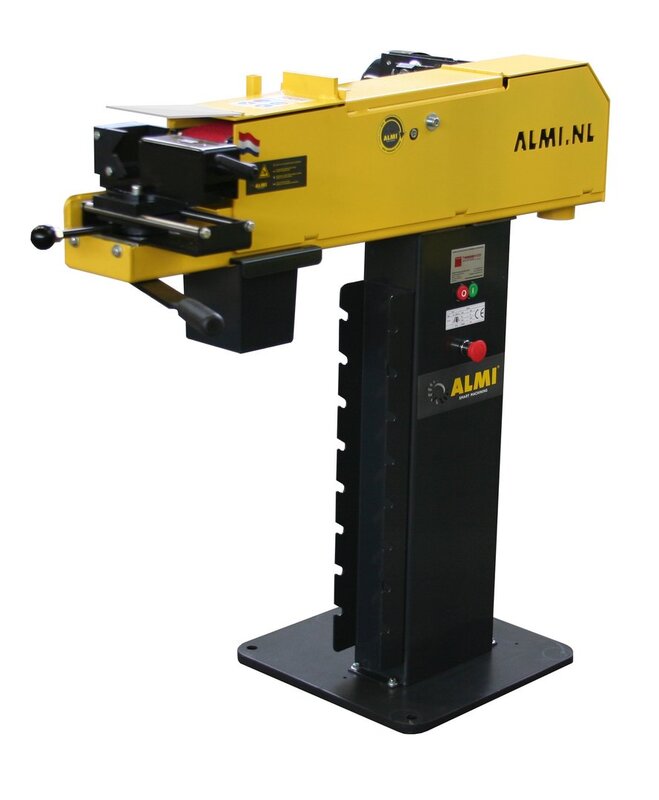

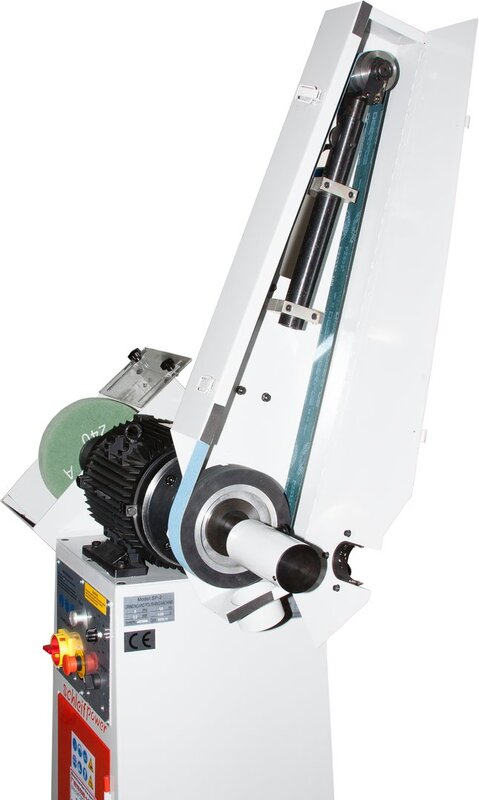

: gebraucht : 2019 : 5505 : prompt, Zwischenverkauf v : Niederlande : 2670 €: 1 : 100 x 2.000 mm: 20 - 76,1 mm: 1 : 3 kW: 190 kgDEMO MACHINE / MINT CONDITIONThe lever operated AL100U-01 can grind material from Ø 20 mm to Ø 76.1 mm. Its compound slide and carriage with rotatable clamp are continually adjustable allowing the machine to grind all pipe sections at any angle between 30° and 90°. The ALMI AL100U-01 can be used to grind square, rectangular and round pipes with a range of wall thicknesses and is suitable for all customary types of materials. ALMI’s belt tensioning system simplifies tensioning the grinding belt. The belt is tensioned using the hexagonal spanner supplied with the machine. The grinding belt can be tensioned quickly and the grinding rollers can be changed in seconds. All pipe grinders are equipped with a deburring table.Incl. 5 pcs. grinding belts, 1 pce. gr ...
width of the strips: 75 mmband length: 2000 mmband speed: ~ 1800 m/mintotal power requirement: 3 kWweight of the machine ca.: 150 kgdimensions of the machine ca.: 0,511 mNo. 4904:Belt grinding machine PRIMAT, mod. BSM 75The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding wheel diameter: 300 mmtable length: 0 mmtable width: 0 mmtotal power requirement: 1,5 kWweight of the machine ca.: 1000 kgdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 6 Monate ab Auftragse : Taiwan : 119880 €: 2265.73 €: 610 mm: 600 mm: 600 x 300 mm: 600 x 300 mm: 0 - 20 m/min: 0 - 3000 mm/min: 0,001 mm: 350 mm: 440 mm: 0 - 3000 mm/min: 0.001 mm: 500 - 1800 1/min: 11 kW: 3160 mm: 2450 mm: 2080 mm: 3400 x 2200 x 2530 mm: 4000 kg: 975 mm: 195 kg: 370 kg: 355 x 50 x 127 mm: 1,1 / 1,1 kW: 3.9 kW: 0,005 mm: 0,003 mmSmart i control with 10.4", touchscreen on a swiveling panel, with electronic wired handwheel- RS232, USB I/O connection- SMART Grind Cam (dxf transfer in G code)-PC based control with graphical dialog programming or G-code programmingInfinitely variable speedSurface grinding cycle, cross grinding cycle, plunge grinding cycle, multiple groove grinding cycle, contour grinding cycle, dressing cycleSpindle with 4 angular contact ball bearings (P4, class 7)Longitudinal and cross guides with heavy duty needle roller bearing for lo ...

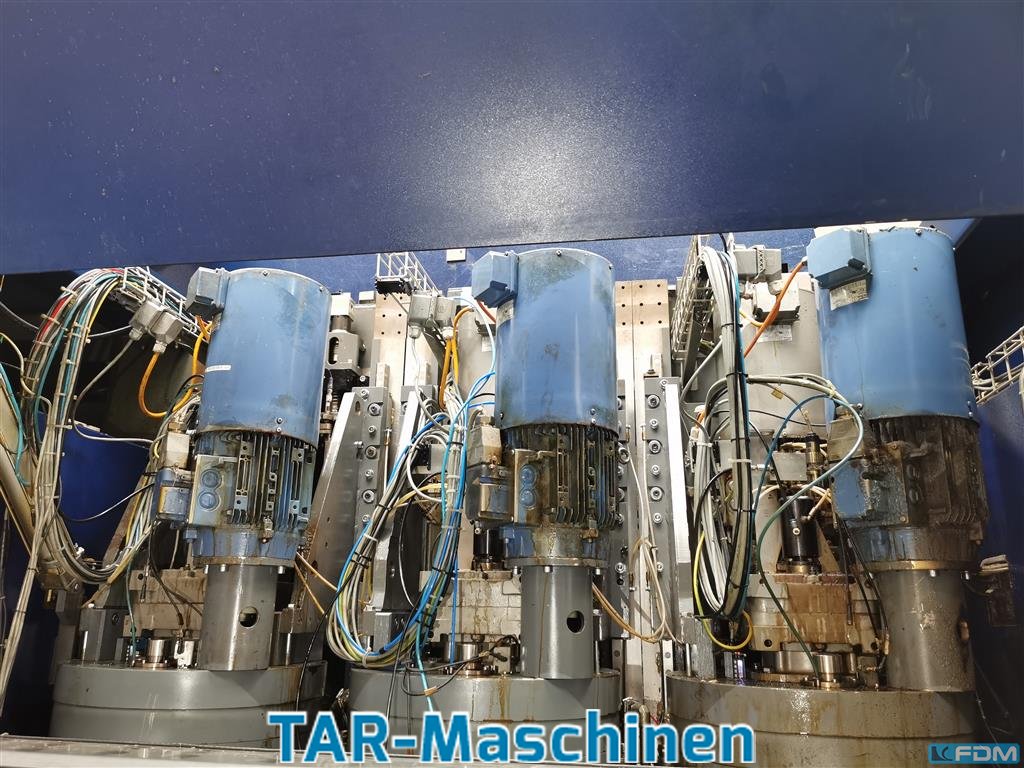

honing diameter: 12 mmstroke: 40 mmthroat: mmtotal power requirement: 15 kWweight of the machine ca.: 5 tdimensions of the machine ca.: m3 spindle honing machine with in process measuringThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 6 Monate ab Auftragse : Taiwan : 232840 €: 1700 mm: 850 mm: 1600 x 600 mm: 2x 800 x 600 mm: 0 - 20 m/min: 0 - 5000 mm/min: 0,001 mm: 685 mm: 0 - 2000 mm/min: 0.001 mm: 675 mm: 500 - 2200 1/min: 11 kW: 6165 mm: 3320 mm: 2850 mm: 5730x3200x3350 mm brutto mm: 9500 kg: 900 mm: 1335 kg: 1850 kg: 405 x 50 x 127 mm: 3,1 / 3,1 kW: 7.5 kW: X: 0,008, Y/Z: 0,005 mm: X: 0,006, Y/Z: 0,003 mmSmart i control with 10.4", touchscreen on a swiveling panel, with electronic wired handwheel- RS232, USB I/O connection- SMART Grind Cam (dxf transfer in G code)-PC based control with graphical dialog programming or G-code programmingInfinitely variable speedSurface grinding cycle, cross grinding cycle, plunge grinding cycle, multiple groove grinding cycle, contour grinding cycle, dressing cycleSpindle with 6 angular contact ball bearings (P4, class 7)Longitudinal guides with double-V-shape wit ...

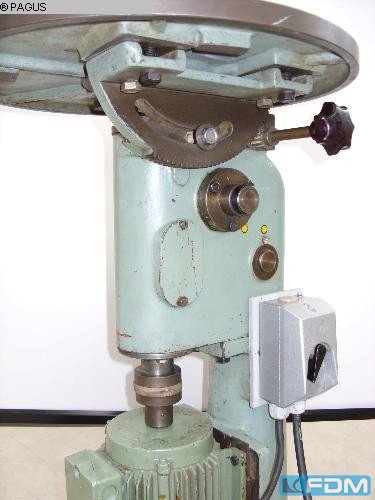

rotary table dia.: mmmax. dia. of grinding wheel: mmwith manual ongoing: 0manually feed: 0The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding band dimension: 75 x 2000 mmband speed: 33 m/secweight of the machine ca.: 90 kgengine output: 4 kWturning speeds: 2800 U/minAccessories / equipment:- Vibration-free running smoothness- Adjustable working height- S1 motors with 100% duty cycle- Surface and contact grinding possible- Removable protective cover for surface grinding- Connection piece for double suction- Built according to the CE standard The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 6 Monate ab Auftragse : Taiwan : 48720 €: 930.55 €: 610 mm: 600 mm: 610 x 305 mm: 300 x 600 mm: 650 mm: 700 mm: 5 - 25 m/min: 1.100 mm/min: 1 - 12 mm: 370 mm: 1.5 kW: 0.004 kW: 0.19 kW: 7,4 kW: 2670 mm: 1810 mm: 2050 mm: 2100 kg: 355 x 50 x 127 mm: 1.450 U/min: 3,7 kW: 4 mm: 0,02 mm: 0,2 mm: 0,002 mmcontrol panel on swiveling armaut. vertical feedhardened slide ways in all 3 axes with needle rollersgrinding wheel spindle on 4 high precision angular contact bearingselectro-magnetic chuckcoolant equiptment with aut. paper filter and magnetic separatormanual extractor with diamondgrinding wheelgrinding wheel flangegrinding wheel balancing scalebalance arborLED machine lampmachine and equipment according to the CE-regulationsuser manual in GERMAN and ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 6 Monate ab Auftragse : Taiwan : 247810 €: 2100 mm: 850 mm: 2000 x 600 mm: 2x 1000 x 600 mm: 0 - 20 m/min: 0 - 5000 mm/min: 0,001 mm: 685 mm: 0 - 2000 mm/min: 0.001 mm: 675 mm: 500 - 2200 1/min: 11 kW: 7710 mm: 3320 mm: 2850 mm: 6530x3200x3350 mm brutto mm: 10200 kg: 900 mm: 1240 kg: 2000 kg: 405 x 50 x 127 mm: 3,1 / 3,1 kW: 7.5 kW: X: 0,008, Y/Z: 0,005 mm: X: 0,006, Y/Z: 0,003 mmSmart i control with 10.4", touchscreen on a swiveling panel, with electronic wired handwheel- RS232, USB I/O connection- SMART Grind Cam (dxf transfer in G code)-PC based control with graphical dialog programming or G-code programmingInfinitely variable speedSurface grinding cycle, cross grinding cycle, plunge grinding cycle, multiple groove grinding cycle, contour grinding cycle, dressing cycleSpindle with 6 angular contact ball bearings (P4, class 7)Longitudinal guides with double-V-shape w ...
