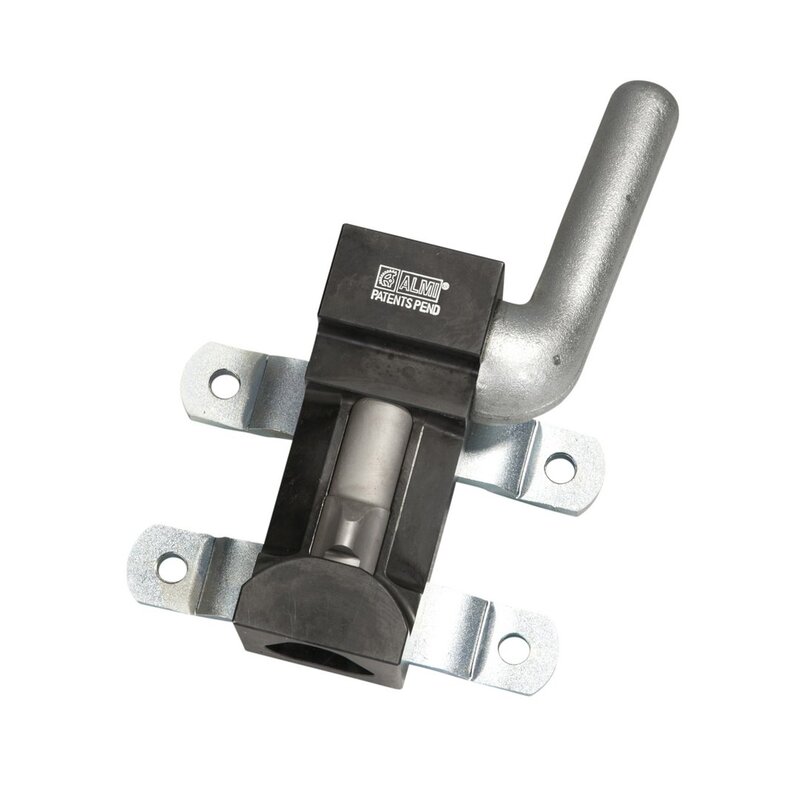

: neu : ca. 2 - 4 Wochen ab Auftr : Niederlande : 853 € : 20 - 76,1 mm : 3 mm : 2.5 mm : 7 kg The ALU can be used to notch a sink outflow in pipes with an external diameter of 22 mm to 76 mm. Since ALMI pipe notchers have a favourable price and high productivity they are an excellent investment. ALMI pipe notchers are available for cutting out venting slots in round and rectangular met pipes with an external diameter from 27 mm upwards and a wall thickness of a maximum of 3 mm. All the benefits in a nutshell: high productivity, low investments, simple and rapid operation, a number of diameters are immediately available. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

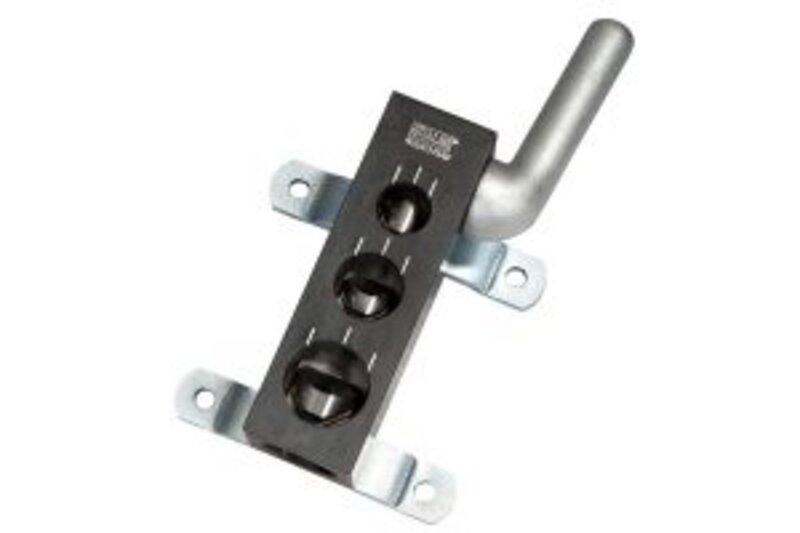

: neu : ca. 2 - 4 Wochen ab Auftr : Niederlande : 788 € : 3/4 26,9 mm, 1 33,7 mm, mm : 3 mm : 2.5 mm : 8 kg The AL 1 can be used to notch pipes with an external diameter of 26.9 mm (3/4",), 33.7 mm (1",) and 42.4 mm (1 1/4",). The hand-operated machines can be easily wall mounted.With ALMI pipe notchers filing or milling pipes has become a thing of the past. The major benefit of this pipe notcher, compared to other notchers, is that one unit can be used to notch a series of diameters without needing to change parts for each diameter. All the benefits in a nutshell: high productivity, low investments, simple and rapid operation, a number of diameters are available immediately, ideal for double corner joints. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 2 Wochen ab Auftragse : Niederlande : 4646 € : 100 x 2.000 mm : 20 - 76,1 mm : 1 : 1 : 3 kW : 220 kg The AL100U-02 can be operated with two hand-wheels or a lever. The machine is equipped with both options. The AL100 U-02 can grind material from Ø 20 mm to Ø 76 mm. The compound slide and carriage with rotatable clamp are continually adjustable, which means the machine can grind all pipe sections at every required angle between 30° and 90°. The ALMI AL100U-02 can be used to grind square, rectangular and round pipes with a range of wall thicknesses and is suitable for all customary types of materials. ALMI’s belt tensioning system makes tensioning the grinding belt even easier. The belt is tensioned using the hexagonal spanner supplied with the machine. The grinding belt can be tensioned quickly and the grinding rollers can be changed in seconds. All pipe grinders are e ...
: gebraucht : 2023 : 5543 : prompt, Zwischenverkauf v : Niederlande : 3100 € : 1 : 100 x 2.000 mm : 20 - 76,1 mm : 1 : 3 kW : 190 kg Demo machine / mint condition Net price (price for new machine € 3.798,00) The lever operated AL100U-01 can grind material from Ø 20 mm to Ø 76.1 mm. Its compound slide and carriage with rotatable clamp are continually adjustable allowing the machine to grind all pipe sections at any angle between 30° and 90°. The ALMI AL100U-01 can be used to grind square, rectangular and round pipes with a range of wall thicknesses and is suitable for all customary types of materials. ALMI’s belt tensioning system simplifies tensioning the grinding belt. The belt is tensioned using the hexagonal spanner supplied with the machine. The grinding belt can be tensioned quickly and the grinding rollers can be changed in seconds. All pipe grinders are equipped with a d ...
: neu : ca. 2 - 4 Wochen ab Auftr : Niederlande : 951 € : 1 1/2 48,3 mm, 2 60,3 m mm : 3 mm : 2.5 mm : 15 kg The AL 2 can be used to notch pipes with an external diameter of 48.3 mm (1 1/2",) and 60.3 mm (2",). ALMI products are subjected to stringent quality control inspections before they leave the factory. ALMI’s pipe notcher, in contrast to punch-cutting machines with separate auxiliary tools, is always available for immediate use. Moreover, the price is more affordable than the auxiliary tools for punch-cutting machines. All the benefits in a nutshell: high productivity, low investments, simple and rapid operation, a number of diameters are available immediately, ideal for double corner joints. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 2 - 4 Wochen ab Auftr : Niederlande : 5760 € : 111.17 € : 3/4 26,9 mm, 1 33,7 mm, mm : 5 mm : 3 mm : 93 kg The motor driven AL 1-2U can be used to notch pipes with an external diameter of 27.9 mm 26.9 mm (3/4",), 33.7 mm (1",), 42.4 mm (1 1/4",), 48.3 mm (1 1/2",) and 60.3 mm (2",)and notch pipes with an external diameter of 22 mm to 76 mm for sink outflows. Do you often have to notch pipes? If so, the motor-driven AL1-2U equipped with a 2.2 kW electric motor is the ideal solution! The motor forms one unit with the special eccentric shaft that drives the notching tool. The motor is also equipped with an on/off switch with a zero voltage protection and guard. All the benefits in a nutshell: high productivity, low investments, simple and rapid operation, a number of diameters are readily available, ideal for double corner joints. The data for this ad wa ...
: neu : ca. 2 - 4 Wochen ab Auftr : Niederlande : 1032 € : 1 1/4 42,4, 1 1/2 48,3 mm : 3 mm : 2.5 mm : 15 kg The AL 3 can be used to notch pipes with an external diameter of 42.4 mm (1 1/4”) and Ø48.3 mm (1 1/2”). ALMI products are subjected to stringent quality control inspections before they leave the factory. ALMI’s pipe notcher, in contrast to punch-cutting machines with separate auxiliary tools, is always available for immediate use. Moreover, the price is more affordable than the auxiliary tools for punch-cutting machines. All the benefits in a nutshell: high productivity, low investments, simple and rapid operation, a number of diameters are available immediately, ideal for double corner joints. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 2 - 4 Wochen ab Auftr : Niederlande : 4955 € : 3/4 26,9 mm, 1 33,7 mm, mm : 5 mm : 3 mm : 87 kg The motor driven AL 1-2E can be used to notch pipes with an external diameter of 26.9 mm (3/4",), 33.7 mm (1",), 42.4 mm (1 1/4",), 48.3 mm (1 1/2",) and 60.3 mm (2",). Do you often have to notch pipes? If so, the motor-driven AL1-2E equipped with a 2.2 kW electric motor is the ideal solution! The motor forms one unit with the special eccentric shaft that drives the notching tool. The motor is also equipped with an on/off switch with a zero voltage protection and guard. All the benefits in a nutshell: high productivity, low investments, simple and rapid operation, a number of diameters are readily available, ideal for double corner joints. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
plate thickness: max. 5.0 mm tube diameter: 27.9 - 61.0 mm motor: 400 Volt total power requirement: 2.2 kW weight of the machine ca.: 93.0 kg. The AL1-2U electric pipe notcher is started at the push of a button, and the pipe notcher is driven continuously. This means you can continually work on new parts without having to switch the machine on again each time. With the electrically driven AL1-2U pipe notcher you can notch pipe outer diameters of Ø 26.9 (3/4?), Ø 33.7 (1?), Ø 42.4 (1 ¼), Ø 48.3 (1 ½), Ø 60.3 (2?). This pipe notcher is also suitable for notching a zinc outlet in round and rectangular metal pipes. You can notch pipe outer diameters of ø 20.0 -60.3. Do you often notch pipes? Then the electrically driven pipe notcher AL1-2U with the 2.2 kW electric motor is just the thing for you. The motor forms a unit with the special eccentric shaft that drives the notching tool. T ...
plate thickness: max. 5.0 mm tube diameter: 27.9 - 61.0 mm motor: 400 Volt total power requirement: 2.2 kW weight of the machine ca.: 87.0 kg. The AL1-2E electric pipe notcher is started at the push of a button, and the pipe notcher is driven continuously. This means you can continue to work on new parts without having to switch the machine on again each time. With the electrically driven AL1-2E pipe notcher you can notch pipe outer diameters of Ø 26.9 (3/4?), Ø 33.7 (1?), Ø 42.4 (1 ¼), Ø 48.3 (1 ½), Ø 60.3 (2?). Do you often notch pipes? Then the electrically driven AL1-2E pipe notcher with the 2.2 kW electric motor is just right for you. The motor forms a unit with the special eccentric shaft that drives the notching tool. The motor is also equipped with an on/off switch with 0-voltage protection and a protective cap. Equipment: - electric motor pipe notching machine - for pipes ...
Oferta sprzedaży 24339 Specyfikacje: - Wymiary taśmy szlifierskiej 2000 x 100 mm - Otwór do szlifowania powierzchni 400 x 100 mm - Imadło podporowe – regulowany kąt 90° - 30° - Obsługa precyzyjnej regulacji za pomocą dźwigni ręcznej - Prędkość taśmy szlifierskiej 30 m/sek. - Tarcza kontaktowa / wałek szlifierski do ok. Ø 42 mm - Napęd 400 V / 2880 obr./min / 3 kW - Zapotrzebowanie na miejsce ok. szer. 700 x wys. ok. 1200 x gł. 1200 mm - Waga ok. 225 kg - Rolki kontaktowe 33,7 , 42 , 48 mm
używany
Oferta sprzedaży 24315 Szlifierka do taśm metalowych Univ. Radii Specyfikacje: - Wymiary taśmy szlifierskiej 2000 x 100 mm - Otwór do szlifowania powierzchni 400 x 100 mm - Imadło podporowe – regulowany kąt 90 - 30 - Obsługa precyzyjnej regulacji za pomocą pokręteł - Prędkość taśmy szlifierskiej 30 m/sek. - Tarcza kontaktowa / wałek szlifierski 42 mm - Napęd 400 V / 2880 obr./min / 3 kW - Zapotrzebowanie na miejsce ok. szer. 700 x wys. ok. 1200 x gł. 1200 mm - Waga ok. 225 kg - 10 Kontakt - wałki szlifierskie ok. 10 + 18 + 22 + 24 mm - 28 + 33 + 36 + 48 + 60 + 68 mm
Zmotoryzowany klinkier rurowy od ALMI AL1-2U Firma ALMI opracowała serię szczególnie racjonalnych klinkier rur z napędem elektrycznym do odłączania gazu, pary, stali nierdzewnej, stali nierdzewnej, bez użycia sieci i wielu innych rur podczas intensywnego użytkowania. Wszędzie tam, gdzie rury są spawane ze sobą pod kątem 90- kątowym, klinkiery almi zapewniają bardzo szybkie i precyzyjne wgłębienie w prawą rurę. Doskonale nadają się również do produkcji połączeń dwunarożnych. Do intensywnego użytkowania klinkier rurowy jest wyposażony w silnik o wyposażeniu 2,2 KW. Silnik tworzy całość ze specjalnym mimośrodowym wałem, który napędza narzędzie wycięcia. Model AL1-2U posiada również wycięcie do wylotu cynku. Wycięcie rury ma bezpiecznik 0-napięciowy i urządzenie ochronne. Właściwości Wysoka wydajność Niskie koszty inwesty ...
