usato
Key data: 800 mm, 1020 mm, 970 mm

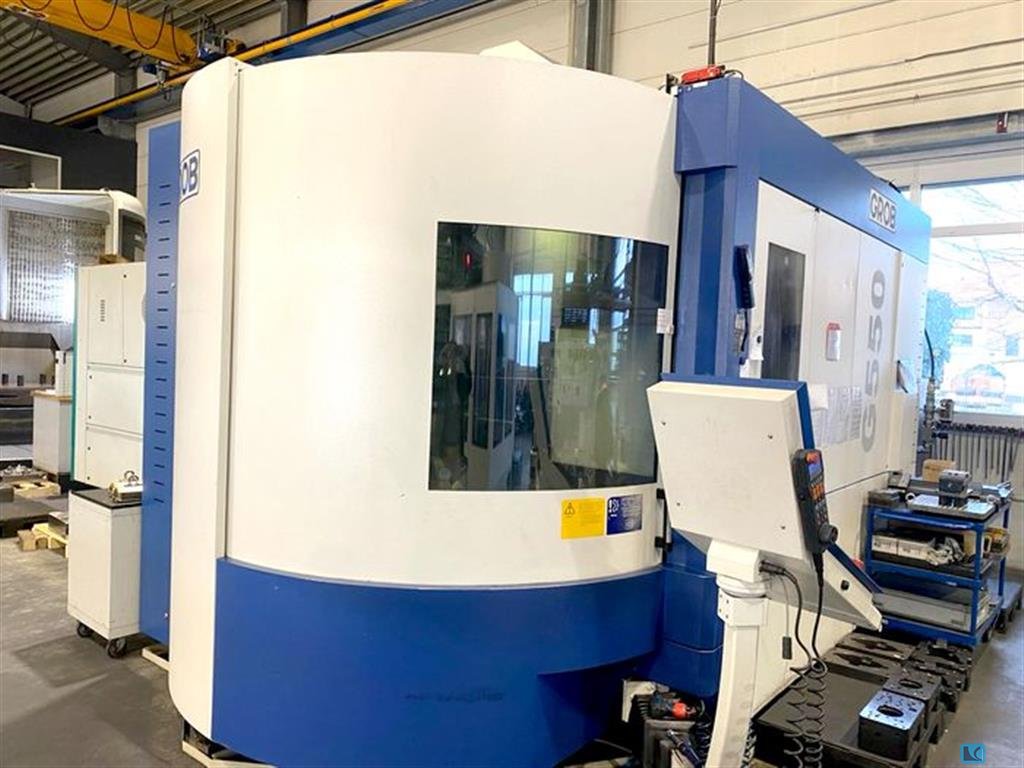

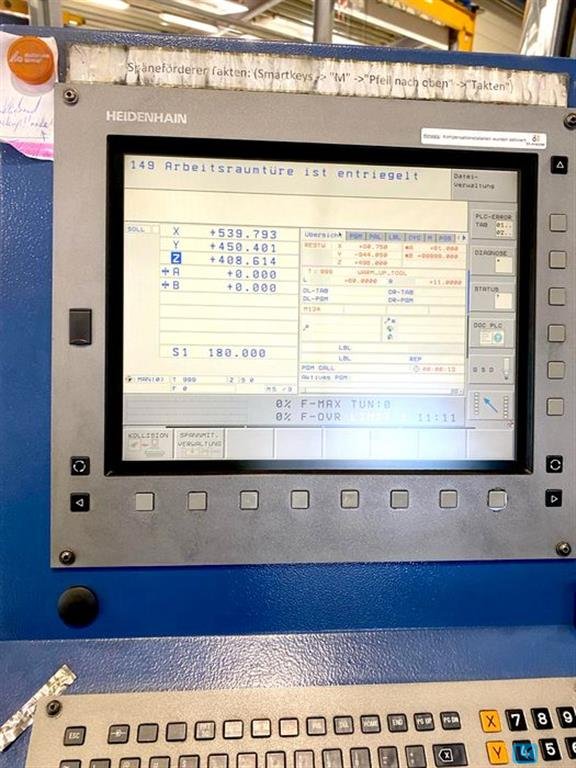

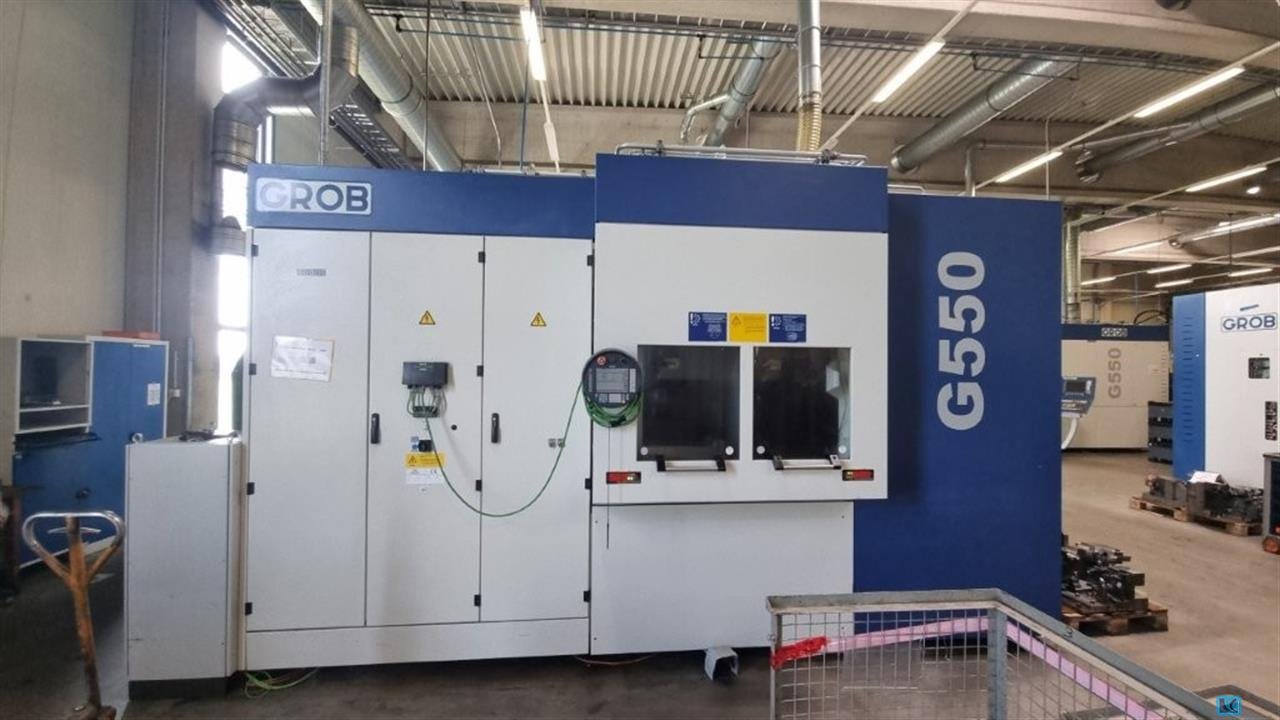

grossolano G 550 / 5 assi, Anno di costruzione 2016, Controllo Heidenhain iTNC 530, corse X/Y/Z 800/1020/970, Schuler Automation LMC 900, 15 posti pallet, Dimensioni pallet 600 x 600 mm, Velocità Ww 60, Rivista aggiuntiva 218 posti, HSK 63, Velocità del mandrino fino a 16.000 giri/min, nuovo mandrino Februrar 2024, Tavola rotante girevole a 2 assi NC Ø 770 mm, Asse A -185° / + 45°, Asse B 360°, IKZ, Trasportatore Automatico. Spento e acceso, Sonda 3D Heidenhain, Opzione cinematica,
usato
Centro di lavoro a 5 assi con cambio pallet 2 volte Max. distanza percorsa asse x/ y/ z = 600/ 770/ 675 mm Tavola girevole/rotante (asse A/B) Cambio pallet 2 volte Dimensioni pallet 400x400 mm Velocità mandrino fino a 16.000 1/min Potenza mandrino 160/ 223 Nm Magazzino utensili 34 volte + magazzino aggiuntivo 99 posizioni utensile Portautensili HSK 63 - Controllo Siemens 840D sl - Caricatore aggiuntivo TM99 - Apertura/chiusura automatica per carico e scarico manuale - Pallet con connessioni fluide (connessioni di accoppiamento) - Dispositivo elettromeccanico per la lunghezza dell'utensile - Sonda infrarossi Renishaw - Alimentazione interna del refrigerante, variabile in continuo fino a 38 bar - Unità di controllo portatile - Estrazione dell'area di lavoro - Diagnostica remota della macchina - Sistema di protezione macchina Brankamp - Bloccaggio idraulico dei pe ...
usato
GROB BANDSAEGE VERTIKAL TIPO NS 18 - Uitlading 450 mm - 12/600 m/min - Wenkbare werktafel - 380V OLANDESEMA Macchine per la lavorazione dei metalli ENSCHEDE - PAESI BASSI (3 km dal confine tedesco)
usato
Travel X/Y/Z: 800mm/690mm/630mm, max. spindle speed: 15000 rpm, drilling capacity: 30mm. Table size X/Y: 630mm/630mm, max. workpiece weight: 1100kg, control: Siemens Sinumerik. Dimensions X/Y/Z: 6000mm/2900mm/2400mm, weight: approx. 25000kg. Spare parts available. Including chip conveyor and separate coolant system.
usato
x-travel:750 mm y-travel:840 mm z-travel:865 mm weight of the machine ca.:23 t Cylinder Head Housing / Steel ZKG steel 2 spindles 4 axes A axis 360 x 0.001 Spindle: 20kW each, 8,000 rpm each HSK-A63 2 x 40 pos. Without loading / Transfer
usato
x-travel:600 mm y-travel:655 mm z-travel:675 mm weight of the machine ca.:22 t dimensions of the machine ca.:4,0 x 3,20 x 3,20 m 2 spindles, 5 axes B axis 360 x 0.001 Spindle: 20kW each, 12,000 rpm HSK-A63 2 x 40 pos. For technical data see attached PDF Machining center G 320 AB with swivel changer Project: GM 4284/01-01 to 06 Process: Production of cylinder head cover Al Si 9 Cu 3 Minimum quantity lubrication 1-channel Lubrix 2x5bar/4x10bar Lubricant Eccocut Micro Plus20 Tool magazine 2x40, cone cleaning Tool holder HSK 63 tool breakage control Tool monitoring Artis probe BDE connection Control Siemens 840D Solution Line NCU 720.2 (730.2) PN with PLC319-3PN/DP
usato
x-travel:750 mm y-travel:800 mm z-travel:865 mm weight of the machine ca.:23 t dimensions of the machine ca.:4,93 x 3,50 x 3,28 m b-axis:360 (0,001) ° with B axis 360 x 0.001 2 spindles (each 29 KW, 12,000 rpm) Tool: HSK-A63 2 x 40 places
usato
x-travel:600 mm y-travel:770 mm z-travel:675 mm total power requirement:47 kW weight of the machine ca.:13 t Tool bore:HSK-A63 numbers of tools in magazin:40 including additional tool magazine ZM 182 1 spindle , 5 axes
usato
x-travel:750 mm y-travel:840 mm z-travel:865 mm number of spindles:2 From cylider crank case production 2 spindles HSK-A63 4 axes, A-axis
usato
x-travel:630 mm y-travel:630 mm z-travel:500 mm number of spindle speeds:0 - 15000 spindle motor:32 kW size of pallet:500 x 500 mm b-axis:36000 x 0,001 ° no. of workpieces in the magazine:61 Stück tool taper:HSK 63 weight of the machine ca.:15 t Double-Spindle Mechanical processing cylinder head VR6
usato
x-travel:800 mm y-travel:950 mm z-travel:1020 mm control:HEIDENHAIN iTNC 530 table load capacity:800 kg tool taper:HSK 63 turning speeds:16.000 1/min spindle:35 / 25 kW table-size:770 mm max. torque on the spindle:160 / 223 Nm tool change unit:120 (2x60) Pos. weight of the machine ca.:20 t dimensions of the machine ca.:3,3 x 6,15 x 3,2 m 5-axis simultaneously machining center with controlled swivel-rotary table (A/B-axis), milling head horizontal, internal coolant device (10-80bar), oilmist-suction, electromech. tool-length measuring device GROB, chipconveyor, 3D touch probe, KINEMATICOPT, BLUM laser, el. handwheel, hour meter: approx. 80.500 h "machine on", approx. 48.500 h "spindle on"
usato
x-travel:800 mm y-travel:840 mm z-travel:865 mm total power requirement:24 kW weight of the machine ca.:15,5 t dimensions of the machine ca.:4 x 3 m 5 axes, 1 spindle A axis -30TO + 210 DEG B axis 360 x 0.001 Axis speed: X= 65 mm/min; Y= 55mm/min; Z= 60mm/min Spindle: 29 KW max. spindle speed = 1200 rpm max. torque = 34.6 Nm Tools: HSK-A63 87 places in the magazine
usato
x-travel:800 mm y-travel:840 mm z-travel:865 mm control:Siemens 840 D spindle speeds::10.000 rpm spindle drive motor:20 kW weight of the machine ca.:16 t dimensions of the machine ca.:4 x 3 m 4 axes, 1 spindle A axis 360 x 0.001 Axis speeds: X= 65 mm/min; Y= 55mm/min; Z= 60mm/min Spindle torque = 262 Nm Spindle 20KW / 10,000 rpm Tool HSK-A100 57 places in the magazine
usato
weight of the machine ca.:11,2 t one spindle
usato
x-travel:800 mm y-travel:690 mm z-travel:630 mm total power requirement:76 kW weight of the machine ca.:25,5 t b-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kg spindle turning speed range:15000 U/min Boring power:30 mm plate size:630 x 630 mm Dimension:6000 x 2900 x 2400 mm spindle taper::HSK 63 Documents:vorhanden
usato
x-travel:600 mm y-travel:655 mm z-travel:685 mm weight of the machine ca.:17 t dimensions of the machine ca.:4x3,1x3,1 m
usato
Description: Machine no. 218 Control: conventional Workpiece diameter 115 mm Workpiece length 2150 mm Toothing diameter 120 mm Number of teeth - max. 96 Number of teeth - min. 12 Rolling head speed 1,800 rpm Feed rate 30 - 180 mm/min Rapid traverse 1,800 mm/min Total power requirement 20 kW Approx. Onsite Dimension. (l x w x h): 5,700 x 3,000 x 2,300 mm, weight approx.: 11,000 kg
usato
Description: Table support surface approx. 610 x 610 mm, with welding device - manufacturer ideal, for band saw blades, without CE certificate Approx. Onsite Dimension. (l x w x h): 1,200 x 800 x 2,100 mm, weight approx.: 480 kg
usato
gola: 450 mm Dimensioni del tavolo: 610 x 610 mm : 3660 x 6 mm potenza totale richiesta: 1,5 kW peso della macchina ab.: 600 kg dimensioni: 1150 x 1000 x 1950 mm
usato
This GROB G350 Universal Machining Center was manufactured in the year 2011 and has 54019 hours, of which 17507 are spindle hours. It is equipped with a SIEMENS SINUMERIK 840D control unit. The machine has a spindle speed of 18000 rpm.
usato
corsa x: 750 mm corsa y: 1000 mm corsa z: 870 mm controllo: 840 D potenza totale richiesta: 29 kW peso della macchina ca.: 22,5 t dimensioni della macchina ca.: B 3,2 x L 6 x H 3,3 m
usato
x-travel: 800 mm y-travel: 1020 mm z-travel: 970 mm Control: HEIDENHAIN iTNC 530 : 18000 min/-1 Feeds (X,z,u,w-axis): 29 / 39 kW tool taper: HSK 63 : 60 Pos. rapid travel x/y/z: 65/50/80 mm/min table diameter: 630 x 630 mm table load capacity: 700 kg max. workpiece diameter: 900 mm A-Axis: -185 / +45 ° b-axis: 360 ° total power requirement: 42 kVA weight of the machine ca.: 22 t dimensions of the machine ca.: m 5-axis BAZ Equipped with: - CNC control HEIDENHAIN iTNC 530 - pallet changer 2-fold (630x630mm) - tool changer 60-fold (HSK-A63) - Swivel rotary table (A-/B-axis) - IKZ 4-38 bar - chip conveyor - belt filter system - spindle cooling 6 Machines available The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
usato
Pressione: 7 t max. Diametro max. del pezzo: 43 mm lunghezza filettatura: 3000 mm angolo di rotazione per il lavoro mandrino: 10 potenza totale richiesta: 6,5 kW peso della macchina ca.: 1.280 kg Dimensioni della macchina ca.: 1,4x1,8,1,4 m
usato
x-travel: 600 mm y-travel: 855 mm z-travel: 750 mm table surface area: 400 x 400 mm clearance diameter: 720 mm pivoting angle: -185 / +45 Grad workpiece weight: 340 kg table rotation speed: 50 U/min tool taper: HSK-A 63 spindle turning speed - stepless: 12000 U/min spindle motor: 40 kW tool diameter: 70 mm tool length - max.: 365 mm weight of tools max.: 8 kg rapid travel range: 70/45/90 m/min control: Heidenhain iTMC 530 total power requirement: 54 kVA weight of the machine ca.: 15 t dimensions of the machine ca.: 6,1 x 2,47 x 3,17 m The 5-axis universal machining center G350 offers nearly unlimited possibilities in the milling of workpieces of various materials. materials. equipped with: - CNC control Heidenhain iTNC 530 - 2-fold Pallet Changer - NC swivel rotary table (A-/B-axis) - tool changer 40 places (HSK A63) - IKZ / coolant system 3-22,5bar - chip conveyor The data for this ad ...
usato
x-travel: 600 mm y-travel: 855 mm z-travel: 750 mm table surface area: 570 mm clearance diameter: 720 mm workpiece weight: 400 kg pivoting angle: -185 / +45 Grad table rotation speed: 50 U/min tool taper: HSK-A 63 spindle turning speed - stepless: 12000 U/min spindle motor: 40 kW tool diameter: 70 mm tool length - max.: 365 mm weight of tools max.: 8 kg rapid travel range: 70/45/90 m/min control: Heidenhain iTMC 530 total power requirement: 47 kVA weight of the machine ca.: 13 t dimensions of the machine ca.: 6,1 x 2,47 x 3,17 m The 5-axis universal machining center G350 offers nearly unlimited possibilities in the milling of workpieces of various materials. materials. equipped with: - CNC control Heidenhain iTNC 530 - NC swivel rotary table (A-/B-axis) - tool changer 40 places (HSK A63) - IKZ / coolant system 3-22,5bar - chip conveyor 2 identic machines available The data for this ad ...
