Fabricante:
(Categoria: 107)
- Clamping area 215 - 620 mm- Rotation area 170 - 620 mm- Stroke 290 mm- Max. wall thicknes 1 cycle 40 mm- Rotation speed 25, 38, 50 Min- TRB Roller conveyor 7000 mm with V Type- Construction in height adjustable
Eckold Kraftformer; motorised machine for Shrinking, Stretching, Doming, Planishing, Reforming, Flattening, StraighteningMachine equipped for tooling:FWR1307FWA 1306FWA 802TFWA 1002TLFA 120SLFA155T
- 3 rolls driven Servo- Torq each roller 3500 nM- Electrically support rolls - Intelligent software :- Ellipse program- U Bend shapes- control of tangents- Auto section detector
- 3 rolls driven- 2 lateral guide rolls- Digital readout for position rolls- Set hardned universal rolls- Set hardned profile rolls
- Range off edge radius Manual 20 - 500- Range off edge radius Automatic 150 - 500- Hydraulic Controllable forming roll drive- Hydraulic displacement drive- Clamping device without hole- Max. pressure manipulator 2000 Psi / 140 bar- Max. pressure press 5700 Psi / 400 bar- Max. speed forming roll 170 M/Min- Kunkel head forming rolls:- R = 350- R = 300- R = 275- R = 250- R = 200- R = 175- R = 150 - Basket bottem- Knocker bottom- Pressure vessel bottom- Boiler bottoms- Flat floor- Plate base- diffuser bottom- Tank bottom- Tank bottom- Radar reflectors- Engine parts- Dispense air- Silo hoppers- Cooker hoods- Container parts- Hemispheres

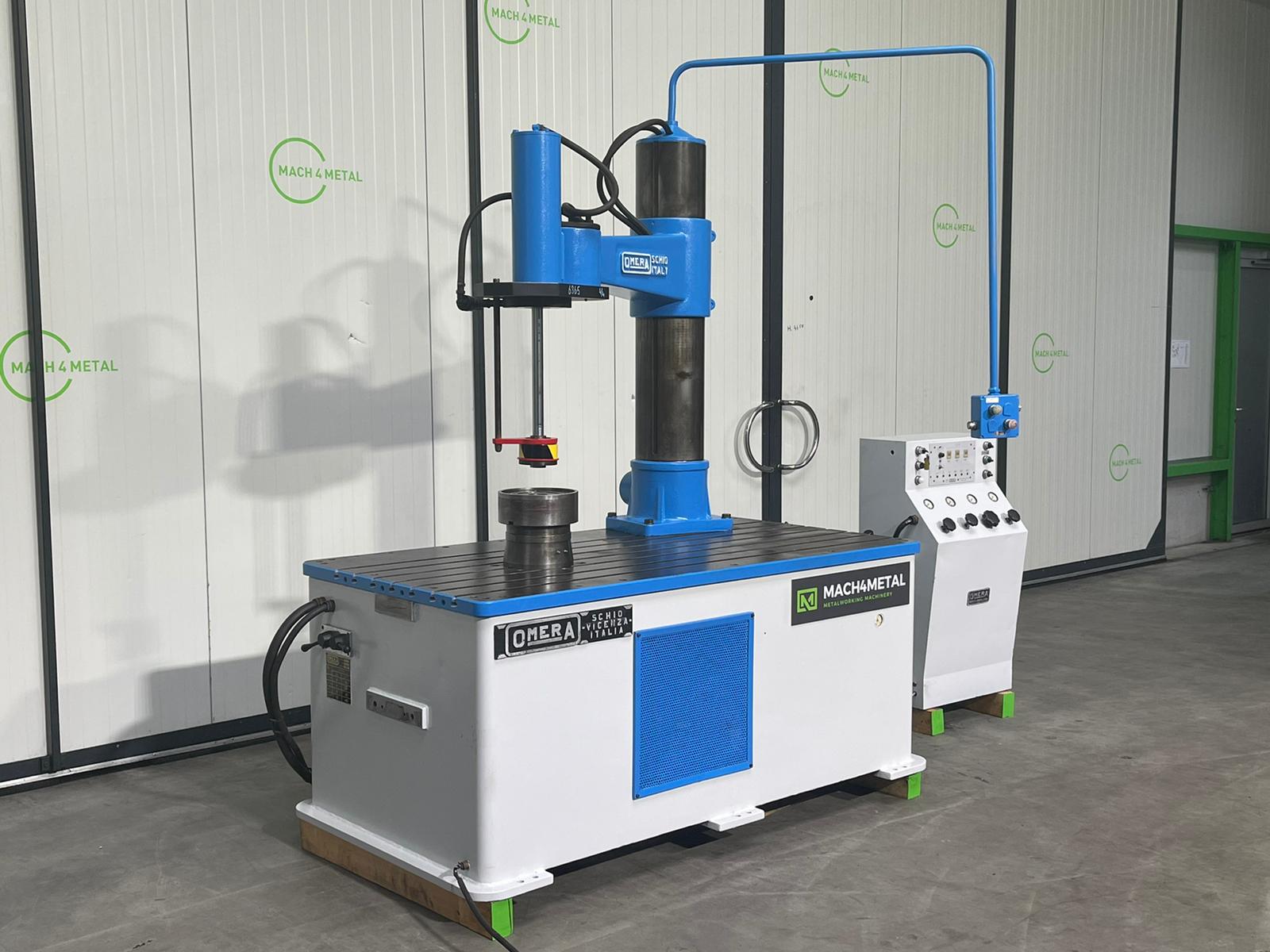

- Table length : 1900 - Table width : 1000 - Steady arm throath HOR : 670 - Steady arm throath VER: 940 - Stroke cylinder : 350 - Column diameter : 200
- Kunckel head tooling Radius:- Forming Radius- 400- 300- 250- 200- 180- 150- 130- 100- 80
- incl. Knuckel head tooling Radius:- R = 600, 500, 400, 300, 275, 250, 200, 120, 100, 80
- Extended end for profile bending rolls (Pipe & T-Angel)- Central lubrication- Digital readout position side rolls- Fully hydraulic machine- Hydraulic drop end- Hardned rolls
- Speeds 150 strokes- Hand ram adjustment 0 - 60 mm- Large tooling package ca 12 units - Wheeling tooling set (englisch wheel)- Vertical troath 250 mm- Horizontal Troath 400 mm
- Pipe bending machine with electric control, 4-fold bending angle pre-selection and digital display - Hydraulicbendingdriveoperatedbyhandlevervalve- Hydraulic bending drive, operated by hand lever valve- Follower-type pressure die (sliding guide)- Hydraulic mandrel retraction- Pipe circular saw with coolant lubrication and automatic feed- 6 Mandrels up to 24 mm included x 3000 mm- Pipe deburring unit for internal and external deburring- Hydraulic power unit as basic seating for attaching a cutting ring assembly or flaring device - Machine mobile and flexible to use
- Adjustable stroke with digital read out positioning display- Variabel instelbare druk- Snel wissel gereedschap systeem
- Pipe bending machine with electric control, 4-fold bending angle pre-selection and digital display - Hydraulicbendingdriveoperatedbyhandlevervalve- Hydraulic bending drive, operated by hand lever valve- Follower-type pressure die (sliding guide)- Hydraulic mandrel retraction- Pipe circular saw with coolant lubrication and automatic feed- Pipe deburring unit for internal and external deburring- Hydraulic power unit as basic seating for attaching a cutting ring assembly or flaring device - Machine mobile and flexible to use
- Maximum diameter 3800 mm- Minimum diameter 710 mm- Thickness 40N/mm2 up to 6 mm- Thickness 30 N/mm2 up to 8 mm- Thickness 70N/mm2 up to 5 mm- Flanging height 90 mm- Working speed flanging 0 - 20 M/Min- Working cutting speed 0-30 M/Min- Tooling package included
- Conical bending attachment- Extended roll end for section bending jobs- Digital read out position side rolls- Central lubrication- CE-Declaration
- Smallest bending diameter 640 mm- Pressing force against upper roll 5800 kN- Conical bending attachment- Central lubrication- Equipped for change rolls
