Hydraulic press, oil hydraulic press, pressing machine, pressing tool, pressing pliers -Hydraulic press: Hydraulic unit novopress type WK 9483 -Pressure: max. 150 bar / 0.45 l/min -with punch set: 1x Ø 18mm, 2x Ø 14mm, 1x Ø11 mm, 1x Ø 9mm -Operation: foot pedal -Connection hoses: for pressing tongs or similar -Dimensions: 850/550/H1250mm -Weight: 158 kg
Bending tool, die, lower tool, die tool, folding tool, press tool, forming tool, clamp press tool, upper tool -Die tool: Forming tool / Press tool -Length: 300 mm -Dimensions: see photos -Overall dimensions: 300/80/H110 mm -Weight: 17.9 kg
T-slot plate, measuring plate, measuring table, clamping plate with T-slots, plate field, welding table, welding table -Dimensions: 250/1450/H170 mm -Sheet thickness: 28 mm -Plate is: with supporting ribs -1x T-slot: 12 mm -1x: Longitudinal groove -Weight: 156 kg
pressing tool, sheet metal former, forming tool, ball forming tool-Pressing tool: ball forming tool-Radius: 50.11 mm-Hole: Ø 40 mm-Dimensions: Ø 165 x 270 mm-Weight: 18.4 kg
Clamping plate with T-slots and cross table, plate field, welding table, welding table, plate boring machine, T-slot plate, pallet changer -T-slot plate comes from: a Hüller Hille milling machine type nb-h 70 -Width: 475 mm -Length: 500 mm -Height: 68 mm -Plate: is solid -Groove width: 12 mm -Dimensions: 500/475/H68 mm -Weight: 90 kg
Bending tool, die, lower tool, die tool, folding tool, press tool, forming tool -Die tool: Forming tool / Press tool, 2-piece -Profile: Angle 90° -Hole: Ø 40 mm -Dimensions: 160/140/H345 mm -Weight: 40.1 kg
Bending tool, die, lower tool, die tool, folding tool, press tool, forming tool-Die tool: molding tool/press tool-Profile: Ø 98 mm-Receptacle: Ø 40 mm-Dimensions: Ø 98 x 185 mm-Weight: 7.4 kg
Bending tool, die, lower tool, die tool, folding tool, press tool, forming tool-Die tool: forming tool / press tool adapter MST Ø 85-Receptacle: Ø 40 mm-Receiving thread: M34-Dimensions: Ø 85 x 160 mm-Weight: 4.5 kg
Bending tool, die, lower tool, die tool, folding tool, press tool, forming tool, adapter-Die tool: forming tool/press tool adapter-Receptacle: Ø 40 mm-Receiving thread: M33-Quantity: 2x adapters available-Price: per piece.-Dimensions: Ø 40 x 100 mm-Weight: 0.8 kg/pc.
Eccentric press, single-column press, stamping press, single-column eccentric press, eccentric press, single-column press -Safety cage fully enclosed -pneumatic viewing window with finger protection -Pressure force: 35 tons -Protrusion: 190 mm -Stroke rate: 105 strokes/min -Adjustable plunger: 50 mm -Pulley surface 250 x 200 mm -Adjustable stroke: 15-70 mm -Table size: 540 x 310 mm -Protrusion: 180 mm
Bending tool, die, lower tool, die tool, folding tool, press tool, forming tool-Die tool: forming tool/press tool adapter-Receptacle: Ø 40 mm-Bore: Ø 20 mm-Dimensions: Ø 70 x 135 mm-Weight: 2.6 kg
Profile bending machine, bending machine, flat iron bender, horizontal bending/straightening press-Bending/straightening press: hydraulic profile bending machine-Base: solid construction, mobile-Hydraulic unit: unfortunately without type designation-Piston rod: Ø 55 mm / stroke: 200 mm-Individual components: see photos-Total dimensions: 1180/1060/H1000 mm-Weight: 445 kg
Bending tool, die, lower tool, die tool, folding tool, press tool, forming tool-Die tool: molding tool/press tool-Profile: Ø 76 mm-Receptacle: Ø 40 mm-Dimensions: Ø 76 x 130 mm-Weight: 2.8 kg
Hand spindle press, mandrel press, spindle press, hand spindle press, printing press, balance printing press -Manufacturer: NEHER, manual spindle press type SPPG-40/100 -Pressure: max. 40,000 kg -Stroke: 600 mm -Intermediate dimension: 715 mm -Spindle mount: Ø 40 mm -Table size: 1100 x 600 mm, groove width mm -Table bore: Ø 120 mm -Dimensions: 1800/1800/H2400 mm -Weight: 1940 kg
Clamping plate with T-slots and cross table, plate field, welding table, welding table, plate boring mill, T-slot plate -T-slot plate: for milling machines -Width: 500 mm -Length: 500 mm -Height: 87 mm -Plate: is solid -Groove width: 12 mm -Dimensions: see photo technical drawing -Quantity: 21x mounting plates available Price: per piece -Dimensions: 500/500/H87 mm -Weight: 91 kg/piece
Bending tool, die, lower tool, die tool, folding tool, press tool, forming tool-Die tool: forming tool / press tool clamp press tool-Receptacle: Ø 40 mm-Profile: Radius 20 mm-Dimensions: 140/46/H120 mm-Weight: 2.2 kg
Hydraulic press, bending machine, straightening machine, profile straightening system, strip straightening machine, strip straightening device, shaft straightening system, combined bending machine-straightening press, profile bending machine, bending machine, flat iron bender, horizontal bending/straightening press, horizontal bending machine -Hydraulic press: Straightening system Straightening machine Profile straightening system with roller conveyor -Pressure force: 10 ton -Pressure: max 100 bar -Roller conveyors: 2x 1000/170/H1110 mm / rollers Ø 56 x 140 mm -Transport dimensions: 1335/1220//H1470 mm -Weight: 807 kg
T-slot plate, clamping plate with dovetail grooves, plate field, welding table, welding table -Intermediate plate: for hydraulic press eccentric press -Dimensions: 455/365/H40 mm mm -Bore: Ø mm -Dovetail groove: 17 mm -Weight: 45 kg
Gripper feed for eccentric press, single column press, punching machine, single column eccentric press, eccentric press, single column press -Manufacturer: Raster, collet feed from punching machine type HR 60 NL-4S -Stroke: mm -Dimensions: see photos -Transport dimensions: 900/640/H620 mm -Weight: 200 kg
Hand spindle press, mandrel press, spindle press, hand spindle press, rotary mandrel press, rack and pinion press, workshop press -Ardent press. Rack and pinion press, heavy-duty design -Protrusion: 210 mm -Height: min. 35 mm / max. 350 mm -Dimensions: 435/230/H550 mm -Weight: 51 kg
Hydraulic press, two-column press, oil hydraulic press -Pulley pressing force: 65 tons -Hydraulic unit: max. 330 bar -Clamping table: 440 x 250 mm -Max. insertion height: 295 mm -Max. width: 300 mm -Max. stroke: 220 mm -with safety cage -Max. feed rate: 3 mm/sec -Retraction speed: 6 mm/sec -Dimensions: 1680/500/H2300 mm -Weight: 980 kg
Ram, rams for an eccentric press, single column press, punching machine, single column eccentric press, eccentric press - single column, press -Spare part: comes from a Weingarten eccentric press -Stroke adjustment: 10-80mm -Plunger area: 320 x 65 mm -Plunger mount: O 40 mm -Plunger adjustment thread: M64 x 6 mm -Plunger adjustment ball head: approx. 92 mm -Dimensions: 875/320/H190 mm -Weight: 164 kg -Pressure unknown
Eccentric press, single-column press, stamping press, single-column eccentric press, eccentric press, single-column press -Manufacturer: HELMERDING hiw, Single-column eccentric press type ERL135B -Pressure capacity: 135 tons -Coupling: pneumatic -Drive: 11 kW -Stroke: adjustable 20 - 120 mm -Table size: 670 x 1050 mm -Table cutout: 200 x 325 mm -Projection: 360 mm -Punch holder: Ø 50 mm -Insertion height 445 mm -Dimensions: 2530/1200/H2410 mm -Weight: 8008 kg
Hydraulic press, single column press, C-column press, oil hydraulic press, hydraulic single column press, press machine, hydraulic punch for Schüco tools hydraulic press, multifunctional punch, punch, universal punch, punching machine -Hydraulic press: Hydraulic single-column press with stops on both sides -Pressing force: 15 tons -Hydraulic unit: 220 bar stroke: 25 mm -Hole: Ø 28 mm -Projection: 100 mm -Operation: foot pedal -Installation dimensions: 2575/800/H1350 mm -Transport dimensions: 1260/800/H1350 mm -Weight: 223 kg

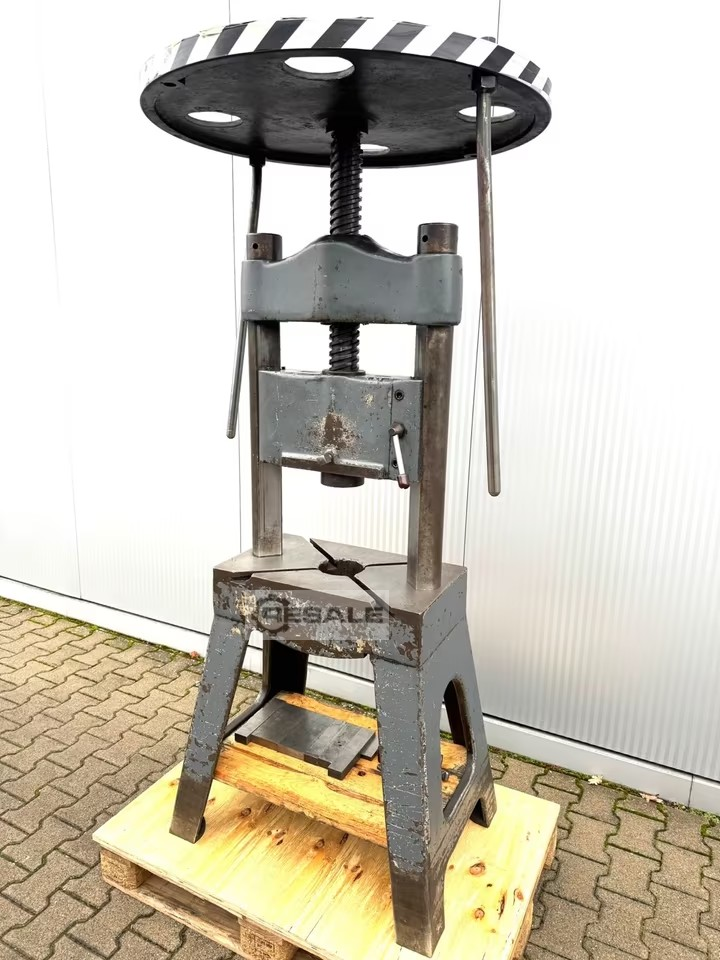

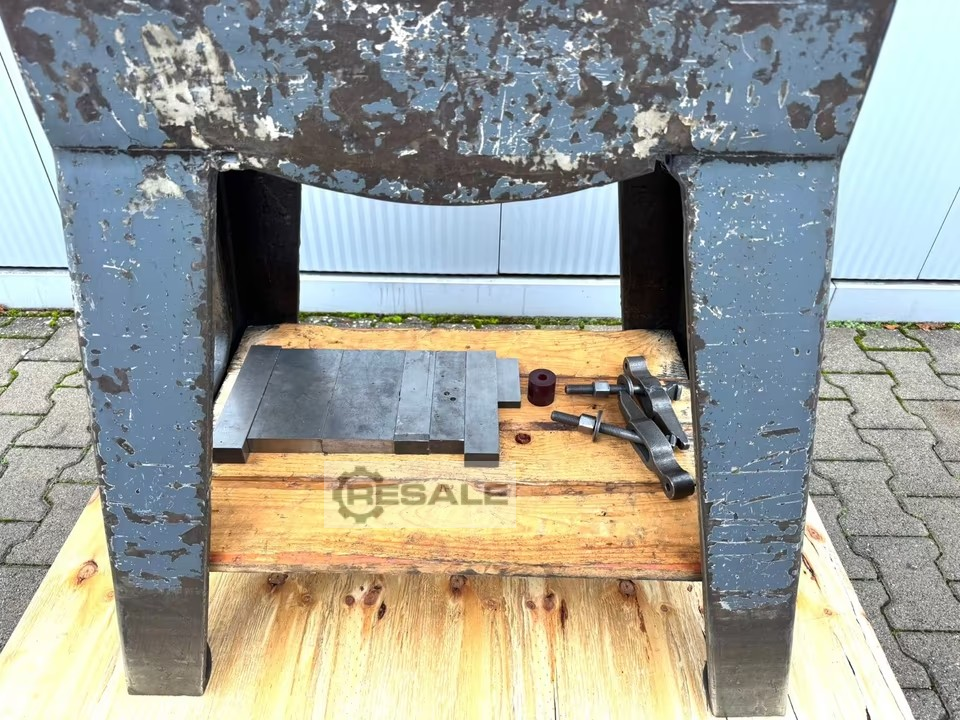

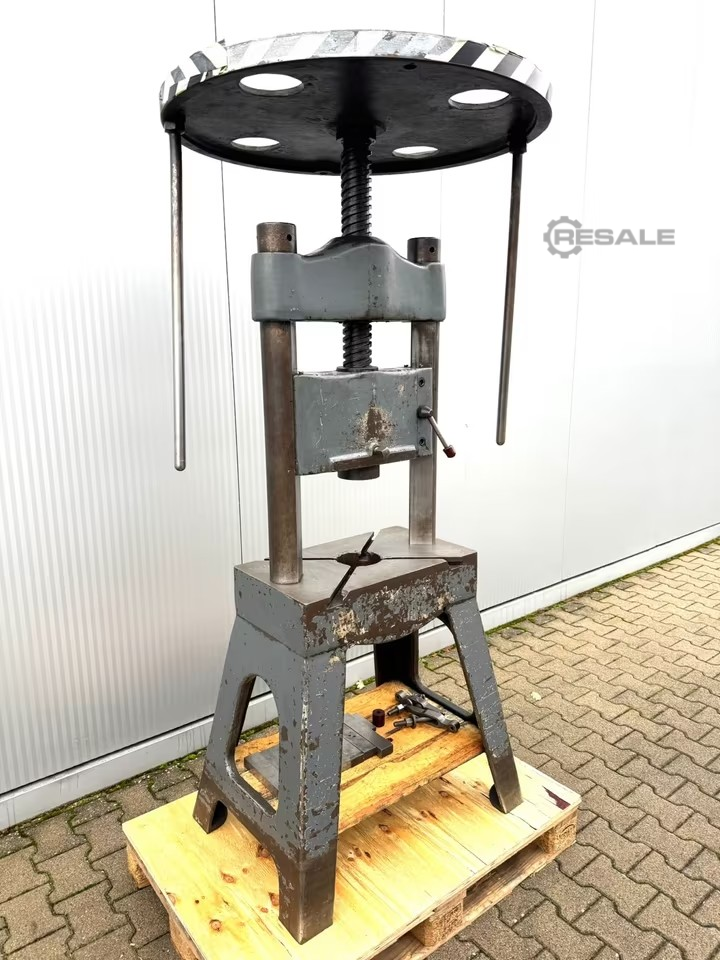

Hand spindle press, mandrel press, spindle press, hand spindle press, printing press, balance printing press -Manufacturer: Allgaier, manual spindle press -Insertion height: 345 mm -Column clearance: 300 mm -Table width: 300 mm / Bore Ø 60 mm -Spindle mount: Ø 40 mm -Dimensions: Ø 1420 x 1780 mm -Weight: 277 kg
Hydraulic press, single-column high-speed press, C-column press, oil-hydraulic press - Pressing force of the ram: approx. 35 tons -Clamping table: 500 x 470 mm -Insertion height: 650 mm -Insertion width: 275 mm -Dimensions: 1300/900/H3200 mm -The machine can be dismantled to a height of: 2700 mm -Weight: approx. 1500 kg
clamping plate, clamping table, clamping cube, press table-Clamping table: clamping plate for hydraulic press eccentric press-Clamping surface: 365 x 305 mm-Dimensions: see photo technical drawing-Dimensions: 365/305/H150 mm-Weight: 57 kg
clamping plate, clamping table, clamping cube, press table-Clamping table: clamping plate for hydraulic press eccentric press-Clamping surface: 500 x 280 mm-Dimensions: see photo technical drawing-Dimensions: 500/280/H180 mm-Weight: 53 kg
T-slot plate, clamping plate with T-slots, plate field, welding table, welding table-Dimensions: 3005/818/H800 mm-Height: adjustable-Plate thickness: 35 mm-Plate: with supporting ribs-7x dovetail: groove 38/48 mm-Groove length: 1820 mm-Weight: 1100 kg
Punch, hydraulic punch, punching machine, punching device, hole punching machine, row punch, punching unit, multi-head punch, punching system for form folding machine, profiling machine, profiling system, slat production, blinds production -Handover: in the current condition as seen -The punch is without a hydraulic unit but can be supplied at an additional cost -Insert tool -2 punches -both sliding: 500 mm -for small punching jobs -Dimensions: 1230/2020/H1100 mm -Weight: 986 kg
