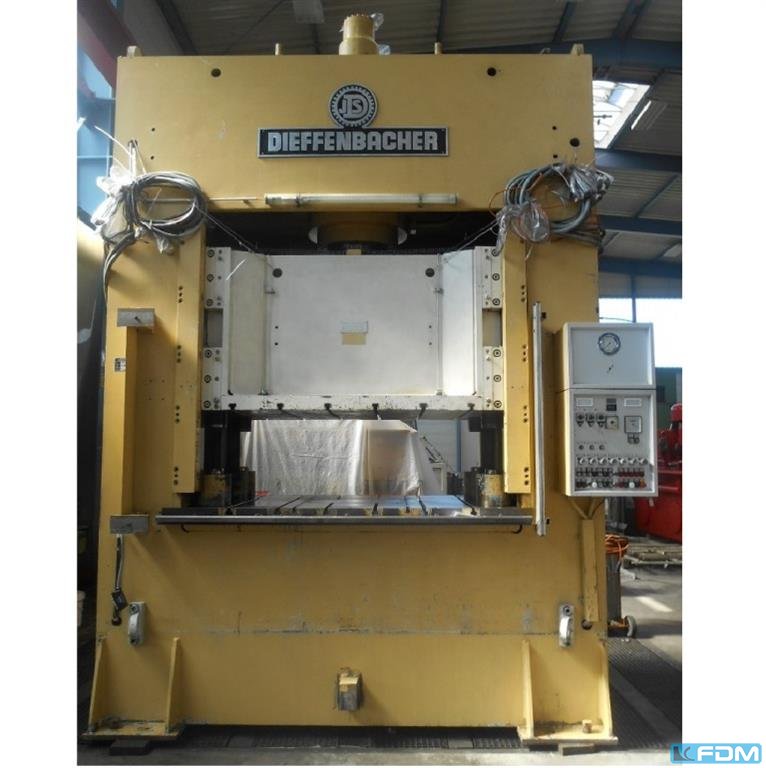

DIEFFENBACHER máquina utilizada para venda

Capazitat 300 Tom Tamanho da mesa 1.500 x 1.500 mm Criação Stosselv 500 - 1.000 mm Pistão x 400 mm Apague. Tabela - Stossel Mínimo: 500 mm Máximo: 1.500 mm Altura da máquina 4.000 mm Fundo do chão 1.000 mm Topo do piso 3.000 mm Peso da máquina 18.600 kg

Pressing force: 3200kN, stroke: 700mm, table dimensions: 2500x1300mm, weight: 63t, with documentation.

pressure:500 t distance between columns:1910 mm stroke:500 mm Distance table/ram, max. stroke up, adjustment up:700 mm table surfache without cutting impact cushions:1910 x 1360 mm table surfache with cutting impact cushions:1600 x 1360 mm table height over floor:800 mm ram surface:1600 x 1270 mm Side window:600 mm speed down:400 mm/s speed up:330 mm/s working speed:10 - 28 mm/s oil volume:1200 l power requirement:60,0 kW weight:40,0 t Dimensions (WxDxH):3,6 x 2,5 x 5,0 m height over floor:4,5 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 cutting impact cushioning:hydraulic ram interlocking:hydraulic

pressure:1000 t distance between columns:3030 mm stroke:350 mm Distance table/ram, max. stroke up, adjustment up:1400 mm table surface area:3000 x 2000 mm table height over floor:430 mm side window:1450 x 1400 mm ram surface:3000 x 2000 mm speed down:300 mm/s speed up:340 mm/s working speed:18 - 44 mm/s return capacity:120 t oil volume:4400 l width with platform:4950 mm power capacity:2 x 90,0 + 10,0 kW weight:87,0 t Dimensions (WxDxH):4,35 x 3,65 x 7,55 m height over floor:6,05 m height beneath floor:1,5 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2

pressure: 2000 /1000 t distance between columns: 2650 mm stroke: 500 mm column travel -side: 500 x 1000 mm diameter of piston: 710 mm number of pistons: 2 distance between table / ram: 1000 mm operating pressure: 130 / 230 bar dayligth: 800 mm table length: 2500 mm table width: 1600 mm table height: 250 mm draw back pressure: 500 kN number of T-slots: 8 turning speeds: 1500 U/min rapid speed: 120 - 140 mm/min closing speed: max. 120 - 140 mm/sec. hydraulical ram locking: return of plunger by small single cylinders: 100 - 110 mm/sec cutting sound absorber: 300 t die cushion capacity: 200 t die cushion stroke: 250 mm speed of die cushion: 100 mm/sec voltage: 380 V frequency: 50 Hz quantity of oil: 2000 l total power requirement: 93 kW weight of the machine ca.: 90 t dimensions of the machine ca.: 5000 x 2500 x 7200 mm transport measurements: ca. 6500 x 3750 x 2190 mm 1991 assembly of a di ...

pressure: 320 t throat: 800 mm stroke: 630 mm distance between table / ram: max. 1000 mm ram head dimension: 710 x 600 mm table-size: 800 x 1200 mm work height max.: 1015 mm quantity of oil: 1100 l Number of working hours: 7663 h weight of the machine ca.: 15 t dimensions: ca. 1600 x 2200 x 4800 mm dimensions of switch cabinet: ca. 1200 x 400 x 1800 mm Tested for function. During the test run it is noticed that the press ram not 100% leak-proof. In addition, the cable for manual operation was mended several times. Upper cover is missing, since this was dismantled by the customer due to crane use. Operating instructions and electrical plans available. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
