Fabricante:
(Categoria: 106)
nominal force:315 tstroke:300 mmno. of strokes:36 /mindistance between columns:540 mmdistance table/ram, max. stroke up, adjustment up:750 mmtable surface area:530 x 630 mmblow die to die:630 tAllowed max. force:500 tram surface:450 x 560 mmspindle diameter:180 mmpower capacity:18,0 kWweight:13,0 tDimensions (WxDxH):2,5 x 2,0 x 4,0 m

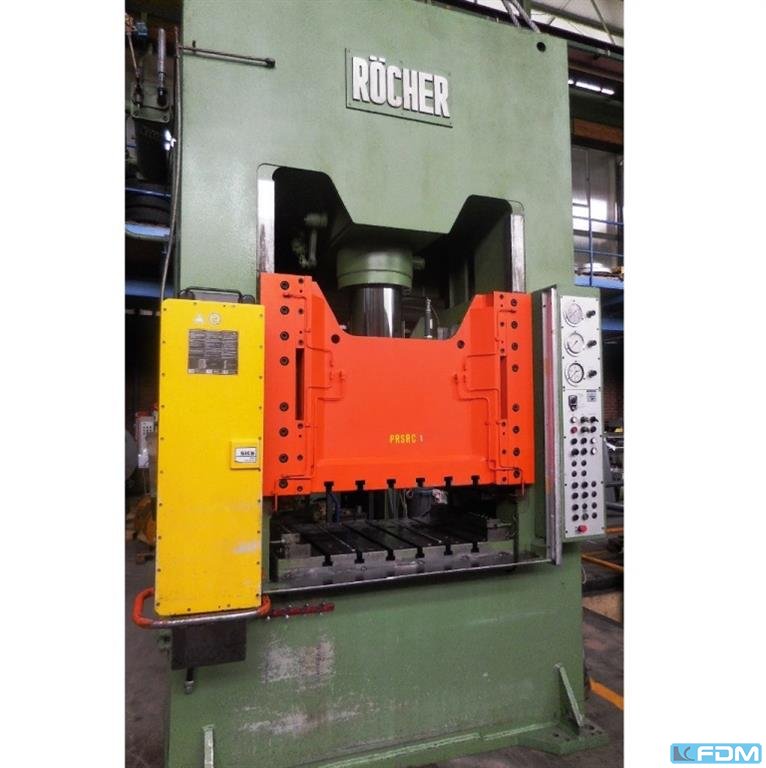

pressure:100 tdistance between columns:1060 mmstroke:700 mmdistance table/ram, max. stroke up, adjustment up:1250 mmtable surface area:1000 x 700 mmpressure of drawing cushion in table:40 tstroke of drawing cushion in table:200 mmdie cushion area:Ø 250 mmtable height over floor:950 mmside window:580 x 750 mmram surface:1000 x 700 mmoil volume:700 lpower requirement:47,0 kWweight:13,0 tDimensions (WxDxH):2,2 x 1,8 x 5,0 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:mechanical; motoric adjustable ram interlocking:SITEMA
pressure: 200 tchamfer lenght: 4100 mmdistance between columns: 3150 mmstroke of upper beam: 200 mmdayligth: 425 mmthroat: 300 mmworking feed: 9.0 mm/secreturn speed: 90.0 mm/secwork height max.: 980 mmback stop - adjustable: ca. 700 mmControl: PPS-TS Touch oil volume: 350 ltotal power requirement: 18.0 kWweight: 12.000 kgrange L-W-H: 5100 x 1950 x 2850 mm Well-maintained condition () Current new price approx. € 110.000 Special price on request- in checked conditions - machinevideo - https://www.youtube.com/watch?v=ZX9Ap23e__sEquipment:- CNC electro-hydraulic press brakes- with LVD CNC PPS-TS TOUCH control unit intuitive, touchscreen-based user interface simple navigation tool and program library X-axis control and position display Y-axis control and position display swivel-mounted control panel (front left)- CNC-controlled axes: Y1/Y2 + X- CNC motorized backgauge (X-axis) with 4 manua ...
pressure: 40.0 tchamfer lenght: 1250 mmdistance between columns: 890 mmwork stroke: 100 mmdayligth: 300 mmcolumn arm: 200 mmtable width: 140 mmajustment speed: 100 mm/secworking feed: 10.0 mm/secreturn speed: 90.0 mm/sectank: 63.0 ltotal power requirement: 3.0 kWweight of the machine ca.: 2000 kgrange L-W-H: 1555 x 1075 x 2149 mm from a vocational training workshop very good condition (!)Features:- conventional hydraulic press brake- swiveling control unit (front left)- electric backgauge (X-axis) incl. digital display for gauge position movement via electric push-buttons (creep and rapid traverse speeds)- manual adjustment of bending depth (Y1 + Y2 axes) handwheel with analog position indicator- 2x manually adjustable gauge fingers (R + Z axes)- 1x upper tool- 1x reversible universal die block- pressure gauge / pressure indicator- 1x mobile control unitThe data for this ad was created w ...
: neu : ca. 6-8 Wochen ab Auftrag : Türkei : 8800 €: 169.84 €: 120 to: horizontal verschiebbar : 400 mm: 900 mm: 1200 mm: 5,8 mm/s: 9.5 mm/s: 1200 x 400 mm: 4 kW: 1900 mm: 1000 mm: 2450 mm: 1250 kgwith horizontally sliding cylindermotorhydraulic with additional hand pumpHeight adjustable tableOil Pressure manometerOPTIONS (PRICES ON REQUEST):Handwheel and fixingbolt for cylinderadjustment1 pair of V-blockThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Pneumatic press / joining station TOX Pressotechnik with measuring systemComplete pneumatic pressing or joining station from an industrial plant. Technical data:Machine / Construction:Manufacturer Press: TOX PressotechnikType: QS 008.030.100.12Serial number: 340370.4067Max. pressure: 10 barVersion: Vertical pressing station with stable steel constructionDimensions (approx.): 400 × 800 × 1850 mm (W × D × H)Assembly: Floor screw connection providedMeasurement technology:Force sensor: Kistlertype: 9232ASN: 5669499Calibrated range: −300 ... +300 μεSensitivity: −77, 10 pC/μεYear of construction sensor: 2020Note: Quality-relevant application (marking available) Auction-ID: A7-49816-45
Hydropneumatic TOX column press, special design, equipped with TOX powerhouse type X-K 095.3030.400.61. Stable steel frame, large work table with tool holder, upper crossbeam with integrated pressing/joining unit. Suitable for joining, pressing and assembly processes in series production. Pressing unit: TOX PressotechnikType powerhouse: X-K 095.3030.400.61Serial number: 811193.4Hydropneumatic column press with work table and T-slot holder. Technical data:Operating pressure: 6 barforce (estimated, TOX standard):At Ø 95 mm and 6 bar → ≈ 42–45 kN Final forceΔV (oil volume): 376 mlFunctional principle: pneumohydraulic (TOX booster)Stroke: approx. 60 mm total movement (typical 30 mm rapid stroke + 30 mm force zone) Auction-ID: A7-49816-11
Pneumohydraulic TOX powerhouse of the reinforced Q-K series, installed in a stationary joining station. The unit combines a pneumatic pre-lift with a hydraulically generated power stroke and is used for pressing, joining, press-fitting or clinching processes. The robust Q series enables high repeatability, stable force delivery and is suitable for long-term industrial applications in multi-shift operation. Type: Q-K 008.3030.080.08HSeries: Q-K (reinforced pneumohydraulic powerhouse series)Technical data:Force level: 008Press force typ. 15–30 kN (at 6 bar, depending on model)Stroke lengths:Advance stroke (express stroke): 30 mmForce stroke: 30 mmTotal stroke: 60 mmPiston rod/mechanical variant:080 = extended piston/mechanical unitTool connection:08 = tool holder version 08(defines thread, centering, clamping geometry)Special design:H = customer-specific variant (heavy-duty / modified fa ...
TOX Double Press (2-Cylinder System)Manufacturer: TOX PressotechnikModel: Kraftpaket line-X – Double CylinderType Cylinder: X-K 008.3030.100.12HSystem: 1 Press = 2 Coupled CylindersCondition: used, complete, dismantled from industrial productionTechnical data:TOX Kraftpaket line-X2× Cylinder Type X-K 008.3030.100.12Hincl. central control block, pressure gauge and sensorsRobust industrial designDimensions:Length approx. 80 cmWidth approx. 30–32 cmHeight approx. 25 cmWeight approx. 80 kgSeries: TOX Kraftpaket line-X, Type X-KForce class: Size 008 (medium press force class)Stroke configuration: 30 mm pre-stroke + 30 mm Force/setting strokeTotal stroke: 60 mmPowerpack stage: 100 (≈ 50–60 kN at 6 bar)Max. operating pressure: 6 bar (according to the blade)Volume: 47 mlVersion: 12H (reinforced / Heavy Duty)Application: joining, embossing, clinching, punching, pressingDesign: pneumatic ...
Max plate thickness: 2.5mm. Max working width: 1020mm. In working order. Auction-ID: A3-46156-6141
Assembly / press station with TOX power pack, feeding unit and sensorsPneumatic-hydraulic assembly or press station from an industrial plant, consisting of frame, press drive, feed and control/sensor components. Last use for semi-hollow rivets Ø 4.0 mm, length 5.0 mm (stainless steel 1.4016). Conversion to other rivet types/sizes depending on the tool set. Condition Used, from production dismantlingMechanically completeOptical with usual signsof use Untested, no function or process test carried outSale as shownScope of deliveryComplete pressing/assembly stationTOX powerhouseFeeding unit incl. funnel and valvesSensors, pneumatics, electrical components Technical data:Main components Machine frame / systemManufacturer: VTS – Connection Technical ServiceType: 300-4/180.6Serial No.: 300.329.00Year of construction: 2000Stable steel frame, floor-standing, ready for assemblyPress driveManufa ...
Assembly / press station with TOX power pack, feeding unit and sensorsPneumatic-hydraulic assembly or press station from an industrial plant, consisting of frame, press drive, feed and control/sensor components. Last use for semi-hollow rivets Ø 4.0 mm, length 5.0 mm (stainless steel 1.4016). Conversion to other rivet types/sizes depending on the tool set. Condition Used, from production dismantlingMechanically completeOptical with usual signsof use Untested, no function or process test carried outSale as shownScope of deliveryComplete pressing/assembly stationTOX powerhouseFeeding unit incl. funnel and valvesSensors, pneumatics, electrical components Technical data:Main components Machine frame / systemManufacturer: VTS – Connection Technical ServiceType: 300-4/180.6Serial No.: 300.329.00Stable steel frame, floor-standing, ready for assemblyPress driveManufacturer: TOX PressotechnikK ...
Assembly or joining station of the manufacturer VTS Verbindungstechnische Service OHGManufacturer: VTS Verbindungstechnische Service OHGYear of construction: 2020Serial No.: 80.580.20Type: 80-4/100.6Main components (according to nameplates):TOX Pressotechnik Hydraulic unitType: KVE 04.15.100.06Max. pressure: 10 barMAFU Spiral conveyorType: SMB 150Year of construction: 07/2019MAEDLER GmbH Geared motorType: E040B 1300/00Ratio: 19:1Control and control unit MAFU D-775Pneumatic and mechanical guide unitsCondition:Used, removed from ongoing production. Scope of delivery:Assembly system as shown, including attached components and control. No other accessories or documentation included. Technical data:Size: approx.: 700 x 500 x 1400 mm (WxDxH) Auction-ID: A7-49816-59
Pneumohydraulic TOX powerhouse of the reinforced Q-K series, installed in a stationary joining station. The unit combines a pneumatic pre-lift with a hydraulically generated power stroke and is used for pressing, joining, press-fitting or clinching processes. The robust Q series enables high repeatability, stable force delivery and is suitable for long-term industrial applications in multi-shift operation. Type: Q-K 008.3030.080.08HSeries: Q-K (reinforced pneumohydraulic powerhouse series)Technical data:Force level: 008Press force typ. 15–30 kN (at 6 bar, depending on model)Stroke lengths:Advance stroke (express stroke): 30 mmForce stroke: 30 mmTotal stroke: 60 mmPiston rod/mechanical variant:080 = extended piston/mechanical unitTool connection:08 = tool holder version 08(defines thread, centering, clamping geometry)Special design:H = customer-specific variant (heavy-duty / modified fa ...
Assembly or joining station of the manufacturer VTS Verbindungstechnische Service OHGManufacturer: VTS Verbindungstechnische Service OHGYear of construction: 2020Serial No.: 80.580.20Type: 80-4/100.6Main components (according to nameplates):TOX Pressotechnik Hydraulic unitType: KVE 04.15.100.06Max. pressure: 10 barMAFU Spiral conveyorType: SMB 150Year of construction: 07/2019MAEDLER GmbH Geared motorType: E040B 1300/00Ratio: 19:1Control and control unit MAFU D-775Pneumatic and mechanical guide unitsCondition:Used, removed from ongoing production. Scope of delivery:Assembly system as shown, including attached components and control. No other accessories or documentation included. Technical data:Size: approx.: 700 x 500 x 1400 mm (WxDxH) Auction-ID: A7-49816-58
8x Industrial Connectors Harting Han-Eco Mod.16Rectangular Industrial ConnectorsMulti-pin electrical and pneumatic connection. Condition:Used, from production dismantlingMechanically completePneumatics and sensors untested, no commissioning Signsof wear present, overall neat conditionScope of delivery:Press with framePneumatic components (as shown)Kistler force sensorWithout control / without guarantee of completeness of the electrical systemArea of application:Joining, press-fitting, assembly processesTechnical data:Manufacturer: HartingSeries: Han-EcoModel: Mod. 16Housing: Type 12 enclosureIdentifiers (among others): 19411160423 / 43A26BR02Design: Multi-pole inserts, some with connected cables Auction-ID: A7-49816-46
Assembly or joining station of the manufacturer VTS Verbindungstechnischer Service OHGManufacturer: VTS Verbindungstechnische Service OHGYear of construction: 2020Type: 80-4/100.6Main components (according to nameplates):TOX Pressotechnik Hydraulic unitType: KVE 04.15.100.06Max. pressure: 10 barMAFU Spiral conveyorType: SMB 150Year: 07/2019MAEDLER GmbH Gear motorType: E040B 1300/00Gear ratio: 19:1Control and operating unit MAFU D-775Pneumatic and mechanical guide unitsTOX Pressotechnik Control panel / HMIFesto servo controller: CMMT-AS-C4-3A-PN-S1Balluff MICROPULSE Displacement measuring system / position sensorExtensive cables / wires / energy chainCondition:Used, removed from ongoing production. Scope of delivery:Assembly system as shown, including attached components and control. No other accessories or documentation included. Technical data:Size: approx.: 700 x 500 x 1400 mm (WxDxH) ...
Assembly or joining station of the manufacturer VTS Verbindungstechnischer Service OHGManufacturer: VTS Verbindungstechnische Service OHGYear of construction: 2020Type: 80-4/100.6Main components (according to nameplates):TOX Pressotechnik Hydraulic unitType: KVE 04.15.100.06Max. pressure: 10 barMAFU Spiral conveyorType: SMB 150Year: 07/2019MAEDLER GmbH Gear motorType: E040B 1300/00Gear ratio: 19:1Control and operating unit MAFU D-775Pneumatic and mechanical guide unitsTOX Pressotechnik Control panel / HMIFesto servo controller: CMMT-AS-C4-3A-PN-S1Balluff MICROPULSE Displacement measuring system / position sensorExtensive cables / wires / energy chainCondition:Used, removed from ongoing production. Scope of delivery:Assembly system as shown, including attached components and control. No other accessories or documentation included. Technical data:Size: approx.: 700 x 500 x 1400 mm (WxDxH) ...
pressure: 80.0 tstroke: 250 mmtable surface area: 1040 x 260 mmcolumn travel between the guideways: 1040 mmajustment speed: 8.0 mm/secworking feed: 5.0 mm/secreturn speed: 10.0 mm/secengine output: 5.5 kWweight of the machine ca.: 835 kg.dimensions of the machine ca.: 1810 x 700 x 2100 mmEquipment:- robust electro-hydraulic workshop press, with fixed cylinder- Ideal for aligning axles, shafts etc., but also for pressing in and pressing out bolts, bearings, bushes etc.- Robust welded steel construction for heavy-duty use- Table height adjustment via piston rod Including round steel chain and 2x locking bolts Piston rod with metric mount- 1x set of V-block prism support- Pressure gauge for pressure display- Simple manual operation with : 1x feed speed 1x working speed 1x retraction speed- piston can be stopped in any position- Hydraulic tank permanently mounted on the side- operating inst ...
with feed deviceNominal force: 1000 kNPneumatic pressure: 5 barPermissible delay time: 210 msSafety distance Tool operation: 336 mmContinuous stroke (interchangeable pulley): 50/80 rpmSingle stroke: 45 rpmWorking capacity in continuous stroke: 3500/5000 NmTorque: 25,000 NmDrive power: 11.5 kWwith control panel and digital display CPS 20with support frameReference: Walter - Lot 174 Auction-ID: A7-49834-23
Table dimensions: 400 x 300 mmReference: Baumstark - Lot 62 Auction-ID: A7-49882-91
Working pressure: 125 Largest sheet thickness: 13 mmStroke rate: 50/minRam stroke: 6 to 116 mmRam adjustment: 70 to 15 mmincl. protective cabin and a control system from the manufacturer MASCHReference: Wachtendorf - Lot 51 Auction-ID: A7-49834-2
Machine number: 01031Operating voltage: 380/260 VFrequency: 50 HzPower: 7.5 kWClamping force: 400 kNTable dimensions: 670 x 570 mmNominal current: 25 AOperating hours read: 376Reference: Alesco - Lot 76 Auction-ID: A7-49882-44
Press force: 25 tProjection: 190 mmPlunger strokes: 80/minPlunger displacement: 50 mmStroke adjustable: 8 - 80 mmOperating voltage: 380 VConnection: 3 hpTable dimensions: 570 x 430 mmReference: Walter - Lot 150 Auction-ID: A7-49834-16
Machine number: 2810292Operating voltage: 380 VConnection: 1.5 kWMax. pressing force: 250 kNThroat: 190 mmPlunger strokes: 120/minPlunger adjustable: 5 mmStroke adjustable: 4 - 60 mmTable dimensions: 550 x 430 mmincl. straightening device from the manufacturer REBENDERReference: Walter - Lot 156 Auction-ID: A7-49834-19
Serial number: 180Operating pressure: 0.8 MpaAir consumption: 5 l/strokeStroke: 30 mmincl. matching accessories such as various toolsReference: Baumstark - Lot 41 Auction-ID: A7-49882-78
Pressure capacity: 35,000 kgPlunger strokes: 110 1/minThroat: 220 mmPlunger adjustable: 50 mmStroke adjustable: 0 - 70 mmMotor power: 3 hpVoltage: 220/380VTable dimensions: 550 x 460 mmReference: Walter - Lot 23 Auction-ID: A7-49834-10
300 €
