grinding wheel diameter:300 mmvoltage:380 Vtotal power requirement:1,5 kWweight of the machine ca.:310 kgdimensions of the machine ca.:1100x900x1250 mm

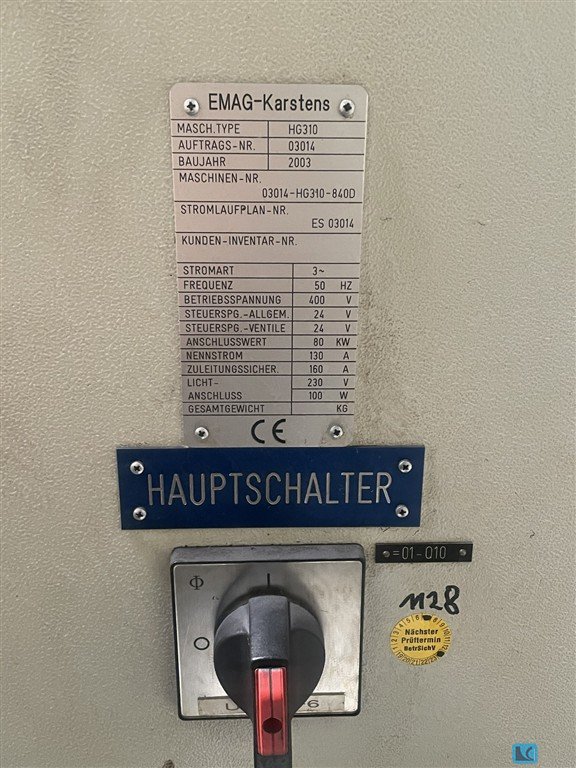

grinding length:1500 mmcentre height:325 mmweight of the machine ca.:12 tKarstens EMAG H310 Universal Grinding MachineYear of manufacture: 2004Center distance: 1500 mmCenter height: 325 mmReinforced workpiece spindle, load capacity up to 250 kgDriven C-axis for polygon, thread, and eccentric grinding.3 individually mounted grinding spindles.Siemens 840D control system
x-travel:400 mmy-travel:250 mmworkpiece height:500 mmgrinding diameter:220 mmtable surface area:600 x 320 mmthroat:310 mmrange of angles:12 °grinding wheel stroke - vertical:110 mmstroke speeds:0 - 6 m/mingrinding spindle speed:bis 50000 U/minperipheral speed:max. 35 m/seccapacity:ca. 7 kVApower capacity:6 kWweight of the machine ca.:2 tdimensions of the machine ca.:3 x 3 x 3 mrotary table d = 300 mmfrequency changerTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2024, Josef Weber. All rights reserved.
grinding diameter max.:400 mmmax. width of grinding wheel:180 mmgrinding range:2-100 mmtotal power requirement:24 kWweight of the machine ca.:3,2 tOut of valve production
grinding diameter:600 mmgrinding length:3000 mmcentre height:315 mmworkpiece weight max.:3000 kgwork piece spindle speed:8 - 120 U/mingrinding wheel motor:25 kWgrinding wheel speed:45 m/secgrinding wheel width x diameter:750 x 80 mmtable speeds:30 - 4500 mm/minfeeds of grinding head:0 - 5 mm/mintable swivelabel +/-:7,5 °total power requirement:55 kVAweight of the machine ca.:18 tdimensions of the machine ca.:11,5 x 4 x 2,2 m- Internal grinding device- taper grinding up to 10,1° based on diameter- automatic grinding cycle- grinding wheels and flanges- dressing device- coolant attachment- dust exhauster, various steady rests
grinding length:600 mmgrinding width:300 mmworkpiece height:450 mmtotal power requirement:8 kWweight of the machine ca.:2,2 tdimensions of the machine ca.:2,8 x 3,0 x 2,0 mgrinding spindle speed:1440 / 2905 U/minwith magnetic plate 600 x 200 mmautom. vertical feed coolant attachmentTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2024, Josef Weber. All rights reserved.

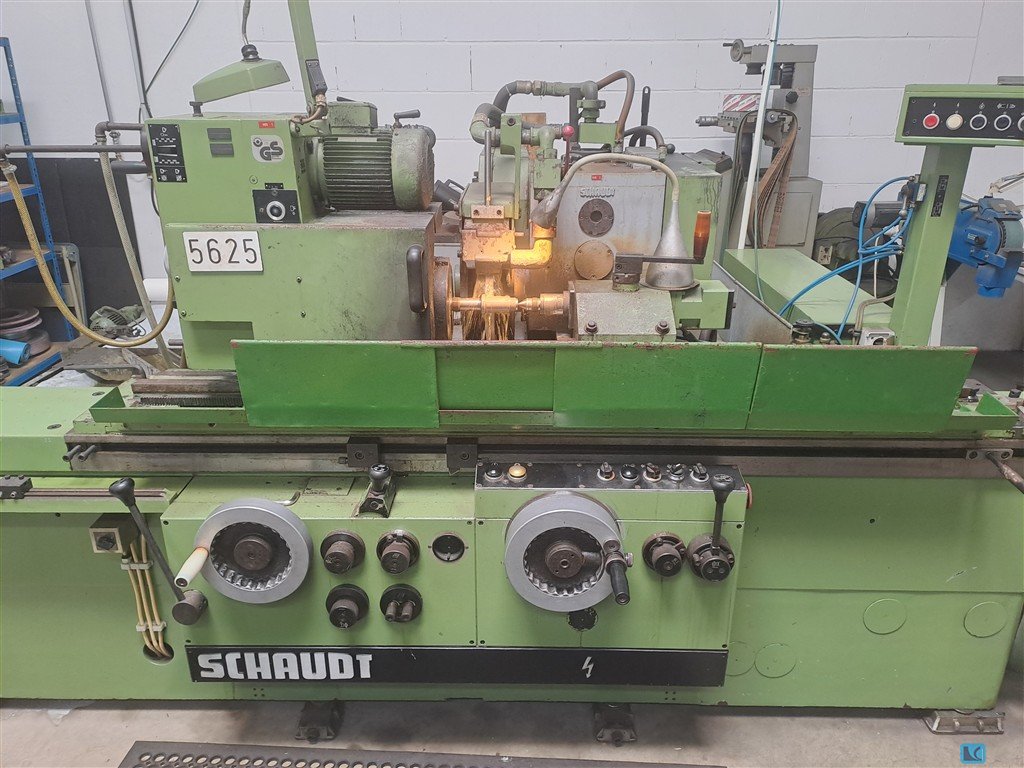

grinding diameter:380 mmgrinding length:1000 mmcentre height:180 mmgrinding wheel diameter:400 mmmax. workpiece weight between centres:250 kgtotal power requirement:10 kWweight of the machine ca.:4,1 tdimensions of the machine ca.:3 x 2 x 1,6 mwith internal grinding attachmentwith fixed and swivelling headstockwith coolant tank
grinding height:-- mmgrinding width:220 mmgrinding wheel diameter:762 mmtotal power requirement:90 kWweight of the machine ca.:13 tgrinding spindle 1 drive::37 kWgrinding spindle 2 drive::37 kWGrinding machine for pre-grinding the connecting rodWith 2 replacement spindle motors

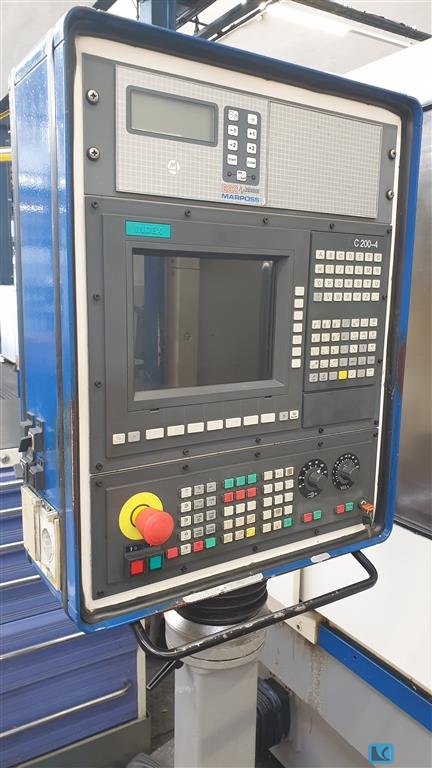

grinding diameter:300 mmgrinding length:600 mmcentre height:190 mmz-axis:865 mmx-axis:250 mmclamping length:1000 mmperipheral speed:45 m/secgrinding slide swivable +/-:8 °grinding wheel width x diameter:80 x 508 mmwork piece spindle speed:1 - 800 U/minweight of the machine ca.:5 tMachine with SIemens 840 C control- coolant device- Marposs measuring device
grinding diameter:600 mmgrinding length:3000 mmcentre height:300 mmweight of the machine ca.:11,8 tdimensions of the machine ca.:7100x2300 mmspindle turning speed range:14 - 220 U/mingrinding wheel diameter:650 mmgrinding wheel flange for width 25-40 mm:3 Stk.open tailstocks:3 Stk.chuck:Ø310 mmfixed steady:320 mmDistance between center: 3000 mm.Height of centres: 300 mm.Spindle speed: (n°12) 14 - 220 RpmMax grinding diameter: 600 mm.Stroke the wheelhead:(rapid) 50 mm.Stroke the wheelhead:(rapid+ micrometrical): 1 5 500 m mmm. .Max grinding wheel diameter: 650 mm.Max tilt table: 3° 30'Total absorbed power: 27,7 HpDimension: 7100x2300 mm.Weight approx: 11800 Kg.
grinding length:1250 mmgrinding width:600 mmworkpiece height:730 mmtable surface area:1720 x 500 mmheadstock: dist. table - spindle center:900 mmmax. longitudinal movement:X-1450 feed range:10 - 20.000 mm/minvertical movement:Y-730 mmfeed range:0,2 - 3.000 mm/mincross travel:Z-550 mmfeed range:5 - 5.000 mm/minpower capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/mincutting speed:max. 80 m/sec.weight of the machine ca.:11 twith CNC SIEMENS 840 Cauto. dynamic balncing system integrated in the grinding conusprofile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpmtwo magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.
workpiece diameter:5-125 mmgrinding depth:50-1000 mmclamping length:1000 mmtotal power requirement:1.9 KVAweight of the machine ca.:630 kgmax. workpiece weight:100 kgCenter Hole Grinding Machine.Workpiece must be rotated by machine during grinding

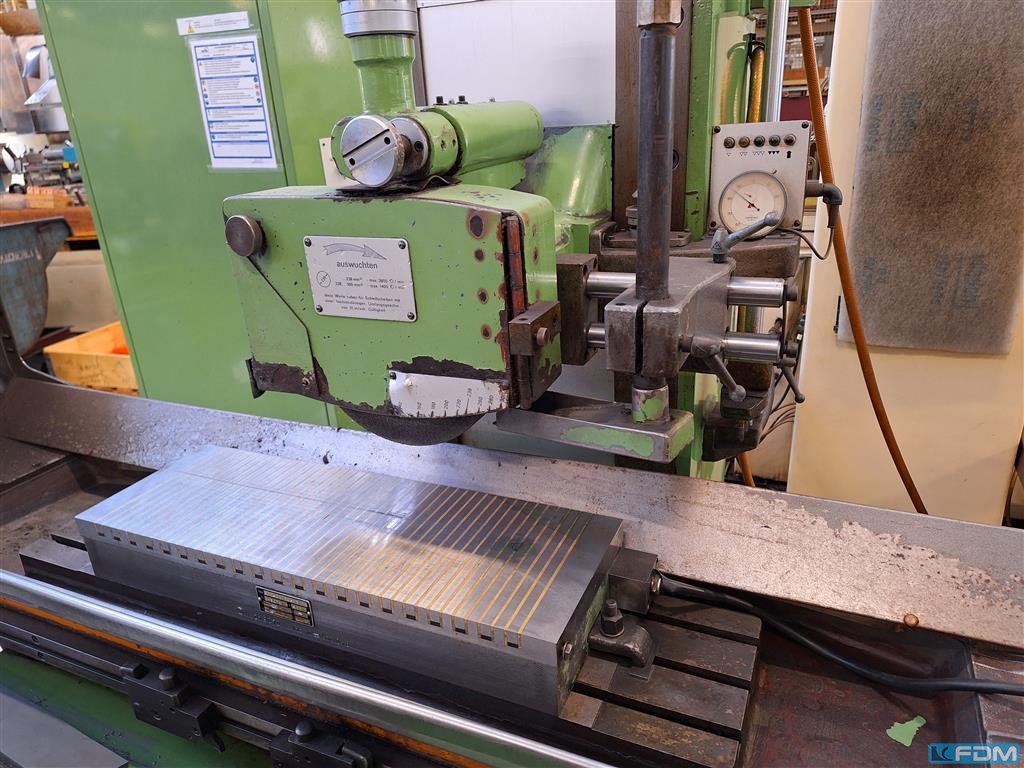

grinding length:450 mmgrinding width:250 mmworkpiece height:280 mmTable area:760 x 250 mmgrinding spindle drive:2,5 kWgrinding wheel dia. x width:250x 25 mmgrinding spindle speed:1430/2900 U/minway of grinding spindle saddle, vertical:400 mmtotal power requirement:4,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:1,8 x 1,4 x 2,0 mMachine equiped with magnetic plate- dresser
grinding length:450 mmgrinding width:250 mmworkpiece height:280 mmTable area:760 x 250 mmgrinding spindle drive:2,5 kWgrinding wheel dia. x width:250x 25 mmgrinding spindle speed:1430/2900 U/minway of grinding spindle saddle, vertical:400 mmtotal power requirement:4,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:1,8 x 1,4 x 2,0 mMachine equiped with magnetic plate- dresser

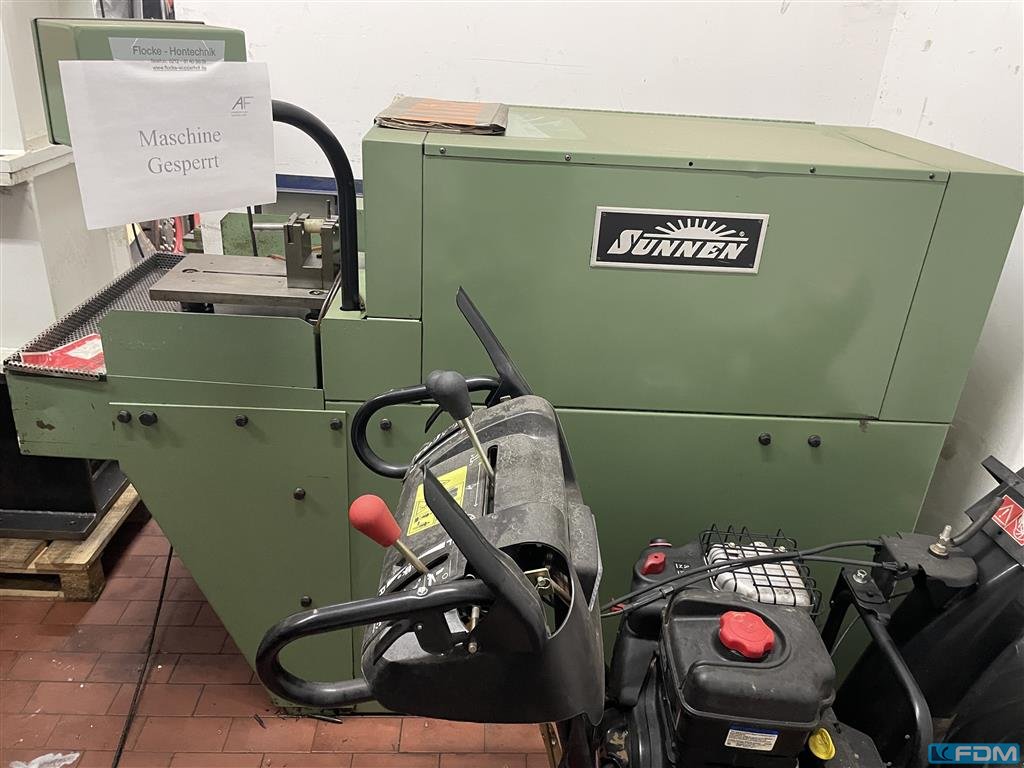

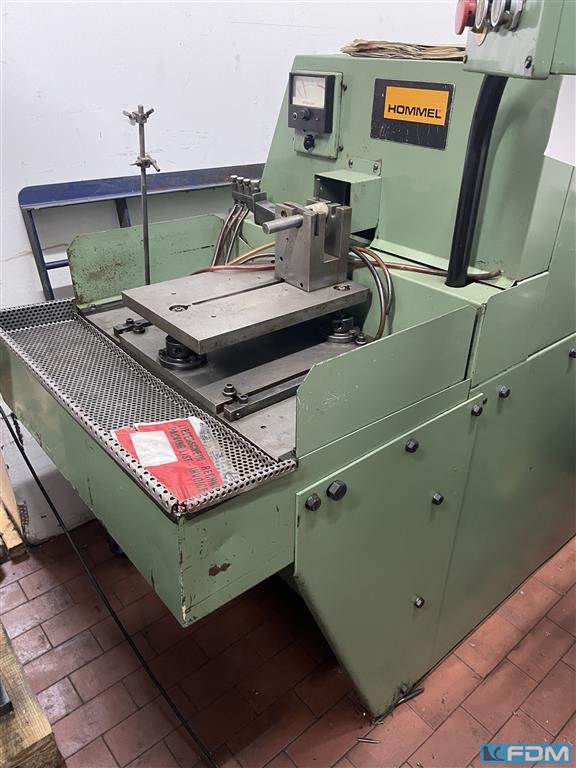

honing diameter:51 mmstroke:300 mmspindle speeds::600 - 3000 U/minfeed range:1500 - 5000 mm/minspindle drive:1,1 kWweight of the machine ca.:0,8 ttotal power requirement:4 kWdimensions of the machine ca.:1,1 x 1,9 x 1,5 m
grinding length:600 mmgrinding width:300 mmtotal power requirement:7,5 kWnumber of spindle speeds:0-3000 grinding wheel motor:7,5 kWgrinding wheel diameter:300 mmdimensions of grinding wheel:76 x 20 mmABA magnetic table flat grinding machine
grinding diameter:280/320 mmgrinding length:750 mmcentre height:170 mmweight of the machine ca.:22,5 tdimensions of the machine ca.:4,7 x 3,65 x 3,0 mJunker Jumat 6S 18-20S-18 has 2 internal and 1 external spindle.
weight of the machine ca.:24 tdimensions of the machine ca.:3900 x 3500 x 2500 m-the machine has no B axis -two grinding spindles with one grinding wheel each -The transport instructions can be found in the documentation (attachment). including Hoffmann KSM filter system Loading list availableOperating data v. 03/27/2023: Operating time: 21727 h / production time: 11960 h Machine documentation: 1 set of circuit diagrams, electrical plans, operating instructionsAccessories: 2 replacement measuring heads Marposs S/500; prism supports Other: Hoffmann KSM filter system Machine condition: according to age, due to processing with emulsion
grinding length:400 mmworkpiece weight:250 kgweight of the machine ca.:4,1 tswing diameter:250 mmgrinding spindle speed:2387, 2938 U/min
grinding diameter:20 mmgrinding length:20 mmmax. workpiece diameter:20 mmmin. workpiece diameter:1 mmgrinding wheel diam. min/max.:300-400 grinding wheel turining speeds:2.000-7.000 U/minWeight:950 kgdimensions: 1200 x 2100 mm
grinding length:600 mmcentre height:180 mmswing dia.:360 mmworkpiece weight:80 kgmax. dia. of grinding wheel:500 mmgrinding wheel width:80 mmgrinding wheel hole diameter:203,2 mmperipheral speed:45 m/secThere is also a 3200 liter coolant tank including cooling unit + fire extinguishing system.
grinding length: 900 mmgrinding width: 510 mmworkpiece height: 475 mmgrinding height: 475 mmtable surface area: 800 x 450 mmtable load: max. 400 kgtotal power requirement: 9,37 kWweight of the machine ca.: 3 tdimensions of machine L x W x H: 3,14 x 1,75 x 2,07 mAccessories: magnetic plate 800 x 450 mm, grinding wheel with flange, wheel trueing attachment, various grinding wheels and flanges separate, wet grinding attachment with band filtrationThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
