Fabricant:
(Catégorie: 104)
grinding length:1500 mmgrinding width:700 mmworkpiece height:580 mmtable load capacity:2380 kptable speed -stepless-:5 - 35 m/mingrinding wheel dia. x width:500 x 100 x 203 mmgrinding wheel motor:18 kWspeeds::stufenlos elektronisch total power requirement:35 kWweight of the machine ca.:12 tdimensions of the machine ca.:5,3 x 2,9 x 3,8 (3,18) msurface grinding machine,paper-filter,DRO 3 axis,automatic infeed,el.handwheel,full cabin

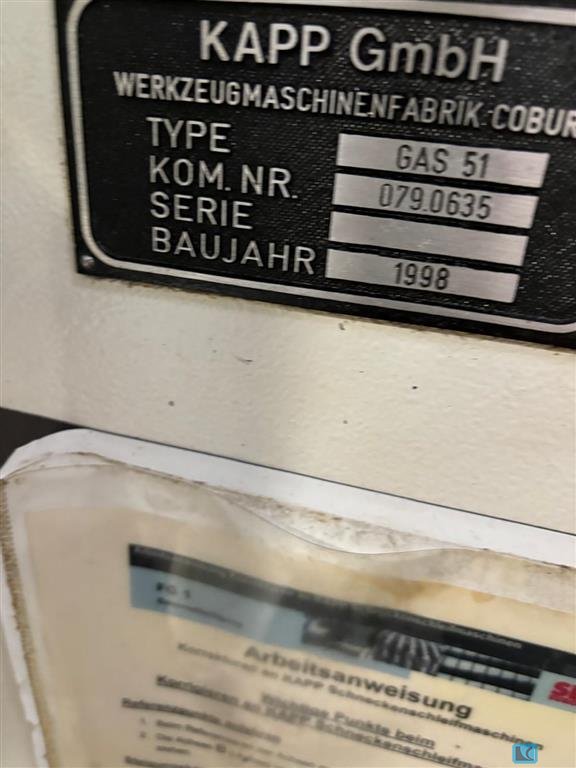

grinding diameter:250 mmgrinding length:2710 mmmax. module: min. module: total power requirement:45 kWweight of the machine ca.:15 tspace required L x W X H:7,1 x 4,7 x2,7 mmax. wheel dia.:450 mmSpindle drives Arena SiemensFor Worm grinding we have not module, but pitch. Pitch is freely programmable from 0.001 to big value i.e. 500mm
grinding height:-- mmgrinding width:220 mmgrinding wheel diameter:762 mmtotal power requirement:90 kWweight of the machine ca.:13 tgrinding spindle 1 drive::37 kWgrinding spindle 2 drive::37 kWGrinding machine for pre-grinding the connecting rodWith 2 replacement spindle motors
x-travel:400 mmy-travel:250 mmworkpiece height:500 mmgrinding diameter:220 mmtable surface area:600 x 320 mmthroat:310 mmrange of angles:12 °grinding wheel stroke - vertical:110 mmstroke speeds:0 - 6 m/mingrinding spindle speed:bis 50000 U/minperipheral speed:max. 35 m/seccapacity:ca. 7 kVApower capacity:6 kWweight of the machine ca.:2 tdimensions of the machine ca.:3 x 3 x 3 mrotary table d = 300 mmfrequency changerTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2024, Josef Weber. All rights reserved.
grinding diameter:600 mmgrinding length:3000 mmcentre height:300 mmweight of the machine ca.:11,8 tdimensions of the machine ca.:7100x2300 mmspindle turning speed range:14 - 220 U/mingrinding wheel diameter:650 mmgrinding wheel flange for width 25-40 mm:3 Stk.open tailstocks:3 Stk.chuck:Ø310 mmfixed steady:320 mmDistance between center: 3000 mm.Height of centres: 300 mm.Spindle speed: (n°12) 14 - 220 RpmMax grinding diameter: 600 mm.Stroke the wheelhead:(rapid) 50 mm.Stroke the wheelhead:(rapid+ micrometrical): 1 5 500 m mmm. .Max grinding wheel diameter: 650 mm.Max tilt table: 3° 30'Total absorbed power: 27,7 HpDimension: 7100x2300 mm.Weight approx: 11800 Kg.
workpiece diameter:5-125 mmgrinding depth:50-1000 mmclamping length:1000 mmtotal power requirement:1.9 KVAweight of the machine ca.:630 kgmax. workpiece weight:100 kgCenter Hole Grinding Machine.Workpiece must be rotated by machine during grinding
grinding diameter:600 mmgrinding length:3000 mmcentre height:315 mmworkpiece weight max.:3000 kgwork piece spindle speed:8 - 120 U/mingrinding wheel motor:25 kWgrinding wheel speed:45 m/secgrinding wheel width x diameter:750 x 80 mmtable speeds:30 - 4500 mm/minfeeds of grinding head:0 - 5 mm/mintable swivelabel +/-:7,5 °total power requirement:55 kVAweight of the machine ca.:18 tdimensions of the machine ca.:11,5 x 4 x 2,2 m- Internal grinding device- taper grinding up to 10,1° based on diameter- automatic grinding cycle- grinding wheels and flanges- dressing device- coolant attachment- dust exhauster, various steady rests

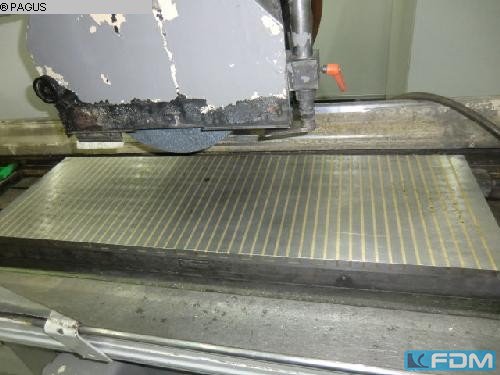

grinding length:600 mmgrinding width:300 mmworkpiece height:450 mmtotal power requirement:8 kWweight of the machine ca.:2,2 tdimensions of the machine ca.:2,8 x 3,0 x 2,0 mgrinding spindle speed:1440 / 2905 U/minwith magnetic plate 600 x 200 mmautom. vertical feed coolant attachmentTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2024, Josef Weber. All rights reserved.
grinding length:450 mmgrinding width:250 mmworkpiece height:280 mmTable area:760 x 250 mmgrinding spindle drive:2,5 kWgrinding wheel dia. x width:250x 25 mmgrinding spindle speed:1430/2900 U/minway of grinding spindle saddle, vertical:400 mmtotal power requirement:4,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:1,8 x 1,4 x 2,0 mMachine equiped with magnetic plate- dresser
grinding length:450 mmgrinding width:250 mmworkpiece height:280 mmTable area:760 x 250 mmgrinding spindle drive:2,5 kWgrinding wheel dia. x width:250x 25 mmgrinding spindle speed:1430/2900 U/minway of grinding spindle saddle, vertical:400 mmtotal power requirement:4,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:1,8 x 1,4 x 2,0 mMachine equiped with magnetic plate- dresser

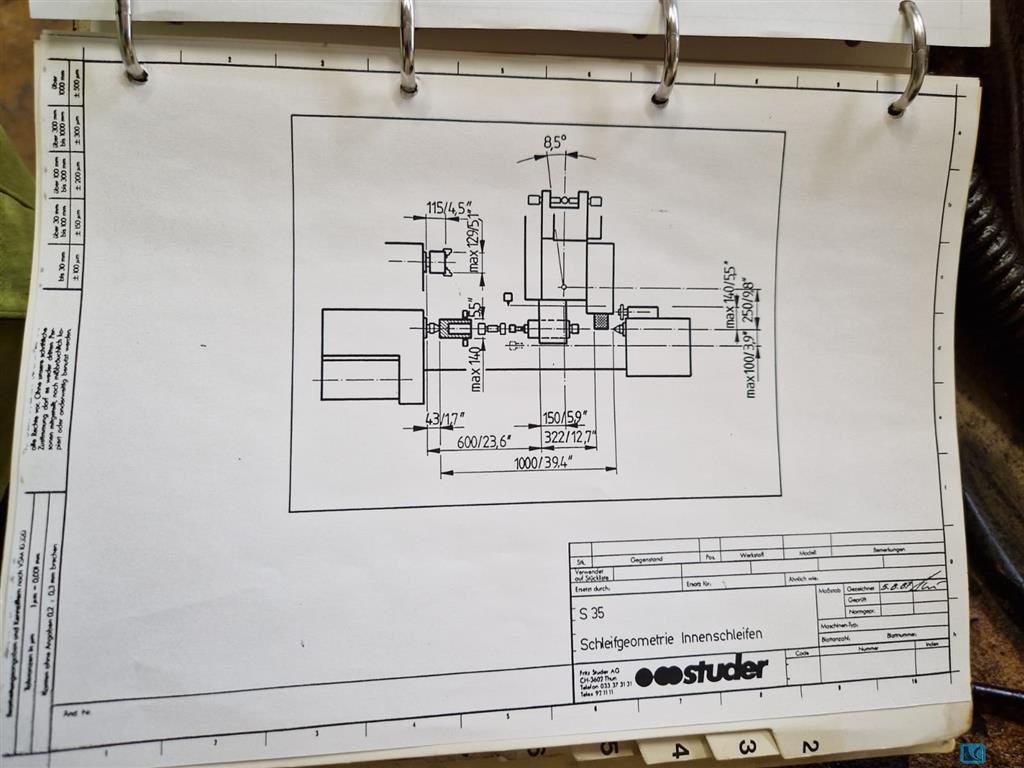

grinding diameter:380 mmgrinding length:1000 mmcentre height:180 mmgrinding wheel diameter:400 mmmax. workpiece weight between centres:250 kgtotal power requirement:10 kWweight of the machine ca.:4,1 tdimensions of the machine ca.:3 x 2 x 1,6 mwith internal grinding attachmentwith fixed and swivelling headstockwith coolant tank

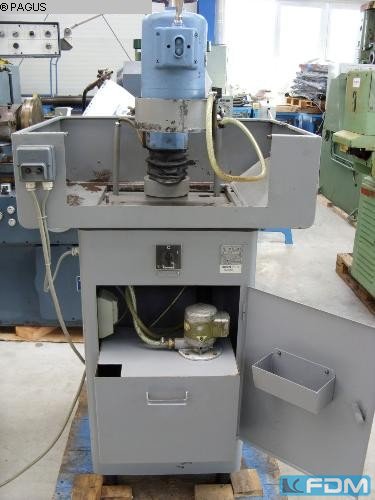

honing diameter:51 mmstroke:300 mmspindle speeds::600 - 3000 U/minfeed range:1500 - 5000 mm/minspindle drive:1,1 kWweight of the machine ca.:0,8 ttotal power requirement:4 kWdimensions of the machine ca.:1,1 x 1,9 x 1,5 m

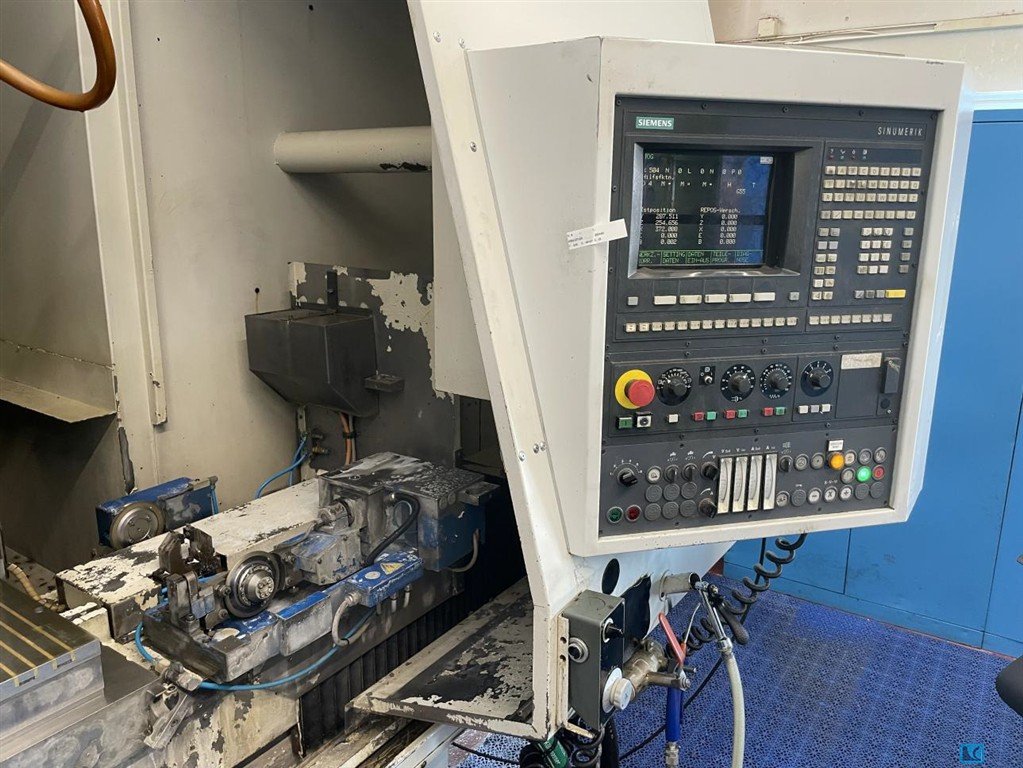

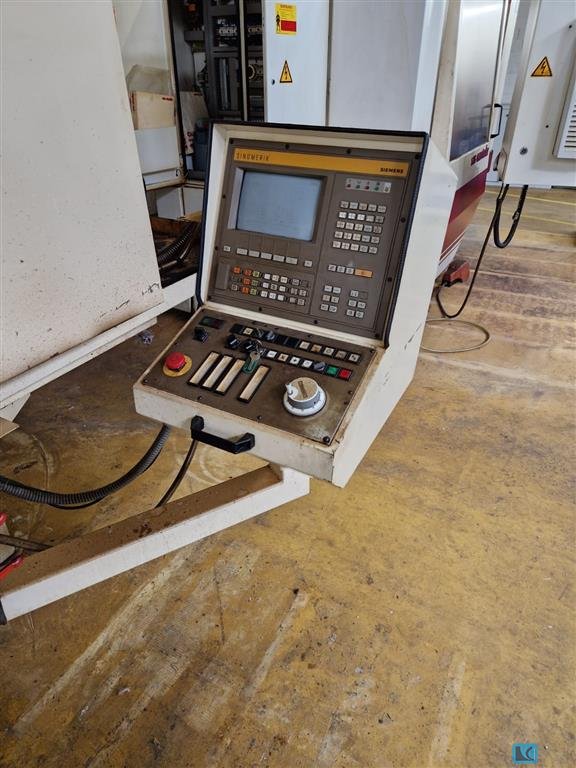

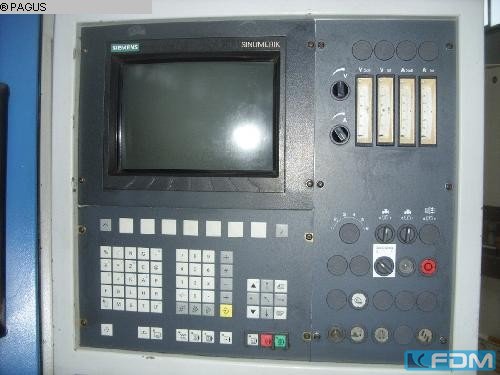

grinding diameter:300 mmgrinding length:600 mmcentre height:190 mmz-axis:865 mmx-axis:250 mmclamping length:1000 mmperipheral speed:45 m/secgrinding slide swivable +/-:8 °grinding wheel width x diameter:80 x 508 mmwork piece spindle speed:1 - 800 U/minweight of the machine ca.:5 tMachine with SIemens 840 C control- coolant device- Marposs measuring device
grinding length:4000 mmgrinding width:1450 mmworkpiece height:1250 mmtotal power requirement:40 kWdimensions of the machine ca.:12,3 x 6 x 4,8 mdistance between columns:1460 mmtable surface area:4000 x 1250 mmmax. workpiece weight:11.000 kgcross rail adjustment:1250 mmtable feed:1- 45 m/min.machine is in top condition for high precision work!with CNC SIEMENS 840 D1 universal grinding head, 7,5 kW swivelling of the grinding spindle +/-110°grinding wheel dimension 500 x 60 mmvertical stroke 350 mmwith dressing unit1 surface grinding head, 22,5 kWgrinding wheel dimension 600 x 100 mmvertical stroke 150 mmwith dressing unit 6 magnetic plates on the table diverse grinding wheel flanges
grinding length:1250 mmgrinding width:600 mmworkpiece height:730 mmtable surface area:1720 x 500 mmheadstock: dist. table - spindle center:900 mmmax. longitudinal movement:X-1450 feed range:10 - 20.000 mm/minvertical movement:Y-730 mmfeed range:0,2 - 3.000 mm/mincross travel:Z-550 mmfeed range:5 - 5.000 mm/minpower capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/mincutting speed:max. 80 m/sec.weight of the machine ca.:11 twith CNC SIEMENS 840 Cauto. dynamic balncing system integrated in the grinding conusprofile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpmtwo magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.
grinding length:600 mmgrinding width:300 mmtotal power requirement:7,5 kWnumber of spindle speeds:0-3000 grinding wheel motor:7,5 kWgrinding wheel diameter:300 mmdimensions of grinding wheel:76 x 20 mmABA magnetic table flat grinding machine
grinding diameter:280/320 mmgrinding length:750 mmcentre height:170 mmweight of the machine ca.:22,5 tdimensions of the machine ca.:4,7 x 3,65 x 3,0 m

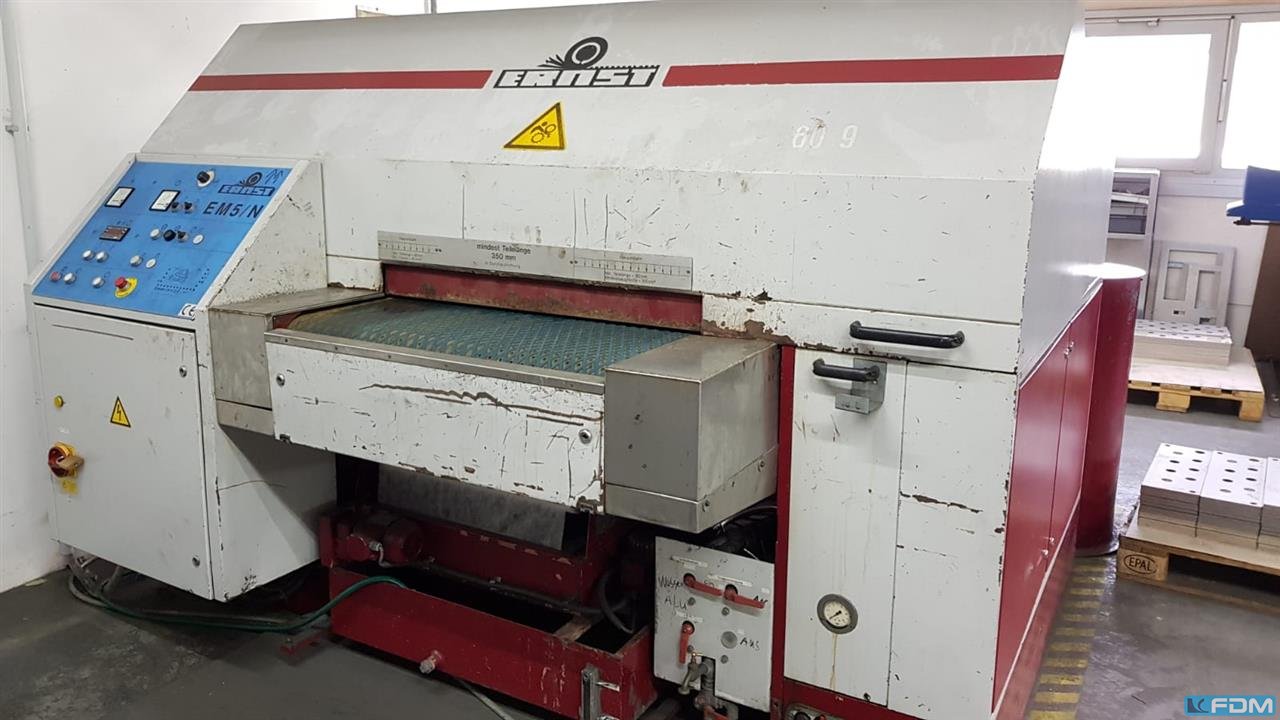

Finishing machine single-sided machining or double-sided machining, second-hand3 FLAKKO units with 4 disc tools each:Drive power 7.5kWSpindle speed 300 - 2500 rpmFeed speed 2-20 m/minWet machiningTool diameter 230mmWorking width 400mm for single-sided machiningWorking width 200mm for double-sided machining with turning deviceSpecial magnetic insertsdesigned for hot machiningIPC control with PLCConnected load 3x 400V 50HzConnected load approx. 52 kWOverhaul of all units with conversion to new 4-point bearing between 2021 and 2023.Special-price 25.000 EURO, net -free loaded truck- Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
weight of the machine ca.:24 tdimensions of the machine ca.:3900 x 3500 x 2500 m-the machine has no B axis -two grinding spindles with one grinding wheel each -The transport instructions can be found in the documentation (attachment). including Hoffmann KSM filter system Loading list availableOperating data v. 03/27/2023: Operating time: 21727 h / production time: 11960 h Machine documentation: 1 set of circuit diagrams, electrical plans, operating instructionsAccessories: 2 replacement measuring heads Marposs S/500; prism supports Other: Hoffmann KSM filter system Machine condition: according to age, due to processing with emulsion
grinding length:400 mmworkpiece weight:250 kgweight of the machine ca.:4,1 tswing diameter:250 mmgrinding spindle speed:2387, 2938 U/min
grinding diameter:20 mmgrinding length:20 mmmax. workpiece diameter:20 mmmin. workpiece diameter:1 mmgrinding wheel diam. min/max.:300-400 grinding wheel turining speeds:2.000-7.000 U/minWeight:950 kgdimensions: 1200 x 2100 mm

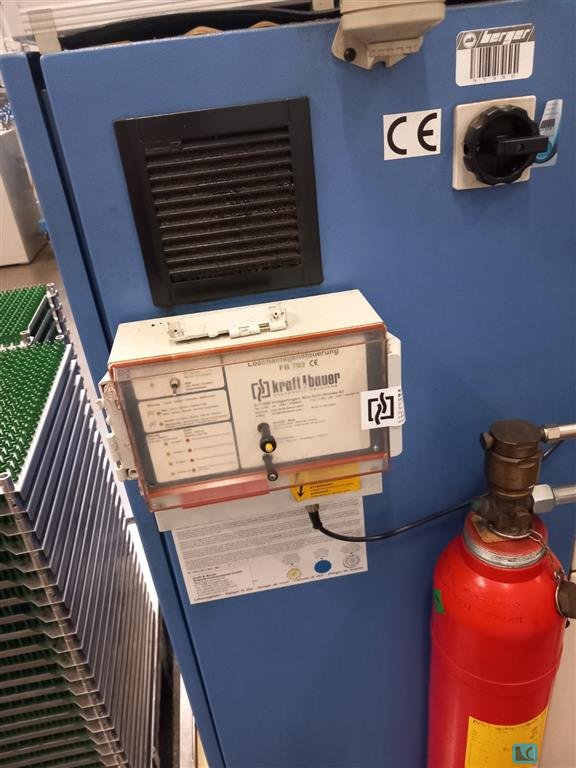

grinding length:600 mmcentre height:180 mmswing dia.:360 mmworkpiece weight:80 kgmax. dia. of grinding wheel:500 mmgrinding wheel width:80 mmgrinding wheel hole diameter:203,2 mmperipheral speed:45 m/secThere is also a 3200 liter coolant tank including cooling unit + fire extinguishing system.

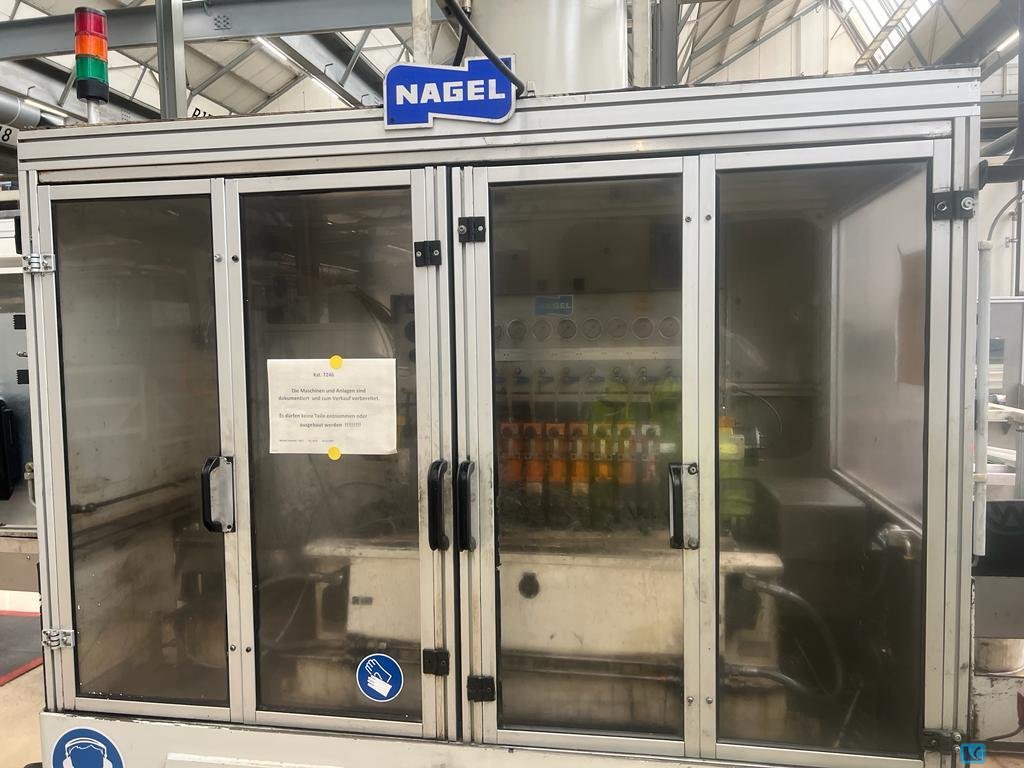

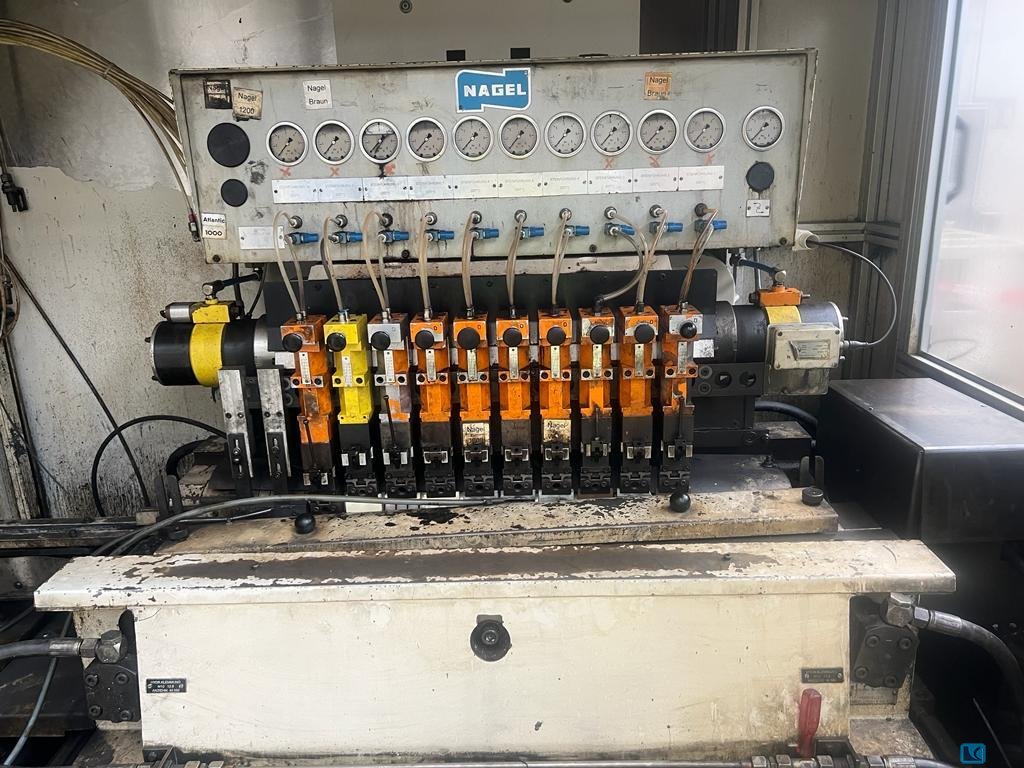

workpiece diameter:26 mmswing diameter:- mmworkpiece length:66 mmtotal power requirement:12 kWweight of the machine ca.:4 tdimensions of the machine ca.:3,14 x 1,69 x 2,2 mThe machine has so far processed the parts in a stream, i.e. without interruption. Piston rods are usually machined with a clearance, requiring the finishing stone to be placed only when the part passes under the stone.1. Feed Roller2. Stone holder, 10 pieces, 50 mm new guides can be made between approx. 15 to 40 mm The Roller of Nagel:Dia: approximately 120 mmL: app. 880 mm
: neu : ca. 2 Wochen ab Auftragse : Niederlande : 4646 €: 100 x 2.000 mm: 20 - 76,1 mm: 1 : 1 : 3 kW: 220 kgThe AL100U-02 can be operated with two hand-wheels or a lever. The machine is equipped with both options. The AL100 U-02 can grind material from Ø 20 mm to Ø 76 mm. The compound slide and carriage with rotatable clamp are continually adjustable, which means the machine can grind all pipe sections at every required angle between 30° and 90°. The ALMI AL100U-02 can be used to grind square, rectangular and round pipes with a range of wall thicknesses and is suitable for all customary types of materials. ALMI’s belt tensioning system makes tensioning the grinding belt even easier. The belt is tensioned using the hexagonal spanner supplied with the machine. The grinding belt can be tensioned quickly and the grinding rollers can be changed in seconds. All pipe grinders are equipp ...
: neu : ca. 2 - 4 Wochen ab Auftr : 4852.45 €: 250 x 40 x 51 mm: 1300 x 75 mm: 1,4 kW: 1400 1/min: 15 m/s: 42 mm: 600 mm: 540 mm: 1190 mm: 1200 x 800 x 1000 mm: 70 kgWith base frame, integrated suction and brakeHigh performanceBelt grinding device height adjustable 0-90°.Maximum usable face grinding areaBelt adjustment with fine adjustmentLongitudinal stop for material guidePerfectly balanced and low vibrationConnection on both sides for dust extraction Ø 50 mmMotor protection switch with undervoltage releaseFixed stop1 Sanding belt standard (brown), grit 801 grinding wheel 250 x 40 x 51 mm, grit 80Spark protectionConnection cable with CEE plugALTERNATIVES:Version without suction (Art. 330.365)Version without stand, suction and brake (Art. 330.360)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 6 Monate ab Auftragse : Taiwan : 76220 €: 1440.56 €: 1015 mm: 610 mm: 1.000 x 400 mm: 400 x 1.000 mm: 1050 mm: 5 - 25 m/min: 0 - 2.250 mm/min: 0,001 - 32 mm: 450 mm: 480 mm: 0 - 675 mm/min: 0.001 - 0.04 mm: 500 - 1.800 1/min: 3.75 kW: 1.5 kW: 1.1 kW: 1.1 kW: 4280 mm: 2080 mm: 2100 mm: 3500 kg: 220 kg: 440 kg: 355 x 50 x 127 mm: 0,001 mm10.4", graphic NC control on a swivel arm with touchscreen for:Operating mode selectionCycle selection and program creationSurface grindingCross grindingPlunge grindingDressing with automatic compensationSemi-automatic balancing in the machineAutomatic spindle speed for constant surface speedSpindle load visualizationUnbalance controlGraphical status monitoringAlarm listaut. vertical feedservo drive for grinding wheel feed and table cross feedhardened slide ways in all 3 axes with needle rollerselectro-magnetic chuckcoolant equiptment w ...
