utilisé
Espace: Diamètre de la pièce: 0,1 mm – 10 mm Plus petite alimentation de la glissière du disque de commande (manuelle): 0,001 mm Dimensions du disque: Diamètre de la meule: jusqu’à 150 mm Largeur de la meule: jusqu’à 50 mm Diamètre du disque de commande: 40 mm Diamètre du disque de contrôle: max. 100 mm Poids: 700 kg La mécanique de la machine a été entièrement revue et est en parfait état.
nouveaux
Fabricant | Fabricant : ASW Modèle | Modèle : SRA 250 Processus de broyage | Processus de meulage : Rectification de rainures | Rectification en plongée Diamètre de la pièce | Diamètre de la pièce : 1,5 - 35 mm Meule | Meule : Diamètre 450 mm | Largeur 250 mm | Diamètre d’alésage 203,2 mm Disque de contrôle | Molette de réglage : Diamètre 250 mm | Largeur 250 mm | Diamètre d’alésage 127 mm Puissance d’entraînement | Puissance d’entraînement : 15 kW Empreinte totale | Surface totale d’installation : env. 6 300 x 5 100 mm Poids de la machine | Poids de la machine : env. 10 t
utilisé
GENERAL CHARACTERISTICS, Max. grinding diameter 120 mm, Grinding wheel width 250 mm, Minimum Ø to be ground 1 mm, Ø drive grinding wheel 304 mm, Ø working wheel 508 mm, DIMENSIONS AND WEIGHT, Height 1,700 mm, Width 1,500 mm, Length 2,750 mm, Weight 4,000kg, ELECTRICAL CHARACTERISTICS, Grinding head motor power 15 Kw, Power motor power grinding head 1,8kw, Hydraulic motor power 1,1kw, Total power 20 kW, Voltage 220/380 V
utilisé
utilisé
Dimensions: 1520x1020x1260mm, Weight: 1550 kg, Grinding wheel gap: 1.5/50mm, Max.width of wheel in feed grinding: 125mm, Working wheel dimensions (od x id x width): 300x125x175mm, Øext.min. working wheel: 220mm, Max. profile depth of the working wheel: 8mm, Driving wheel dimensions (od x id x width): 220x125x125mm, Øext.min. driving wheel: 165mm, Working wheel motor power: 7,5Kw, Driving wheel motor power: 0,75Kw, Angle of inclination of the working grinding head: +/- 5º, Angle of inclination of the drive wheel head: -2/+5º
utilisé
Ø grinding wheel dimensions (od x id x width): Ø350 x Ø200 x 150 mm, Peripheral grinding wheel speed (m / s): 1,700 RPM, Regulating wheel width: 150 mm, Regulating wheel speed nº: 4, Min / max regulating wheel speed (r.p.m.): 21, 30, 42, 310, Regulating wheel dimensions (od x id x width): Ø250 x Ø140 x 150 mm, Grinding wheel width: 150 mm, Maximum infeed grinding length: 150 mm, Motor power grinding wheelhead: 15 Cv, Total power: 16.5 Cv, Long: 1.654 mm, Width: 1.500 mm, High: 1.535 mm, Weight: 1.900 kg
utilisé
utilisé
Ø grinding wheel dimensions (od x id x width): Ø 406 x Ø 203 x 200 mm, Ø min / max to grinding: 1.5 / 100 mm, Regulating wheel width: 200 mm, Min / max regulating wheel speed (r.p.m.): 10/250 rpm, Regulating wheel dimensions (od x id x width): Ø 270 x Ø 140 x 200 mm, Grinding wheel width: 200 mm, Maximum infeed grinding length: 200 mm, Motor power grinding wheelhead: 15 kW, Long: 2020 mm, Width: 1300 mm, High: 1420 mm, Weight: 4200 kg
utilisé
utilisé
Ø grinding wheel dimensions (od x id x width): 508 x 304.8 x 254 mm, Ø min / max to grinding: 1.5 / 120 mm, Regulating wheel width: 254 mm, Regulating wheel speed nº: infinite, Min / max regulating wheel speed (r.p.m.): 10/250 r.p.m., Dressing (auto / manual): Automatic / Automatic, Lubrication (auto / manual): Automatic / Automatic, Control type ((cnc / manual): CNC, Cnc brand: FANUC, Cnc model: Oi - TF, Cnc axes nº: 6, Infeed (auto / manual): Automatic / Automatic, Regulating wheel dimensions (od x id x width): 305 x 190.5 x 254 mm, Grinding wheel width: 254 mm, Maximum infeed grinding length: 254 mm, Power hydraulic motor: 0,55 kW, Total power: 27 kW, Voltage: 220/380 V, Long: 1.800 mm, Width: 2.800 mm, High: 1.900 mm, Weight: 6.420 kg, Accessories included:
utilisé
utilisé
utilisé
TECHNICAL INFORMATION:, Grinding wheel dimensions (od x id x width): Ø508xØ304.8x204 mm, Dimensions of the regulating grinding wheel (od x id x width): Ø304,8xØ152.4x204 mm, Main motor power: 20 Kw, Voltage: 380 V, Height: 1700 mm, Length: 2000 mm, Width: 1080 mm, Weight: 4230 Kg approx.
utilisé
Centerless grinding machine - centerless Ghiringhelli M100 CNC 1A 400x100mm wheel CN 1 axis plunge + through feed grinding The machine can be seen working in our warehouse in Gussago BS. Mimu(dot)com machine tools Centreless grinding is a procedure for grinding cylindrical bodies and is used for mass production of rollers, cylindrical, conical rollers, jet needles, pump pistons, hydraulic sliders, crosses, drills etc., During centerless plunge grinding, the workpiece is ground in one pass, thanks to the translation of the grinding wheel. For this purpose, the grinding wheels and the adjustment discs have a negative profile of the piece, to work which is given to them with the aid of a tool., The through-feed grinding or also through grinding and longitudinal grinding: pieces, to be worked proceed uninterruptedly with axial feed through the rectification gap., Wheel width: 100, Wheel dia ...
utilisé
Weight: 2000Kg approx., Dimensions (L x W x H): 2000x1800x1700 mm, Total power: 8kW
utilisé

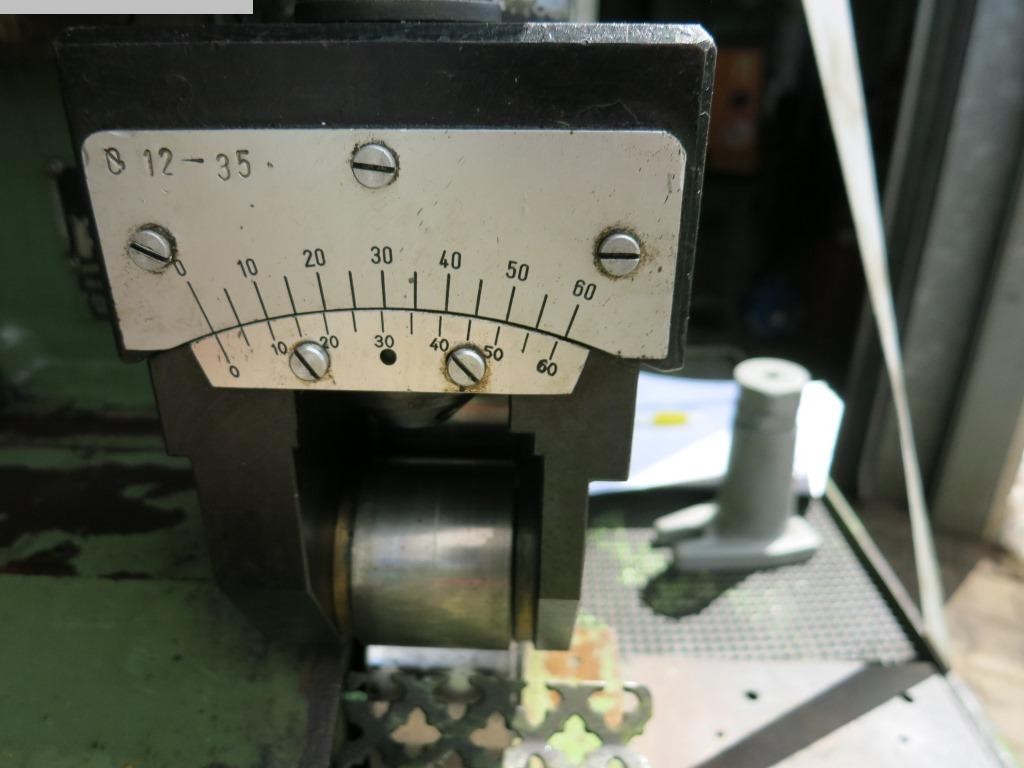

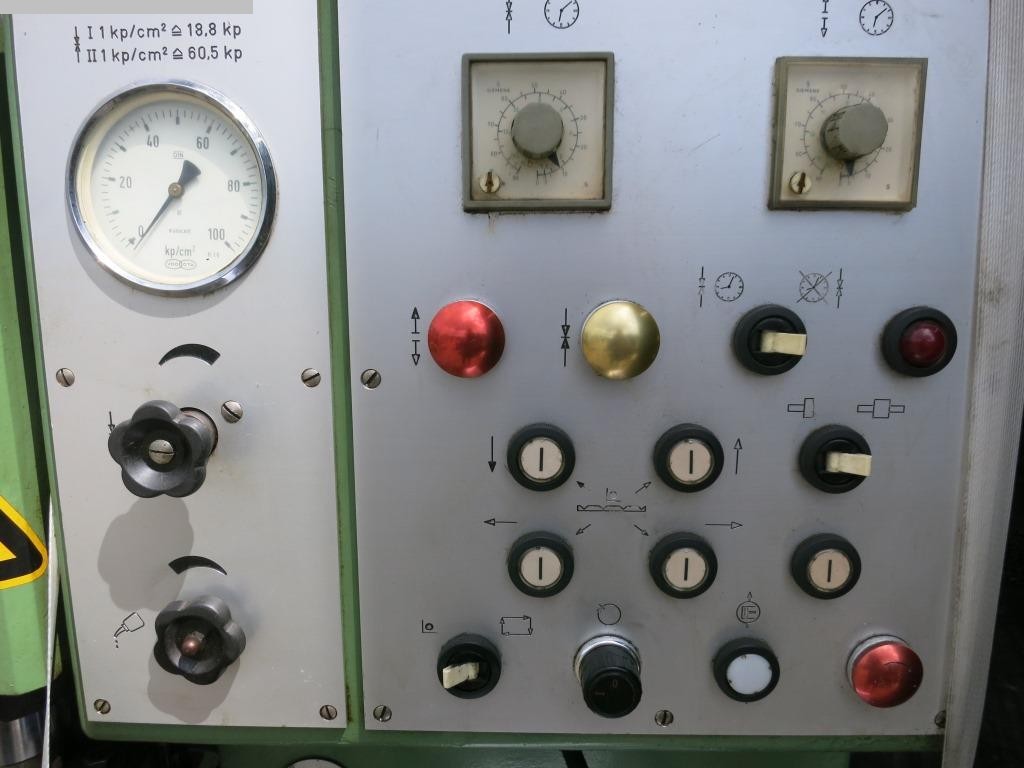

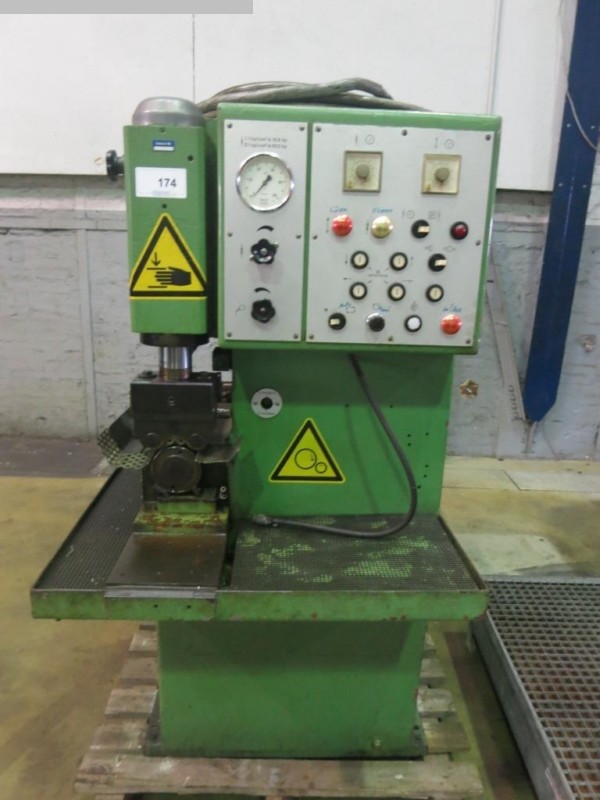

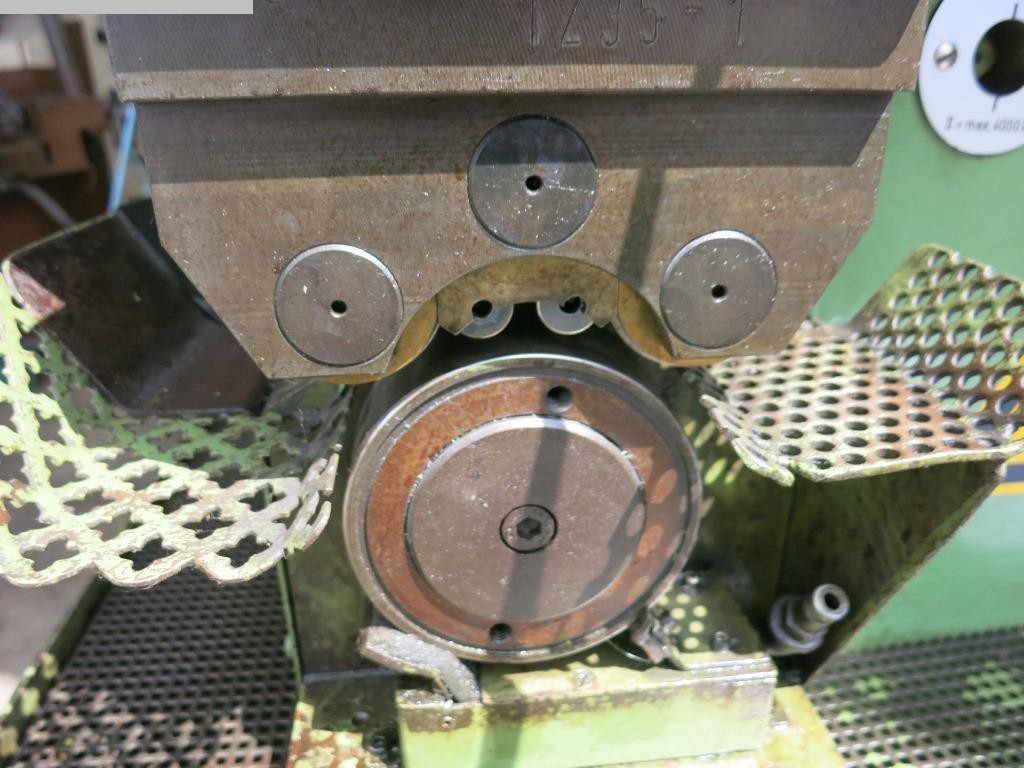

working area: 12-60 mmspeed: 60/120 m/minBar length: 4000 mmFeed: 0-5 mm/Urolling power: 500-40000 Nweight: 1200 kgtotal power requirement: 3 kWThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
utilisé
Nous avons environ 50 rails de guidage différents, différentes longueurs / largeur et hauteur à vendre. Les rails de guidage sont HSS et HSS avec HM. Partiellement neuf ou d’occasion. Veuillez nous contacter afin que nous puissions vous faire une offre.
utilisé
Rectifieuse cylindrique centerless KÖNIG & Bauer M130 MULTIMAT 130 État : très bon, utilisé Spécifications Vitesses de rotation de la meule 35/45 (60) m/sec. Diamètre de meulage le plus grand 35 mm Plus petit diamètre de meulage 0,8 mm Longueur maximale de la pièce pour une rectification continue d’environ 200 mm Longueur maximale de la pièce pour la rectification plongeante 130 mm La machine peut être vue sur rendez-vous dans notre usine de Krefeld. – Sous réserve d’erreurs, de modifications et de vente antérieure –
utilisé
utilisé
Rectifieuse CNC sans centre Mikrosa Kronos M 6 axes Meule 250x610 mm Complet avec chargeur de pièces Siemens 840D CNC La machine est dans notre entrepôt à Gussago BS Italie Machines-outils Mimu
utilisé
Atelier Mikrosa SASL 3/1 révisé. État très bon, prêt à l’emploi. Équipé d’un dispositif de chargement pour la rectification en plongée, la rectification en boucle est possible en option. La machine a été réparée mécaniquement et électriquement et testée fonctionnellement. Spécifications Taille max. de la pièce pour meule 500 mm 3,5 - 140 mm Taille max. de la pièce pour meule 600 mm 3,5 – 80 mm Longueur max. de la pièce (rectification plongeante) 245 mm Meule - Extérieur 630 mm - Intérieur 380 mm Largeur de la meule 250 mm Disque de contrôle - Extérieur 315 mm - Intérieur 230 mm Largeur du disque de commande 250 mm Vitesse des meules 35/45 m/s Vitesse du disque de contrôle (réglable en continu) 10-480 min¹ Puissance d’entraînement 32 kW Poids de la machine env. 4,8 t Poids de l’armoire de commande env. 400 kg La machine pe ...
utilisé
CN Centerless grinding machine, ROSSI MONZA 1500 CN, currently being overhauled and fully electrically/electronically retrofitted, Siemens electronics with touchscreen, brushless motor on Z (workpiece diameter) and regulating wheel (adjustable RPM), step motor on grinding wheel dressing increment, auto size compensation after grinding wheel dressing, Grinding wheel 350 mm 610 mm dia, This machine can be inspected in our warehouse in Gussago BS Italy Centreless grinding is a procedure for grinding cylindrical bodies and is used for mass production of rollers cylindrical, conical rollers, jet needles, pump pistons, hydraulic sliders, crosses, drills etc. During centerless plunge grinding, the workpiece is ground in one pass thanks to the translation of the grinding wheel. For this purpose, the grinding wheels and the adjustment discs have a negative profile of the piece to work which is g ...
utilisé
Monzesi Rossi Monza 500 centerless grinding Grinding wheel 250 500 auto plunge also available The machine is in our warehouse in Gussago BS, under power Mimu machine tools, Centreless grinding is a procedure for grinding cylindrical bodies and is used for mass production of rollers, cylindrical, conical rollers, jet needles, pump pistons, hydraulic sliders, crosses, drills etc., During centerless plunge grinding, the workpiece is ground in one pass, thanks to the translation of the grinding wheel. For this purpose, the grinding wheels and the adjustment discs have a negative profile of the piece, to work which is given to them with the aid of a tool., The through-feed grinding or also through grinding and longitudinal grinding: pieces, to be worked proceed uninterruptedly with axial feed through the rectification gap.ith axial advancement through the grinding gap.
utilisé
CNC centerless grinding machine Monzesi mod Monza 510 CNC 6 axes complete with piece loading and unloading system CNC Fanuc 160i-T Under power in our warehouse in Gussago BS., Mimu machine tools Italy, Centreless grinding is a procedure for grinding cylindrical bodies and is used for mass production of rollers, cylindrical, conical rollers, jet needles, pump pistons, hydraulic sliders, crosses, drills etc., During centerless plunge grinding, the workpiece is ground in one pass, thanks to the translation of the grinding wheel. For this purpose, the grinding wheels and the adjustment discs have a negative profile of the piece, to work which is given to them with the aid of a tool., The through-feed grinding or also through grinding and longitudinal grinding: pieces, to be worked proceed uninterruptedly with axial feed through the rectification gap., Wheel width: 250, Wheel diameter: 510, C ...
utilisé
utilisé
Broyeur sans centre Palmary
utilisé
Rectifieuse centerless BB 6
