Fabricante:
(Categoría: 107)
material width:500 mmmaterial thickness:0,2 - 3,8 mmfeed length:0 - 9999,9 mmnumber of rolls:2 material cross-cut:128 mm²speed:60 m/minpower requirement:2,0 kWdimensions (WxDxH):1,2 x 1,3 x 1,5 mroll feed:Servo control:Siemens S 7, modification 2002

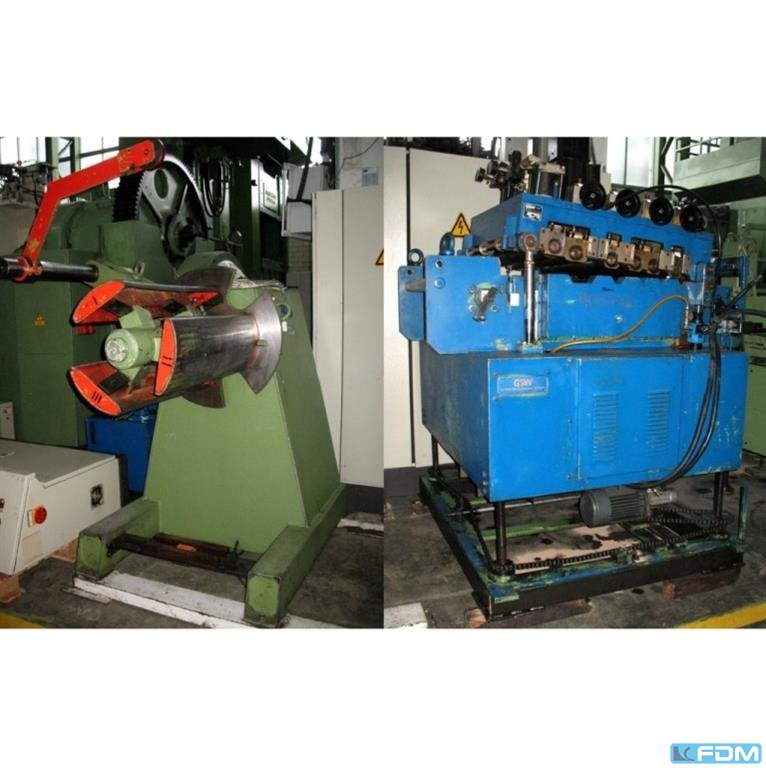

material width:600 mmcoil weight:5,0 tmaterial thickness: - 5,0 mmcoil internal diameter:360 - 660 mmcoil external diameter:1500 mmno. of straightening rolls:9 straightening roll diameter:80 mmnumber of draw-in rolls:2 material cross-cut:1600 mm²weight of feeeder-straightener:2,5 tweight of decoiler:1,5 tdimensions feeder-straightener (WxDxH):1,7 x 1,7 x 2,6 mmdimensions decoiler (WxDxH):1,8 x 2,0 x 2,3 mmfeeder-straightener:VCRL 650, Bj. 1994, GR 2001 height adjustment:motorisch alligator opening:hydraulisch decoiler:SHR 5000, Bj. 2000 expansion:hydraulisch
plate thickness:4 mmblade length:180 mmweight of the machine ca.:21 kgdimensions of the machine ca.:400 x 100 x 1500 mm
material width:200 mmmaterial thickness:0,5 - 3,0 mmno. of straightening rolls:6 straightening roll diameter:70 mmnumber of draw-in rolls:2 diameter of draw-in rolls:160 mmpower requirement:3,1 kWweight:1,1 tdimensions (WxDxH):1,5 x 1,2 x 1,9 m
material width:350 mmcoil weight:2,0 tcoil internal diameter:470 - 530 mmcoil external diameter:1500 mmpower requirement:1,0 kWweight:1,5 tdimensions (WxDxH):1,3 x 1,6 x 1,9 m
material width:300 mmcoil weight:0,5 tcoil internal diameter:270 - 360 mmcoil external diameter:1000 mmweight:0,3 tdimensions (WxDxH):1,5 x 1,2 x 1,4 m
material width:310 mmno. of straightening rolls:5 straightening roll diameter:25 mmdimensions (WxDxH):0,4 x 0,6 x 1,15 m
material width:210 mmno. of straightening rolls:6 straightening roll diameter:40 mmdimensions (WxDxH):0,45 x 0,6 x 1,1 m
material width:500 mmcoil weight:2 x 2,0 tmaterial thickness:1,0 - 6,0 mmcoil internal diameter:350 - 420 mmcoil external diameter:1600 mmno. of straightening rolls:9 straightening roll diameter:50 mmnumber of draw-in rolls:2 speed:0 - 40 m/minmaterial thickness at 500 mm material width:3,5 mmpower requirement:17,5 kWDimensions (WxDxH):2,3 x 4,2 x 2,4 mstraightening machine:RM 5050.4/9 double decoiler:AH 2000/2/M snubber roll:pneumatic interchangeable jaws:130 mm expansion of the inner diameter
material width:300 mmcoil weight:0,5 tcoil internal diameter:420 - 520 mmcoil external diameter:1400 mmweight:0,6 tdimensions (WxDxH):0,8 x 1,2 x 1,7 mexpansion:pneumatic
material width:250 mmmaterial thickness:0,25 - 3,0 mmno. of straightening rolls:11 straightening roll diameter:30 mmspeed:6 - 60 m/minpower requirement:15,0 kWweight:1,1 tdimensions (WxDxH):1,1 x 1,7 x 1,5 mstriaghtening pressure automatic:hydraulic coil loof control:ultrasonic

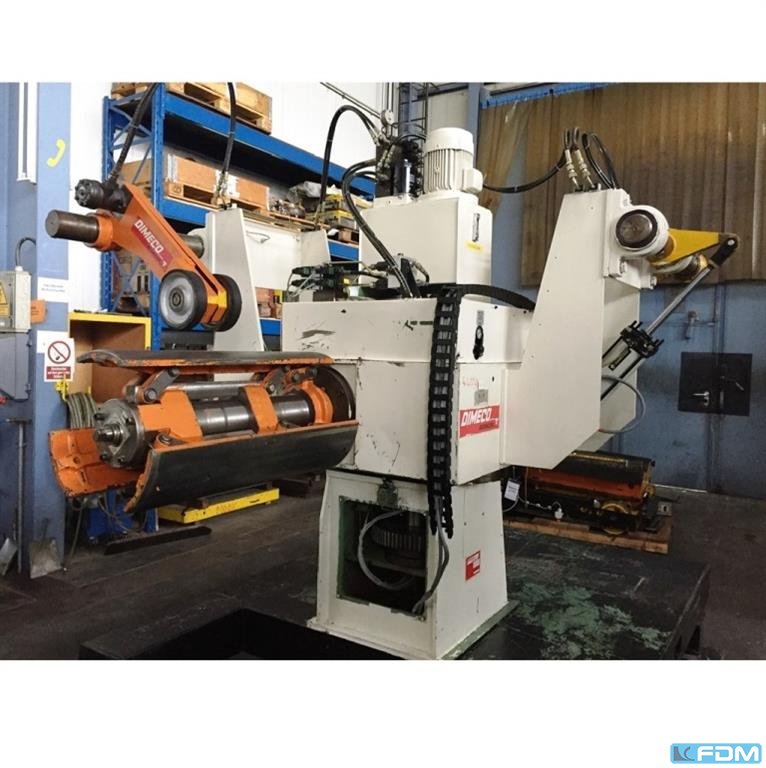

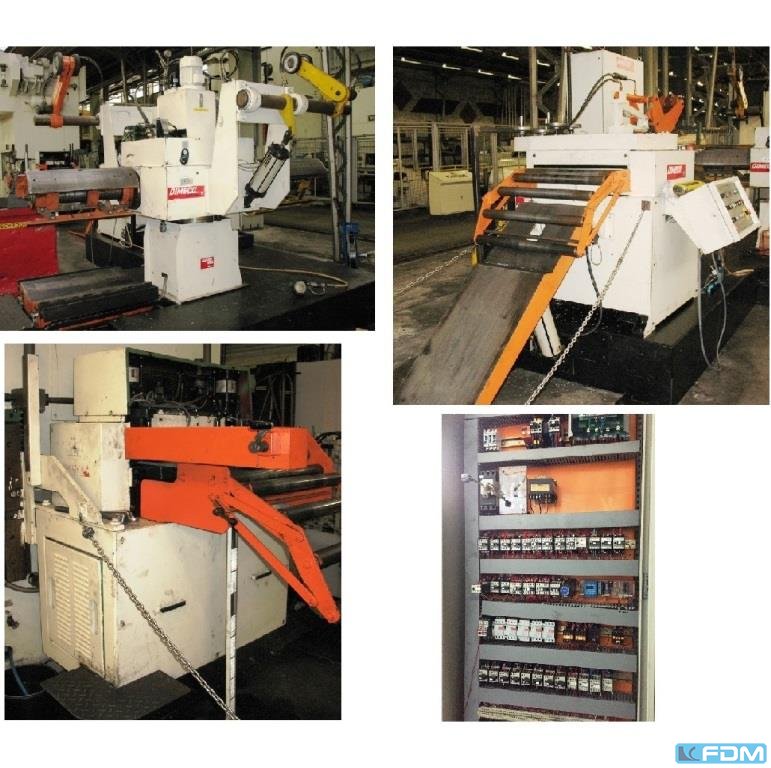

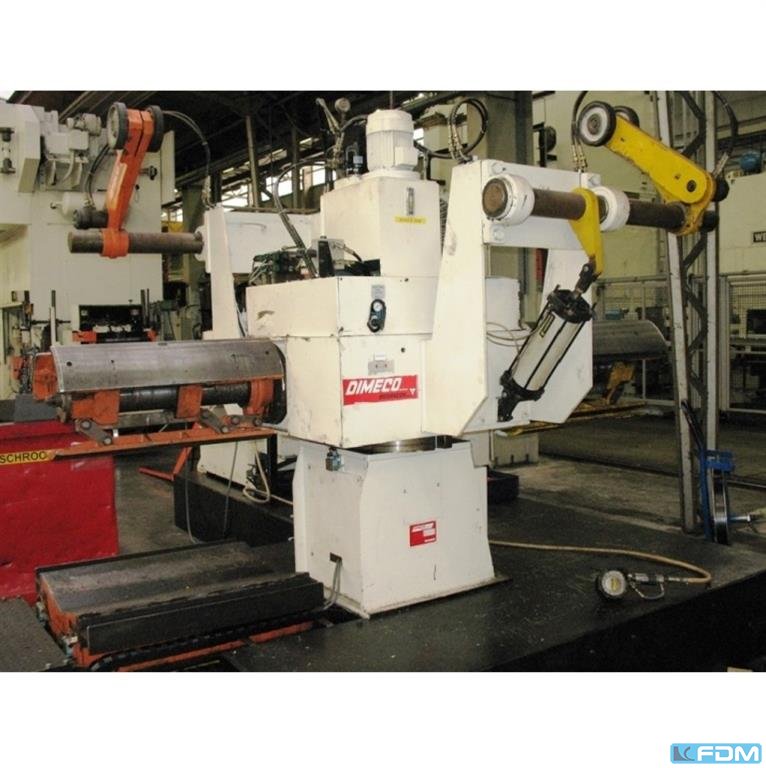

material width coil line:600 mmcoil weight:2 x 3,5 tcoil internal diameter:460 - 530 mmcoil external diameter:1500 mmmaterial thickness coil line:0,5 - 3,0 mmno. of straightening rolls:7 no. of rolls at in- and outlet:4 roll diameter:80 mmfeed length:0 - 500 mmpower requirement:10,0 kWweight:10,0 tdimensions of the coil line:8,8 x 4,0 x 2,55 mstraightening machine:Dimeco, 1676 EV double decoiler:2382 FFPS lag brake:pneumatic electronic roll feed:Microfeed
material width:800 mmcoil weight:12,0 tcoil internal diameter:470 - 520 mmcoil external diameter:1500 mmmaterial thickness:0,4 - 2,5 mmno. of straightening rolls:8 straightening roll diameter:53 mmnumber of draw-in rolls:2 inlet roll diameter:160 mmspeed:35 m/minmaterial thickness at 150 mm material width:2,5 mmmaterial thickness at 650 mm material width:1,5 mmmaterial thickness at 800 mm material width:1,0 mmstraightening machine:RM 8-53/160-800 decoiler:HE 200-1000
material width:250 mmcoil weight:2,5 tcoil internal diameter:430 - 520 mmcoil external diameter:1650 mmmaterial thickness:0,5-6 mmno. of straightening rolls:7 straightening roll diameter:60 mmnumber of draw-in rolls:2 weight straightener:1,2 tweight decoiler:1,4 tdimensions straightener (WxDxH):1,2 x 1,2 x 2,0 mdimensions decoiler (WxDxH):1,8 x 1,8 x 2,3 mexpansion:hydraulic
material width:203 mmmaterial thickness:0,1 - 1,9 mmfeed length:101 mmweight:0,1 tdimensions (WxDxH):0,5 x 0,8 x 0,5 m
material width:450 mmmaterial thickness:1,0 - 14,0 mmcoil weight:10,0 tcoil internal diameter:470 - 520 mmcoil external diameter:1100 - 2000 mmno. of straightening rolls:12 straightening roll diameter:2x70 / 2x96 / 8x127 mmnumber of draw-in rolls:2 inlet roll diameter:160 mmmin. material width:100 mmspeed:15 m/minpower requirement:75,0 kWweight of decoiler:6,4 tweight of straightening machine:12,8 tdimensions decoiler (WxDxH):3,1 x 1,4 x 3,7 mmdimensions straightener (WxDxH):2,5 x 3,4 x 2,7 mmstraightening machine:RMS-Vario-12-70/96/127-0450 infinitely variable drive:insert drive upper straightening part:hydraulic liftable loop bridge:hydraulic driven threading wedge:hydraulic decoiler:HES 12-650 infinitely variable drive:insert drive lag brake:pneumatic snubber roll:hydraulic; motoric driven expansion:hydraulic coil lifting device:hydraulic cropping shears:HS-150-0450
material width coil line:600 mmcoil weight in kg:2 x 3000 kgcoil internal diameter:460 - 630 mmcoil external diameter:1500 mmmaterial thickness coil line:0,5 - 3,0 mmNumber of Straightening rolls:9 roll diameter:30 mmmaterial cross-cut:1200 mm²weight:9,5 tDimensions (WxDxH):4,3 x 2,6 x 2,6 mstraightening machine:30.600/9 double decoiler:Kohler, 3000.2 ausiliary drive:hydraulic lag brake:pneumatic expansion:hydraulic snubber roll:hydraulic; motoric driven
material width:250 mmmaterial thickness:0,5 - 4,0 mmno. of straightening rolls:9 straightening roll diameter:60 mmnumber of draw-in rolls:2 power requirement:3,8 kWWeight:0,8 tDimensions (WxDxH):1,6 x 0,8 x 1,5 m

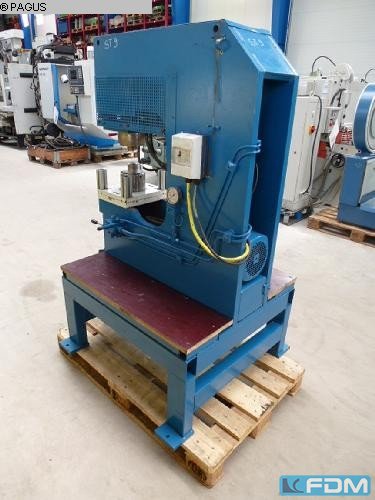

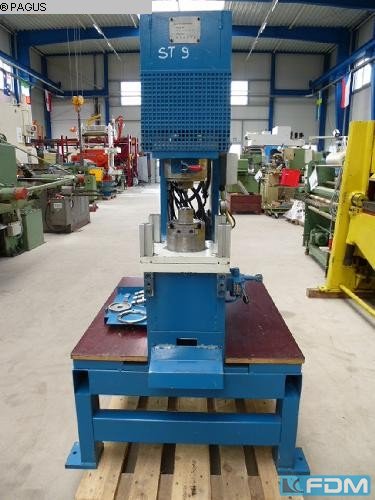

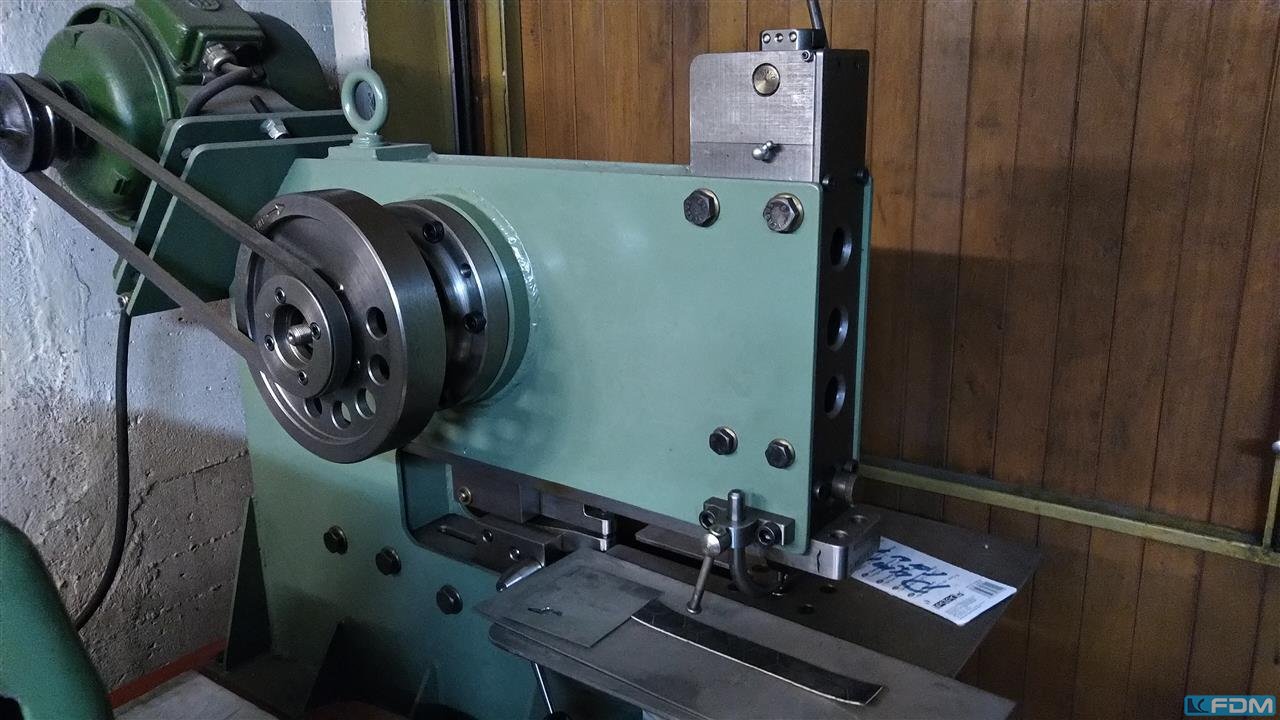

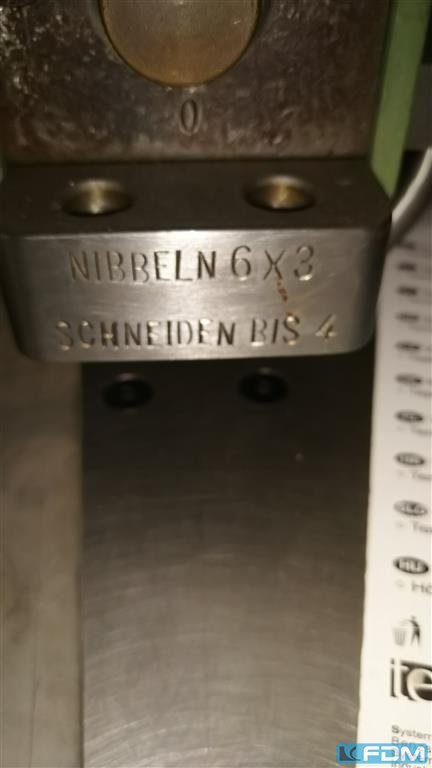

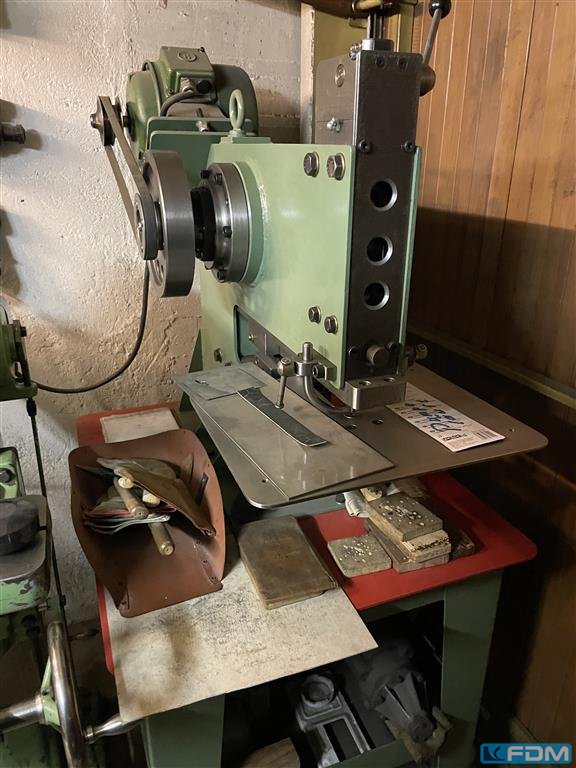

sheet width:400 mmplate length:500 mmplate thickness:4 mmtotal power requirement:0,5 kWPunching and Nibling machine with 6 x 3 mm nibling and 4 mm for cuting
material width:500 mmcoil weight:3,0 tmaterial thickness:0,2 - 2,5 mmcoil internal diameter:470 - 530 mmcoil external diameter:1400 mmno. of straightening rolls:9 straightening roll diameter:40 mmnumber of inlet and outlet rolls:4 material cross-cut:1200 mm²speed:1,5 - 30 m/mindimensions decoiler (WxDxH):1,9 x 0,6 x 1,7 mweight decoiler:1,1 tdimensions straightener (WxDxH):3,3 x 1,3 x 2,7 mweight straightener:3,0 tstraightening machine:RYD 40 x 500 decoiler:DY 500 x 3000 coil lifting device:hydraulic rool feed:elektronic; AESL 500-2,8 threading device:hydraulic expansion:hydraulic
sheet width:2000 mmplate thickness:1.8 mmControls:SIEMENS S7 PRESS DESIGN:. - frame design : H-frame :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - height above floor level:375 mmRAM:. - ram force:800 to - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /minRAM (MECHAN. PRESS):. - ram adjustment:350 mmTOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):3100 mm - Free passage between side columns (width):2560 mm - Free passage between side columns (height):1500 mmDECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. di ...
material width:600 mmmaterial thickness: - 4,0 mmno. of straightening rolls:21 straightening roll diameter:30 mmmaterial cross-cut:1800 mm²speed:6 - 36 m/minPower capacity:4,5 kWWeight:2,0 tDimensions (WxDxH):1,5 x 2,0 x 1,9 m

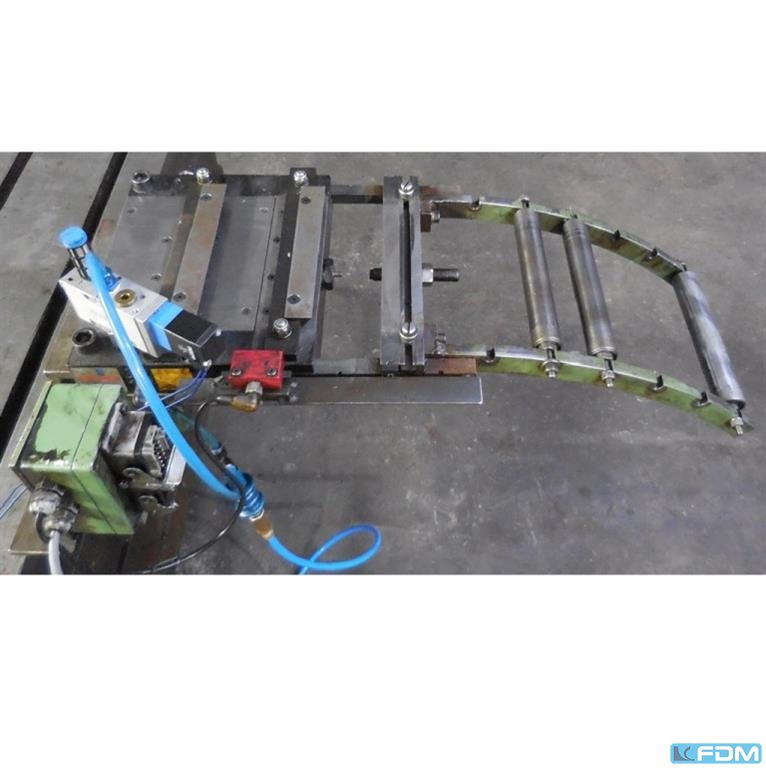

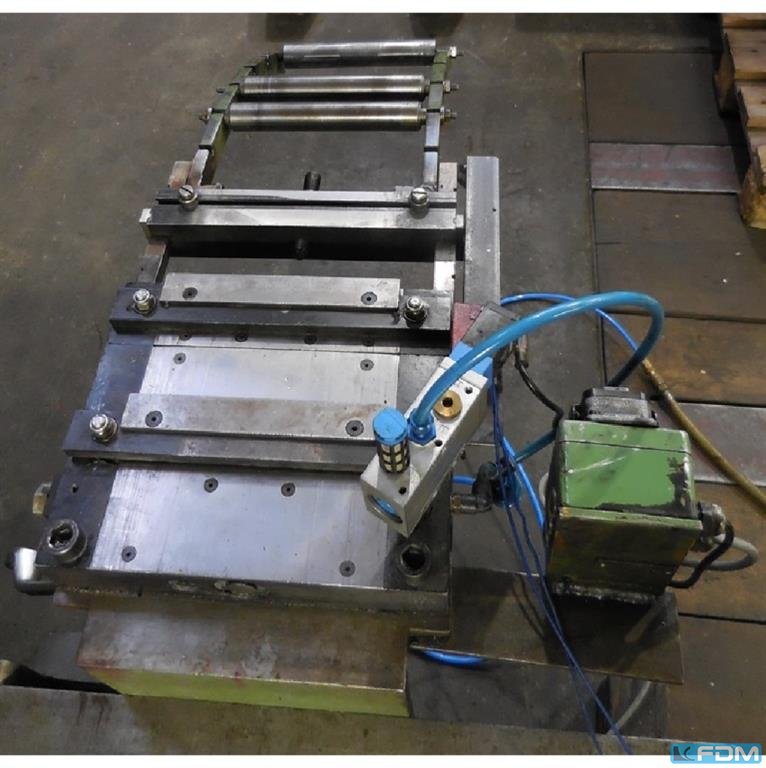

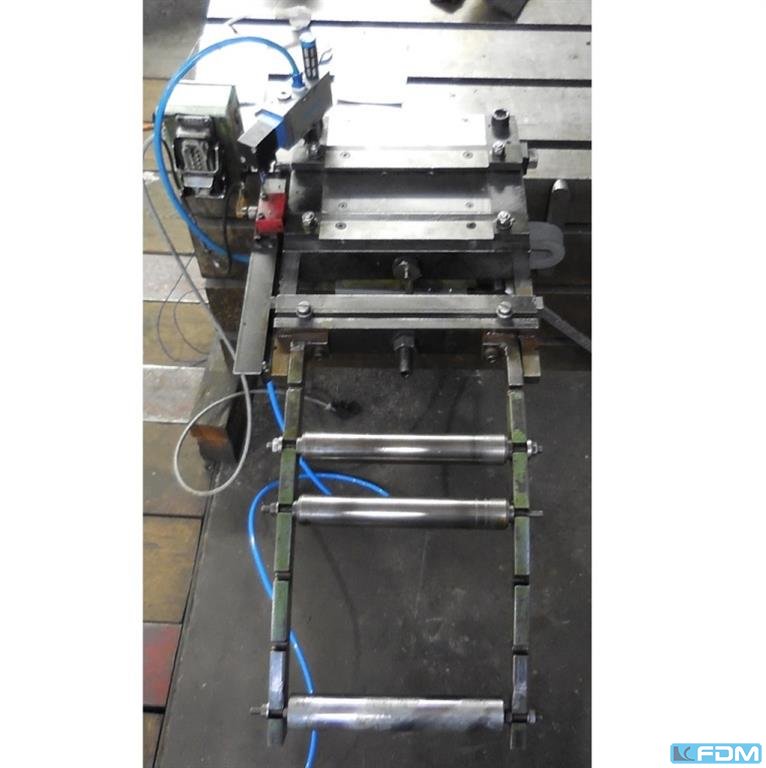

material width:70 mmmaterial thickness:0 - 1,5 mmfeed length:100 mmmaterial cross-cut:60 mm²feeding force:400 Nclamping force of feeding pincer:1300 Nair pressure - required:3 - 6 barWeight:0,01 tDimensions (WxDxH):0,4 x 0,4 x 0,7 m
band width:1050 mmplate thickness:8 mmnumber of rolls:8 DECOILER:. - design : single coil :. - sheet width max:1050 mm - sheet width (min):150 mm - max. weight of coil:22 to - max. diameter of coil:2000 mm - min. internal diameter of coil:570 mmFEEDERS:. - feeder: type : roll feeder :. - sheet width max:1050 mm - sheet thickness max:150 mmLEVELER UNIT:. - sheet width max:1050 mm - sheet width (min):150 mm - sheet thickness max:8 mm - sheet thickness (min):2.5 mm - number of leveler rolls:8 - diameter of leveler rolls:96 mm - distance between leveler rolls:104 mm - diameter of feed rolls:160 mm - feed velocity min.:2 m/min - feed velocity max.:43.5 m/minELECTRICAL SPECIFICATIONS:. - mains voltage:400 V - mains frequency:50 HzTechnical description :Sheet metal unrolling and straightening system for thick sheet metal up to 8 mm, consisting of:- LAWECO COIL LO ...

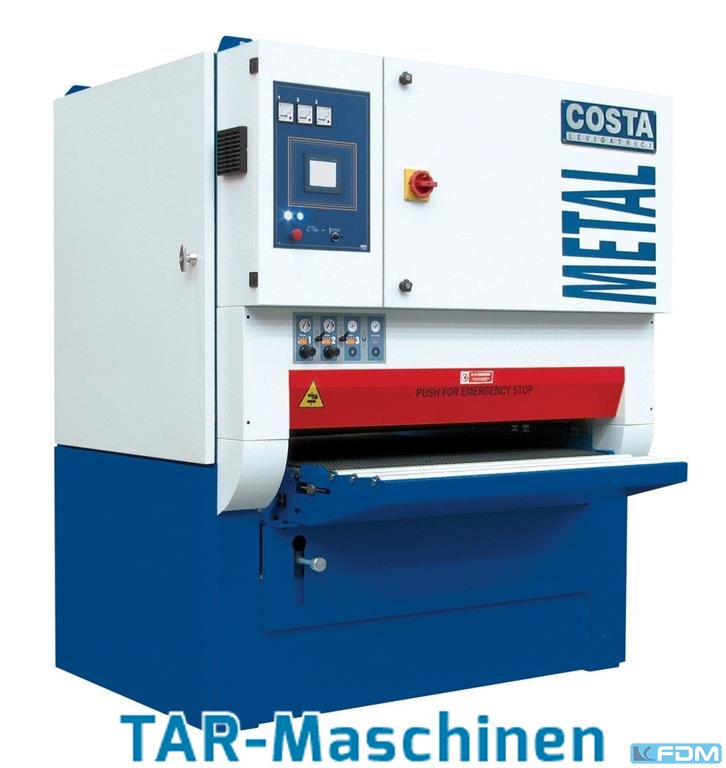

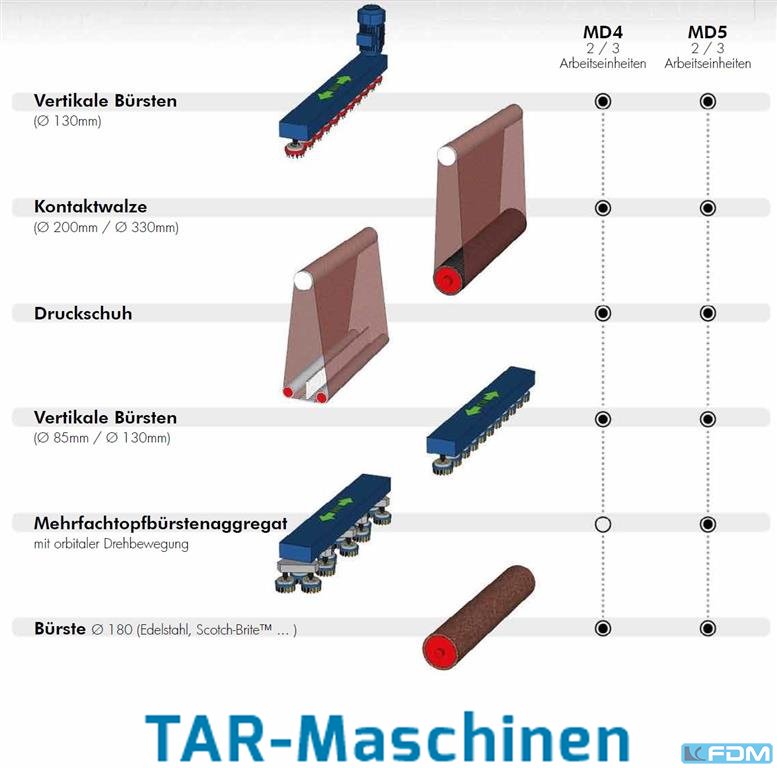

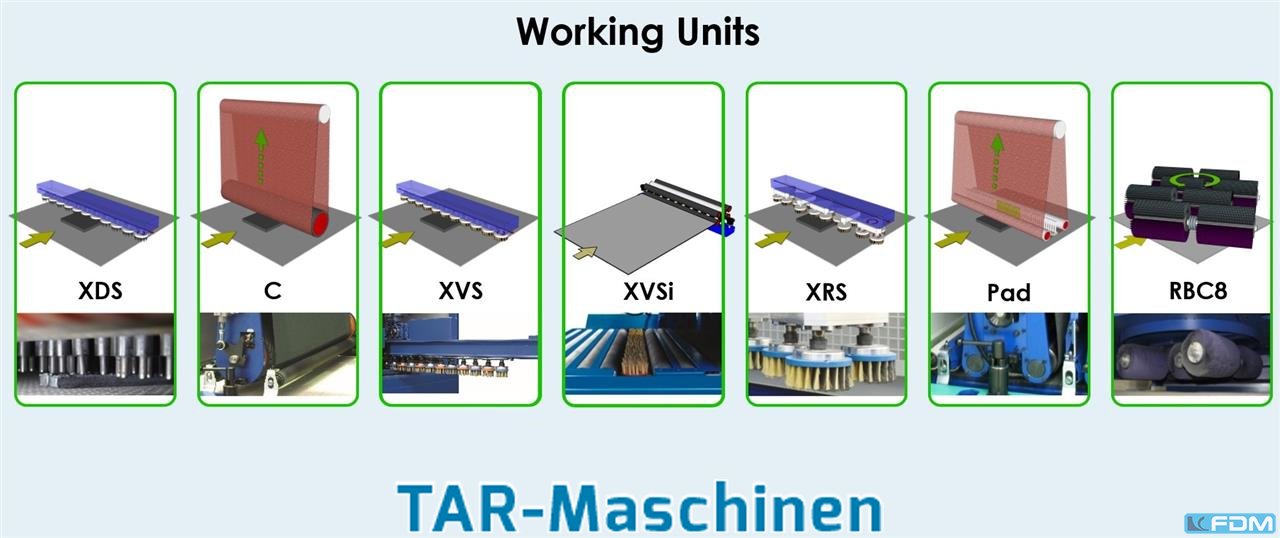

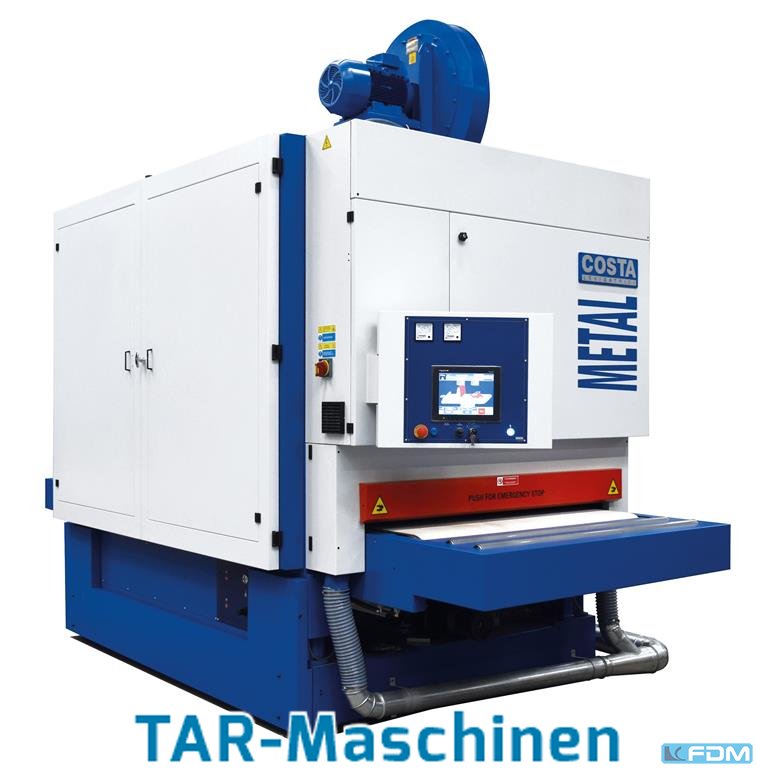

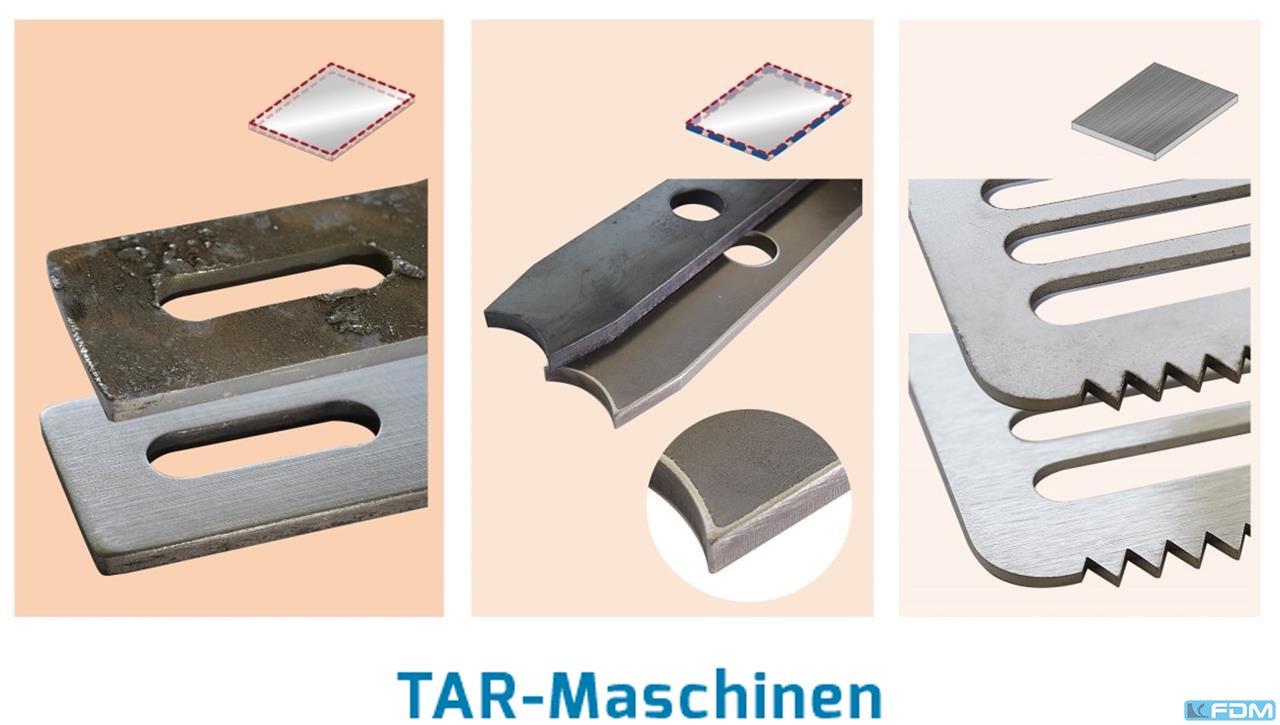

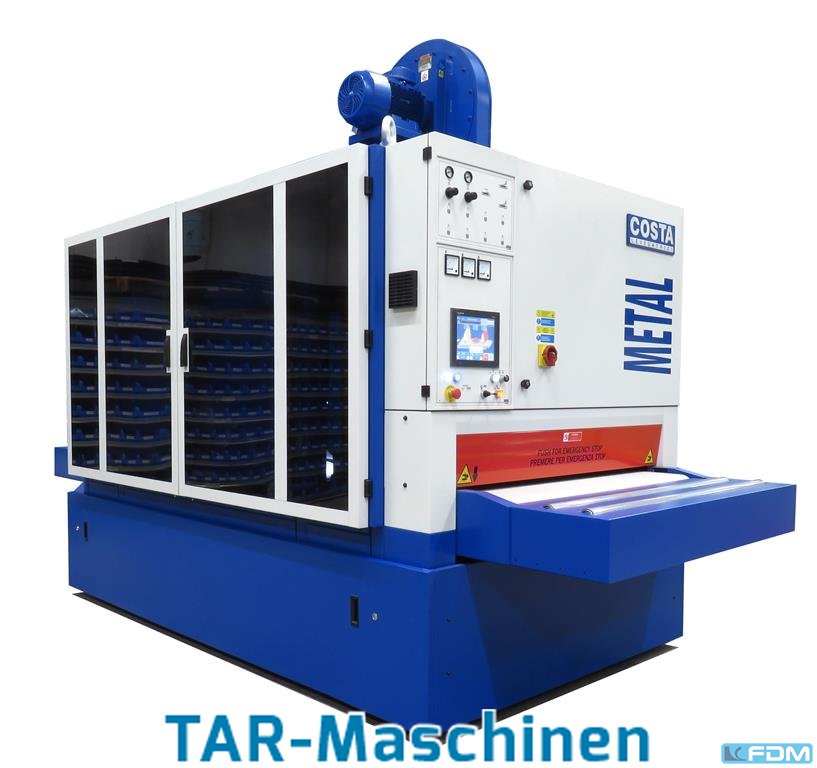

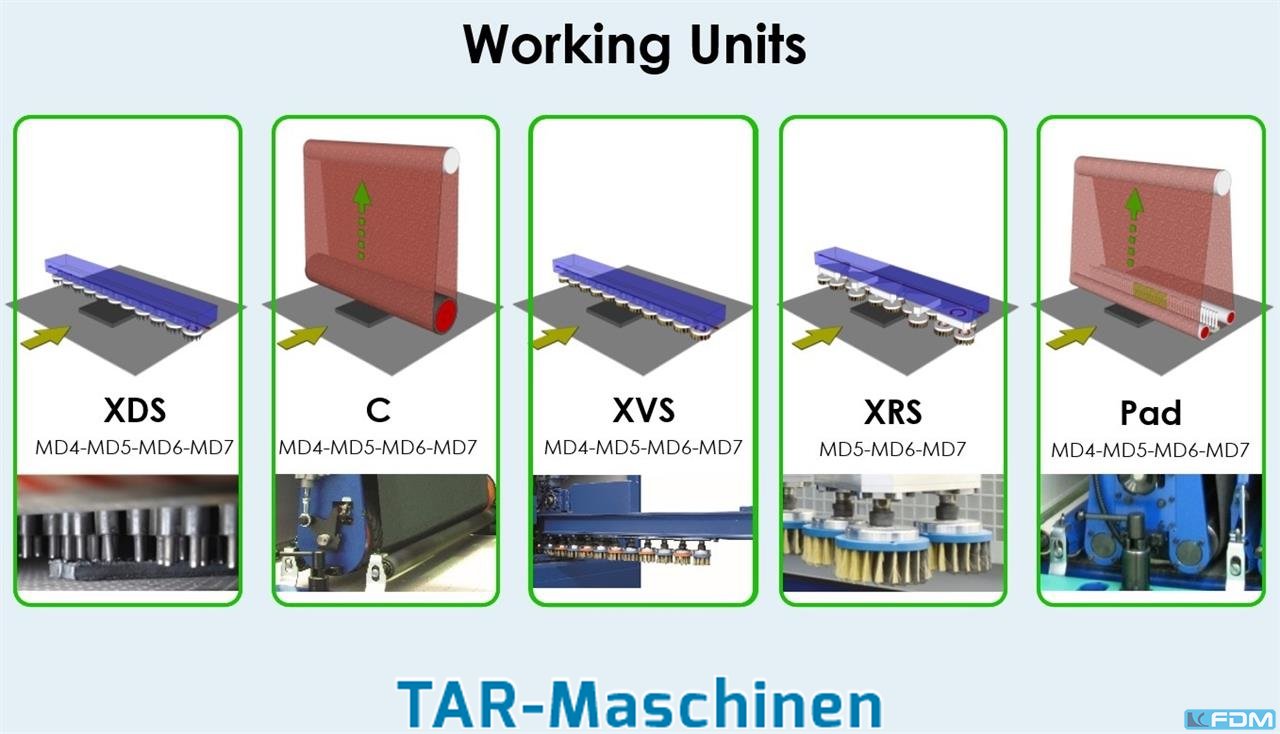

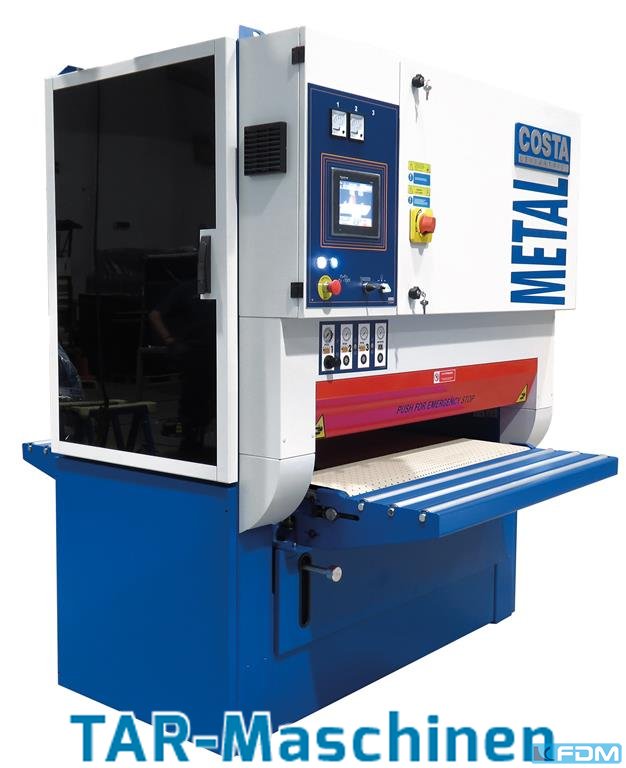

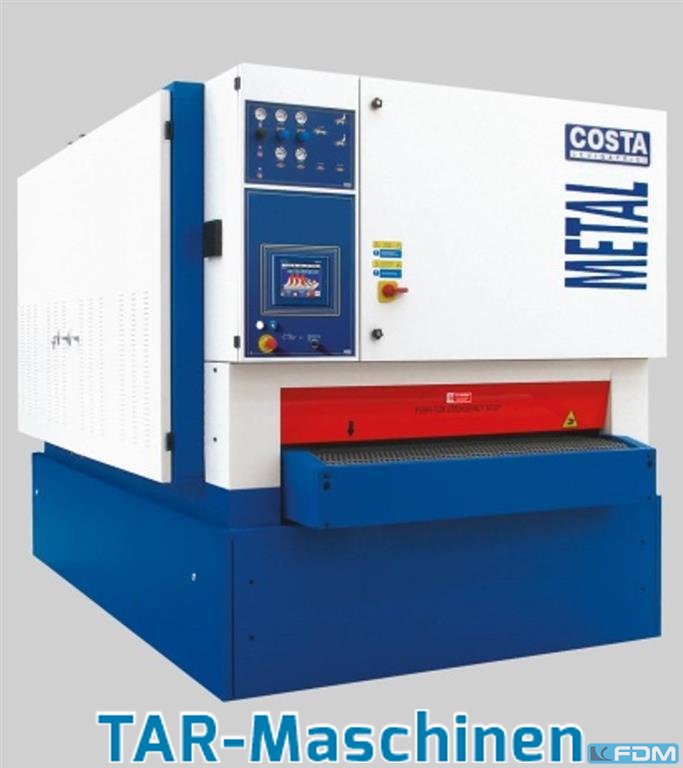

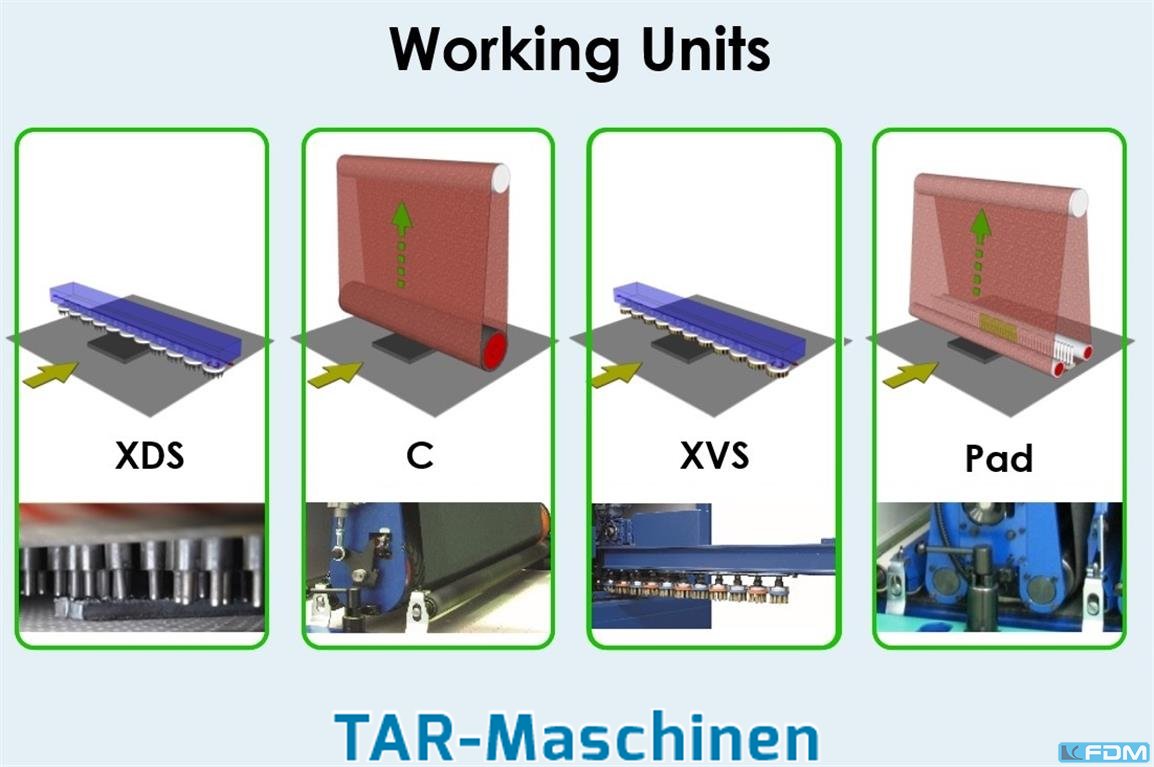

Deburring and fine grinding machine for sheet metal / flat material, newThe compact machining centre for deburring, slag removal, rust removal, oxide layer removal, edge rounding, fine grinding through to polishing metal surfaces.Working height: variable from 0,5mm ? 150mm adjustableWorking width: 1150 mmMaximum part weight: 300 kgWide belts with abrasive belt unwinding: 2200 mmAs standard with vacuum hold system, optional with magnetic hold systemDue to the modular design of the machines, it is possible to offer the optimal configuration for the customer's machining task.The machine structure can accommodate up to 3 internal machining units and an additional external machining unit.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

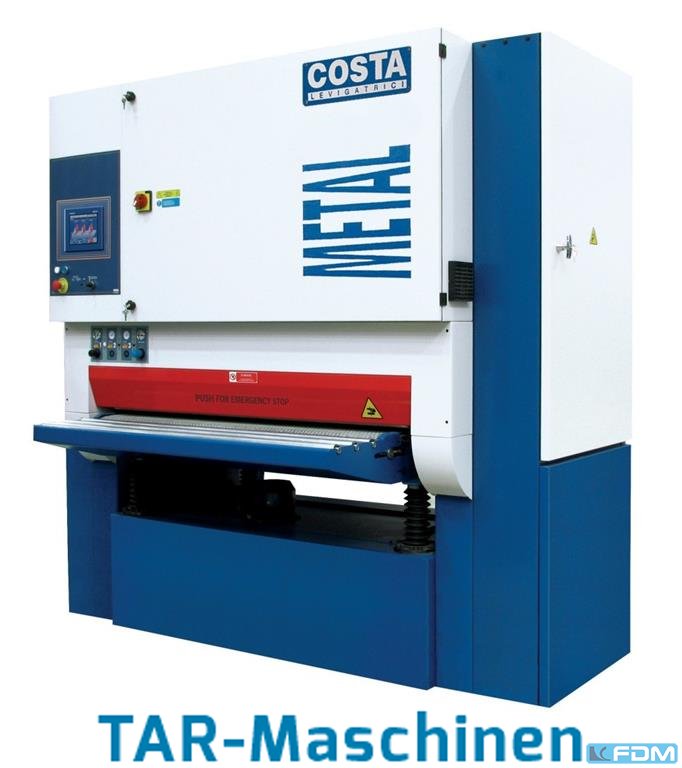

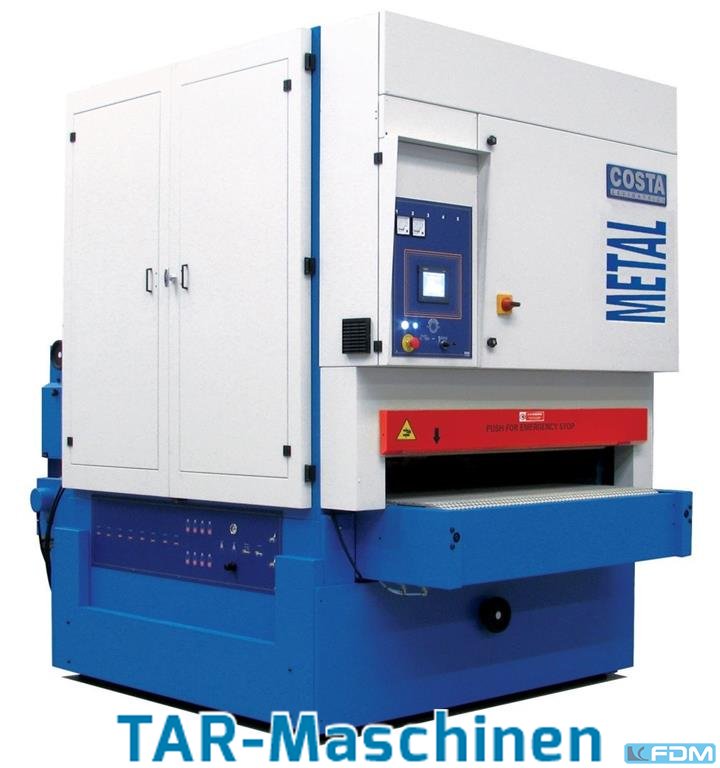

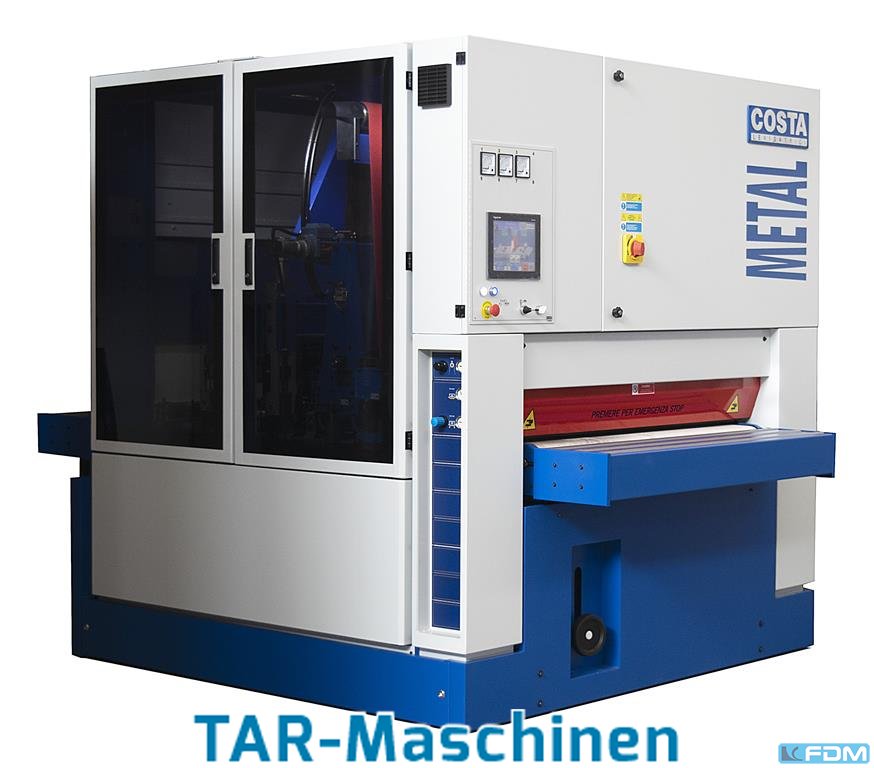

Deburring and fine grinding machine for sheet metal / flat material, newThe compact machining centre for deburring, slag removal, rust removal, oxide layer removal, edge rounding, fine grinding through to polishing metal surfaces.Due to the fixed working height, this machine can also be optimally integrated into a production line and is suitable for machining large parts.Working width: 1350 mmMaximum part weight: 400 kgWide belts with abrasive belt unwinding: 2620 mmAs standard with vacuum hold system, optional with magnetic hold systemBy using 2620 mm long abrasive belts, you get a uniformly smooth surface and reduce consumption costs, as these belts have a longer service life.Due to the modular design of the machines, it is possible to offer the optimal configuration for the customer's machining task.The machine structure can accommodate up to 3 internal machining units and an addition ...

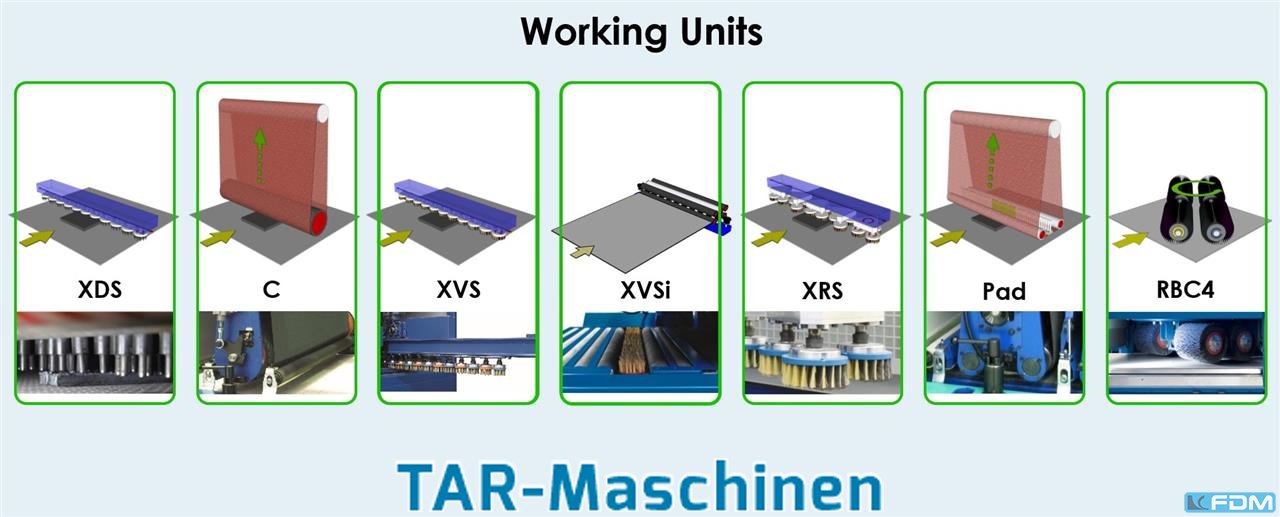

Deburring and fine grinding machine for sheet metal / flat material, newThe compact machining centre for deburring, slag removal, rust removal, oxide layer removal, edge rounding, fine grinding through to polishing metal surfaces.Due to the fixed working height, this machine can also be optimally integrated into a production line and is suitable for machining large parts.Working width: 1150 - 1350 mmMaximum part weight: 500 kgWide belts with abrasive belt unwinding: 2620 mmAs standard with vacuum hold system, optional with magnetic hold systemBy using 2620 mm long abrasive belts, you get a uniformly smooth surface and reduce consumption costs, as these belts have a longer service life.Due to the modular design of the machines, it is possible to offer the optimal configuration for the customer's machining task.The machine structure can accommodate up to 5 internal machining units and 2 ad ...
Deburring and fine grinding machine for sheet metal / flat material, newThe compact machining centre for deburring, slag removal, rust removal, oxide layer removal, edge rounding, fine grinding through to polishing metal surfaces.Machine is suitable for heavy-duty use.Due to the fixed working height, this machine can also be optimally integrated into a production line and is suitable for machining large parts.Working width: 650 - 1650 mmMaximum part weight: 2000 kgWide belts with abrasive belt unwinding: 3250 mmAs standard with vacuum hold system, optional with magnetic hold systemBy using 3250 mm long abrasive belts, you get a uniformly smooth surface and reduce consumption costs, as these belts have a longer service life.Due to the modular design of the machines, it is possible to offer the optimal configuration for the customer's machining task.The machine structure can accommodate up ...
