usado
La desbarbadora ERNST EG3M fue construida en 1988 en Alemania. El mecanizado superficial de piezas de trabajo con un espesor máximo de 70 mm se realiza "en seco" por medio de un rodillo de lijado de eliminación de rebabas instalado en la máquina y dos rodillos de cepillo que se mueven en la dirección opuesta para el redondeo de bordes. Para evitar que la pieza de trabajo se introduzca en el centro de la desbarbadora ERNST EG 3 M, la hoja que se va a desbarbar se presiona sobre la cinta transportadora a través de un rodillo accionado sobre cojinetes holgazanes. La desbarbadora automática ERNST EG 3/M 1400 también permite el uso de una correa magnética para procesar piezas de trabajo más pequeñas. El peso total de la máquina desbarbadora es de 3500 kg. Datos técnicos de la desbarbadora ERNST EG3M - Espesor máximo de la pieza de trabajo: 70 mm - Espesor mínimo de la pieza ...
usado

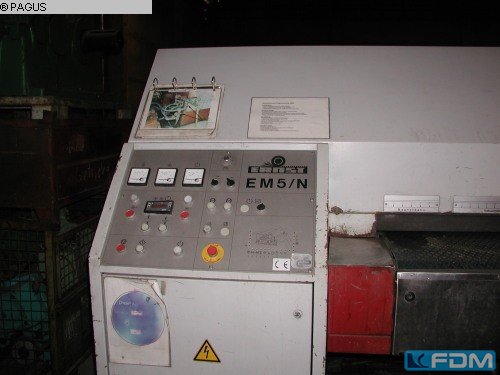

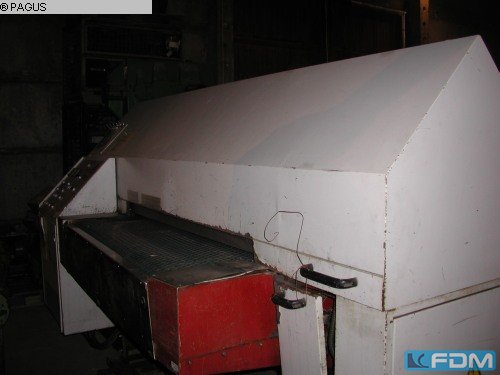

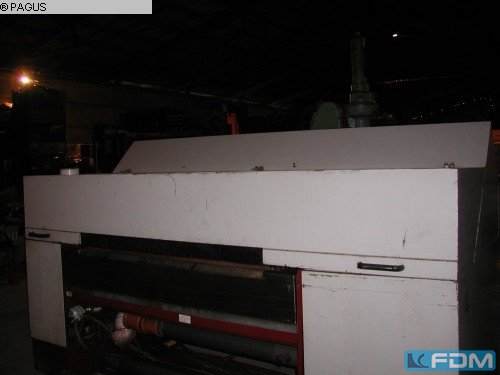

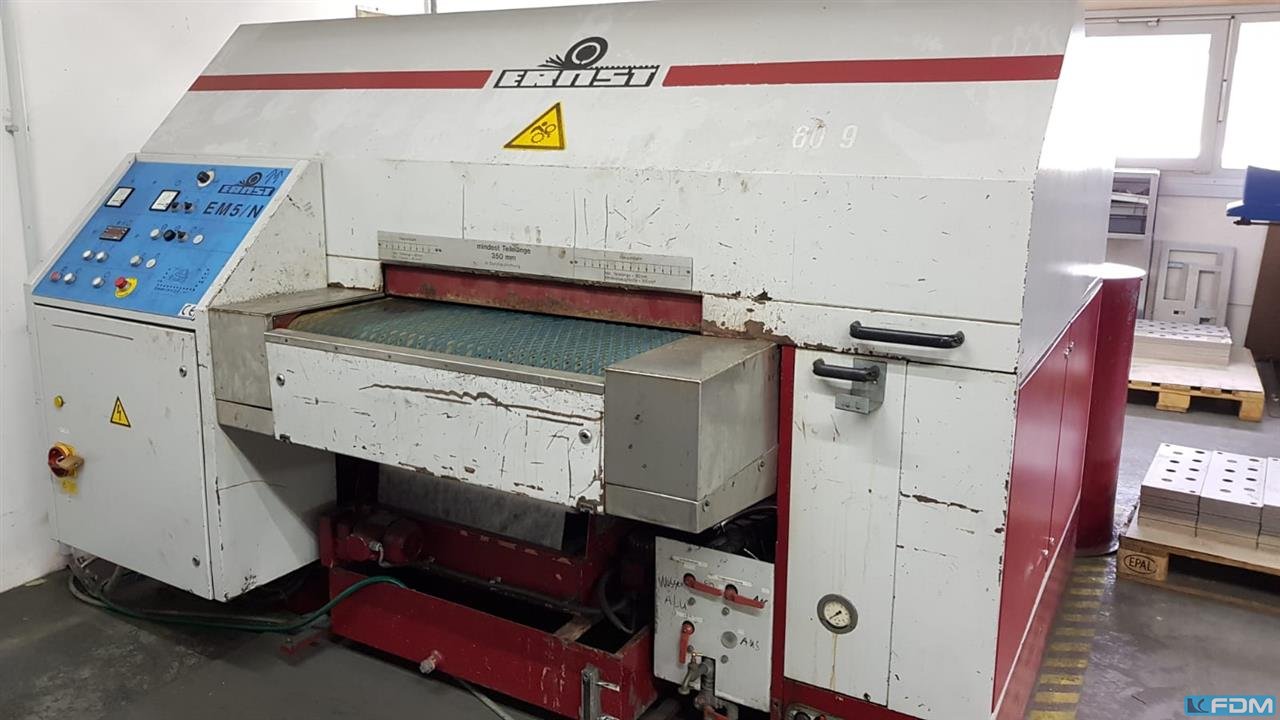

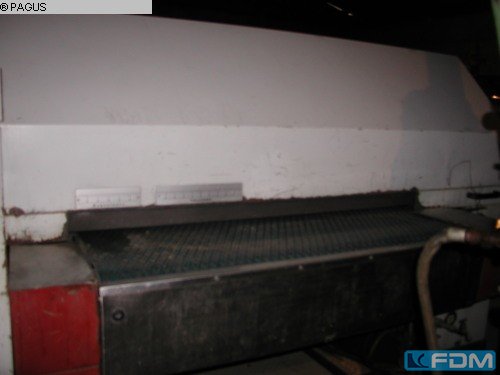

Máquina desbarbadora de chapa Fabricante: ERNST Tipo: EM5/N900 Año de construcción: 1999 Tipo de control: convencional Ancho de trabajo: 880 mm Altura de la pieza: 1-70 mm Diámetro del tambor de molienda: 420 mm Peso de la máquina aprox.: 2.800 kg Dimensiones aprox.: 2.500 x 1.715 x1.675 mm Máquina automática de desbarbado de chapa que trabaja en el proceso de rectificado húmedo Sistema de filtro magnético automático Dispositivo de lijado húmedo Instalaciones de lavado y secado Ancho Maglev: 200 mm Longitud mínima de piezas pequeñas: 80 mm
usado
working width:1400 mm Workpiece thickness max.: 80 mm work height max.:1000 mm Feed speed:4m/min I Stufe, 8 II Stuf m/min. Required air-pressure:max. 5 bar voltage:50 Hz, 380 V workpiece length:320 mm workpiece thickness min.:1 mm weight of the machine ca.:3500 kg Documents:vorhanden
usado
working width:880 mm workpiece height:1- 70 mm work height max.:1000 mm Feed speed:4- 8 m/min. voltage:50 Hz, 400 V weight of the machine ca.:2.800 kg dimensions of the machine ca.:2500 x 1715 x1675 mm width:min. 350 mm Sanding cylinder diameter:420 mm electr. connected load:20 KW Required air-pressure:1 x R3/ 8 " pressure:5 bar tank:des Bandfilter ca.200 l automatic magnetic filter unit:vorhanden grinding tools:1540 x 900 mm accessories::9 Bänder Documents:vorhanden
usado
Description: Includes accessories such as replacement tips, dial gauge holder and more. (see pictures) Approx. Onsite Dimension. (l x w x h): 400 x 350 x 100 mm, weight approx.: 10 kg
usado
This ERNST EM5N II/L Deburring machine was manufactured in the year 2007.
usado
work piece width: 1500 mm plate thickness: 0,8 - 100 mm Brush width: 490 mm Brush diameter: 200 mm immersion travel: ca. 1.5 - 2.0 mm grinding speed: 200 - 1200 U/min band speed: 0,8 - 4.0 m/min work height max.: 950 mm Required air-pressure: 5.0 bar Air consumption: 80.0 l/min. number of brushing / polishing units: 8 Stück Control: NC Touch voltage: 400 V total power requirement: ca. 40.0 kW weight of the machine ca.: 6.100 kg. dimensions of the machine ca.: 3700 x 2750 x 2080 mm Well maintained condition with lots of accessories New price including accessories approx. 180.000 euros Special price on request Furnishing : - ERNST dry wide belt sanding machine TYP ATLAS ER ROTOR” Area of application: - Slag removal / deburring / edge rounding / finish grinding etc. - ERNST NC control including touch screen Control of the entire system graphically supported color terminal Adjustme ...
usado
Deburring machine Ernst Neptun Deburring machine was little used
usado
Manufacturer: Ernst, Type: 830-2, Monting of the machine: längs / längs / längs, Sanding width mm: 1.350, Sanding hight mm: 3 - 120, Number of sanding belts: 3, Sanding belt dimensions: 1.400 x 3.150, Band 1 Leistung kW : 11, Belt 1 shoe unit: yes, Band 1 Schleifbandgeschwindigkeit m/s : 2 - 10, Belt 2 shoe unit: yes, Band 2 Leistung kW : 11, Band 2 Schleifbandgeschwindigkeit m/s : 2 - 10, Band 3 Leistung kW : 18, Band 3 Schleifbandgeschwindigkeit m/s : 1 - 7, Frequency control of belts: 3, Continous adjustable feeding speed m/min: 8 - 30, Vacuum table: yes, Brushing unit: 3 kW, Diameter/ brush bristles: 200,
usado
Manufacturer: Ernst Funierschleifautomat, Type: 840-2, Year: 2003, Monting of the machine: Quer/lang/lang/lang/Bürste, Sanding width mm: 1305, Sanding hight mm: 3-120, Number of sanding belts: 4, Sanding belt dimensions: 2620 X 1350/5400 X 150, Table hight adjustment by engine: yes, Rollers: no, Band 1Querschleifaggregat: yes, Band 1 Leistung kW : 18,5, Band 2 Schuhaggregat: Simplex Schuh, Band 2 Kombiaggregat Walze/Schuh: no, Band 2 Leistung kW : 30, Band 3 Kombiaggregat Walze/Schuh: Simplex Schuh, Band 3 Leistung kW : 30, Band 4 Kombiaggregat Walze/Schuh: Duplex Schuh, Band 4 Leistung kW : 37, Elektronische Tastung mm: yes, Table hight adjustment by engine: yes, Continous adjustable feeding speed m/min: 13,5-60, Feeding engine kw: ca.4, Constant table hight: 880, Vacuum table: yes, Segment sanding shoe: yes, wast cleaning: yes, Ionising: yes, Weight in kg: 10200, Year :2003
usado
Fabricante: Ernst, Tipo: Vakuumventilator, Año: 1993, Diámetro de admisión mm: ca 120 mm, Potencia del motor kW: 2,5, Caudal aprox. m3/h: 1500, Motor de transmisión por correa en V: sí, Lado de salida mm: ca.100, Año: 1993
usado
Fabricante: Ernst , Tipo: AB 1 1300, Año: 1982, Control: no, Limpieza por aire comprimido: sí, Número de unidades: 2, Unidades montadas en posición vertical: sí, Transporte del rollo: sí, Velocidad de alimentación continua ajustable: gekoppelt an Schleifmaschine, chorros de rotor: Kanal, TEXTO LIBRE: Arbeitsbreite 1400/Arbeitshöhe 80/inkl. Turbina, Año :1982
usado
Fabricante: Ernst, Tipo: 830 J-2, Montaje de la máquina: quer / längs / längs, Ancho de lijado mm: 1380, Lijado alto mm: 3 - 120, Número de correas de lijado: 3, Dimensiones de la banda de lijado: 5.400 x 150 + 3.150 x 1.400, Unidades de lijado transversal: 1, Längsschleifaggregado: 2, Banda 1 Leistung kW : 15, Banda 2 Leistung kW : 30, Banda 3 Leistung kW : 37, Velocidad de alimentación ajustable continua m/min: 12 - 36, Lijado intermedio de laca: no, Elevación constante de la mesa: ca 880, Mesa de vacío: 7,5, Unidad de cepillado: 1,1, Peso en kg: 7.400,
usado
working width: 1380 mm workpiece height: 70 mm : total power requirement: 45 kW weight of the machine ca.: 5.500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
