Fabricante:
(Categoría: 101)

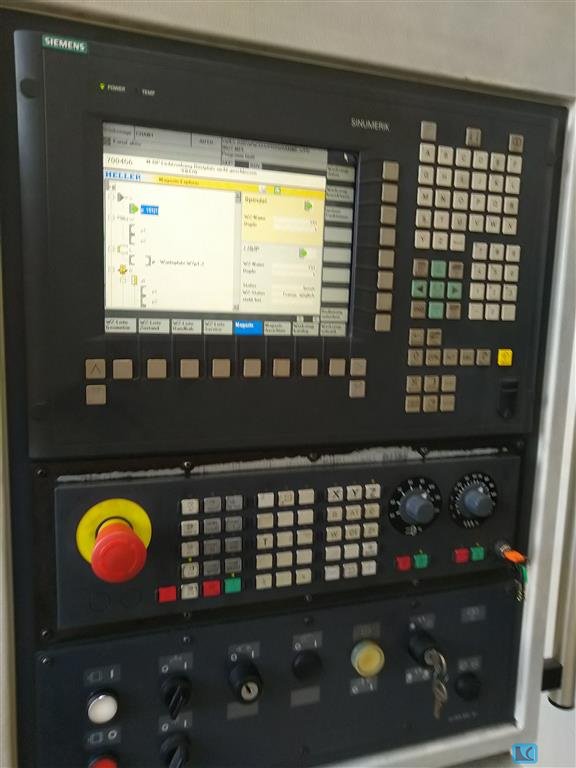

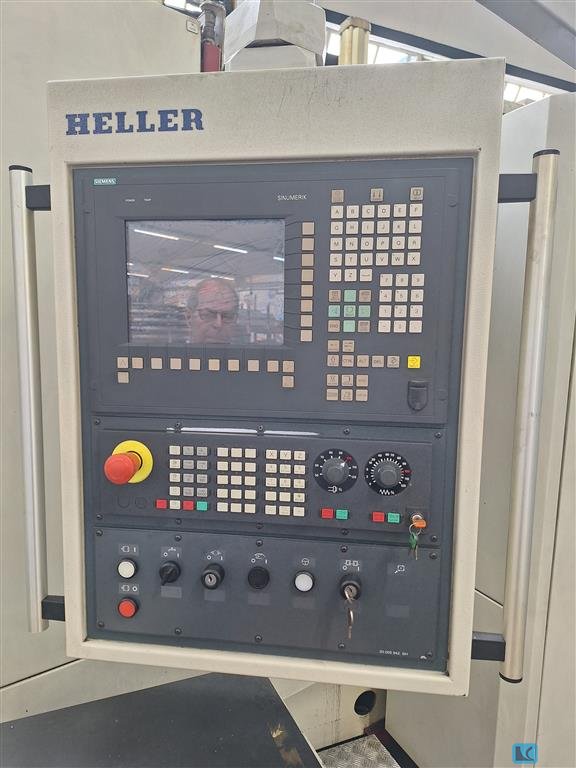

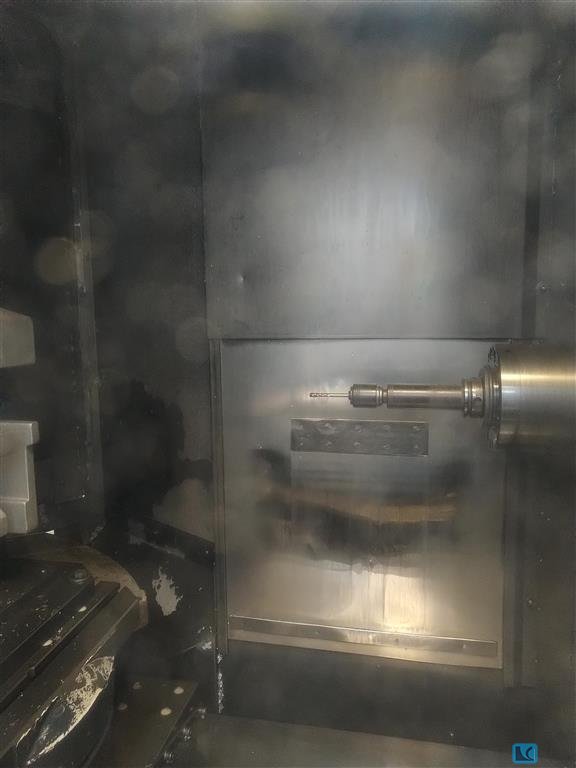

x-travel:800 mmy-travel:950 mmz-travel:1020 mmcontrol:Sinumerik 840D sl MDynamics Operate turning speeds:10.000 1/minSpindle power:26/20 kWmax. torque on the spindle:340/262 Nmtool taper:HSK-A 100 tool change unit:120 (2x60) Pos.Pallet changer 2x:630 x 630 mmtable load capacity:800 kgweight of the machine ca.:20 tdimensions of the machine ca.:3,3 x 6,15 x 3,2 m6-axis simultaneous horizontal machining center with controlled swivel-rotary table (A/B-axis), Swivel table can swing overhead (180°), that means the part is hanging down overhead and chips don?t accumulate on pallet, they can fall free into the chip conveyorCNC controlled U-axis enables radial movement of tool for variable spindling diamenter.twin pallet changer 630 x 630 mm6 hydraulic couplings for pallet fixture clamping with rotary joint in A and B-axisspecial hydraulic pump for fixturecoolant through spindle (10-80bar), one ...

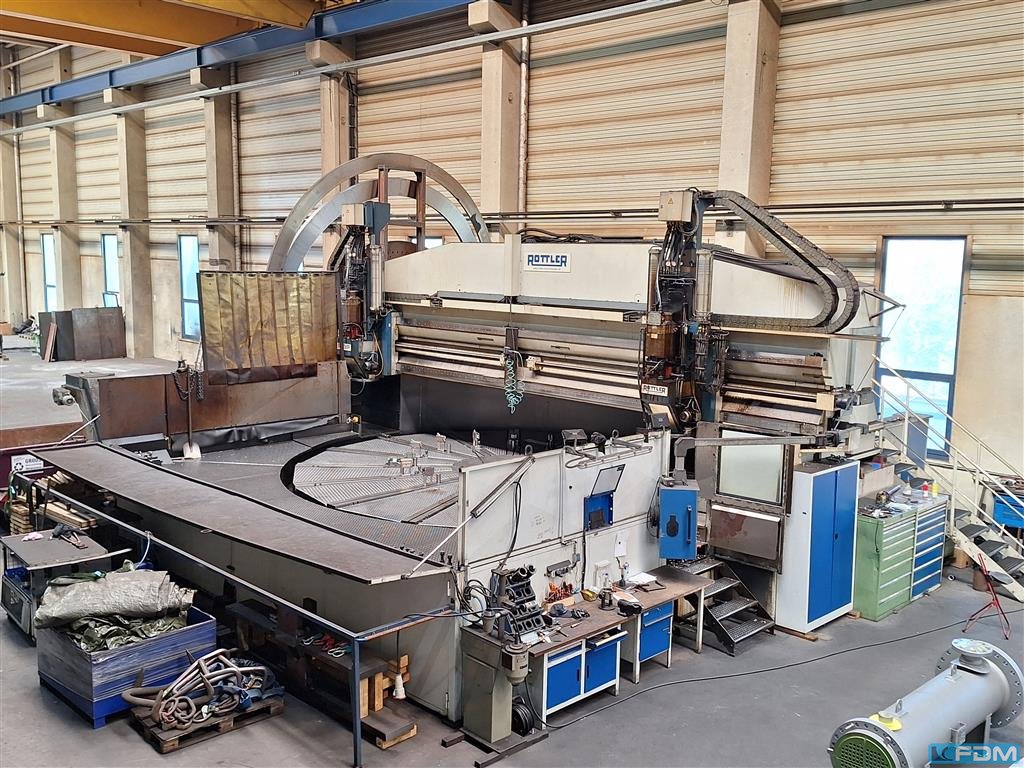

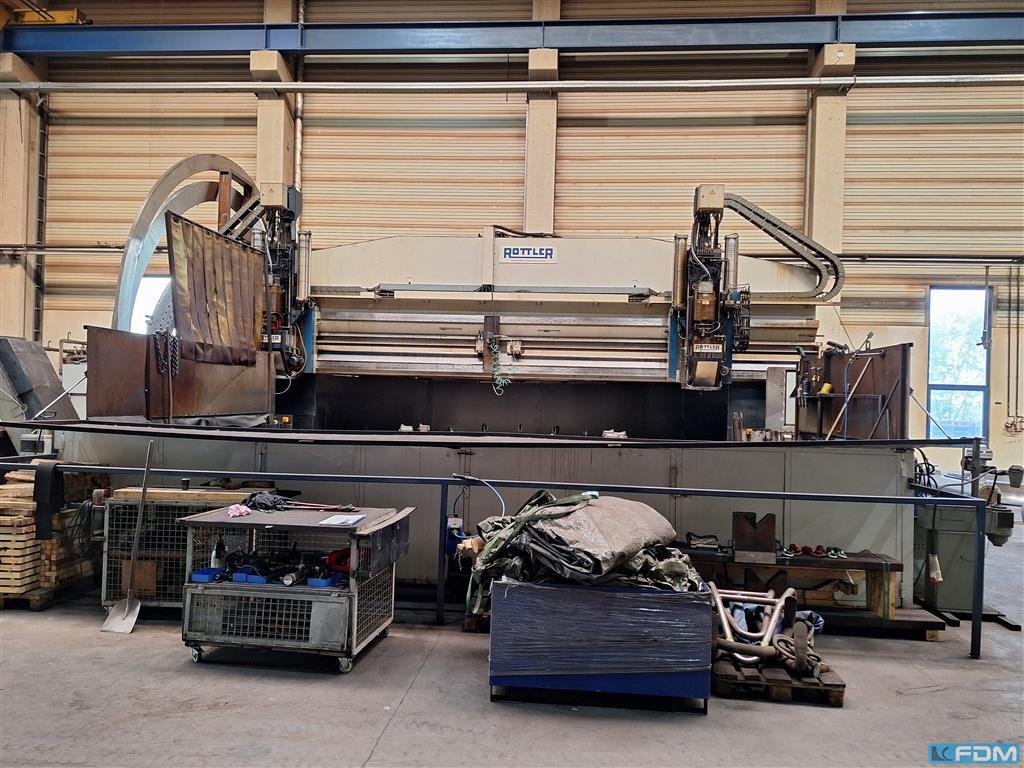

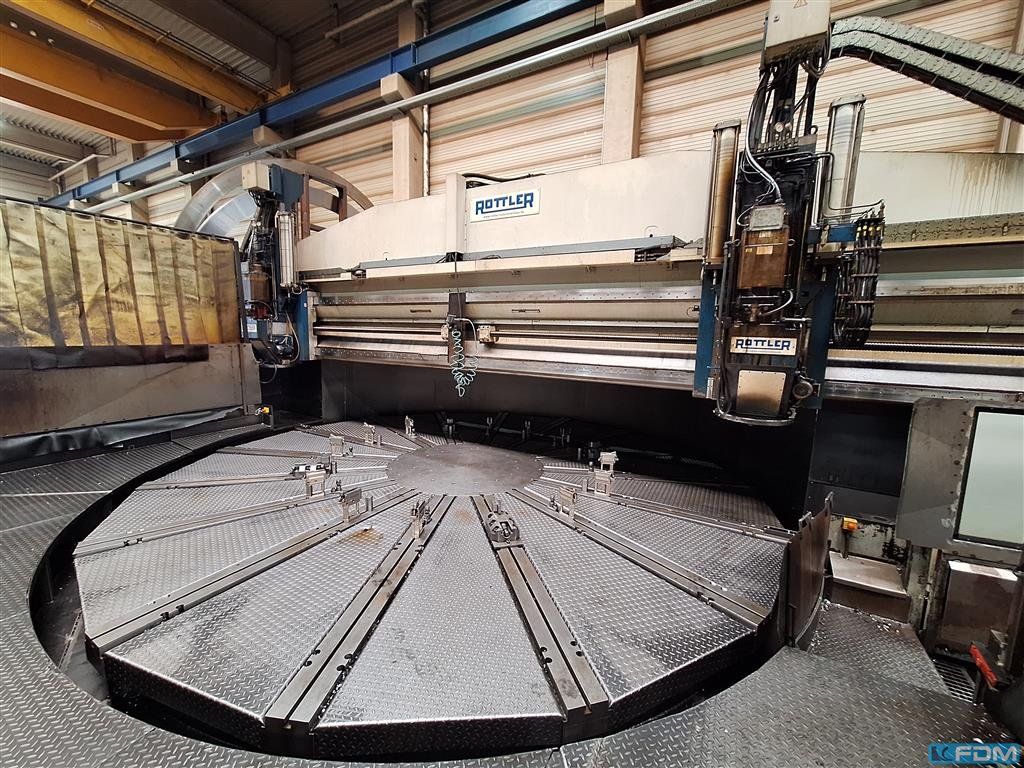

bore capacity in steel (diameter):100 mmmax. pitch circle:7000 mmnumber of spindles:2 bore spindle turning speed range:1 - 3000 U/minhigh speed spindle taper ISO:50 bore slide stroke:900 mmfeed speeds:1 - 6000 mm/minmax. workpiece weight:18000 kgtotal power requirement:125 kWdimensions of the machine ca.:13 x 11 x 5,1 mwith CNC SIEMENS 840 DWorkpiece clamping up to dia. 7000 mmThe machine is equipped with 2 drilling spindle supports and through spindle coolant (50 bar)both supports can drill simultaneously. Spindle taper SK 50, 2 stages 1 -600 rpm 1650 Nm and 1 - 3000 rpm. 300 NmChip conveyor and coolant device
x-travel:2200 mmy-travel:2200 mmz-travel:1400 mmspindle taper ISO:50 spindle diameter in front bearing:110 mmspindle turning speed range:45 - 6000 U/minpallet table size:1000 x 1250 mmpallet worktable capacity:6000 kgfeed range:1 - 60000 rapid traverse:60 m/minspindle drive motor:27 kWdimensions of the machine ca.:15 x 8,5 x 5,7 mtotal power requirement:133 kVAweight of the machine ca.:50 tMachine with SIEMENS 840 D control- full B-axis- palette changer for 3 palettes- tool changer for 244 tools- coolant through spindle- max. workpiece swing 2200 mm
x-travel:1800 mmy-travel:1600 mmz-travel:1400 mmB-axis (table):360° size of pallet:1000 x 1250 mmworkpiece swing dia.:2100 mmworkpiece weight:3500 kgspindle taper ISO:50 spindle drive motor:37 kWspindle turning speed range:25 - 10000 U/minfeed range:40/50 m/minrapid power traverse circular:10 U/mintotal power requirement:90 kVAweight of the machine ca.:43 tdimensions of the machine ca.:11 x 9 x 4,5 mMachine with SIemens 840 D control for 4 axis- full B-axis- palette changer- tool changer for 150 tools- coolant device with coolant through spindle- chip conveyor

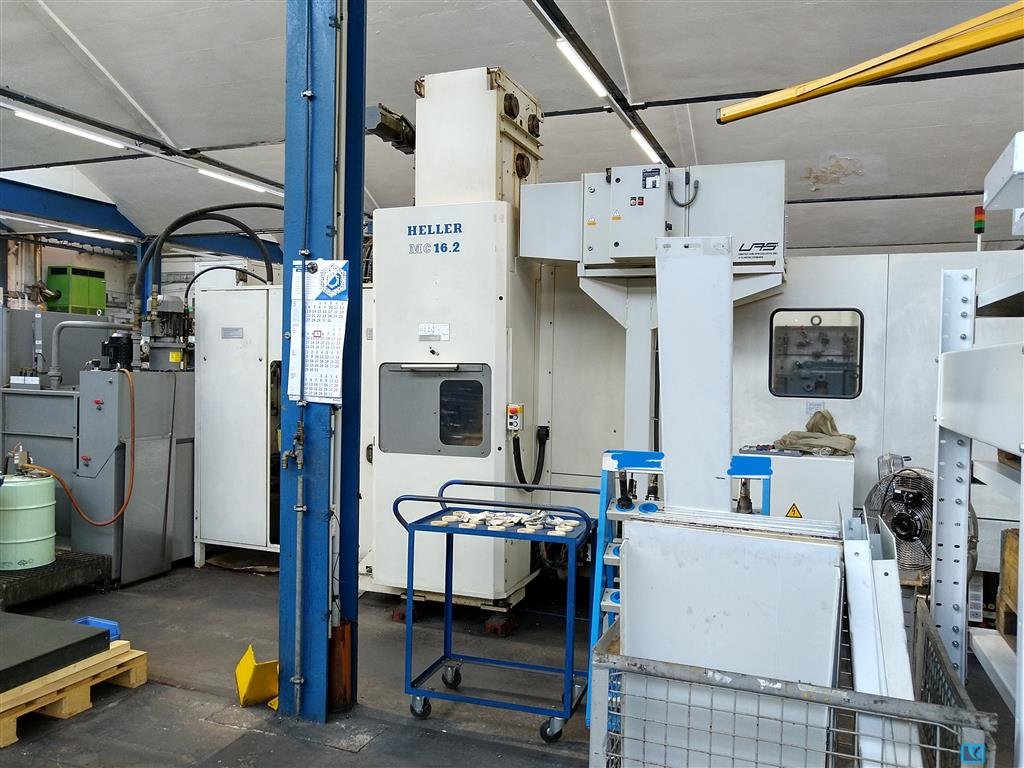

x-travel:630 mmy-travel:630 mmz-travel:630 mmpallet size::400 x 500 mmspindle taper::HSK 63spindle turning speed - stepless:10 - 16000 U/mintotal power requirement:55 kWweight of the machine ca.:11 tMachine with SIEMENS 840 D control for 4 axis- digital drives- palette changer 4-fold- tool changer 160-fold - coolant device with coolant through spindle- full B-axis- chip conveyor- hydr. workpiece clamping
spindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-axis:1520 mmw-axis:1000 mmtable surface area:2000 x 1800 mmworkpiece weight:8 tspindle motor:18 kWspindle taper ISO:50 spindle turning speed range:4,5 - 900 U/minfaceplate diameter:785 mmrapid traverse:5 m/mintotal power requirement:40 kWdimensions of the machine ca.:5,5 x 6,9 x 5,2 mweight of the machine ca.:35 tMachine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control- inf. variable spindle spped- 4 x 90° table positioning- diverse toolholders- dDust exhauster

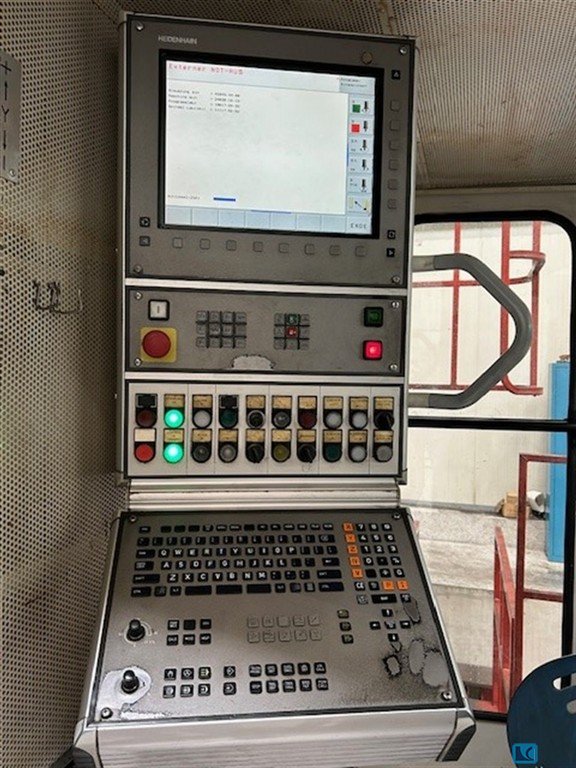

spindle diameter:120 mmx-travel:1250 mmy-travel:1250 mmz-travel:800 mmW-axis (spindle longitudinal):600 mmSpeed of boring spindles:1- 2000 U/min.spindle taper ISO:50 table surface area:1000 x 1000 mmtotal power requirement:55 kWweight of the machine ca.:18 twith CNC HEIDENHAIN TNC 426autom. toolchnager 40-pocketscoolant attachment
Centro de mecanizado de 3 ejes Microcut Challenger 2412 Tecnologías: Perforación / Roscadura, Fresado de Formas (3D), Fresado, Fresado HSC sin vicio Tamaño de la mesa: 30\" x 14,3\" Carga máxima de la mesa: 550 LBS Eje X: 24\" Eje Y: 12\" Eje Z: 20,47\" Velocidad del husillo: 8.000 RPM Cono de husillo: 40 Motor de husillo: 5,5 CV ATC: 16 Auction-ID: A1-48483-2
x-travel: 2165 mmy-travel: 1600 mmz-travel: 1345 mm: 2300 mmTurning Speed of the Rolls: 2300 x 1684 mm: 7000 kgnotching width: 300 1/min: 0,0001 °Positioning speed: 10000 1/min: 37 /30 kW: 150 °Feeds (X,z,u,w-axis): 0,0001 (360°) °: ISO 50 : 42 Control: Mazatrol Smooth X Rapid Travel X / Y / Z-Achse: 42 m/mintotal power requirement: 141 kVAweight of the machine ca.: 51,5 tdimensions of the machine ca.: 4,4 x 5,2 , 7,8 m5-axis multitasking machine featuring:- Mazatrol Smooth X CNC control- Direct-drive table with C-axis accuracy of 0.0001°- Milling spindleThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel:600 mmy-travel:580 mmz-travel:530 mmdistance spindle center to column:630 mmdistance spindle center to table:100-600 mmmilling feed range:1-10.000 mm/minmax. table load:200/100 kgmax. tool weight:8 kgpositioning accuracy:+/- 0,01 mm:8000/15000 1/minspindle drive:7,5/11,5 /5,5 kWrepeating accuracy:+/- 0,008 mmweight of the machine ca.:7,4 / 7,65 tBrand-new CNC vertical machining center with CNC control FANUC or HEIDENHAINWarranty: 12 monthsMore information can be found in the Appendix.

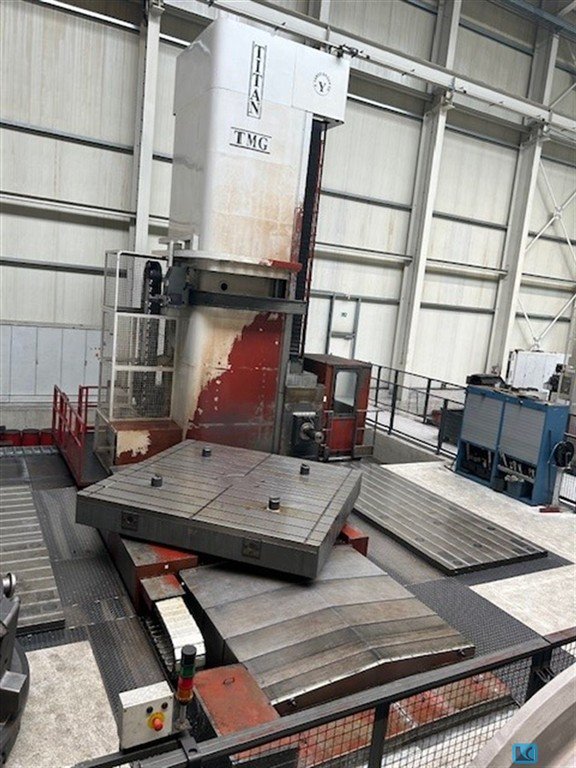

spindle diameter:200 mmx-travel:10000 mmy-travel:4000 mmz-axis:1500 mmW-axis (spindle longitudinal):1000 mmbore spindle turning speed range:1 - 2000 U/mindimension of the ram:600 x 530 mmhigh speed spindle taper ISO:60/50 rapid motion - x-axis:8000 mm/minrapid motion - y-axis:8000 mm/minrapid traverse Z-axis:5 m/mintotal power requirement:120 kWweight of the machine ca.:135 tdimensions of the machine ca.:16,0 x 5,0 x 10,0 mwith CNC Steuerung HEIDENHAIN iTNC 530hydrostatic guideways x and Y- axisautom. toolchanger 40-pocketsautom. Pickup Station for angular milling head, universal milling head and facing headrotary table 3000 x 3000 mm , max load 60 to.v-axis 2500 mmchip conveyor and coolant attachment
x-travel:800/945 mmy-travel:800 mmz-travel:600 mmspindle motor:27 kWspindle turning speed range:10 - 8000 U/minspindle taper ISO:40 c-axis:360.000 x 0,001 table load capacity:600 kgtable clamping surface::800 630 mmtotal power requirement:55 kWweight of the machine ca.:16 tMachine with Heidenhain iTNC 530 CNC control for 5 axis- pendulum operation with turn- swivil table left and fixed table right- tool changer for 30 tools- coolant device, chip conveyor- complete splash housing
spindle diameter:130 mmspindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-travel:1000 mmw-axis:1075 mmtable surface area:2000 x 1800 mmworkpiece weight max.:8000 kgspindle turning speed range:4,5 x 900 U/minspindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/minfaceplate diameter:785 mmrapid traverse::5000 mm/mintotal power requirement:40 kWweight of the machine ca.:35 tdimensions of the machine ca.:5,5 x 6,9 x 5,2 mMachine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds- table indexing 4 x 90°- facing head 785 mm- exhauster- various arbors and tooling
Diámetro de la capacidad de perforación: 25,0/30,00 mm, Profundidad de garganta: 260 mm, Carrera de perforación: 120 mm, Velocidad de rotación del husillo: 80-1400 min-1 Auction-ID: A1-48483-43
Desplazamiento X — 600 mm Y de recorrido — 450 mm Z de recorrido — 450 mm Velocidades del husillo — 20–6300 rpm Número de herramientas — 30 piezas. Portaherramientas — SK 40 Potencia total requerida — 17 kW Peso de la máquina — aprox. 4 t Dimensiones — aprox. 3,2 × 3,4 × 2,2 m Auction-ID: A1-48483-118
distance spindle /table:min /max 190 / 570 mmdistance spindle /table:190 - 570 mmsurface area:650 x 300 mmBoring power:in GG 20 40 mmbore capacity in steel:ST 60 32 mmturning speed range::50 - 5000 UpMtotal power requirement:2,2 kWthreading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kgtable load:max. 150 kgtable height:770 mmtraversing speed:max X-, Y- u. W-Achse 5 m/min max.traversing speed:Z-Achse 3 m/minw-axis:380 mmworkpiece height max.:495 mmtool changing time:ca. 3 secx-travel:450 mmy-travel:300 mmz-travel:180 mmworkpiece weight:1,5 kg
x-travel:800 mmy-travel:690 mmz-travel:630 mmtotal power requirement:76 kWweight of the machine ca.:25,5 tb-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kgspindle turning speed range:15000 U/minBoring power:30 mmplate size:630 x 630 mmDimension:6000 x 2900 x 2400 mmspindle taper::HSK 63 Documents:vorhanden
x-travel:630 mmy-travel:560 mmz-travel:560 mmtotal power requirement:10 /15 kWweight of the machine ca.:6500 kgdimensions of the machine ca.: 4,4 x 5,4 x 2,9 mTable dimensions:1000 x 610 mmLoading:400 kgrapid traverse::X 26, Y 26, Z 20 m/minspeeds::20 - 12.000 min -1tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St.control:CNC MillPlus/TNC430 Documents:vorhanden

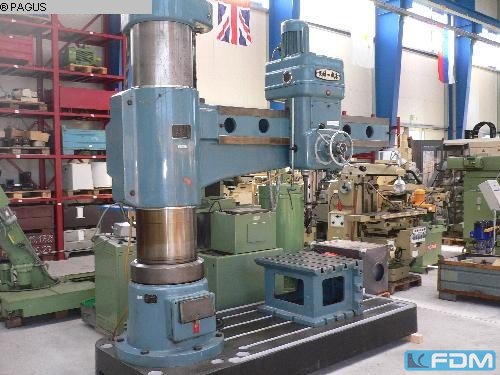

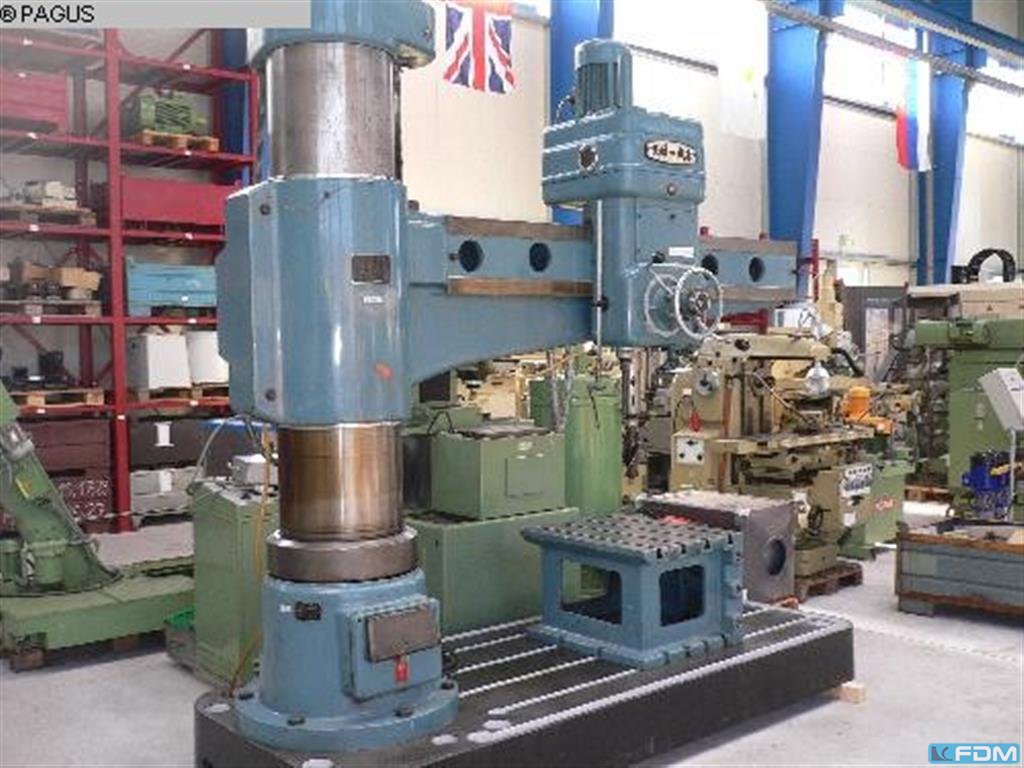

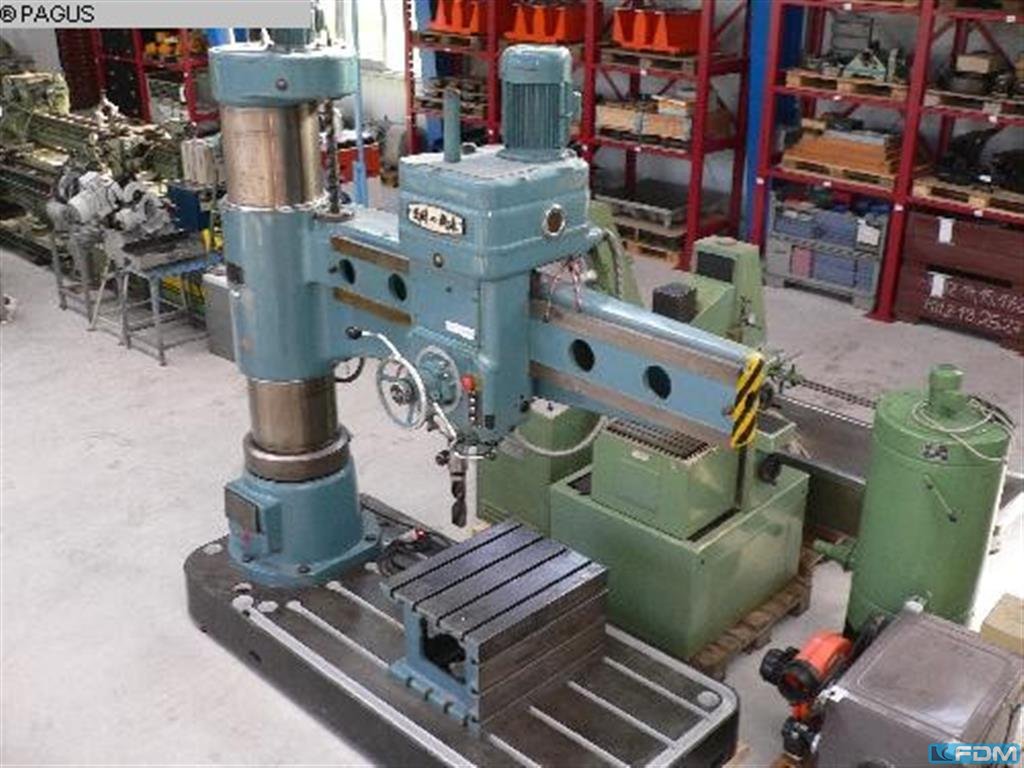

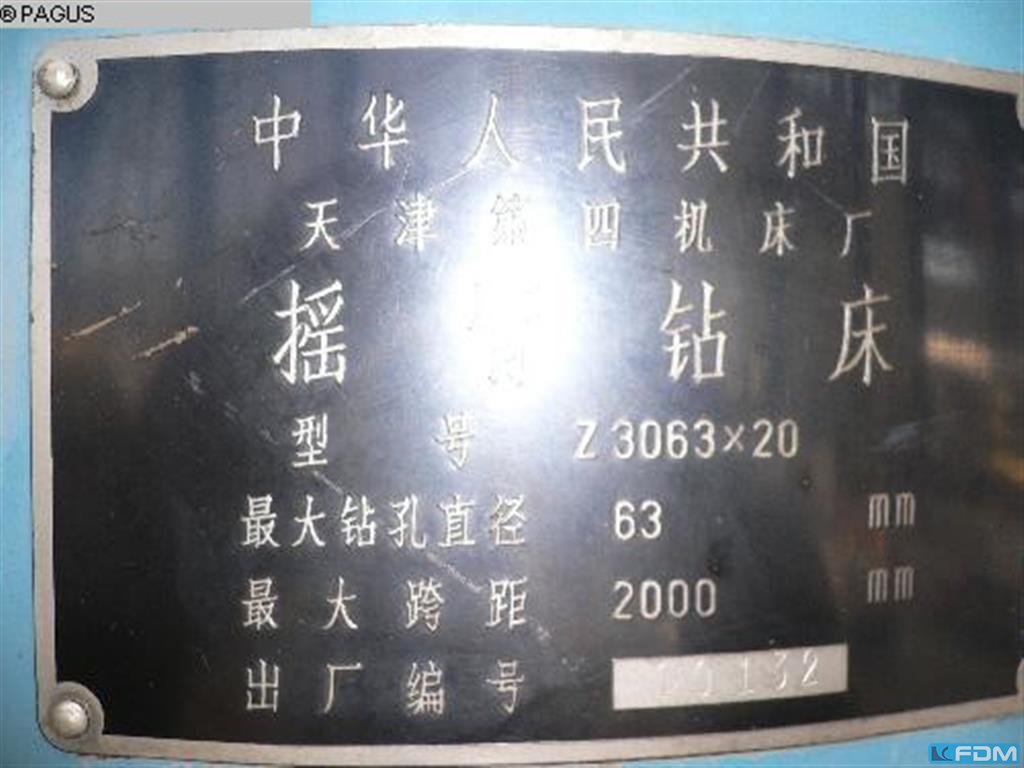

bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990
bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990
bore capacity in steel (diameter):40 mmarm length:1200 mmworkpiece height max.:1227 mmsurface area:1475 x 900 mmno. of flutes:3 groove width:25/ 50 mmspindle cone:MORSE 4 number of spindle speeds:45- 2800 U/minspindle headstock:Bew.Arm : 945 mmwith vertical adjustment:Arm 710 mmspindle diameter:35 mmbore depth:300 mmtotal power requirement:3,0 kWweight of the machine ca.:2800 kgdimensions of the machine ca.:2290 x 910 x 2860 mm
bore capacity in steel (diameter):40 mmarm length:1200 mmworkpiece height max.:1227 mmsurface area:1475 x 900 mmno. of flutes:3 groove width:25/ 50 mmspindle cone:MORSE 4 number of spindle speeds:45- 2800 U/minspindle headstock:Bew.Arm : 945 mmwith vertical adjustment:Arm 710 mmspindle diameter:35 mmbore depth:300 mmtotal power requirement:3,0 kWweight of the machine ca.:2800 kgdimensions of the machine ca.:2290 x 910 x 2860 mm

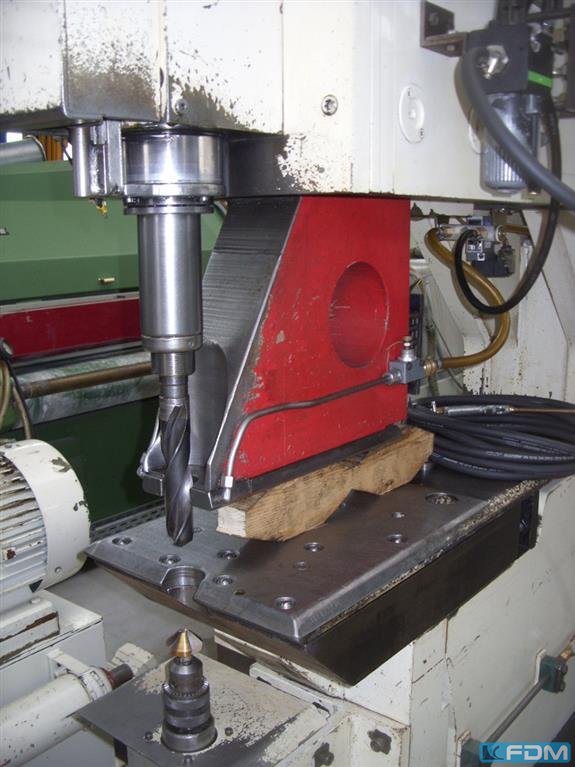

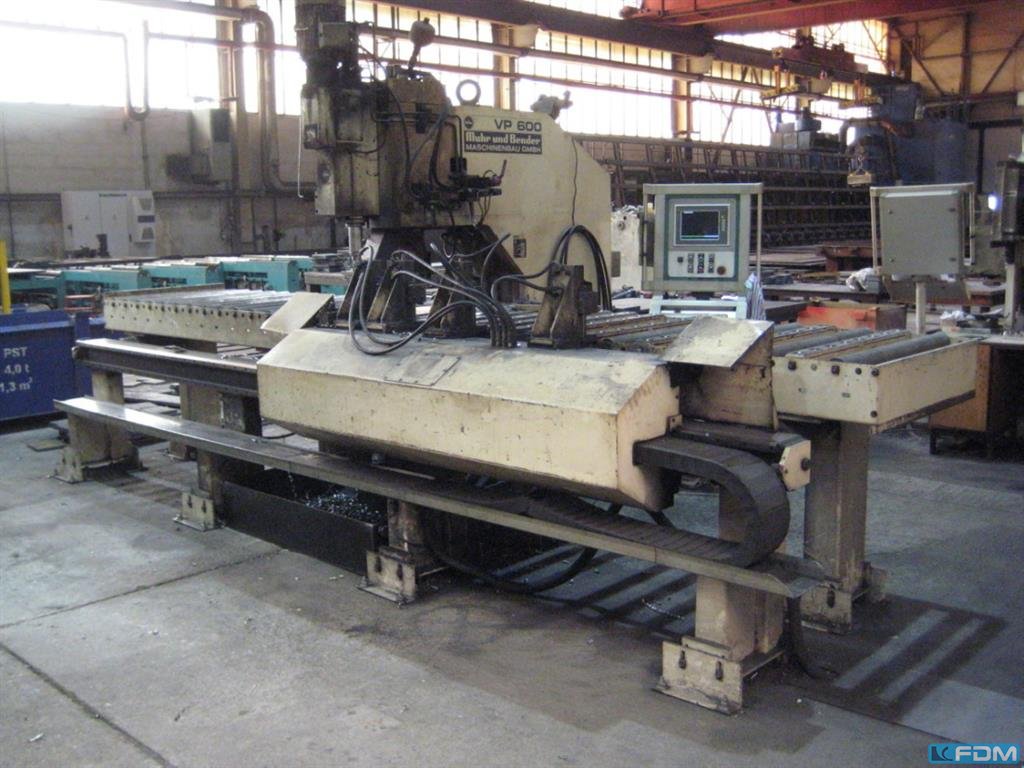

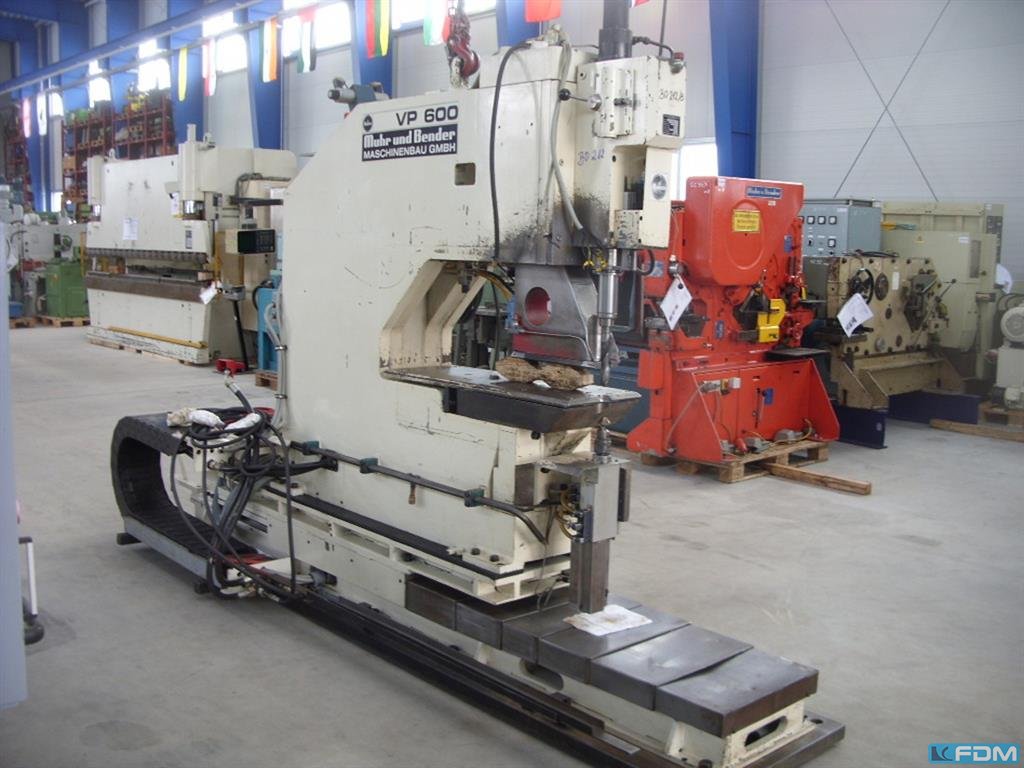

workpiece thickness max.:80 mmworkpiece thickness min.:5 mmplate size without being adjusted:2000x1000 mmsize of plate min.:100x100 mmcontrol:CNC Mubea Matic100 hole diameter:min/max:10/40 mmworkpiece weight:750 kgdeburring device max.:d=40 mmtraversing speed:80 m/minwork height max.:1050 mmpositioning accuracy:+/- 0,5 mmopening of gripping pliers min/max.:Typ I: 5/45 mmopening of gripping pliers min/max.:Typ II: 45/85 mmfeed length:max. 150 mmrapid traverse::8 m/minspindle turning speed range:112-180-224-280-355-560 U/minwork table::L:2500;B:950 mmarm gripping device:4 Stück tool taper:Kegel DIN 6327 longitudinal travel:x=2800 mmcross travel:y=1000 mmbore spindle stroke:max. 150 mmtotal power requirement:25,0 kWweight of the machine ca.:5,5 tspace requirements approx. LxWxH:5,0x5,5x2,7 mplate size with beeing adjusted also 1000x4000 mm possiblewith roller conveyor 2x1000mmmaterial supp ...
bore capacity in steel (diameter):5 - 30 mmx-travel:450 mmy-travel:380 mmtotal power requirement:1,4 / 2,2 kWweight of the machine ca.:1.100 kgdimensions of the machine ca.:1.000 x 1.400 x 2.900 mmgear box:85 - 2.000 U/minspindle diameter:72 mmbore depth:700 mmthroat:300 mmspindle taper MT:3 T-slots:3 x 16/25 mmtable-size:700 x 300 mmspindle turning speed range:85/170/250/355/475/710/1000/2000 U/minmotor speeds::705/1425 Year:ca. 1975
bore capacity in steel (diameter):40 mmarm length:1250 mmworkpiece height max.:1390 mmspindle taper: MT:5 table surface area:750 x 1380 mmsurface area:1450 x 920 mmtotal power requirement:5 kWweight of the machine ca.:3000 kgdimensions of the machine ca.:2060× 930 × 2760 mm
bore capacity in steel (diameter):40 mmarm length:1250 mmworkpiece height max.:1390 mmspindle taper: MT:5 table surface area:750 x 1380 mmsurface area:1450 x 920 mmtotal power requirement:5 kWweight of the machine ca.:3000 kgdimensions of the machine ca.:2060× 930 × 2760 mm
bore capacity in steel (diameter):45 mmWORKING RANGE -BORING-:. - drilling capacity full bore (steel):45 mm - drilling capacity full bore (cast iron):55 mm - horizontal travel:1050 mm - vertical travel:450 mm - sleeve stroke:200 mmWORKING SPINDLE / HEAD:. - spindle revolutions (min):15 /min - spindle revolutions (max):2800 /min - number of gears:2 - taper fixture : MK 4 :. - spindle power (continuous):5.5 kW - torque (max.):250 Nm - max. distance spindle ... clamping surface:710 mm - thread cutting attachment : yes :. TABLE:. - clamping surface (left-right):1200 mm - clamping surface (front-back):750 mmELECTRICAL SPECIFICATIONS:. - total power consumption:7 kW - mains power supply:9.3 kVA - mains voltage:400 V - mains frequency:50 HzDIMENSIONS / WEIGHTS:. - space requirements length:3000 mm - space requirements width:3000 mm - total height:3000 mm - total we ...

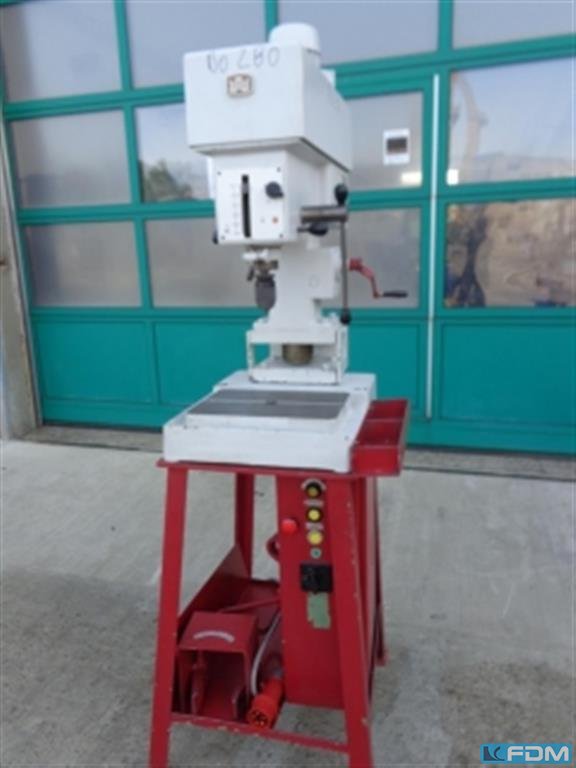

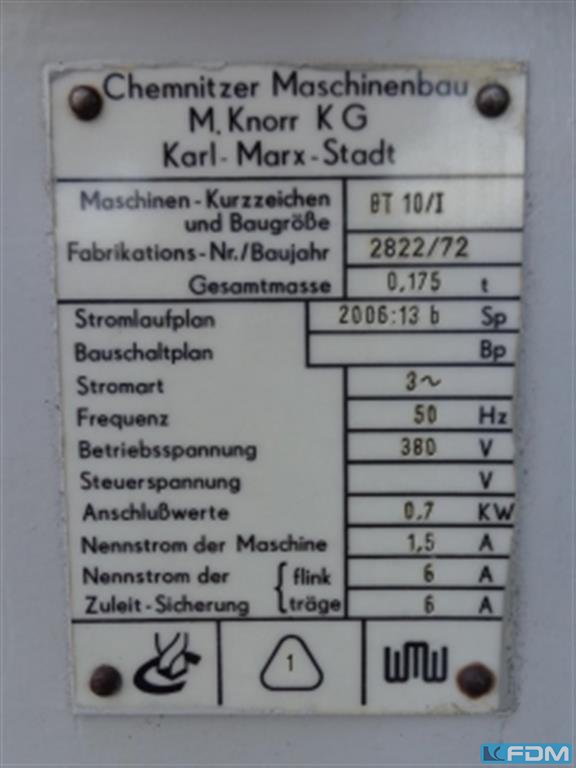

bore capacity in steel (diameter):10 mmthroat:210 mmbore stroke:100 mmtotal power requirement:0,7 kWweight of the machine ca.:302 kgdimensions of the machine ca.: 620 x 800 x 1950 mmTable dimensions:350 x 250 mmspindle speeds::250, 355, 710, 1000, 1400, 2000, 2500 U/min

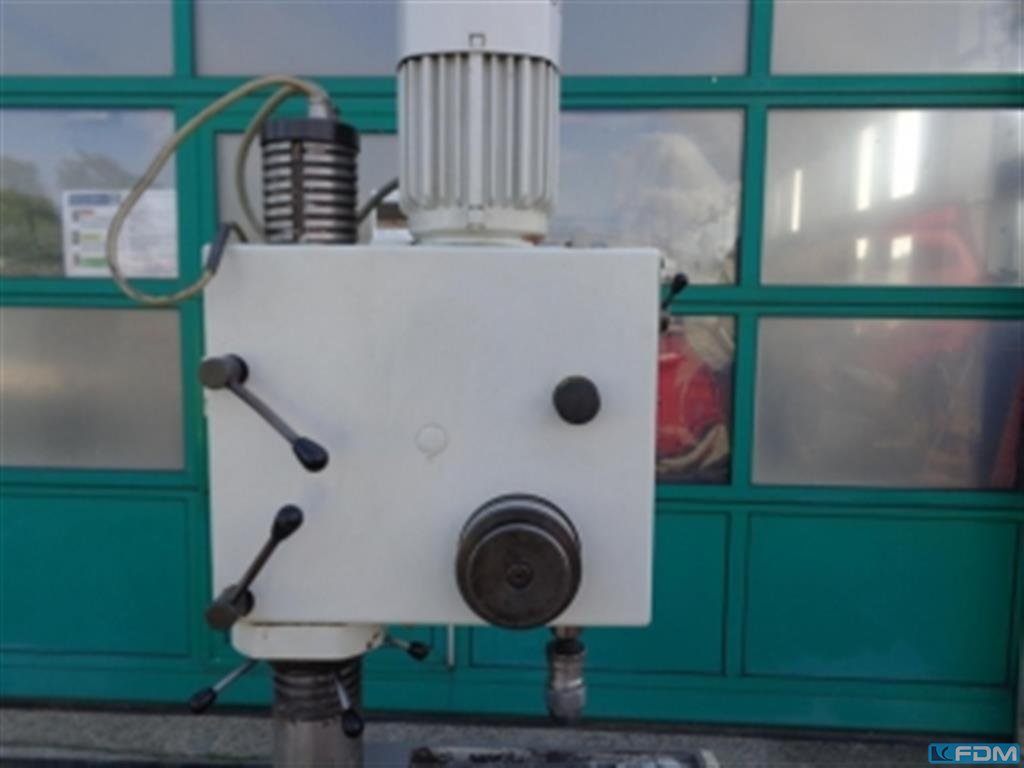

bore capacity in steel (diameter):10 mmthroat:210 mmbore stroke:80 mmtotal power requirement:1,1 kWweight of the machine ca.:195 kgdimensions of the machine ca.:530 x 650 x 1850 mmspindle speeds::355, 710, 1400, 2800 U/minTable dimensions:340 x 280 mm
6.500 €
