Technical data Manufacturer: HAMLET Type: UD 24 CNC Year of Make: 1993 Machine No.: 327 Control: Siemens Sinumerik 820 T GA3 Voltage: 380 V Connected load: 11.25 kW Max. circumferential Ø over bed: 190 mm Max. turning length between tips: 190 mm Spindle passage: 36 mm Max. spindle speed: 8000 rpm Operating hours: approx. 21909.8 h Configuration 2-axis path control Siemens 820 T GA3 8-fold tool system Tool wheel Ø 185 mm VDI 3425 Tool holder Ø20 mm Pneumatic-hydraulic tailstock Quill stroke 80 mm Quill Cone MK2 Hand Pneumatic Hydraulic Clamping Device Röhm Chuck Type 27/40 Pressure collet device Ø24 mm Prepared for bar feeding Workpiece collection and universal interface available Auction-ID: A7-47277-3045
turning diameter:325 mmturning length:600 mmtotal power requirement:35 kWspindle drive:25 kWspindle turning speed range:5000 U/minspeeds of tool:4500 U/minrapid traverse X-axis:60 m/mindiverse toolholders:VDI 40 rapid traverse Z-axis:45 m/minweight of the machine ca.:6,5 tdimensions of the machine ca.:3,5 x 2,5 x 2,1 mMachine with SIEMENS 840 D control power line with shopturn- C and Y-axis, driven tools- bar loader IRCO ILS-RBK- coolant device with coolant throough revolving head- Revolver- counter spindle- chip conveyor- collet clamping - part catcher
: neu : Bulgarien : 24940 €: 478.85 €: 325 mm: 750 mm: 165 mm: 32 mm: 190 mm: 200 mm: 5 : 4,5 MK: 2 : 85-405, 470-2200 U/Min: 48 : 0.006 - 1.77 mm/U: 0.003 - 0.885 mm/U: 0.1 - 28 mm: 0.1 - 1.75 : 70 - 4 : 150 mm: 95 mm: 40 mm: 3 MK: 100 mm: 2.2 kW: 2150 mm: 950 mm: 1350 mm: 770 kgdriven by variable speed control (2 steps)3-axes digital readout FAGOR with CSS (constant surface speed)quick change toolpostAmestra with 4 holders (3 square, 1 round)3-jaw chuck Bison 3204/DIN6350, Ø 160 mmspindle dead centercoolant equipmentfull length rear splash guardleadscrew and shaft protectionsafety guard for the chucktoolholder guardlevelling bolts and platesquick release tailstocklow voltage machine lampoperating manualmachine according to ",CE",FURTHER TURNING LENGTHS: turning length1.000 mm € 25.360,-The data for this ad was created with ModulMWS - the software solution of LogoTech oHG ...

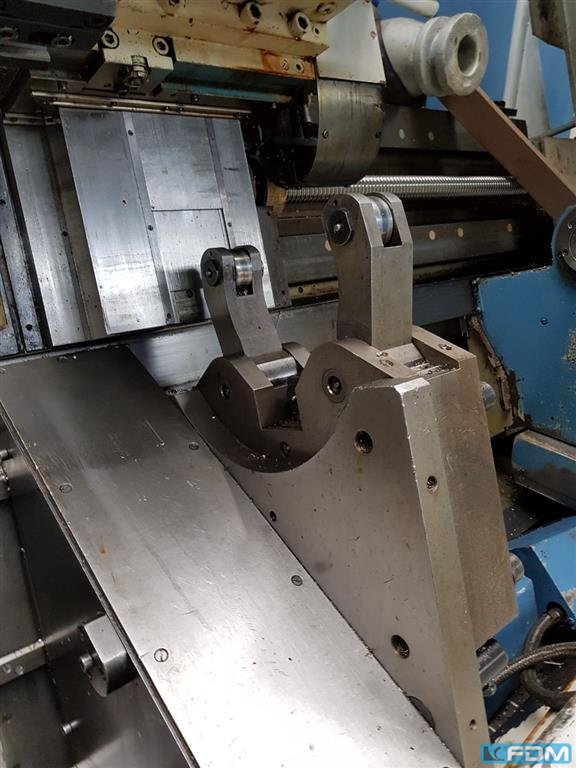

turning diameter:626 mmturning length:3000 mmTurning diameter:600 mmspindle bore:100 mmspindle turning speed range:2800 U/minweight of the machine ca.:18 tMachine overhold and retrofit in 2003 with SIEMENS 840 D control- NC steady rest- 12-fold revolving head- splash doors- tailstock- coolant device
turning diameter over bed:930 mmturning diameter over slide rest:630 mmturning length:6000 mmturning dia. in gap:1250 mmspindle bore:95 mmturning speed range:8 - 800 U/mintotal power requirement:25 kWdimensions of the machine ca.:9 x 2 x 1,9 mfaceplate 2 steadiescoolant attachment taper turning attachment
Working space: Max. swing diameter: 525 mm Max. turning diameter: 300 mm Max. turning length: 497 mm Bar work up to a diameter of max. 65 mm Main spindle: Speed range: 35 – 4,000 rpm Main drive power: 18.5 KW Constant torque: 350 Nm Spindle nose: A2 – 8 inches Spindle bore: 76 mm Spindle positioning c – axis: 0° - 360°/0.001° Tool turret: Number of tool positions: 12 (can be equipped with fixed and driven tools as required) Turret switching time: - 1st station: approx. 0.2 s Powered tools: Drive power: 3.7 KW Max. torque: 35 Nm Speed range: 25 – 4,500 rpm Travels: Turret travel: x – Axle: 180 mm z – axis: 575 mm y – axis: 100 mm (+- 50 mm) Travel speed: Rapid traverse: x – axis: 30 m/min z – axis: 12 m/min c – axis: 400 rpm Feed range: x/y/z – axis: 0 – 5,000 mm/min c – axis: 1° - 2,000°/min Tailstock: Quill stroke: 150 mm Recording: MK 5 Tailstock trav ...
faceplate diameter:1600 mmswing diameter:1800 mmturning height:1500 mmmax. ram stroke:1200 mmfaceplate turning speed range -stepless-:2,5 - 250 U/minworkpiece weight max.:10.000 kgram head dimension:240 x 240 mmfeed range:1 - 3000 mm/minpower capacity:45 kWweight of the machine ca.:20 tmodernized and overhauled in 2010 with CNC SIEMENS 840 D12 positions automatic toolchangertelescopic coverssplash guardingchip conveyorcoolant attachmentdiverse toolholders
faceplate diameter:5000 mmswing diameter:6100 mmturning height:2400 mmram stroke each side:1490 mmram head dimension:340 x 340 mmmax. workpiece weight:100.000 kgtotal power requirement:100 kWweight of the machine ca.:155 tfaceplate turning speed range:0,4 - 50 U/minwith 2 axes CNC SIEMENS 840 D

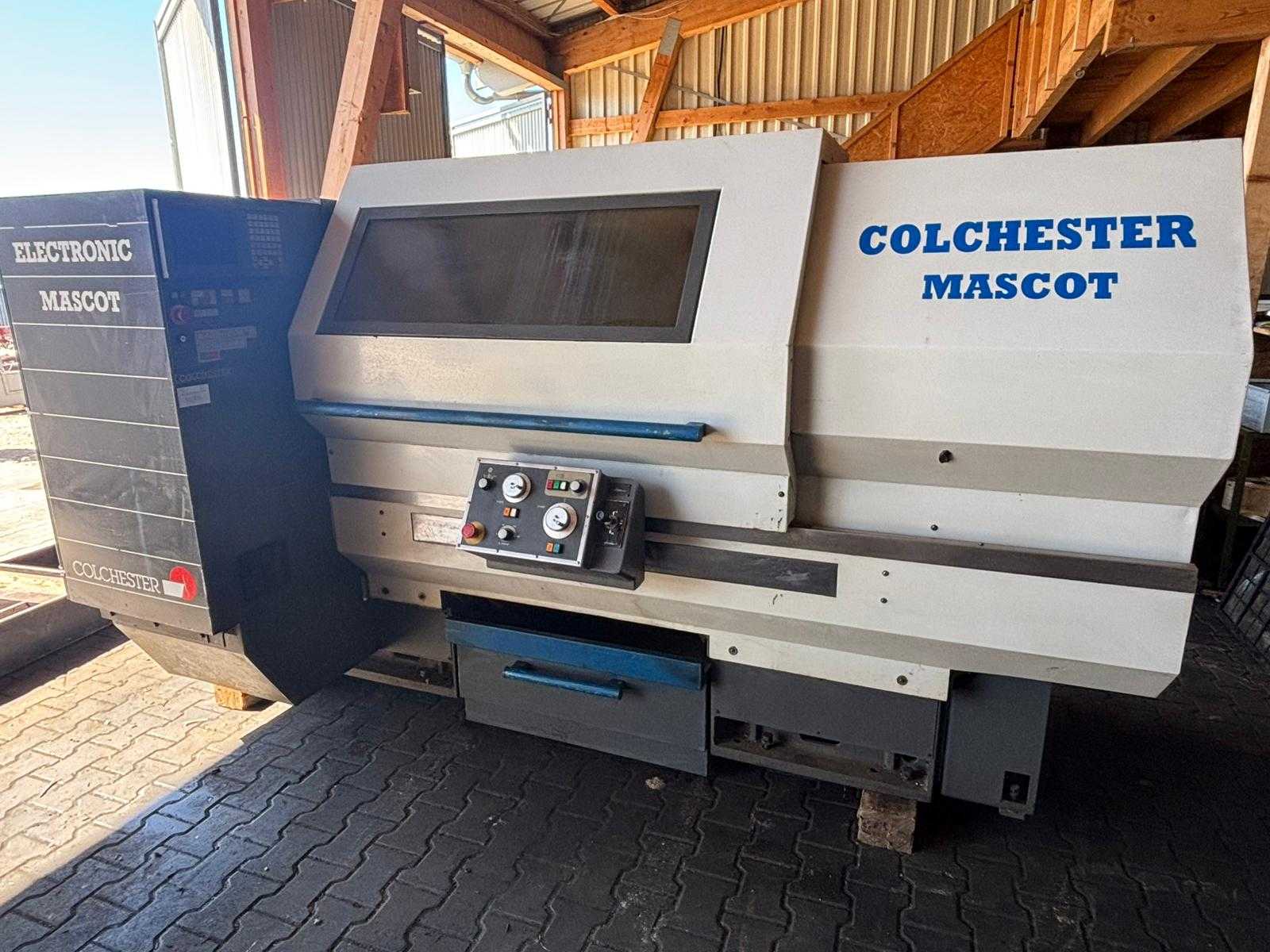

Technical data Manufacturer: Colchester Model: MASCOT (Electronic Mascot) Machine Type: CNC Lathe Control: GE Fanuc Series 20-T Spindle speed: approx. 20 – 1600 rpm Spindle bore: approx. 74 – 76 mm Turning diameter over bed: approx. 430 mm Turning diameter over slide: approx. 260 – 270 mm Center width: approx. 1200 – 2500 mm Spindle motor power: up to approx. 11 kW Weight: approx. 2.2 – 3.0 t Configuration CNC control Fanuc 20-T Tool holder / turret (typical) Tailstock available Coolant Setup Closed machine enclosure Note The technical data was researched on the basis of publicly available information on the Colchester Mascot series. Original machine documentation was not available. Deviations are possible. Auction-ID: A7-47277-31

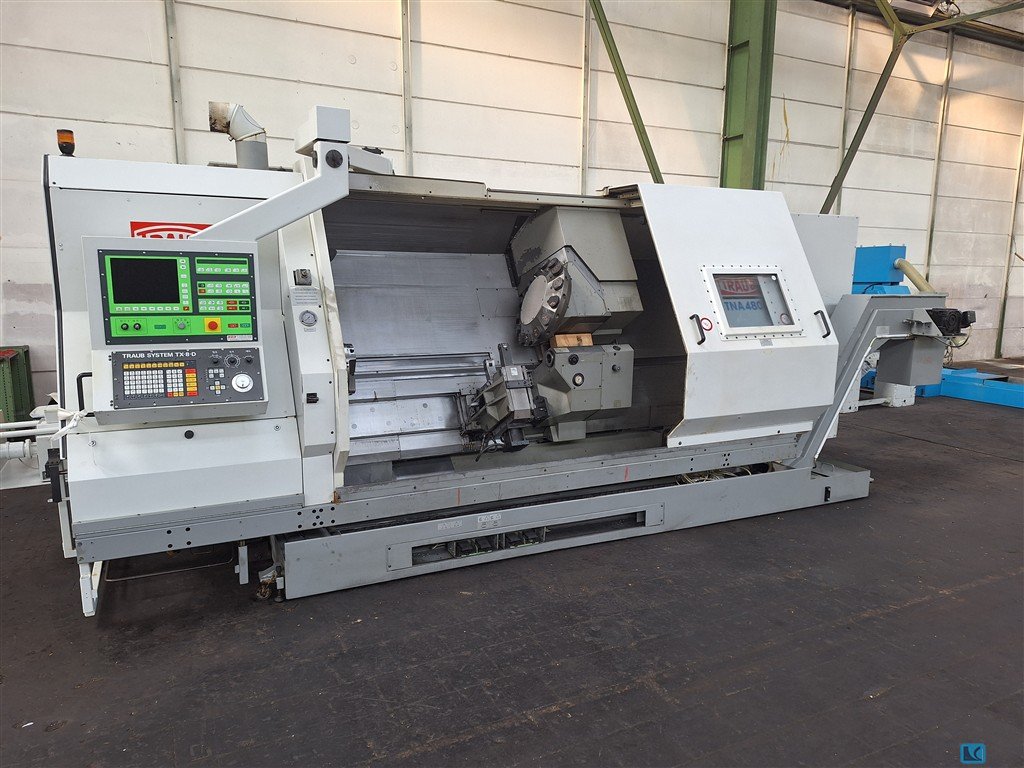

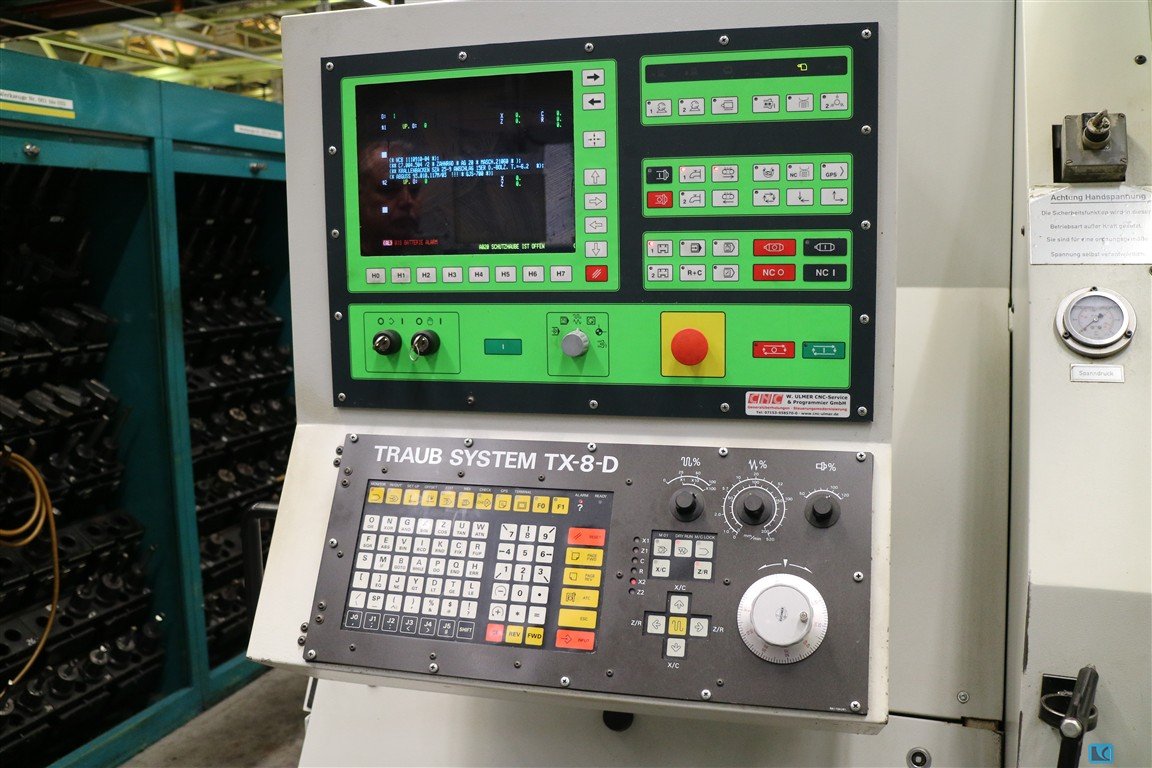

turning diameter:445 mmturning length:2000 mmturning diameter over bed slide:660 spindle bore:65 mmspindle speeds::16 - 3150 U/min.rapid motion - x-axis:10 mm/minrapid traverse Z-axis:15 m/mintotal power requirement:34 kWweight of the machine ca.:7,5 tdimensions of the machine ca.:6 x 2,5 x 2,2 mwith CNC Control TX 8 DC-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mmtailstock, steady as NC-axisdiverse driven toolholdersdiverse turning toolholderschip conveyor and coolant attachment

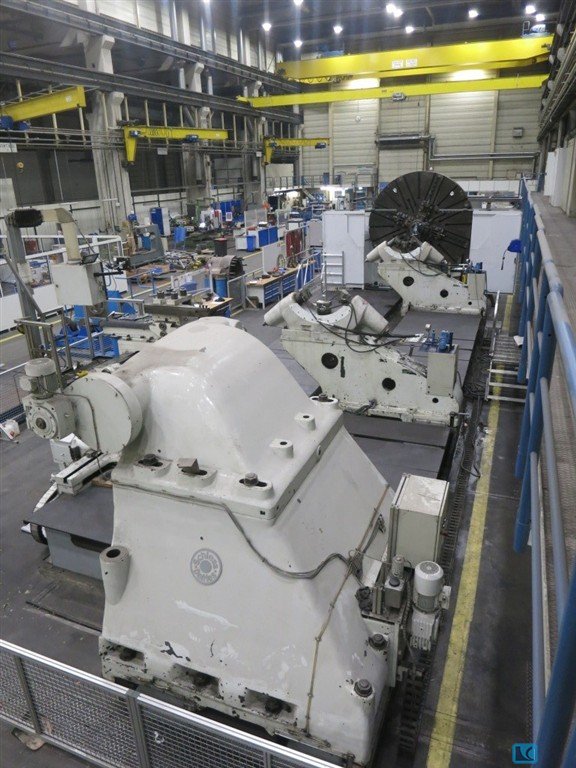

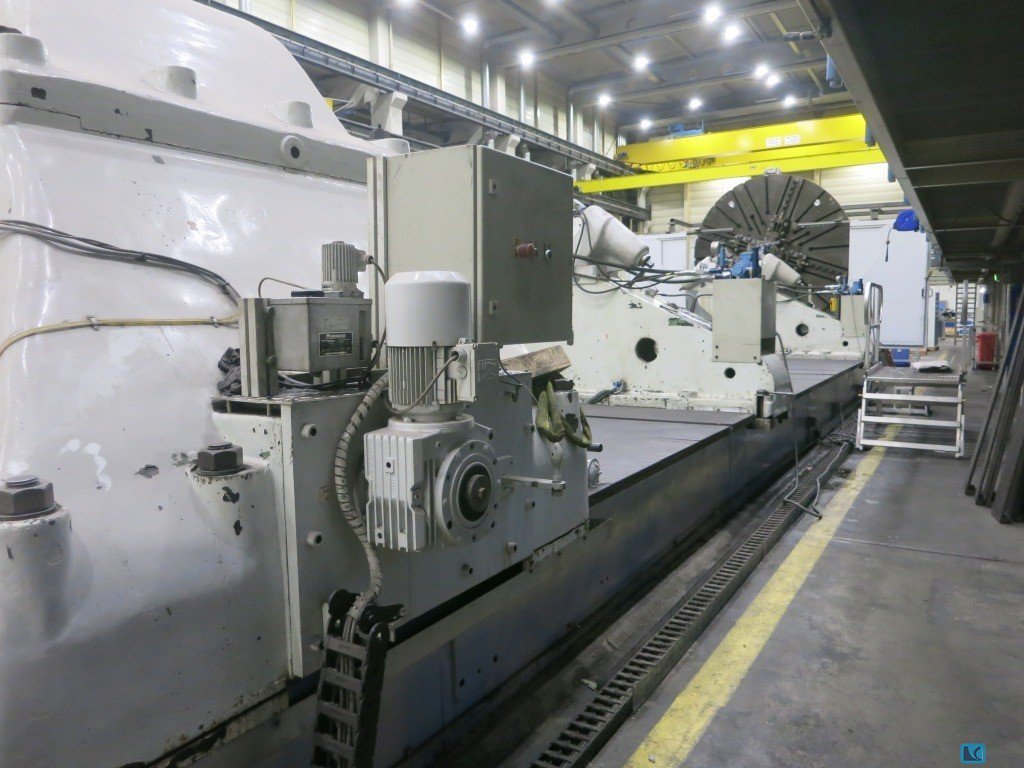

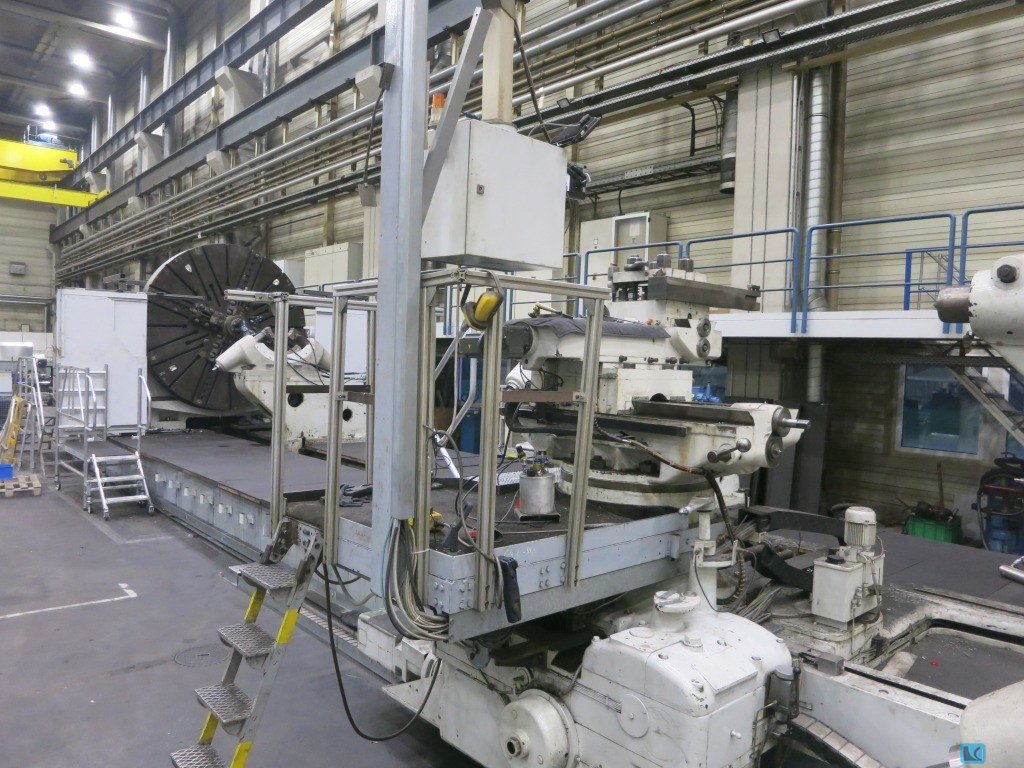

turning diameter over bed:3800 mmturning diameter over slide rest:3200 mmturning length:12000 mmfaceplate turning speed range -stepless-:2 - 200 U/minmax. workpiece weight:90.000 kgbed width:4000 mm2 steadies
turning diameter over bed:1450 mmturning diameter over slide rest:1000 mmturning length:8000 mmspindle bore:160 mmturning speed range:2,8 - 560 U/minbed width:850 mmfaceplate diameter max.:1400 mmturning diameter in the gap:1800 mmlength of gap:600 mmdimensions of the machine ca.:12 x 2 x 2,5 mwith Digital Readout2 fixed steadies dia 1070 mmchip conveyor
turning diameter over bed:400 mmturning diameter over slide rest:250 mmturning length:1000 mmmax swing over gap:520 mmHeight of centres:200 mmcrossed path:230 mmbed width:218 mmmain spindle bore:52 mmspindle size:MK 6 speeds::55-2000 U/minturning angle of tool post:90 gradtail stock:50 mmtaper in tailstock:MK 4 threading metric:0,4-7 mmthreading WHITWORTH:4-60 TPI total power requirement:2,2 kWdimensions of the machine ca.:1940 x 820 x 1545 mmweight of the machine ca.:750 kgtailstock quill:110 mmtapping modul:0,4-3 mmtapping diametral:8-84 Gang/Zoll
: gebraucht : 1992 : 010190 : prompt, Zwischenverkauf v : 19800 €: 1 : 320 mm: 650 mm: 160 mm: 40 mm: 192 mm: 205 mm: 5 : 5 MK: 16 : 48 - 2500 1/min: 24 : 0.02 - 0.63 mm/U: 0.006 - 0.2 mm/U: 0.25 - 8 mm: 0.2 - 4 : 150 mm: 100 mm: 40 mm: 3 MK: 85 mm: 2,4 / 3 kW: 1582 mm: 715 mm: 1245 mm: 680 kgHeidenhain 3-axis digital readoutNEWRöhm 3-jaw chuck, 160 mm diameter, with internal and external jawsQuick-change tool post with one rectangular insert and one round insertQuick-release collet chuck with various collets from 1 to 27 mmLive centreDrill chuckChuck guardLead and feed screw guardMotor brakeCoolant systemMounting feetOperating instructions in GermanBUYING USED MACHINERY IS A MATTER OF TRUST - OUR TRANSPARENCY PROMISEWe offer you maximum security and complete transparency.• HONEST INSIGHTS: Detailed photos and functional videos of the current condition• LIVE ON-SITE CHECK: Live te ...
number of spindles:8 spindle passage:67 mmCam controlled multi spindle automatic lathe, used8 main spindlespick up in pos. 8threading attachmentCNC compound slide in pos. 5, also 2. speed in pos. 2Hydraulic spindle brake in pos. 4Incl. length measurement, incl. Brankamp cutting force monitoringtooling: could be different like picturesPlease, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com
Article: Vertical turning and grinding centreManufacturer: EMAGType: VSC 250 DSYob: 2008Control: SIEMENS 840DGrinding spindle speed: 30,000 rpmRotation spindle speed: 3,000 rpmTool places turret: 12Cooler for spindle and machine bed coolingCooling lubricant - lifting station (no independent cooling lubricant supply)Chip conveyorParts handling Air through the spindleTwo clamping circuits through the spindle (air and oil)Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
number of spindles:8 spindle passage:51 mmArticle: multi spindle automatic latheManufacturer: SchütteType: AF51Yob: 1987eight main spindlesmax. bar diameter D=51mmcontrol SIEMENS SIMATIC S5pick up in pos. 7, for rear machiningthread cutting driveindependent feed in positions 2/3electronical trip dog control ?Balluff?clear text display Wöhrlecoolant pumpmagnetic cartridge filteroil runningincl. bar loader IEMCA PRA 40/37/F, yob 1987, (bundle type)Painting in light blue and light greyThe configuration of tooling will be different like pictures.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
Serial number CK08004 CNC control, brand, type SIEMENS SINUMERIK Machine weight 5000kg Dimension L 4100mm Dimension w 1800mm Dimension h 2300mm Auction-ID: A7-47277-160
turning diameter:500 mmturning length:1000 mmcontrol:MANUAL PLUS Grundig total power requirement:24 kVAweight of the machine ca.:2650 kgdimensions of the machine ca.:2500 x 1750 x 1850 mmswing diameter over face slide:290 mmchuck:Ø max. 260 mmcross movement:260 mmspindle head:DIN 55027 Größe 8 spindle bore diameter:70 mmrapid travel - longitudinal/face:8 /6 m/minspindle speeds::8 - 2800 tailstock travel:180 mmtailstock quill taper MT:5 Documents:vorhanden
Article: CNC-controlled multi-spindle automatic latheManufacturer: TornosType: MultiSwiss 8x26Yob: 2016full cross slide configuration,counter spindle,part-pre-drawing device,2 x driven tools,3 x Y-axis,1 rigid backworking,1 x driven backworking,2x 80 bar high pressure pumpsoptional: setting robot, manufacturer HandlingTech.The scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com
turning diameter:200 mmswing diameter:260 mmturning height:200 mmTool table:1054 x 400 mmDimensions (L/W/H):2200 x 2300 x 2300 mmweight:3300 kgslide travel radial ( X-axis ):520 mmslide travel axial ( Z-axis ):200 mmno pallet circulating belt, no C-axis, no driven tools
turning length:800 mmtotal power requirement:380 Vweight of the machine ca.:1400 kgdimensions of the machine ca.:2200 x 1200 x 1300 mcentre height:160 mmchucking diameter:150 mm
Article: CNC-controlled multi-spindle automatic latheManufacturer: TornosType: MultiSwiss 8x26Yob: 2019full cross slide configuration,counter spindle,part-pre-drawing device,2 x driven tools,1 rigid backworking,1 x driven backworking,2x 80 bar high pressure pumpsoptional: setting robot make HandlingTech.The scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com
turning diameter over bed:240 mmturning length:450 mmtotal power requirement:0,5 kWweight of the machine ca.:120 kgdimensions of the machine ca.:1500 x 600 x 1200 mmcentre height:120 mmspindle bore:21 mmrevolutions per minute: 75 - 2980 U/min

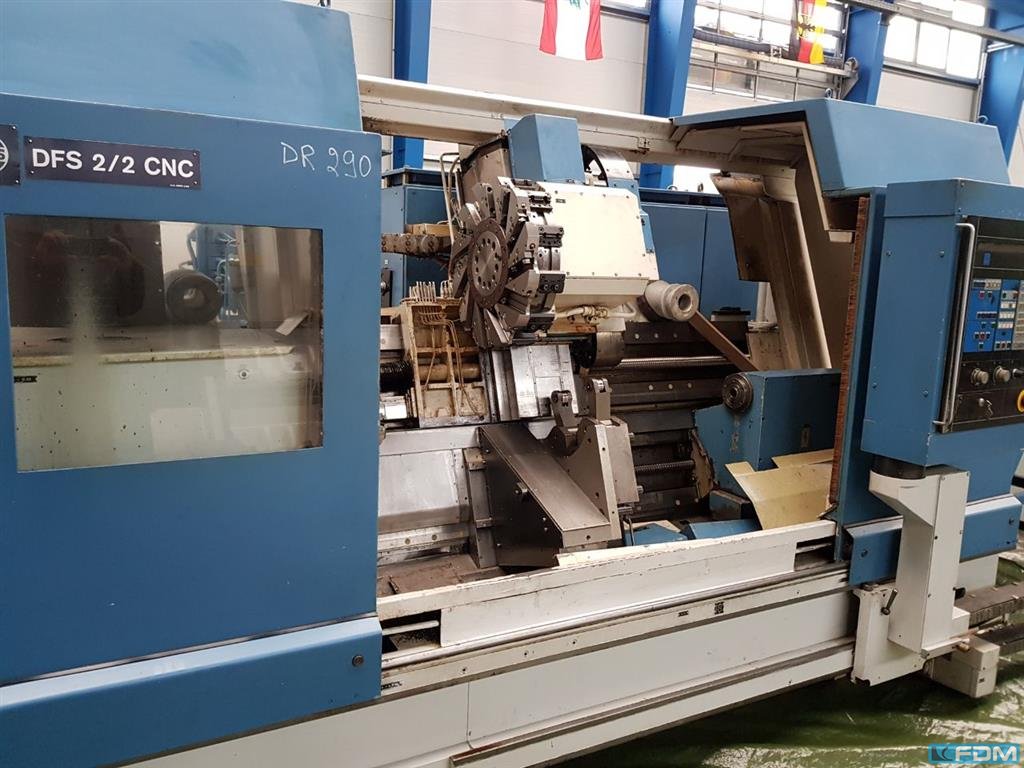

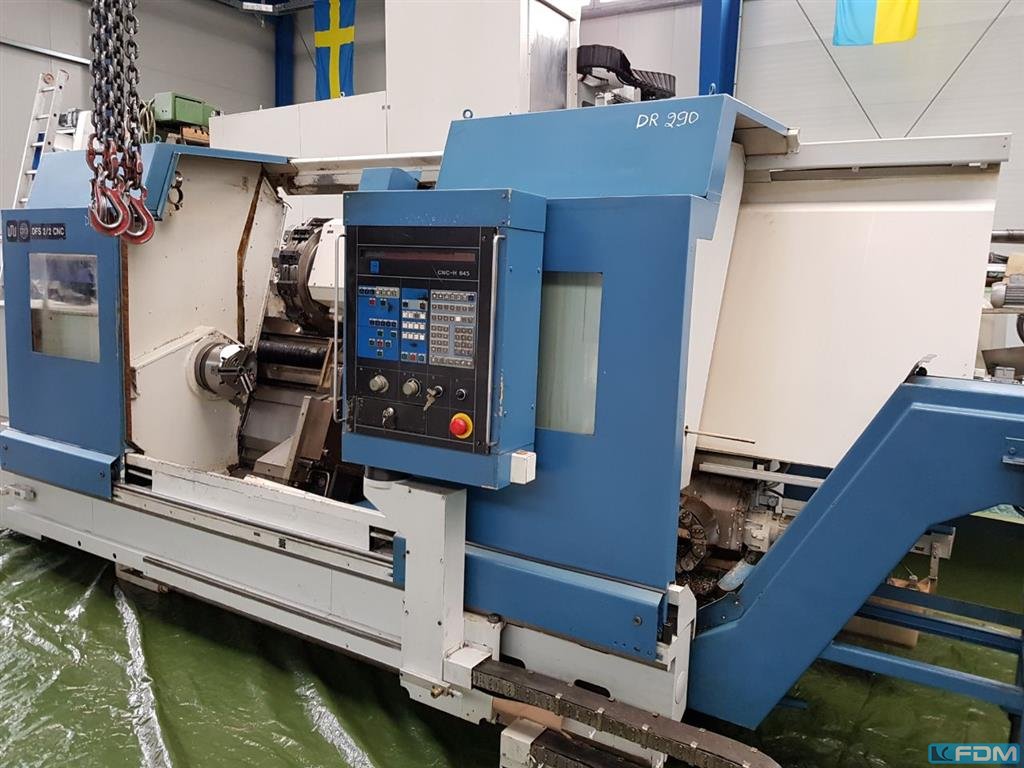

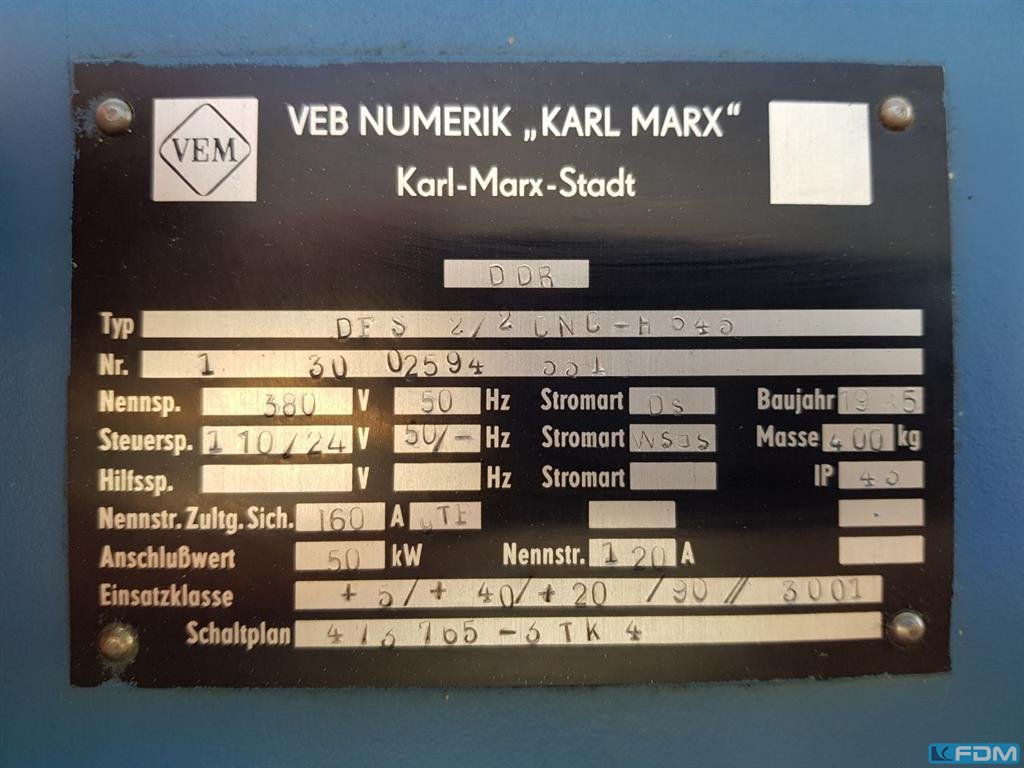

turning diameter:480 mmturning length:1250 mmcontrol:H 645 weight of the machine ca.:8 tdimensions of the machine ca.:5 x 2 x 2 mcentre distance:1580 mmswing over bed:495 mmswing diameter:üb.Querschlitten ca.350 mmworking area:1600 mmcontrol:H645 connected load:50 kW
number of spindles:6 spindle passage:51 mmSchutte SF51 DNT, yob. 1987, our ID #61868Article: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: SF51 DNTYob: 1987Six-spindle automatic lathe with 6 main spindlesmax. nominal diameter D=51mmelectronic cam control Balluffgripper in position 6 for backworking, sorting chuteindependent longitudinal feed layer 5screw chip conveyorTapping couplingsInterface for: Bar feeder IEMCA PRABar feeder IEMCA PRA40/33/FScope of delivery without the blue chip conveyorThe tooling will differ from the scope of delivery!Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
control: Numeriksteuerung CNC 700 K total power requirement:28 KVAweight of the machine ca.:7,8 tdimensions of the machine ca.:6610 x 2280 x 2235 mmwork height max.:1060 mmgreates pass round over bed:305 mmspindle bore:82 mmDocuments:vorhanden
Article: Programme-controlled automatic latheManufacturer: TraubType: TF60 / 140Yob: 1978Bar automatPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

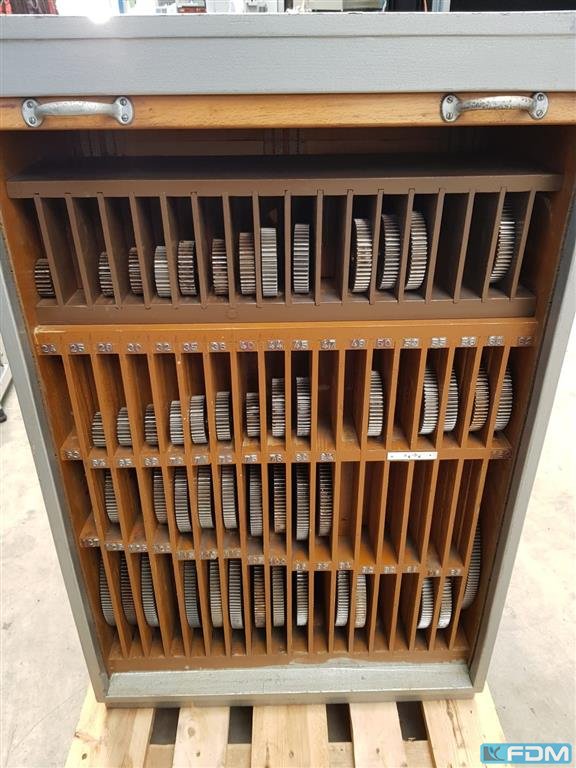

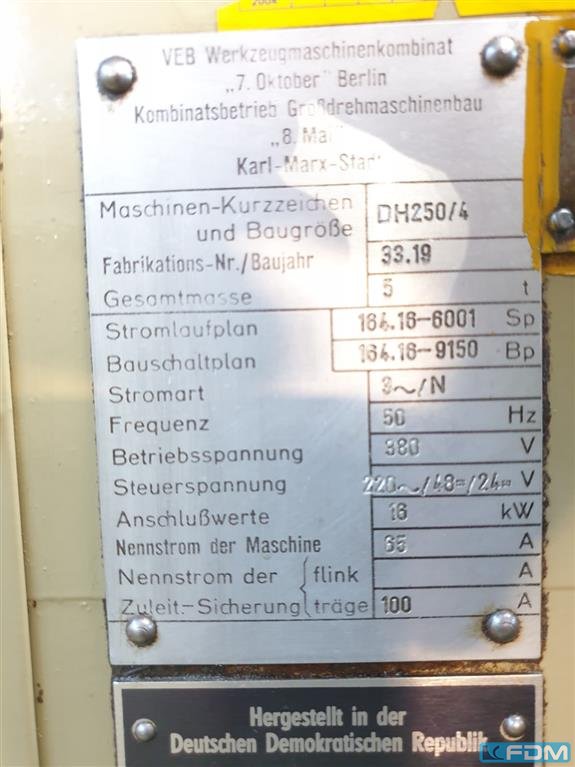

turning length:630 mmtotal power requirement:16 kWweight of the machine ca.:5 tdimensions of the machine ca.:3400 x 1500 x 1600 mmswing diameter over slide rest:Hinterdrehschlitten 250 mmcentre height:über Hinterdrehschlitten 150 mmcenter height over bed:300 mmturning spindle:Kopf DIN 55021 Gr. 8 centre distance:1000 mmaccessories::2 Schränke Wechselräder
number of spindles:8 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: AF32 S DNTYob: 1994Eight-spindle automatic lathe with 8 main spindlesmax. nominal diameter D=32mmcontrol: Siemens SIMATIC S7electronic cam control Balluffgripper in position 8 for backworkingCNC cross slide position 6CNC cross slide position 7Workpiece beltCoolant cooling SchimpkeChip conveyor with magnetic separatorTapping couplingsThe tooling shown may differ from the scope of delivery!Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
990 €
