Fabricante:
(Categoria: 102)
turning diameter:500 mmturning length:1000 mmweight of the machine ca.:7,3 tdimensions of the machine ca.:6,5 x 4,45 x 2,21 m
turning diameter:190 mmturning length:503 mmcontrol: Fanuc 31i - TA Travel x/z turret 1:135 / 503 mmTravel x/z turret 2:135 /503 mmc-axis:Sp. 1 / 2 Spindle 1 RPM:6000 1/minSpindle 1 Power:11/7,5 kWSpindle 1 max. bar diameter:42 mmSpindle 2 RPM:6000 1/minSpindle 2 power:11/7,5 kWTurret No.1 stations / rotary tools:12/12 Turret 1 tool RPM:6000 1/minTurret 1 power rotary tools:7,1 / 2,2 kWTurret No.2 stations / rotary tools:12/12 Turret 2 tool RPM:6000 1/minTurret 2 power rotary tools:7,1 / 2,2 kWtotal power requirement:53 kVAweight of the machine ca.:5700 tdimensions of the machine ca.:2,3 x 1,6 x 1,94 mHigh precision cnc turning center, rotary tools and y-axis on upper turret, Robot loader for shafts.
turning diameter:410 mmturning length:500 mmcontrol:Fanuc 21i TB standard turning diameter:275 mmtravel -x axis:277 mmtravel -y axis:82 (±41) mmtravel -z axis:500 mmSpindle 1 RPM:4500 1/minSpindle 1 Power:18,5/18,5/15 kWSpindle 1 max. bar diameter:65 mmturret stations / rotary tool stations:12/12 Power rotary tools:5,5 kWRPM of rotary tools:6000 1/mintotal power requirement:39,2 kVAweight of the machine ca.:6,2 tdimensions of the machine ca.:3,1 x 2,0 x 2,2 mcollet chuck:Hainbuch High precision Turning and Milling Centre with Y-axis and robot loading.Stäubli Robot for shaft loading.

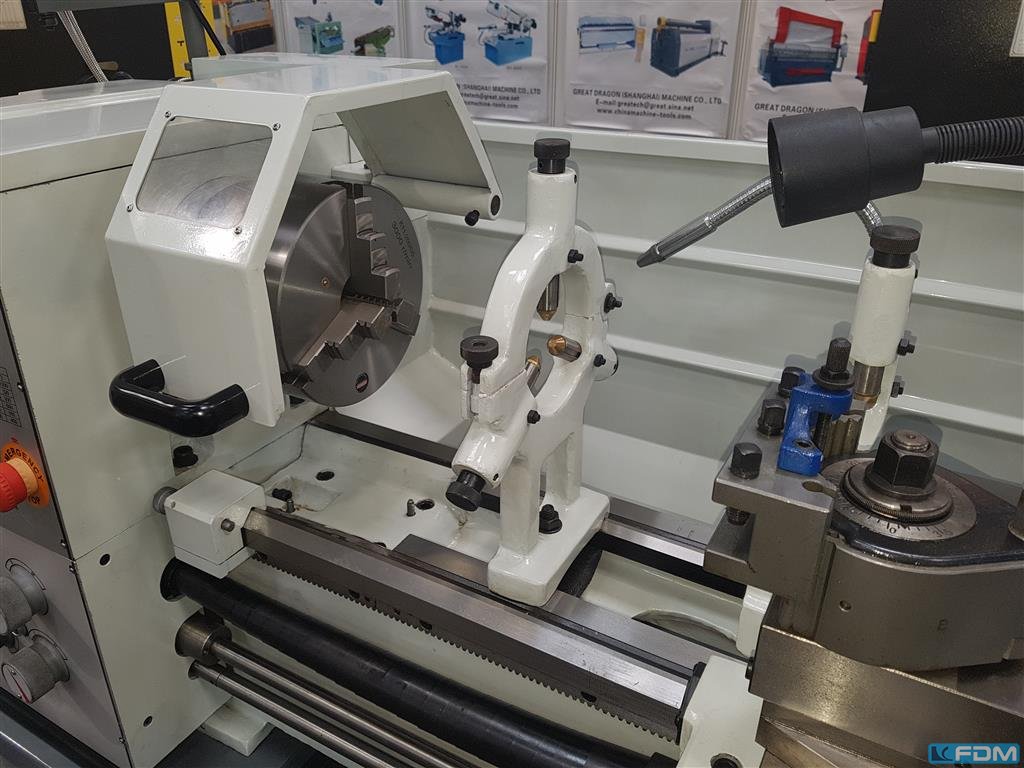

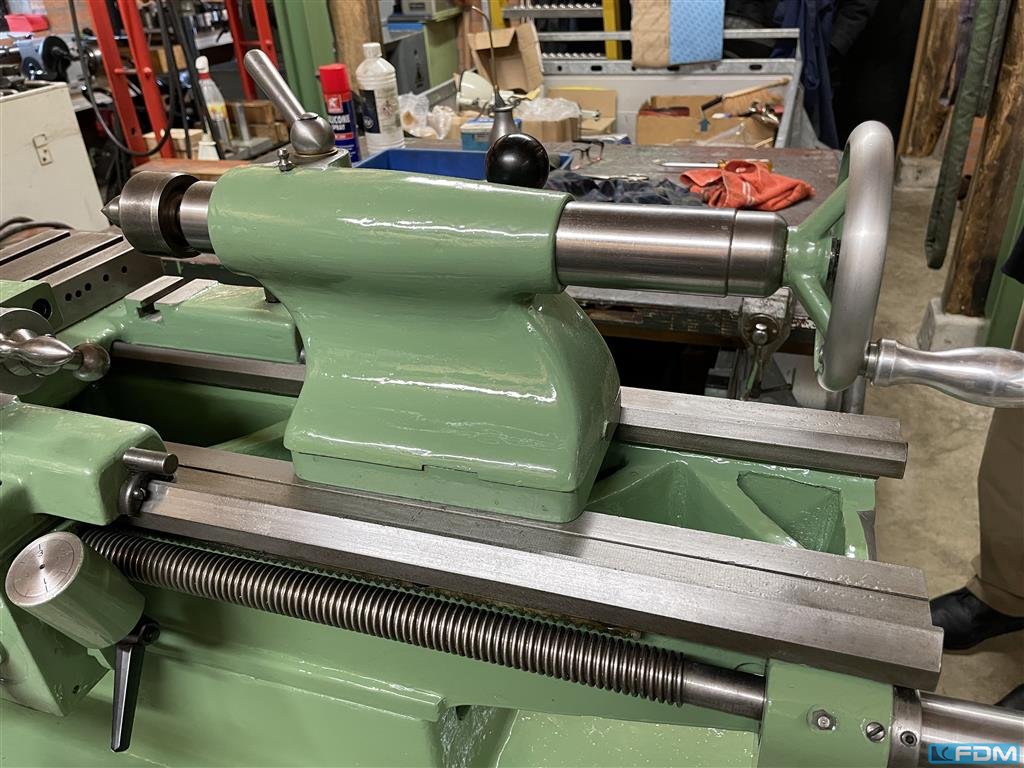

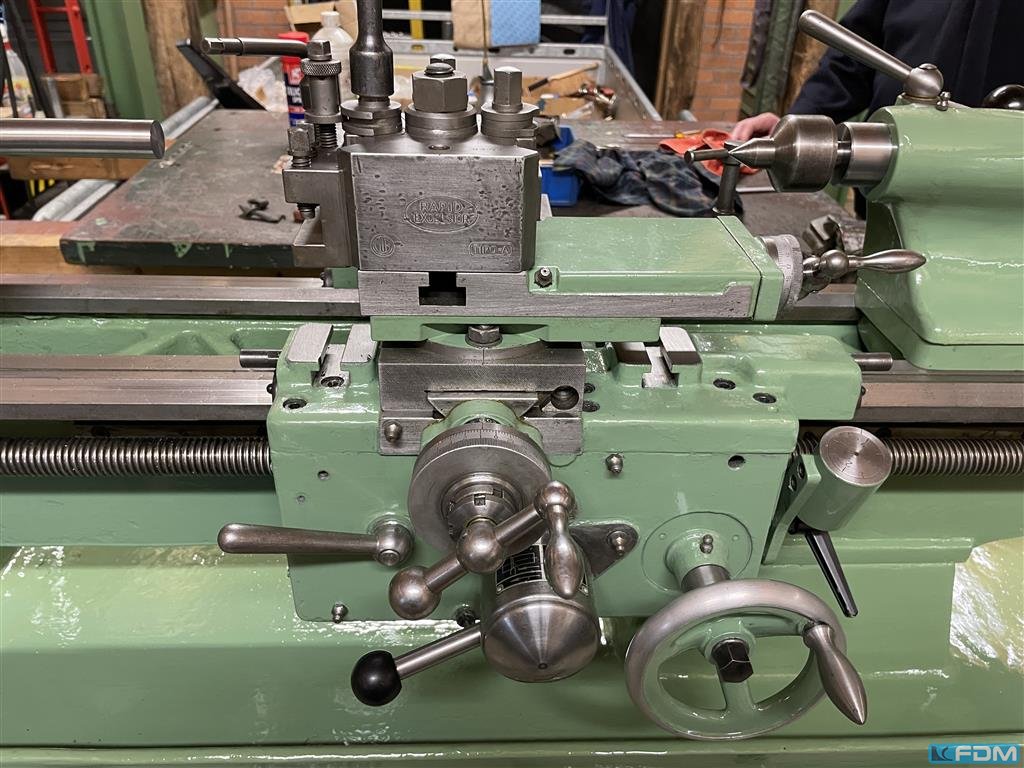

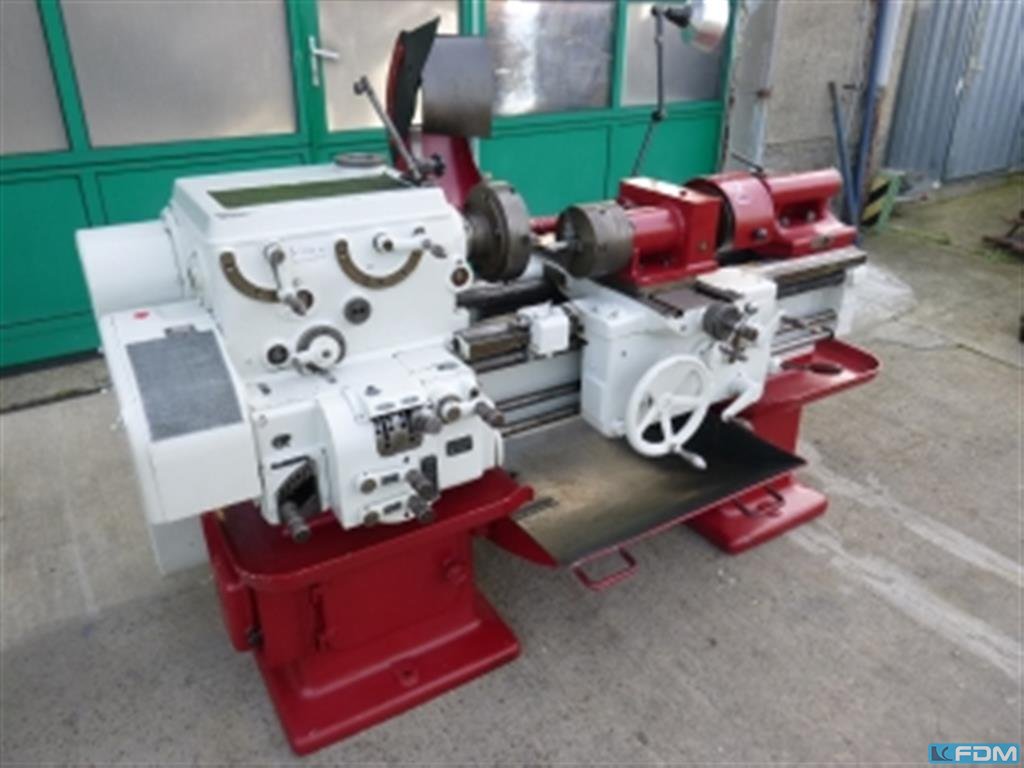

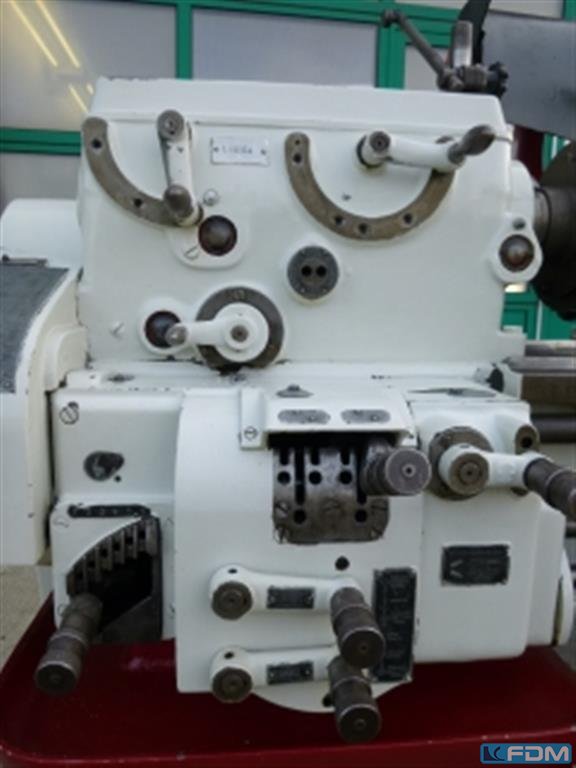

turning diameter over bed:350 mmturning diameter over slide rest:240 mmturning length:800 mmSpindle RPM:40 - 2000 in 8 Stufen 1/mintotal power requirement:3 kWSpindle bore:26 mmtailstock quill taper MT:MK 2 dimensions of the machine ca.:1,5 x 1,0 x 1,6 mweight of the machine ca.:1,9 tVery well maintened center lathe with accessories- 3-jaw, 4-jaw chuck- tailstock with center- 1 boring head- RAPID quick tool change device with 3 holder- saddle mounted steady rest- collant device- set of collets appr. 75% size B 32
turning diameter:1250 mmturning length:6000 mmspindle bore:130 mmTurning rate:5 - 710 U/min.turning diameter over bed slide:850 total power requirement:37/52 kWweight of the machine ca.:16 tdimensions of the machine ca.:12 x 4 x 2 mTeach In Controll HEIDENHAIN1 fixed steady
faceplate diameter:4000 mmswing diameter:4300 mmturning height:330 mmfaceplate turning speed range:1 - 92 U/minworkpiece weight:18 tfeeds:1 - 4000 mm/minmain drive motor:55 kWtotal power requirement:85 kVAweight of the machine ca.:64 tdimensions of the machine ca.:90, x 7,2 x 5,5 mwith CNC SIEMENS 840 D for 4 axis2 Vertical Supports tool Basic holderchip conveyor

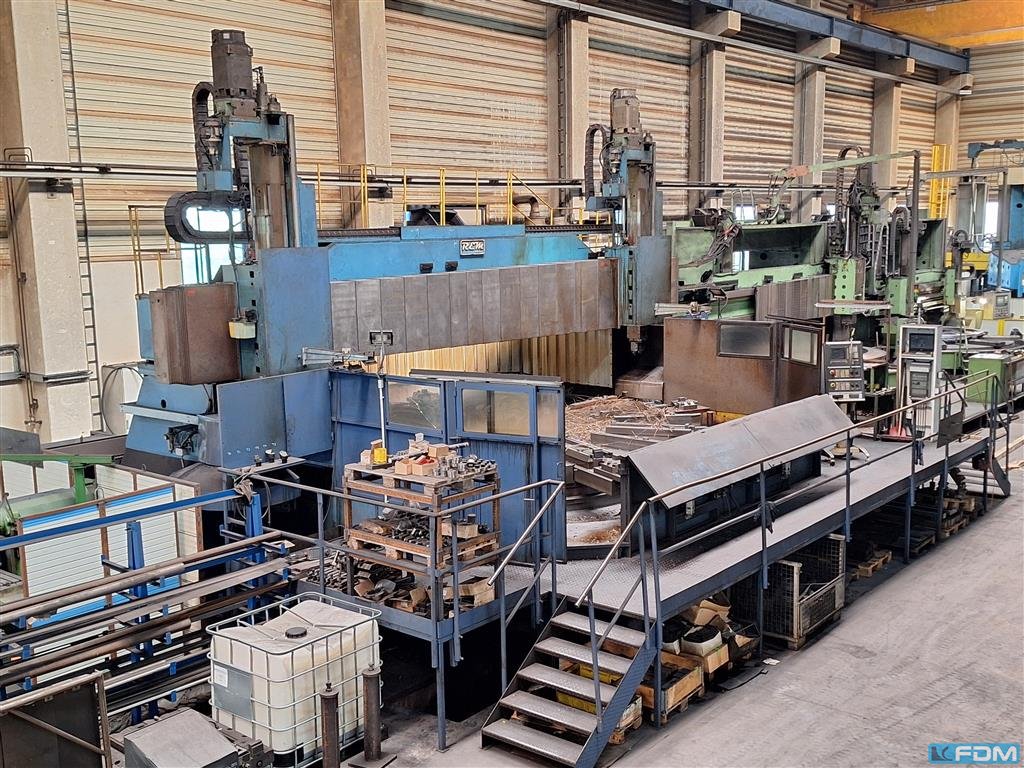

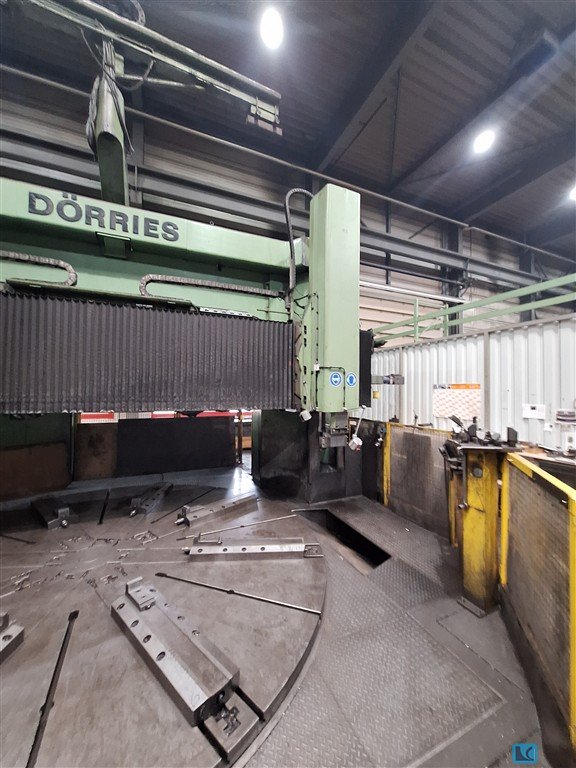

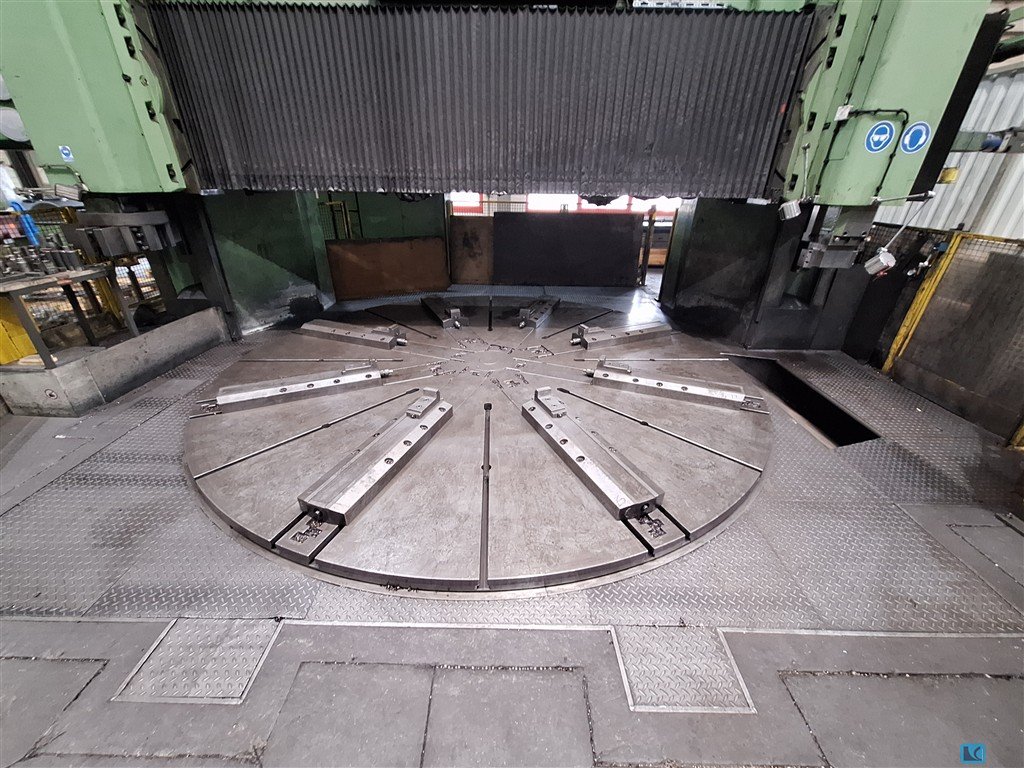

faceplate diameter:4770 mmswing diameter:7000 mmturning height:1000 mmslide stroke:1000 mmworkpiece weight max.:100000 kgfaceplate turning speed range:2 - 20 U/minfeed speeds:1 - 10000 mm/minrapid traverse:10 m/minram head dimension:250 x 250 mmmain drive:100 kWtotal power requirement:200 kWwith CNC SIEMENS 840 D2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpmChip conveyor and coolant attachment

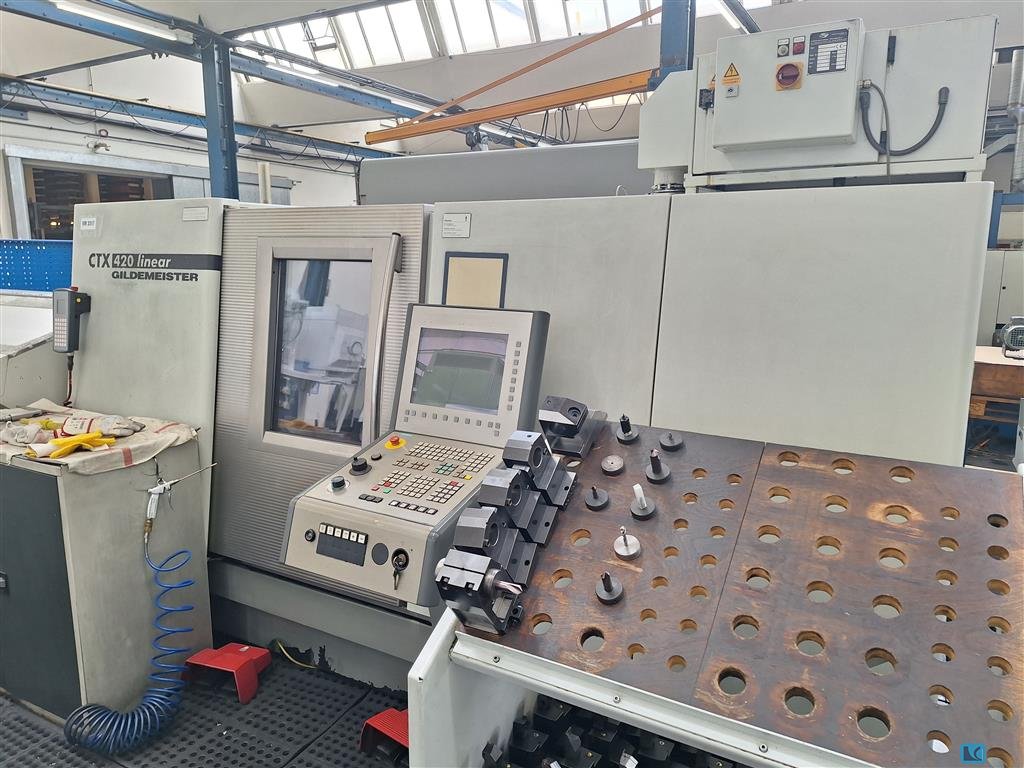

turning diameter:325 mmturning length:600 mmtotal power requirement:35 kWspindle drive:25 kWspindle turning speed range:5000 U/minspeeds of tool:4500 U/minrapid traverse X-axis:60 m/mindiverse toolholders:VDI 40 rapid traverse Z-axis:45 m/minweight of the machine ca.:6,5 tdimensions of the machine ca.:3,5 x 2,5 x 2,1 mMachine with SIEMENS 840 D control power line with shopturn- C and Y-axis, driven tools- bar loader IRCO ILS-RBK- coolant device with coolant throough revolving head- Revolver- counter spindle- chip conveyor- collet clamping - part catcher
turning diameter:626 mmturning length:3000 mmTurning diameter:600 mmspindle bore:100 mmspindle turning speed range:2800 U/minweight of the machine ca.:18 tMachine overhold and retrofit in 2003 with SIEMENS 840 D control- NC steady rest- 12-fold revolving head- splash doors- tailstock- coolant device

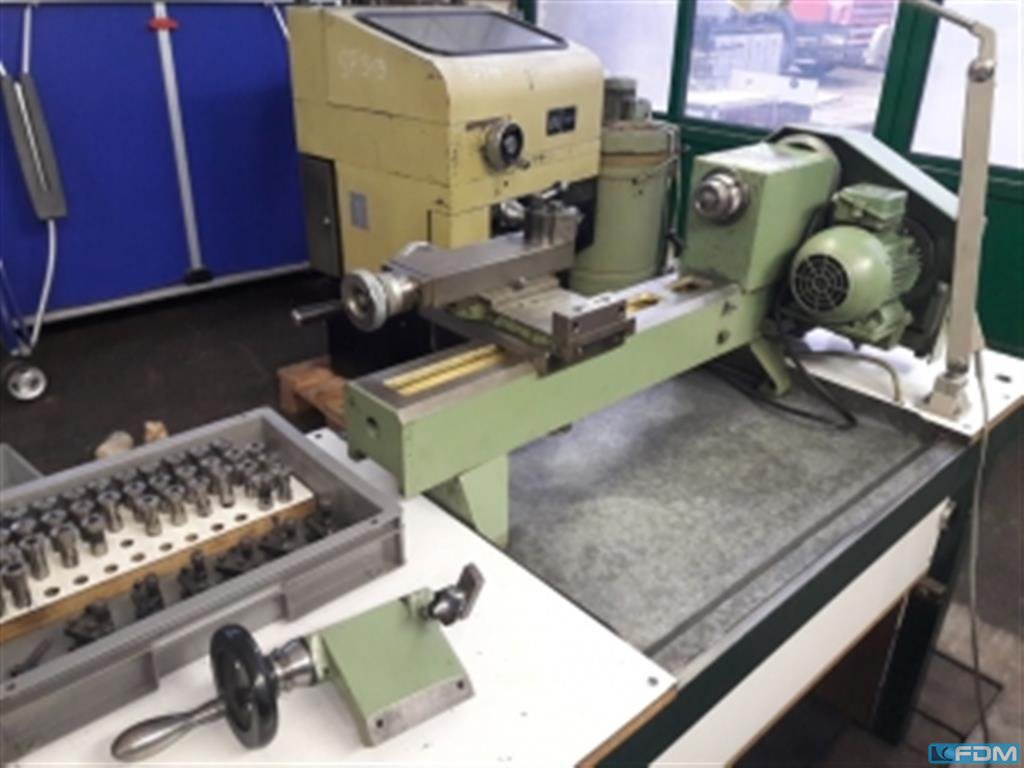

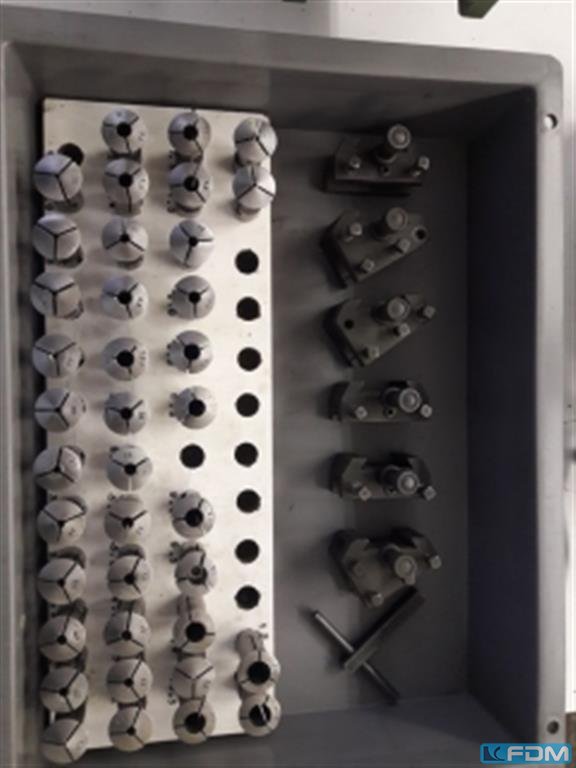

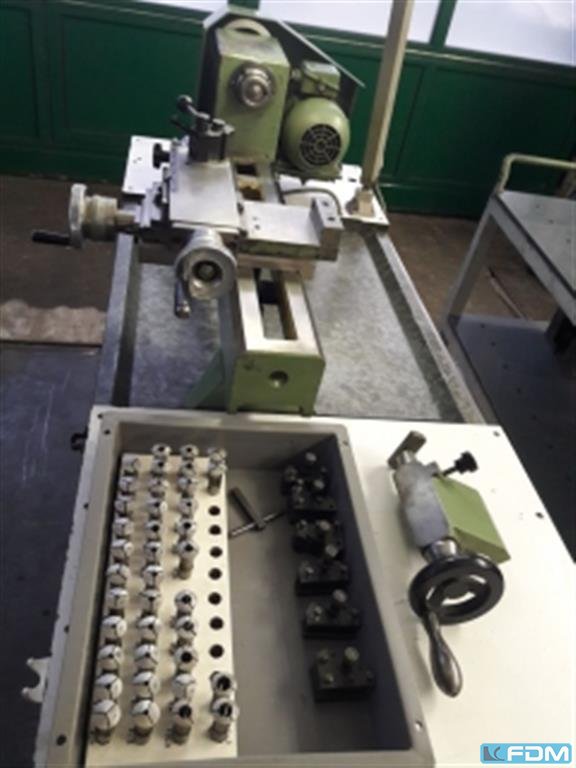

turning diameter over bed:100 mmturning diameter over slide rest:70 mmturning length:80 mmtotal power requirement:1,0 kWweight of the machine ca.:0,5 tdimensions of the machine ca.:0,7 x 0,6 x 1,2 mfacing lathe with manual feed, various accessories
turning diameter:1600 mmturning length:12000 mmcontrol:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories.For further technical data and accessories, pls browse the Appendix.Parallellathe WMWmod. 4 GUIDE-WAYS¦ CNC: FAGOR 8050¦ bed: monolithic¦ centres height: 800 mm¦ centres distance: 12000 mm¦ swing over cross-slide: 1250 mm¦ turret: automatic 4 positions¦ tailstock: motorized¦ tailstock connection: hydraulic¦ platform: diam. 1000 mm¦ steady rests: nr.02¦ chip conveyorWarranty: noneTake advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.
turning diameter:1390 mmturning length:14000 mmweight of the machine ca.:13 tMore information can be found in the Appendix.
turning diameter over bed:930 mmturning diameter over slide rest:630 mmturning length:6000 mmturning dia. in gap:1250 mmspindle bore:95 mmturning speed range:8 - 800 U/mintotal power requirement:25 kWdimensions of the machine ca.:9 x 2 x 1,9 mfaceplate 2 steadiescoolant attachment taper turning attachment

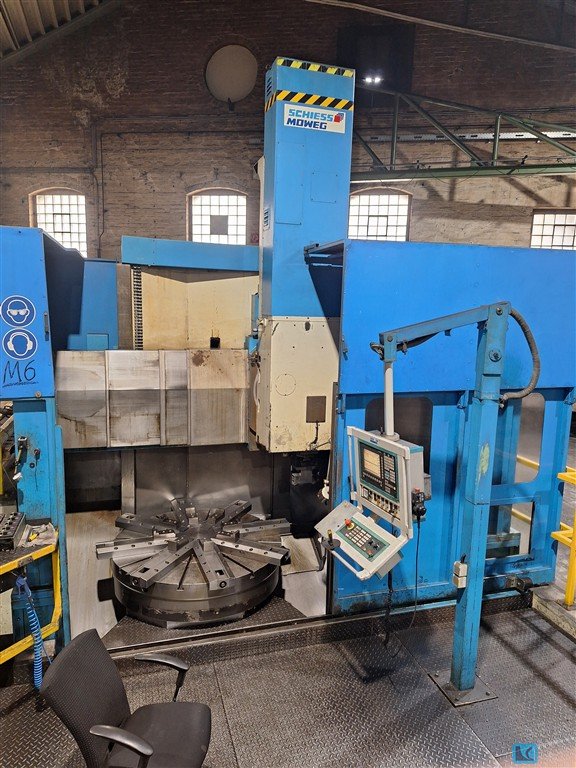

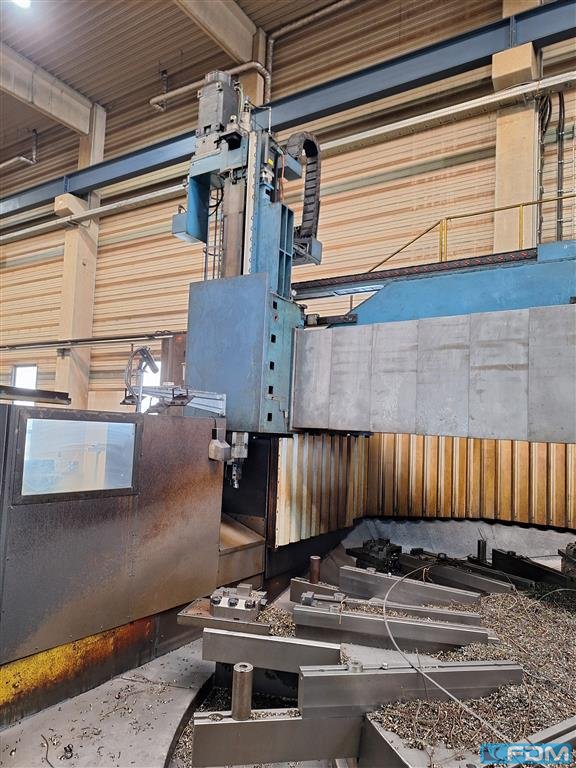

faceplate diameter:1600 mmswing diameter:1800 mmturning height:1500 mmmax. ram stroke:1200 mmfaceplate turning speed range -stepless-:2,5 - 250 U/minworkpiece weight max.:10.000 kgram head dimension:240 x 240 mmfeed range:1 - 3000 mm/minpower capacity:45 kWweight of the machine ca.:20 tmodernized and overhauled in 2010 with CNC SIEMENS 840 D12 positions automatic toolchangertelescopic coverssplash guardingchip conveyorcoolant attachmentdiverse toolholders

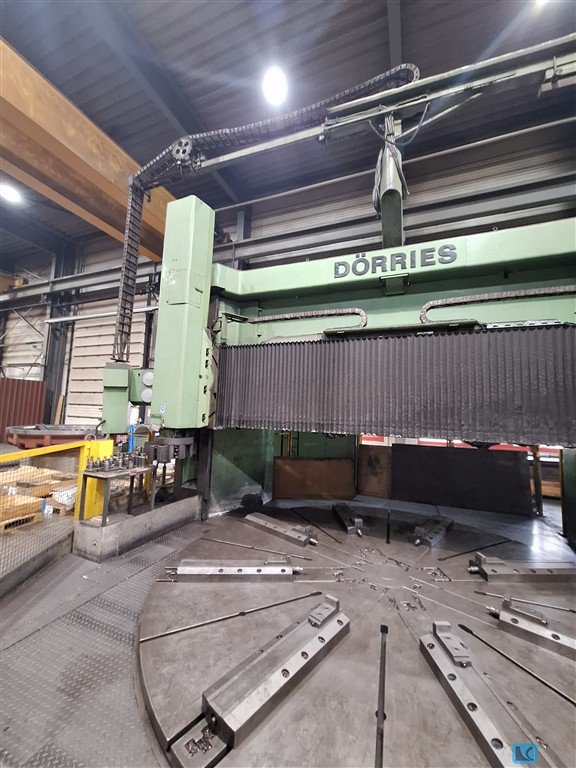

faceplate diameter:5000 mmswing diameter:6100 mmturning height:2400 mmram stroke each side:1490 mmram head dimension:340 x 340 mmmax. workpiece weight:100.000 kgtotal power requirement:100 kWweight of the machine ca.:155 tfaceplate turning speed range:0,4 - 50 U/minwith 2 axes CNC SIEMENS 840 D
turning diameter over bed:2600 mmturning diameter over slide rest:2200 mmturning length:5000 mmfaceplate:2050 mmnumber of spindle speeds:0,7 - 70 rpmtotal power requirement:ca. 22 kwHeight of centres: 1350 mmDistance between centres: 5000 mmSwing over cross slide: 2600 mmSpindle power: 30 HPSpindle speed: 0,7 - 70 rpmLongitudinal swiftControl on the carriageChuck: diam. 2050 mm
:KVL-450 | KVL-600 | KVL-800| KVL-1100 turning diameter:450|600|800|1100 mmswing diameter:550|650|1000|1250 mmturning height:450|500|750/950|1000 mmspindle nose:A2-8|A2-8|A2-11|A2-15 table rotation speed:50-2500|50-2250|20-1500|20-600 U/minTravel of Ram (vertical):450|500|800 / 1000 (Opt.)|1000 mmTravel of ram (horiz.):300|340|500|700 mmrapid power traverse in X-and Z direction:20/24|20/24|20/20|10/10 m/minTool changer:8/10/12 mit vertikaler oder horizontaler Scheibe tool taper:VDI40/VDI50 oder Schaftaufnahme drive capacity - spindle motor:11/15|15/18.5|18.5/22|37/45 kWMachine height:2600|2910|4020|4605 mmweight of the machine ca.:4500|6000|13000|18000 kghydraulic motor:2,2 kWservo motor X-axis:1,6|1,6|4|7 kwservo motor Z-axis:3|3|7|7 kwcoolant pump drive:0,75+1,1|0,75+1,1|0,75+0,75+1,1|0,75+0,75+1,1 kW:35|40|50|70 kvaCNC controller:Siemens/Fanuc/Fagor CNC controls from:Siemens/Fanuc/Fag ...
turning diameter over bed:3800 mmturning diameter over slide rest:3200 mmturning length:12000 mmfaceplate turning speed range -stepless-:2 - 200 U/minmax. workpiece weight:90.000 kgbed width:4000 mm2 steadies

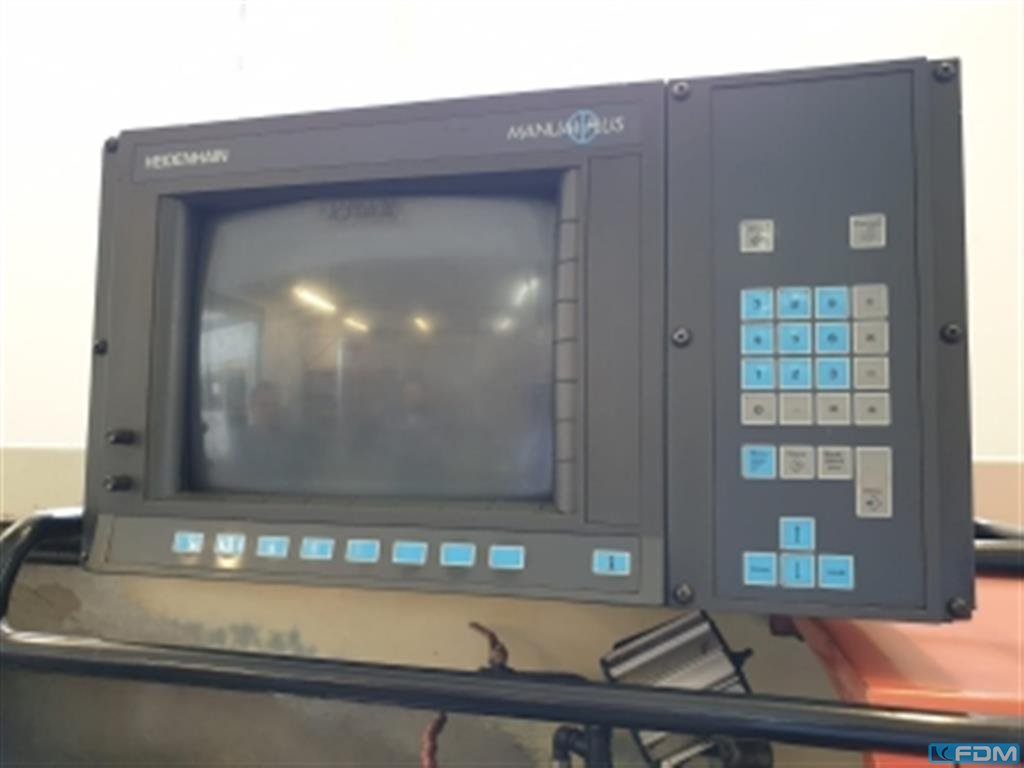

turning diameter:500 mmturning length:1500 mmspindle motor:16 kWSpindle RPM:1 - 2500 1/mintaper in tailstock MT:5 tailstock quill stroke:160 mmtailstock quill diameter:70 mmtotal power requirement:22 kWweight of the machine ca.:3,2 tdimensions of the machine ca.:3,2 x 1,8 x 1,4 mMachine with Heidenhain Manual plus control- Multifix quick tool change device- 3-jaw chuck- sliding splash door- various accessories.
turning diameter over bed:500 mmturning diameter over slide rest:310 mmturning length:1500 mmspindle turning speed range:7 - 710 U/minfeed range:5,6 - 224 mm/mintotal power requirement:15 kWweight of the machine ca.:3,7 tdimensions of the machine ca.:2,9 x 1,4 x 1,6 mMachine with 2-axis digital readout- MULTIFIX quick tool change device- 3-jaw chuck
turning diameter over bed:1450 mmturning diameter over slide rest:1000 mmturning length:8000 mmspindle bore:160 mmturning speed range:2,8 - 560 U/minbed width:850 mmfaceplate diameter max.:1400 mmturning diameter in the gap:1800 mmlength of gap:600 mmdimensions of the machine ca.:12 x 2 x 2,5 mwith Digital Readout2 fixed steadies dia 1070 mmchip conveyor
turning diameter over bed:400 mmturning diameter over slide rest:250 mmturning length:1000 mmmax swing over gap:520 mmHeight of centres:200 mmcrossed path:230 mmbed width:218 mmmain spindle bore:52 mmspindle size:MK 6 speeds::55-2000 U/minturning angle of tool post:90 gradtail stock:50 mmtaper in tailstock:MK 4 threading metric:0,4-7 mmthreading WHITWORTH:4-60 TPI total power requirement:2,2 kWdimensions of the machine ca.:1940 x 820 x 1545 mmweight of the machine ca.:750 kgtailstock quill:110 mmtapping modul:0,4-3 mmtapping diametral:8-84 Gang/Zoll
Turning diameter over support: 260mm. Includes chisel holders. Equipped with \"Mitutoyo\" X/Y axis readout Auction-ID: A1-48414-25
turning diameter: max. 750 mmturning length: 3.500 mmturning length: Standard: 3.071 mmcontrol: Sinumerik 840 D SiemensWorking height: 1.300 mmaxis stroke:: x-travel: 435 mmz-travel: 3.071 mmmax. workpiece weight between centers: 2.000 kgMain spindle:: turning speed range - main spindle: 10 - 3.000 min/-1power capacity - main spindel: 61,2 / 195 kWmax. Torque: 779 Nmspindle head: A 11 DIN 55026spindle diameter in front bearing: 180 mmSubspindle:: Spindle speed range subspindle: 10 - 3.000 min/-1power capacity - Sub spindle: 73 / 233 kWmax. Torque: 932 Nmspindle head: A 11 DIN 55026spindle diameter in front bearing: 180 mmTurret 1:: U-axis: min. -5 - max. 430 mmw-axis: min. 276 - max. 3.347 mmtool taper: VDI 50 number of toolpositions: 12 pos.Number of driven toolspositions: 12 pos.Spindle speed - driven tool stations: max. 3.000 min -1power capacity - driven tool-stations: 9,7 kWTorq ...
Machine is equipped with: - chip conveyor - tailstock - mist filter Auction-ID: A1-48522-6
Specifications: - X-axis: 162mm - Z-axis: 750mm - Y-axis: +/- 50mm - C-axis: yes - B-axis: 670mm - sub spindle speed: 4500rpm - sub spindle motor power: 5,5kW - live tooling: yes - live tooling speed: 3000rpm - live tooling type: BMT-55 Machine is equipped with: - Chip conveyor - Bar feeder - live tooling - y-axis - tooling in turret included - pallet with tooling included Auction-ID: A1-48522-17
Machine is equipped with: - twin turrets - live tooling - chip conveyor - tooling in turrets Auction-ID: A1-48522-19
Technical details Manufacturer: INDEX-Werke GmbH & Co. KG Serial number: 040033 Type: Vertical CNC production lathe Year: 2006 Operating hours: 91318 h Power: 20–28 kW Control system: Siemens / INDEX Control Power supply: 400 V Configuration: - Vertical CNC turning center - High-rigidity machine structure - Fully enclosed machining area - Production-oriented design Application: - Precision CNC turning - Machining of disc-shaped components - High-volume production - Industrial machining operations Construction: - Heavy-duty cast-iron machine frame - Vertical spindle configuration - Siemens/INDEX CNC control system Dimensions: - Length: 2600 mm - Width: 1600 mm - Height: 2200 mm Weight: Approx. 5500 kg Condition: Used Observed condition: - 91318 operating hours - Designed for precision production machining - Machine offered complete or alternatively for spare parts - Operational stat ...
Specifications: Control: Fanuc 0i-TD Hours: 5730 Capacity: - Max. turning diameter: 300mm - Max. turning length: 284mm Spindle: - Chuck size: 208mm - Spindle speed: 4500rpm - Spindle bore: 62mm - Bar capacity: 51mm - Motor power: 11/7,5kW - Bearing size: 100 Turret: - Positions on turret: 12 - Tool size: AD: 25mm x 40mm Feedrates: - X-axis: 36m/min - Z-axis: 36m/min Machine is equipped with: - collet chuck - 208mm Seoam hydraulic chuck - Manual Guide i - Tool setter - Part catcher - Hydraulic pump - Tooling in turret included Auction-ID: A1-48522-9
500 €
