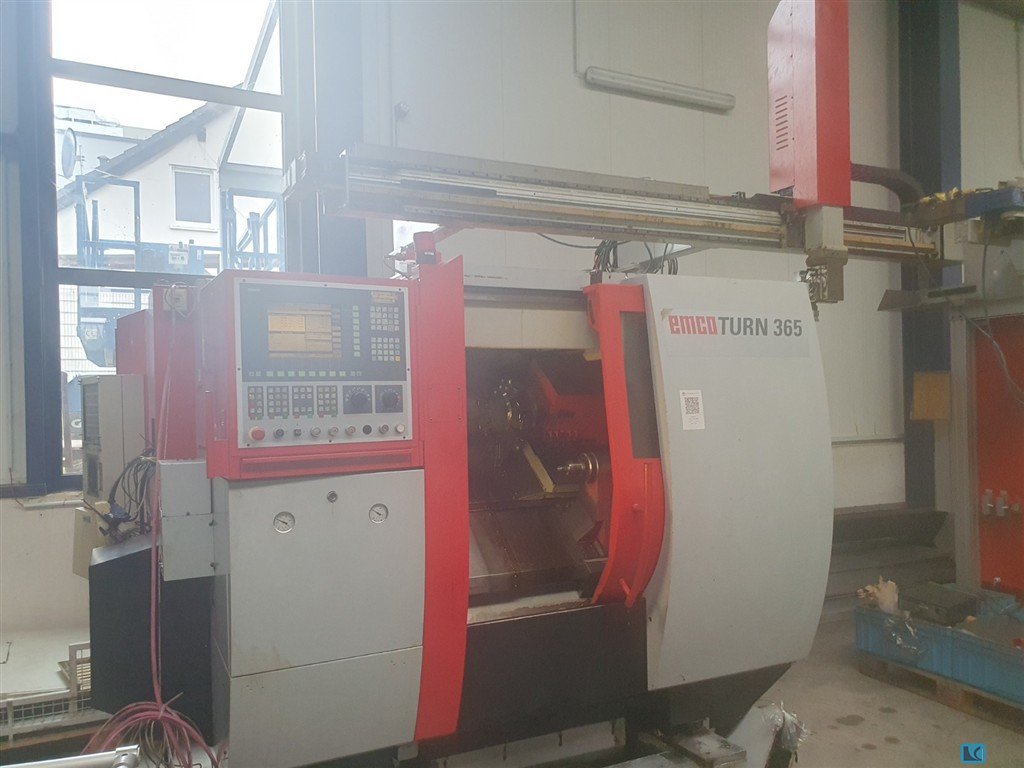

turning diameter:360 mmturning length:520 mmtotal power requirement:20 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:3 x 2 x 2 m
turning diameter:360 mmturning length:520 mmtotal power requirement:20 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:3 x 2 x 2 m
turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock versionThe machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.
turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith live tools:VDI40 Live tooling VDI40with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock versionChip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.
turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith automatic loading and unloading system, chip conveyorG300 with "spindle bore clamping capacity 90mm" in tailstock versionThe machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

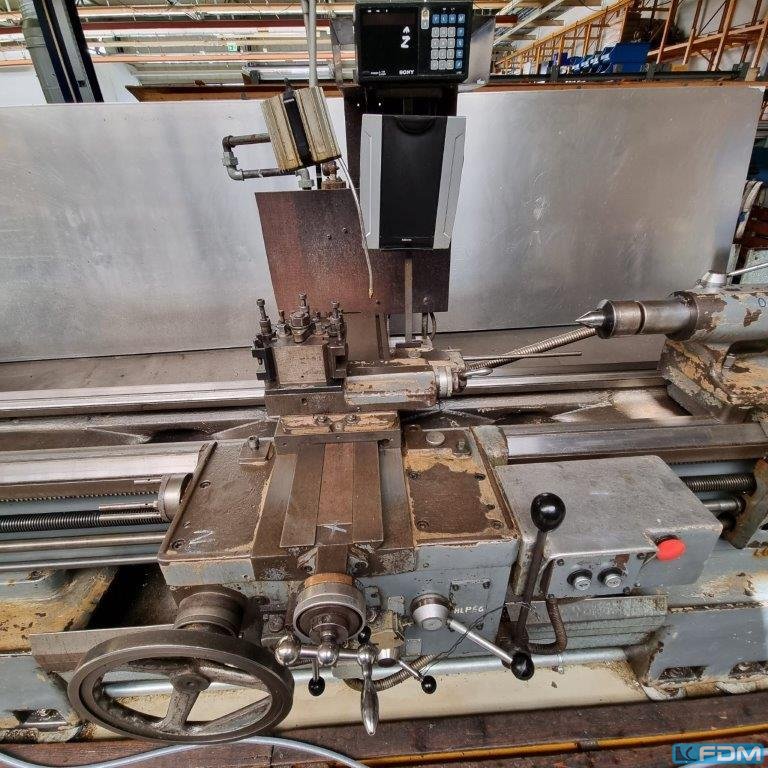

Maximum turning diameter above bed: 930 mm Maximum rotation diameter above cross slide: 630 mm Center distance: 5000 mm Spindle nose: Bayonet DIN 55027 K11 Spindle bore: 96 mm Spindle Speed: 8-800 (24) rpm Main drive: 22 kW Dimensions W x D: 2050 x 2200 mm Extras: Clamping plate 400 mm self-centering 3-jaw Clamping plate 800 mm independent 4-jaw Conical Turning Attachment Movable support 260 mm Fixed support with roller inserts 20-400 mm Fixed support with roller inserts 350-580 mm Sony digital readout 2-axis Tool holder Multifix D1 Tool holders 1 piece Cooling system Machine manual and drawings (German language) Auction-ID: A1-47366-175

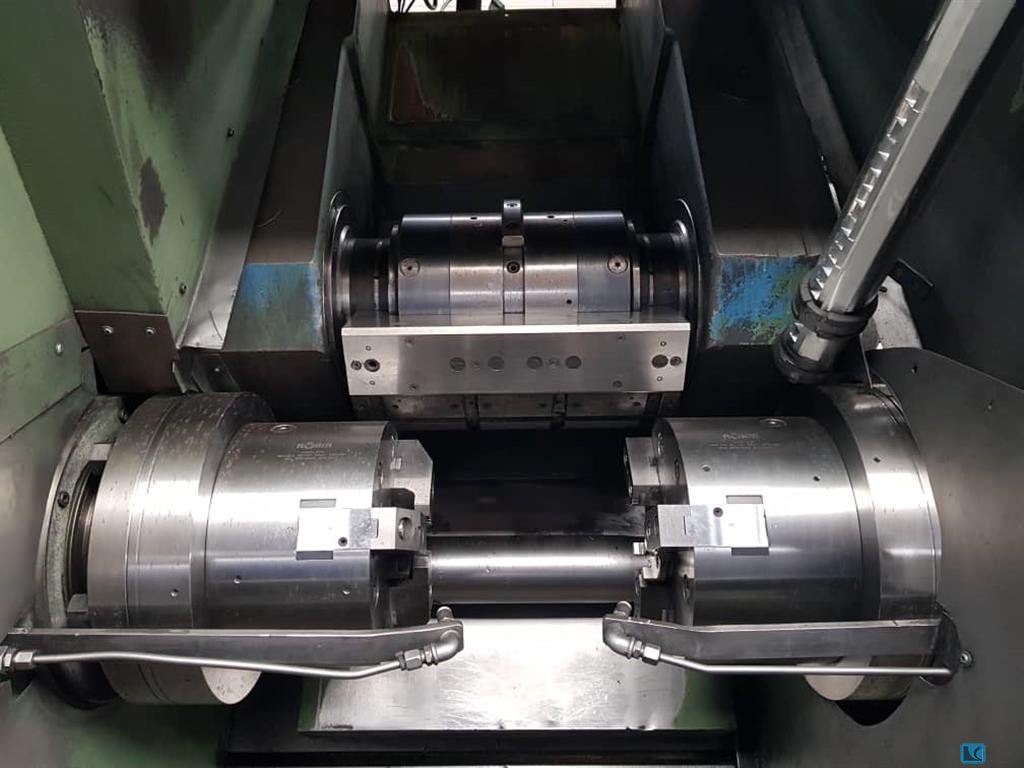

turning diameter:120 mmturning length:650 mmweight of the machine ca.:11 tdimensions of the machine ca.:5,032 x 3,048 x 2,445 mGildemeister MF Twin 65-II lathe with loading automation.This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.
turning diameter:120 mmturning length:650 mmweight of the machine ca.:11 tdimensions of the machine ca.:5,032 x 3,048 x 2,445 mmax. swing diameter:250 mmGildemeister MF Twin 65-II lathe with loading automation.This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.
turning diameter:200 mmturning length:600 mmcapacity X-axis:190 mmcapacity Z-axis:555 mmdouble spindle units: spindle distance:800 mmspindle drive:Links (40/100%ED): 18/14 kWspindle turning speed range:31-6300 U/minspindle drive:Rechts (40/100%ED): 18/14 kWspindle turning speed range:31-6300 U/minspeeds of tool:2x12 Werkzeuge: 7/5 KW, 40-4200 U/mindimensions of the machine ca.:5,032 x 3,048 x 2,445 mweight of the machine ca.:6500 KgGildemeister MF Twin 65-II lathe with loading automation.This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.
swing diameter:400 mmturning height:950-1500 mmTurning length:210 mmx-travel:310 mmz-travel:350 mmspindle drive:48 kWspindle turning speed range:20-3500 U/minweight of the machine ca.:11 tdimensions of the machine ca.:4,5 x 3,5 x 2,7 m
swing diameter:400 mmturning height:950-1500 mmTurning length:210 mmx-travel:310 mmz-travel:350 mmspindle drive:48 kWspindle turning speed range:20-3500 U/minweight of the machine ca.:11 tdimensions of the machine ca.:4,5 x 3,5 x 2,7 m
turning diameter:150 mmtotal power requirement:36 kWdimensions of the machine ca.:6,20 x 5,16 x 3,35 m
turning diameter:150 mmtotal power requirement:36 kWdimensions of the machine ca.:6,20 x 5,16 x 3,35 m
faceplate diameter:1800 mmswing diameter:2000 mmturning height:1170 mmz-axis:1000 mmcross rail adjustment - vertical:800 mmfaceplate speeds::2,5 - 280 workpiece weight:12 tfeeds:1 - 6000 mm/minmax. torque on the faceplate:50000 Nmtotal power requirement:85 kWweight of the machine ca.:41 tdimensions of the machine ca.:5,6 x 4,8 x 4,6 mMachine retrofit and overhould in 2005 with SIEMENS 840 D powerline control- 6 jaw hydraulic power chuck- tool changer for 12 tools- chip conveyor, coolant attachment, splash housing- various tool holders
faceplate diameter:1000 mmswing diameter:1600 mmturning height:1200 mmmain drive:75 kWfaceplate speeds from - to:7 - 800 U/minmilling motor:25 kWmilling head speed:7 - 3000 U/minmilling spindle - taper:ISO 50cross rail adjustment - vertical:800 mmram head dimension:240 x 240 mmweight of the machine ca.:40 todimensions of the machine ca.:9 x 7,8 x 6,0 mMachine general overhould in 2004 and equiped with Siemens 840 D control- tool changer rack magazine- C-axis, live tooling, - Transmit function electronical Y-axis- angular milling head - complete splash housing - coolant device, chip conveyor
faceplate diameter:1400 mmswing diameter:2000 mmturning height:1270 mmmain drive:80 kWfaceplate speeds from - to:1 - 355 U/minmax. workpiece weight:6.000 kgmilling motor:37 kWmilling head speed:7 - 3000 U/minmilling spindle - taper:ISO 50cross rail adjustment - vertical:800 (8 x 100 mm) mmram head dimension:240 x 240 mmmax. ram stroke:1250 mmweight of the machine ca.:50 tototal power requirement:133 kVAdimensions of the machine ca.:11 x 5 x 6,4 mMachine general overhould in 2008 and equiped with CNC SIEMENS 840 D control- tool changer for 72 tools- C-axis, live tooling- angular- and straight tool holder head with CAPTO taper - Transmit function- complete splash housing - coolant device, chip conveyor- diverse accessories
turning diameter:300 mmswing diameter:350 mmturning height:275 mmx-axis:925 mmz-axis:250 mmclamping chuck diameter:200 mmFeed speed:30 m/min.total power requirement:45 kWweight of the machine ca.:7 tMachine was used just from time to time in the last years - very good condition!with CNC SIEMENS 840 D12-station turret head with driven toolingsworkpiece in and out conveyor beltcoolantattachment and chip conveyordiverse accessories
turning diameter over bed:1000 mmturning diameter over slide rest:745 mmturning length:3000 mmturning speed range:4,5 - 900 U/minspindle bore:110 mmmax. workpiece weight between centres:12500 kgtotal power requirement:30 kWweight of the machine ca.:9 tdimensions of the machine ca.:5,2 x 2,3 x 2 m3-axes digital readoutrapid feed, feed at upper support 350 mm 1 fixed steadyface plate diameter 1000 mmcoolant attachment
turning diameter:275 mmturning length:900 mmspindle passage:65 mmpower capacity at 100 % load:25/20 kWspindle turning speed range:1 - 5000 U/minspindle diameter in front bearing:110 mmc-axis:1 - 500 U/min.number of workpiece supports:4 tool turret:1 x-axis:290 mmy-axis:165 mmz-axis:360 mmb-axis:360 °rapid speed:18/30 m/minnumber of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mmtoolpiece turning speed range:8000 / 2000 U/minpower capacity:25% ED 5,8 kWtool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mmz-axis:600/950 mmy-axis:+/- 60 mmrapid speed:18/15/30 m/minnumber of driven tools:10 mmtoolpiece turning speed range:1 - 6000 U/minpower capacity:25% ED 5,8 kWtool taper:DIN 69880 40 x 63 total power requirement:95 kWweight of the machine ca.:16 tdimensions of the machine ca.:10,0 x 3,5 x 3,0 mwith CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000,Main and Sub spindle with C-axis1 ...
turning diameter:830 mmturning length:4000 mmturning diameter over bed slide:540 mmspindle bore:130 mmturning speed range:2 - 1600 U/minrapid speed:4 / 5 m/minfeed speeds:1 - 2000 mm/mintotal power requirement:55 kWweight of the machine ca.:7,5 tdimensions of the machine ca.:7 x 2,2 x 2 mwith Teach In controll R&D MTC-KMULTIFIX toolpost size Dcoolant attachment
turning diameter:500 mmturning length:1500 mmturning diameter over bed slide:290 spindle bore:71 mmturning speed range:3 - 2800 U/minrapid speed:10 / 5 m/minfeed speeds:1 - 2000 mm/mintotal power requirement:22 kWweight of the machine ca.:3,2 tdimensions of the machine ca.:3,0 x 1,6 x 2 mwith Teach In controll R&D MTC-KPARAT toolpost 1 fixed steday dia. 100 mm4 jaw face plate dia. 500 mmcoolant attachment
Self-centering chuck 3 jaws Rohm 400 mm Independent chuck 4 jaws Rohm 600 mm Running glasses 30-200 mm Fixed Seat with Rollers 40-215mm Fixed Glasses with Rollers 210-390 mm Sony digital readout 2 axis Multifix quick-change holder type D Fixed center Rotating center Pivot bus Manual & drawings German language Manual English Auction-ID: A1-47366-171
turning diameter over bed:340 mmturning diameter over slide rest:190 mmturning length:700 mmspindle bore:50 mmspindle turning speed range:40 - 3000 U/mintotal power requirement:6 kWweight of the machine ca.:1,0 tdimensions of the machine ca.:2 x 1 x 1,6 m
turning diameter:800 mmturning length:2965 mmmax. turning dia. over saddle:520 mmspindle bore:92 mmturning speed range:3 - 1800 U/minspindle head:Größe 11 total power requirement:37 kWweight of the machine ca.:6,5 tdimensions of the machine ca.:5,2 x 2,2 x 1,9 mTeach In Control MTC-K3-jaw chuck ROTAS Dia. 400 mmface plate RÖHM Dia. 630 mm4-station toolholder system PARAT 1 fixed steady coolant attachment and chip conveyor
turning diameter:33 mmturning length:330 mmcontrol: 840 total power requirement:20 kWweight of the machine ca.:6 tdimensions of the machine ca.:3850,2000,2100 m17 axes3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axesBarfeederMachine On-time 58,133 hours
turning diameter:480 mmturning length:800 mmtotal power requirement:30 kWturning diameter over bed slide:240 spindle bore:65 mmdisc turret:12 fachrapid travel range:20 / 10 m/minweight of the machine ca.:4,5 tdimensions of the machine ca.:4 x 2,2 x 2,1 mwith CNC TRAUB TX 8 H C-axis driven tooling, 6 positions 3,5 kW / 4000 rpmpower chuckcoolant attachment, chip conveyordiverse toolholders
7.500 €
