Máquina de transporte de engrenagens TOS OF-71 com mudança de velocidades
Máquina de ranhura de engrenagens 5A140
Máquina de ranhura de engrenagens STANKO 5140
Fresadora de engrenagens LIEBHERR ET 1200
Key data: 400 mm
S375G SAMPUTENSILI "CNC" Horizontal Gear Profile Grinding Machine, suitable for the precision grinding of external spur and helical gears and shafts, as well as internal spur and helical gears and splines. The machine has the added capability of grinding worms, rotors, and other screw-type workpieces of similar profile up to 14.76” (375mm) which was factory OEM standard - but delivered at 15.74" (400mm) diameter, and 34.25” (870mm) in length. The machine is also equipped with the optional” on-board CNC” dressing feature, and the on-board CNC” gear inspection system-feature. Serial No. 2376 (New in 2007) This is a first-class, highly versatile gear grinding machine, in superlative” condition throughout, which may be inspected, in running service, at our customer’s plant facility, by appointment. -The machine would require acquisition & adaptation of an appropria ...
Key data: 4000 mm, 1560 mm, 32
Máquina de Gringing de engrenagens CNC HOFLER H4000 Ano 1990 Diâmetro máximo da peça 4000mm Largura da engrenagem 1560mm Módulo 3-32 Número de dentes 12-768 Ângulo máximo dos dentes 35 R/L Grad Ângulo de pressão 14-31 graus Diâmetro da mesa 1900mm Tabela Diâmetro do furo 750mm Peso máximo da peça 35000kg Curso da cabeça de moagem 1600mm Formas hidrostáticas Líquido de arrefecimento, Sistema de filtração Way Covers: borracha roll-up, metal telescópico e fole neoprene Potência 3 PH / 60 Hz / 230 – 460 V Equipado com: Balanceador Reutlinger Sistema de extração de névoa de óleo Máquina de medição HOFLER TPF-40/1100 Ano: 1990 Diâmetro máximo da engrenagem: 4000mm Ambas as máquinas estão em excelente estado Esta máquina foi usada para moer as engrenagens para as transmissões de submarinos nucleares dos EUA (caixas de veloci ...
Key data: 360 mm
Reishauer Modelo RZ362A Moedor de engrenagens CNC Diâmetro máximo da roda: 14.17" Módulo máximo: 0.275" Módulo mínimo: 0.0039" Curso do slide: 6.88" Ângulo máximo de hélice: ± 45 Número máximo de dentes: 600 Número mínimo de dentes: 6 Peso máximo da peça: 132 lbs. Largura da roda de moagem: 4.09" Diâmetro da roda de moagem: 11.02" – 13.77" Velocidade do verme de moagem ao moer: 1100 – 2330 U/min Velocidade do worm de moagem ao perfilar: 50 – 95 U/min Alimentação por revolução da peça: 0 – 0.133" Velocidade de alimentação do worm de moagem: até 99,9 mm/min / 3,93 IPM Peso aproximado: 14.553 lbs. EQUIPADO COM: Controles CNC Reishauer. Dittel MBA2000 Balancing Controller. Elbaron R12D Coletor de névoa. Gerador de motor Kato. Unidade hidráulica independente. Sistema hidráulico de bomba-cárter de óleo. Armário de controle elét ...
Máquina de Gringing de engrenagens CNC HOFLER H4000 Ano 1990 Diâmetro máximo da peça 4000mm Largura da engrenagem 1560mm Módulo 3-32 Número de dentes 12-768 Ângulo máximo dos dentes 35 R/L Grad Ângulo de pressão 14-31 graus Diâmetro da mesa 1900mm Tabela Diâmetro do furo 750mm Peso máximo da peça 35000kg Curso da cabeça de moagem 1600mm Formas hidrostáticas Líquido de arrefecimento, Sistema de filtração Way Covers: borracha roll-up, metal telescópico e fole neoprene Potência 3 PH / 60 Hz / 230 – 460 V Equipado com: Balanceador Reutlinger Sistema de extração de névoa de óleo Máquina de medição HOFLER TPF-40/1100 Ano: 1990 Diâmetro máximo da engrenagem: 4000mm Ambas as máquinas estão em excelente estado Esta máquina foi usada para moer as engrenagens para as transmissões de submarinos nucleares dos EUA (caixas de veloci ...
max. wheel diameter:200 mmgear width:250 mmmax. module:3 min. module:0,5 total power requirement:45 kWweight of the machine ca.:8,5 tdimensions of the machine ca.:4,4 x 2,4 x 2,7 mMachine out of prototype productionWithout automation

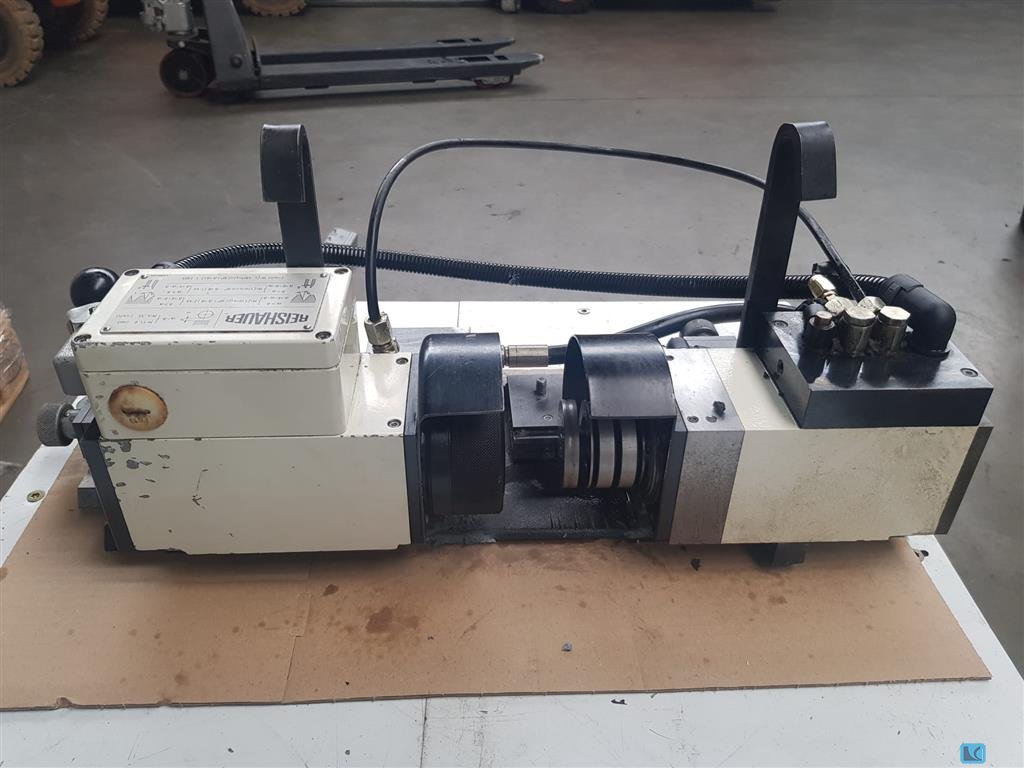

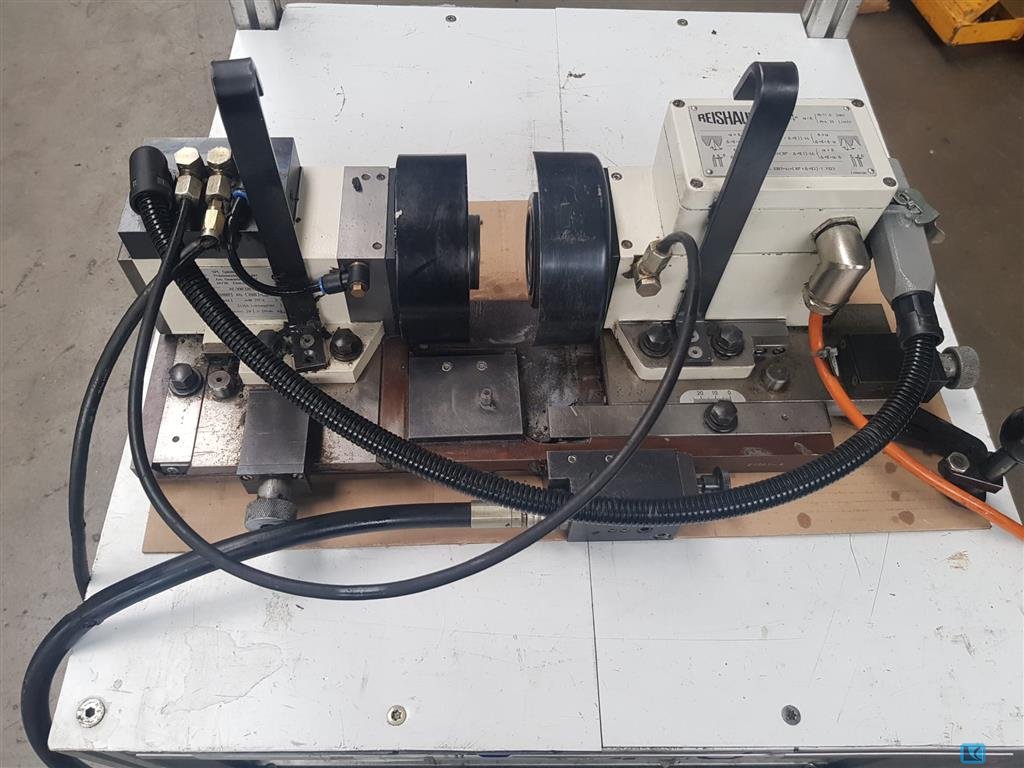

grinding wheel diameter:400 mmtotal power requirement:3 kWweight of the machine ca.:1,5 tdimensions of the machine ca.:1,5 x 1,4 x 1,3 mDressing Grinder for gears REISHAUER AMmax. width of grinding wheel 104 mmmax. dia. of grinding wheel 400 mmmax. module 7min. module 0,5pressure angle 10 - 30 °grinding worm dia. 270 - 400 mmwidth of grinding worm 62/84/104 mmgrinding worm turning speeds: at profiling 18/35/70 U/minelectrics - voltage/frequency 380 / 50 V/Hzlong. movement of crowning device 156 mm
weight of the machine ca.:8 tdimensions of the machine ca.:2,95 x 1,6 x 2,36 mchucking diameter:250 mmswing diameter:265 mmx-travel:170 mmz-travel:200 mmspindle turning speed range:1.500 U/minspindle bearing diameter:100 mmPick-up machine
max. wheel diameter:200 mmgear width:250 mmmax. module:3 min. module:0,5 total power requirement:45 kWweight of the machine ca.:6,5 tdimensions of the machine ca.:4,4 x 2,4 x 2,7 mMachine out of prototype productionWithout automation

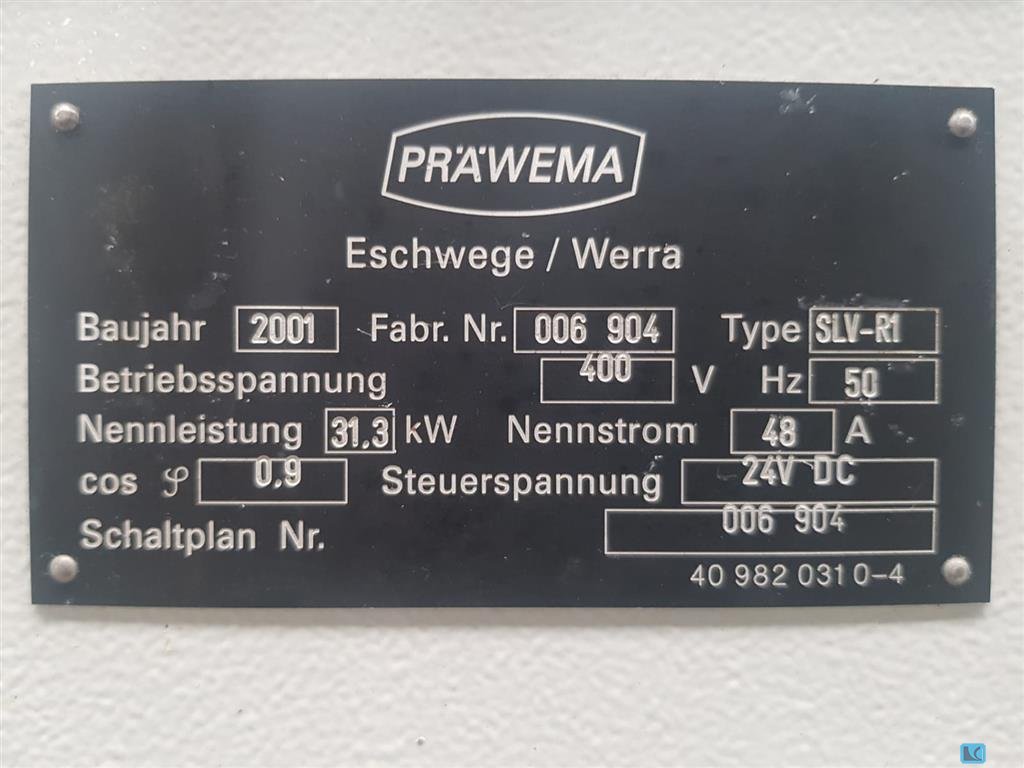

max. wheel diameter:40-200 mmtotal power requirement:31,3 kWweight of the machine ca.:4 tdimensions of the machine ca.:1,8 x 2,2 x 1,8 m
max. wheel diameter:150 mmgear width: mmmax. module:3,5 min. module:1,25 total power requirement: kWweight of the machine ca.:6,5 tdimensions of the machine ca.:2,35 x 2,10 x 2,35 mWidth of teeth:45 mmboring diameter:100 mmsurface area:1300 x 300 mm
max. wheel diameter:150 mmgear width: mmmax. module:3,5 min. module:1,25 total power requirement: kWweight of the machine ca.:6,5 tdimensions of the machine ca.:2,35 x 2,10 x 2,35 mWidth of teeth:45 mmboring diameter:100 mmsurface area:1300 x 300 mm

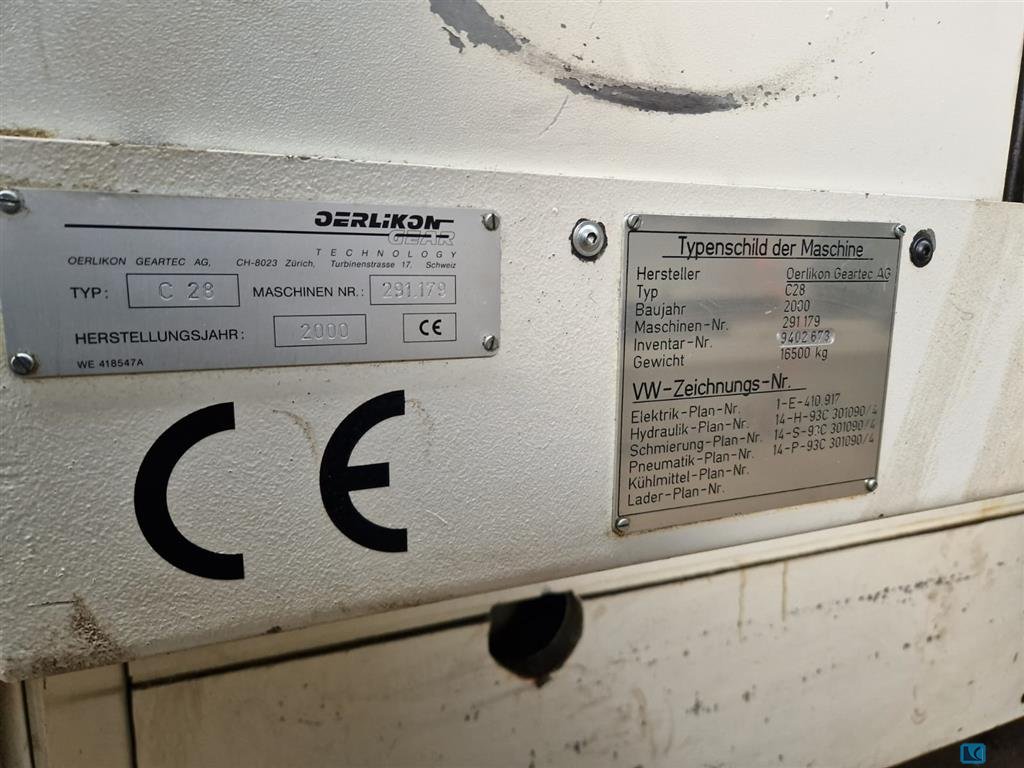

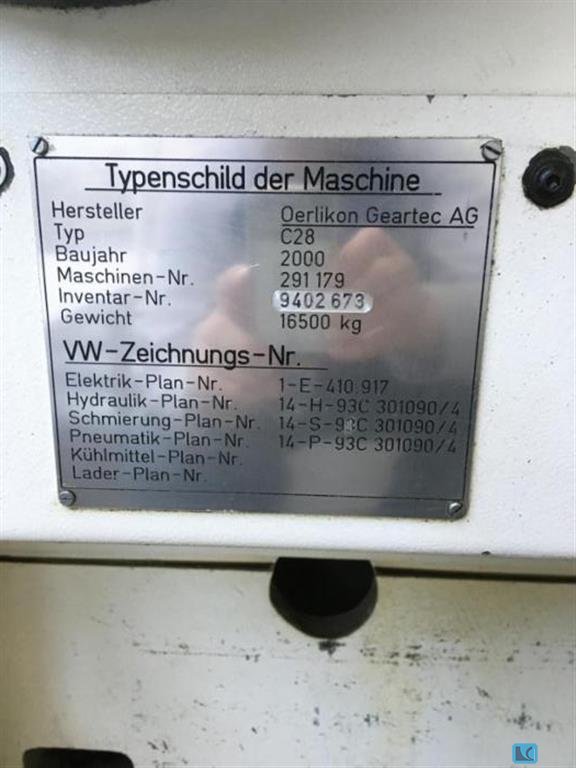

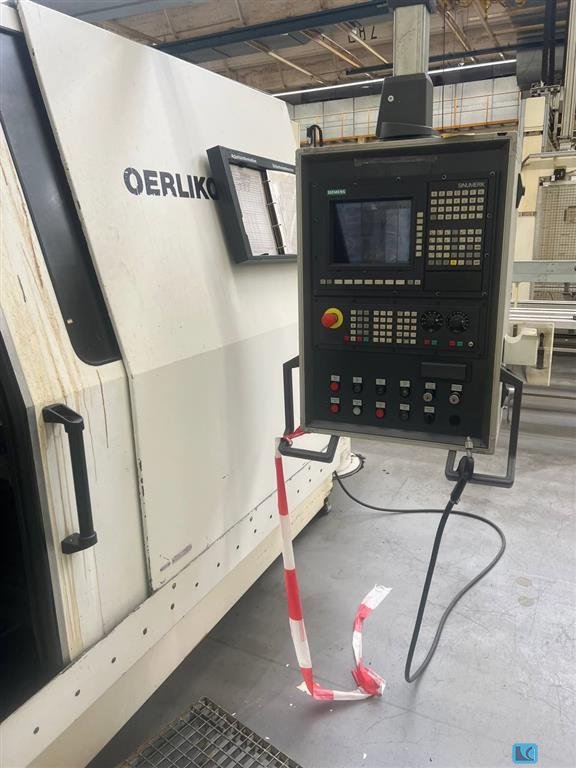

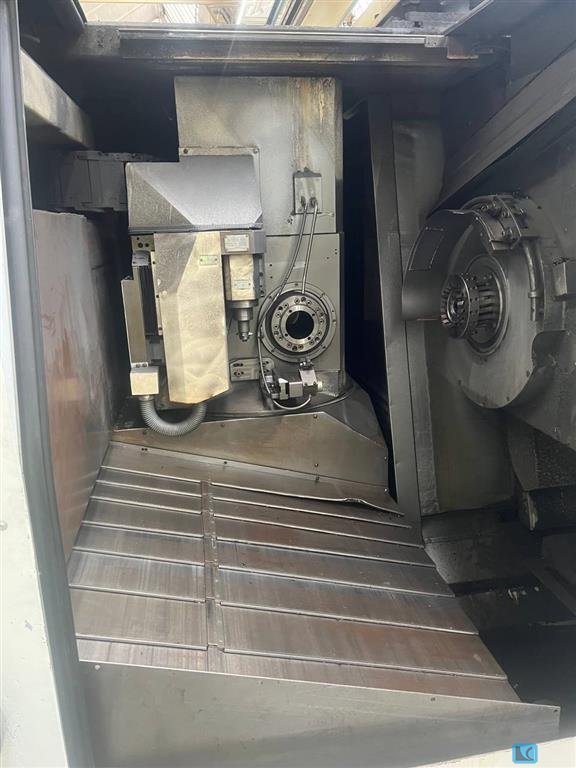

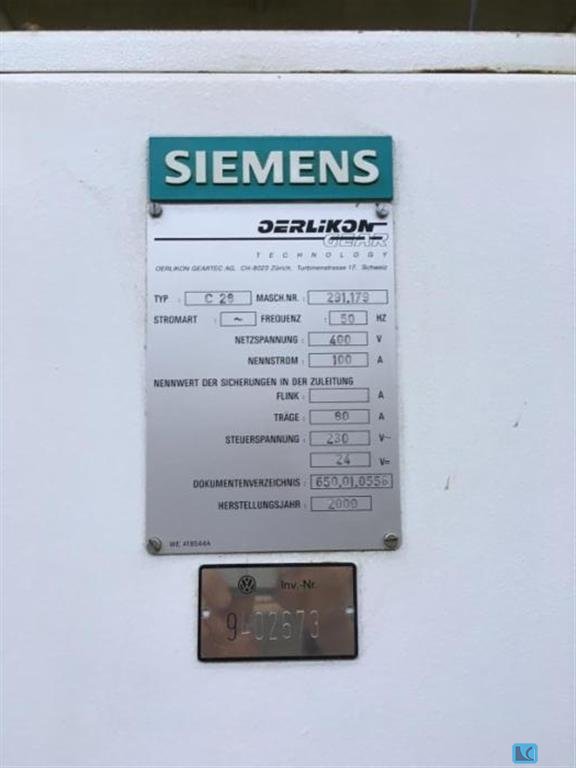

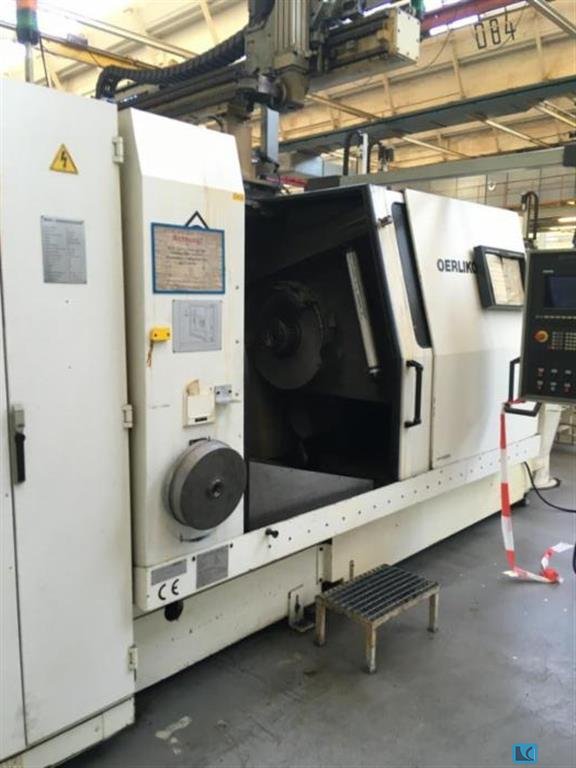

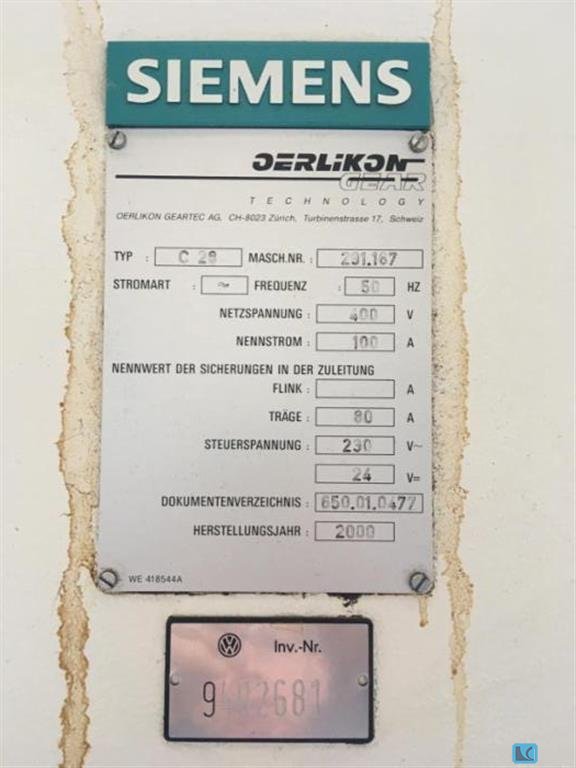

max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...
max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...
max. wheel diameter:50 mmgear width:20 mmmax. module:4 mmmin. module:0,1 mmtotal power requirement:12,5 kWweight of the machine ca.:4000 kgdimensions of the machine ca.:2,2 x 2,5 x 2,3 mworkpiece length - max.:300 mm
total power requirement:413 kWInduction hardening machine Rotary table Eldec: Z (servo drive 750 mm Y (electromechanical) 300 mmX (electromechanical) 200 mmMaximum part diameter 600 mmMaximum workpiece weight 500 kg High frequency generator type HFG 200 Medium frequency generator type MFG 30
max. wheel diameter:260 mmgear width:320 mmmax. module:5 weight of the machine ca.:21 tdimensions of the machine ca.:8,71 x 5,97 x 3,49 mno. of teeth:1...999 max. helix angle:+45/-45 °pitch min.:0,1 mmpitch max.:1000 mmX-axis:345 mmy-axis:250 mmZ-axis:320 mmb-axis:360 °c-axis:360 °Coolant is not available. It was central and there is only a booster pump without filtering. For loading system there is a 2-axes robot with workpiece conveyor.
max. wheel diameter:280 mmmax. module:7 weight of the machine ca.:13 ttable turning speeds:100 U/mintable diameter:250 mmmin. number of teeth:4 hob turning speeds:1500 U/minmax. hob diameter:160 cutter length max.:230 mmMachine in good condition.Available 01.08.2024
max. wheel diameter:200 mmgear width:60 mmmax. module:7 weight of the machine ca.:15 ttable diameter:180 mmtable turning speeds:100 U/minhob turning speeds:750 U/minMachine in good condition, without feed, without automationAvailable 24.08.2024
max. wheel diameter:900 mmmax. module:10 weight of the machine ca.:8200 kos.hob dia. - max.:190 mmcutter length max.:320 mmmilling spindle speeds (infinitely variable):13-80 U/minworkpiece length - max.:750 mmmax. workpiece diameter:150 mmCounter holder milling mandrel is missing
max. wheel diameter:280 mmmax. module:5 min. module:1 min. number of teeth:7 toolpiece turning speed range:4.000...10.000 U/mintool length:210 mmCBN
