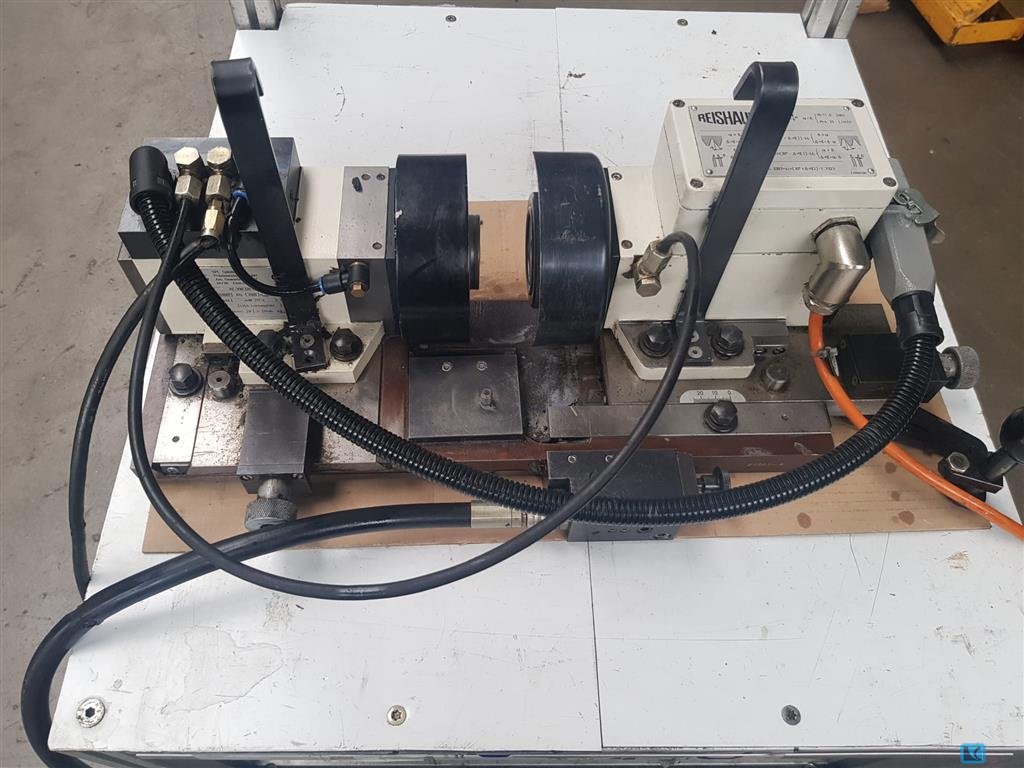

Máquina de teste de engrenagens REISHAUER AM

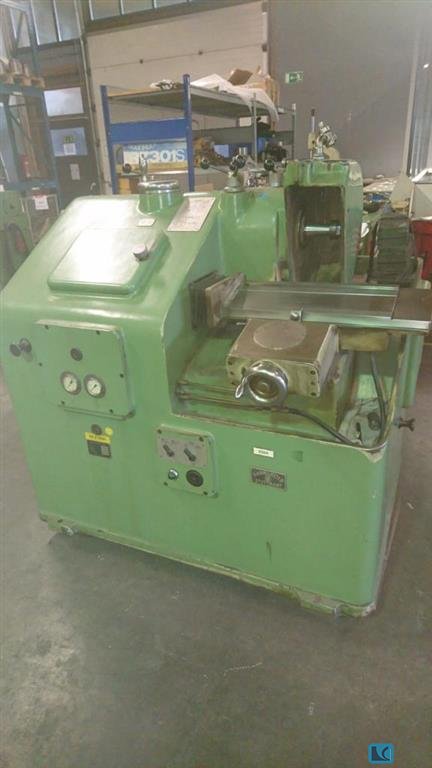

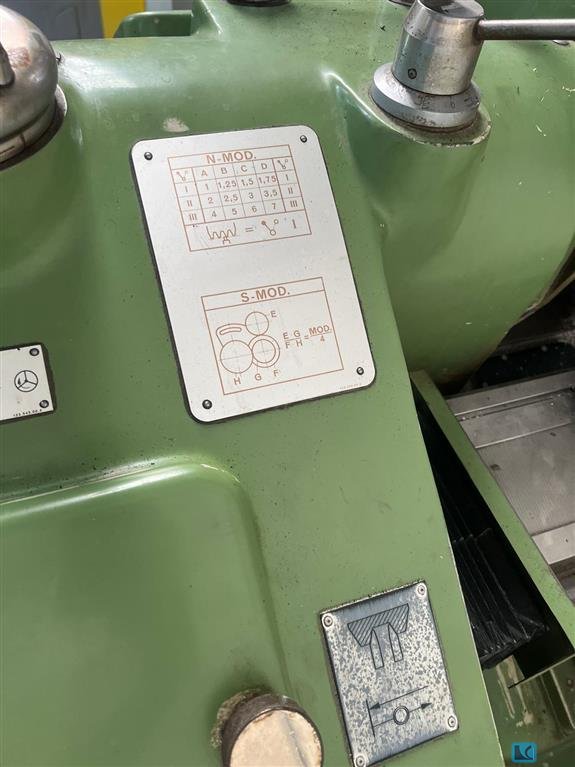

Moedor de engrenagens REISHAUER OZA com mudança de marcha.
Key data: 360 mm

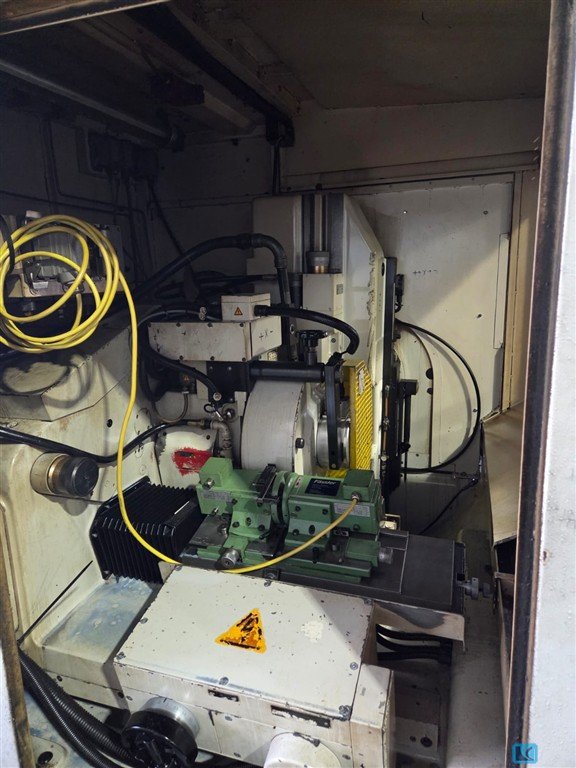

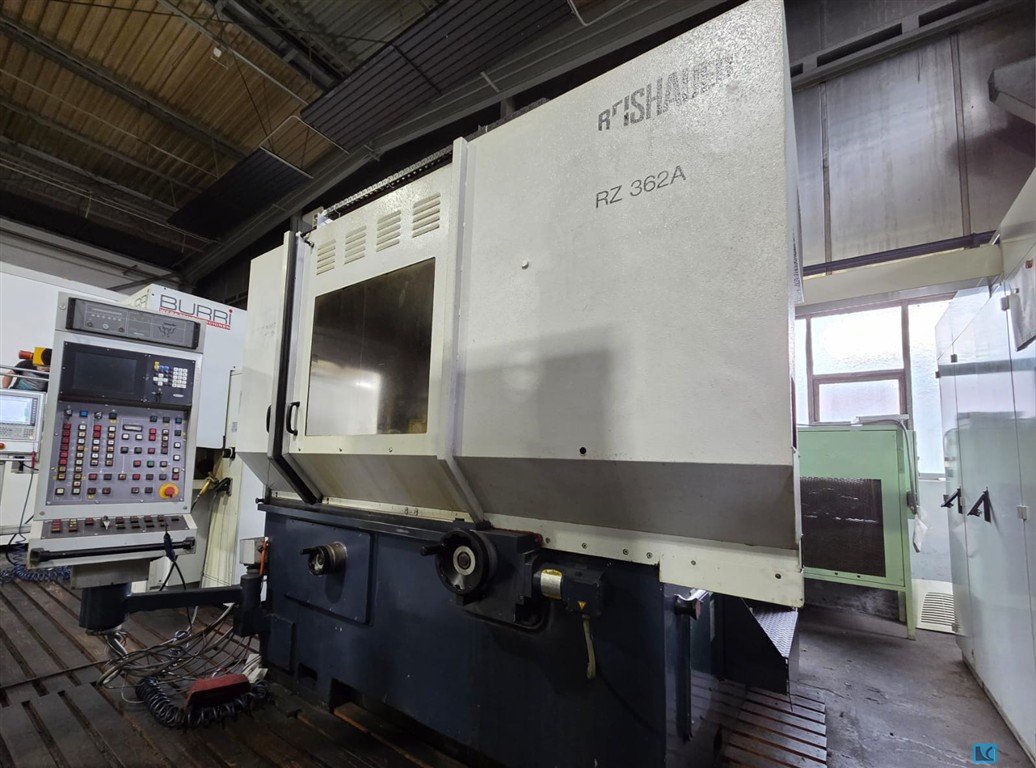

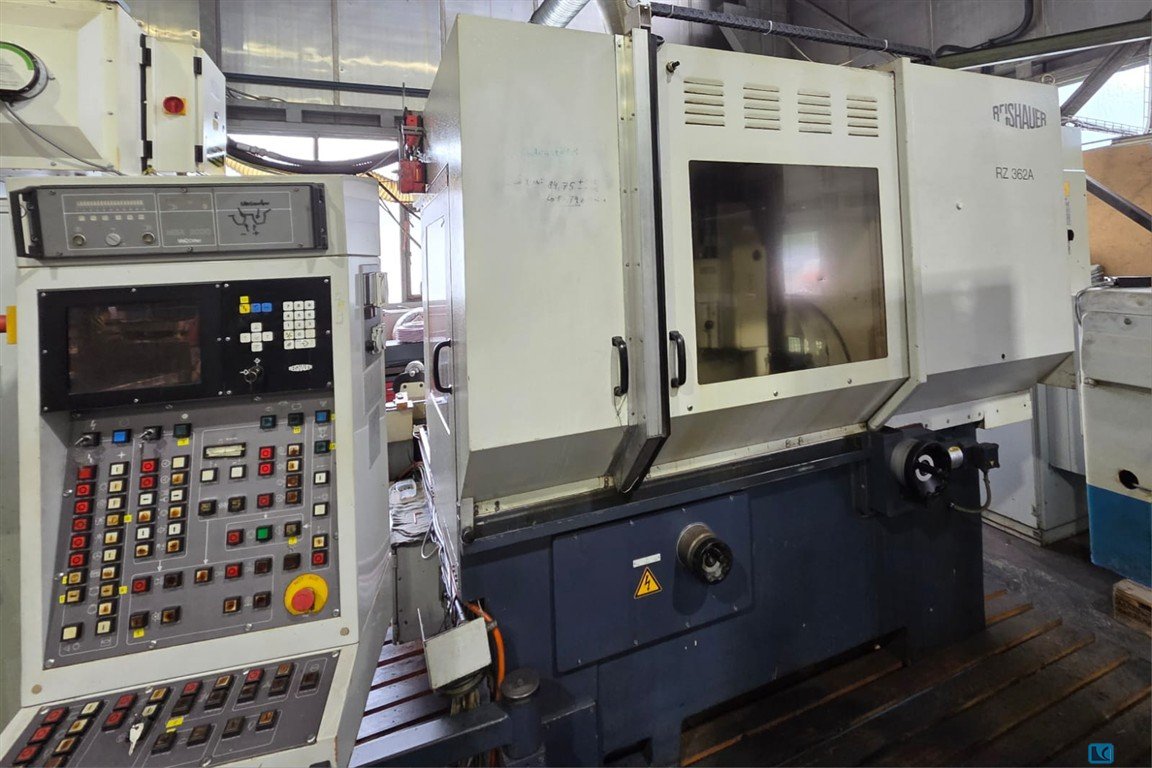

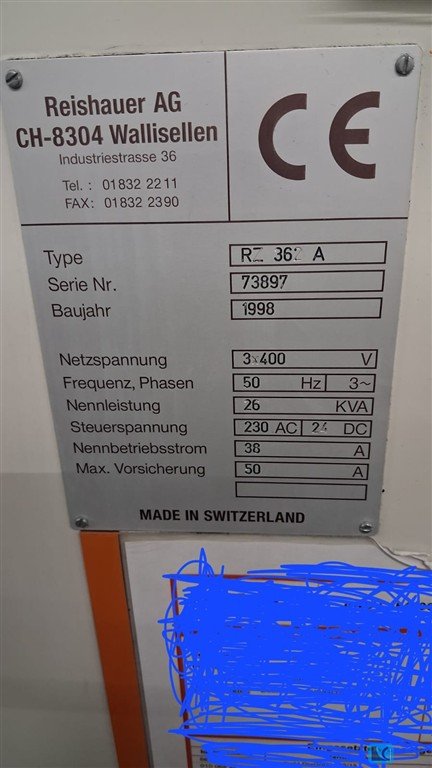

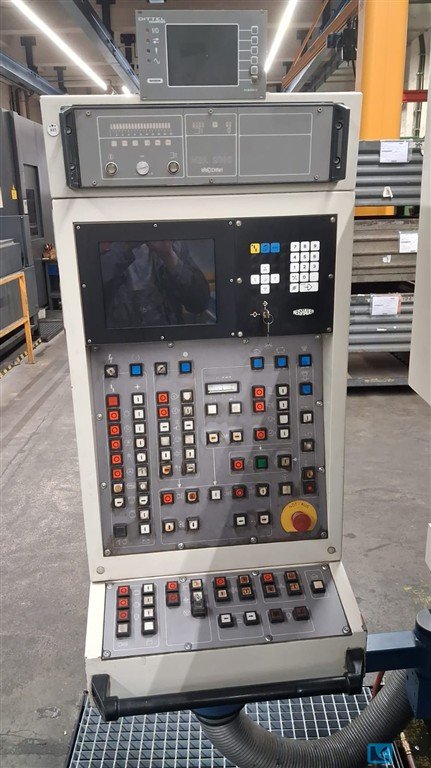

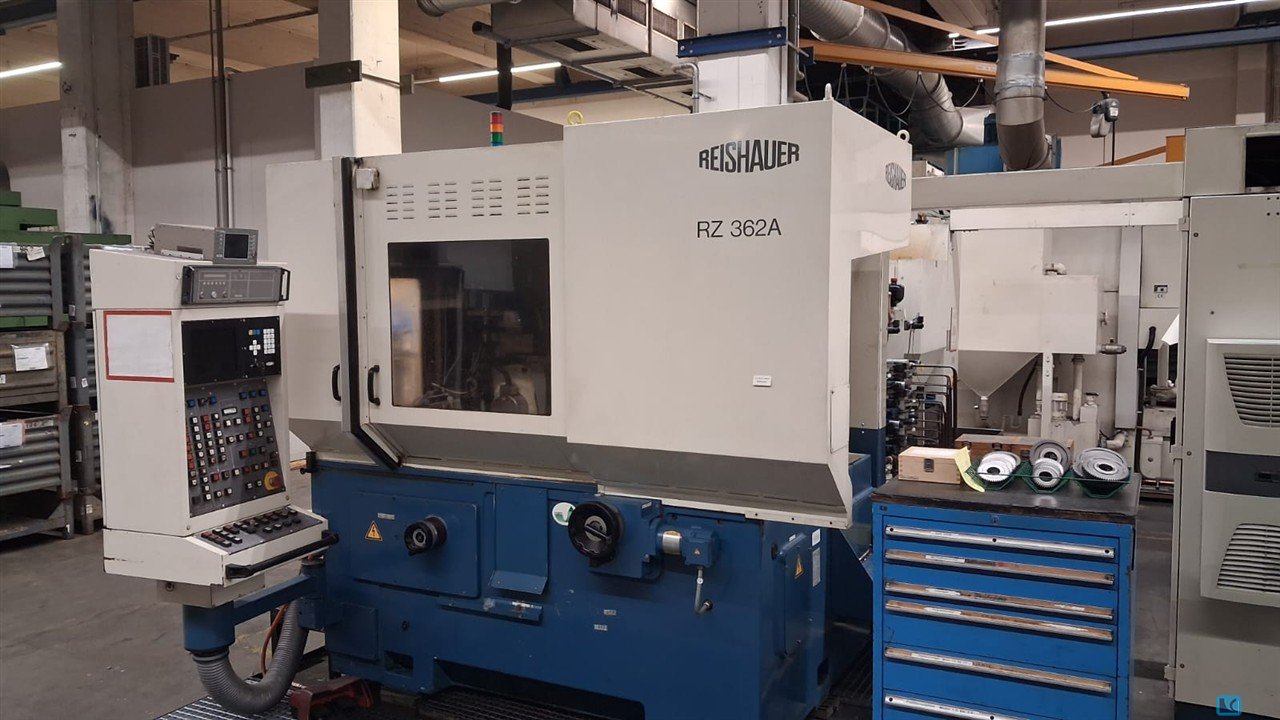

Reishauer Modelo RZ362A Moedor de engrenagens CNC Diâmetro máximo da roda: 14.17" Módulo máximo: 0.275" Módulo mínimo: 0.0039" Curso do slide: 6.88" Ângulo máximo de hélice: ± 45 Número máximo de dentes: 600 Número mínimo de dentes: 6 Peso máximo da peça: 132 lbs. Largura da roda de moagem: 4.09" Diâmetro da roda de moagem: 11.02" – 13.77" Velocidade do verme de moagem ao moer: 1100 – 2330 U/min Velocidade do worm de moagem ao perfilar: 50 – 95 U/min Alimentação por revolução da peça: 0 – 0.133" Velocidade de alimentação do worm de moagem: até 99,9 mm/min / 3,93 IPM Peso aproximado: 14.553 lbs. EQUIPADO COM: Controles CNC Reishauer. Dittel MBA2000 Balancing Controller. Elbaron R12D Coletor de névoa. Gerador de motor Kato. Unidade hidráulica independente. Sistema hidráulico de bomba-cárter de óleo. Armário de controle elét ...
max. module:7 weight of the machine ca.:5 t worm grinding diameter:280-350 mm width of grinding worm:84-104 mm min. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mm max. workpiece weight:60 kg without filter
total power requirement:36 kW Available from approximately week 15 of 2026 A well-maintained gear grinding machine including: Automation Promot, year of manufacture 2012 Filtration system Hoffmann YOM 2012
grinding wheel diameter:400 mm total power requirement:3 kW weight of the machine ca.:1,5 t dimensions of the machine ca.:1,5 x 1,4 x 1,3 m Dressing Grinder for gears REISHAUER AM max. width of grinding wheel 104 mm max. dia. of grinding wheel 400 mm max. module 7 min. module 0,5 pressure angle 10 - 30 ° grinding worm dia. 270 - 400 mm width of grinding worm 62/84/104 mm grinding worm turning speeds: at profiling 18/35/70 U/min electrics - voltage/frequency 380 / 50 V/Hz long. movement of crowning device 156 mm
Dressing diameter: Planing width: min. module: for Reishauer RZ150
max. wheel diameter: 400 mm gear width: 250 mm max. module: 8 min. module: 0,2 dist. between centers: 640 mm spindle turning speed range: 4010 U/min number of teeth: 5 - 999 max.helical angle: +/- 45 ° root circle diameter: 10 mm slide stroke: Z-Achse 300 mm workpiece weight: 300 kg clamping length max.: 700 mm clamping length min.: 60 mm pressure angle: 14 - 30 ° Control: Siemens 840D spindle motor: 10 kW total power requirement: - kW weight of the machine ca.: 16 t dimensions of the machine ca.: 3,3 x 2,7 x 2,5 m Gear grinding machine designed for small and large series production with: - Siemens Sinumerik 840 D CNC control - Tailstock - Balancing device - Oil mist extraction - Complete cladding - Double Spindle Dresser - Hoffmann filter system, type HSF 150 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 360 mm gear width: 180 mm max. module: 7 min. module: 0,5 Control: Reishauer 0: max. 180 mm tooth width: max. 180 mm min. number of teeth: 10 max. number of teeth: 600 max.helical angle: 45 ° max. workpiece weight: 60,0 kg grinding wheel width: 84 / 104 mm grinding wheel diameter: 280 / 350 mm Spindle Speed: 1.100 - 1.900 min/-1 grinding spindle turning speeds at profiling: 52 - 95 min/-1 total power requirement: 24 kVA weight of the machine ca.: 5,0 t dimensions of the machine ca.: 5,0 x 8,0 x 3,0 m - CNC Control Reishauer - CNC Dressing Unit - Exhauster - Coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Gear cutters, module cutters, hob cutters, tooth form cutters, module milling heads, end mill cutters, roller cutters, milling cutters, hob cutters, splined shaft hob cutters, gear hob cutters, slotted hob cutters, rack cutters -Manufacturer: Reishauer, hob cutters, 3 pieces -Type: Ø 50 mm / Ø 55 mm / Ø 62 mm -Hole: Ø 27 mm -Price/Fee: complete -Transport dimensions: 115/65/H70 mm -Weight: 1.3 kg
End mill, end mill, cutter, shell cutter -Manufacturer: Reishauer, end mill with longitudinal groove, 2 pieces -Type: 75 x 75H Sp 5000 KHSS-E 75x75x27 -Hole: Ø 27 mm -Cutting material: HSS-E -Price/Fee: complete -Transport dimensions: 150/75/H75 mm -Weight: 2.9 kg
Key bar chuck, power chuck, three-jaw chuck, three-jaw lathe chuck -Manufacturer: Reishauer, wedge bar chuck Chuck size: Ø 165 mm -Recess mounting: Ø 268 mm -Bolt circle: Ø 140 mm -Through hole: Ø 40 mm -Dimension: Ø 165 x 120 mm -Weight: 11.7 kg
Wedge bar chuck, power chuck, three-jaw chuck, three-jaw lathe chuck -Mouth size: Ø 290 mm -Recess inlet: Ø 268 mm -Bolt circle: Ø 168 mm -Mounting hole: Ø 21/31 mm -Mounting hole spacing: 148 mm -Through hole: Ø 70 mm -Weight: 43.5 kg
A thread and worm grinding machine Reishauer AG is available. Grinding length: 450mm, clamping length: 700mm, max. grinding diameter: 200mm, max. lead: 80mm, max. workpiece weight: 100g, max. lead angle: +/-25°, grinding wheel diameter: 275mm/350mm, speed: 1850rpm. Machine dimensions X/Y/Z: approx. 2600mm/1800mm/1600mm, weight: approx. 3400kg. Including oil centrifuge, hood, oil mist extraction and various accessories. Dokumentation vorhanden. An inspection on site is possible.
A gear flank grinding machine Reishauer, completely overhauled by Burri Werkzeugmaschinen, is available. Grinding spindle speed: 3500rpm, cutting speed: 63m/s, max. gear diameter: 360mm, module range: 0.1-7, number of teeth: 6-600, max. workpiece height: 160mm, max. helix angle: +/-45°, max. workpiece weight: approx. 60kg. Min. wheel root circle diameter: 250mm, grinding wheel dimensions X/Y/Z: 350mm/104mm/160mm, grinding worm diameter range: 270mm-350mm, max. grinding width: 175mm, max. workpiece speed: 800rpm. Includes profiling devices, balancing device, structure-borne noise contact control, compact filter system, cooling unit, cooling water recooler, robot automation, and transport trolleys. Documentation available. An on-site inspection is possible.
liter capacity: 120 l feed pressure: 218 bar coolant capacity: - l electrics - voltage/frequency: 380 / 50 V/Hz filter pump: 150 kW total power requirement: 14 kVA weight of the machine ca.: 1,5 t AF-Automatic pre-coat filter with return-flow cooling of gthe grinding oil and the hydraulic fluid The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: Reishauer DS / zum läppen weight of the machine ca.: 200 kg : Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 330 mm gear width: 180 mm max. module: 7 min. module: 0,5 total power requirement: 12 kW weight of the machine ca.: 7500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
workpiece diameter: 240 mm centre distance: 0 mm honing length max.: 500 mm max. module: 5 total power requirement: 12 kW weight of the machine ca.: 5000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
max. wheel diameter: 0 mm gear width: 120 mm max. module: 3 min. module: 1 total power requirement: 20 kW weight of the machine ca.: 7,5 t dimensions of the machine ca.: m : : : : : : 5 machines in stock, YOM: between 1986 and 1990 Gear Æ, min./max. 55 / 120 mm Gear Æ for shaft-formed parts 80 mm Module (pitch 25.4 - 8.5) 1 - 3 No. of teeth, min./max. 13 / 80 Pressure angle 14 - 30 ° Helix angle, max. 40 ° Workpiece clamping length 145 - 420 mm Grinding worm Æ 300 - 400 mm Grinding worm width 25 - 40 mm Grinding worm speeds, infinitely variable (35 m/s) 1,650 rpm Feed range 0.4 - 4 mm/rev Total electrical load 20 kW - 380 V - 50 Hz Weight 7,500 kg Accessories / Special Features REISHAUE ...
workpiece diameter: 460 mm threading length: 900 mm thread pitch: 100 mm total power requirement: 10 kW weight of the machine ca.: 8 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

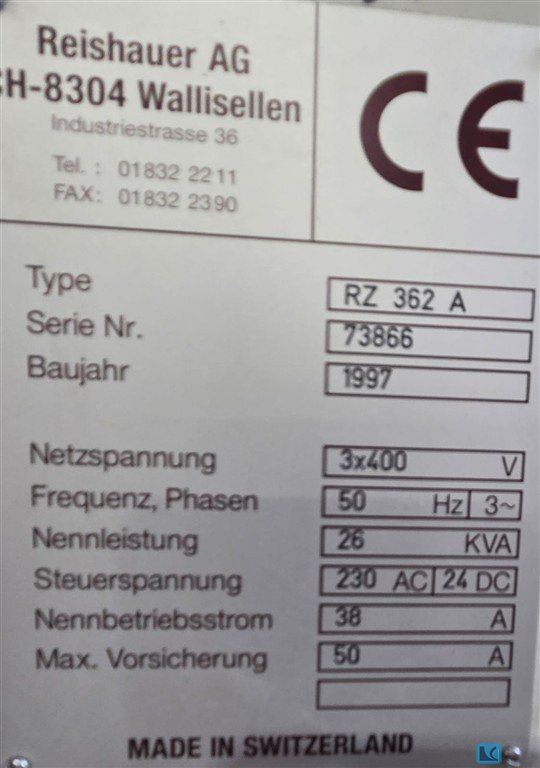

Reishauer RZ 362A Construído em 1999 Acessórios: 2x dispositivo de vestir Fässler Rodas Diamante Whetstones Separador turbo
largura máxima do rebolo: 125 mm diâmetro / furo do rebolo: 275 / 300 mm Cone de flange: Reishauer Flange de disco de moagem para o tipo de máquina Reishauer RZ 362 A Para montagem de discos de trituração de cerâmica para trituração de flancos dentários - 125 mm de largura, dimensões de acordo com o tipo de máquina Reishauer RZ 362 A 27 peças disponíveis, o preço é por peça
Largura máxima do rebolo: 125 mm Diâmetro / furo do rebolo: 275 / 300 mm Cone de flange: Reishauer Flange de disco de moagem para o tipo de máquina Reishauer RZ 301 S Para montagem de discos de trituração cerâmicos para trituração de flancos dentários - 125 mm de largura, dimensões de acordo com o tipo de máquina Reishauer RZ 301 S 26 peças disponíveis, o preço é por peça
largura máxima do rebolo: 195 mm diâmetro / furo do rebolo: 75 mm Cone de flange: Reishauer Flange de disco de moagem para o tipo de máquina Reishauer RZ 400 Para montagem de discos de trituração de cerâmica para trituração de flanco de dentes - 125 mm de largura, dimensões de acordo com o tipo de máquina Reishauer RZ 400 16 peças disponíveis, o preço é por peça
grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M4 EW20° 2GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M5,5 EW20° 3GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M6 EW20° 5GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding wheel size: 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M4 EW20° 4GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools Translated with DeepL.com (free version) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
