3-rolkowy układ hydrauliczny z podwójną konfiguracją planetarną przed szczyptą. nowy do wykonania, 45 dni od zamówienia. -Szerokość płyty 3000 mm -Pojemność grubość płyty toczenia 50 mm -Grubość płyty pre-pinch 40 mm Konfiguracja maszyny i zainstalowane akcesoria: -użyteczna długość powierzchni na rolkach 3100 mm -górny rozmiar rolki 480 mm -niższy rozmiar rolek 440 mm -Odczyty pozycji cyfrowej. -Utwardzanie 3 rolek. -3 rolki napędzane hydrauliczne z motoryzowane z niezależną skrzynią biegów osiowego na każdej rolce. -Stożkowe mocowanie płyty z odchylanymi dolnymi rolkami hydraulicznymi. -CERTYFIKACJA JAKOŚCI CE, Produkcja wyprodukowana we Włoszech. -Instrukcje obsługi i instrukcje obsługi. -Schematy hydrauliczne -Elektryczne & elektroniczne schematy z listą części. -Zestaw narzędzi serwisowych do konserw ...
4-rolkowa giętarka do blach Kramatorsk Najwyższa wytrzymałość materiału na rozciąganie: 500 MPa (50 kg/mm²) Granica plastyczności – gięcie na zimno: 250 MPa (25 kg/mm²) Granica plastyczności – gięcie na gorąco (podstawowe): 100 MPa (10 kg/mm²) Granica plastyczności – formowanie na gorąco (ogrzewanie wtórne): 45 MPa (4,5 kg/mm²) Wydłużenie w stanie zimnym: ±18% Maksymalna szerokość arkusza: 4000 mm Max grubość blachy – na zimno, bez gięcia wstępnego: 71 mm Max grubość blachy – na zimno, z gięciem wstępnym: 63 mm Max grubość blachy – formowanie na gorąco: 150 mm Minimalny promień gięcia – na zimno: 560 mm Minimalny promień gięcia – na gorąco: 600 mm Maksymalny promień gięcia w pozycji zamkniętej (zagięta krawędź): 1000 mm Silnik główny: 160 kW Waga: 730 ton
workpiece width - max.: 780 mmworkpiece height max.: 120 mmworkpiece sizes - min.: 20x20 mmtotal power requirement: 6 kWweight of the machine ca.: 445 kgdimensions of the machine ca.: 1500x1100x1550 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

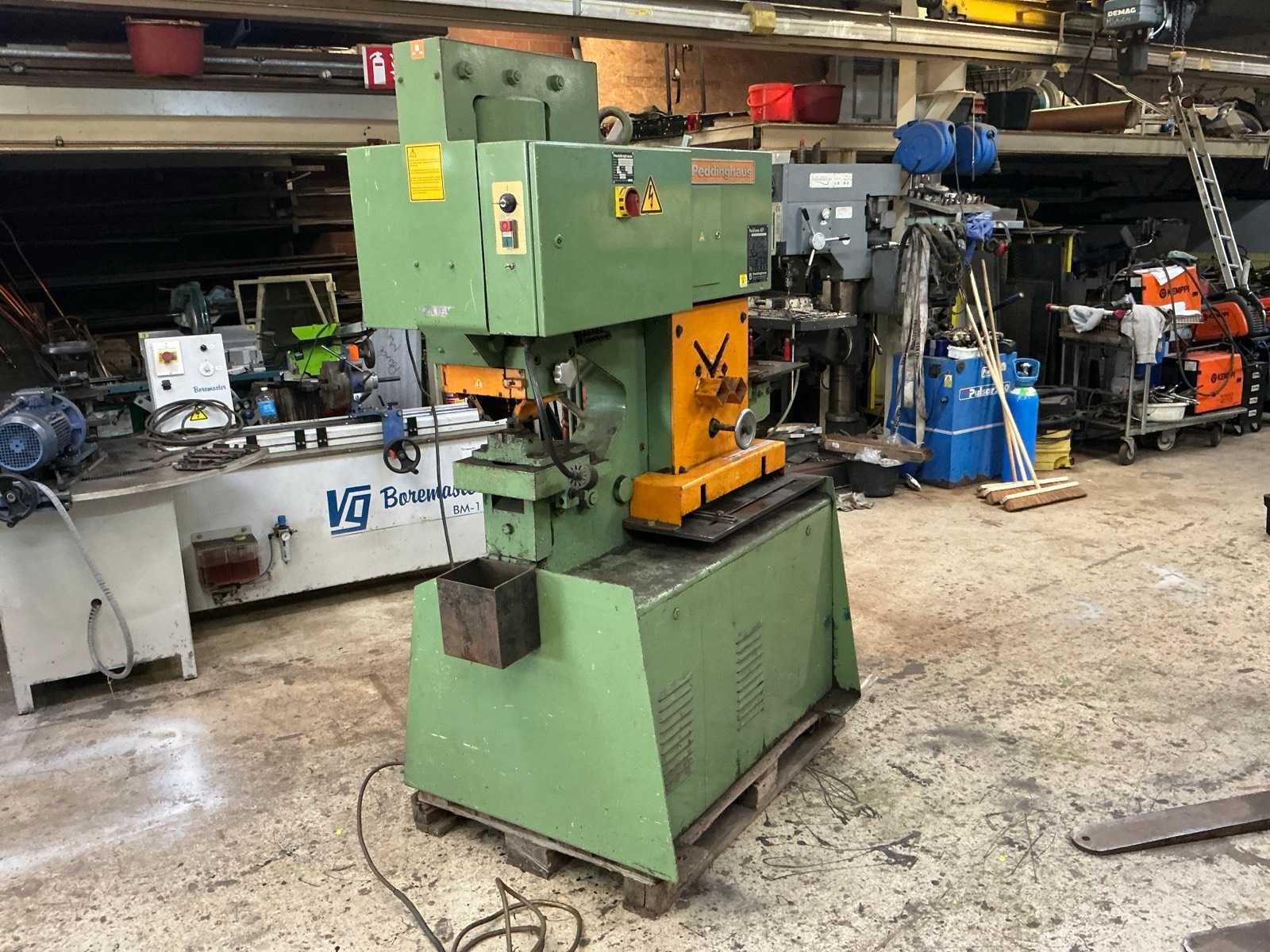

punching pressure: 55.0 tpunch diameter: 20 in 20 mmpunch diameter: 40 in 10 mmadjustment of stroke: 0 - 60.0 mmround bar steel: 40.0 mmL-beam: 120 x 12.0 mmsquare edge steel: 40.0 mmshear: flat material: 200 x 20 / 300 x 15 mmblade length: 317 mmstrokes per minute: max. 25 work height max.: 900 / 1130 mmoil volume: 75.0 lvoltage: 400 Vtotal power requirement: 5.5 kWweight: 1250 kgdimensions: 1650 x 1100 x 1900 mm From a maintenance workshop Original price of the base machine: ~ 15.000 Euros Special price upon requestEquipment:- Electro-hydraulic structural steel shear- Punching station, flat bar shear, angle/profile steel shear, notching station Punching station equipped with special punching attachments- Heavy-duty, robust welded construction- Infinitely adjustable stroke length- Highly compact design- Support table at the notching station- Side support tables- 2x mobile foot switches- ...
sheet width: 3000 mmplate thickness: 6 mmpre-bending: 4 roll diameter: 205 mmtotal power requirement: 5 kWweight of the machine ca.: 3,7 tdimensions of the machine ca.: 4,0 x 1,4 x 1, 5 mRoundo 3-roll plate bending machine, featuring:- Hydraulic drop-end bearing and remote control- Conical bending attachment: a device for rollingcones and funnels.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width:400 mmplate length:500 mmplate thickness:4 mmtotal power requirement:0,5 kWPunching and Nibling machine with 6 x 3 mm nibling and 4 mm for cuting
material width:500 mmcoil weight:3,0 tmaterial thickness:0,2 - 2,5 mmcoil internal diameter:470 - 530 mmcoil external diameter:1400 mmno. of straightening rolls:9 straightening roll diameter:40 mmnumber of inlet and outlet rolls:4 material cross-cut:1200 mm²speed:1,5 - 30 m/mindimensions decoiler (WxDxH):1,9 x 0,6 x 1,7 mweight decoiler:1,1 tdimensions straightener (WxDxH):3,3 x 1,3 x 2,7 mweight straightener:3,0 tstraightening machine:RYD 40 x 500 decoiler:DY 500 x 3000 coil lifting device:hydraulic rool feed:elektronic; AESL 500-2,8 threading device:hydraulic expansion:hydraulic
material width:600 mmmaterial thickness: - 4,0 mmno. of straightening rolls:21 straightening roll diameter:30 mmmaterial cross-cut:1800 mm²speed:6 - 36 m/minPower capacity:4,5 kWWeight:2,0 tDimensions (WxDxH):1,5 x 2,0 x 1,9 m

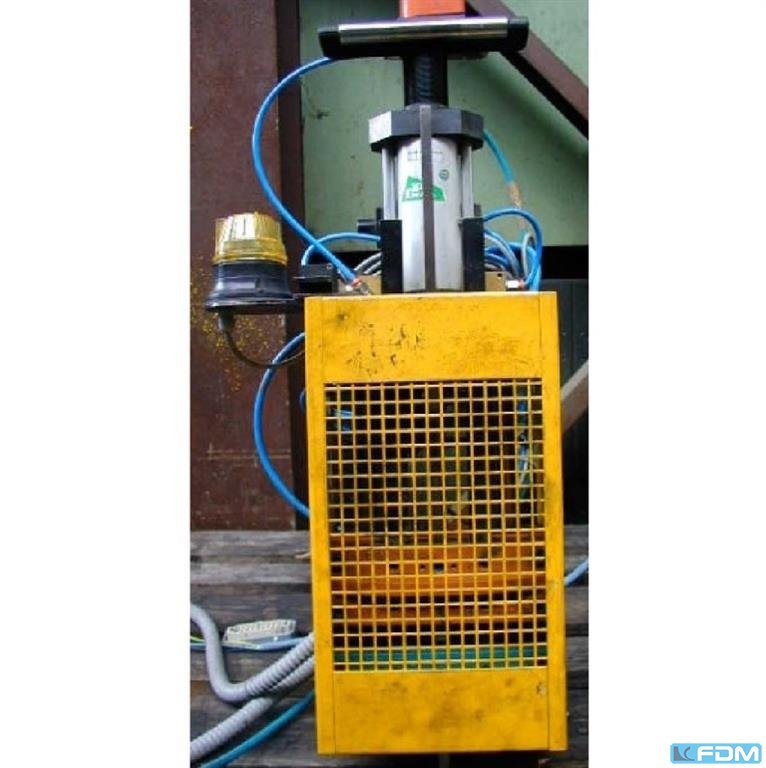

material width:70 mmmaterial thickness:0 - 1,5 mmfeed length:100 mmmaterial cross-cut:60 mm²feeding force:400 Nclamping force of feeding pincer:1300 Nair pressure - required:3 - 6 barWeight:0,01 tDimensions (WxDxH):0,4 x 0,4 x 0,7 m
sheet width:2000 mmplate thickness:1.8 mmControls:SIEMENS S7 PRESS DESIGN:. - frame design : H-frame :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - height above floor level:375 mmRAM:. - ram force:800 to - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /minRAM (MECHAN. PRESS):. - ram adjustment:350 mmTOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):3100 mm - Free passage between side columns (width):2560 mm - Free passage between side columns (height):1500 mmDECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. di ...
band width:1050 mmplate thickness:8 mmnumber of rolls:8 DECOILER:. - design : single coil :. - sheet width max:1050 mm - sheet width (min):150 mm - max. weight of coil:22 to - max. diameter of coil:2000 mm - min. internal diameter of coil:570 mmFEEDERS:. - feeder: type : roll feeder :. - sheet width max:1050 mm - sheet thickness max:150 mmLEVELER UNIT:. - sheet width max:1050 mm - sheet width (min):150 mm - sheet thickness max:8 mm - sheet thickness (min):2.5 mm - number of leveler rolls:8 - diameter of leveler rolls:96 mm - distance between leveler rolls:104 mm - diameter of feed rolls:160 mm - feed velocity min.:2 m/min - feed velocity max.:43.5 m/minELECTRICAL SPECIFICATIONS:. - mains voltage:400 V - mains frequency:50 HzTechnical description :Sheet metal unrolling and straightening system for thick sheet metal up to 8 mm, consisting of:- LAWECO COIL LO ...
sheet width:5040 mmplate thickness:2 mmtotal power requirement:12 kWweight of the machine ca.:9,4 tdimensions of the machine ca.:6200× 1300 ×1900 mmworking width:5000 mmcontrol:Fasti Matik stroke of upper beam:500 mmadjustment of lower beam:u.Biegewange 80 mmcontrol cabinet:1000 x 850 x1450 mmDocuments:vorhanden
material width:180 mmcoil weight:0,75 tmaterial thickness:2,0 - 6,0 mmcoil external diameter:400 - 1250 mmno. of straightening rolls:5 number of draw-in rolls:2 band speed:20 m/minpower requirement:4,0 kWweight:2,8 tdimensions (WxDxH):1,4 x 2,45 x 1,85 msnubber roll:pneumatic
material width:150 mmmaterial thickness:1,5 mmpower requirement:3,0 kWno. of straightening rolls:7 straightening roll diameter:50 mmnumber of draw-in rolls:4 weight:0,67 tDimensions (WxDxH):1,3 x 1,1 x 1,6 m

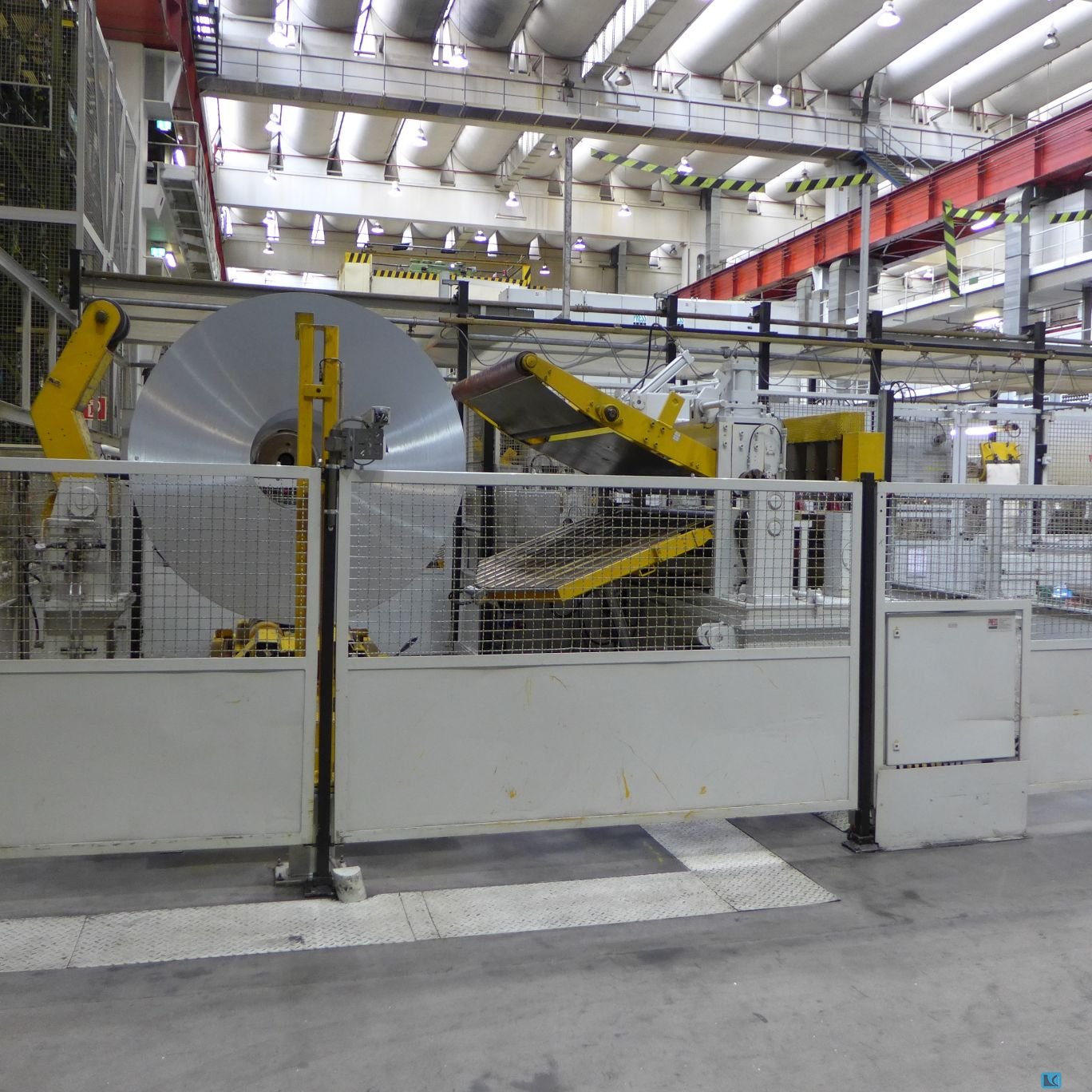

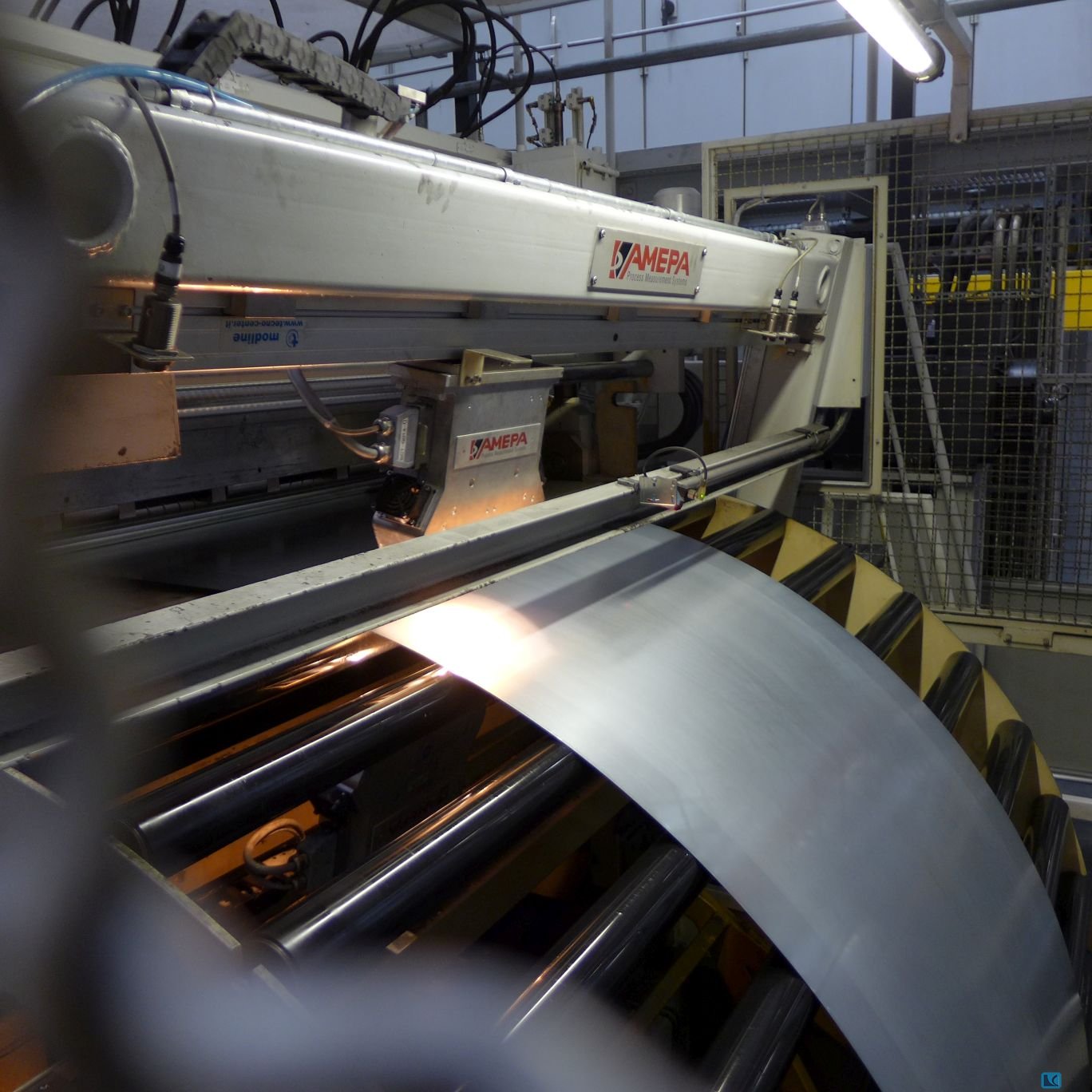

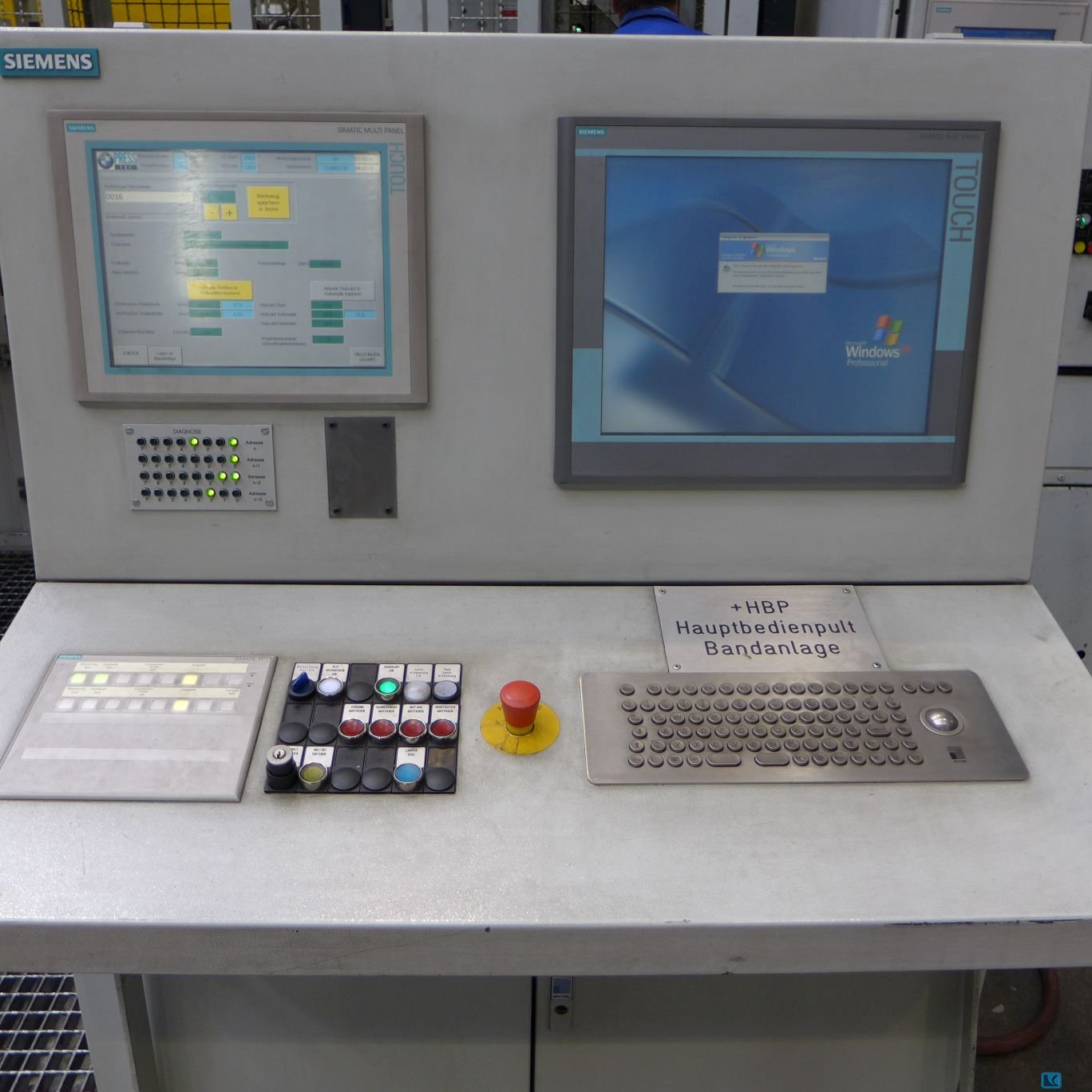

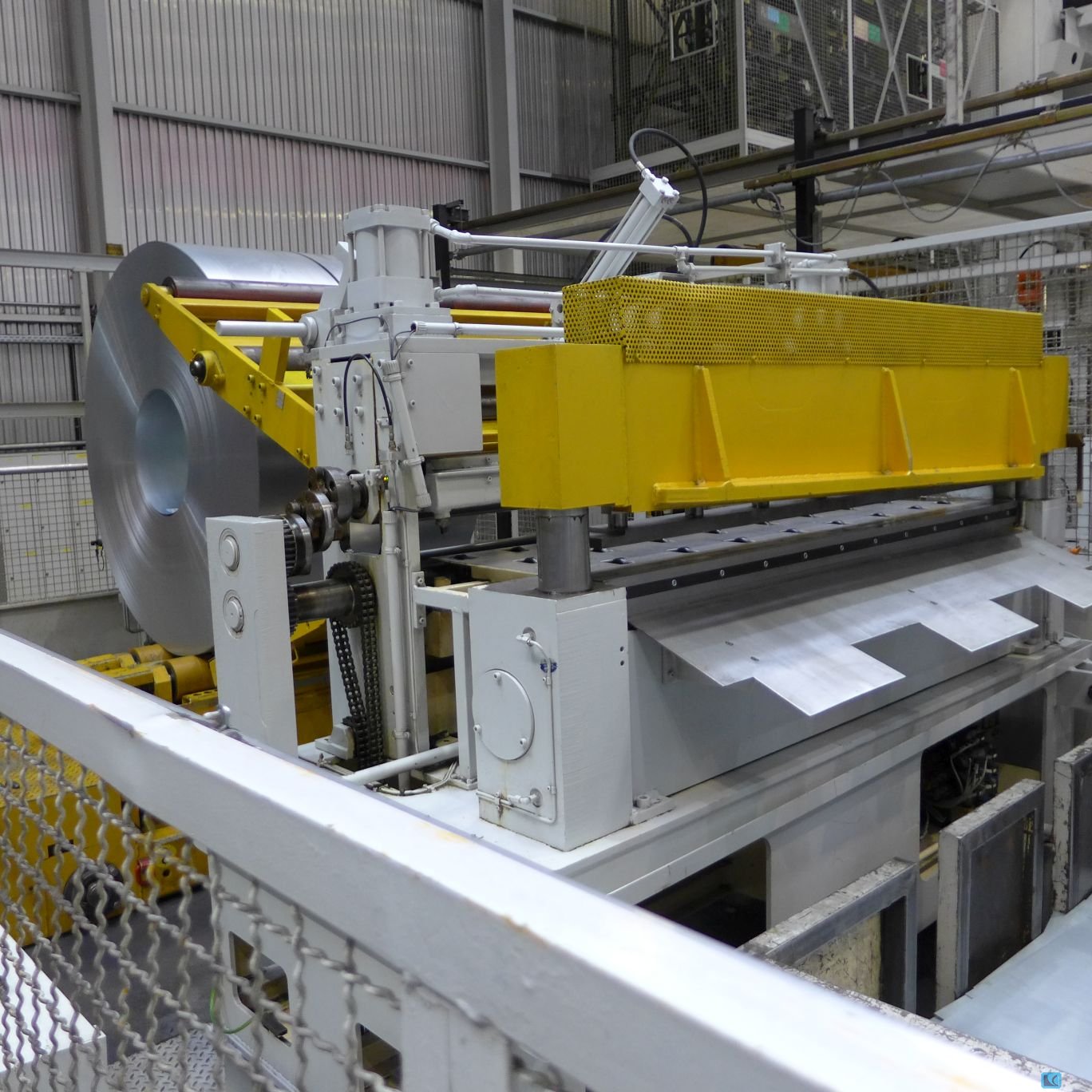

band width:2000 mmplate thickness:1.8 mmnumber of rolls:13 Controls:SIEMENS DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diameter of coil:2000 mm - min. internal diameter of coil:610 mmFEEDERS:. - sheet width max:2000 mm - sheet thickness max:2 mm - feeding step max.:4000 mmLEVELER UNIT:. - sheet width max:2000 mm - sheet width (min):400 mm - sheet thickness max:1.8 mm - sheet thickness (min):0.6 mm - number of leveler rolls:13 - diameter of leveler rolls:50 mm

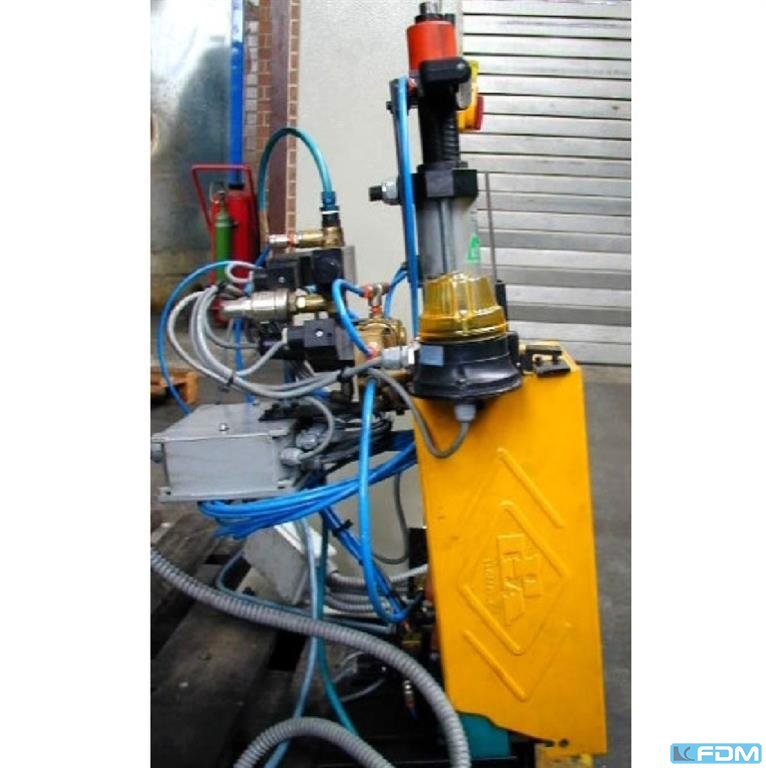

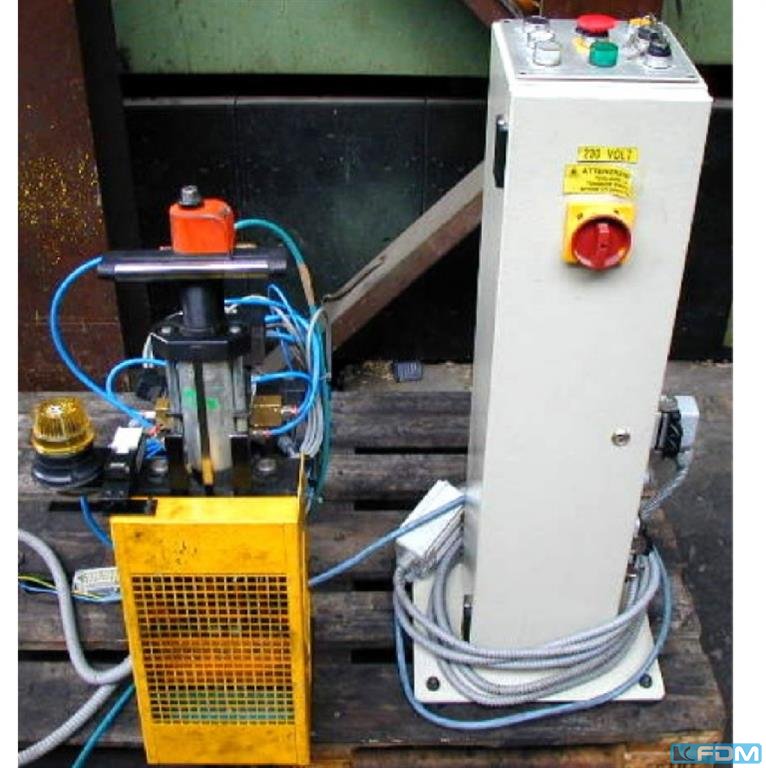

material width:150 mmmaterial thickness:2,5 mmfeed length:100 mmcompressed air:6 barclamping force of fastening pincer:2000 Nclamping force of moving pincer:2000 Nfeeding force:1200 Nweight:0,1 tDimensions (WxDxH):0,35 x 0,85 x 0,5 m
material width:850 mmmaterial thickness:0,3 - 1,5 mmno. of straightening rolls:8 straightening roll diameter:40 mmnumber of draw-in rolls:2 diameter of draw-in rolls:160 mmmaterial thickness with 600 mm material width:1,9 mmmaterial thickness with 400 mm material width:2,3 mmspeed:5 - 25 m/minmin. material width:200 mmweight:2,8 tDimensions (WxDxH):1,6 x 2,2 x 2,3 m
material width:850 mmmaterial thickness:0,3 - 1,5 mmno. of straightening rolls:8 straightening roll diameter:40 mmnumber of draw-in rolls:2 diameter of draw-in rolls:160 mmmaterial thickness with 600 mm material width:1,9 mmmaterial thickness with 400 mm material width:2,3 mmspeed:5 - 25 m/minmin. material width:200 mmweight:3,1 tDimensions (WxDxH):2,2 x 1,5 x 2,8 m
material width:300 mmmaterial thickness:- 3,0 mmno. of straightening rolls:7 Stückstraightening roll diameter:60 mmweight:0,8 tDimensions (WxDxH):0,9 x 1,5 x 1,4 m

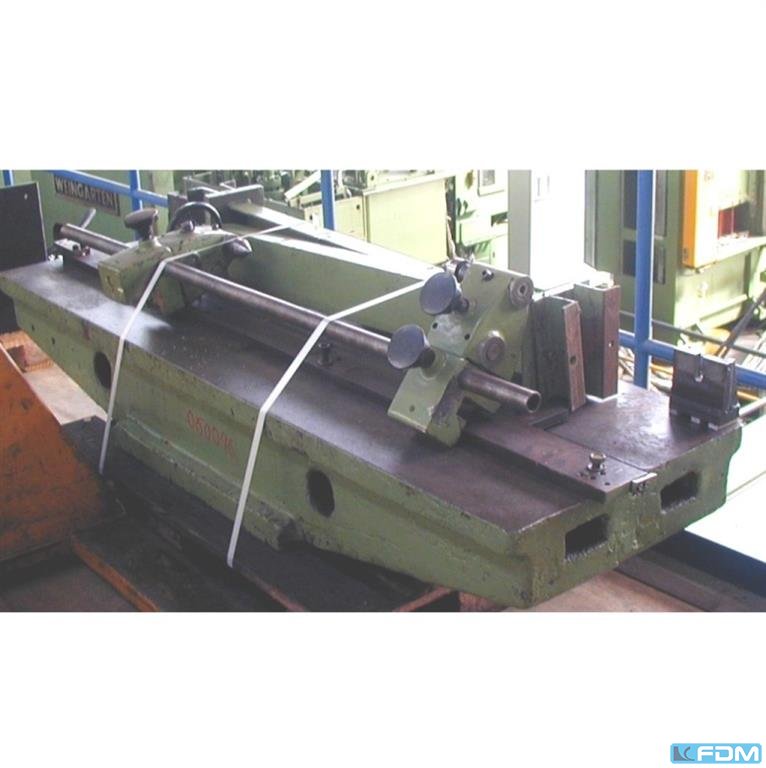

table length:2000 mmtable width:600 mmtable height:300 mmmounting surface:700 x 600 mmcentre distance:1200 mmcentre height:160 mmDimensions (WxDxH):2,0 x 0,6 x 0,3 m
material width:380 mmcoil weight:1,0 tmaterial thickness:2,5 mmcoil external diameter:1000 mmno. of straightening rolls:7 straightening roll diameter:50 mmnumber of draw-in rolls:2 diameter of draw-in rolls:90 mmweight:0,8 tDimensions (WxDxH):0,8 x 1,3 x 1,7 m
material width:500 mmmaterial thickness:0,6 - 1,6 mmno. of straightening rolls:7 straightening roll diameter:60 mmnumber of draw-in rolls:2 + 2 inlet roll diameter:60 mmmax. material thickness:2,0 mmmaterial thickness at 150 mm material width:2,0 mmmaterial thickness at 500 mm material width:1,6 mmweight:0,5 tdimensions (WxDxH):0,8 x 1,0 x 1,2 m
material width:400 mmcoil weight:3,0 tmaterial thickness:0,5 - 4,0 mmcoil internal diameter:460 - 530 mmcoil external diameter:1500 mmno. of straightening rolls:9 straightening roll diameter:50 mmno. of lower support rolls:12 no. of upper support rolls:10 diameter of support rolls:90 mmmaterial cross-cut:1600 mm²speed of coil line:0 - 20 m/minpower requirement:35,0 kWweight:10,5 tdimensions (WxDxH):10,0 x 2,5 x 2,9 mstraightening machine:KRE 50.400/9 adjustment of straightening rolls :motoric insertion wedge:hydraulic adjustable decoiler:3000.1 snubber roll:hydraulic expansion:hydraulic sideway adjustment:motoric pivoting:manual roll feed:Servo; WVE 160/400 intermittant lifting:hydraulic
material width:300 mmmaterial thickness:0,6 - 2,5 mmno. of straightening rolls:7 straightening roll diameter:60 mmnumber of draw-in rolls:2 + 2 diameter of draw-in rolls:60 mmmax. material thickness:3,5 mmmaterial thickness at 30 mm material width:3,0 mmmaterial thickness with 300 mm material width:2,5 mmweight:0,3 tDimensions (WxDxH):0,9 x 1,0 x 1,1 m
material width:550 mmmaterial thickness:0,4 - 1,6 mmno. of straightening rolls:11 straightening roll diameter:60 mmnumber of draw-in rolls:4 diameter of draw-in rolls:60 mmband speed:4 - 50 m/minpower capacity:3,0 kWweight:1,7 tDimensions (WxDxH):2,5 x 2,0 x 1,7 m
material width:320 mmcoil weight:2,6 tmaterial thickness:0,5 - 2,0 mmcoil internal diameter:400 - 510 mmcoil external diameter:1200 mmno. of straightening rolls:7 straightening roll diameter:50 mmnumber of draw-in rolls:2 band speed:0 - 30 m/minpower capacity:1,5 kWweight:1,5 t
material width:120 mmmaterial thickness:0,4 - 4,0 mmno. of straightening rolls:19 straightening roll diameter:24 mmmaterial cross-cut:120 mm²:40 mmbending speed:5 - 25 m/minweight:0,85 tdimensions (WxDxH):1,2 x 1,7 x 1,6 infinitely variable drive:Stöber
material width:400 mmmaterial thickness:0,6 - 2,8 mmno. of straightening rolls:5 straightening roll diameter:40 mmno. of pulling rolls:2 + 2 material thickness at 400 mm material width:1,8 mmmaterial thickness at 65 mm material width:2,8 mmpower capacity:3,0 kWweight:0,45 tDimensions (WxDxH):0,8 x 1,8 x 1,35 m

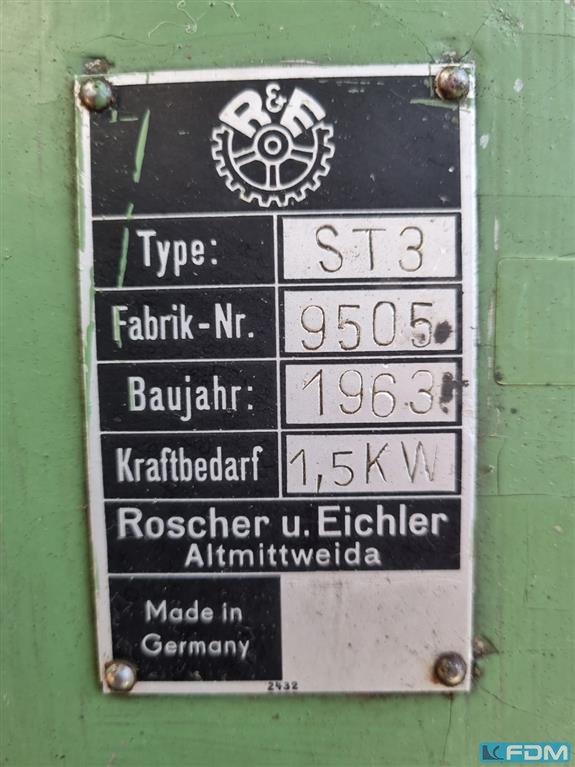

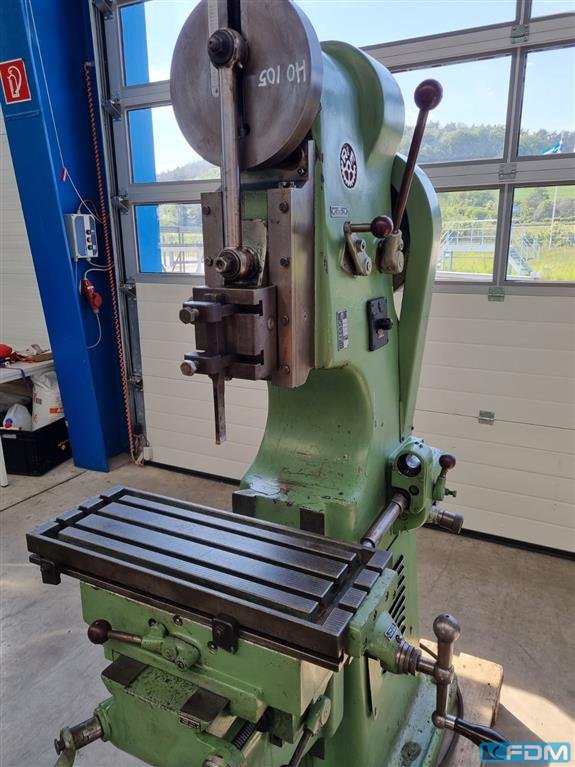

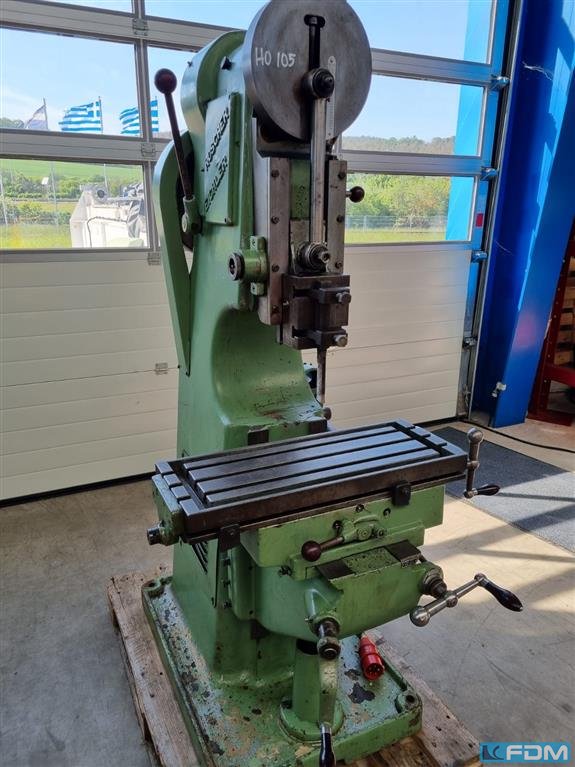

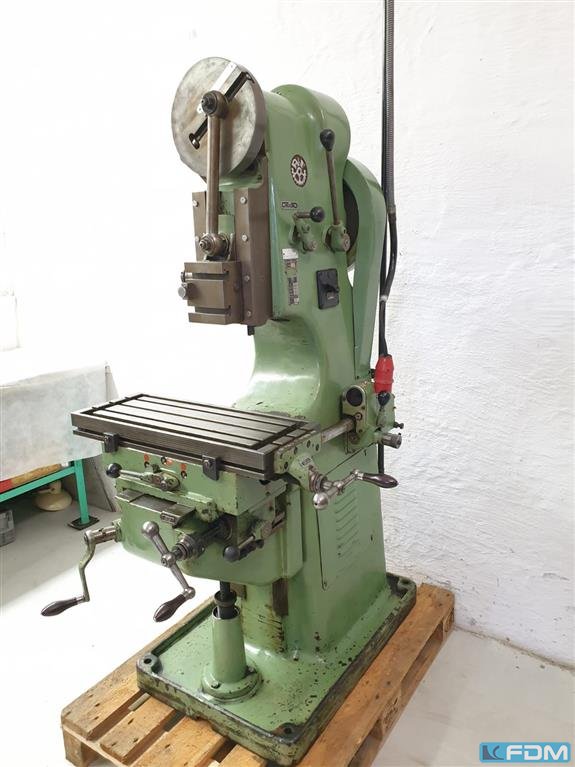

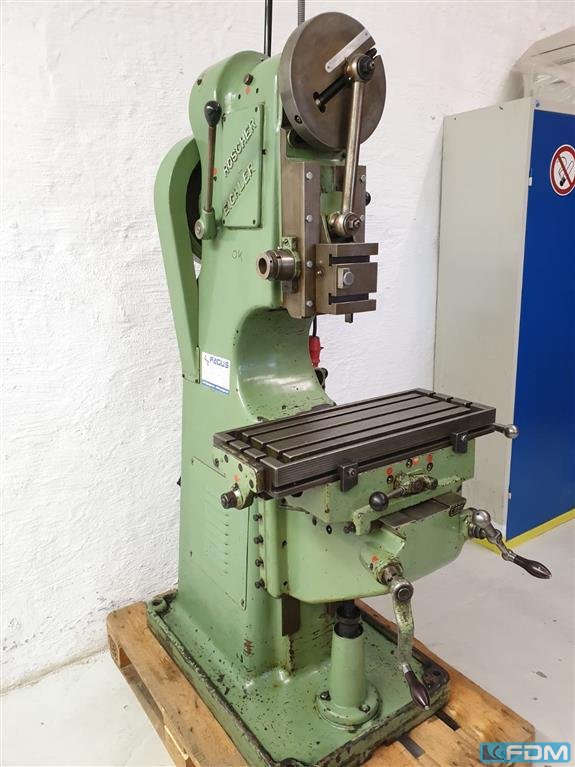

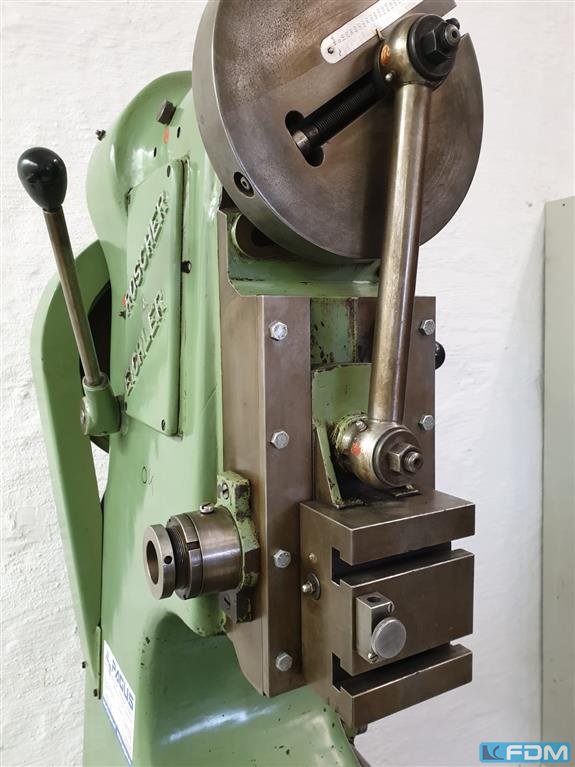

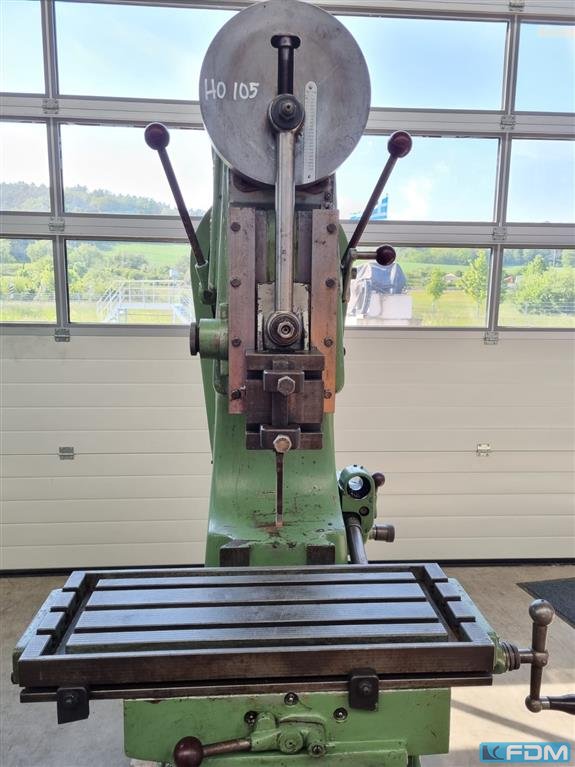

max. ram stroke:220 mmtotal power requirement:1,5 kWweight of the machine ca.:880 kgdimensions of the machine ca.:1.500 x 1.000 x 2.200 mmslot-milling length:220 mmtoolhead swivelling: +/- 10° ° Gradtable::650 x 250 mmtable adjustment: vertical:360 °mmtable adjustment: quer/längs: 170/400 °mmstrokes per minute:45 / 78 / 125 Hub/min feed:: 0,1 / 0,2 / 0,3 in 3 step
