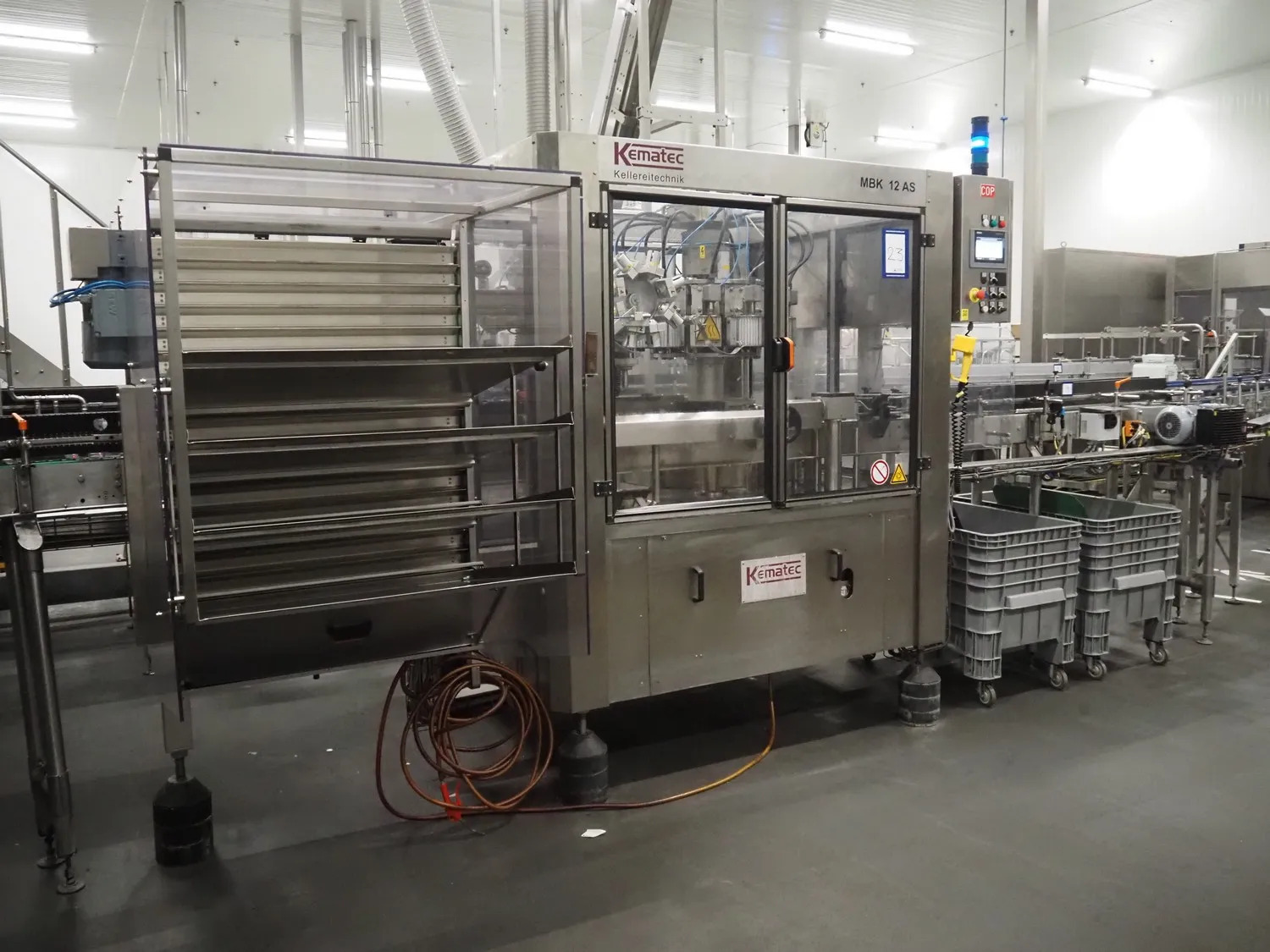

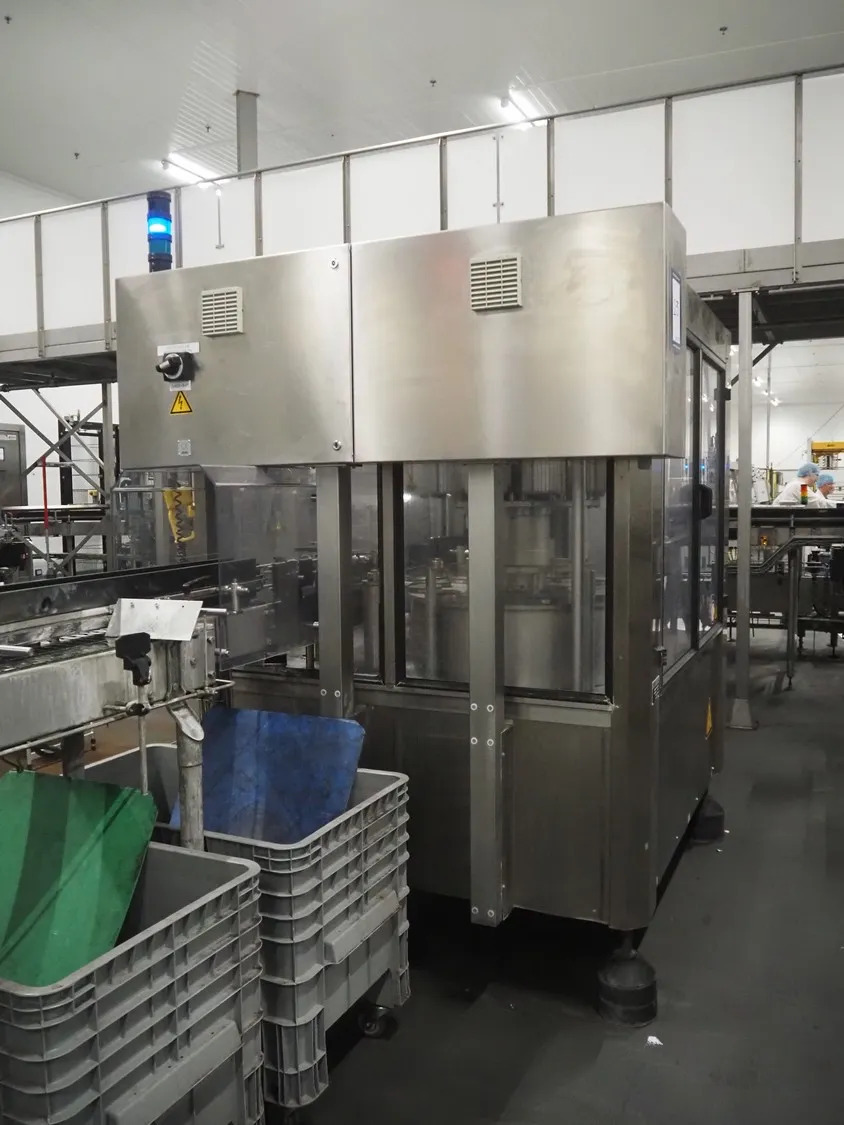

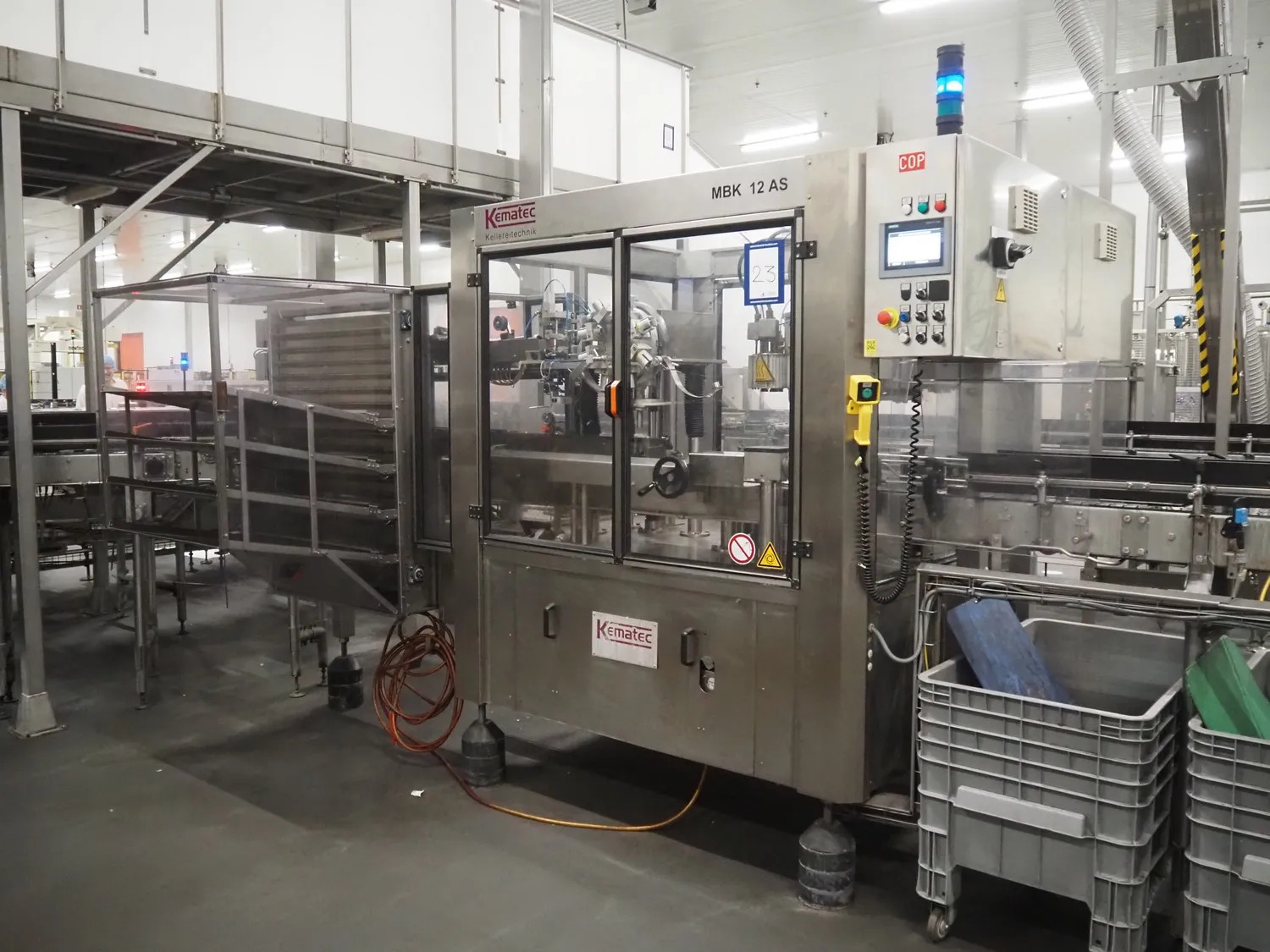

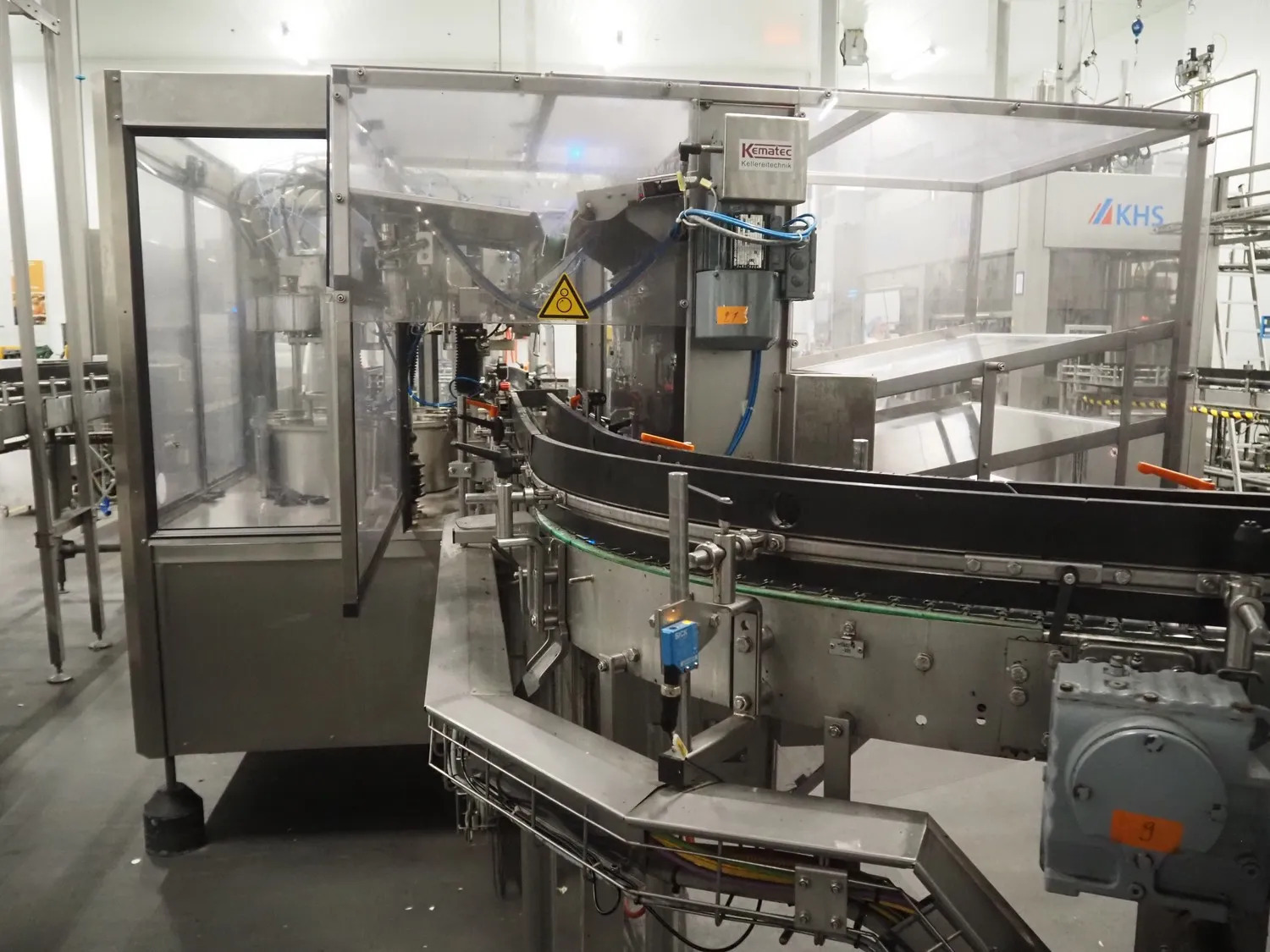

Overview This Kematec MBK 12 AS, built in 2006, places shrink capsules on wine bottles and shrinks them on in 12 heating stations. It runs at 3,000 - 12,000 bottles per hour and covers bottle heights of 235 - 360 mm and bottle diameters of 50 - 115 mm. The machine is still installed in a wine bottling line and can be inspected on site. Technical data Manufacturer: Kematec Model: MBK 12 AS Year of manufacture: 2006 Machine type: capsule placing and shrinking machine Output: 3,000 - 12,000 bottles/h Capsules: shrink capsules, max. length 80 mm, max. diameter 40 mm Head diameter: 33 mm Heating stations: 12 Capsule magazine: 1,800 capsules Bottle height: 235 - 360 mm Bottle diameter: 50 - 115 mm Working height: 1,100 mm (+/- 50 mm) Direction of travel: left to right Power supply: 400 V, 50 Hz; main drive 0.75 kW Compressed air: 6 - 7 bar, approx. 350 l/min Overall dimensions (L x W x H): 3,7 ...

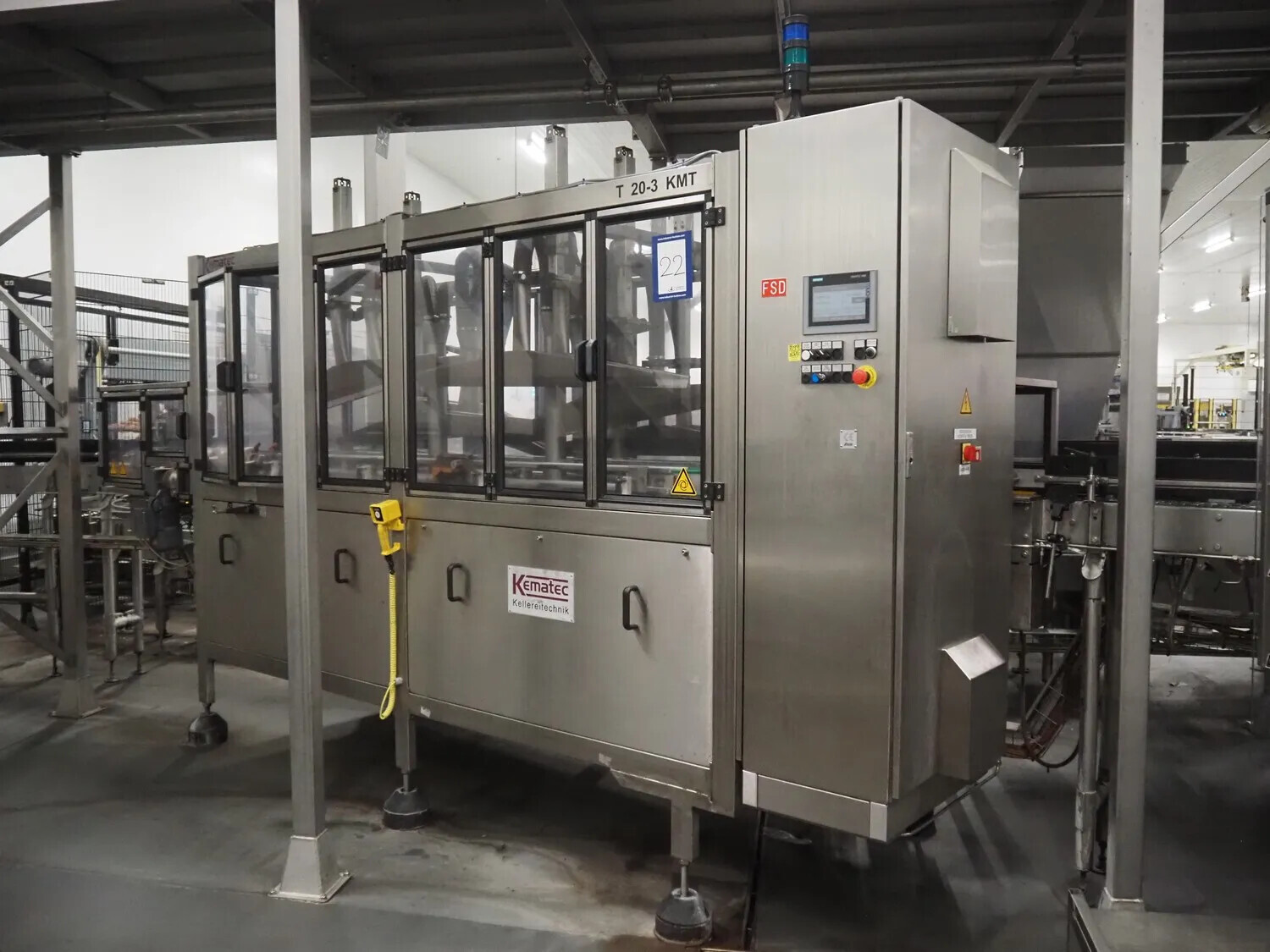

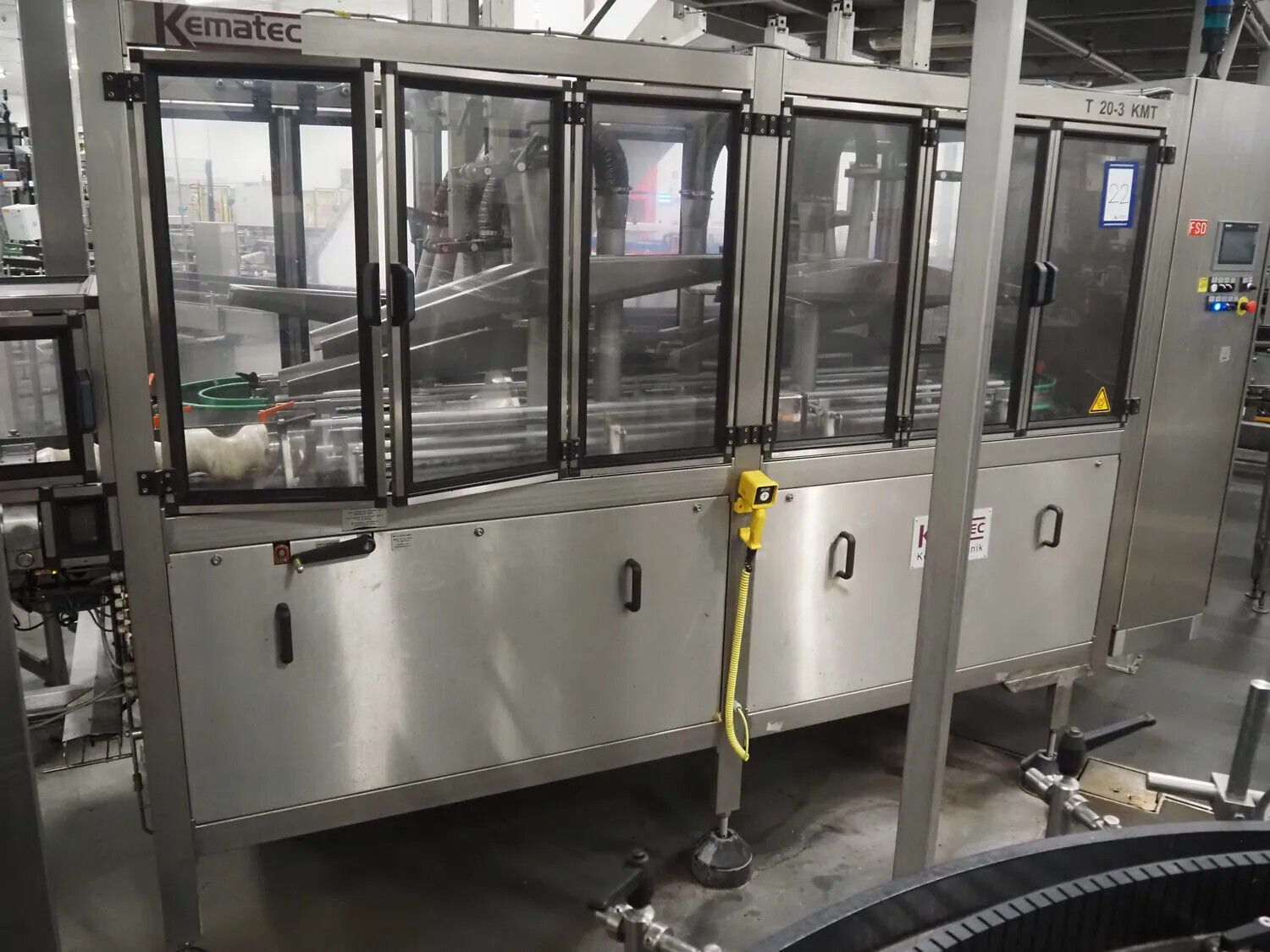

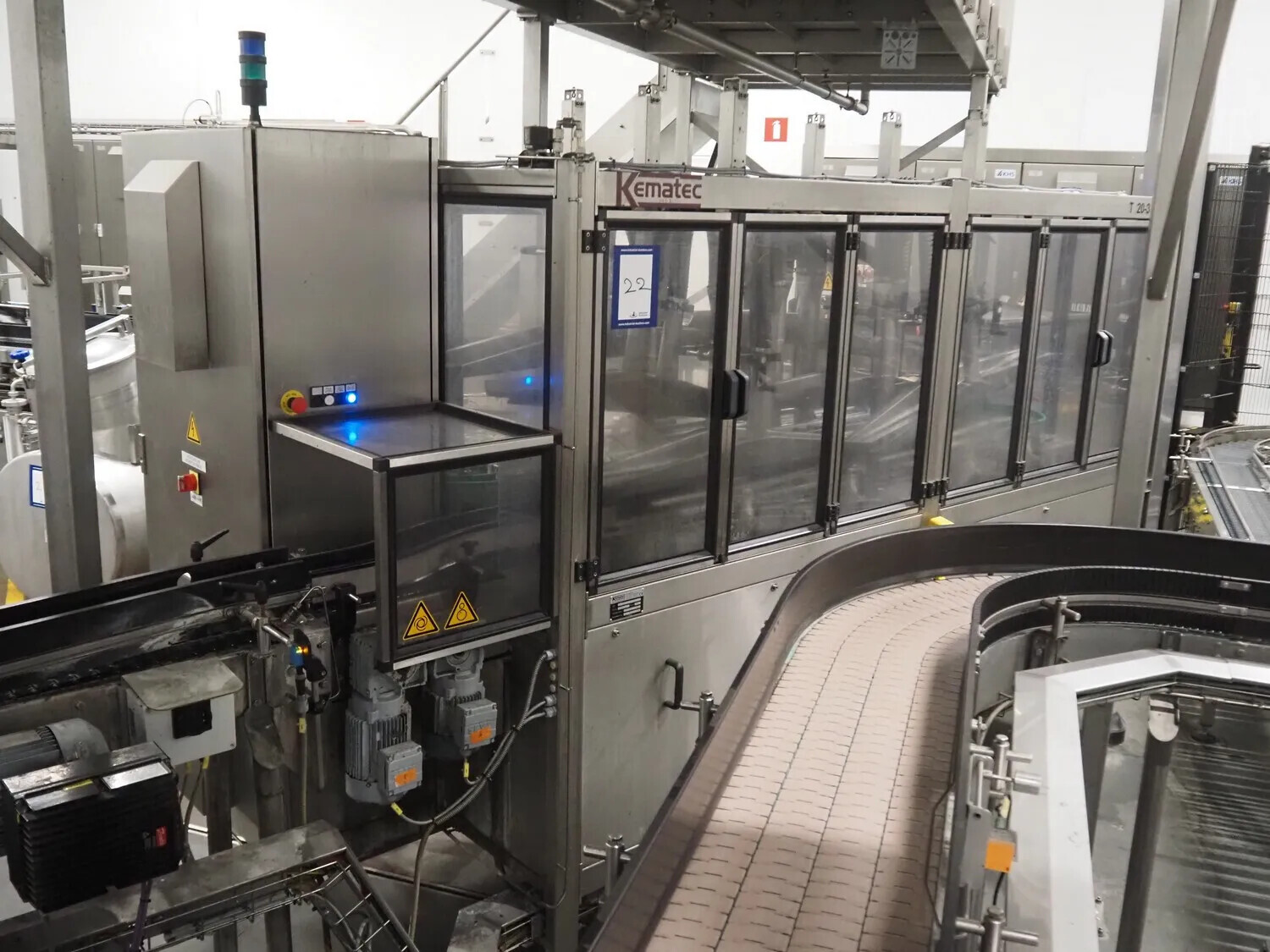

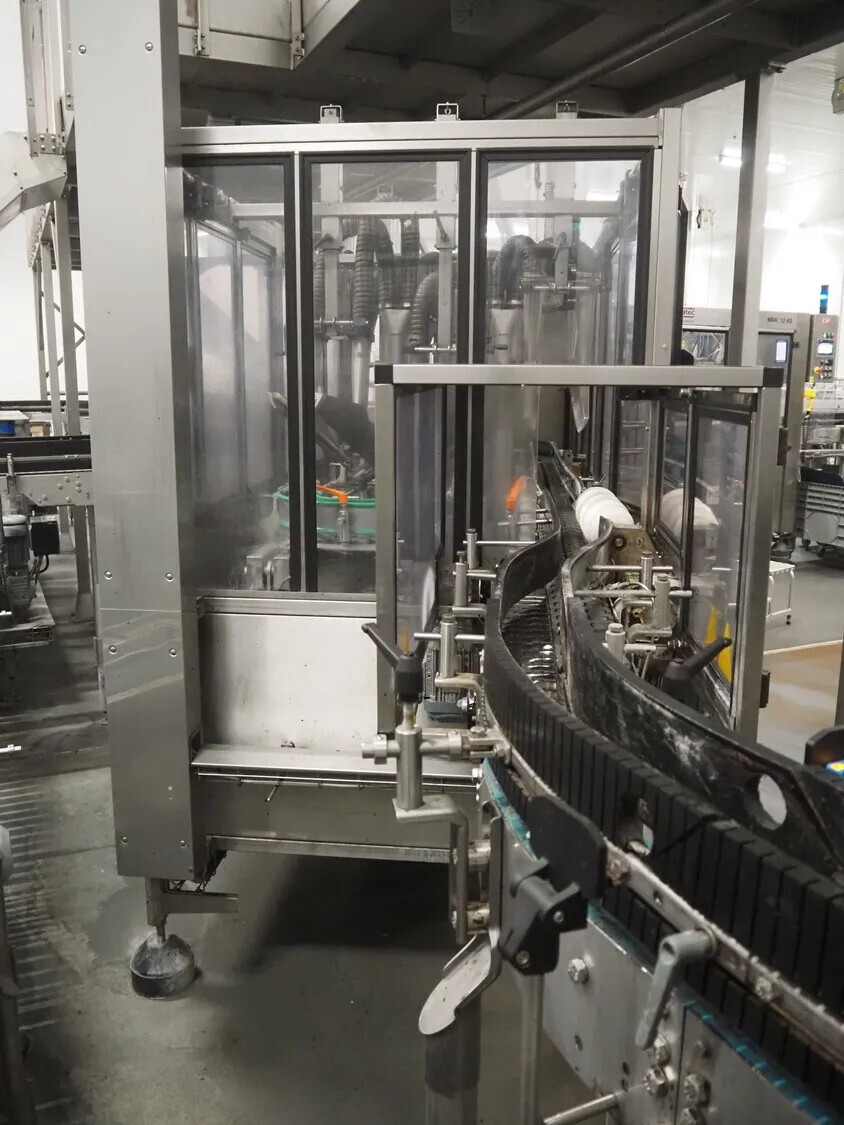

Overview This Kematec T20-3 KMT, built in 2006, dries filled bottles with air knives on their way through an enclosed tunnel before labelling. The bottles run on a 120 mm plastic chain conveyor under inclined air nozzles on both sides. The machine is still installed in a wine bottling line and can be inspected on site. Technical data Manufacturer: Kematec Model: T20-3 KMT Year of manufacture: 2006 Machine type: bottle dryer (air knife tunnel) Conveyor: plastic chain, 120 mm wide Power supply: 400 V, 3 phases, 50 Hz Control voltage: 24 V DC Overall dimensions (L x W x H): 4,500 x 1,350 x 2,600 mm Equipment Drying tunnel with inclined air knife nozzles above and on both sides of the conveyor, fed by vertical air ducts Infeed screw and curved conveyor sections with adjustable guide rails and quick-release clamping levers Siemens SIMATIC touch panel (French, Dutch, German) with output counte ...
Capacity: 900 to 3.000 bottles/hour Wirehood: Four-wire closures Bottle height: approx. 235 - 360 mm Magazine capacity: 1.600 corks
incl. dispenser Working direction: left-right Number available (price per tank): 1 Capsule type: champagne cap applicator, champagne cap folding capacity / hour ca.: 4000 working direction: rotating turret, left-right Working type: fullautomatic amount of capping heads: 4
A Kematec MBK 1 AR clocked rotary bottle capper is available. On-site viewing is possible.
