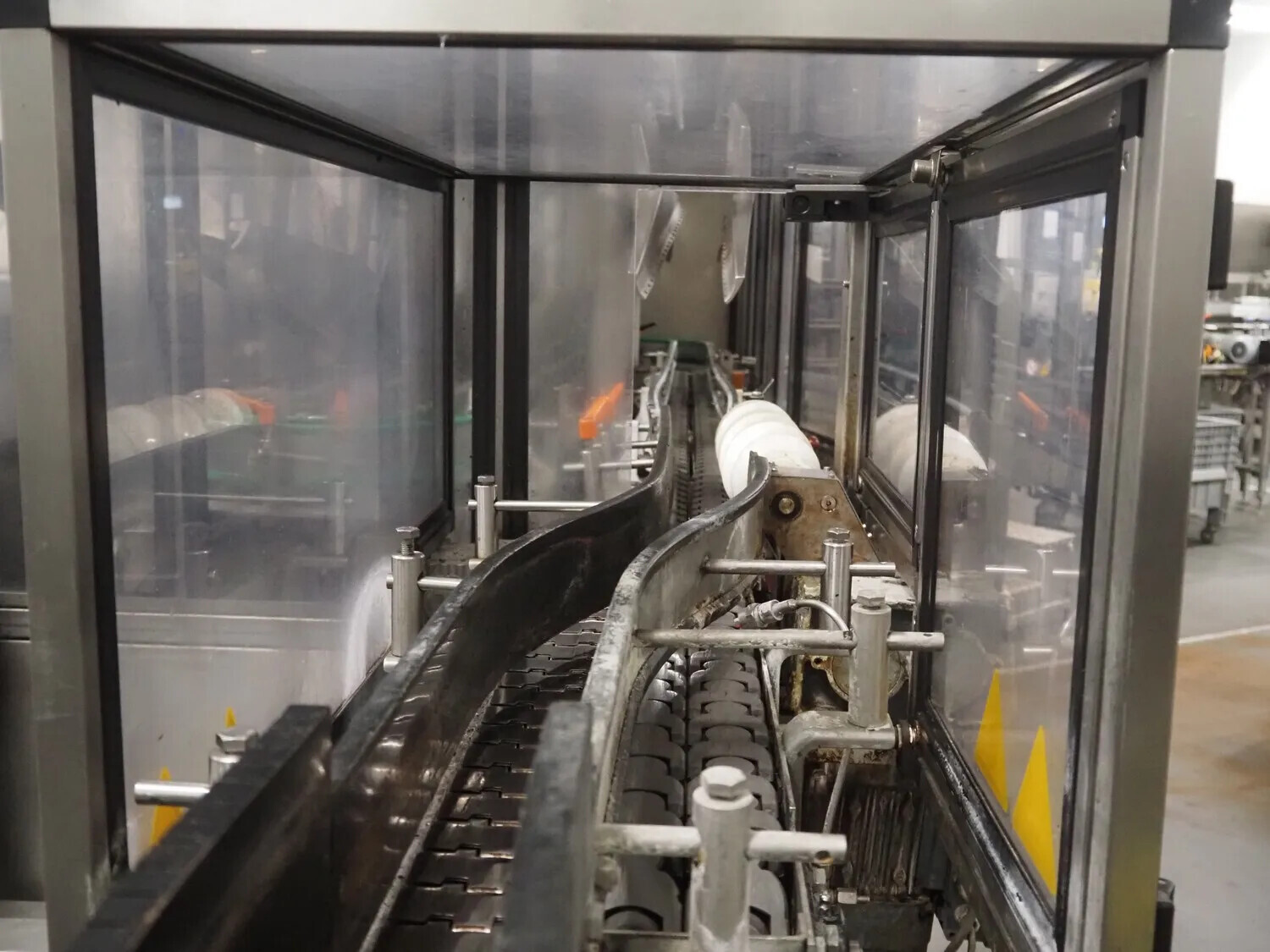

Overview This Kematec T20-3 KMT, built in 2006, dries filled bottles
with air knives on their way through an enclosed tunnel before
labelling. The bottles run on a 120 mm plastic chain conveyor under
inclined air nozzles on both sides. The machine is still installed in
a wine bottling line and can be inspected on site. Technical data
Manufacturer: Kematec Model: T20-3 KMT Year of manufacture: 2006
Machine type: bottle dryer (air knife tunnel) Conveyor: plastic chain,
120 mm wide Power supply: 400 V, 3 phases, 50 Hz Control voltage: 24 V
DC Overall dimensions (L x W x H): 4,500 x 1,350 x 2,600 mm Equipment

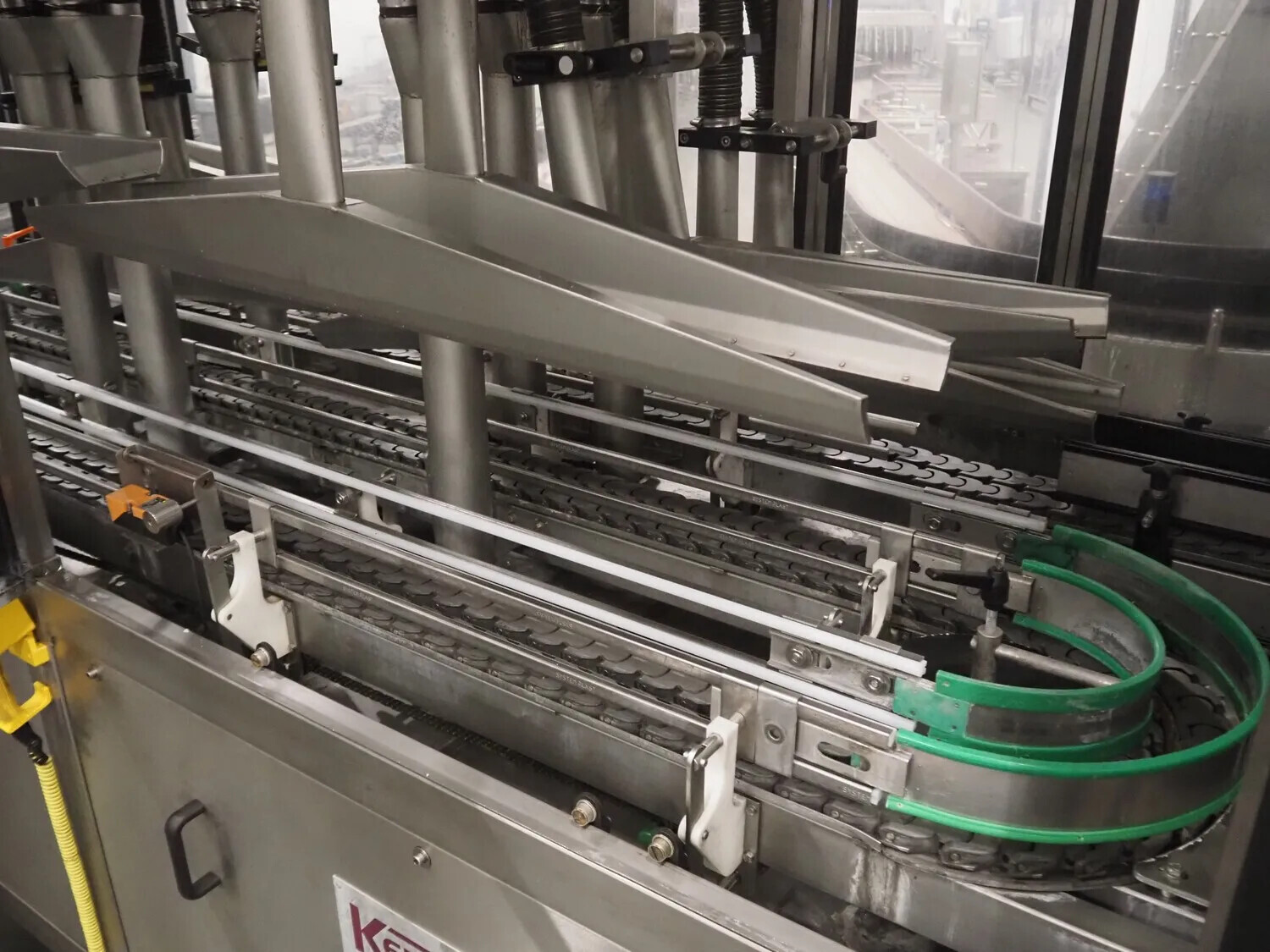

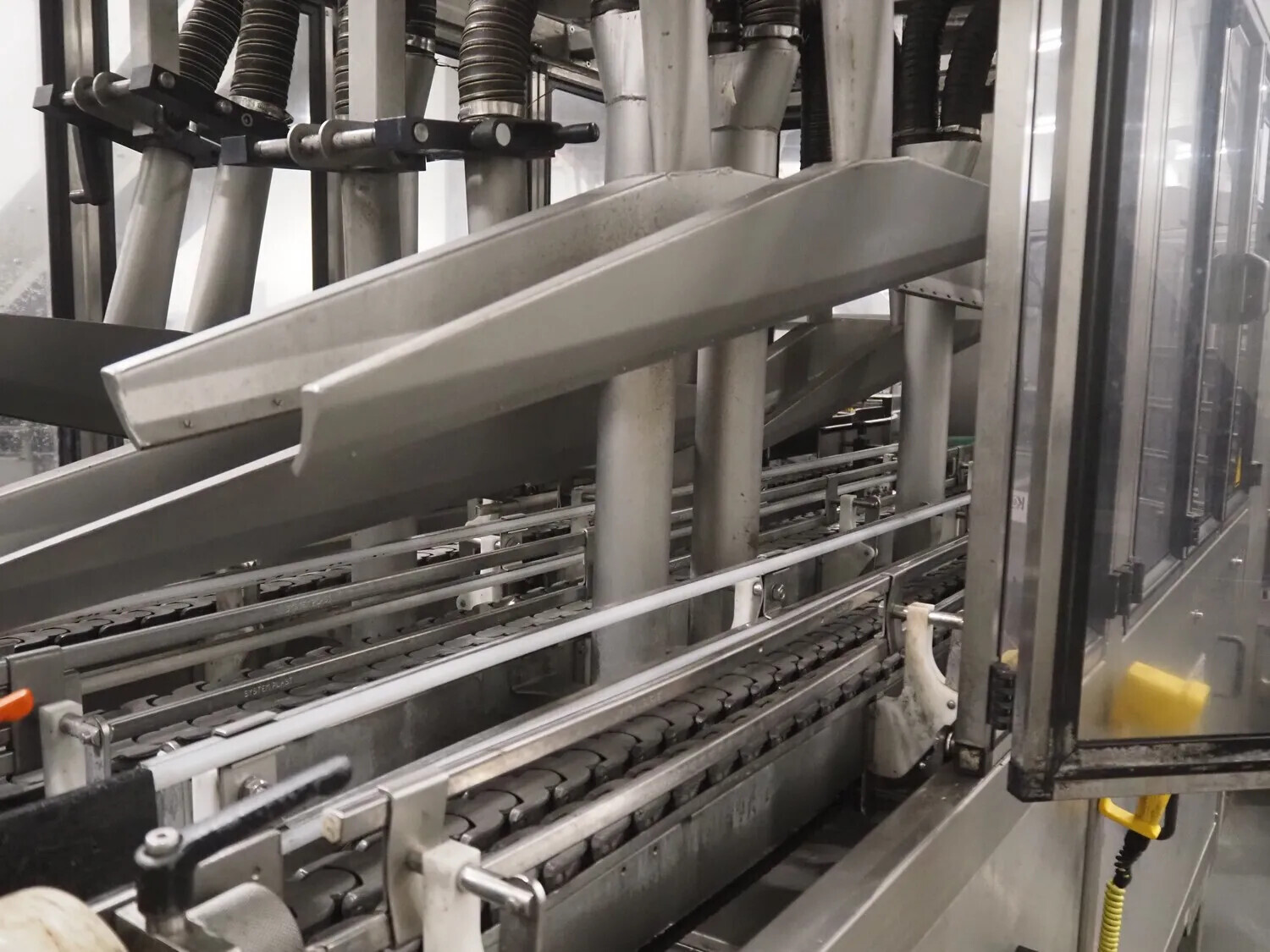

Drying tunnel with inclined air knife nozzles above and on both sides

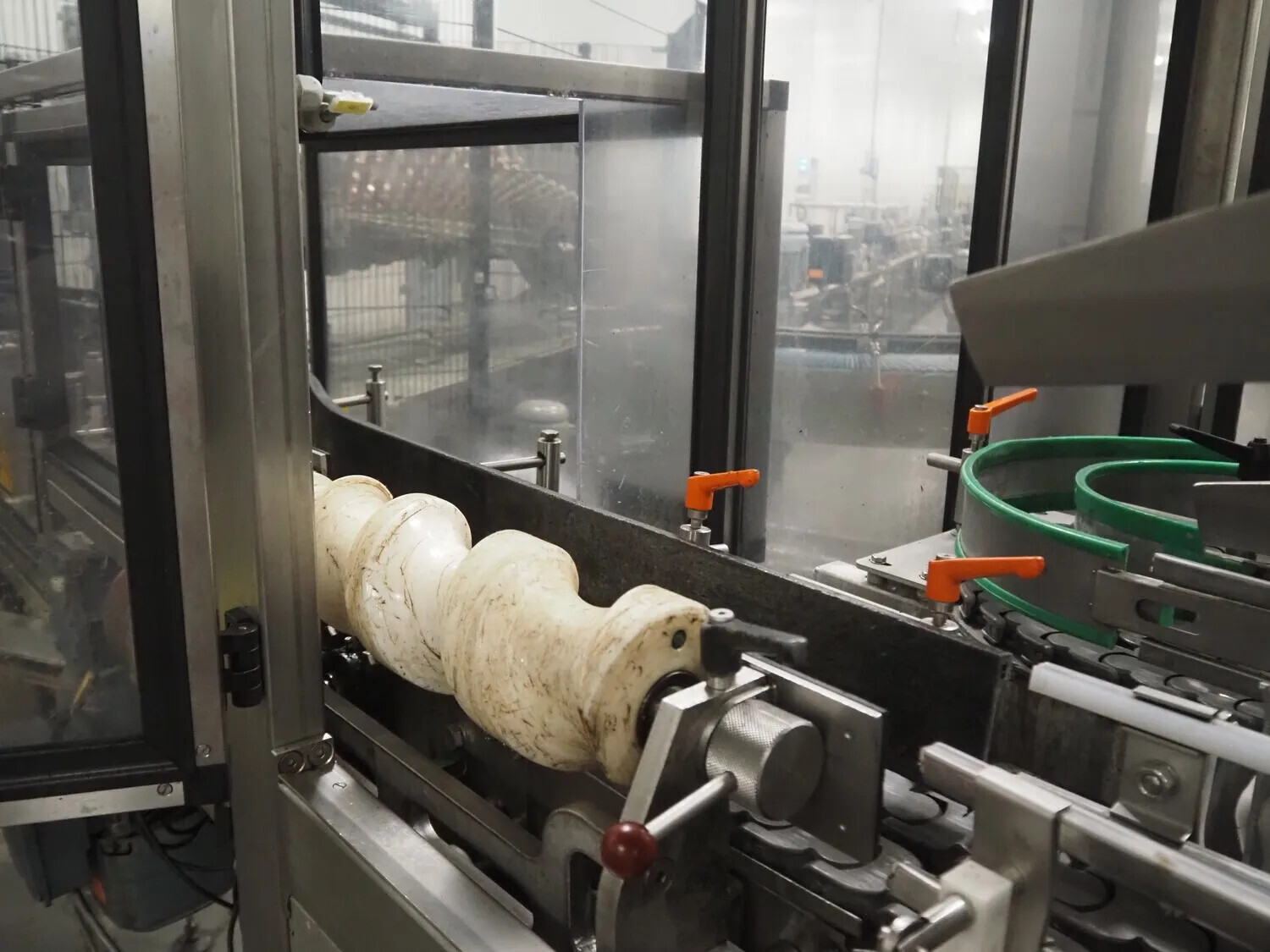

of the conveyor, fed by vertical air ducts Infeed screw and curved
conveyor sections with adjustable guide rails and quick-release
clamping levers Siemens SIMATIC touch panel (French, Dutch, German)
with output counter, selector switches and emergency stops Control
cabinet with four Danfoss VLT 2800 frequency converters Stainless
steel frame on adjustable feet, enclosure with transparent hinged
guard doors CE marked Condition Still installed. An inspection on site
is possible. Availability Available immediately. Location: Belgium.
