Overview This Kematec MBK 12 AS, built in 2006, places shrink capsules
on wine bottles and shrinks them on in 12 heating stations. It runs at
3,000 - 12,000 bottles per hour and covers bottle heights of 235 - 360
mm and bottle diameters of 50 - 115 mm. The machine is still installed
in a wine bottling line and can be inspected on site. Technical data
Manufacturer: Kematec Model: MBK 12 AS Year of manufacture: 2006
Machine type: capsule placing and shrinking machine Output: 3,000 -
12,000 bottles/h Capsules: shrink capsules, max. length 80 mm, max.
diameter 40 mm Head diameter: 33 mm Heating stations: 12 Capsule
magazine: 1,800 capsules Bottle height: 235 - 360 mm Bottle diameter:
50 - 115 mm Working height: 1,100 mm (+/- 50 mm) Direction of travel:
left to right Power supply: 400 V, 50 Hz; main drive 0.75 kW
Compressed air: 6 - 7 bar, approx. 350 l/min Overall dimensions (L x W
x H): 3,700 x 2,500 x 2,580 mm Weight: approx. 1,400 kg Equipment

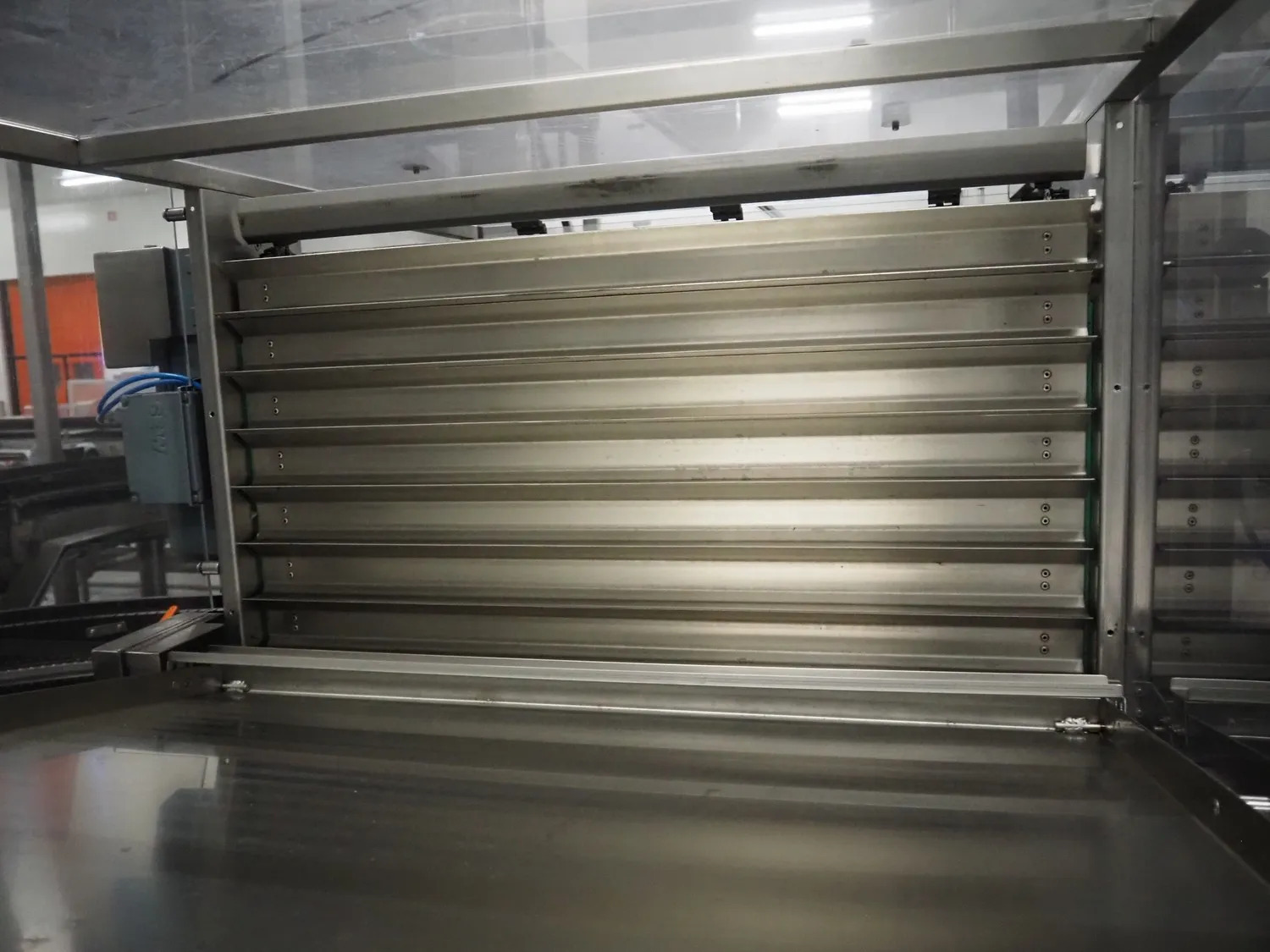

Capsule magazine with multi-level storage shelves and capsule feed

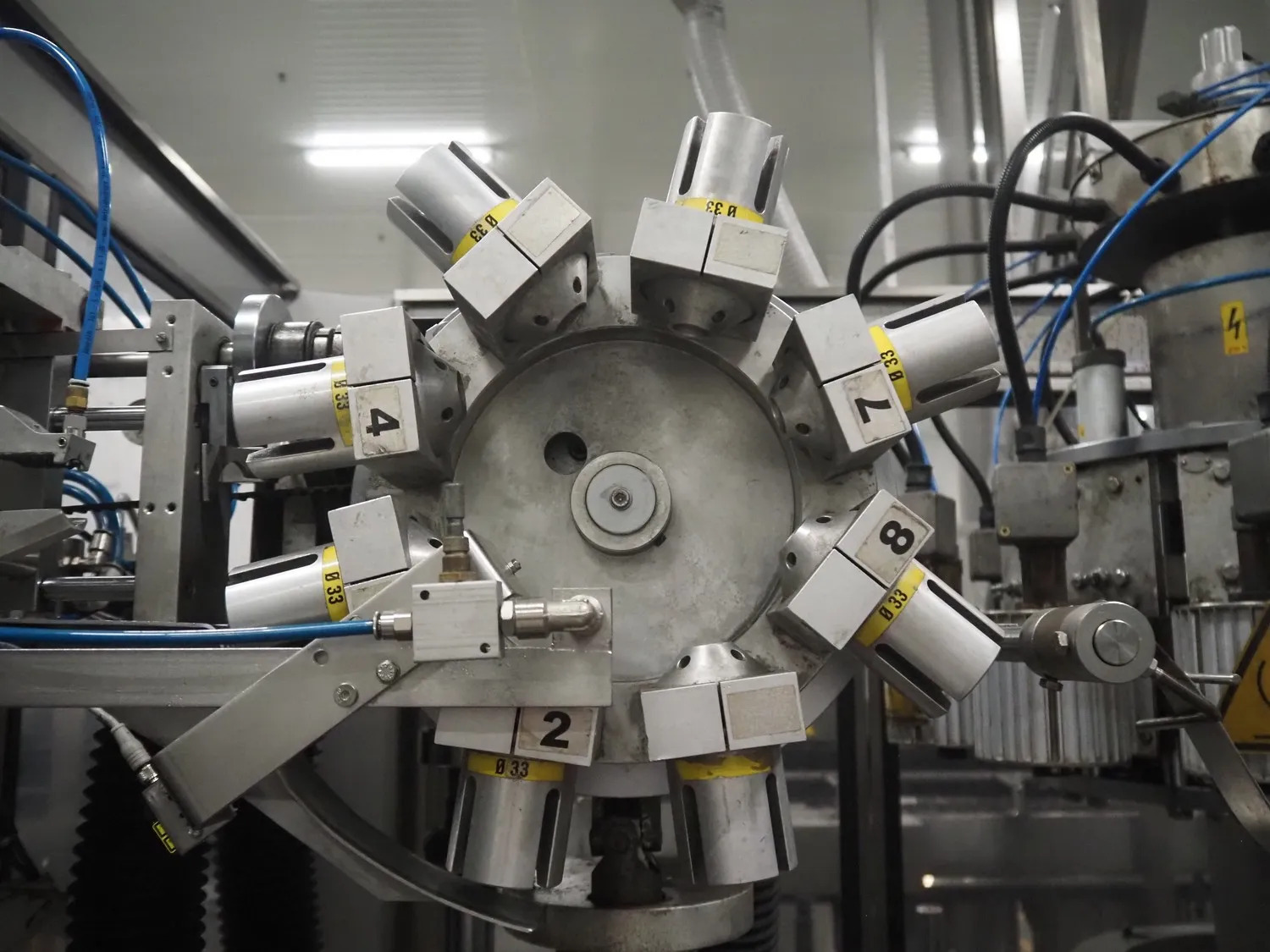

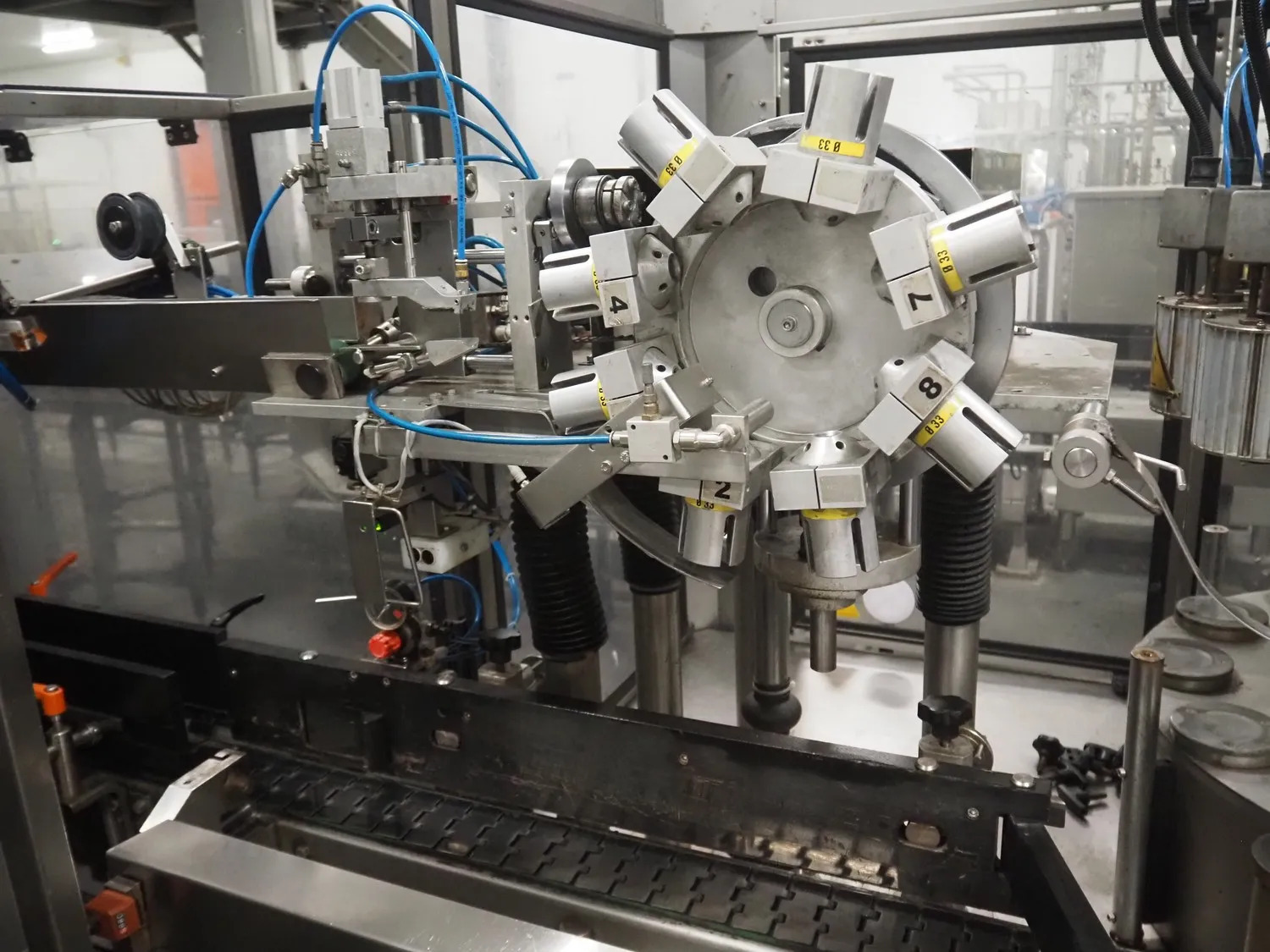

Rotary capsule placing turret Rotary shrinking turret with 12 heating

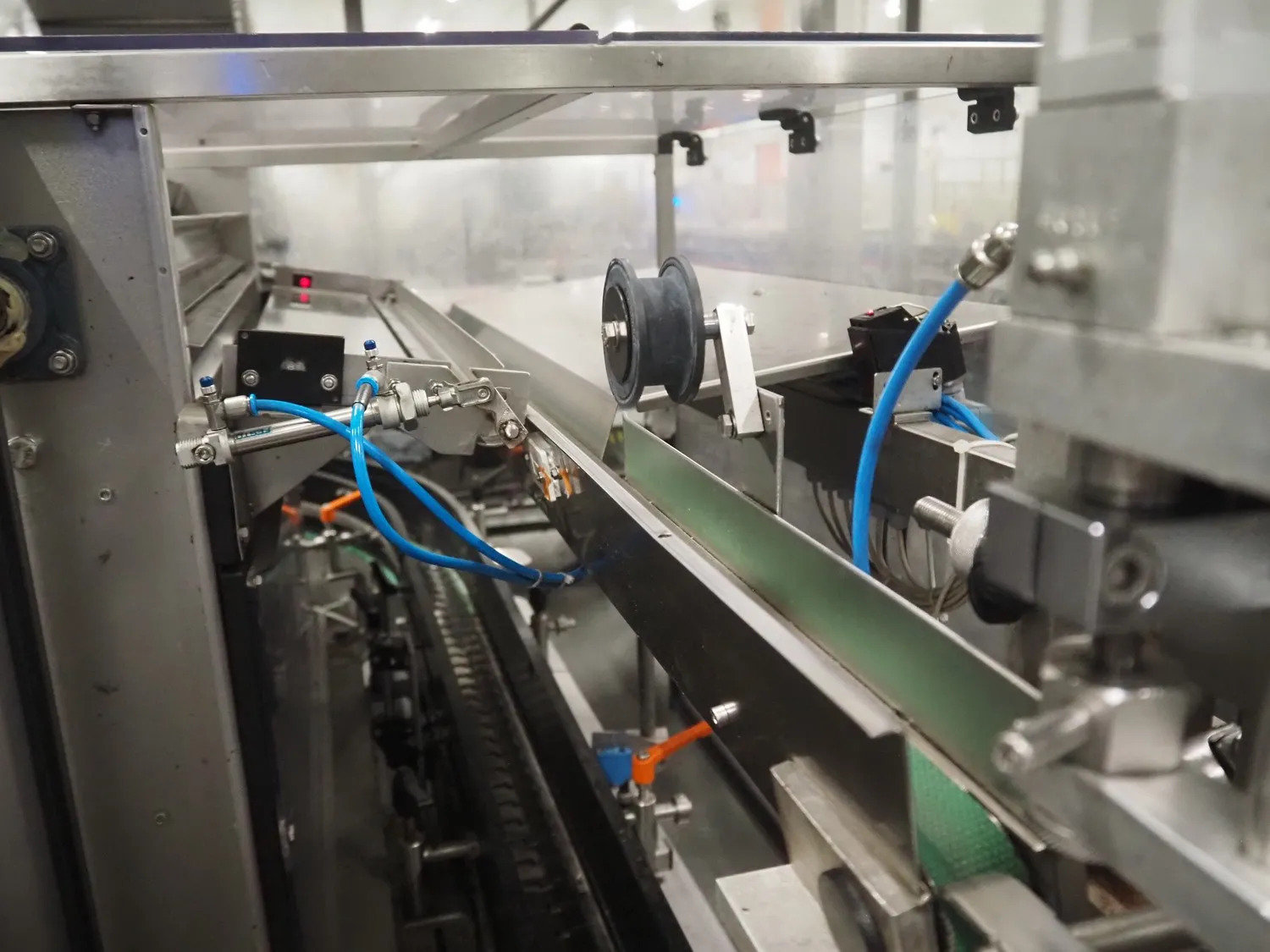

stations Bottle infeed and outfeed on slat chain conveyor with guide
rails Siemens touch panel (French, Dutch, German) with fault list,
emergency stop and signal tower Control cabinet with PLC Stainless
steel frame, enclosure with transparent guard doors CE marked;
operating manual with spare parts list available Condition Still
installed. An inspection on site is possible. Availability Available
immediately. Location: Belgium.
