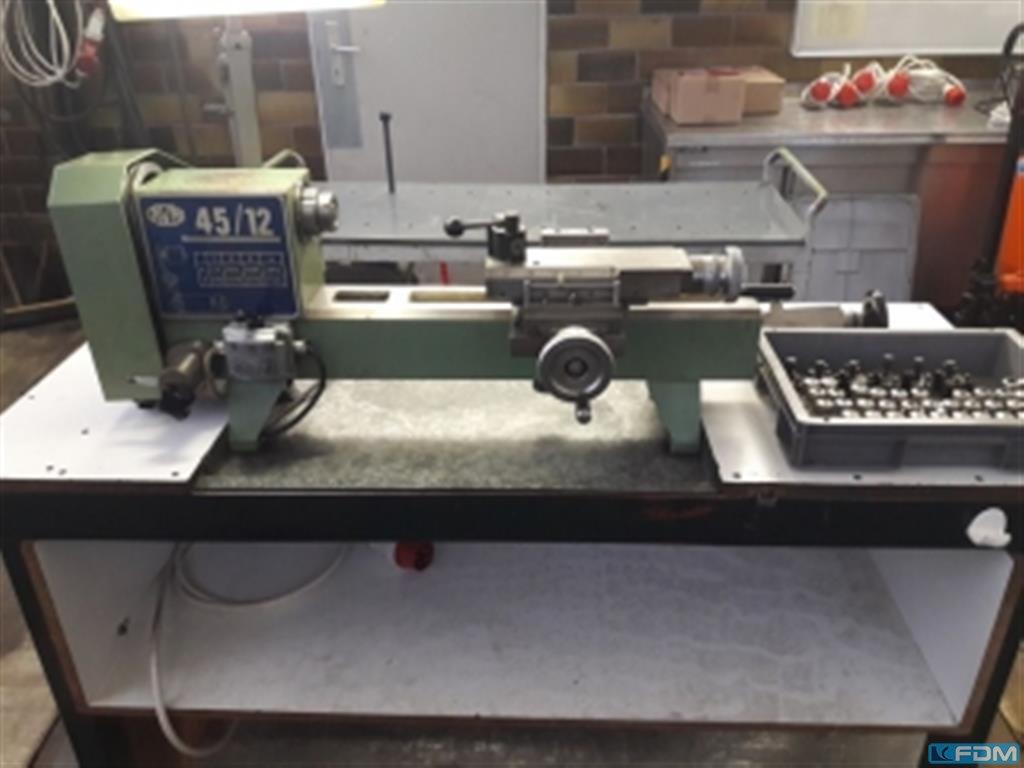

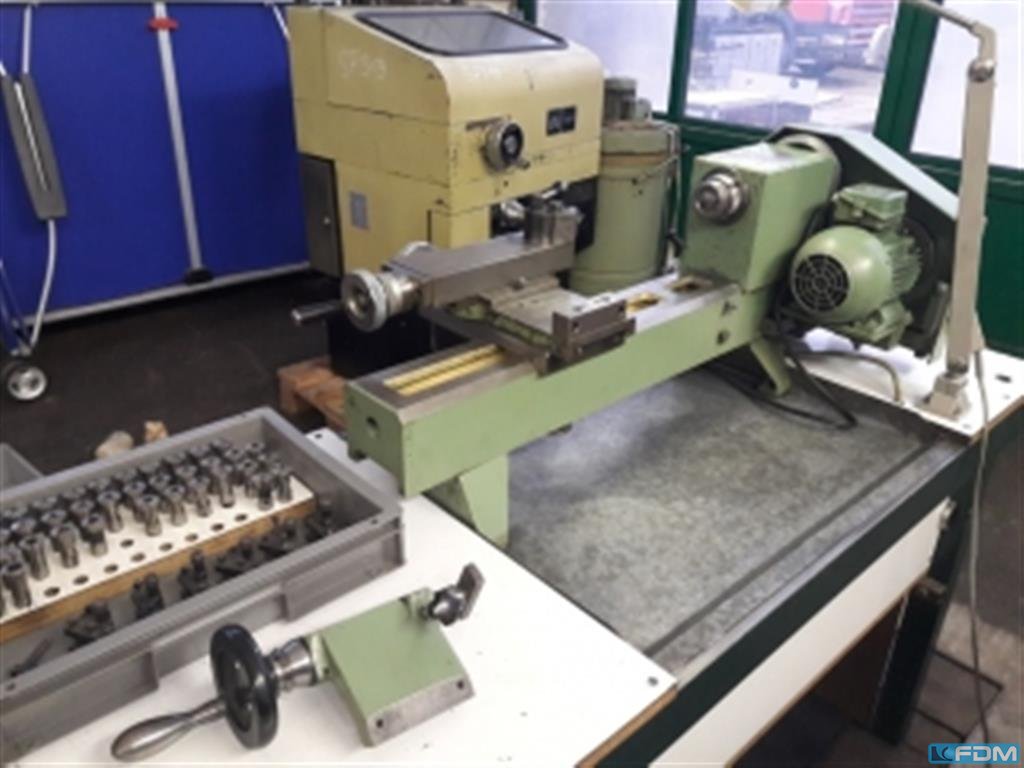

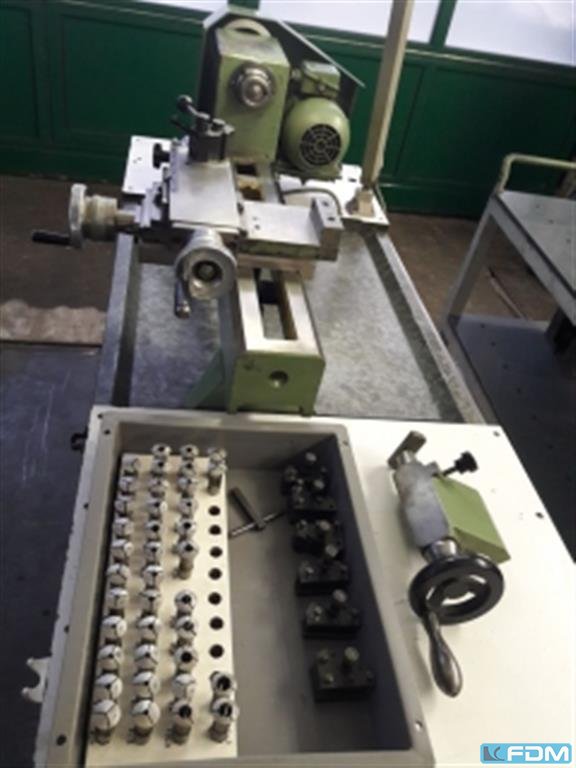

turning diameter over bed:100 mmturning diameter over slide rest:70 mmturning length:80 mmtotal power requirement:1,0 kWweight of the machine ca.:0,5 tdimensions of the machine ca.:0,7 x 0,6 x 1,2 mfacing lathe with manual feed, various accessories
turning diameter:1600 mmturning length:12000 mmcontrol:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories.For further technical data and accessories, pls browse the Appendix.Parallellathe WMWmod. 4 GUIDE-WAYS¦ CNC: FAGOR 8050¦ bed: monolithic¦ centres height: 800 mm¦ centres distance: 12000 mm¦ swing over cross-slide: 1250 mm¦ turret: automatic 4 positions¦ tailstock: motorized¦ tailstock connection: hydraulic¦ platform: diam. 1000 mm¦ steady rests: nr.02¦ chip conveyorWarranty: noneTake advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.
turning diameter:1390 mmturning length:14000 mmweight of the machine ca.:13 tMore information can be found in the Appendix.

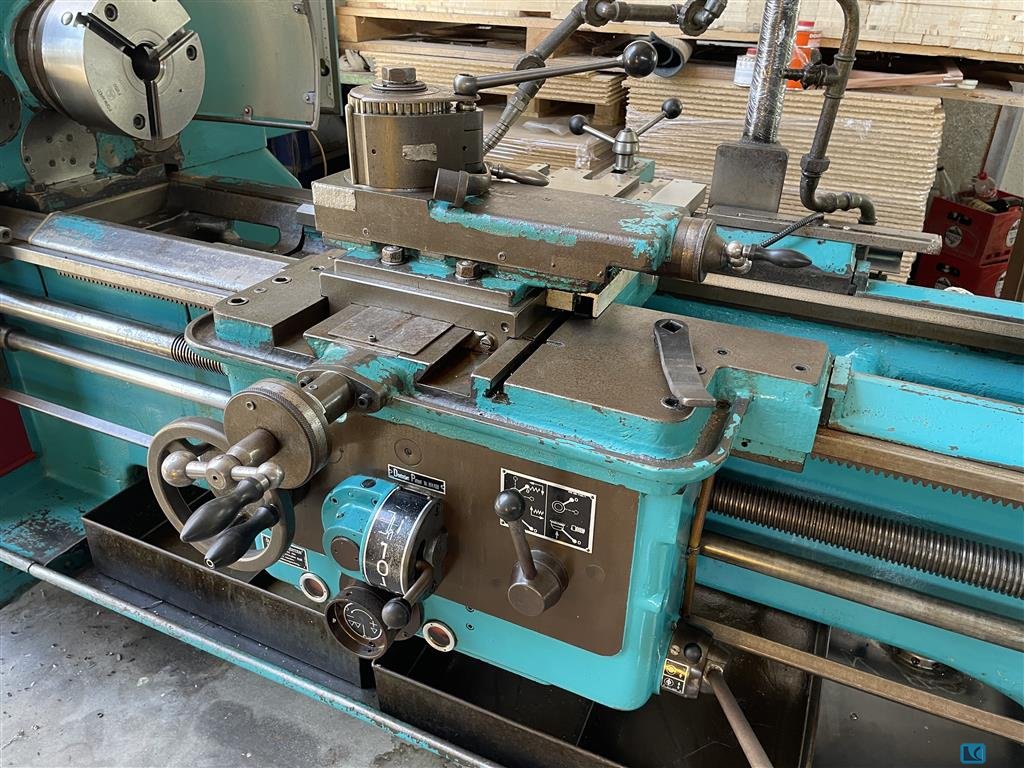

turning diameter over bed:930 mmturning diameter over slide rest:630 mmturning length:6000 mmturning dia. in gap:1250 mmspindle bore:95 mmturning speed range:8 - 800 U/mintotal power requirement:25 kWdimensions of the machine ca.:9 x 2 x 1,9 mfaceplate 2 steadiescoolant attachment taper turning attachment
faceplate diameter:1600 mmswing diameter:1800 mmturning height:1500 mmmax. ram stroke:1200 mmfaceplate turning speed range -stepless-:2,5 - 250 U/minworkpiece weight max.:10.000 kgram head dimension:240 x 240 mmfeed range:1 - 3000 mm/minpower capacity:45 kWweight of the machine ca.:20 tmodernized and overhauled in 2010 with CNC SIEMENS 840 D12 positions automatic toolchangertelescopic coverssplash guardingchip conveyorcoolant attachmentdiverse toolholders

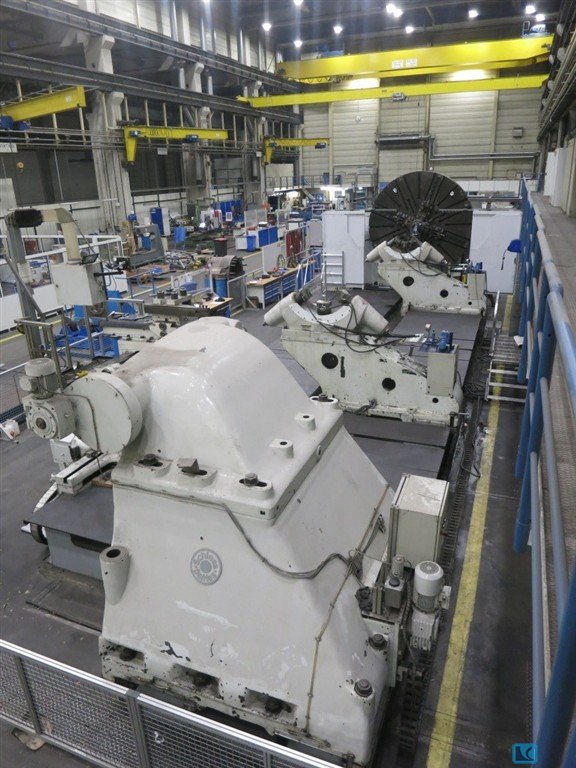

faceplate diameter:5000 mmswing diameter:6100 mmturning height:2400 mmram stroke each side:1490 mmram head dimension:340 x 340 mmmax. workpiece weight:100.000 kgtotal power requirement:100 kWweight of the machine ca.:155 tfaceplate turning speed range:0,4 - 50 U/minwith 2 axes CNC SIEMENS 840 D
turning diameter over bed:2600 mmturning diameter over slide rest:2200 mmturning length:5000 mmfaceplate:2050 mmnumber of spindle speeds:0,7 - 70 rpmtotal power requirement:ca. 22 kwHeight of centres: 1350 mmDistance between centres: 5000 mmSwing over cross slide: 2600 mmSpindle power: 30 HPSpindle speed: 0,7 - 70 rpmLongitudinal swiftControl on the carriageChuck: diam. 2050 mm
:KVL-450 | KVL-600 | KVL-800| KVL-1100 turning diameter:450|600|800|1100 mmswing diameter:550|650|1000|1250 mmturning height:450|500|750/950|1000 mmspindle nose:A2-8|A2-8|A2-11|A2-15 table rotation speed:50-2500|50-2250|20-1500|20-600 U/minTravel of Ram (vertical):450|500|800 / 1000 (Opt.)|1000 mmTravel of ram (horiz.):300|340|500|700 mmrapid power traverse in X-and Z direction:20/24|20/24|20/20|10/10 m/minTool changer:8/10/12 mit vertikaler oder horizontaler Scheibe tool taper:VDI40/VDI50 oder Schaftaufnahme drive capacity - spindle motor:11/15|15/18.5|18.5/22|37/45 kWMachine height:2600|2910|4020|4605 mmweight of the machine ca.:4500|6000|13000|18000 kghydraulic motor:2,2 kWservo motor X-axis:1,6|1,6|4|7 kwservo motor Z-axis:3|3|7|7 kwcoolant pump drive:0,75+1,1|0,75+1,1|0,75+0,75+1,1|0,75+0,75+1,1 kW:35|40|50|70 kvaCNC controller:Siemens/Fanuc/Fagor CNC controls from:Siemens/Fanuc/Fag ...
turning diameter over bed:3800 mmturning diameter over slide rest:3200 mmturning length:12000 mmfaceplate turning speed range -stepless-:2 - 200 U/minmax. workpiece weight:90.000 kgbed width:4000 mm2 steadies

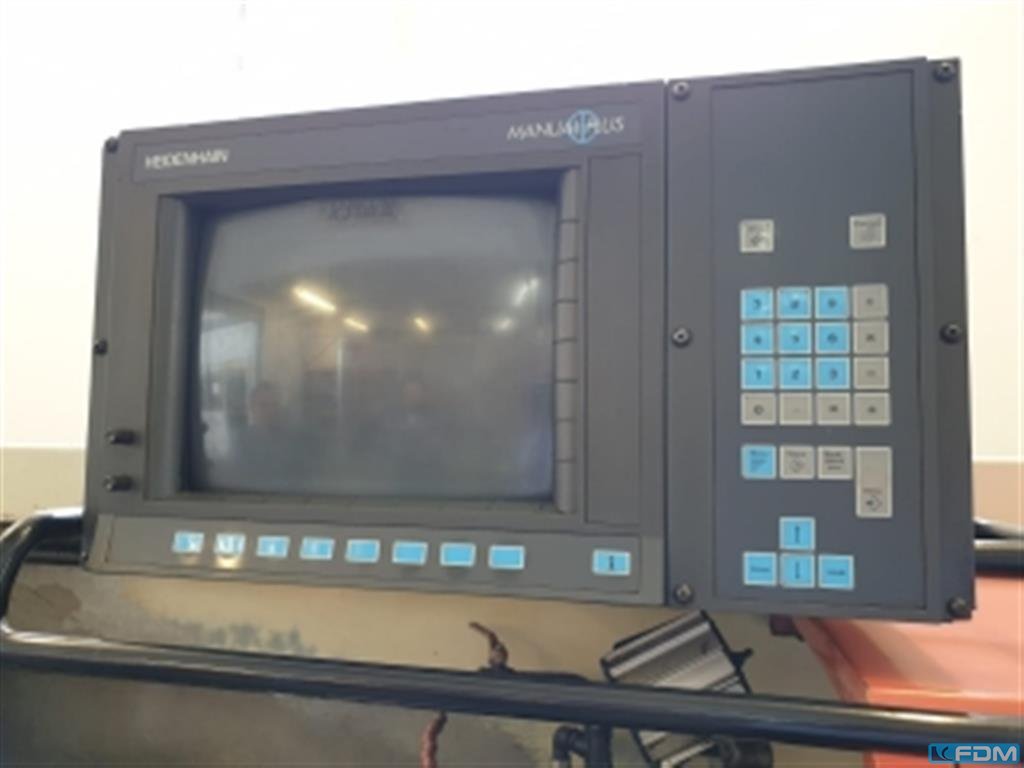

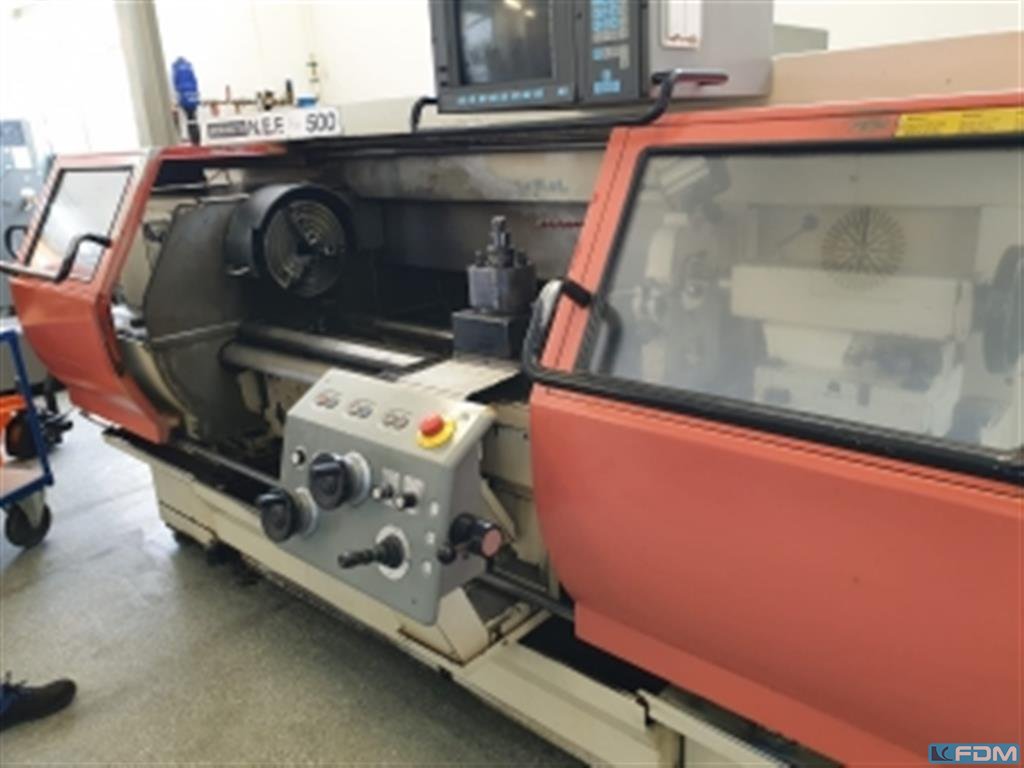

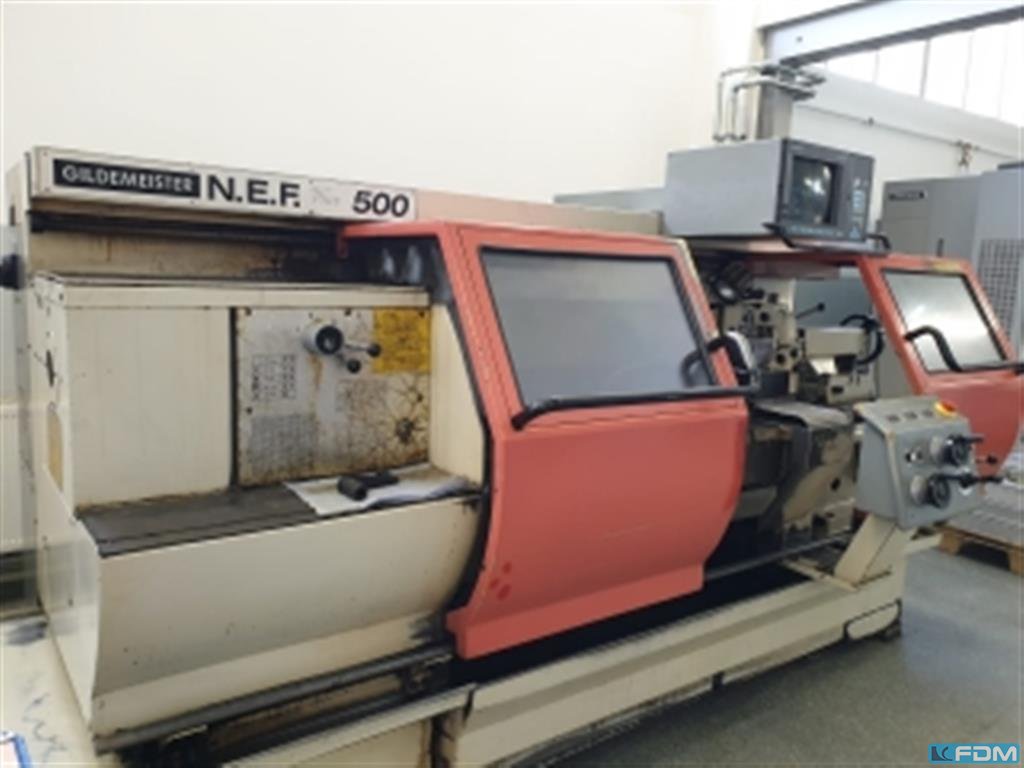

turning diameter:500 mmturning length:1500 mmspindle motor:16 kWSpindle RPM:1 - 2500 1/mintaper in tailstock MT:5 tailstock quill stroke:160 mmtailstock quill diameter:70 mmtotal power requirement:22 kWweight of the machine ca.:3,2 tdimensions of the machine ca.:3,2 x 1,8 x 1,4 mMachine with Heidenhain Manual plus control- Multifix quick tool change device- 3-jaw chuck- sliding splash door- various accessories.
turning diameter over bed:500 mmturning diameter over slide rest:310 mmturning length:1500 mmspindle turning speed range:7 - 710 U/minfeed range:5,6 - 224 mm/mintotal power requirement:15 kWweight of the machine ca.:3,7 tdimensions of the machine ca.:2,9 x 1,4 x 1,6 mMachine with 2-axis digital readout- MULTIFIX quick tool change device- 3-jaw chuck

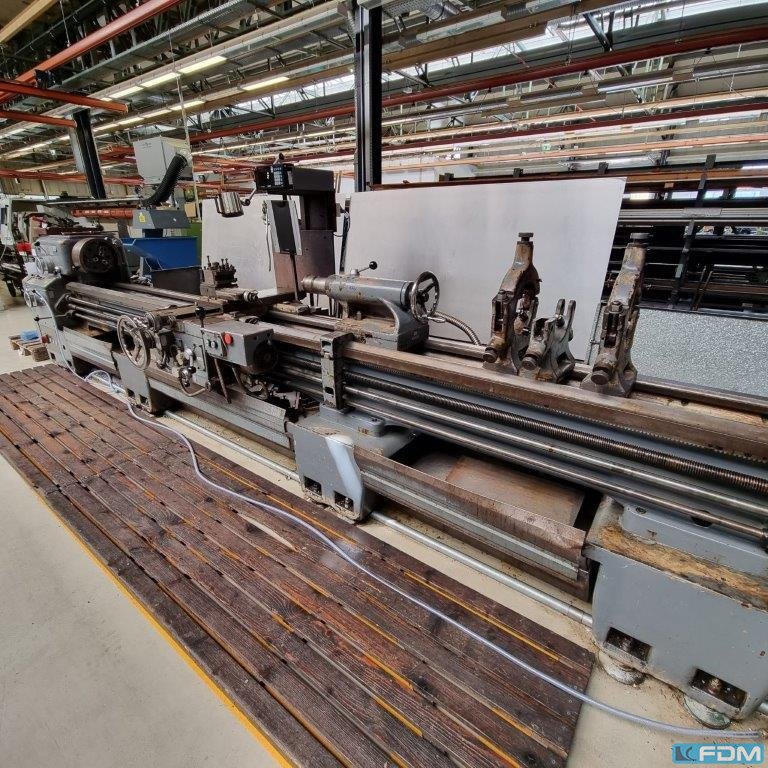

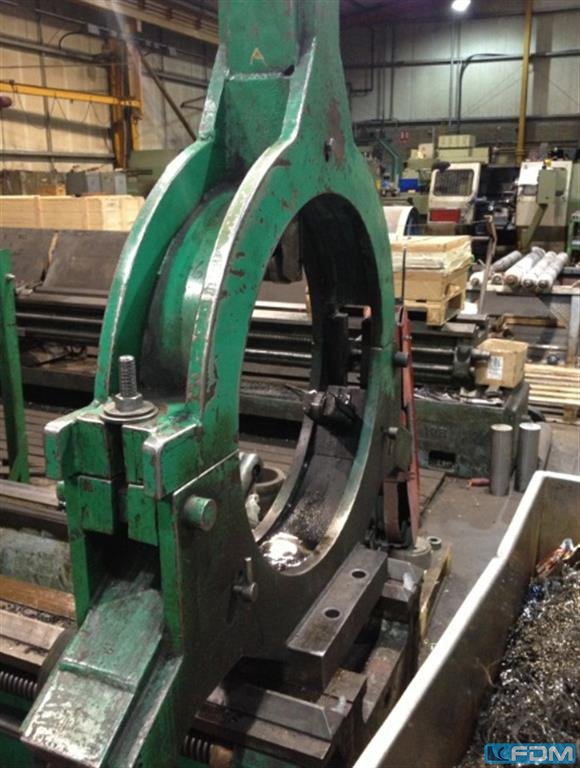

turning diameter over bed:1450 mmturning diameter over slide rest:1000 mmturning length:8000 mmspindle bore:160 mmturning speed range:2,8 - 560 U/minbed width:850 mmfaceplate diameter max.:1400 mmturning diameter in the gap:1800 mmlength of gap:600 mmdimensions of the machine ca.:12 x 2 x 2,5 mwith Digital Readout2 fixed steadies dia 1070 mmchip conveyor

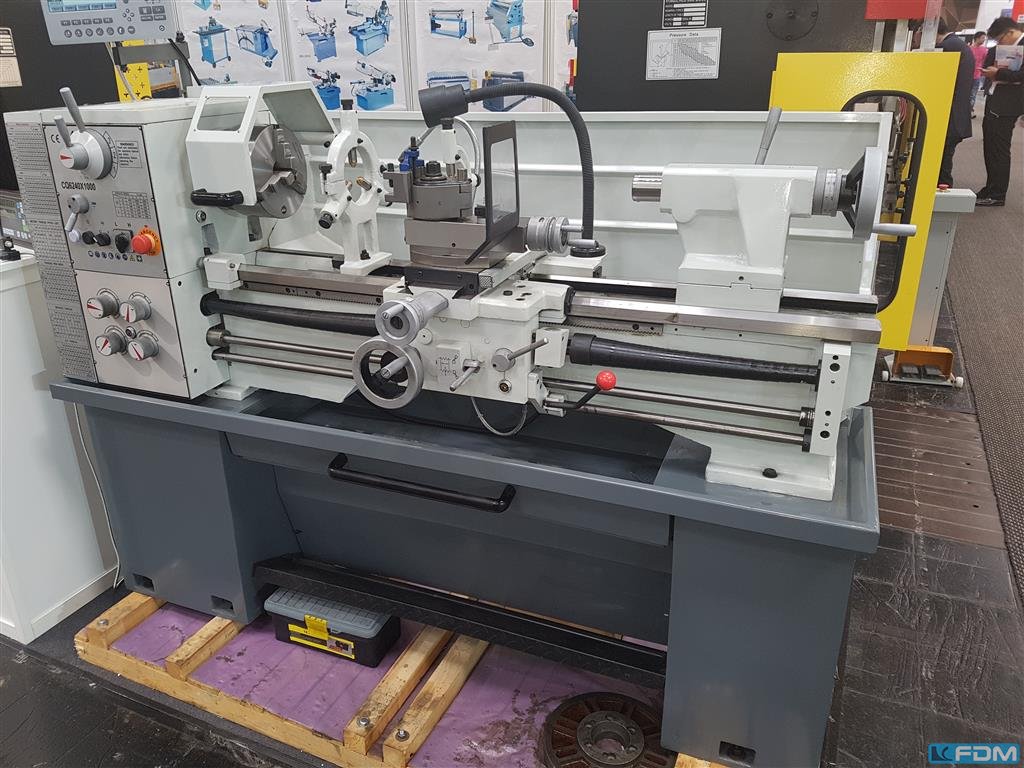

turning diameter over bed:400 mmturning diameter over slide rest:250 mmturning length:1000 mmmax swing over gap:520 mmHeight of centres:200 mmcrossed path:230 mmbed width:218 mmmain spindle bore:52 mmspindle size:MK 6 speeds::55-2000 U/minturning angle of tool post:90 gradtail stock:50 mmtaper in tailstock:MK 4 threading metric:0,4-7 mmthreading WHITWORTH:4-60 TPI total power requirement:2,2 kWdimensions of the machine ca.:1940 x 820 x 1545 mmweight of the machine ca.:750 kgtailstock quill:110 mmtapping modul:0,4-3 mmtapping diametral:8-84 Gang/Zoll
turning diameter: 100 mmturning length: 100 mmMain Spindle:: spindle motor: 7,5 / 11 kWspindle passage: 42 mmcollet diameter: DIN 173E (A5) spindle turning speed range: 6000 U/minrapid traverse: 30 m/mintravel x / y / z: 300 / 770 / 250 mm2nd Spindle:: spindle motor: 2,2 / 3,75 kWspindle passage: 30 mmdia. of draw-in collets: DIN 173E (A5) mmspindle turning speed range: 6000 U/minrapid traverse: 30 m/mintravel x / y / z: 900 / 770 / 300 mmcontrol: Mitsubishi M830 tool taper: ER 20 total power requirement: kWweight of the machine ca.: 5,6 tdimensions of the machine ca.: 3,8 x 2,2 x 2 mSimultaneous machining on the main and counter spindles- Mitsubishi M830 CNC control with electronic handwheel- Main and counter spindles-- each with C- and Y-axes-- 173 E collet chuck (A5)- Swivel head (B-axis 0–360° in 0.001° increments) on the main and counter spindles- 36 tools (24 of which are dr ...
number of spindles:8 spindle passage:67 mmCam controlled multi spindle automatic lathe, used8 main spindlespick up in pos. 8threading attachmentCNC compound slide in pos. 5, also 2. speed in pos. 2Hydraulic spindle brake in pos. 4Incl. length measurement, incl. Brankamp cutting force monitoringtooling: could be different like picturesPlease, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

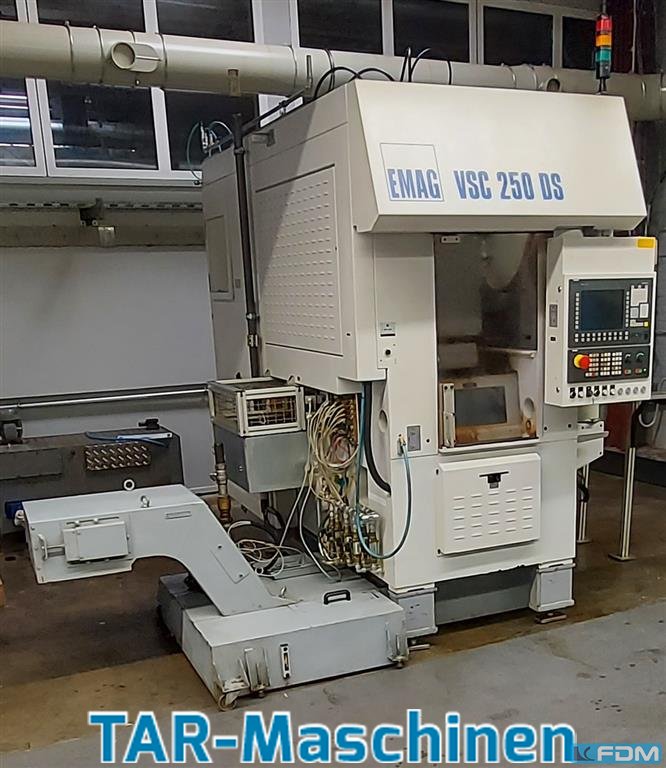

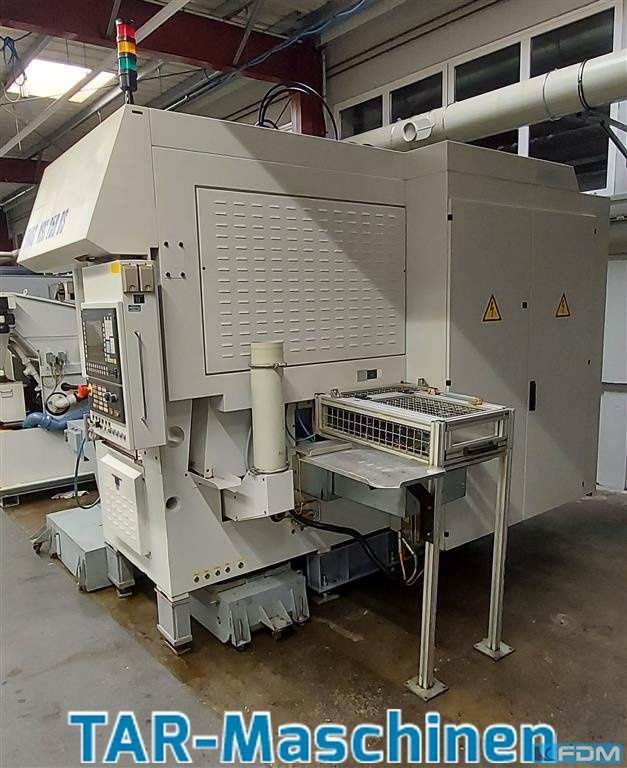

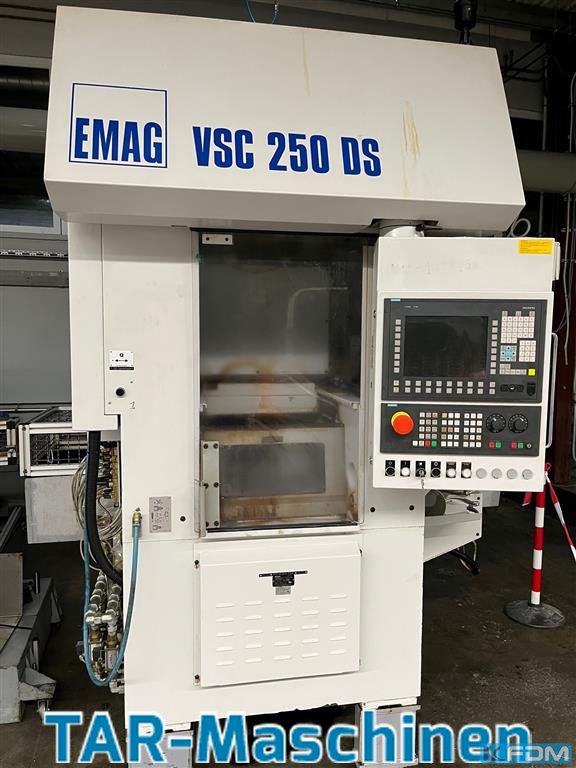

Article: Vertical turning and grinding centreManufacturer: EMAGType: VSC 250 DSYob: 2008Control: SIEMENS 840DGrinding spindle speed: 30,000 rpmRotation spindle speed: 3,000 rpmTool places turret: 12Cooler for spindle and machine bed coolingCooling lubricant - lifting station (no independent cooling lubricant supply)Chip conveyorParts handling Air through the spindleTwo clamping circuits through the spindle (air and oil)Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
number of spindles:8 spindle passage:51 mmArticle: multi spindle automatic latheManufacturer: SchütteType: AF51Yob: 1987eight main spindlesmax. bar diameter D=51mmcontrol SIEMENS SIMATIC S5pick up in pos. 7, for rear machiningthread cutting driveindependent feed in positions 2/3electronical trip dog control ?Balluff?clear text display Wöhrlecoolant pumpmagnetic cartridge filteroil runningincl. bar loader IEMCA PRA 40/37/F, yob 1987, (bundle type)Painting in light blue and light greyThe configuration of tooling will be different like pictures.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

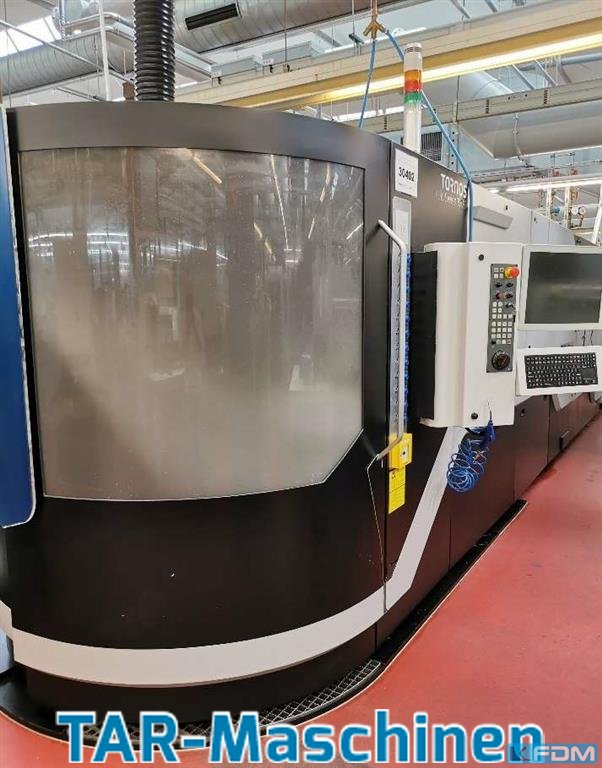

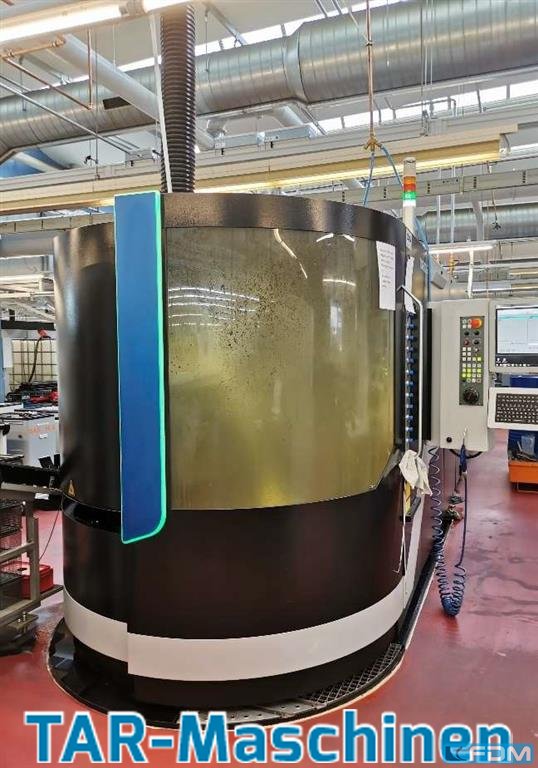

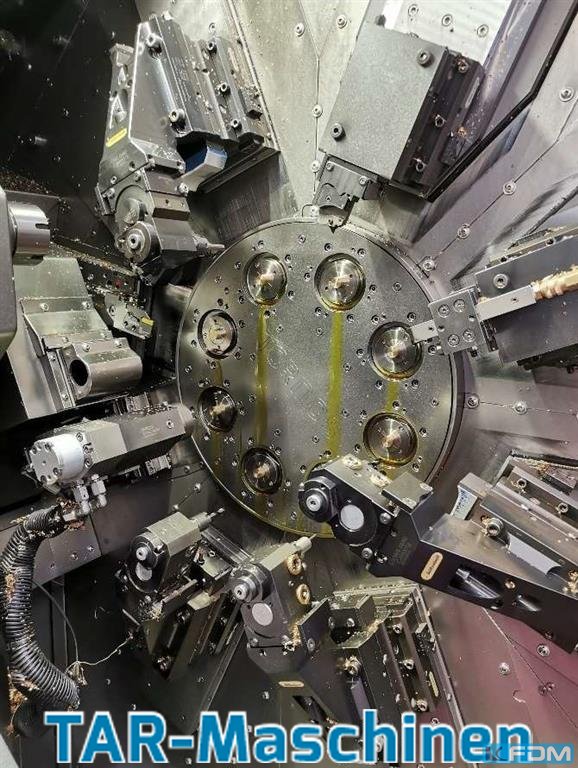

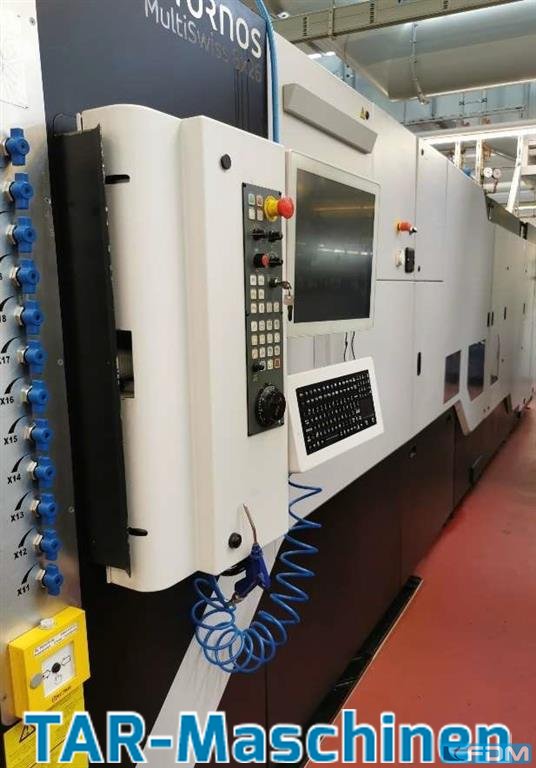

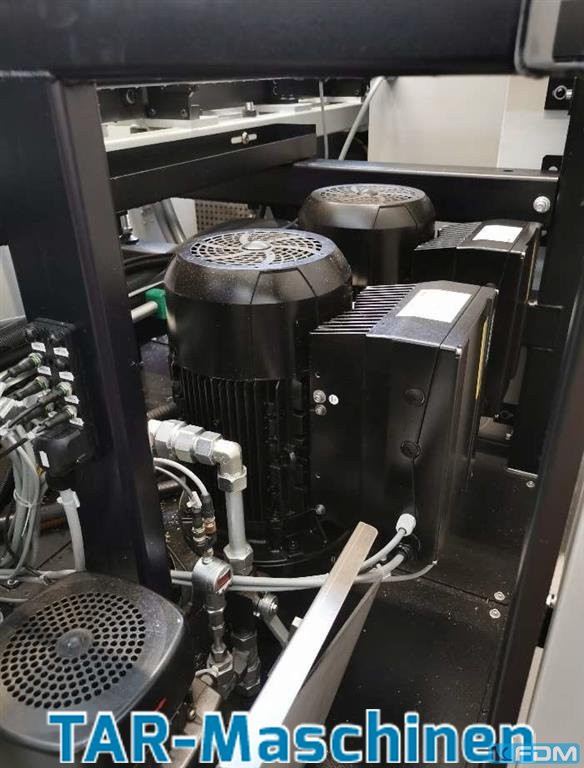

Article: CNC-controlled multi-spindle automatic latheManufacturer: TornosType: MultiSwiss 8x26Yob: 2016full cross slide configuration,counter spindle,part-pre-drawing device,2 x driven tools,3 x Y-axis,1 rigid backworking,1 x driven backworking,2x 80 bar high pressure pumpsoptional: setting robot, manufacturer HandlingTech.The scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com
Article: CNC-controlled multi-spindle automatic latheManufacturer: TornosType: MultiSwiss 8x26Yob: 2019full cross slide configuration,counter spindle,part-pre-drawing device,2 x driven tools,1 rigid backworking,1 x driven backworking,2x 80 bar high pressure pumpsoptional: setting robot make HandlingTech.The scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com
number of spindles:6 spindle passage:51 mmSchutte SF51 DNT, yob. 1987, our ID #61868Article: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: SF51 DNTYob: 1987Six-spindle automatic lathe with 6 main spindlesmax. nominal diameter D=51mmelectronic cam control Balluffgripper in position 6 for backworking, sorting chuteindependent longitudinal feed layer 5screw chip conveyorTapping couplingsInterface for: Bar feeder IEMCA PRABar feeder IEMCA PRA40/33/FScope of delivery without the blue chip conveyorThe tooling will differ from the scope of delivery!Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
Article: Programme-controlled automatic latheManufacturer: TraubType: TF60 / 140Yob: 1978Bar automatPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
number of spindles:8 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: AF32 S DNTYob: 1994Eight-spindle automatic lathe with 8 main spindlesmax. nominal diameter D=32mmcontrol: Siemens SIMATIC S7electronic cam control Balluffgripper in position 8 for backworkingCNC cross slide position 6CNC cross slide position 7Workpiece beltCoolant cooling SchimpkeChip conveyor with magnetic separatorTapping couplingsThe tooling shown may differ from the scope of delivery!Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
number of spindles:8 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: AF32 DntYob: 1993eight-spindle automatic latheeight main spindlesfor bars up to D=32mmModernized control: Siemens SinumerikMotors: renewed modern motors suitable for modernized control systemElectronic trip dog control: BalluffCNC cross slide position 5 crossCNC cross slide position 6 crossPreparation for gripper in position 8 (gripper optional)Independent feedsThread cutting couplingsintegrated bar loader: Pietro CUCCHI; type: rack type magazineThe scope of delivery regarding the tooling equipment could be different like pictures.

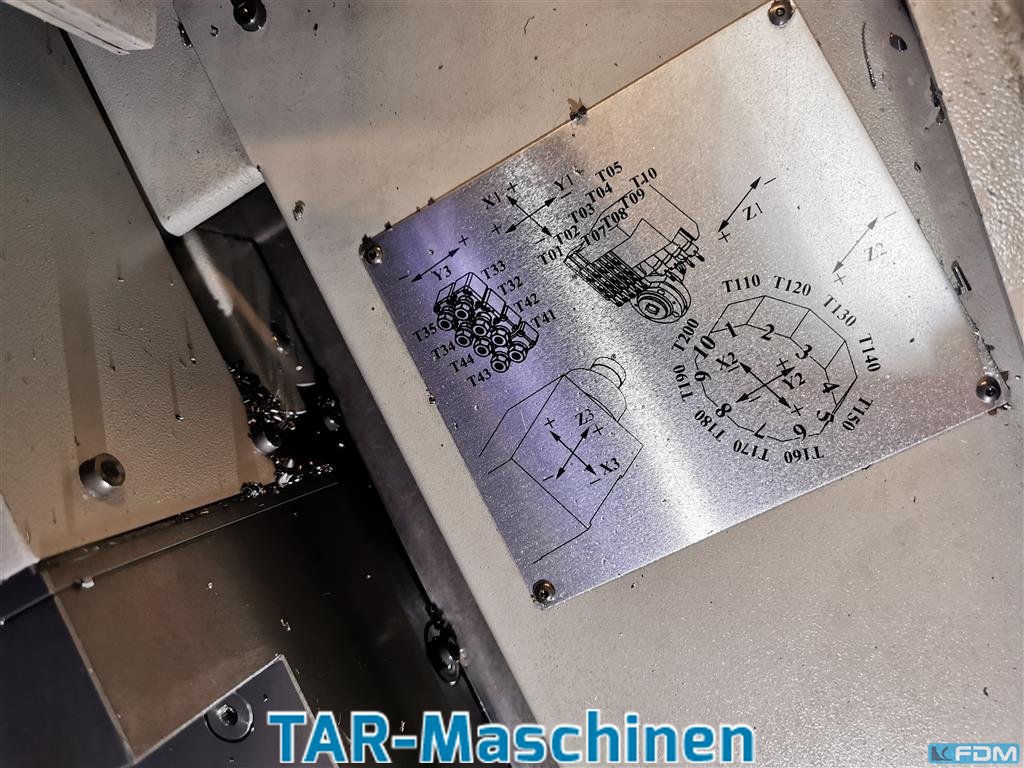

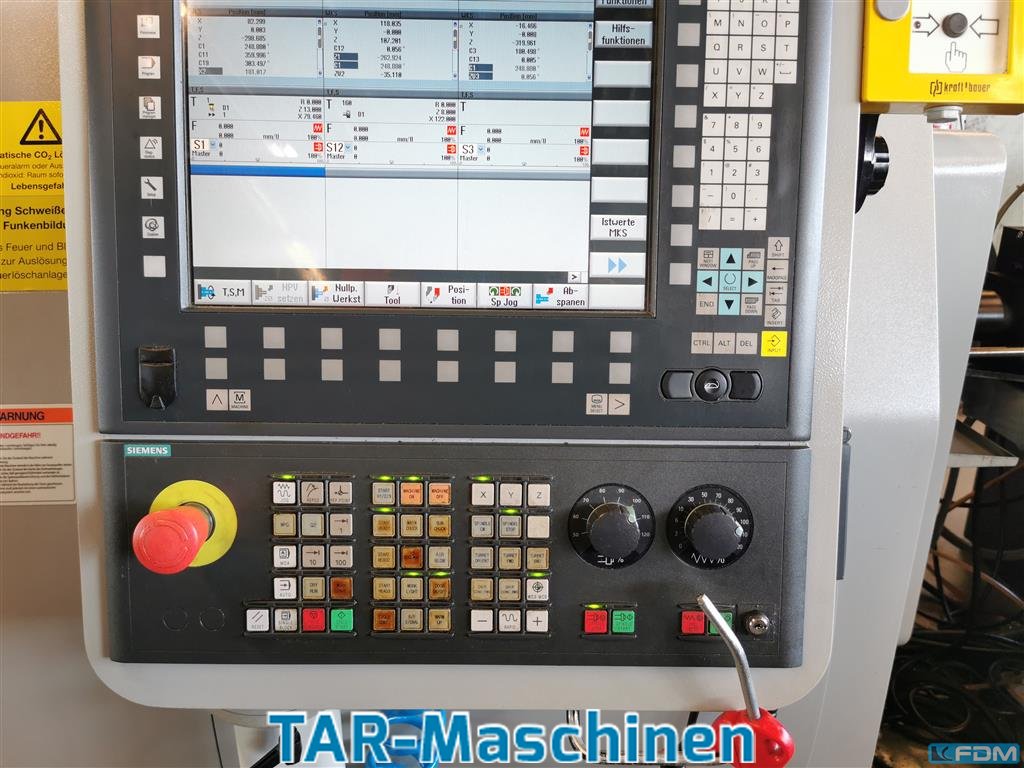

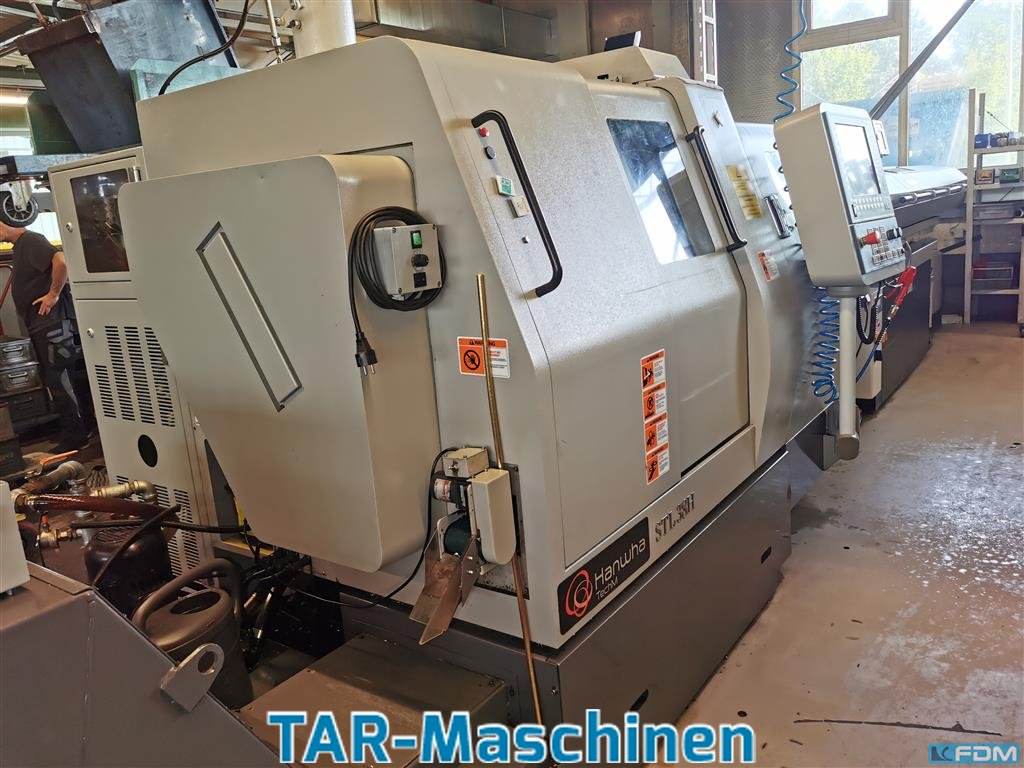

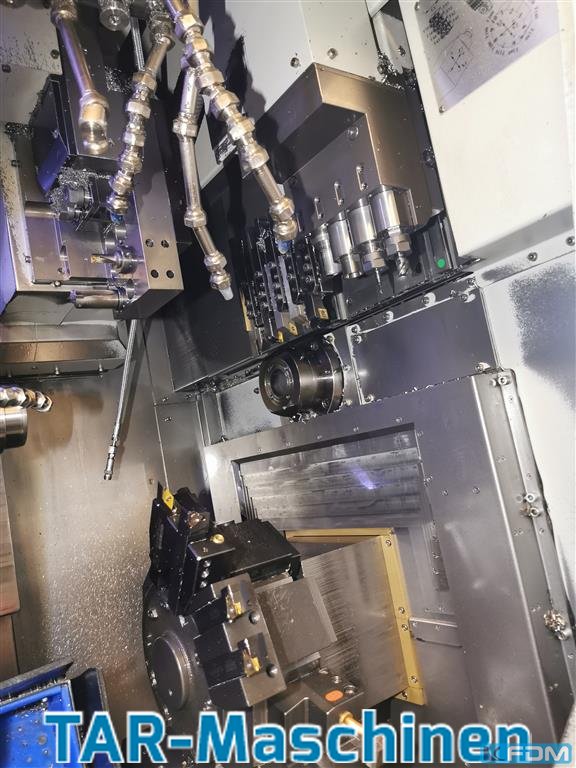

turning diameter:38 mmArticle: CNC latheManufacturer: HanwhaType: STL38HYear of construction: 2013Control: Siemens 840SL for 8 axesMain spindle:max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpmPower max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48Counter spindle:max. pick-up diameter: 38mm, n max. 6,500 rpmPower max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42Tool turret:n max. 6,000 rpmPower max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120Bar feeder FMB Turbo 5-55High-pressure station SFB-301 eco 150barPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

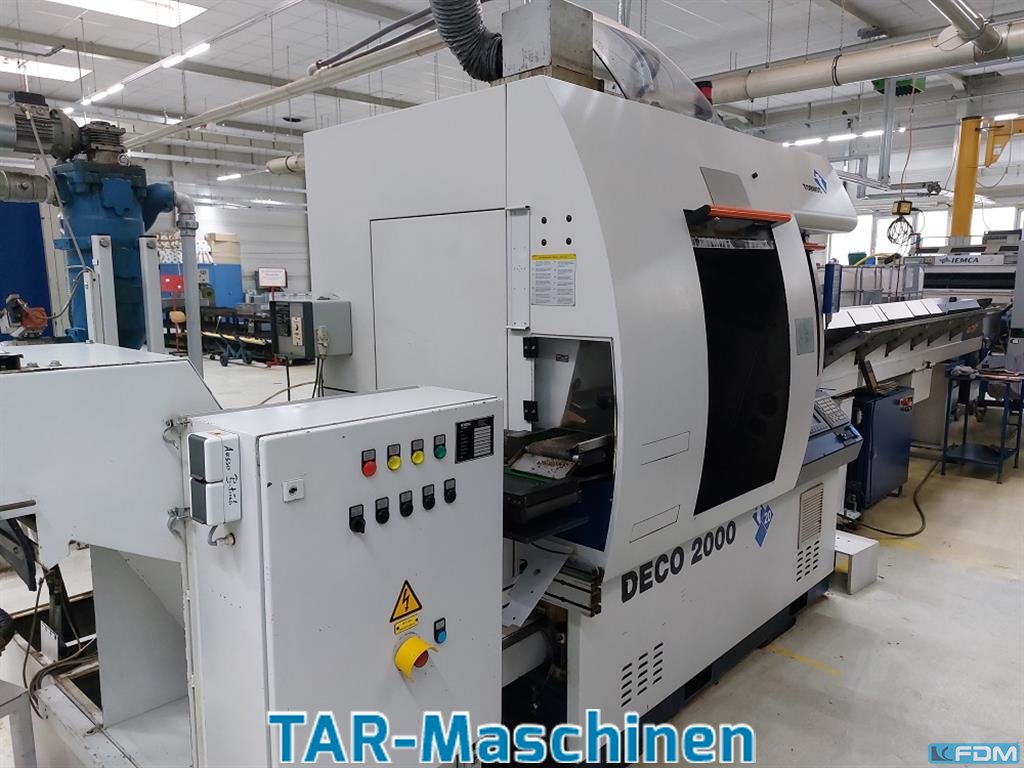

spindle passage:25 mmArticle: CNC sliding headstock automatic latheManufacturer: TornosType: Deco 2000/20Year of construction: 2001Control: Fanucspindle diameter: D25 mmmax. speed: 7000 rpmcomb: 2 (X,Z,Y-axis)Front attachment: 1 (X,Z,S-axis)Loading magazine: Tornos Robobar SSFChip conveyor: Hinged belt conveyorother: various accessories such as polygonal impact device, HF spindlePlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
greates pass round over bed: 700 mmswing diameter over slide rest: 380 mmmax. turning diameter: 410 mmcontrol: HEIDENHAIN - 4290 max. Spindle speed: 5.000 U/min.centre distance: 975 mmtravel -x axis: 300 mmtravel -y axis: 120 (+/- 60) mmtravel -z axis: 850 mmnumbers of positions in the tool changer: 12 tool taper: VDI40 CNC Turning- and Milling Center | DMG - CTX 800 Beta equipped with a turret for driven tools, SCHUNK lathe chuck (Ø 315 mm) as well as tailstock and chip conveyor.An extensive tool package is in the Scope of delivery includes.The machine is in a well-maintained condition.- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -#Tags: CTX800beta | CTX800 beta | CTX-800The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
number of spindles:9 spindle passage:46 mmArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchütteType: SC9-46Yob: 2016Six-spindle automatic lathe with 6 main spindles with max. nominal throughput D=46mm and 3 counter spindlesMain spindles: 6 motor spindles D46mm, 5. 000 rpm, 35 Nm to 80 NmCross slide units, transverse: 6 units, in positions I to VI,Slide units, longitudinal: 5 units, in positions I to V, Slide units, longitudinal: 5 units, in positions I to V,Counter spindles: 3 units, one each in positions VI, VIII and IX, 7. 500 rpmCross slide units, transverse: 2 units, in positions VIII and IX,Control:Siemens SINUMERIK 840SL with double NCUSoftware: Schütte SICS, Sinomerik Operate 4.5, Safety Integreted,Spindle coupling package ?CP-Expert?, for up to 8 spindle couplings (maximum expansion)Synchronous action package ?Level? 2, incl. cross-mode actions/ASUP (maximu ...

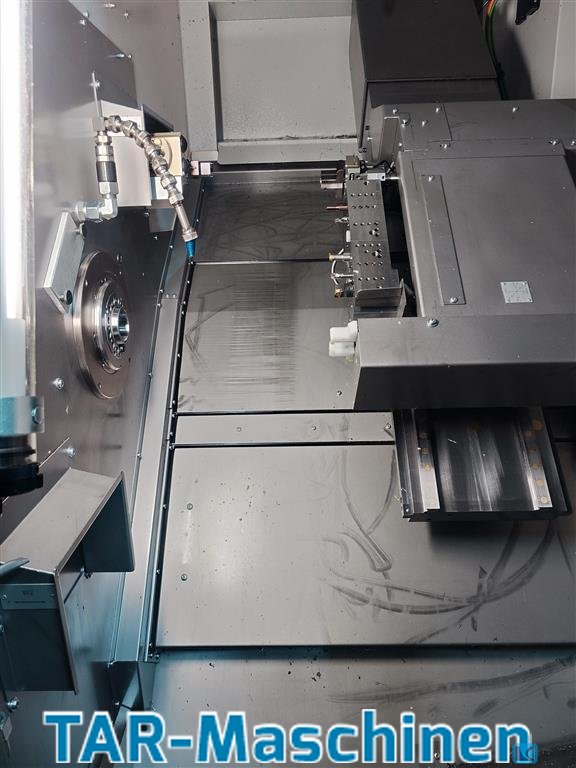

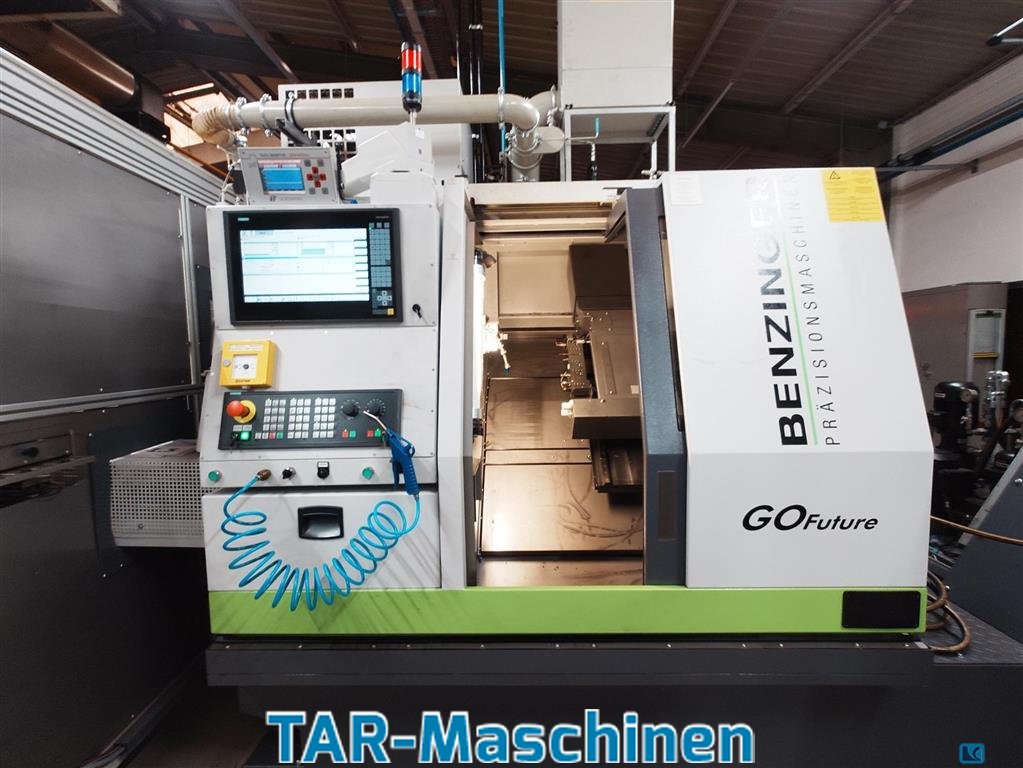

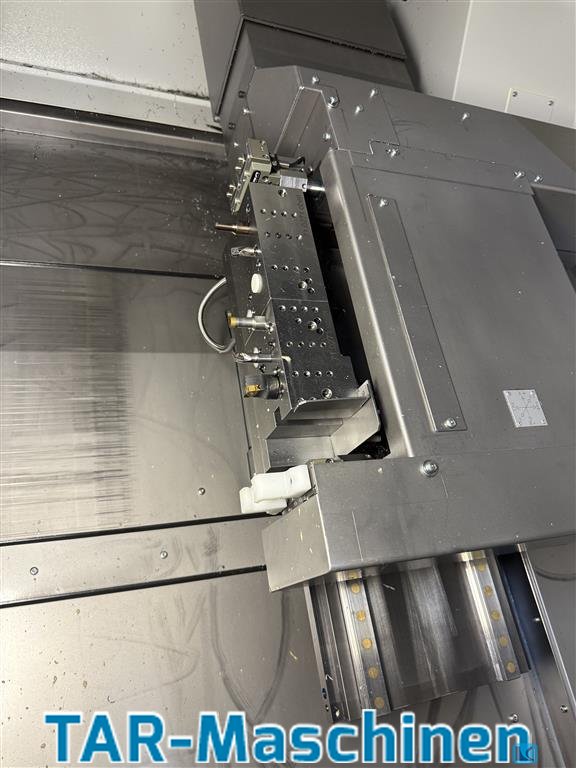

turning diameter:26 mmArticle: High-precision CNC lathe with linear cross slideManufacturer: BenzingerType: GOFuture B1Yob: 2016Machine was only used for reworking, i.e. only light machining work was carried out!Control: Siemens Sinumerik 840DslMain spindle: maintenance-free motor spindleBar capacity: D26mmLoading and unloading device type IBAdditional gripper system for placing the workpieces in the correct position on the unloading beltCoaxial valve for coolant to the linear tools (3 pieces)Internal clamping deviceC-axis main spindle for digital control incl. transmit functionAdjusting microscope 16x magnificationCoolant supply through the spindle clamping cylinder,Sealing air,Speed increase of the motor spindle to 8. 0000 rpmNordmann tool monitoringProfibus master interfaceHinged belt conveyor KnollCompact coolant device KnollMBE interfaceSmall fire extinguishing system Kraft & BauerN ...
number of spindles:8 spindle passage:20 mmArticle: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: AG20Yob: 2002eight-spindle automatic lathe8 main spindlesfor bars up to D=20mmcontrol: Siemens 840D1x polygonal turning/thread milling device (new 2011)1x polygonal turning/thread milling device for long turning (new 2011)1x thread cutting/quick drilling spindle (new 2011)1x pick-up device incl. various pick-up collets 4 cnc-cross slidesDouble cross slide in position 7Loading magazine PRA 52/P type 33 (bar length 3m), year 2004High-pressure system Knoll SF 2000/Turbo-3 up to 100 bar, year 2004Tool monitoring BrankampAir conditioning unit Rittal in the front switch cabinetincl. spare parts package with various collets, cams and various tool holders for longitudinal and cross slidesThe machine has been run with oil and has processed brassPlease, contact us for getting ...
number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: SFH130Yob: 1995six-spindle automatic lathe6 main spindles as a chucker automatic lathecontrol Siemens S7-200 PLCDnt driveloading and disloading in position 6additional cooling pump with magnetic spark plug filterPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
