swing diameter:200 mmweight of the machine ca.:15 tDistance between tips:832,5 mmturning length:380 mmwith chip conveyor and belt filter press, infeed and outfeed belt 2 x 12-position revolvers
EspecificacionesLC 300ALC 340A Diámetro máximo de giro sobre la cama300 mm340 mm Longitud máxima de la pieza500 / 750 / 1000 mm500 / 750 / 1000 mm Diámetro máximo de giro sobre el carro170 mm210 mm Diámetro máximo de giro por encima de la cama rota430 mm470 mm Anchura efectiva de la cama rota para la mesa circular137 mm137 mm Diámetro del cilindro del husillo38mm38mm Estrecha del husillo (Morse)55 Protección de husillo, código C5, D5, C5, D5 Distancia desde el vaso de montaje de la herramienta hasta el eje del husillo18 mm18 mm Tamaño del área de herramientas: 16 x 16 mm, 16 x 16 mm Cono de cañón de cola (Morse) Rango de velocidad del husillo: 60 - 2000 RPM, 60 - 2000 RPM Número de rangos de velocidad del husillo: 9 a 9 Rango de alimentación longitudinal0,03 - 0,43 mm/rpm0,03 - 0,43 mm/rpm Rango de alimentacióncruzada: 0,015 - 0,21 mm, 0,015 - 0,21 mm Roscasmétricas 0 ...

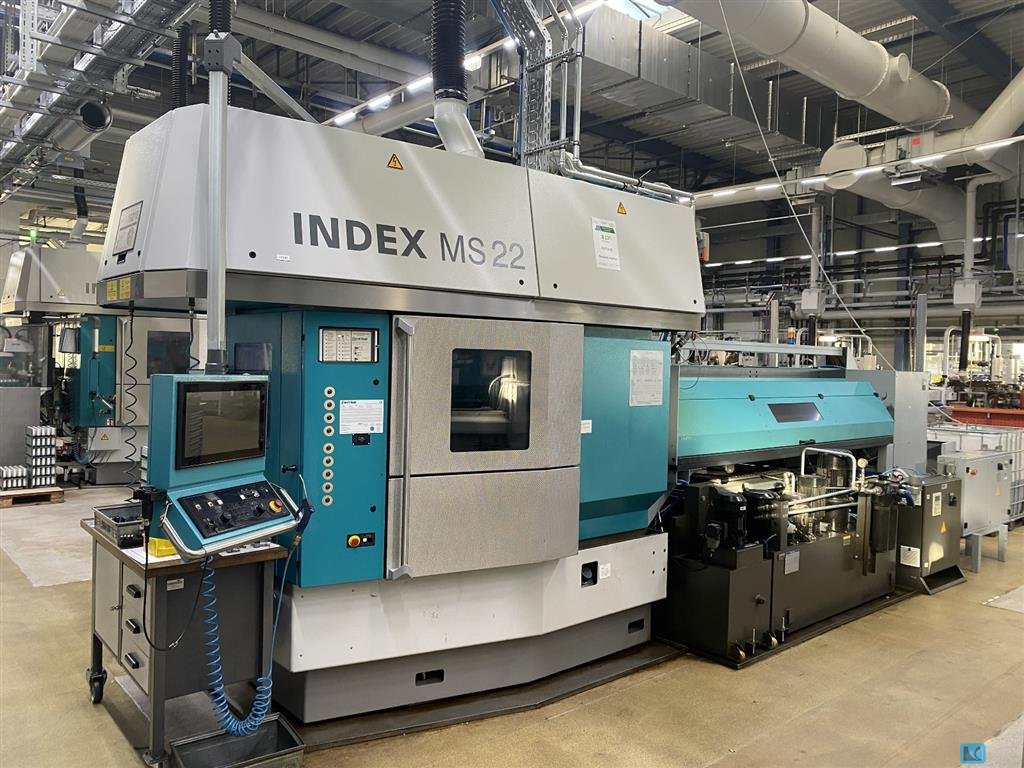

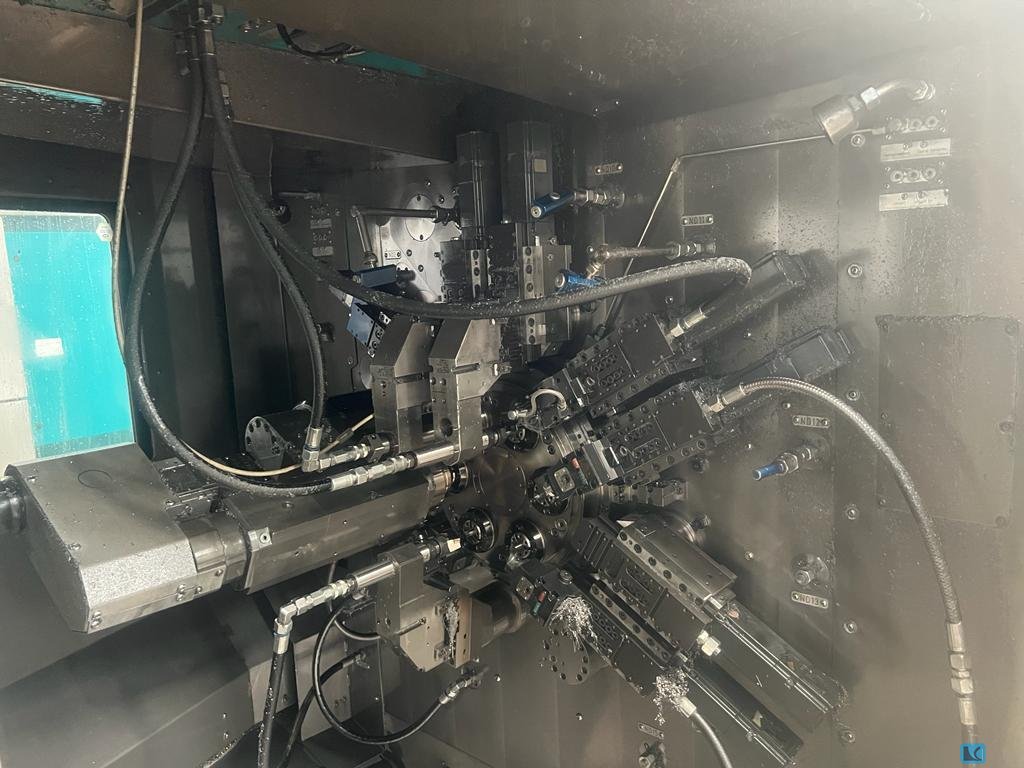

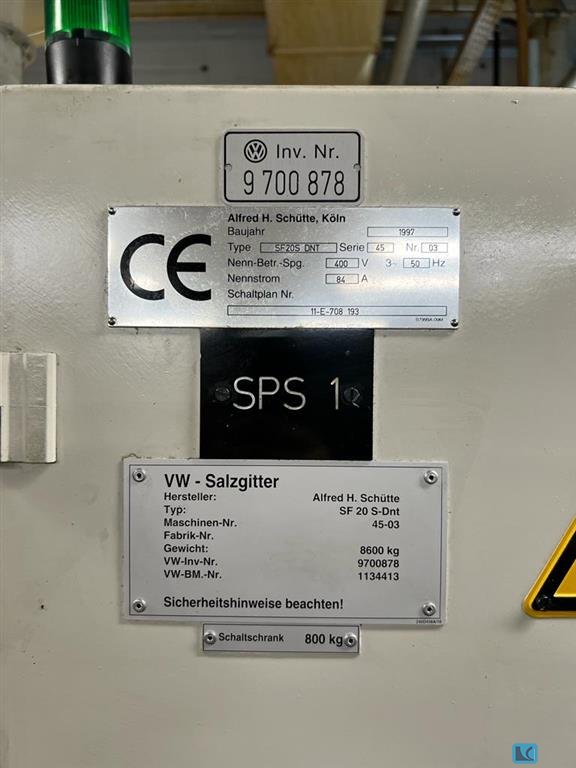

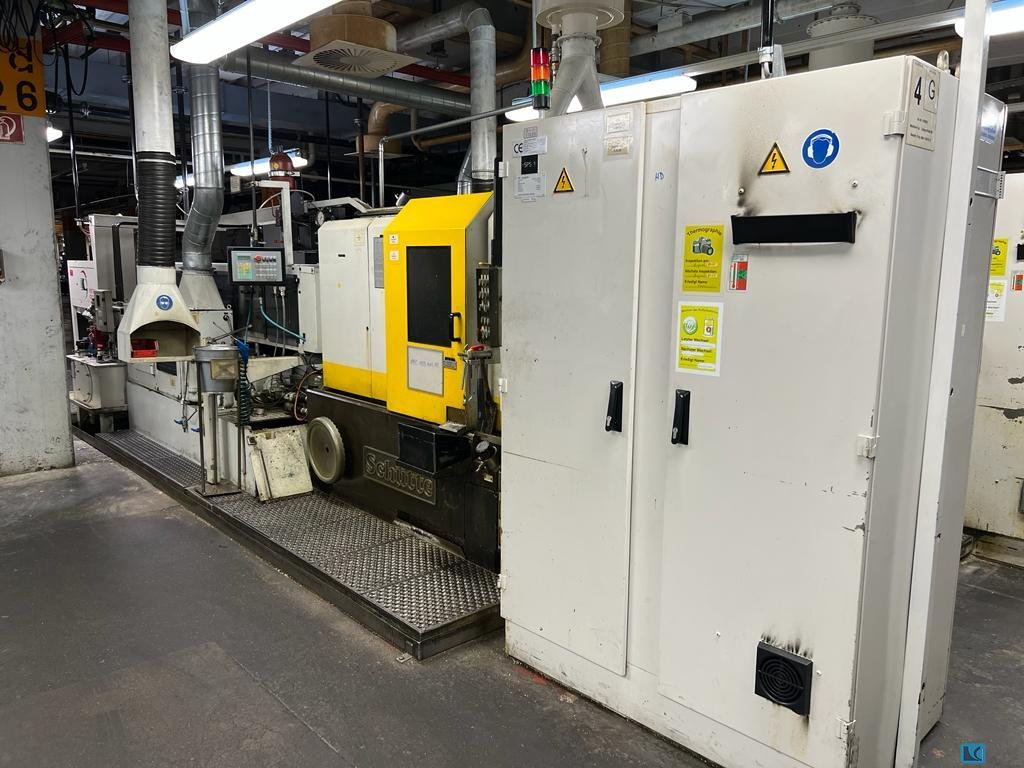

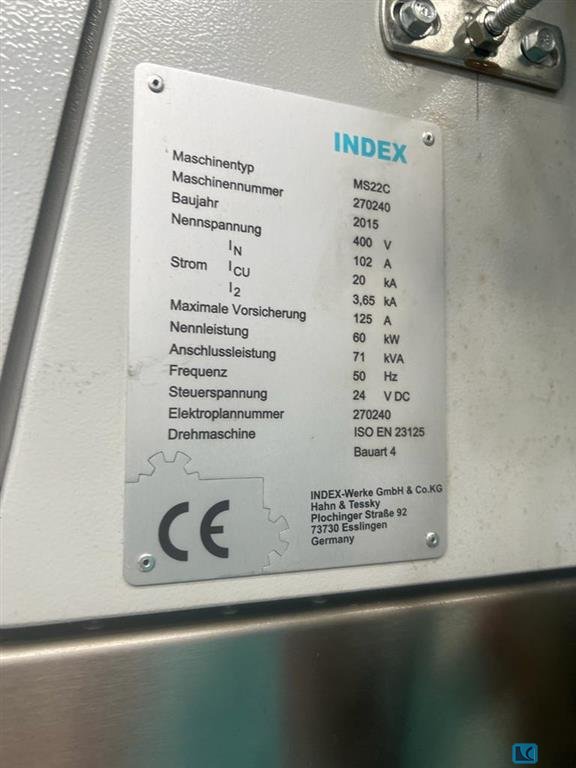

number of spindles:6 spindle passage:22 mm?Bar feeder complete is 4.70 meters - for 3 meters of material ?The machine is still on ?Materail to be processed on the machine: Steel ?Production with OIL Machine has only Single-NCU without PCU.The complete energy supply of all 6 main spindles was replaced in April 25.No socket for powered tools!
weight of the machine ca.:18 tcentre distance:700 mmmax. swing diameter:200 mmLathe with 4 tools only for 3-cylinder crank shaft
max. workpiece diameter:29 mmmin. workpiece diameter:26 mmworkpiece length:66 mmthe system was originally delivered for the following workpiece sizes: diameter 26mm - 29mm length 65mm - 66mmChanging parts in the clamping device, handling, etc. would probably result in diameters of up to approx. Ø50mmTotal length will probably be almost 400 mm possible with a few conversions.Also dependent on tool lengths, machining lengths on the component, etc.Workpiece: Piston pin Drawing number: WHT 000 718, WHT 000 718 A Workpiece dimensions (Ø, WxH): Ø26 x 66; Ø29 x 65 Length: 66 or 65 mm Material: 17Cr3Quantity: xxx parts / year Cycle time: 5 sec. However, workpiece lengths up to 600mm are manageable. The machining diameter can be adjusted if the appropriate tools are available. The clamping station can currently only accommodate this product. However, this can be adapted by changing the clampi ...

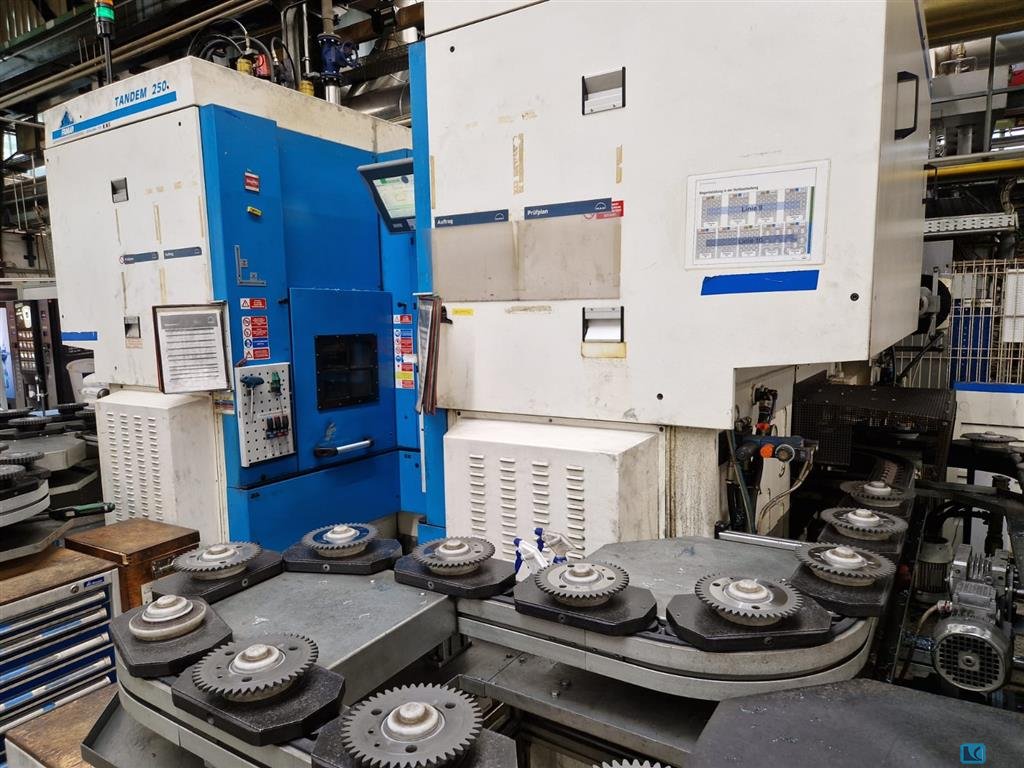

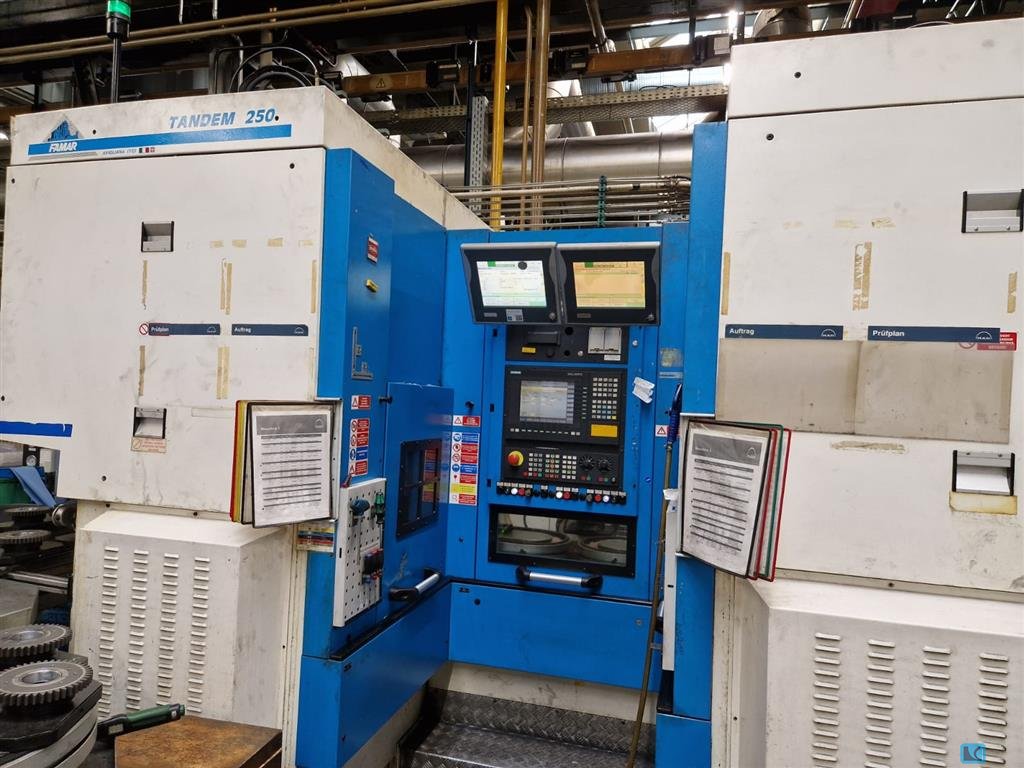

turning diameter:250 mmswing diameter:250 mmturning height:200 mmtotal power requirement:37,7 kWchuck diameter:315 mmspindle speed max.:5500 1/mintravel -x axis:625 mmtravel -y axis:+100/-80 mmtravel -z axis:250 mmworktool system:VDI 30+40 weight of the machine ca.:8 tThe synchronous spindle is powered with 37.7 kW of power, a torque of 300 Nm and a maximum speed of 5,500 rpm.Typical components are ball cages, ball hubs, gear wheels, sliding sleeves,pump wheels, flanges, synchronizer rings, bearing rings and pivot pins.The machine bed is made of Hydropol, a mixture of special concrete and steel, which ensures the greatest smoothness and precision even with larger components and powerful machining.
number of spindles:6 spindle passage:18 mmturning length:63/50 mmweight of the machine ca.:8,6 tspindle drive motor:11 kW

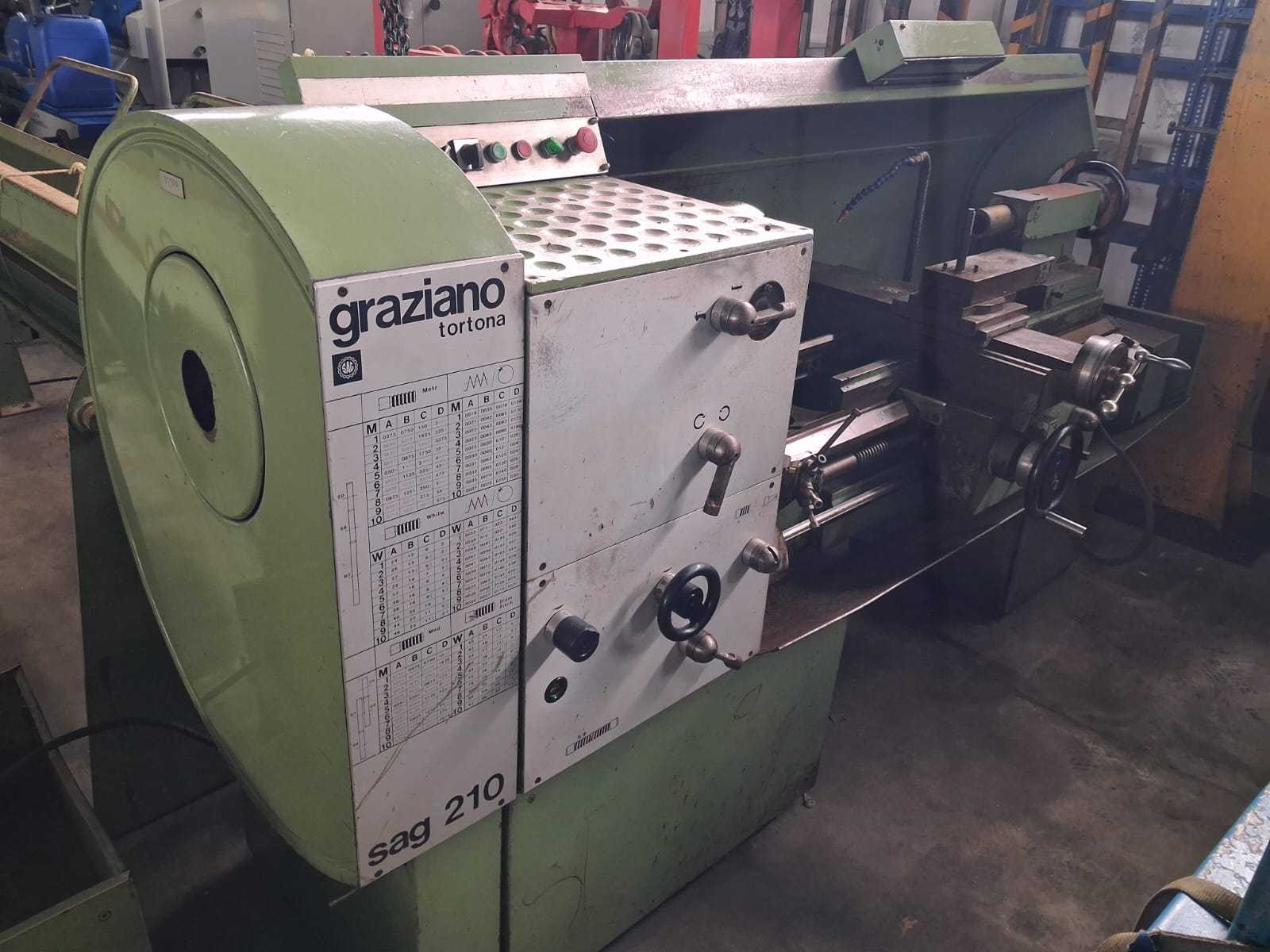

Torno central GRAZIANO SAG210 Tipo: Torno central Fabricante: GRAZIANO Modelo: SAG210 Año de fabricación: 1995 Velocidad máxima: 1800 rpm Conexión eléctrica: 380 V Peso aproximado de la máquina: 2850 kg Dimensiones aproximadas (L x Anor x Ar): 3200 x 1600 x 1500 mm Balanceo sobre la cama: 500 mm Carro basculante: 280 mm Distancia entre centros: 1500 mm Funcionalidad no probada Este artículo se entrega cargado en camión. Los costes de desmantelamiento y carga se especifican como costes adicionales. Auction-ID: A1-51153-31
turning diameter:200 mmturning height:120 mmweight of the machine ca.:18 tAvailable from 01.08.2024
turning diameter:1000 mmswing diameter:1000 mmMachine type: Vertical latheManufacturer: HessappType: DV 62Serial no.: 14.2308Working range of the spindleLargest diameter 1000 mmLargest swing diameter 1000 mmCross slide travelStroke of the vertical slide 900 mmStroke of the horizontal slide 1810 mmTotal travel 2315 mmTurning spindleSpindle head with centering cone according to DIN 55021 A15Spindle diameter in the front bearing 203 mmMain driveVia a controlled asynchronous motor and gear transmissionwith range switching.Spindle speedsSpeed range I: 5 - 350 rpm.Speed range II: 30 - 1000 rpm.Travel speedX/Z axis: 10 m/min.W1 axis: 8 rpmNo C-Axis

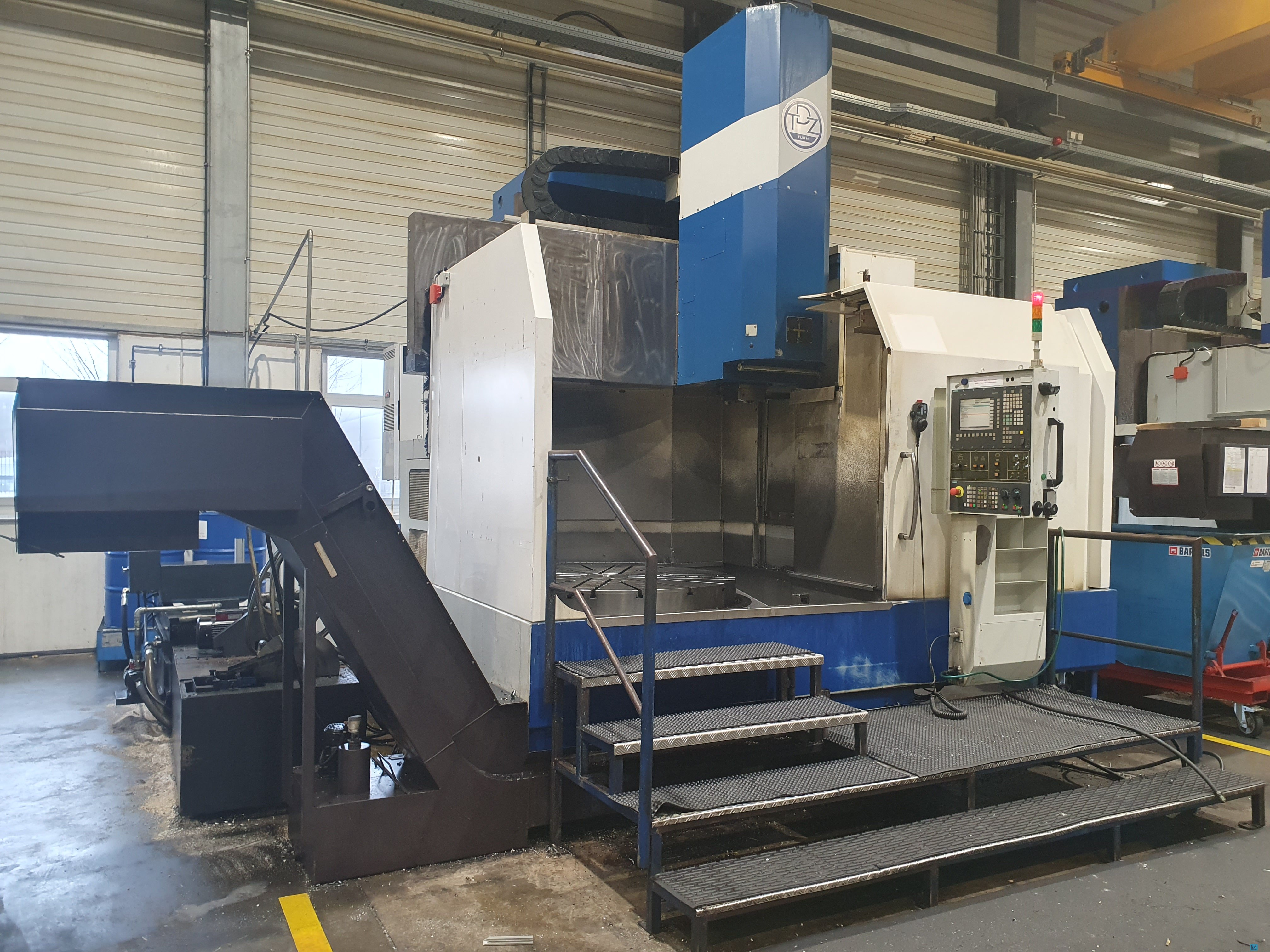

faceplate diameter:800 mmpower requirement:110 kWweight of the machine ca.:37.000 / total 52.000 ttransport measurements machine:5,07 x 2,98 x 3,90 mclamping diameter:800 mm:Ø 800 x 720 mmTool bore:Capto C6 tools in tool magazin:2 x 80 With C-Axis

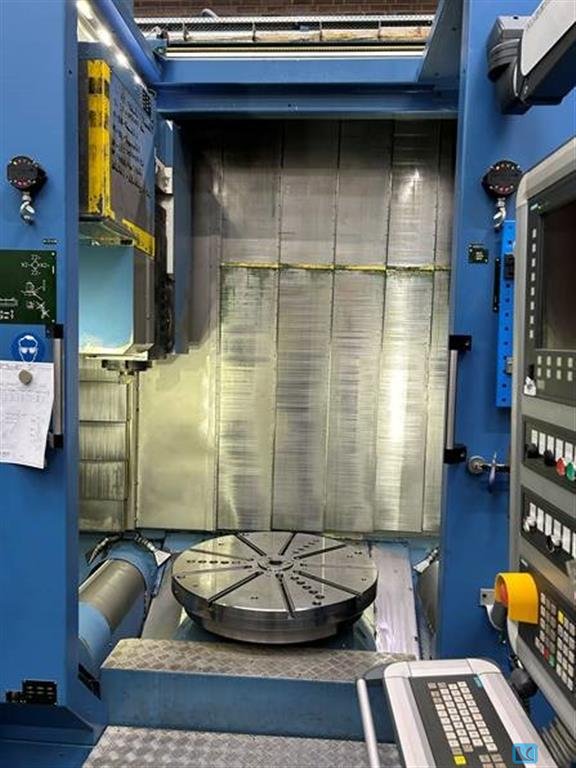

faceplate diameter:1600 mmpower requirement:80 kWweight of the machine ca.:25 tdimensions of the machine ca.:4,4 x 4,62 mmax. workpiece diameter:2000 mmmax. diameter of face turning:1800 mmtool taper:ISO50 The machine has been regularly serviced and is in good technical condition. With C-Axis
Torno universal VDF Boehninger 640 Tipo: Torno universal Fabricante: VDF Tipo: BOEHRINGER 640 Longitud de giro: 1000 mm Ø de giro: 640 mm Perforación del husillo Ø: 385 mm Peso de la máquina: 3500 kg Dimensiones (L x Eano x Ar): aprox. 3650 x 1100 x 1300 mm Distancia entre puntos: 1500 mm Funcionalidad no probada Este artículo se entrega cargado en camión. Los costes de desmantelamiento y carga se especifican como costes adicionales. Auction-ID: A1-51153-16
turning diameter:270 -300 mmturning length:710 mmtotal power requirement:43 kWweight of the machine ca.:8,5 tdimensions of the machine ca.:3,16 x 2,15 x 2,15 mThe machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

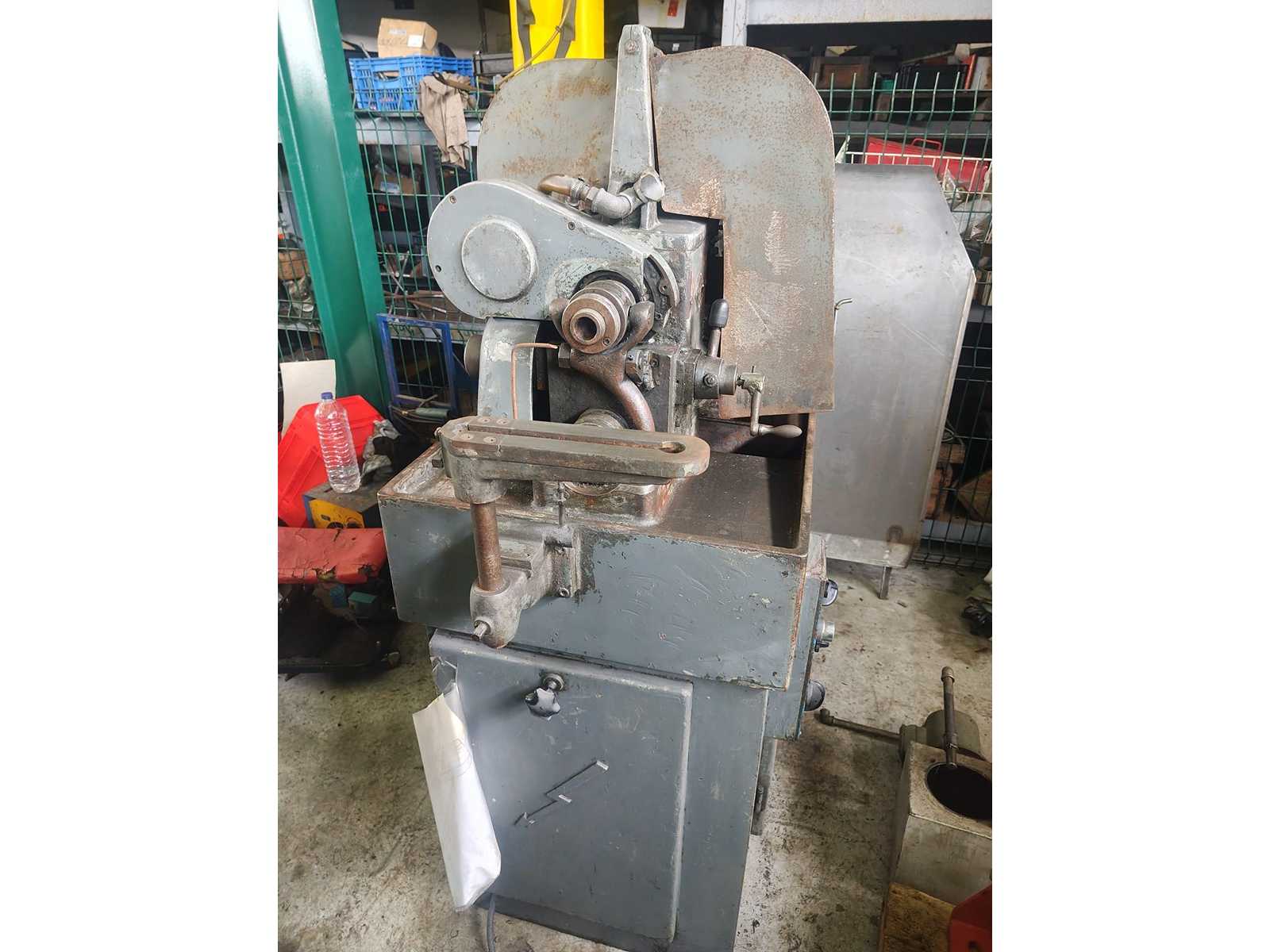

Máquina de propósito especial/roscado SAICC B26, fabricada en Pavía, Italia. Máquina de taller antigua con guardas, husillo y controles manuales. Aplicación exacta y estado de funcionamiento por confirmar. Auction-ID: A1-51153-60
turning diameter:220 mmturning length:310 mmtotal power requirement:17 kWweight of the machine ca.:3,3 tdimensions of the machine ca.:2,25 x 1,63 x 1940 mgreates pass round over bed:430 mmbore diameter:45 mmcentre distance:687 mmslide travel radial ( X-axis ):160 mmslide travel axial ( Z-axis ):310 mmspindle turning speed range:0-6.300 U/min
turning diameter:220 mmturning length:700 / 665 mmtotal power requirement:17 kWweight of the machine ca.:2,6 tdimensions of the machine ca.:2,63 x 1,98 x 1,94 mgreates pass round over bed:430 mmPart length max.:510 slide travel radial ( X-axis ):160 mmbore diameter:45 mmTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2026, Josef Weber. All rights reserved.
turning diameter:360 mmturning length:520 mmtotal power requirement:20 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:3 x 2 x 2 m
turning diameter:360 mmturning length:520 mmtotal power requirement:20 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:3 x 2 x 2 m
turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock versionThe machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.
turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith live tools:VDI40 Live tooling VDI40with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock versionChip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.
Cazeneuve HBX 360 torno central convencional de precisión con portadillo, poste de herramientas y cota. Torno de taller de herramientas bien conocido; estado usado con desgaste visible. Especificaciones completas por confirmar. Auction-ID: A1-51153-12
turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith automatic loading and unloading system, chip conveyorG300 with "spindle bore clamping capacity 90mm" in tailstock versionThe machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

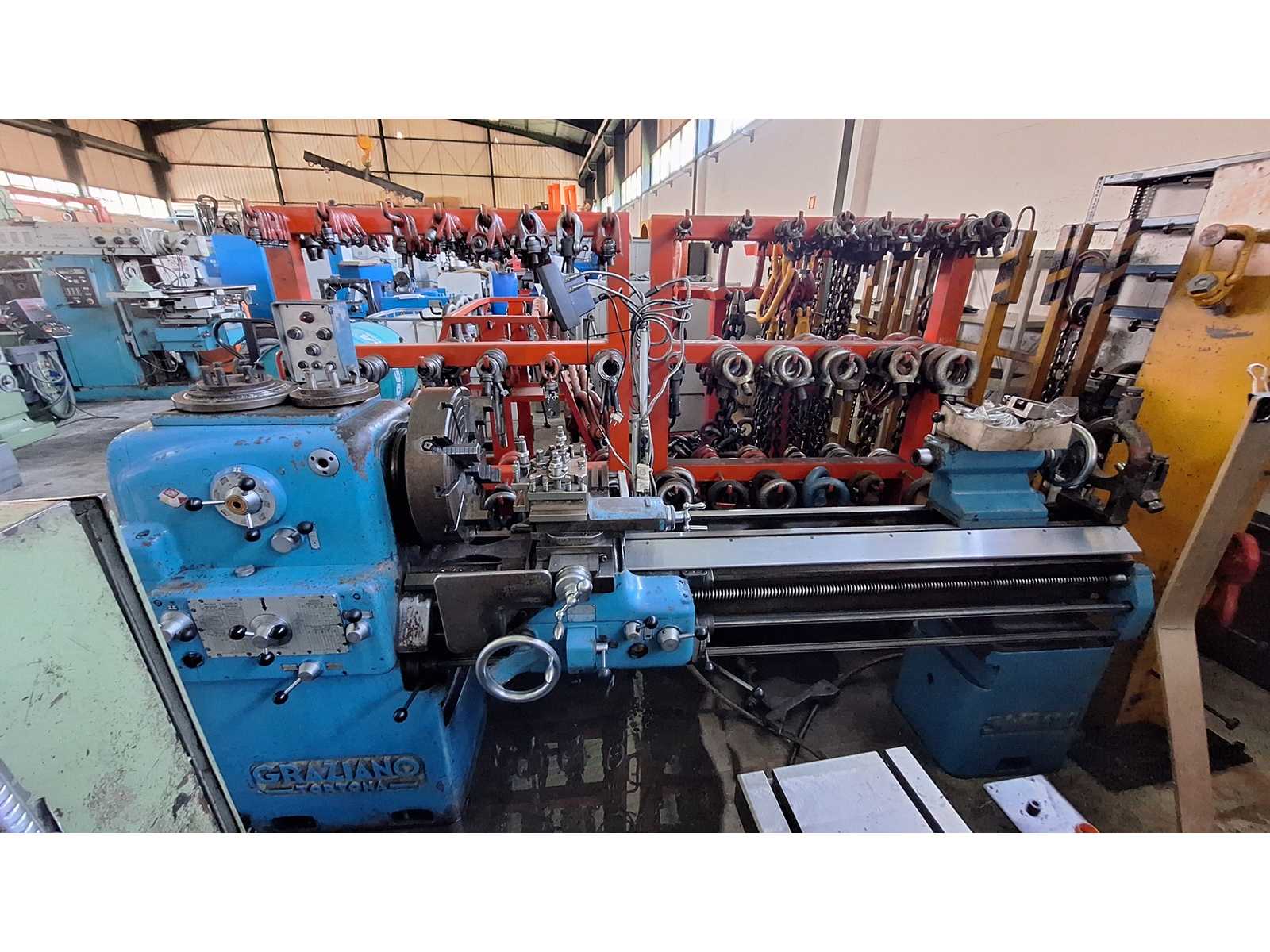

Torno Graziano SAG180 Tipo: Torno Fabricante: Graziano Modelo: SAG180 Año de fabricación: 1987 Longitud de giro: 1500 mm Ø de giro: 450 mm Rango de velocidad: hasta 1500 rpm Potencia del motor: 7,5 kW Conexión eléctrica: 380 V Distancia entre centros: hasta 1500 mm, permitiendo trabajar en piezas de longitud media Peso aproximado de la máquina: 1700 kg Dimensiones aproximadas (L x Anla x E): 2800 x 1300 x 1400 mm Funcionalidad no probada Este artículo se entrega cargado en camión. Los costes de desmantelamiento y carga se especifican como costes adicionales. Auction-ID: A1-51153-32
turning diameter:120 mmturning length:650 mmweight of the machine ca.:11 tdimensions of the machine ca.:5,032 x 3,048 x 2,445 mGildemeister MF Twin 65-II lathe with loading automation.This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.
turning diameter:120 mmturning length:650 mmweight of the machine ca.:11 tdimensions of the machine ca.:5,032 x 3,048 x 2,445 mmax. swing diameter:250 mmGildemeister MF Twin 65-II lathe with loading automation.This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.
