MICROCUT maquina usada para la venta

Núm. Inv. : 7391 Tipo: MM 430 Productor: MICROCUT Creado: 2007 Parámetros: Sistema de control: FAGOR Longitud de la mesa de trabajo: 900 mm Ancho de la mesa de trabajo: 400 mm Peso de la máquina: 3020 kg

Microcut Challenger MCV-2418 - Centro de mecanizado CNC - Control CNC Fagor 0i-mc - Depósito adicional para la refrigeración interna del husillo (15 bar) 400 litros Btl9ijraac - Año de construcción 2005 Especificación - Recorrido X/Y/Z: 610 / 455 / 520 mm - Travesías rápidas: 24 m/min - Velocidad del husillo de trabajo: 8000 rpm - Portaherramientas: BT40 - Tamaño de la mesa : 762 x 363 mm - Carga máxima de la mesa: 350 kg - Potencia del motor: 18 kW - Tensión de funcionamiento: 400 V - Peso: 3140 kg

Key data: 760 mm, 430 mm, 450 mm

Núm. Inv. : 6921 Tipo: VMCF-760 Productor: Microcut Creado: 2007 Parámetros: Sistema de control: Fagor 8055 MC Longitud de la mesa de trabajo: 900 mm Ancho de la mesa de trabajo: 410 mm Recorrido del eje X: 760 mm Recorrido del eje Y: 430 mm Recorrido del eje Z: 450 mm Cono: ISO 40 Peso de la máquina: 3.300 kg

turning diameter:500 mm turning length:460 mm control:Siemens 828D (15") brand new CNC slant bed lathe with 1. Control system Fanuc Oi-TD (8,4" LCD monitor) 2. X/Z-axis stroke 170/600 mm 3. X/Z-axis rapid traverse 30/30 M/MIN 4. Spindle motor 11 / 15 Kw 5. Spindle speed 4500 rpm (Belt driven type) 6. Spindle bearing dia. Ø 100 mm 7. Bar capacity Ø dia 51 mm) 8. Hydraulic Hollow chuck 8" x 3 jaws 9. Hyd. unit for chuck with air cooler 10. Servo driven turret system 12 stations 11. Manual tailstock stroke 500 mm + quill stroke 100 mm 12. Electrical cabinet with heat exchanger 13. Standard splash guide 14. Coolant unit 15. Transformer (power source 380V) 16. Chip conveyor H=1100 MM with trolley (chain type) 17. Machine color Tongtai white/Dark grey 18. Safety foot switch 19. Tricolor lamp 20. Fanuc warranty (western Europe) Standard accessories 1. Facing tool holders x 2 pcs 2. O.D. to ...

turning diameter:230 mm turning length:810 mm centre distance:1.000 mm turning diameter over bed:460 mm spindle passage:56 mm chucking diameter:200 mm turret head:8 x VDI 30 Pos. turning speeds:3.100 1/min max. workpiece weight:570 kg spindle motor:18 kW dimensions of the machine ca.:3,7 x 1,9 x 1,8 m weight of the machine ca.:2,9 t teach-in lathe, PARAT tooling-system, hand operated collet chuck, 3 jaw chuck, 4 toolholders

Microcut 3 axis vertical machining center Max spindle speed : 12.000 rpm Machine is like new condition Linear slide system

Microcut VM-1300 CNC Vertical Machining Center X : 1300 mm Y : 710 mm Z : 710 mm Table size : 1460 mm x 660 mm Fanuc control unit All maintenance has been done Machine is in good working condition

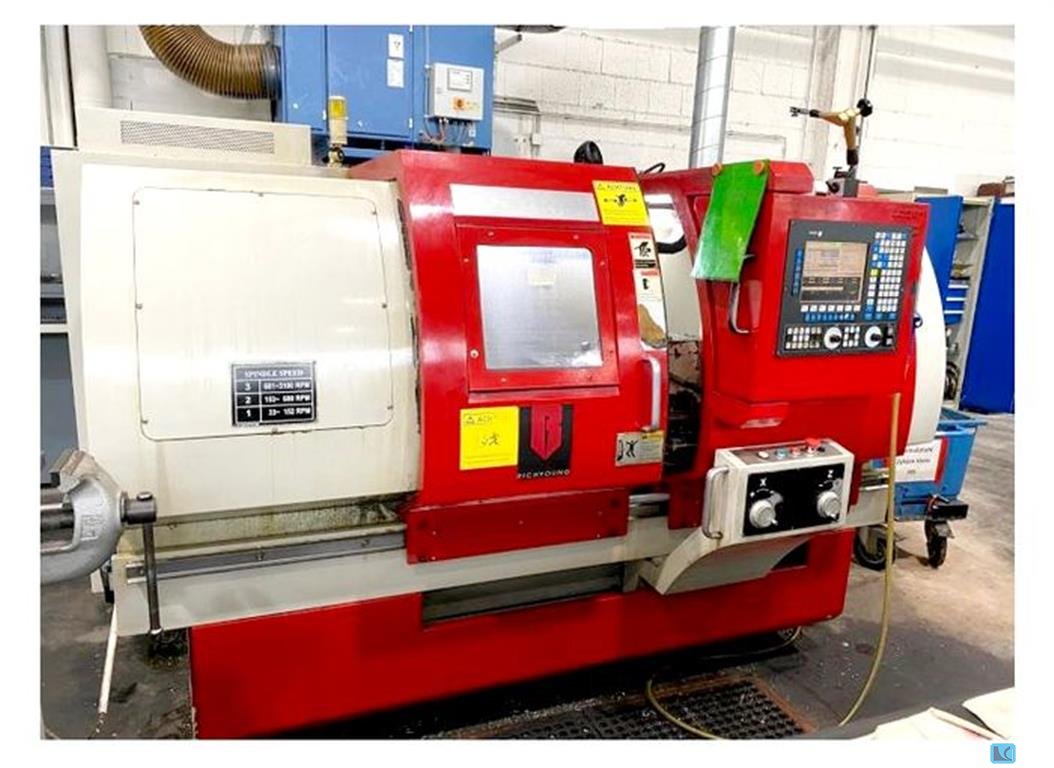

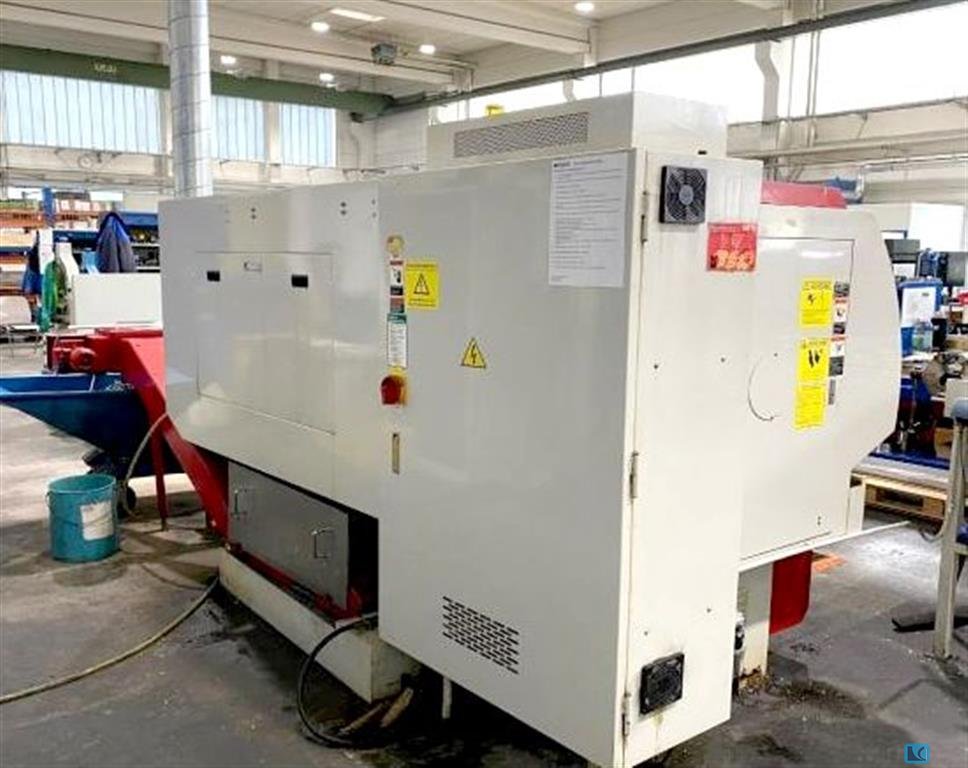

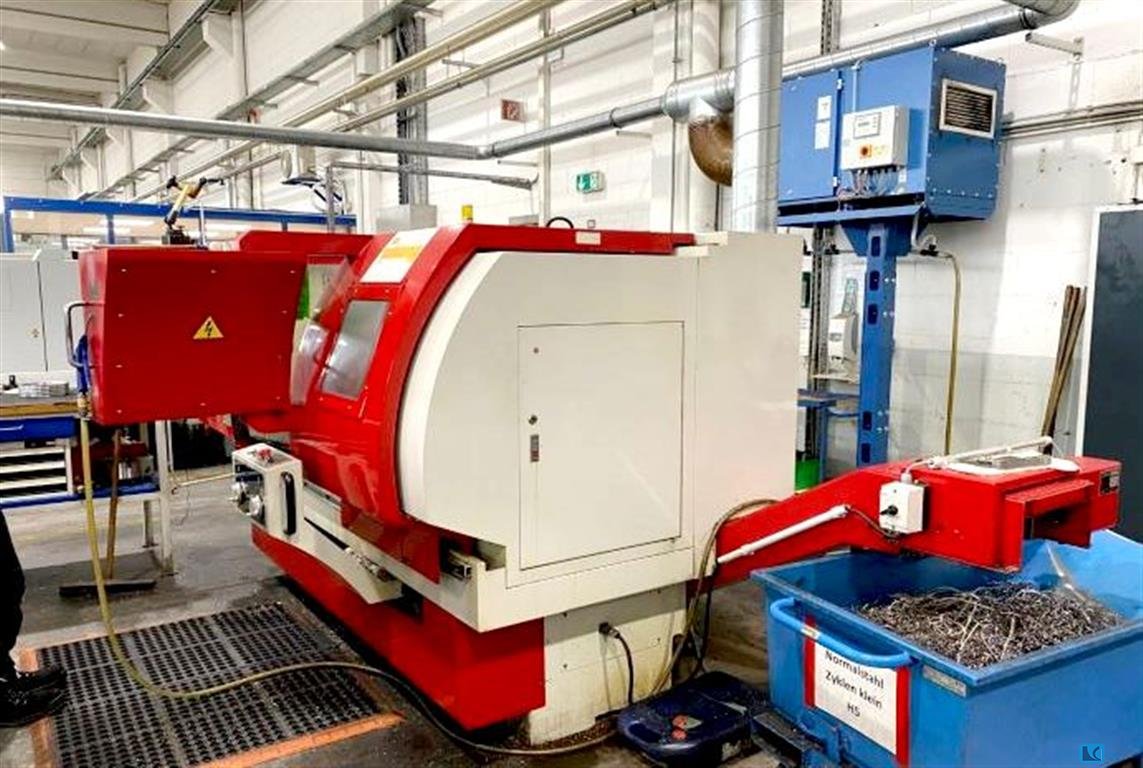

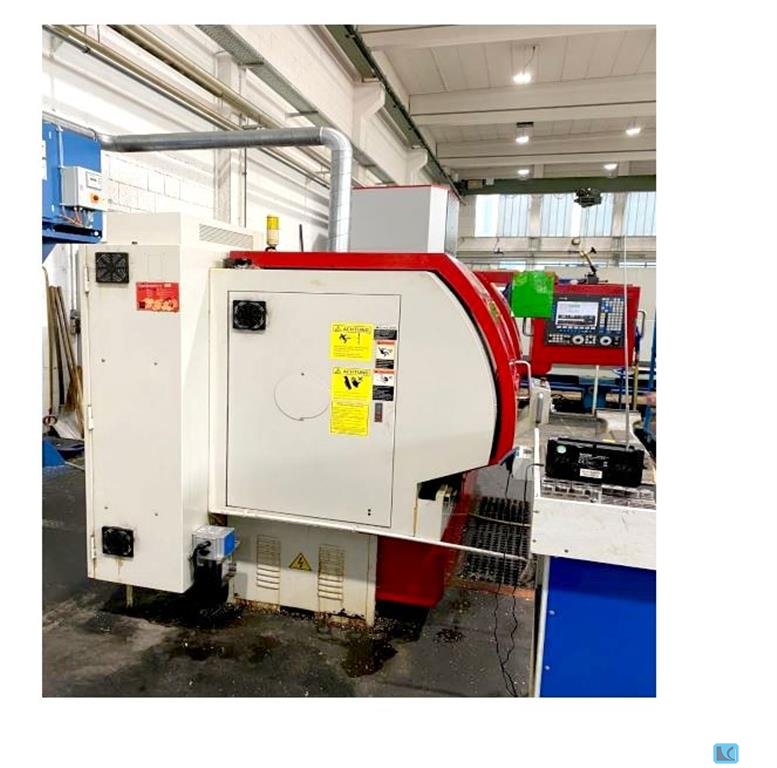

Fabricante: Microcut, Tipo: Fagor CNC 800T, Año: 2010, Control: Programación, Año :2010

control: SIEMENS 828 D for axes: 4 x-travel: 1800 mm y-travel: 800 mm z-travel: 700 mm table surface area: 1960x750 mm tool magazin:: numbers of tools: 24 max. tool diameter: 110 mm max. tool length: 300 mm max. tool weight: 15 kg spindle taper ISO: 50 spindle turning speed - stepless: 0-6000 U/min spindle drive: 18.5 kW feeds -stepless-: 0-10000 mm/min rapid motion -longitudinal/cross/vertical: 10 m/min voltage: 400 V dimensions of machine: 5000x3630x3295 mm weight: 16 t rotary table:: GSA+ CNC-320R tail stock: TS-B21 Coolant through spindle: pressure: 20 Bar 3D measuring tracer: RENISHAW OMP-60 Coolant installation: The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Table length: 760 mm Table width: 360 mm Longitudinal X: 610 mm Cross Y: 355 mm Vertical Z: 510 mm Positions ATC: 16   Positions APC: 1   CNC Brand: Fanuc X - Travel:              610mm Y - Travel:              355mm Z - Travel:              510mm Table Length:            760mm Table Width:             360mm Table load:              250 Feed rate X-Axis:        20000mm/min. Feed rate Y-Axis:        20000mm/min. Feed rate Z-Axis:        20000mm/min. Spindle Taper:           40ISO/Bt/Mk Power on spindle:        7.5kW Speeds / ranges:          ...

x-travel: 600 mm y-travel: 500 mm z-travel: 500 mm Control: Heidenhein iTNC530 rapid traverse: 36 m/min : Random 32 fach table diameter: 600 mm Internal cooling system: 20-70 bar turning speeds: 18.000 u/min Tool adapter: HSK A 63 Machine on: 27466 h Spindle hours: 16316 h total power requirement: 60 kW weight of the machine ca.: 8 t dimensions of the machine ca.: 4200x5800 mm -18000rpm spindle -HSK63A -CTS with paper filter band and skimmer -blum laser probe -Tool probe preparation ( without tool probe ) -30 positions tool changer The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
