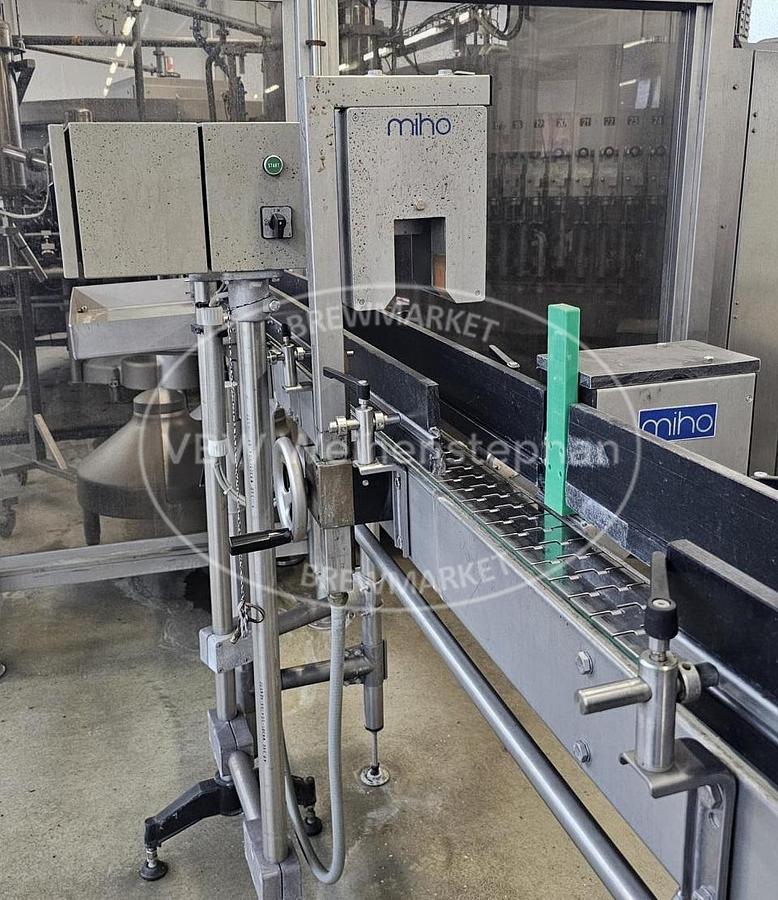

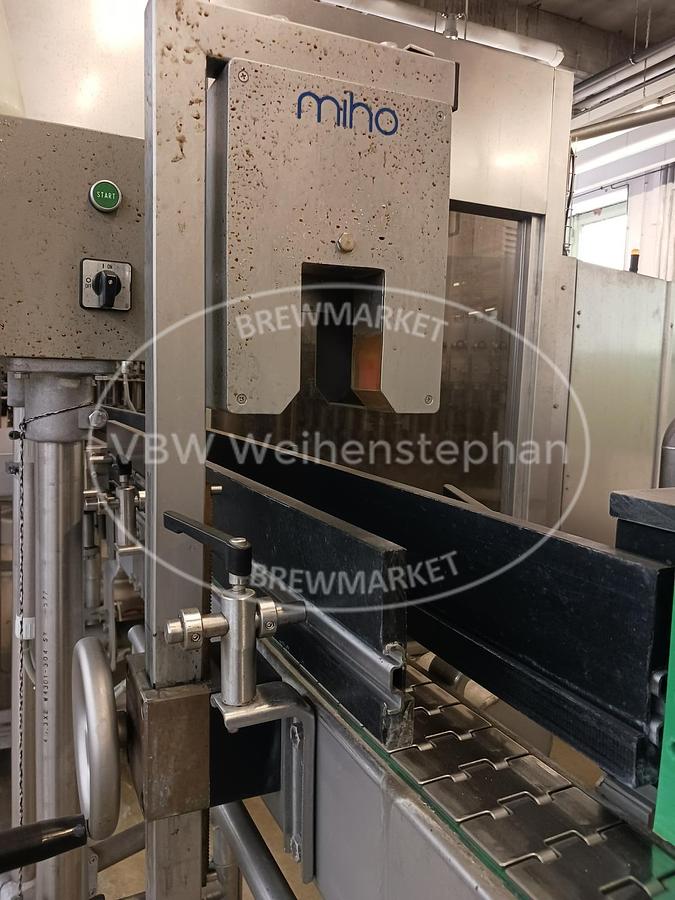

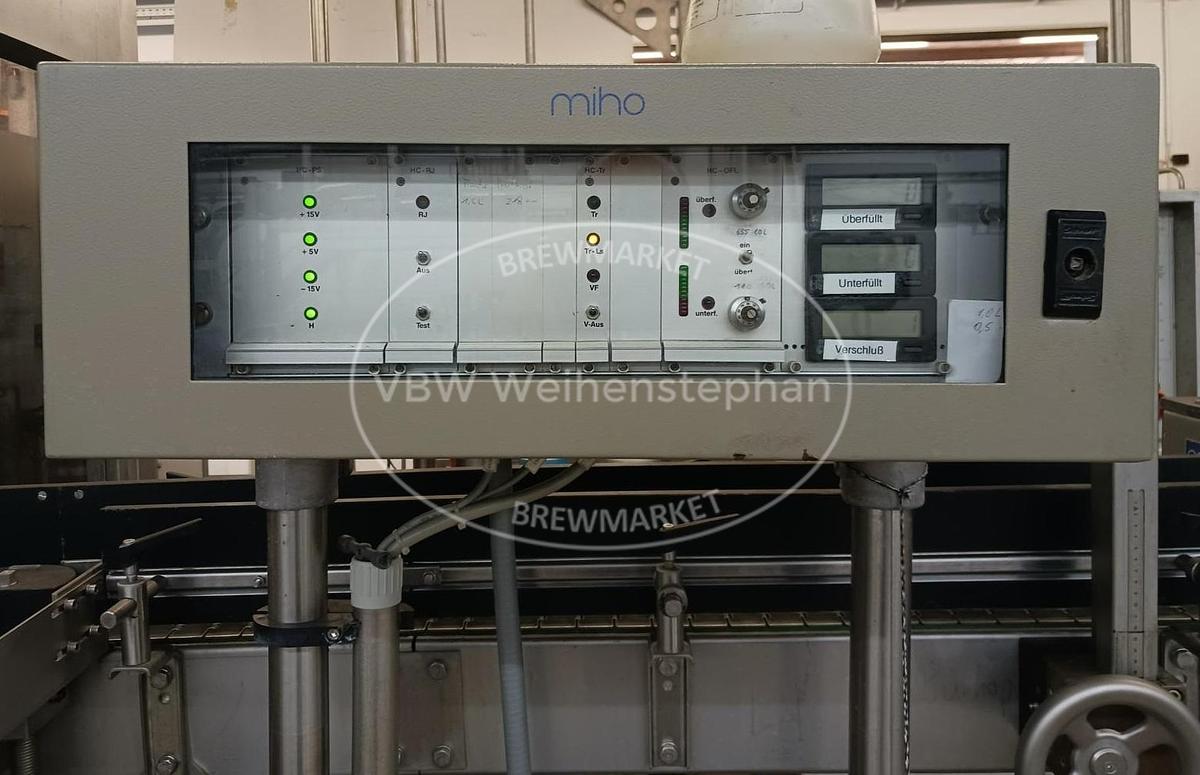

miho fill level detector for detecting underfilled or overfilled bottles, as well as for cap detection. The device works with a high-frequency alternating voltage., Additional title: Fill level inspection system, Capacity: 24000 b/h, Operation / Control: at control box, Material: Painted steel / stainless steel, Position: free-standing / mounted on bottle transport, Base construction: Housing with evaluation electronics with tubular frame on spherical feet, Features: Measuring device, control electronics, bottle ejector

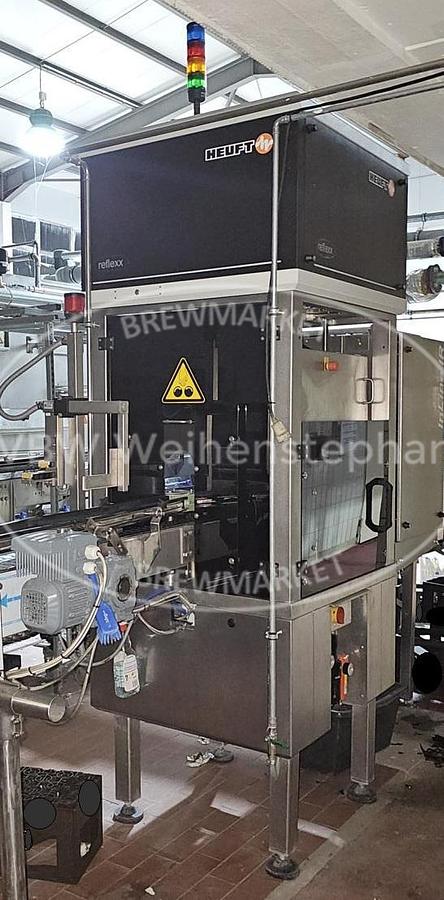

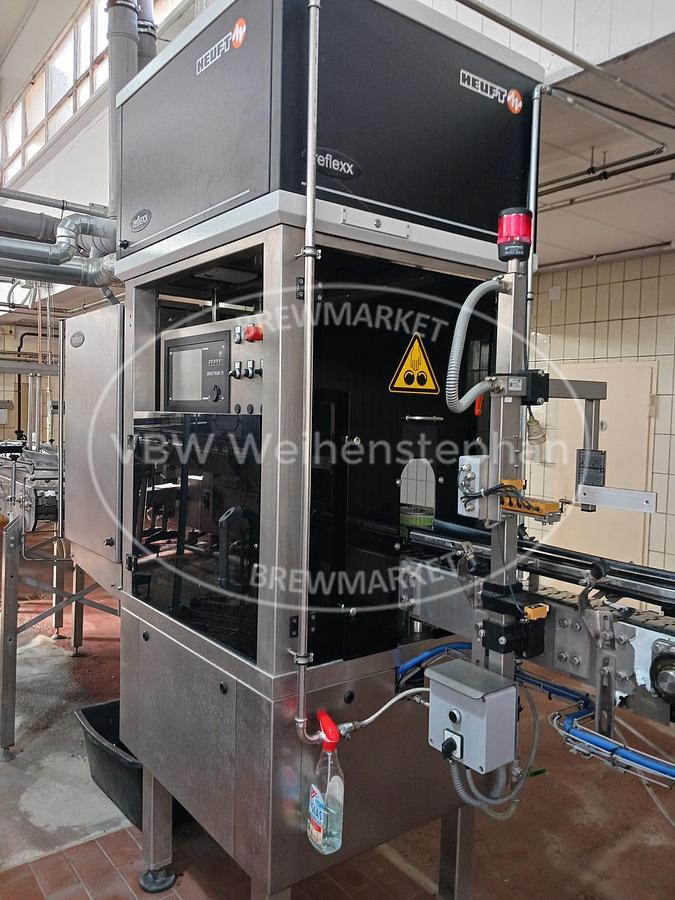

Overview This HEUFT Spectrum TX empty bottle inspector was manufactured in 2015 and is designed for the automatic quality inspection of empty glass bottles prior to the filling process. The machine belongs to the HEUFT Spectrum TX series, which uses the manufacturer’s reflexx inspection technology for high-precision bottle inspection. The system detects foreign particles, glass defects, and residual liquids inside bottles, ensuring that only compliant containers proceed to the filling stage. HEUFT inspection systems are widely used in modern beverage production lines due to their reliable optical inspection technology and modular design. The machine was installed in a high-capacity bottling line with a performance of approximately 33,000 bottles per hour, making it suitable for large industrial beverage filling operations. Technical Data Manufacturer: HEUFT Series: Spectrum TX Type: HB ...
Combined rinser and filler for 0.5 litre, 1.0 litre and 1.5 litre PET bottles. Output: 24,000 bottles/h A chlorine dioxide dosing unit and a sterile water supply are connected to the rinser. The filler is equipped with a screw capper. The filling quantity is controlled via flow measurement. Liquid nitrogen dosing is possible via a mobile system., Additional title: PET bottle sanitising and filling system, Capacity: 24000 b/h , Formats: 0,5 l, 1,0 l und 1,5 l PET-bottles, Running direction: left -> right, Operation / Control: Touch-Panel / Simatic S 7, Material: mainly stainless steel, Position: free standing, Features: Stainless steel enclosure, plexiglass protective screen opening upwards; 70 rinsing valves on the rinser; 80 filling valves; filling quantity recording via IDM; Alcoa capper 28 mm Bericap; Prominent chlorine dioxide dosing; filtration system for sterile water, mobile liqu ...
Overview This rotary labelling machine (cold glue + self-adhesive) was manufactured in 2011 by Germany GERNEP. The machine is designed for high-speed labelling of glass bottles, particularly in the spirits industry. It combines cold glue and self-adhesive labelling technologies, allowing flexible application of multiple label types including body, back, neck ring and additional labels. The machine is equipped with 2 cold glue aggregates and 2 self-adhesive labelling units (HERMA). Technical data Capacity: approx. 12,000 bottles/hour Speed range: approx. 3,000 – 18,000 bottles/hour Formats: 700 ml / 750 ml / 1,000 ml glass bottles Application: Labelling of glass bottles (spirits) Configuration: Rotary machine, 2 cold glue units + 2 self-adhesive units (HERMA) Label positions: Body (front), back, neck ring, additional labels Utilities: 400 V Scope of Delivery Labelling machine | GERNEP ...

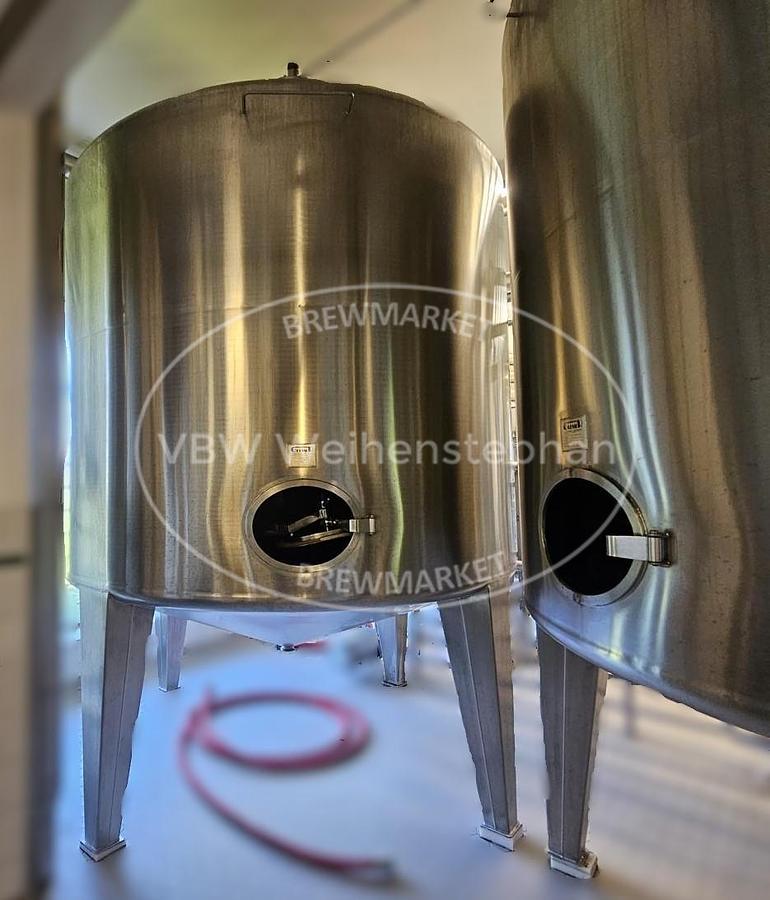

Two vertical stainless steel pressure tanks with jacket cooling and various fittings., Additional title: vertical, coolable stainless steel tanks, Max. content: 8578 l, Max. pressure: 3 bar, Width: approx. 1.9 m, Height: approx. 4.3 m, Material: stainless steel, Position: free-standing, Base construction: cylindrical tank with dished bottoms and square tube feet on domes, Features: Bunging apparatus, pressure gauge, 2 shell cooling zones, standpipe for content display, manhole, sampler and side inlet in the frame, automatic valve with temperature-control, central bottom outlet with shutting flap

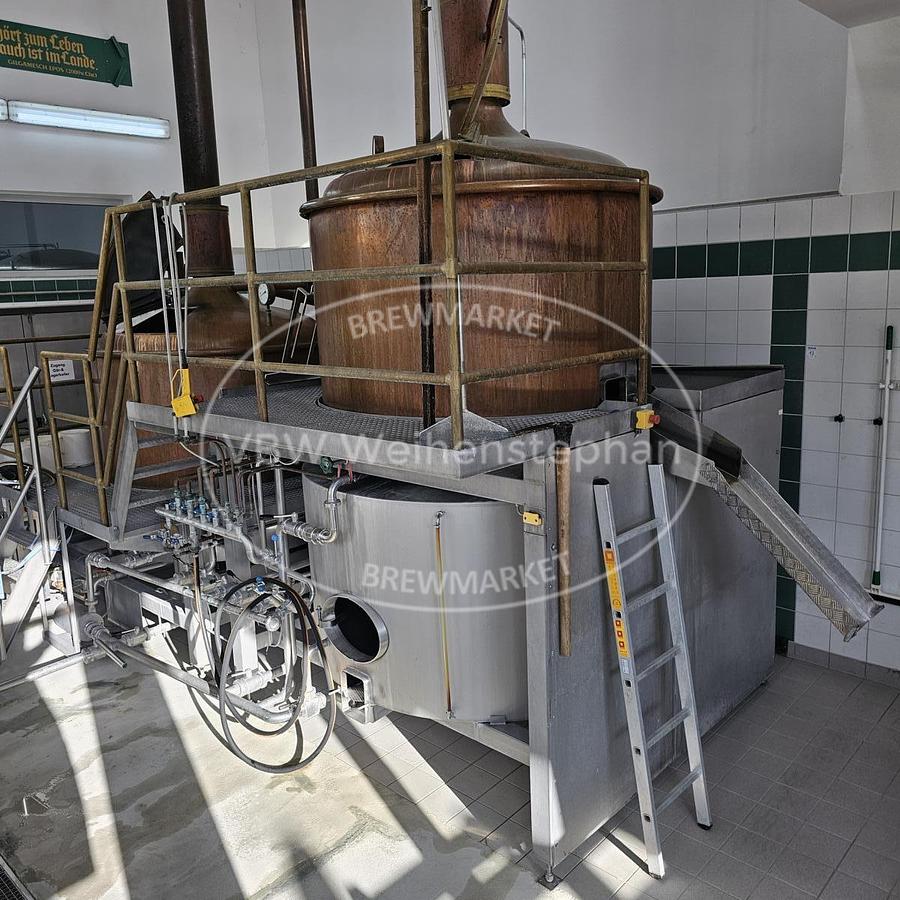

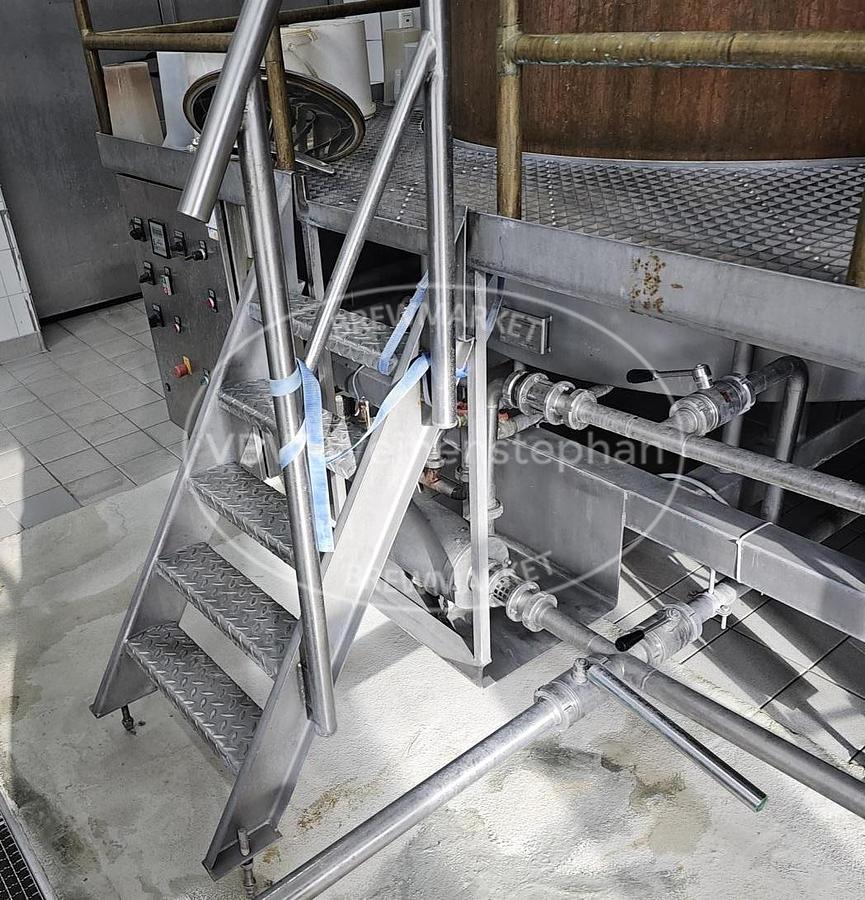

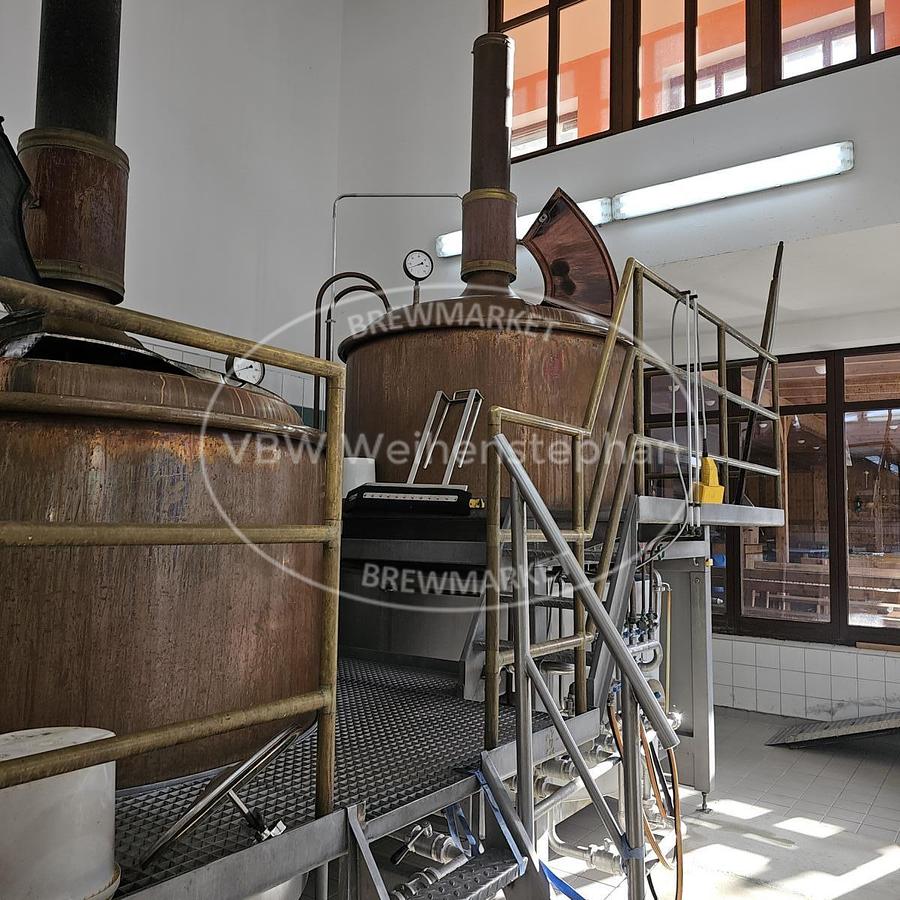

3-device compact brewhouse for 20 hl output, Additional title: 20 hl compact brewing system, Brew size: 2000 l, Length: 2600 mm, Width: 5000 mm, Height: 4500 mm, Operation / Control: Manual control with heating programme controller ‘Barbie and Kühner 7600’ l, Material: stainless steel / copper, Base construction: Brewing vessels mounted on frame construction, Features: Mash/wort kettle, lauter tun, pre-run vessel/whirlpool, spindle station, stainless steel control cabinet with control, stainless steel frame with operating platform, stairs, piping, pumps and fittings

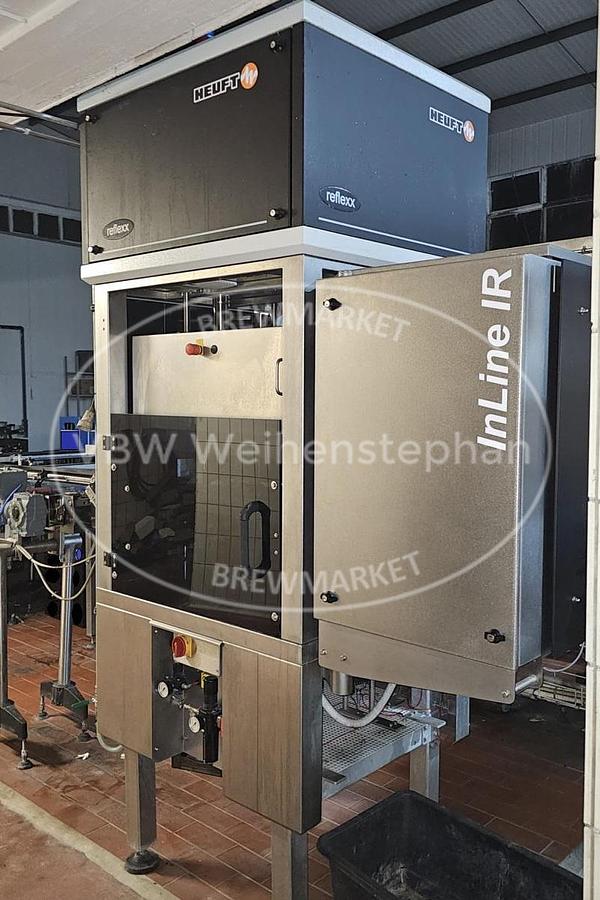

Heuft empty bottle inspector with: - Infeed inspection with belt stop - Bottom inspection - Mouth inspection - IR residual liquid detection - HF residual liquid detection - Simple lateral migration detection in the outlet - Single-segment rejection with rejection control, Additional title: Bottle inspection machine, Capacity: 8000 bottles/h, Voltage: 400 Volt, Frequency: 50/60 Hertz, Compressed air: min. 5 bar, Length: 2030 cm, Width: 950 cm, Height: 1830+conveyor height cm, Weight: 1600 kg, Running direction: from right to left, Operation / Control: Heuft Spectrum reflexx, Heuft speedy environment control for controlling the motors, Position: free standing, Periphery: Synchronised container transport segments after the inspector
Schenk ZHF Kieselguhrfilter, Additional title: Kieselguhr filter, Capacity: 3000 l/h, Max. pressure: 6 bar, Max. temp.: 20 °C, Vessel content: 680 l, Operation / Control: manual operation, with buttons / switches on the control box, Material: stainless steel, Position: Fixed to the floor on a frame, Features: CIP heat exchanger with fittings, dosing vessel, dosing pump, control cabinet, electric motor for shaft drive

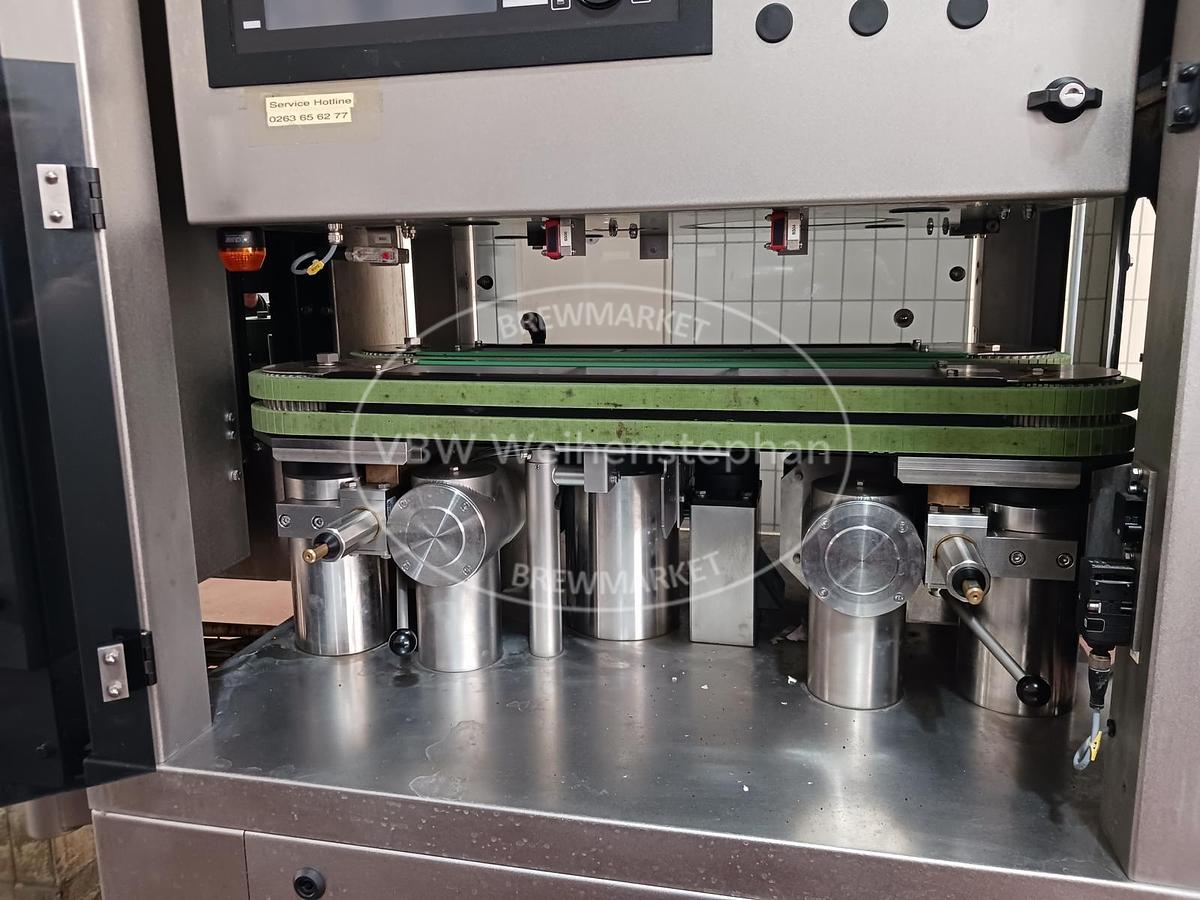

Labelling machine for neck, body and back labelling of glass bottles., Additional title: neck-, body- and back labeling, Capacity: 40000 Fl/h, Length: 2600 mm, Width: 2800 mm, Height: 2700 mm, Formats: various label tables 0.5L NRW, 0.33L Vichy, 0.33L Euro, Running direction: left -> right, Operation / Control: Simatic OP7-Panel, Krones KES 5, Position: free standing

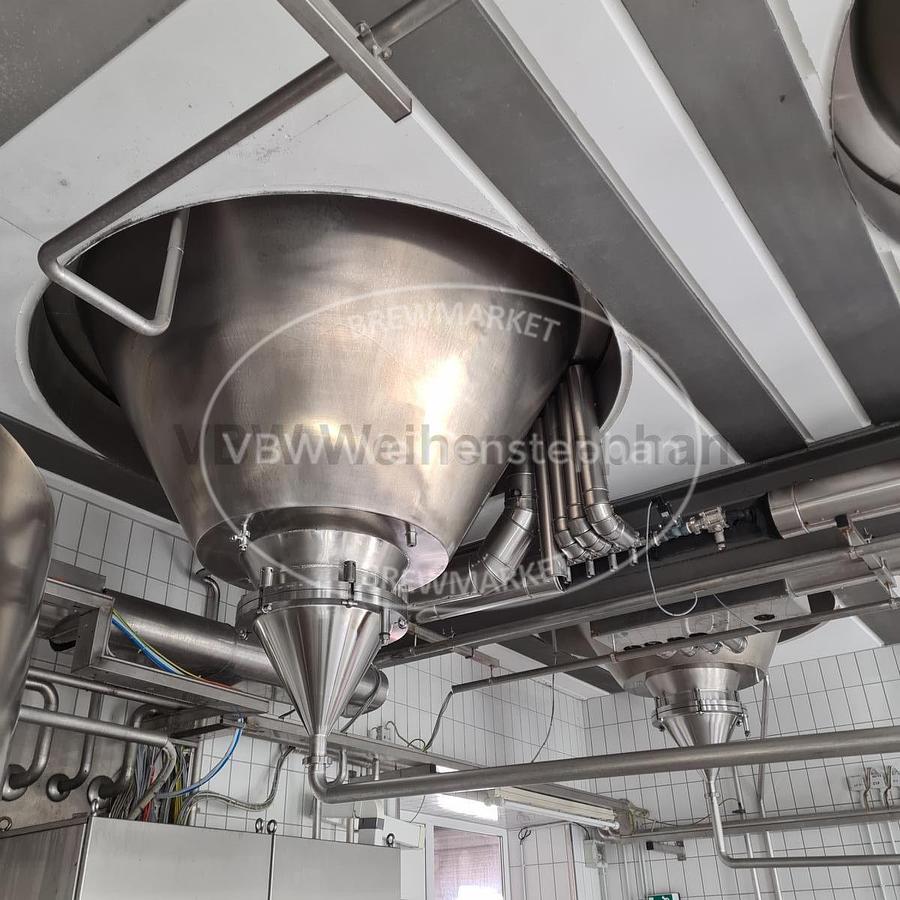

Insulated, cylindroconical stainless steel tanks with three shell cooling zones and one cone cooling zone. Previously used as beer storage tanks., Additional title: vertical, coolable, insulated stainless steel tanks, Gross volume: 30200 l , Pressure capacity: 0,99 bar, Max. operating temperature: 40 °C, Cooling area: 14,45 m², Length: 2,83 m, Width: 2,83 m, Height: 7,86 m, Weight: 3150 kg, Material: stainless steel, Position: standing frame, Features: insulation, tank fittings
Two upright stainless steel tanks with flat cone., Additional title: vertical flatconical stainless steel tanks, Volume: 18140 l, Operating pressure: 0,5 bar, Operating temperature: 20 °C, Width: 2,9 m, Height: 4,15 m, Material: Stainless steel, Position: Vertical, Base construction: 4 support legs, cylindroconical, Features: CIP-noozle

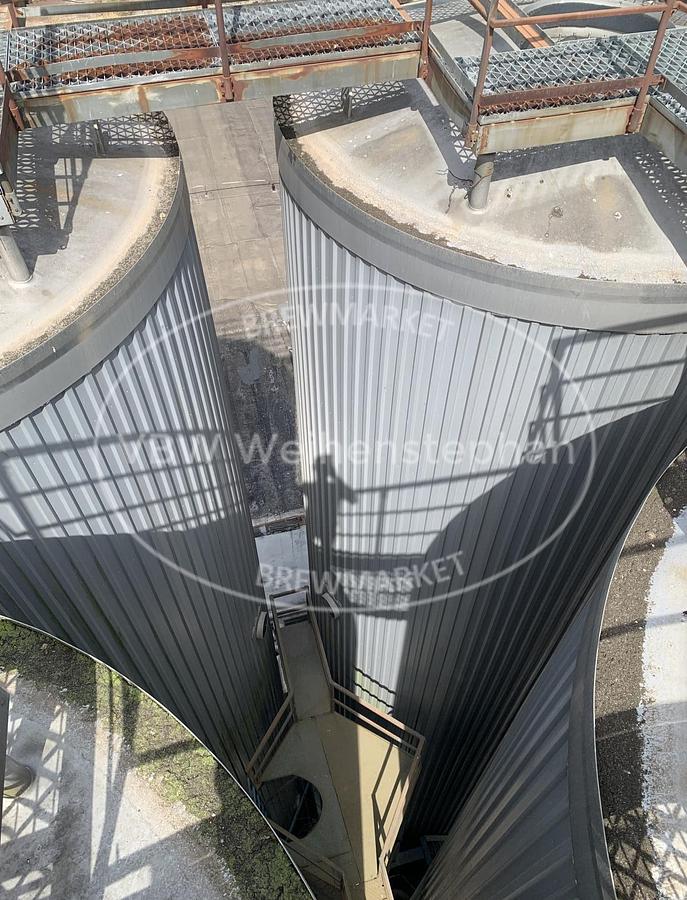

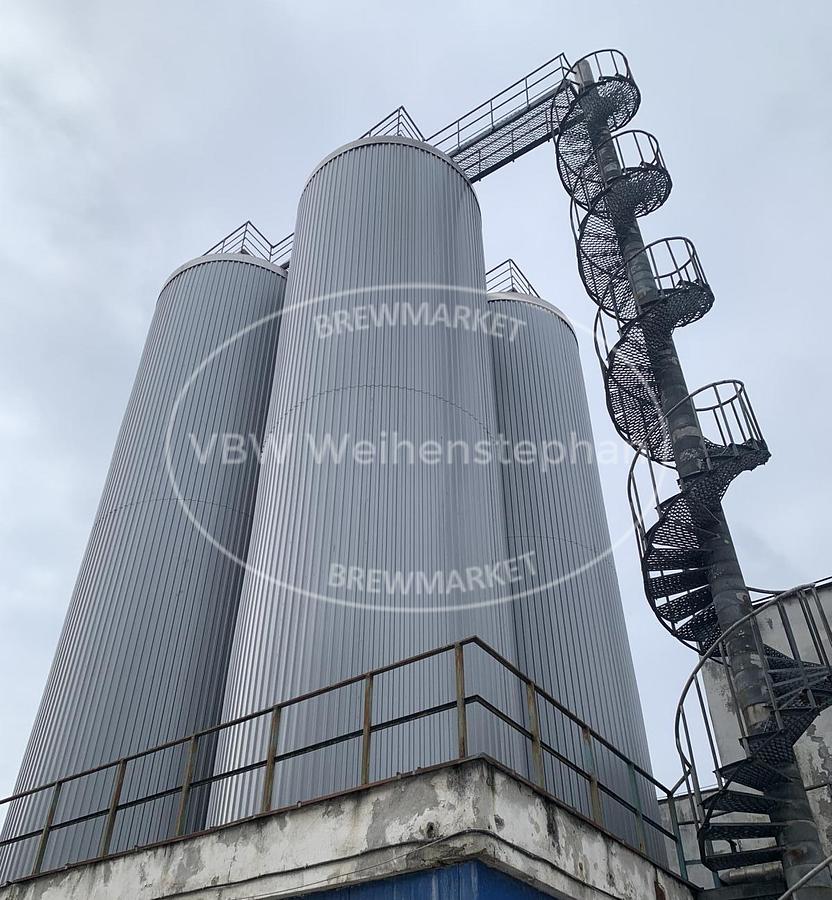

Insulated and clad stainless steel tanks standing on upright frames, each with three frame cooling zones and one cone cooling zone., Additional title: outdoor tanks, Volume: 1700 hl, Operating pressure tank: 1 bar, Operating pressure cooling: 4 bar, Test pressure: 1 bar, Width: 3,8 m, Height: 18,1 m, Weight: 13 t, Material: Stainless steel 1.4301, Position: Vertical, Base construction: Skirt, Features: PT100, full and empty detection probe, 4 cooling zones (3 frames, 1 cone, 42 l, 42 l, 126 l, 35 l), safety valve

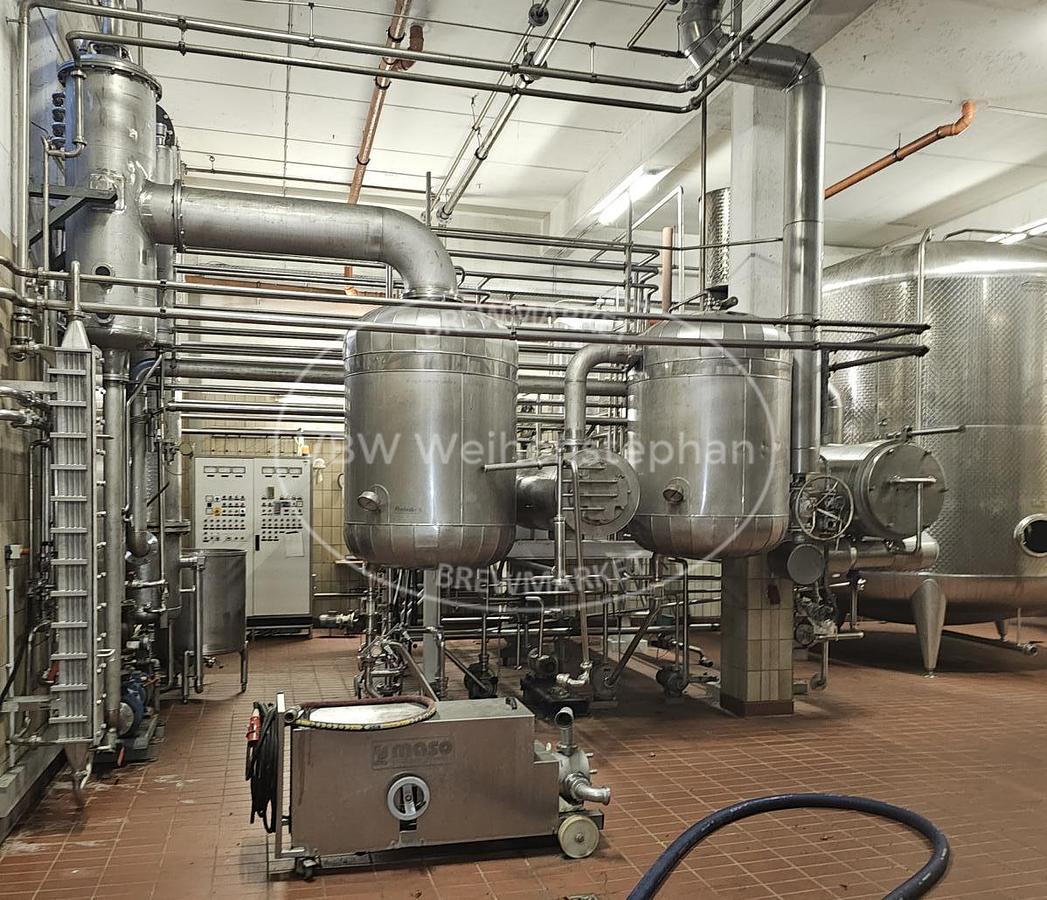

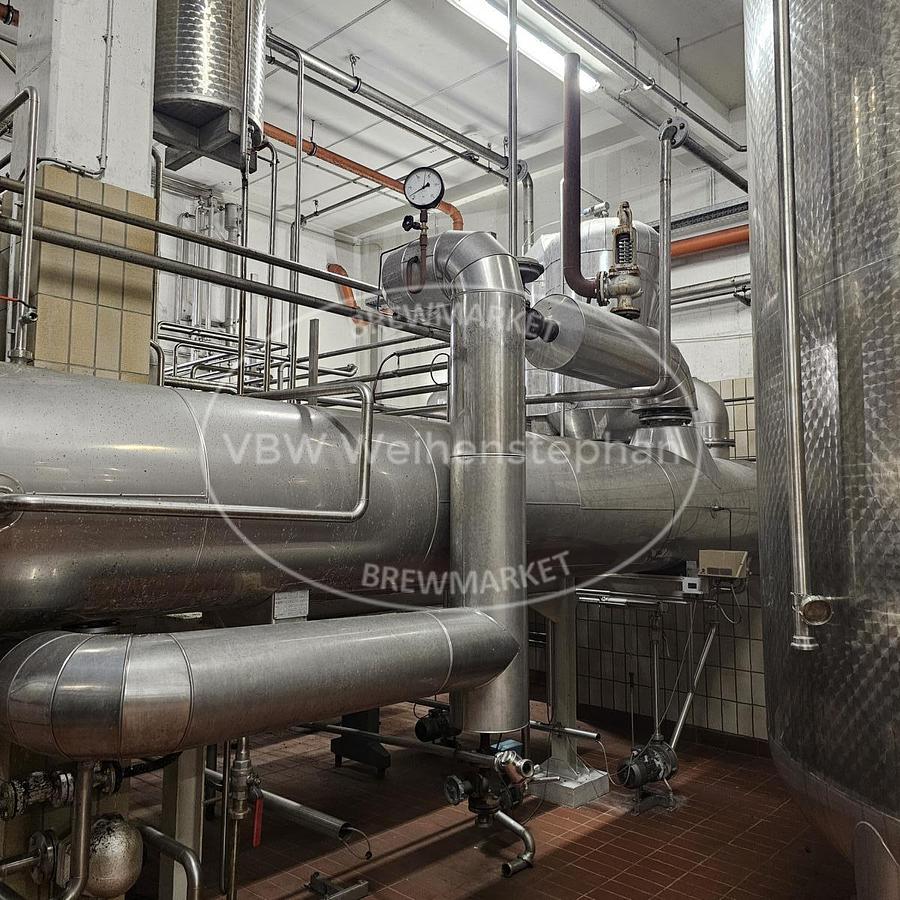

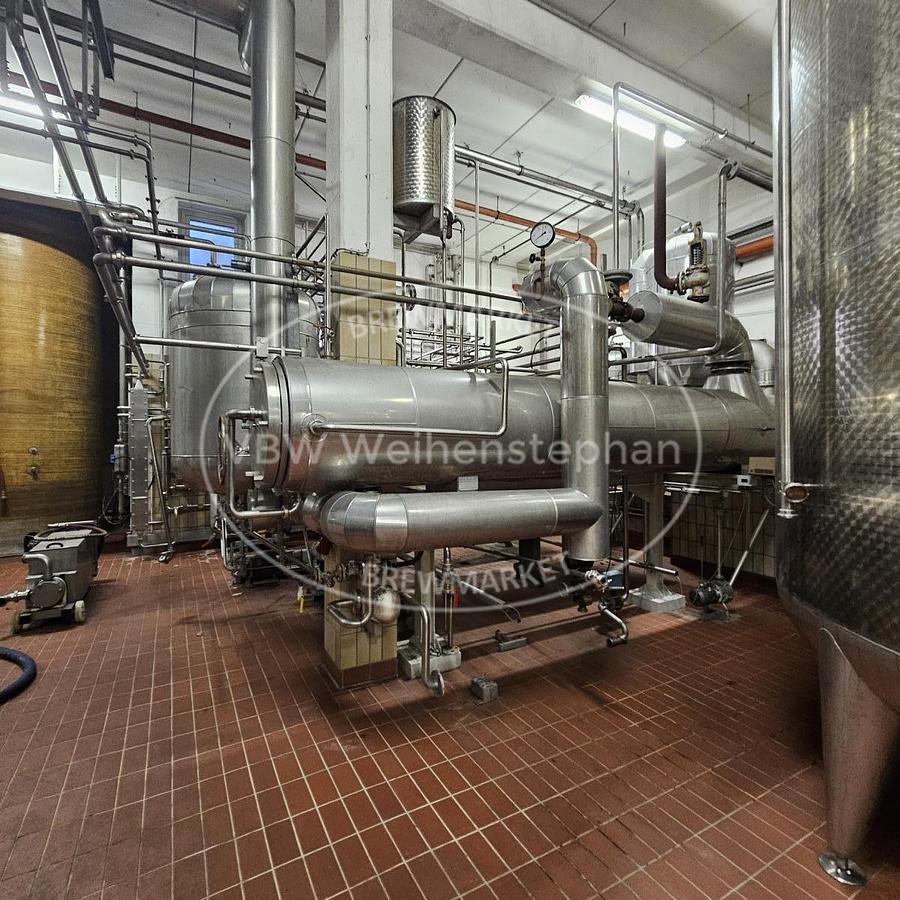

Concentrating plant for the juice industry. The plant dates back to 1977 and was rebuilt in 1992. It was extended and equipped with a new cooling tower circuit. The plant is designed for 6600 kg/h of cloudy apple juice. With a single-stage concentration, the juice is thickened from 12° to 25°Brix. Up to 71°Brix can be achieved in the second pass., Additional title: with aroma recovery, Input quantity apple juice: 6600 kg/h, Water evaporation: 4840 kg/h, Discharge quantity concentrated juice: 1760 kg/h, Steam consumption: 1685 kg/h, Length: 7,70 m, Width: 6,70 m
Two vertical, partially insulated stainless steel pressure tanks., Additional title: vertical stainless steel tanks, Volume: 5000 l, Operating pressure: 12 bar, Operating temperature: 20 °C

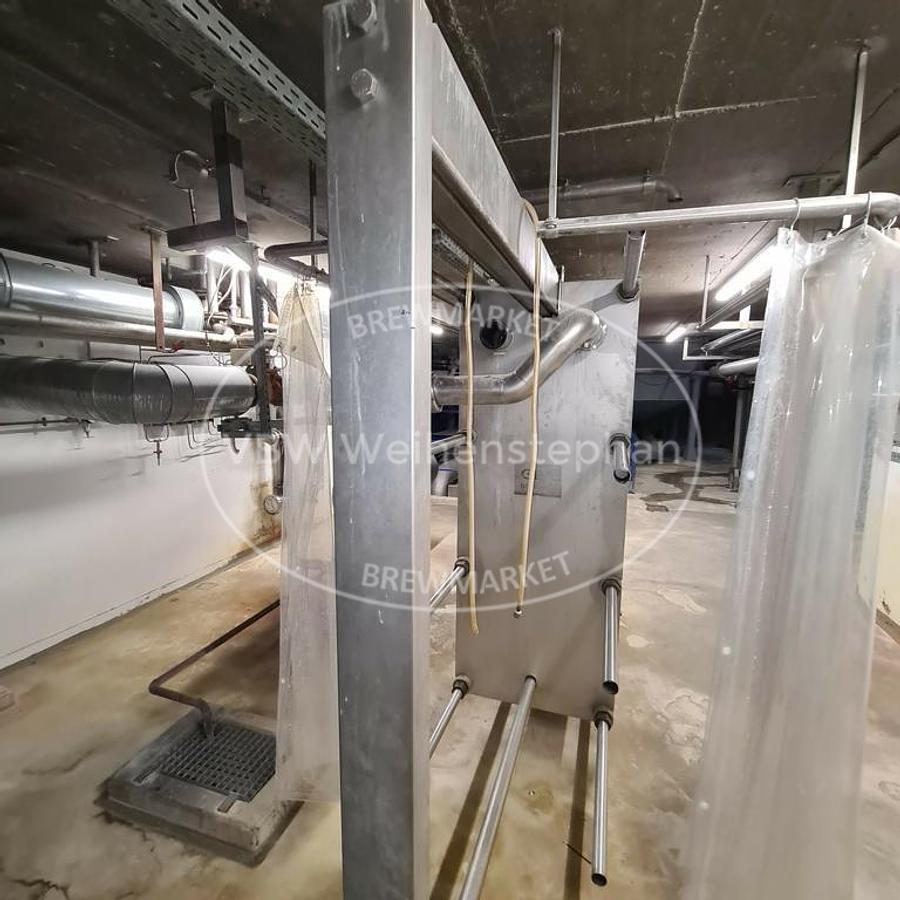

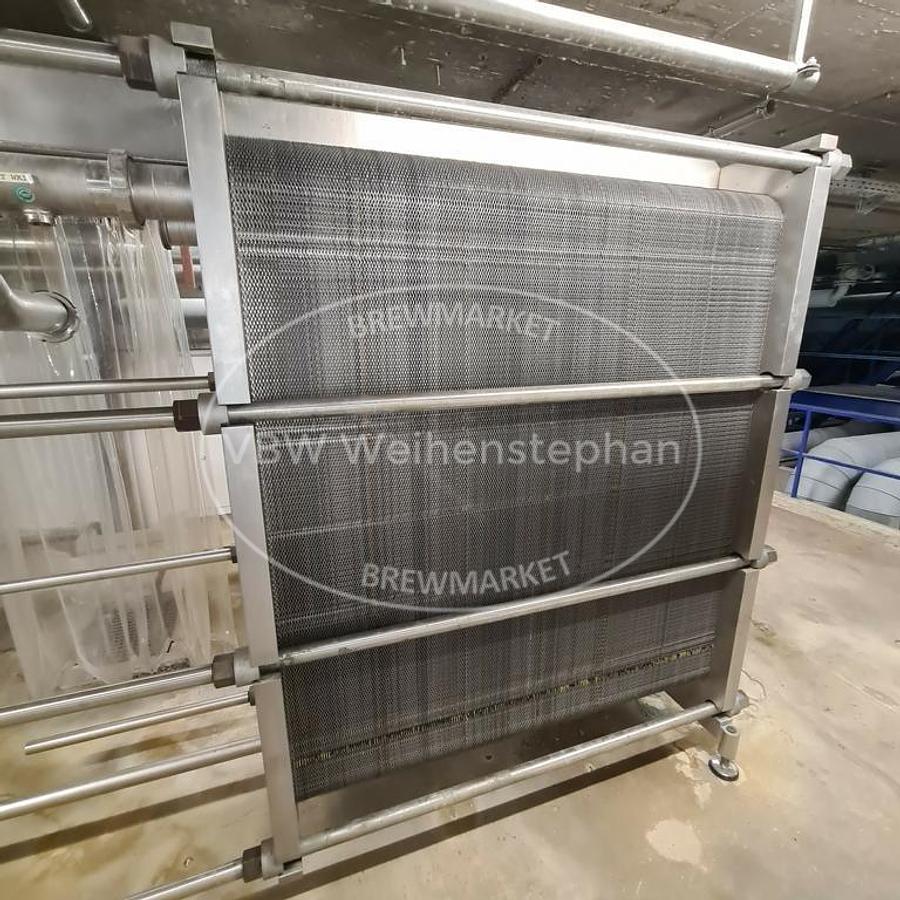

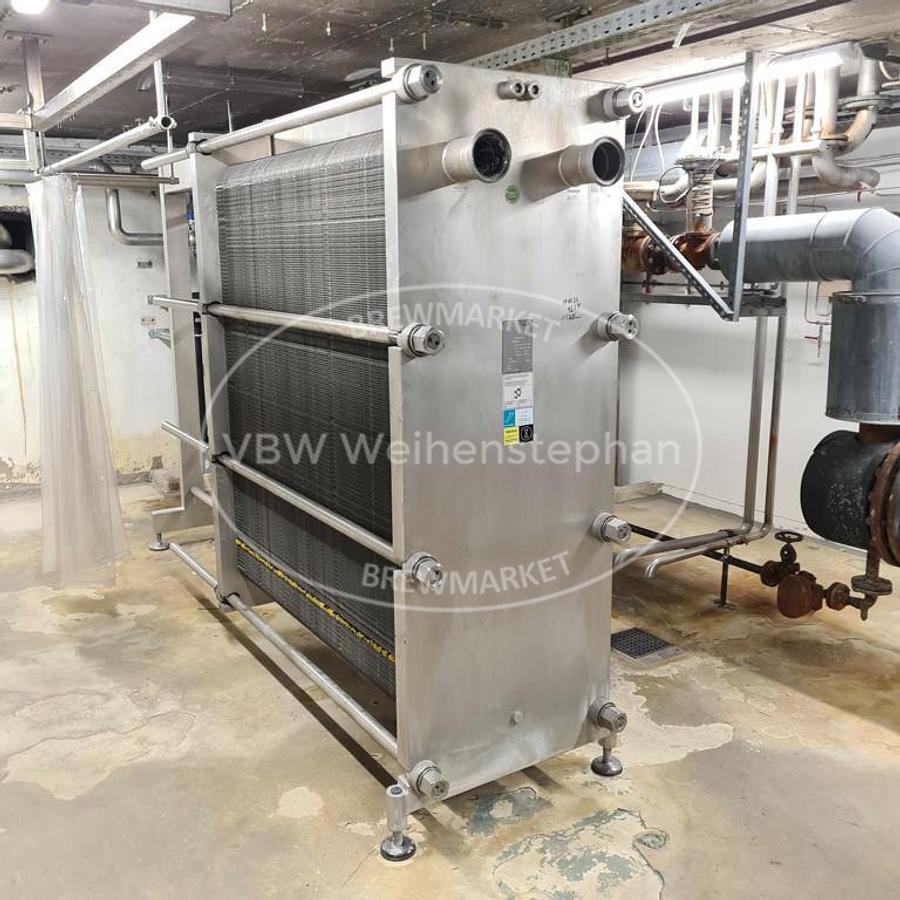

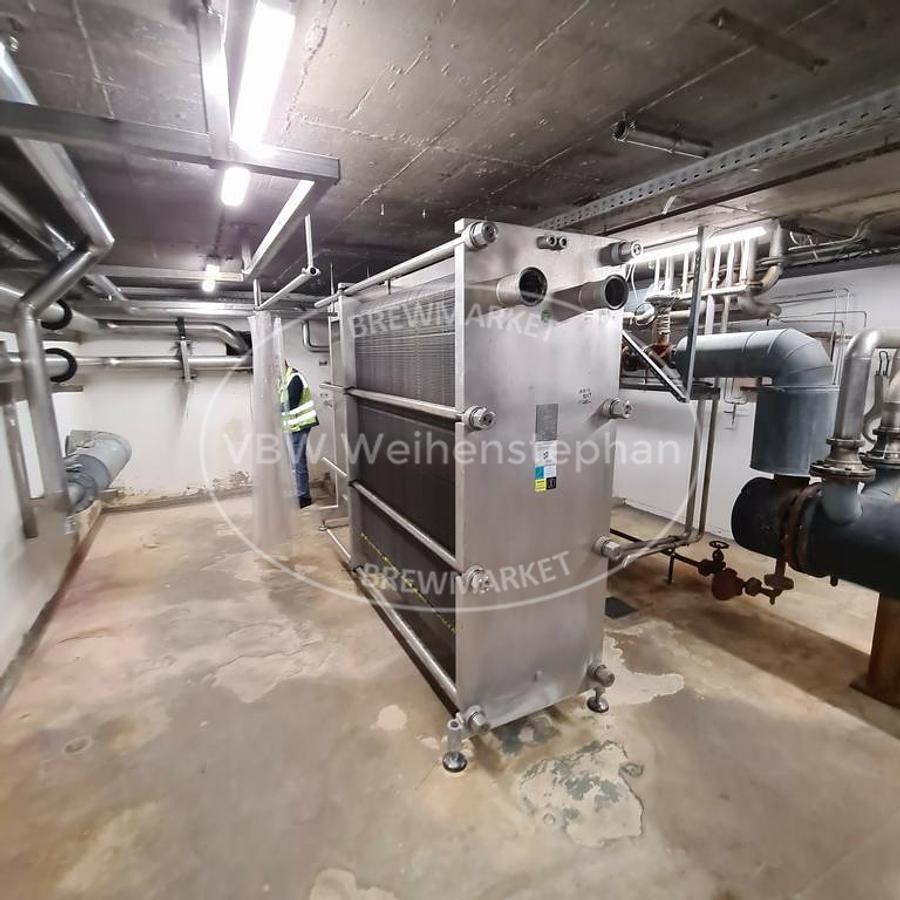

Additional title: one-stage, Allowable pressure (wort & water): 10 bar, Allowable temperature (wort & water): 120 °C, Test pressure: 13 bar, Volume: 572 l, Length: 1,537 m, Weight: 3898 kg, Features: DN80 dairy coupling; 421 plates; fluid group 1
2 vertical stainless steel pressure tanks with various fittings. Each mounted on a base frame., Additional title: 2 x tanks, Volume: 1050 l, Max pressure: 3 bar, Temperature: 10 °C, Width: 1,2 m, Height: 1,9 m, Material: stainless steel, Position: horizontal, Base construction: on skirt, Features: 1 manhole and 2 connections on top, 1 side- and 1 bottom-outlet, 1 gas piping, 1 sampling point, All connections with fitting.

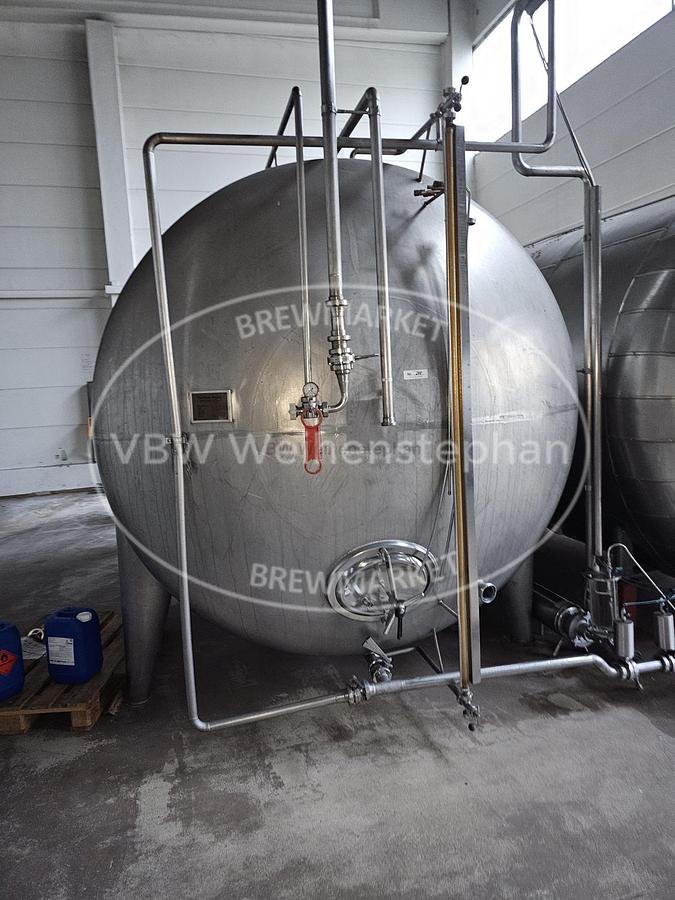

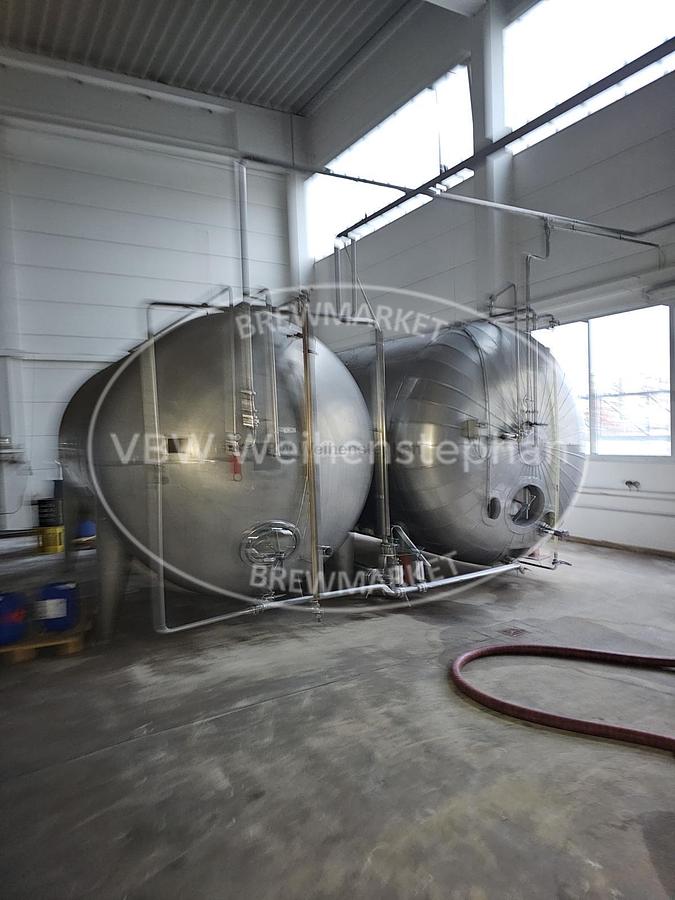

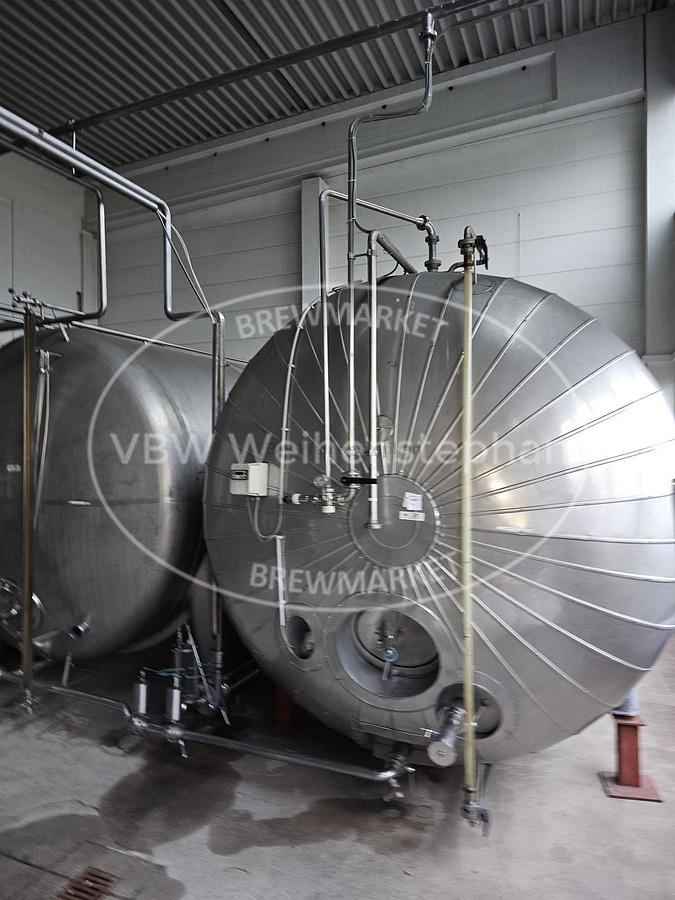

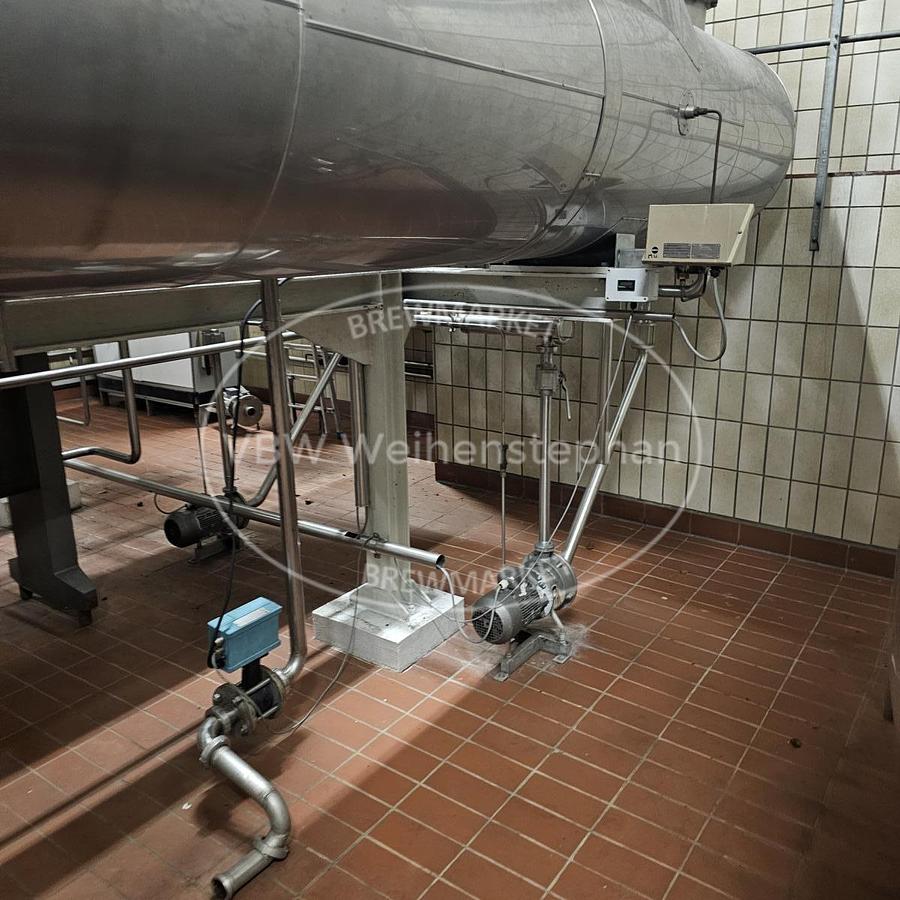

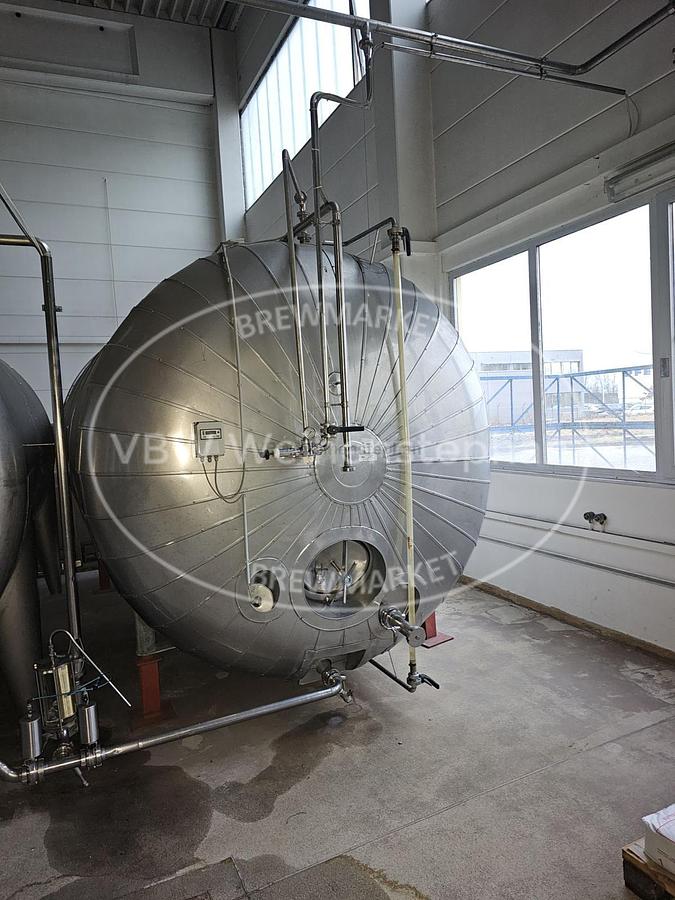

Two horizontal stainless steel tanks with various fittings., Volume: 20800 l, Operating pressure: 1 bar, Operating temperature: 20 °C, Material: Stainless steel, Position: horizontal
Bottling line for approx. 5000 bottles/h, Additional title: returnable glass bottle filling, years of construction 1990 - 2016, Capacity: 5000 bo/h, Formats: Eurobottle 0,5 l, Longneck 0,33 l , swing top 0,5 l, Position: free standing, Features: Unpacker (JOHA Diamant M1), bottle washer (Klinger, 2016, 7,000 bph, empty bottle inspector (Heuft Reflexx InLine IR, 2016, 8,000 bph) bottle filler and capper (Hormes), swing-top capper (AMS, 1997, 15 capping units, 6,000 bph) Labelling machine (Gernep, 2014, 9000 bph), packer (JOHA Diamant M1), crate washer, caustic settling tank

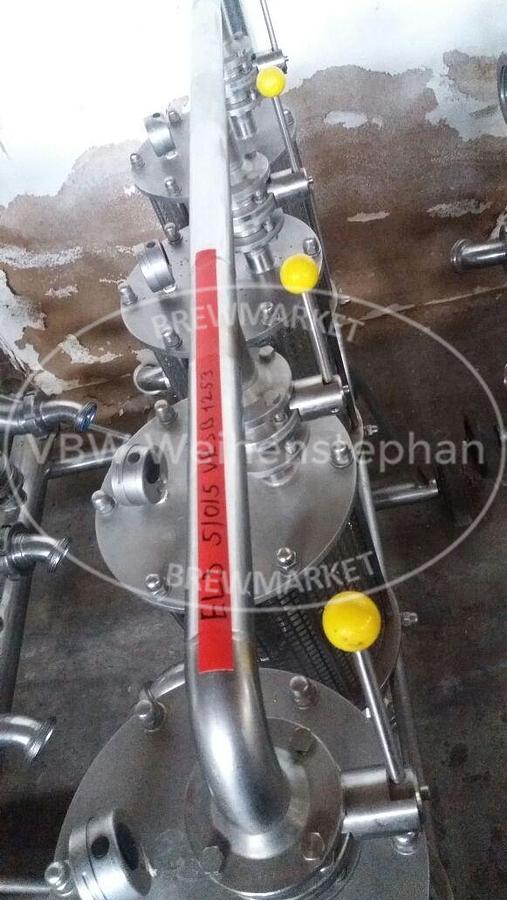

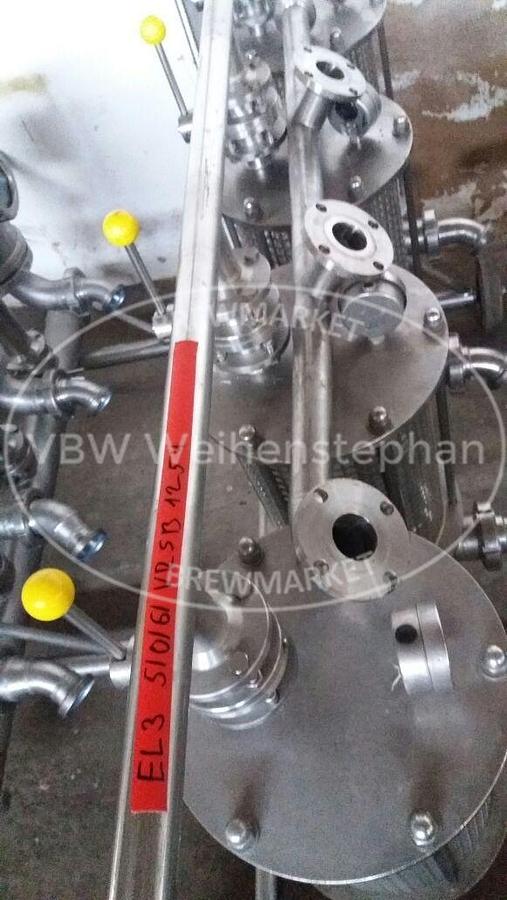

Combination Kieselguhr and Sheet filter. Stationary sheet filter with square filter elements in vertical row arrangement., Capacity: 60 hl/h, No. of plates - KG Filter: 34 Plates , No. of frames - KG Filter: 35 filter frames, No. of plates - sheet filter: 150 Plates, Length: 6500 mm, Width: 1000 mm, Height: 1500 mm, Formats: Quadratic filter elements - 60 cm x 60 cm, Base construction: Frame, Features: Manual filter element compression , Periphery: Kieselguhr dosing unit with dosing pump, Layer patterns: Vertical filter elements in a row

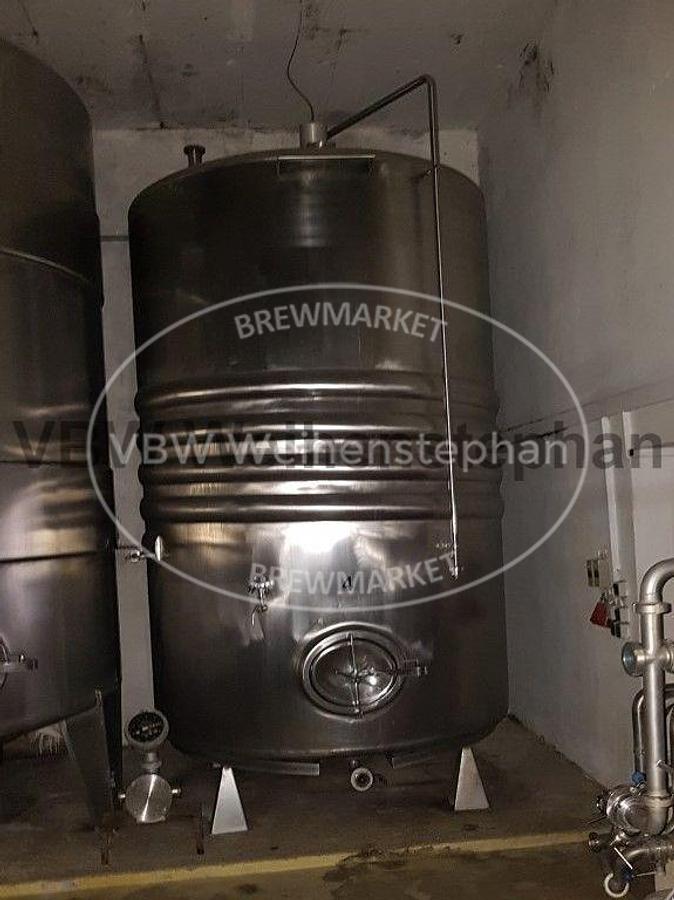

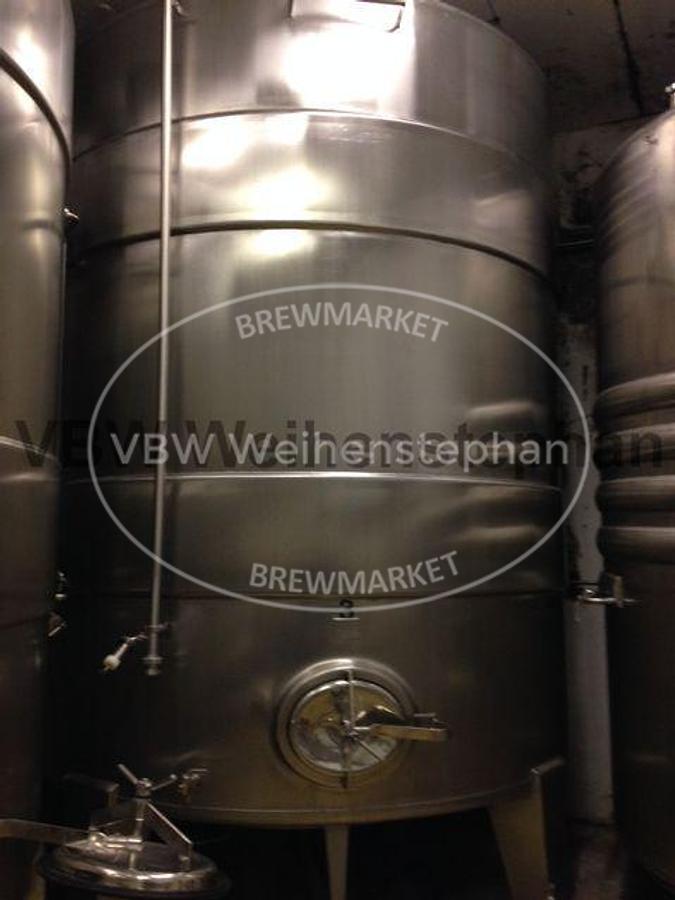

Stainless steel storage tank, standing vertically, equipped with cooling jacket., Additional title: coolable tank, Volume: 14100 l, Operating pressure: 0.99 bar, Operating temperature: 100 °C, Cooling jacket operating pressure: 3 bar, Width: approx. 2,9 m, Height: approx. 2,8 m, Material: Stainless steel 1.4310, Position: Vertical, Base construction: 3 x height-adjustable feet, Features: Cooling jacket; manway; sight glass with illumination; mixing inlet; sampling valve; cleaning connection; vortex breaker

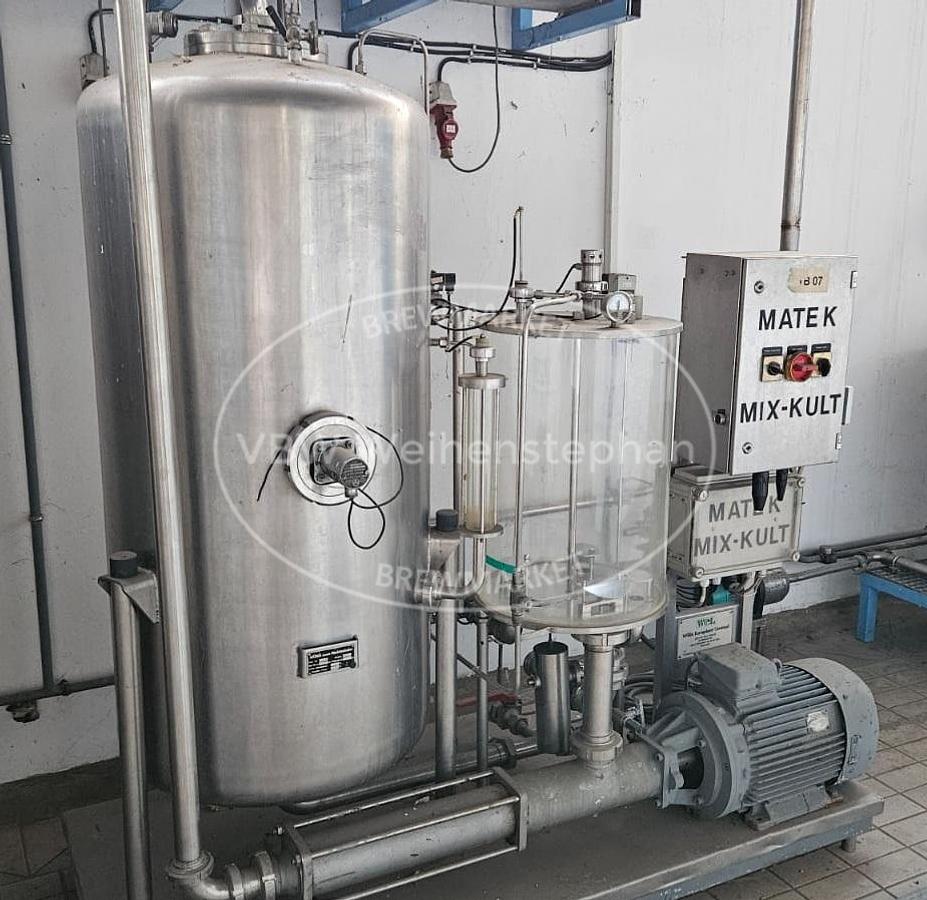

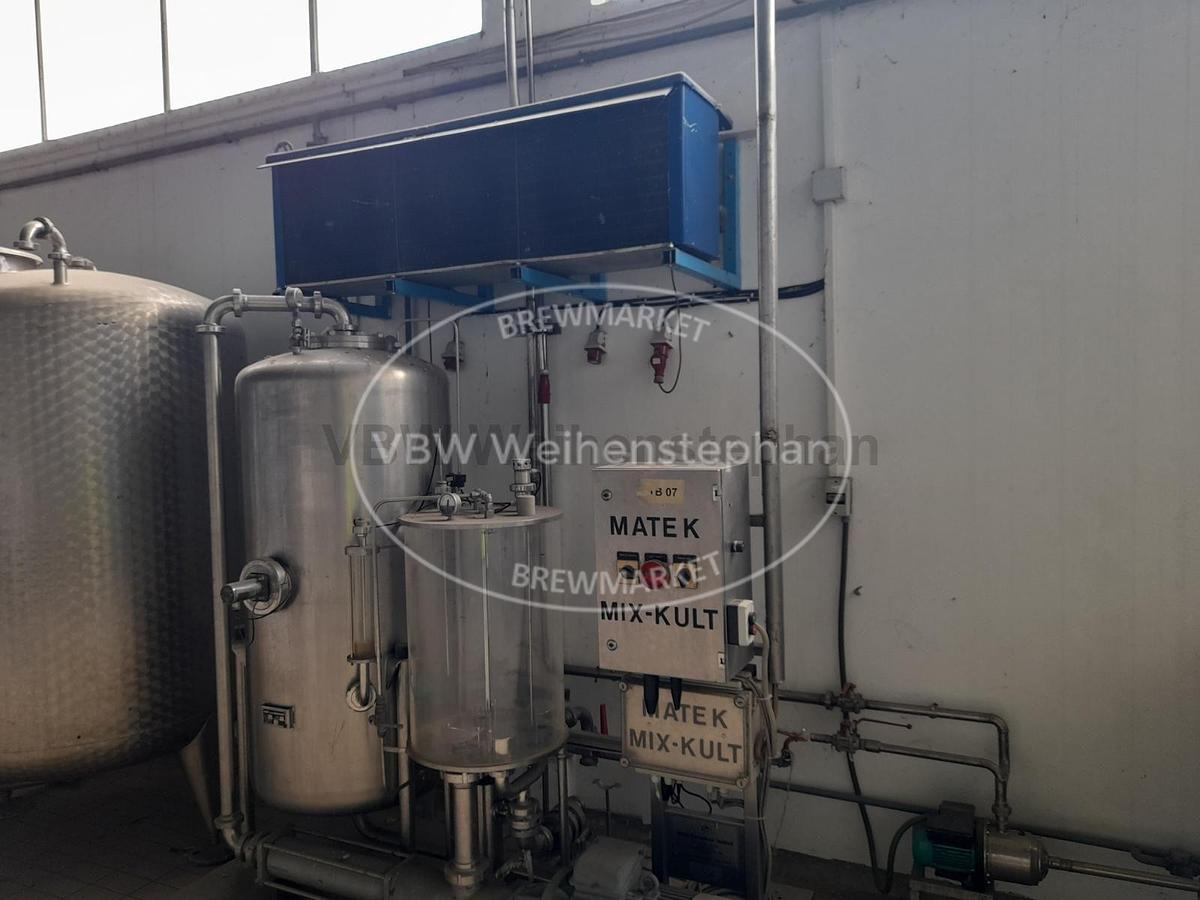

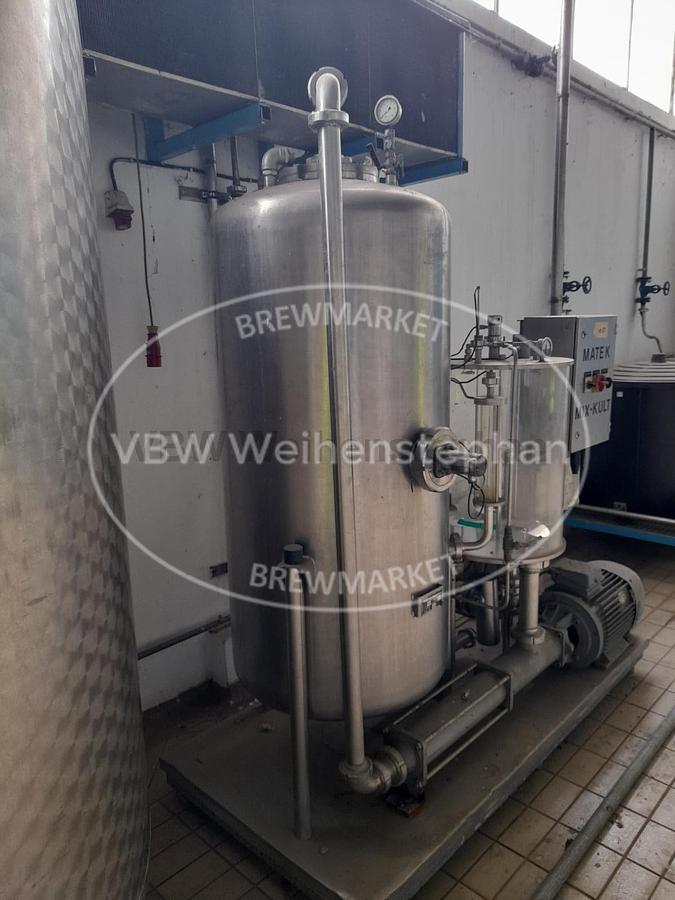

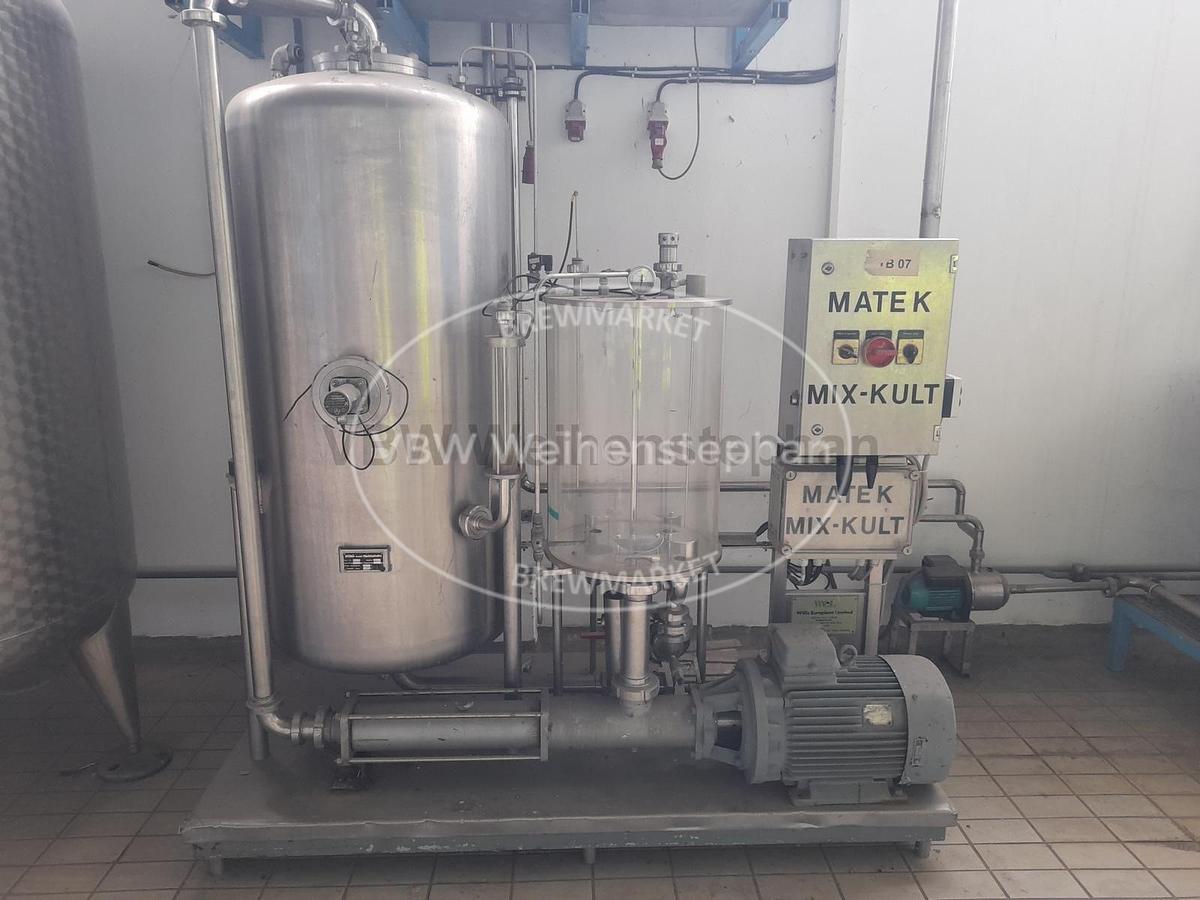

Matek Mix-Kult System for mixing ready-made syrup with water or mixing several components. The system is mounted on a base frame. The individual units are easily accessible and can be observed as they work. All necessary fittings, control and display devices as well as the control cabinet are installed. The mixing plant is fully automatic. Syrup and water are dosed in a predetermined ratio, mixed evenly, deaerated and impregnated. The finished beverage is stored in the beverage tank, from which it is then optionally piped to the filler via a pressure booster pump., Additional title: Inline mixing unit, Capacity: 8000 l/h, Operating pressure: 10 bar, Volume: 555 l, Power: 10 kW, Water: 2,5 atm, Compressed air: 5 atm, Length: 1900 mm, Width: 900 mm, Height: 2300 mm, Weight: 1000 kg, Material: Stainless steel, Base construction: Frame, Features: Mixing and dosing vessel; beverage tank; Mohn ...

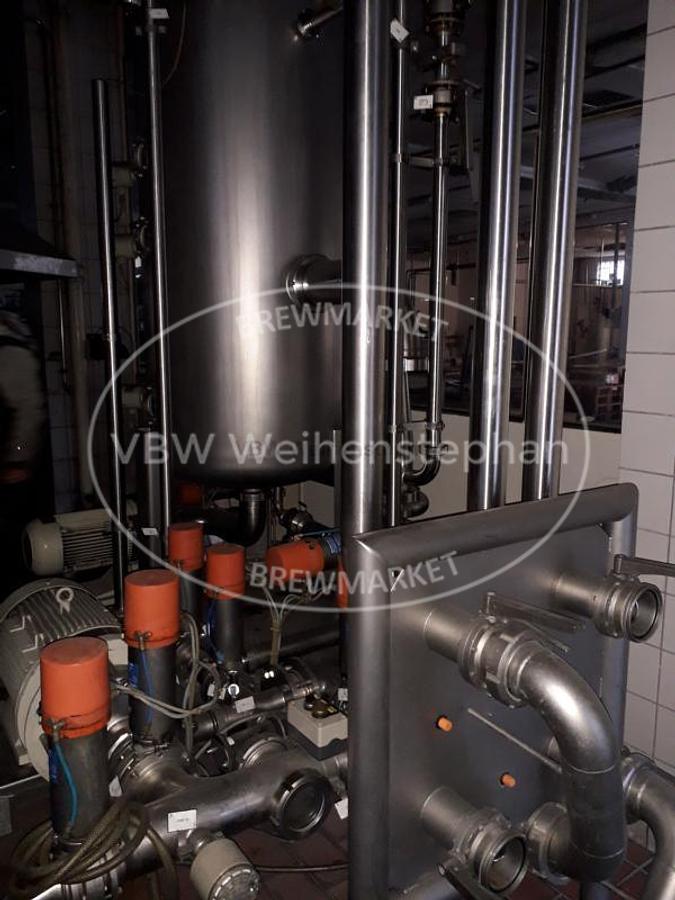

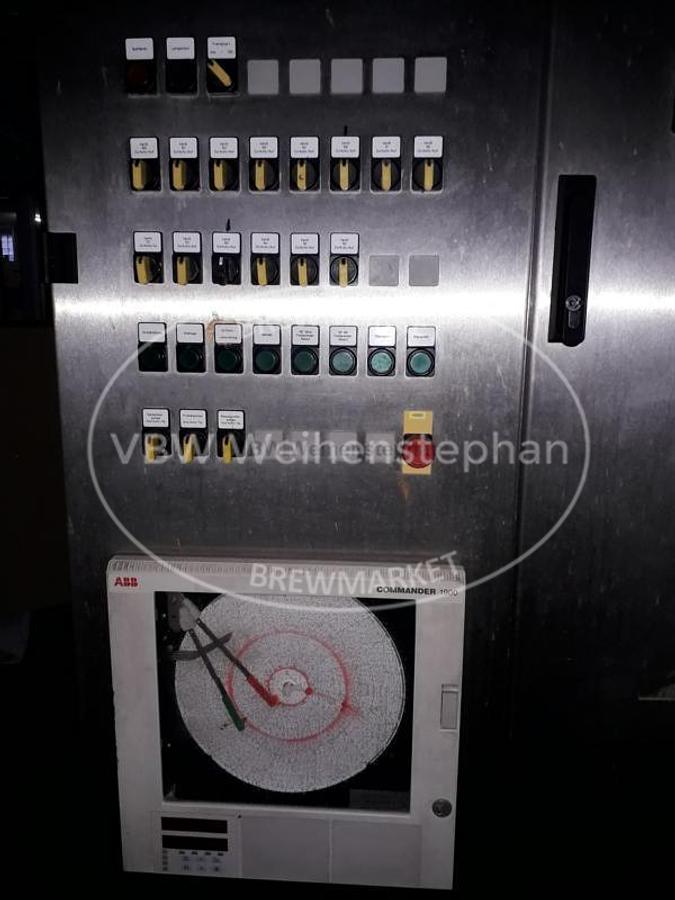

consisting of: - SIGMATHERM plate heat exchanger (heat exchange surface 21.5 m²) - Forerun tank 1200 l - Hilge product pump with manual control valve - Hilge hot water circulation pump - 500 l expansion tank - Shell-and-tube heat exchanger - Compressed air reduction station - Control cabinet with operating panel, Additional title: juice heating plant for pasteurization, Capacity: 10000 l/h, Perm. working overpressure: 16 bar test pressure 20,8 bar, Heat exchange surface: 21 m², Length: 5,6 m, Width: 2 m, Height: 2,4 m, Operation / Control: Control cabinet with operating buttons, Material: Stainless steel, Base construction: Frame, Features: 2 x vessels; plate heat exchanger; pipe heat exchanger; 2 x product pumps; process measuring and control technology. various valves and other fittings

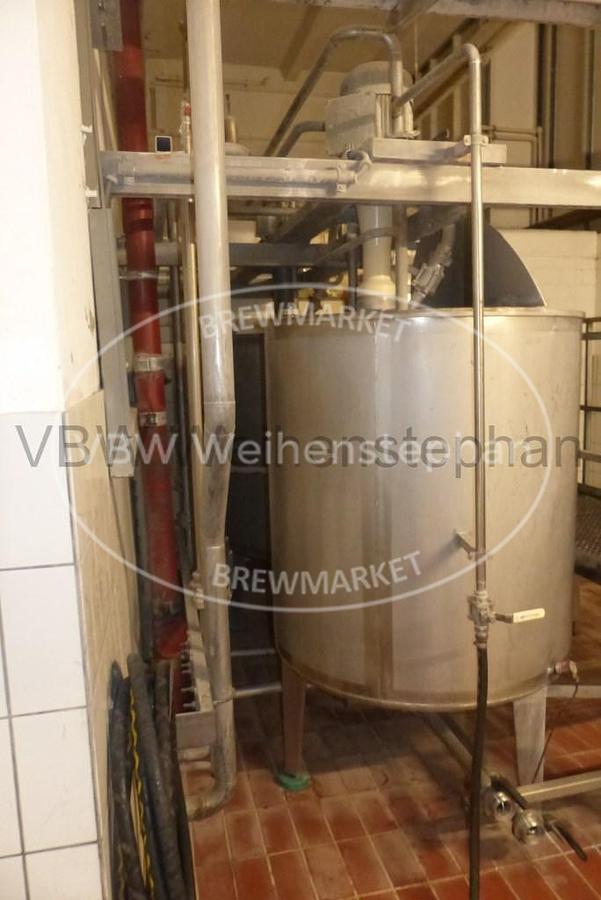

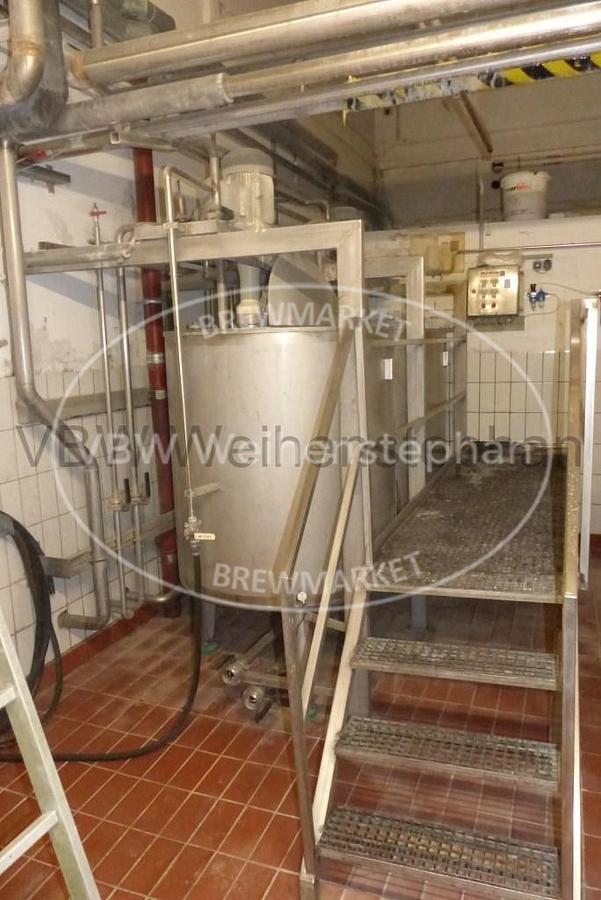

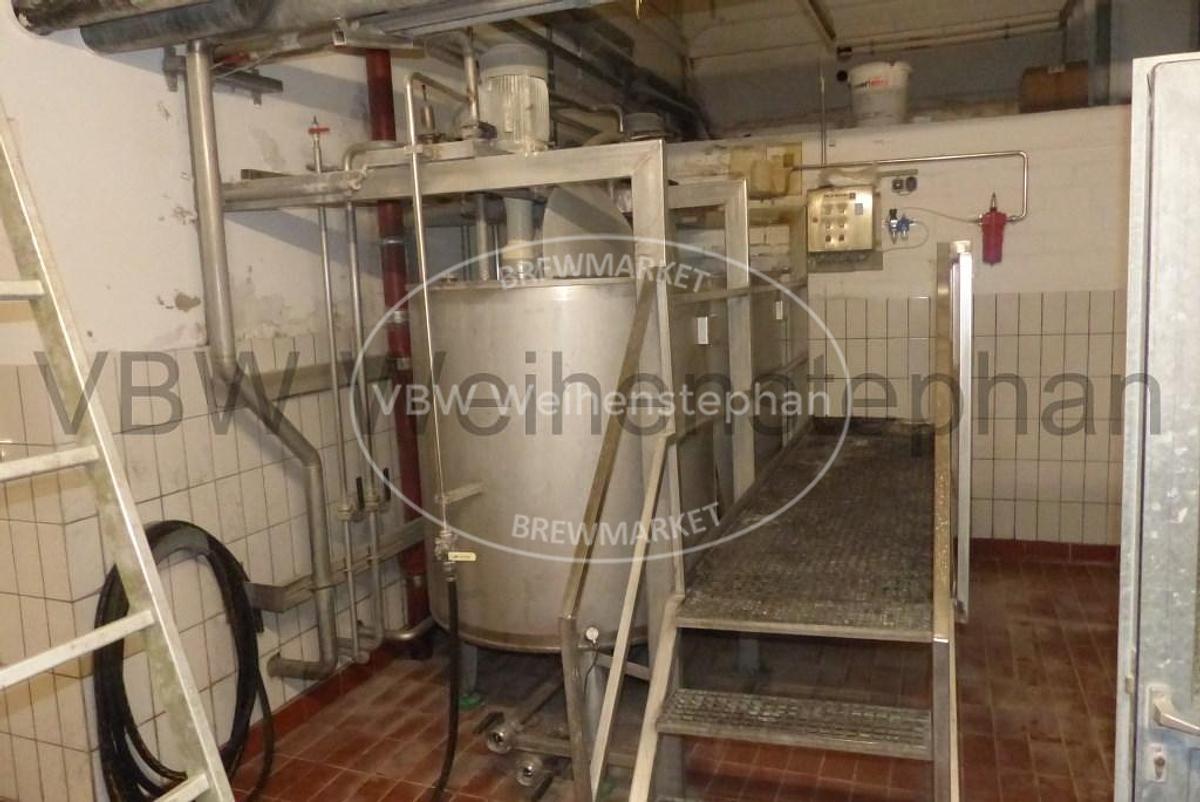

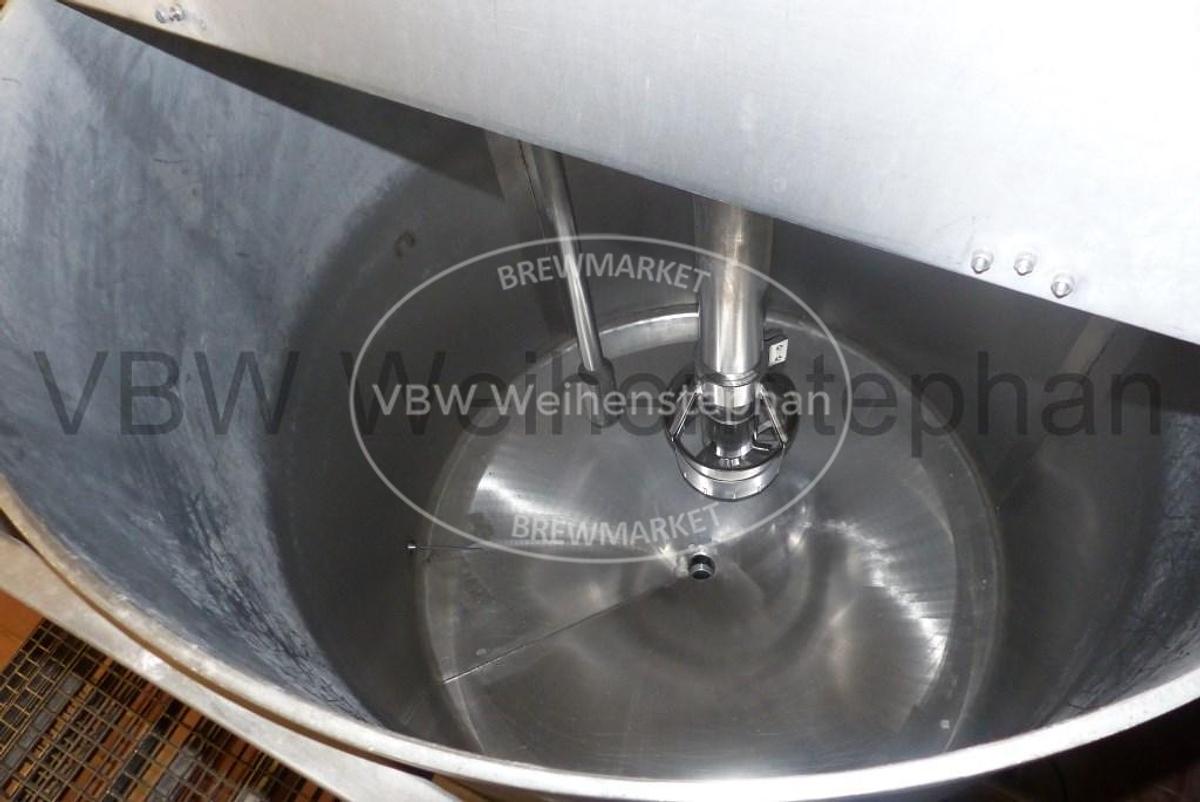

Kieselgur mixing station comprising two vertical stainless steel mixing tanks, each fitted with a top-entry agitator and a central outlet., Additional title: Kieselgur mixing station comprising two vertical stainless steel mixing tanks, Capacity: 1300 l/vessel, Features: 2 stainles steel vessels with agitator, and podest, incl. fittings

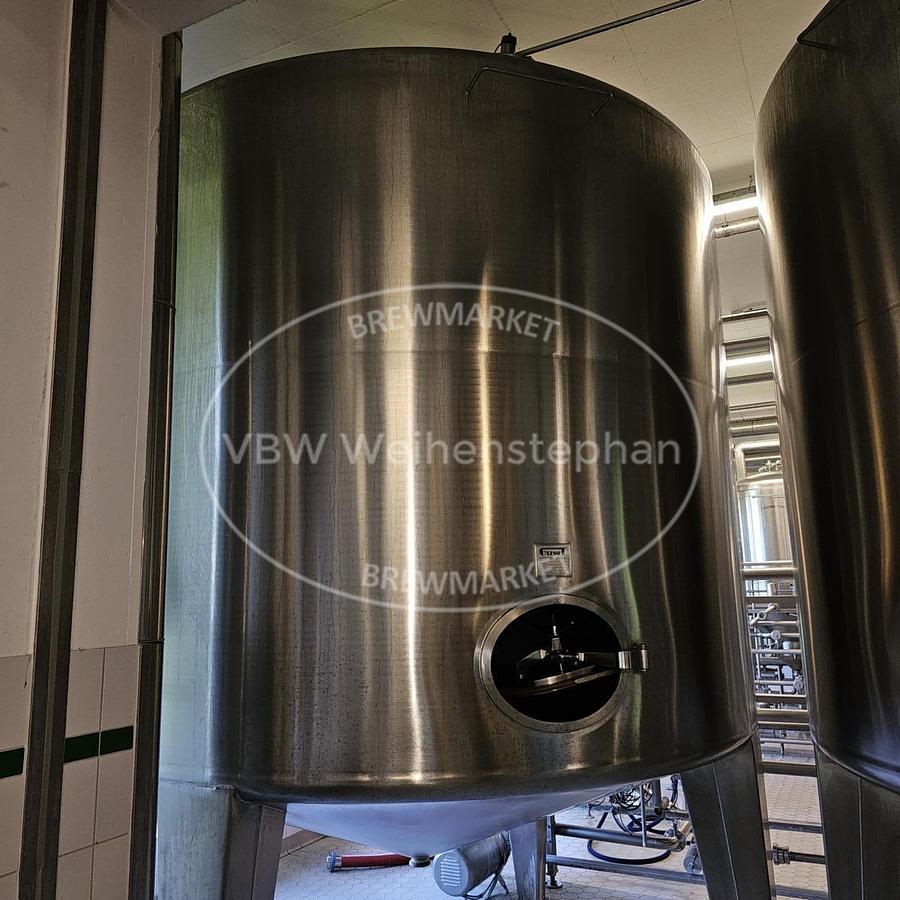

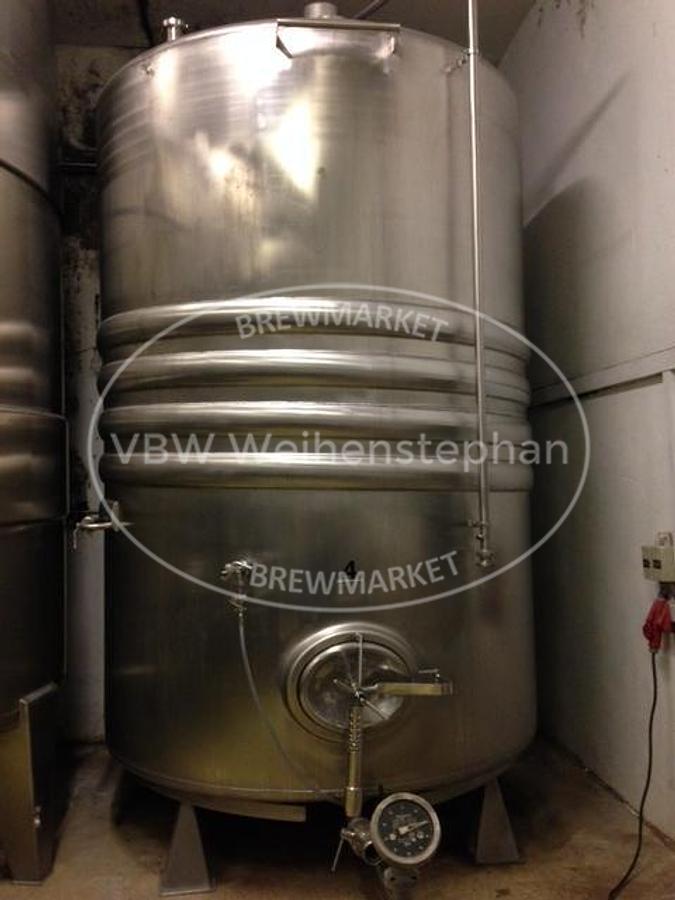

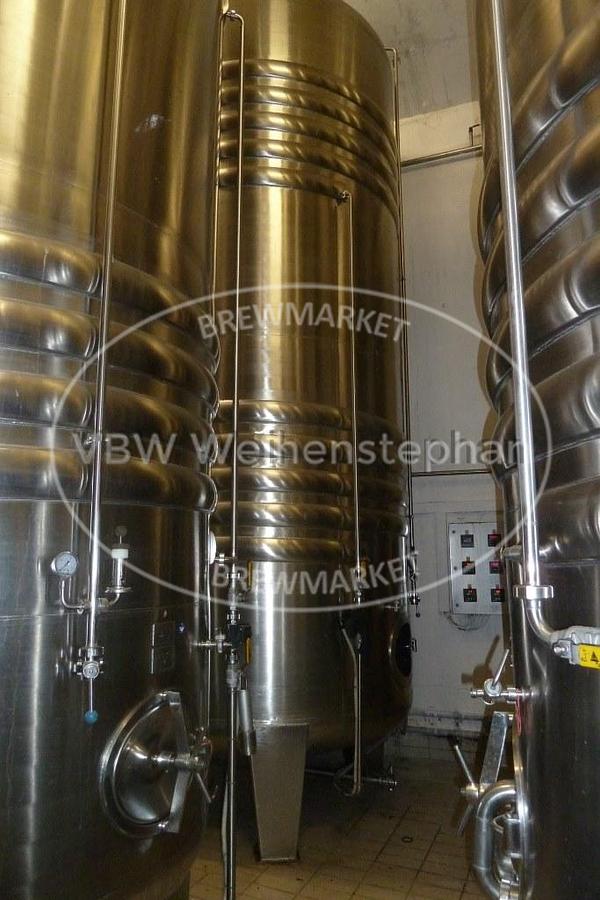

A vertical stainless steel tank with multiple cooling zones and various fittings. Most recently used as a fermentation tank for beer., Additional title: Coolable tank, Capacity approx.: 11600 l, Width: approx. 2,3 m, Height: approx. 4,1 m, Material: Stainless steel, Position: vertical, Base construction: on 4 feets, Features: manhole; cooling jackets; spunging apparatus; sampling valve
Vertical stainless steel tanks with multiple cooling zones and various fittings. Most recently used as fermentation tanks for beer., Additional title: Vertical, coolable stainless steel tanks, Capacity: 20500 l , Operating pressure: 0,3 bar, Width: approx. 2,80 m, Height: approx. 4,20 m, Material: Stainless steel, Position: Vertical, Base construction: on feet, Features: manhole; cooling jackets; spunging apparatus; sampling valve

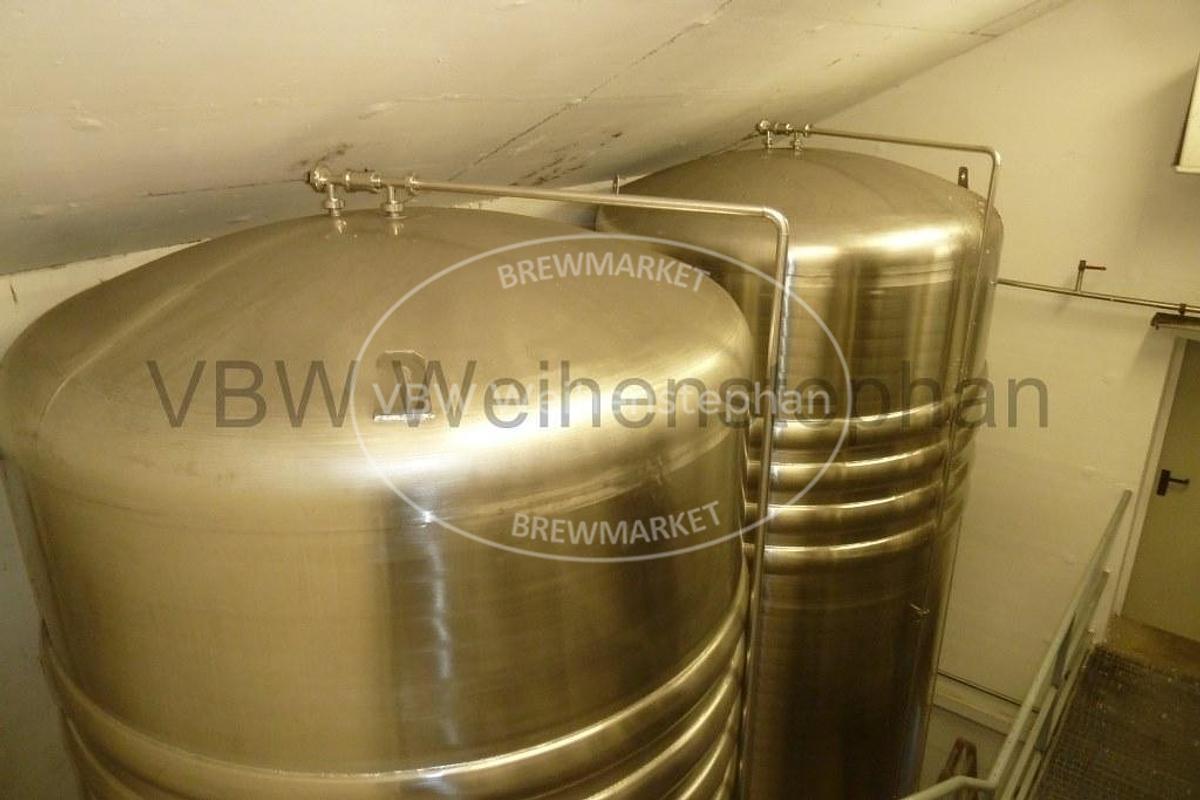

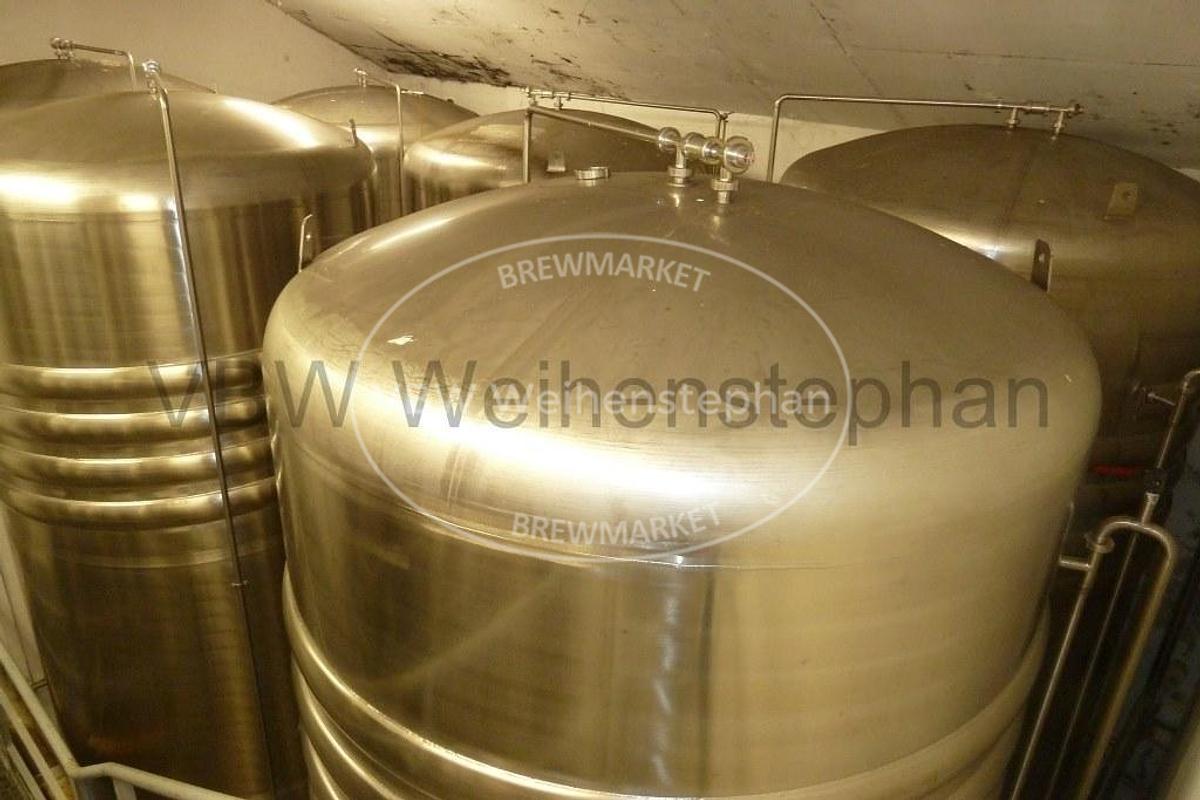

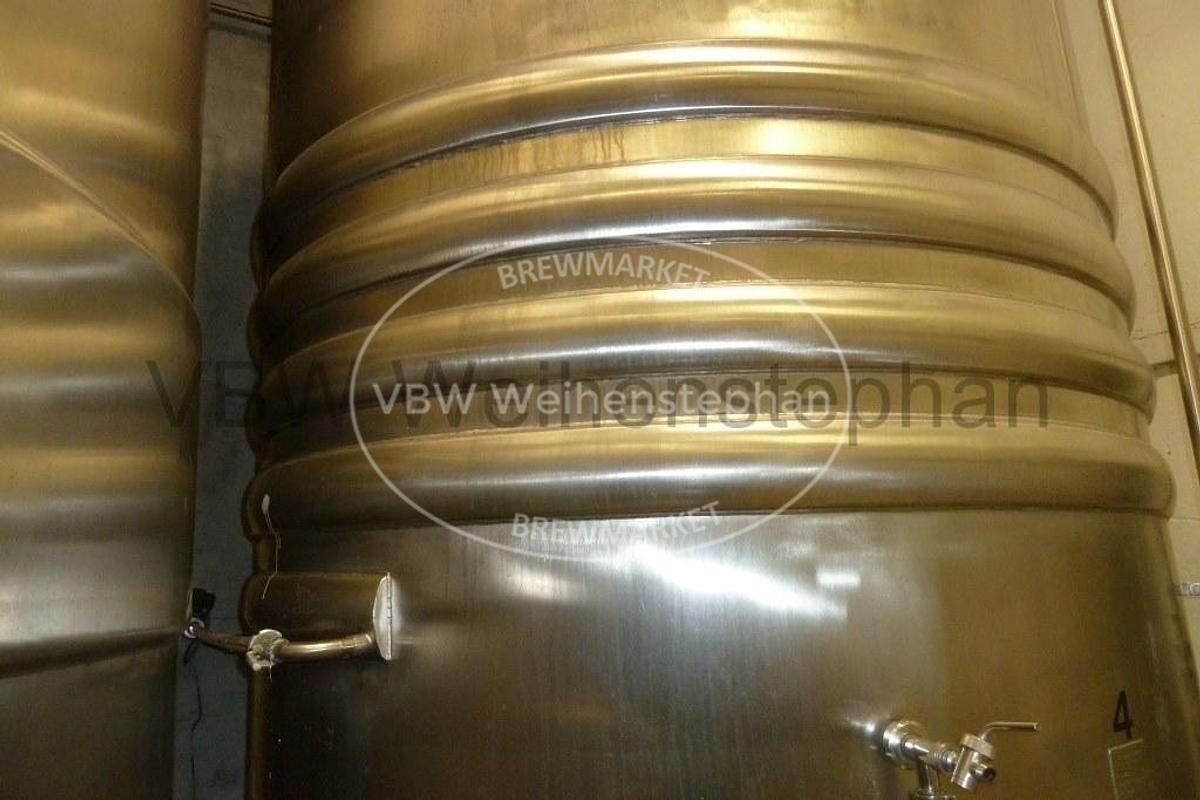

Beer storage cellar, comprising 8 upright pressure tanks with cooling jackets and temperature control., Additional title: Vertical, coolable stainless steel pressure tanks, Width: ca. 2,50 m, Height: ca. 2,60 m, Features: 8 storage tanks (6x approx. 165 hl, 2 x approx. 175 hl), temperature control, paneel, blending apparatus

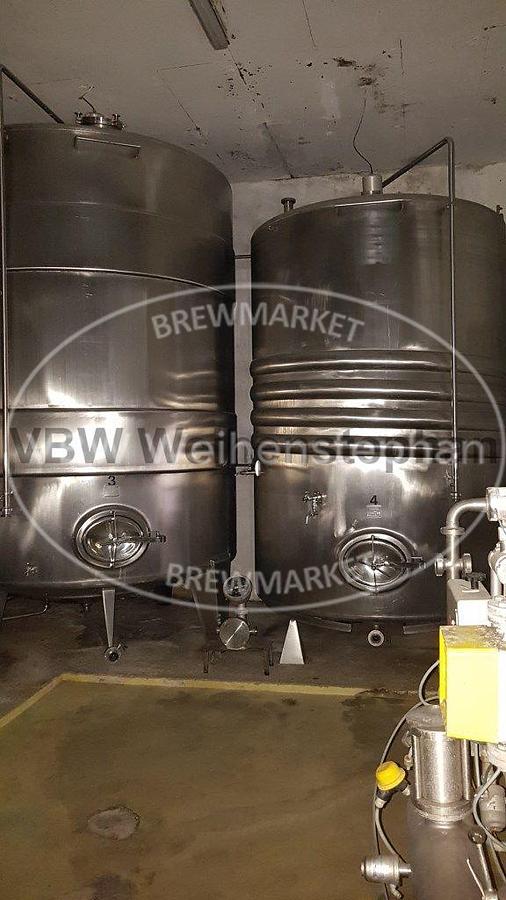

Fermentation cellar with 4 coolable stainless steel tanks. Tank 1-3: C. Gresser, 1986, gross volume 204.60 hl. Tanks standing on 4 legs, each with 2 frame cooling zones, dished bottoms and central outlet. Equipment in each case: safety valve, cleaning line, CIP spray head, sampling tap, manhole in the frame and sight glass in the tank dome. Tank 4: C. Gresser, 1986, gross volume 115.69 hl. Tank standing on 4 legs with frame cooling, dished bottom and outlet pipe. Equipment: Cleaning line, CIP spray head, sampling tap, manhole in the frame., Additional title: coolable stainless steel tanks, 3 tanks each: 20500 l, 1 tank each: 11600 l, Material: stainless steel, Position: free standing, Base construction: Vertical cylindrical tanks on square tube feet, Features: Cooling jackets, cleaning lines, CIP spray heads, discharge lines, safety valves, sampling taps, manholes, sight glasses

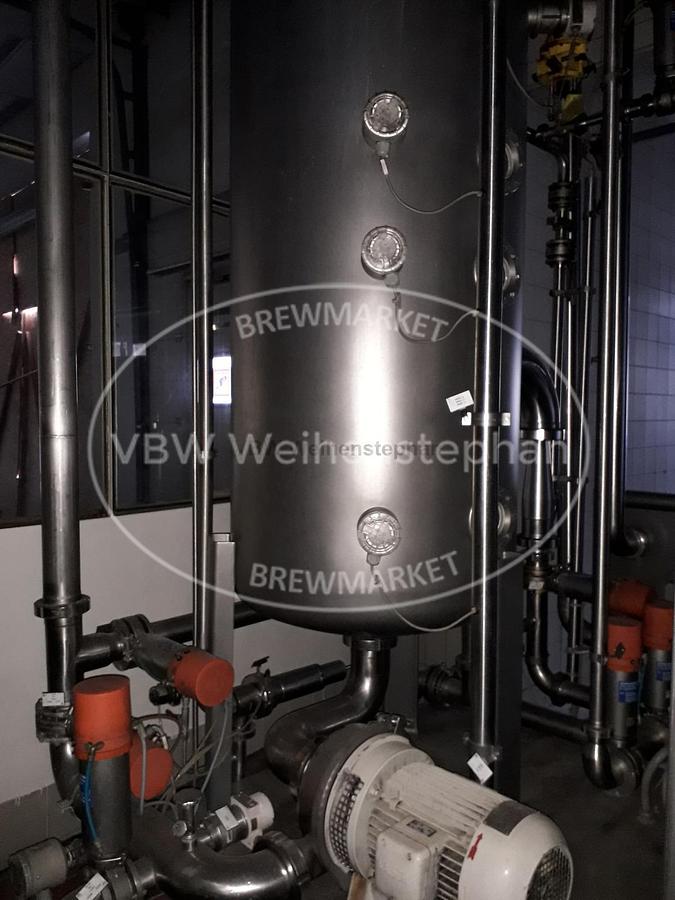

Carbonation system with integrated buffer tank, for the production of CO2-containing mineral water., Additional title: impregnation plant, Capacity: 20000 l/h, CO2 content: 12 g/l, CO2 carbonisation pressure: 7 bar, Max. tank pressure: 8 bar, Current: 69 A, Voltage: 230/400 V, Frequency: 50 Hz, Heating / Cooling: Connection pressure steam: min. 0.5, max. 1 bar, Water: Connection pressure: min. 4, max. 5 bar, Compressed air: min. 7, max. 10 bar, Length: 2 m, Width: 2,4 m, Height: 2,5 m, Weight: 4000 kg, Operation / Control: Siemens Simatic S5, Features: Saturation Tank (content = 750 l) with fill level detectors as a carbonisation tank, measuring writer (ABB), circulating pump (Hilge), various ventils
PVPP filter - Filtrox CHF with: - Filter vessel - PVPP batch dosing vessel - CIP station for regeneration - Swing bend panel for system integration - all pumps, fittings and field instruments - Control cabinet with control panel, Additional title: Centrifugal horizontal filter, Filter capacity: 20000 l/h, Volume: 1620 l, Operating pressure: 6 bar, Operating temperature: 100 °C, Systemic volume: 1620 Liter, Width: 1,2 m, Height: 2,85 m, Weight: 2500 kg, Operation / Control: Manual system, mainly with pneumatic valves, operation take splace on the control cabinet panel, Material: stainless steel, Features: Filter vessel with horizontal filter elements, stack dosing container with agitator, CIP system for regeneration, control cabinet with control panel, pumps, fittings and sensors
