grinding diameter max.:3-220 mmregulating wheel width:500 mmmax. width of grinding wheel:500 mmweight of the machine ca.:16 t.dimensions of the machine ca.:12 x 10 x 8 m.grinding wheel diam. min/max.:420-610 grinding wheel diameter - width-internal grin:304,8 x 500 mmRegulatin wheel diameter min/max.:300-350 mmThe machine is currently designed for plunge grinding JUPITER's Centerless grinding, also available with CBN. Junker this circular grinding method with CBN grinding wheels, which opens up significant productivity benefits from the long service life of the grinding wheel, especially at high volumes. In addition, the simultaneous removal takes on the entire Schleswig-Holstein, which provides both in mass production and in small batches for significantly reduced processing times.The grinding process with JUPITERWhen centerless grinding, there are two grinding processes: the through gr ...

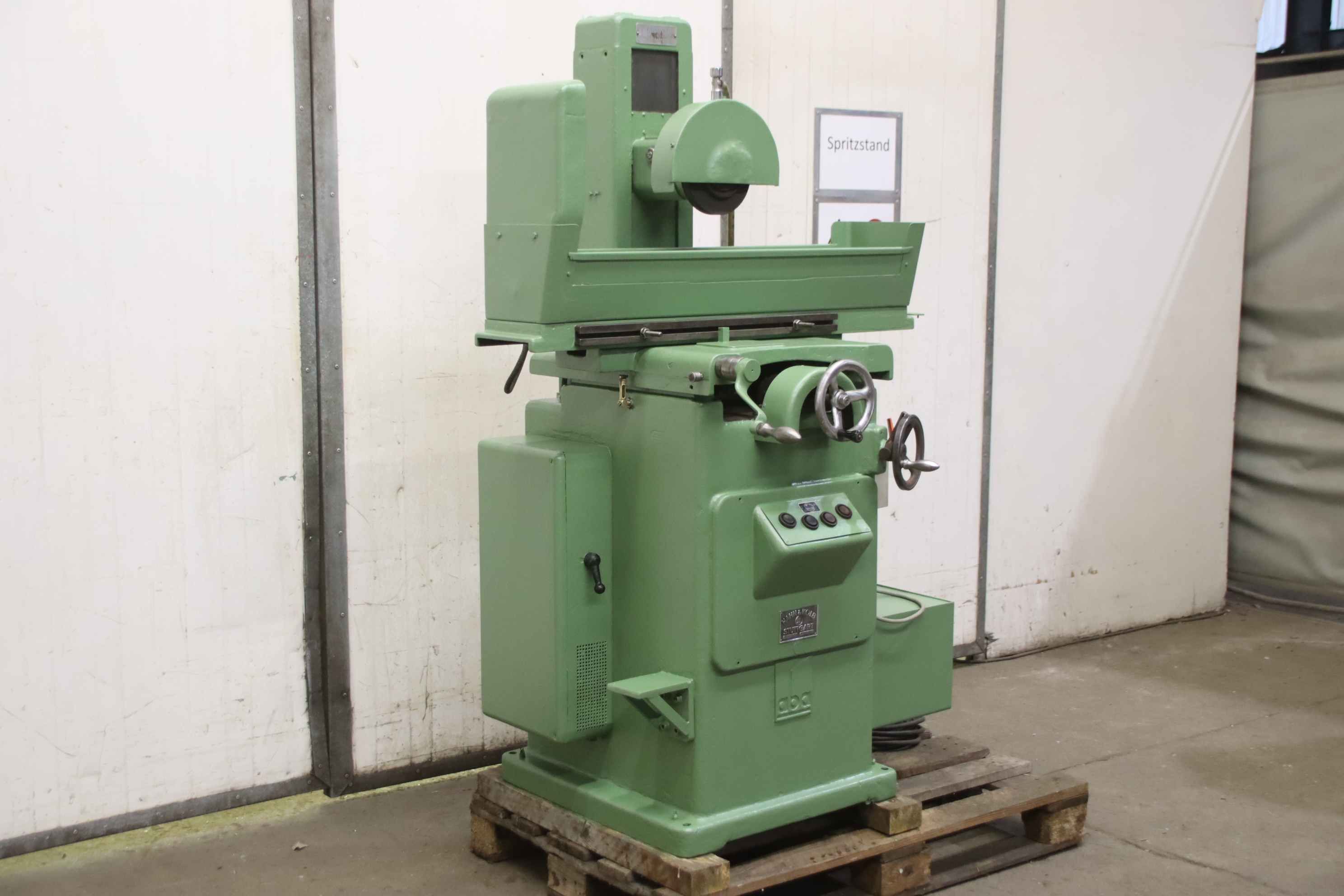

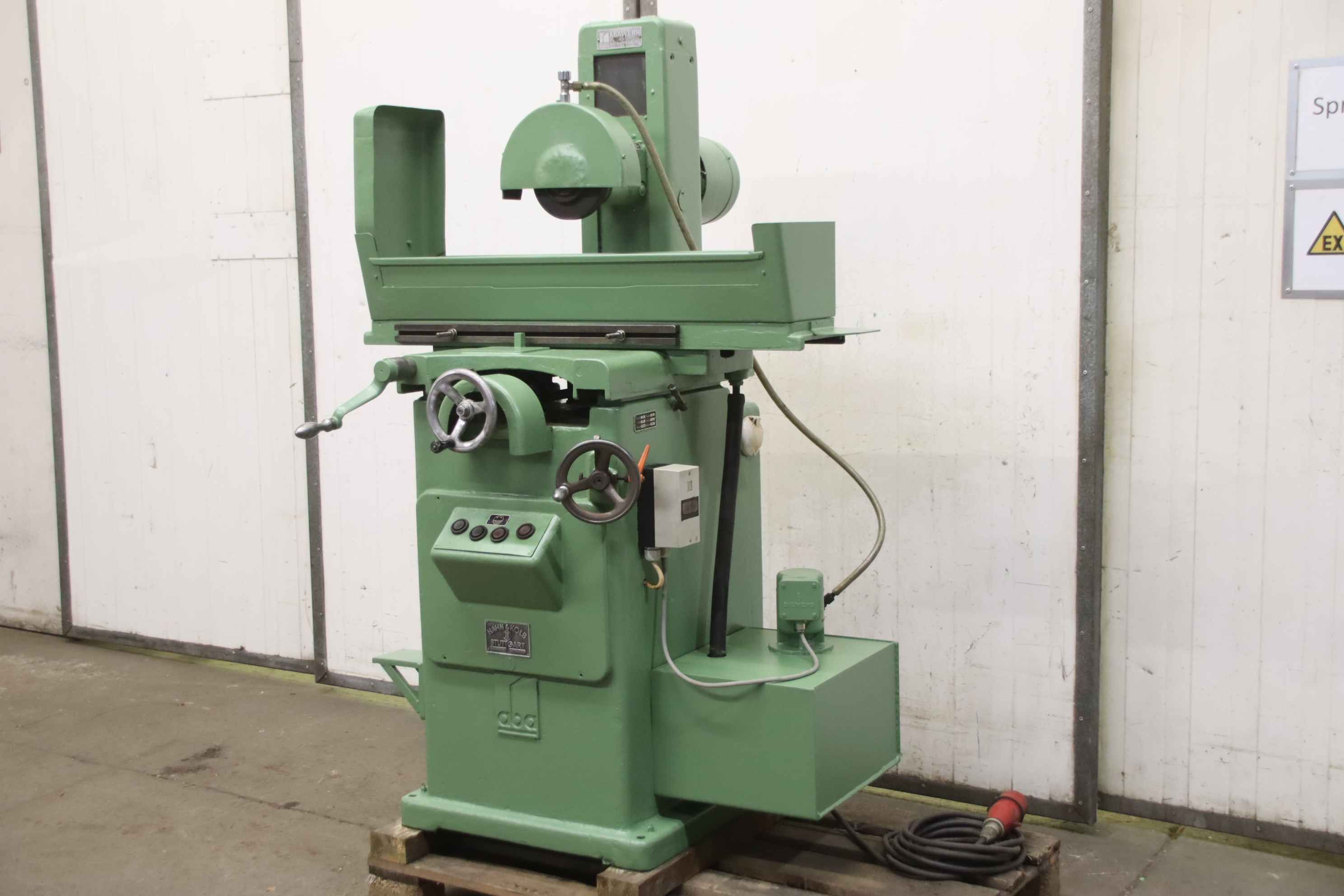

Surface grinder, grinding machine, horizontal surface grinder, surface grinder, magnetic grinder-Manufacturer: aba Abawerk, surface grinding machine-horizontal type FFK with magnetic plate-Magnetic plate: 360 x 122 mm-Traverse paths: x 390 mm / y 170 mm / z 260 mm-Drive: 2.0 kW-Grinding wheel: Ø170 mm, max. 245 mm-Coolant device-Transport dimensions: 1120/1100/H1630 mm-Total weight: 604 kg

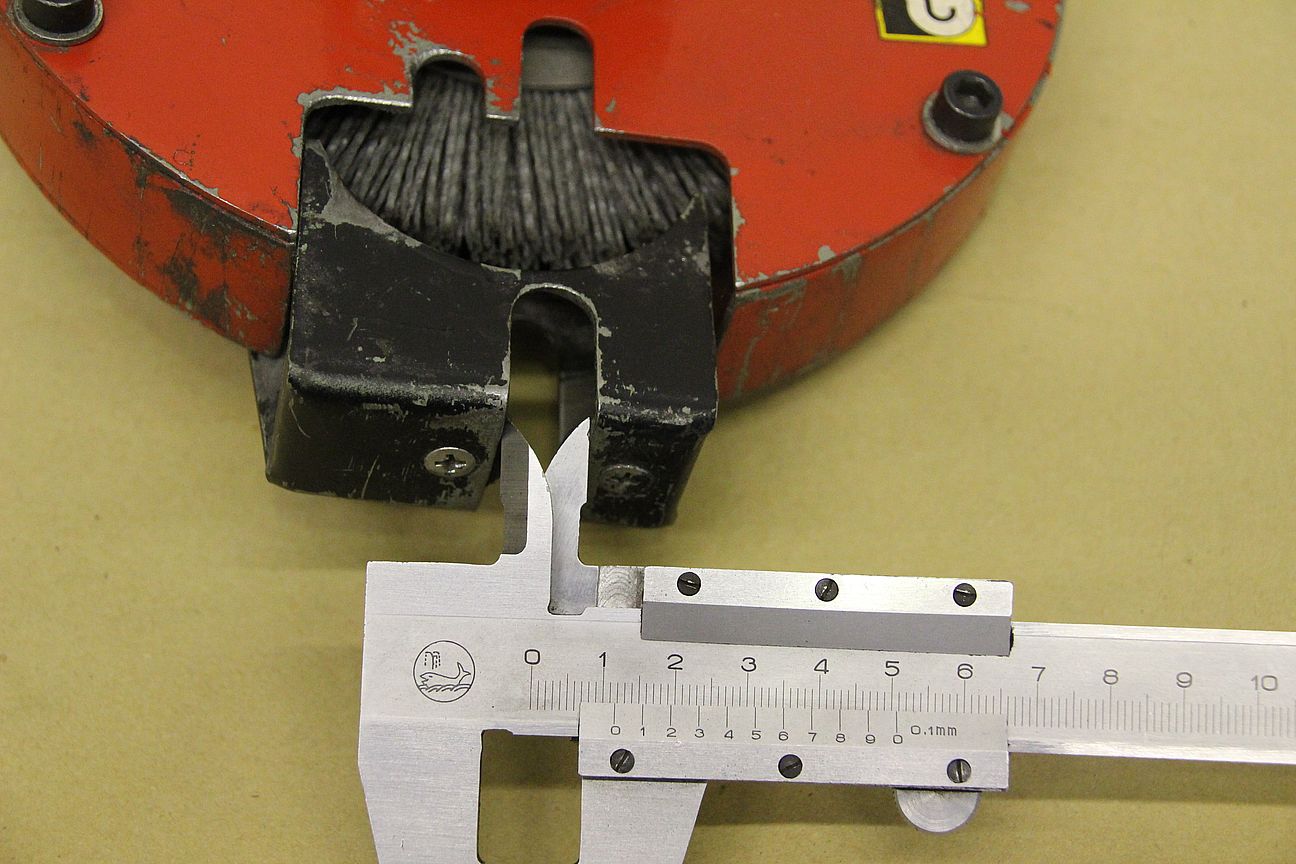

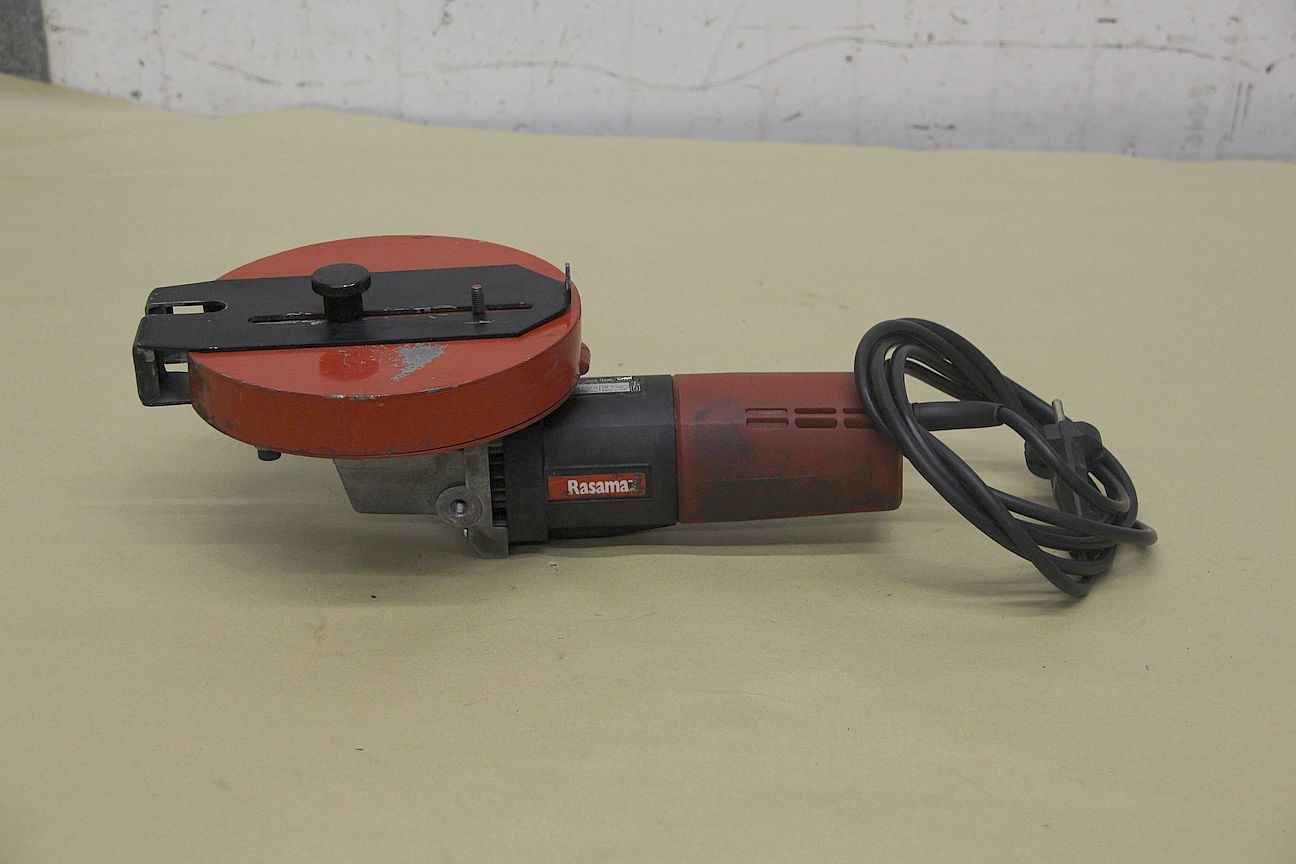

Brush deburring machine, sheet metal deburring machine, deburring machine -Deburring machine for: stamped, laser and nibbling parts -Deburring system for: sheet metal edges with notches -Drive power: 0.71 kW -Speed: 4500 rpm -Dimensions: 400/180/H130 mm -Weight: 3.5 kg

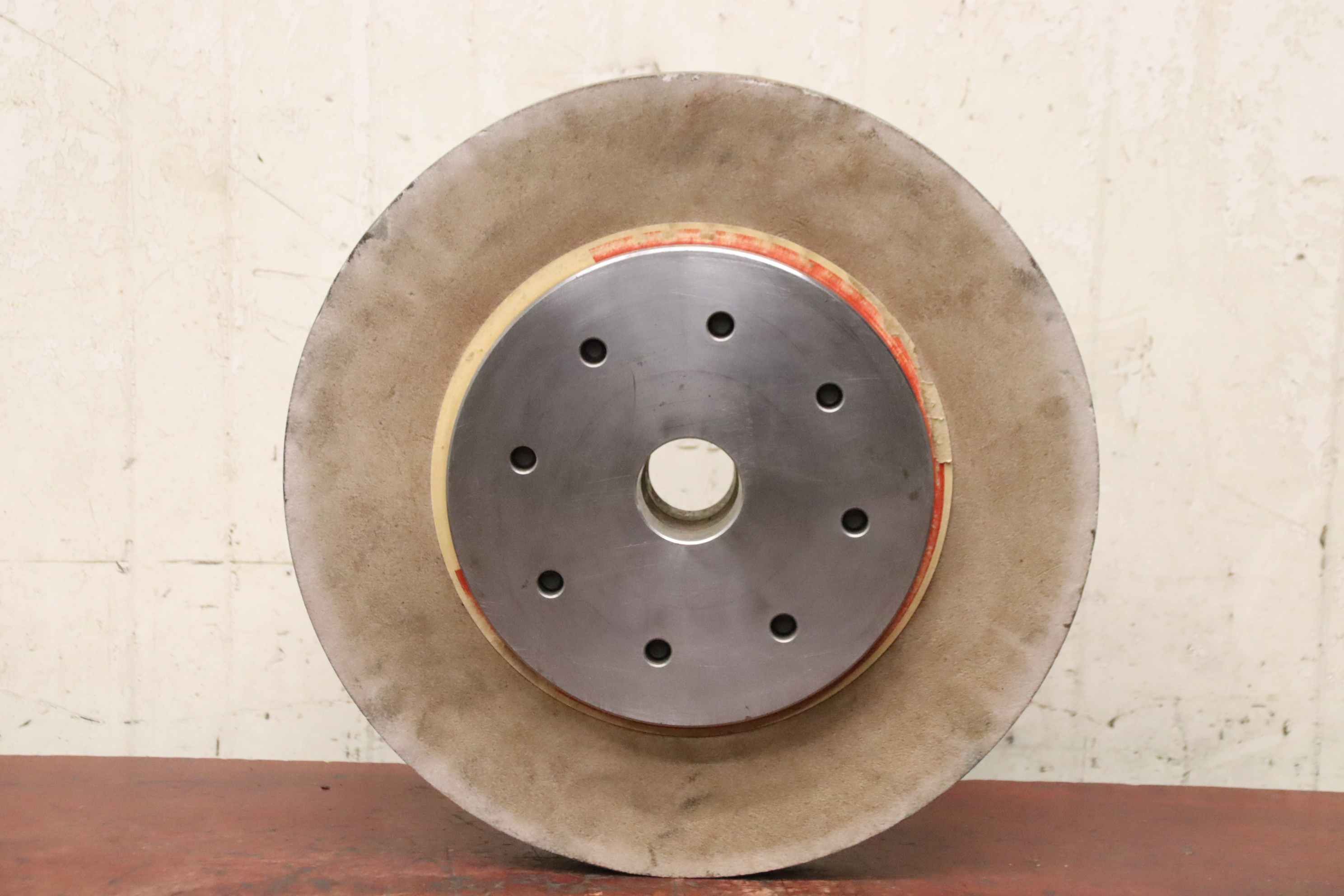

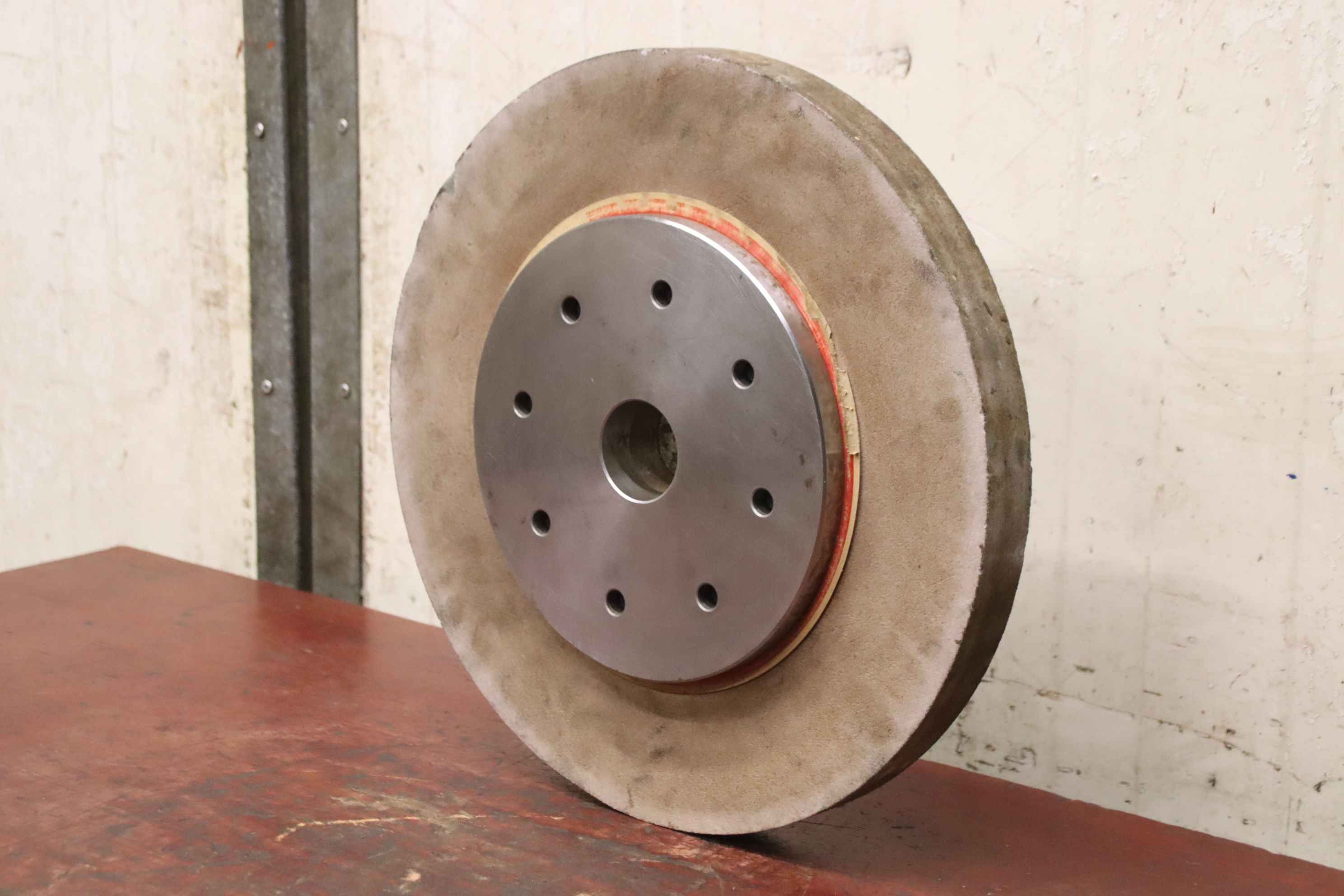

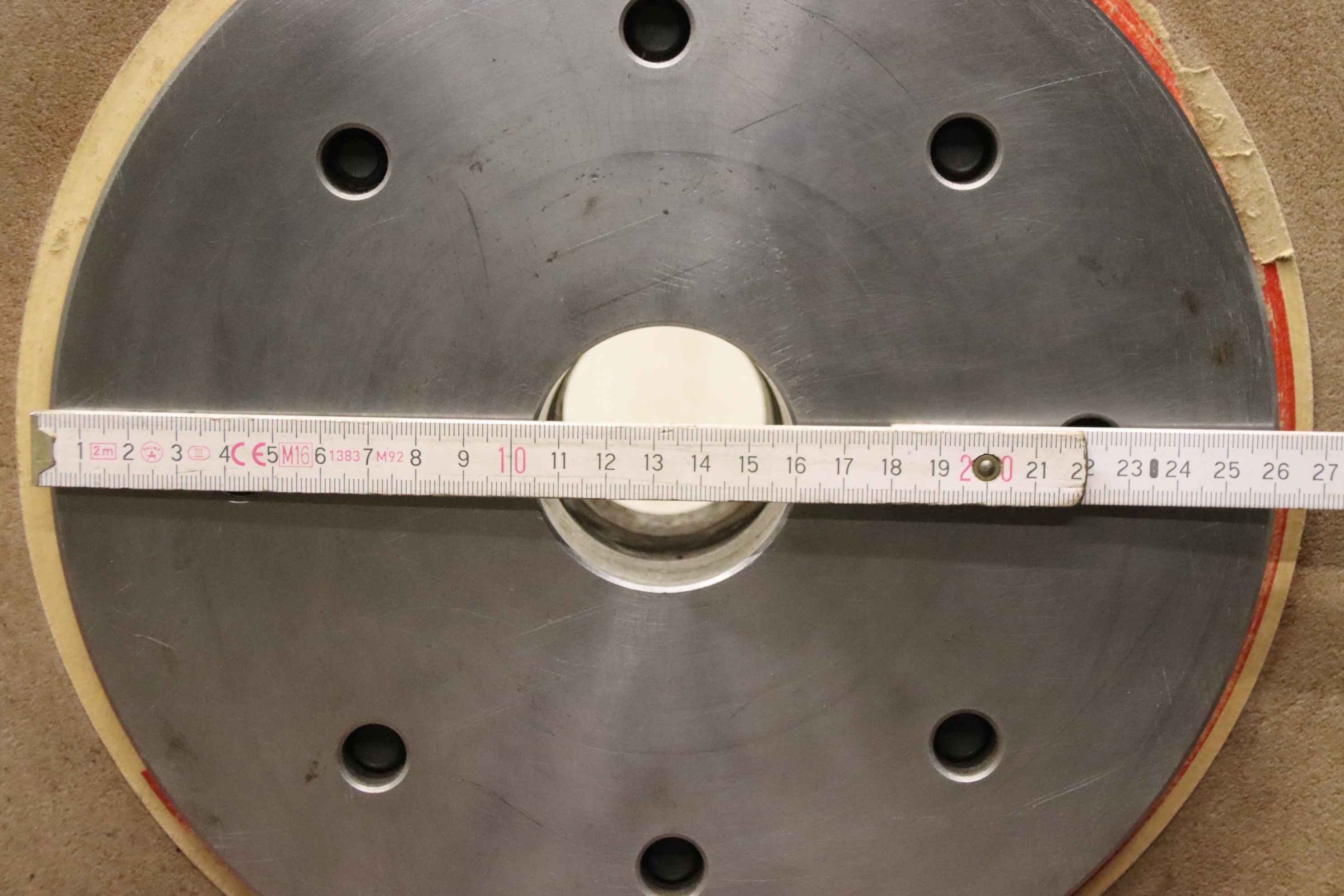

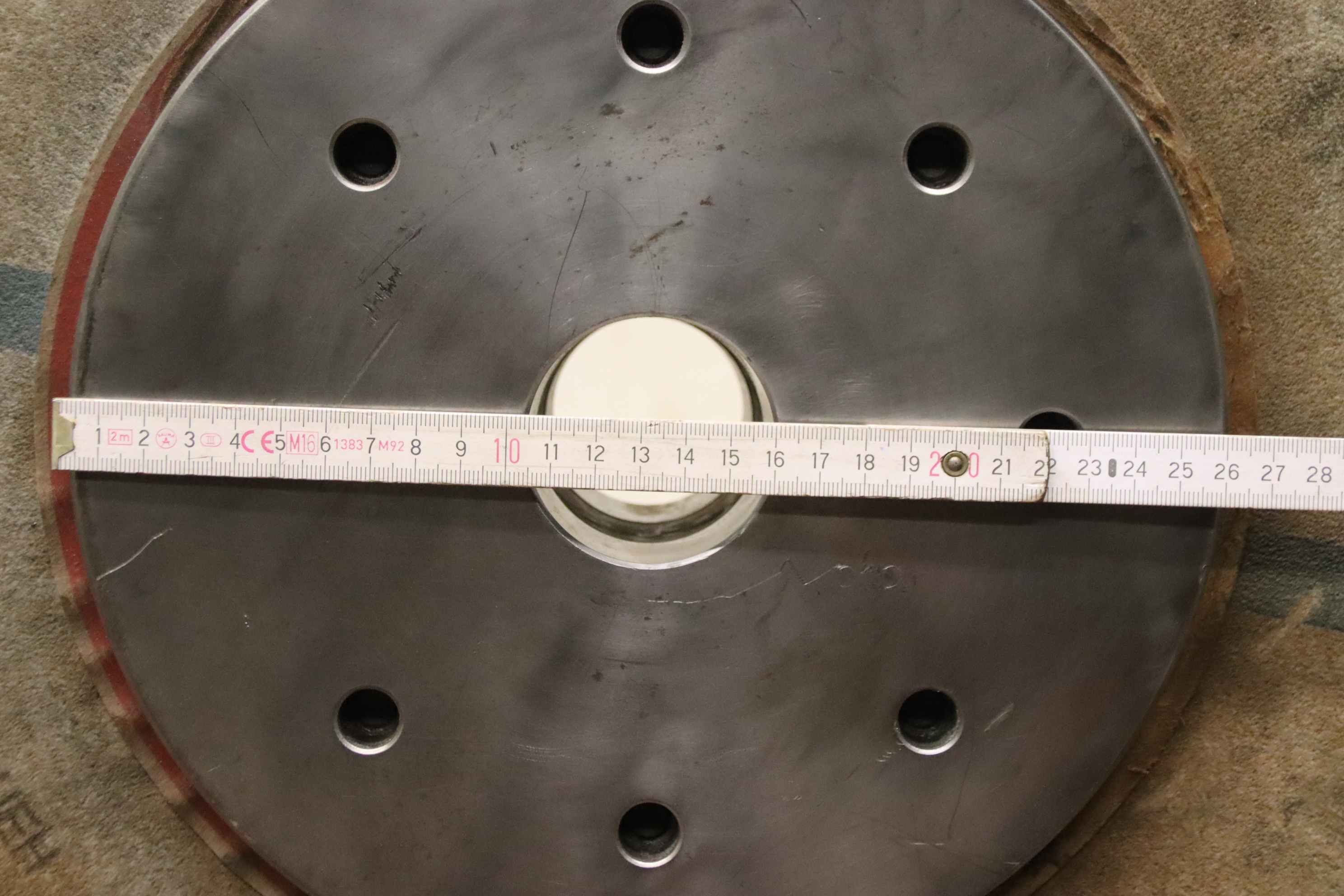

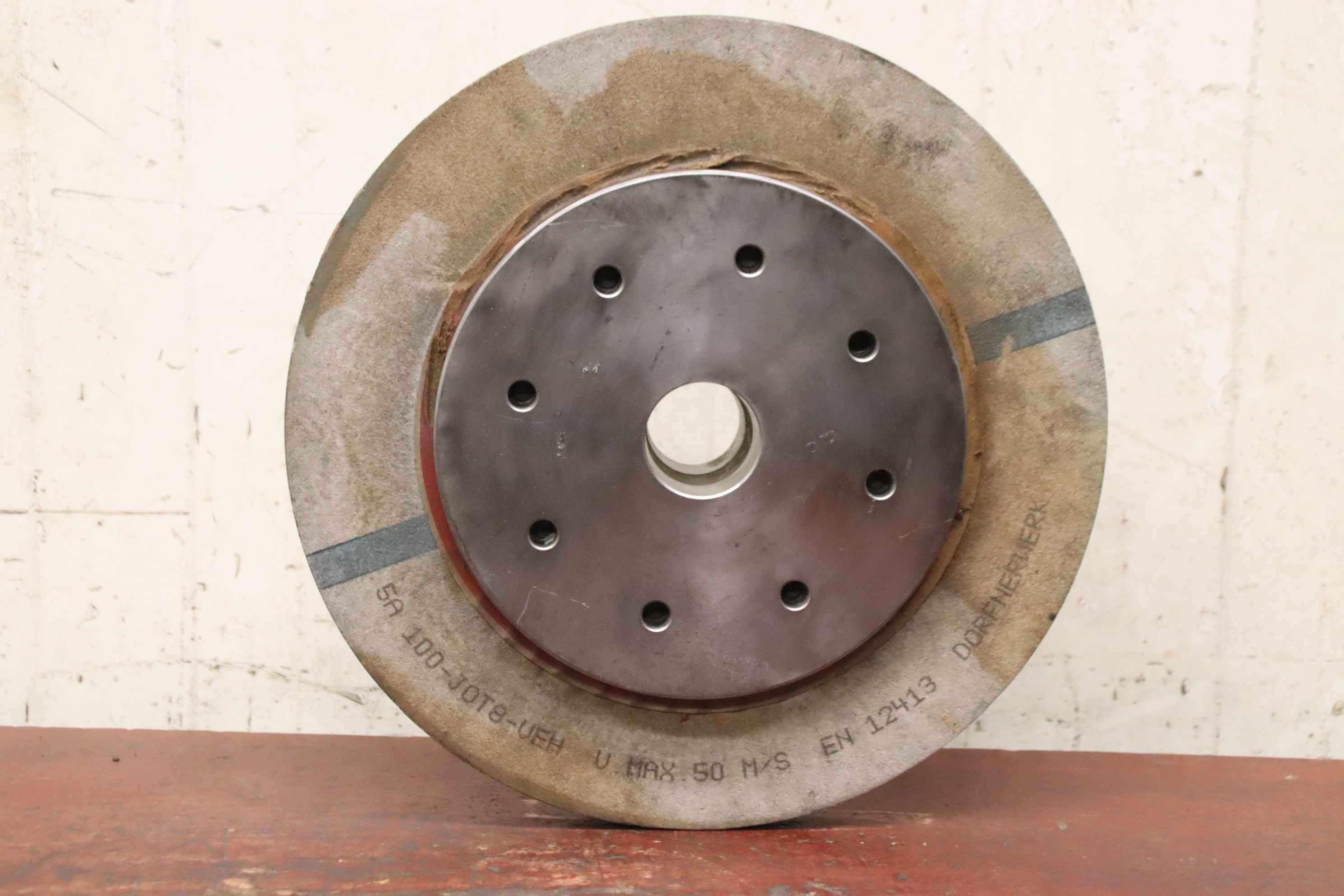

Grinding wheel holder, standard flanges, special flanges, grinding wheel flange-Grinding wheel holder: with grinding stone-Mounting: Ø 55 mm, thread M60 see photos-Whetstone: Dorfnerwerk type 5A 100-JOT8-UEH 400 x 40 mm-Transport dimensions: Ø 440 x 85 mm-Weight: 32.6 kg
max. grinding diameter:160 mmstations:2 sanding width:30 mmtotal power requirement:0,37 kWweight of the machine ca.:100 kgdimensions of the machine ca.:520 x 520 x 1160 mm

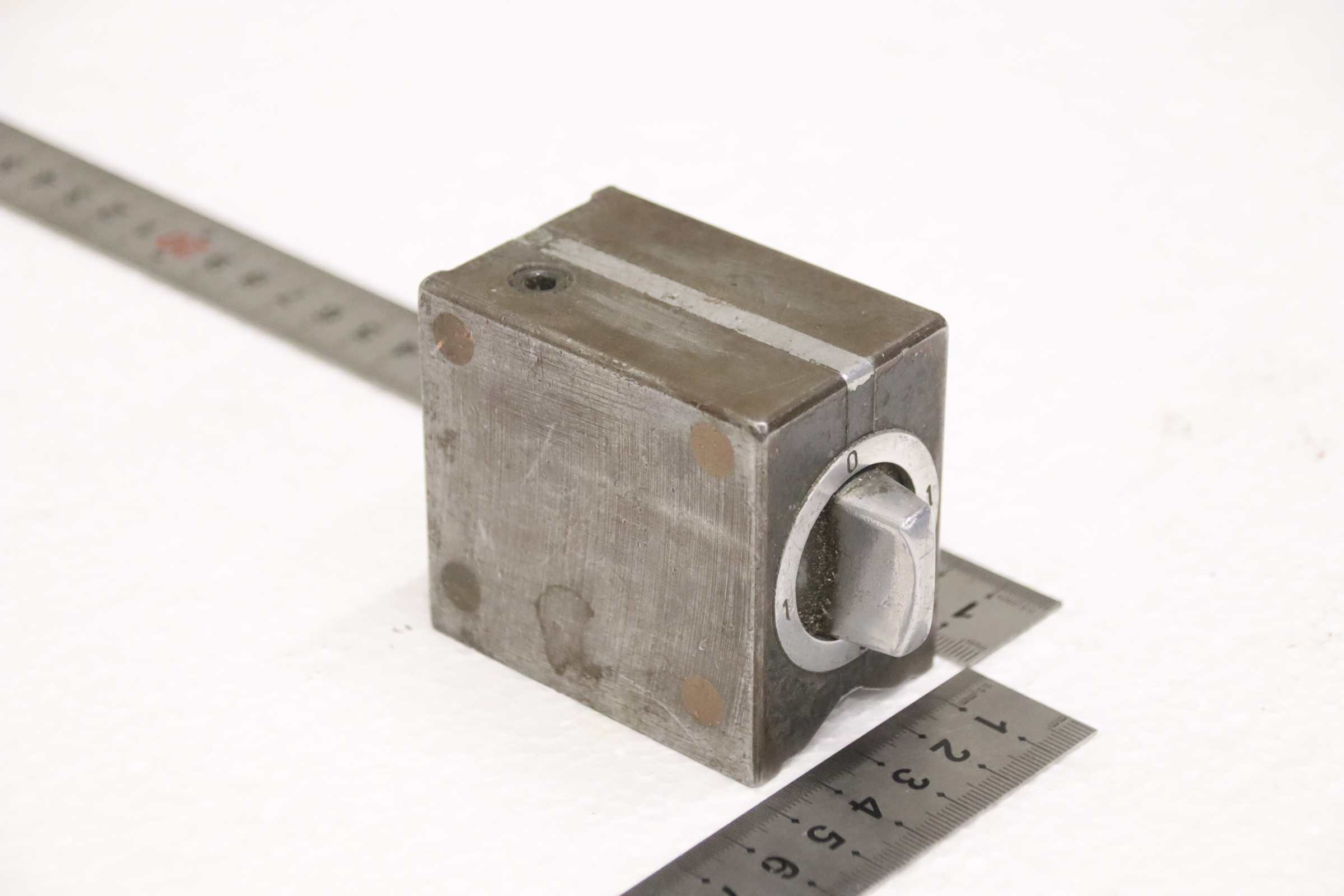

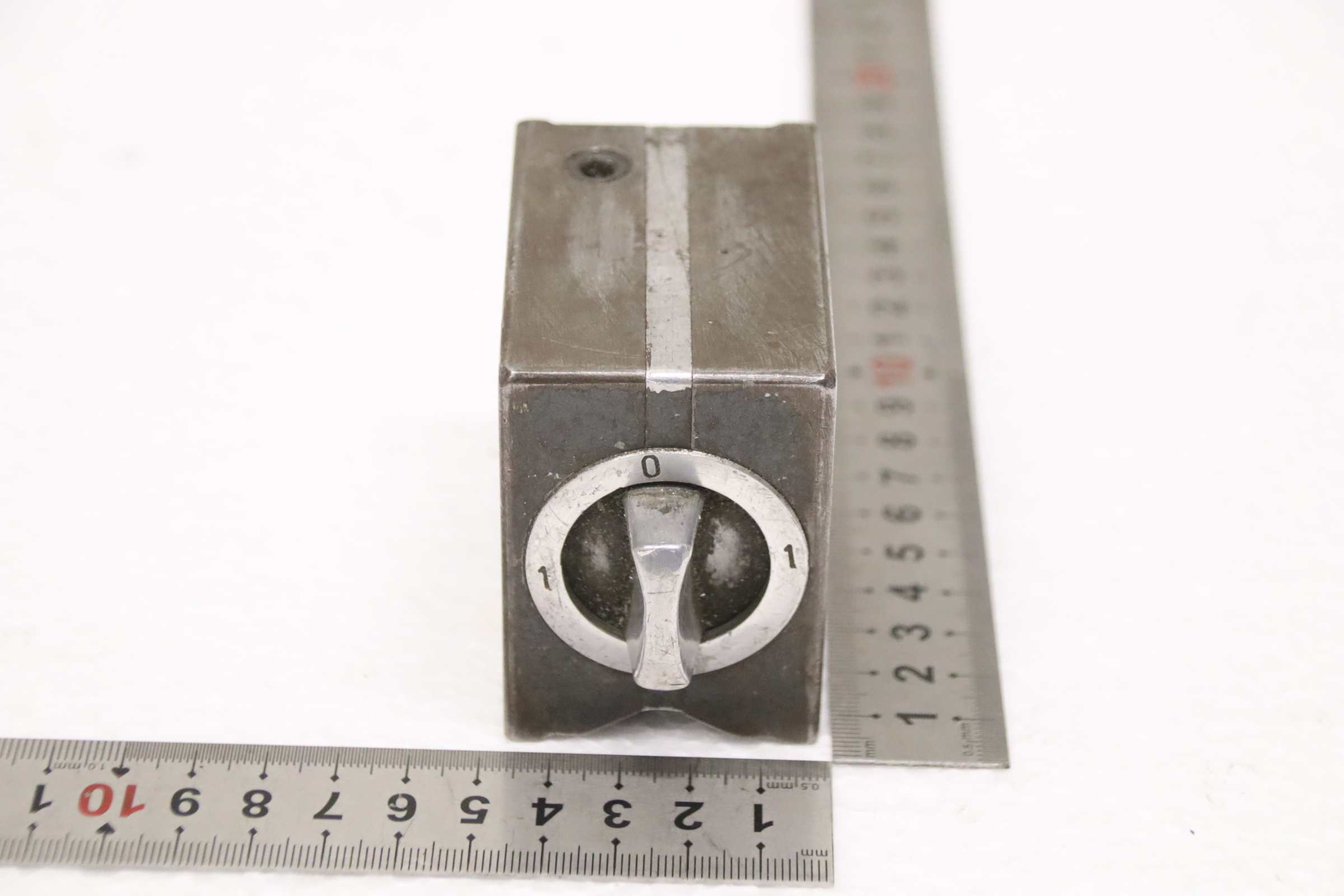

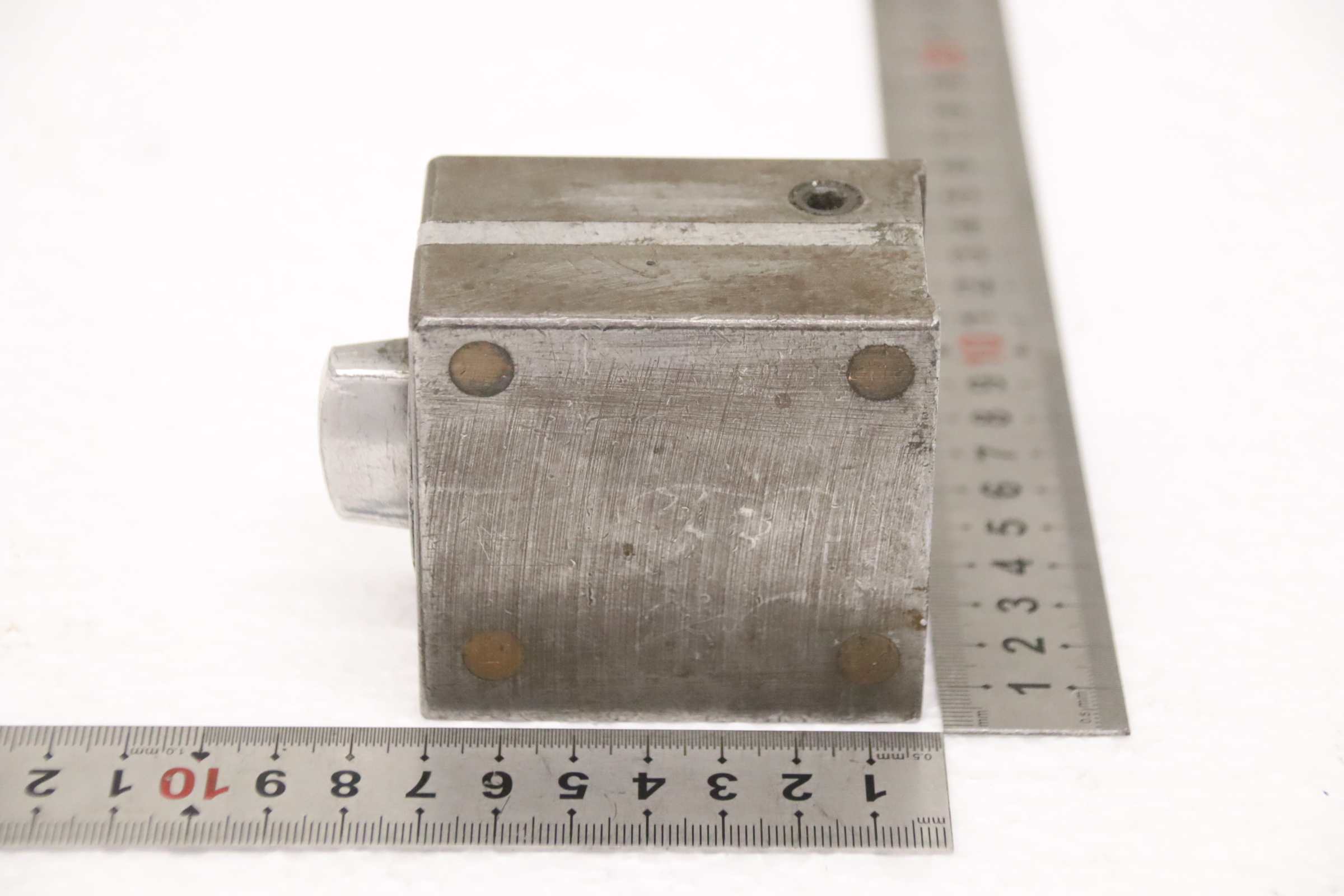

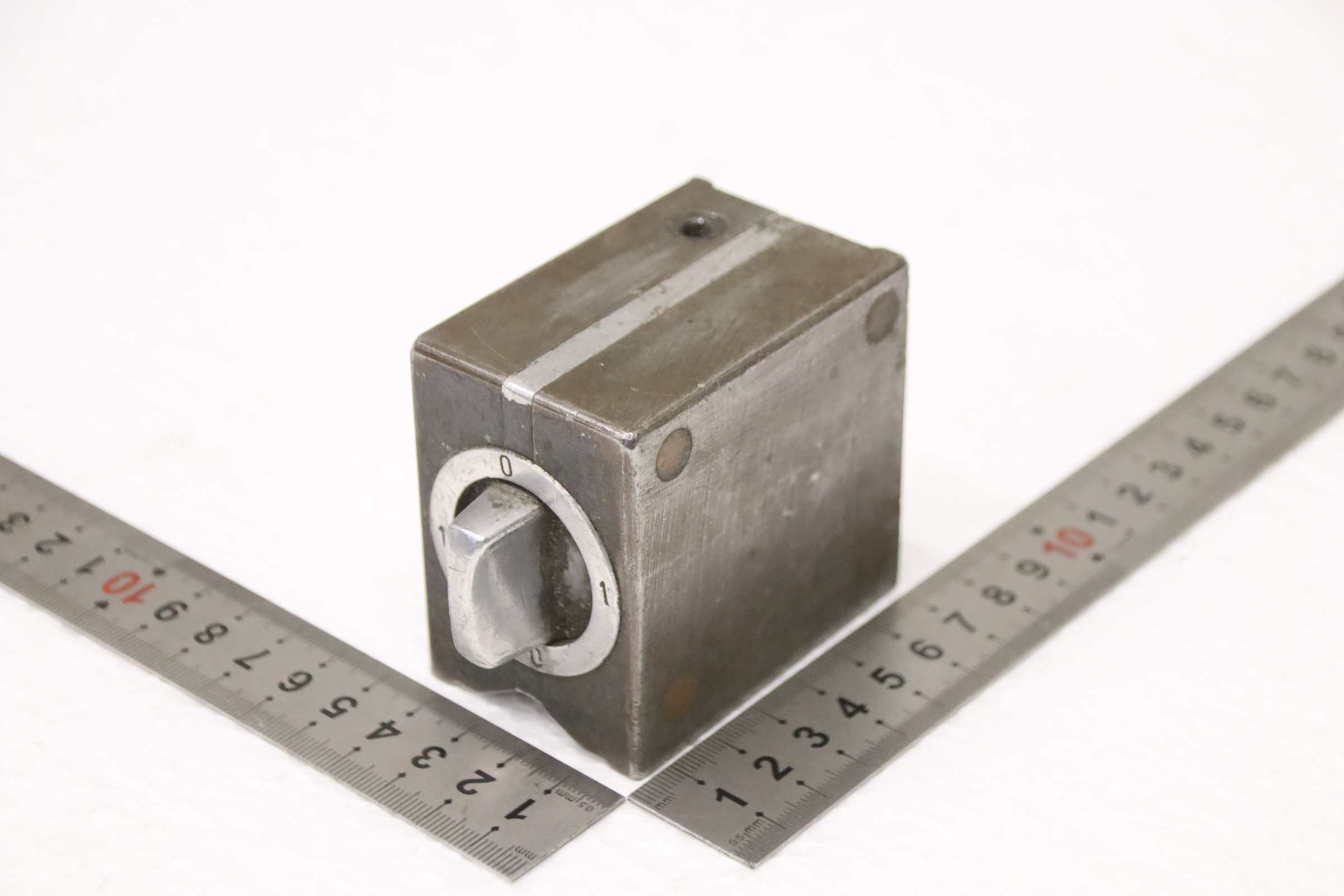

electric magnetic plate, clamping plate, magnetic clamping plate, magnetic clamping plate, magnetic prism, magnetic prism -Magnetic prism: Magnetic measuring and clamping prism -Clamping surface: Length 70 mm -Prisms/Clamping surface: see photos -Magnet: can be switched on and off -Number: 3x magnetic prisms available -Price: per piece -Dimensions: 85/45/H65 mm -Weight: 1.3 kg/pc.

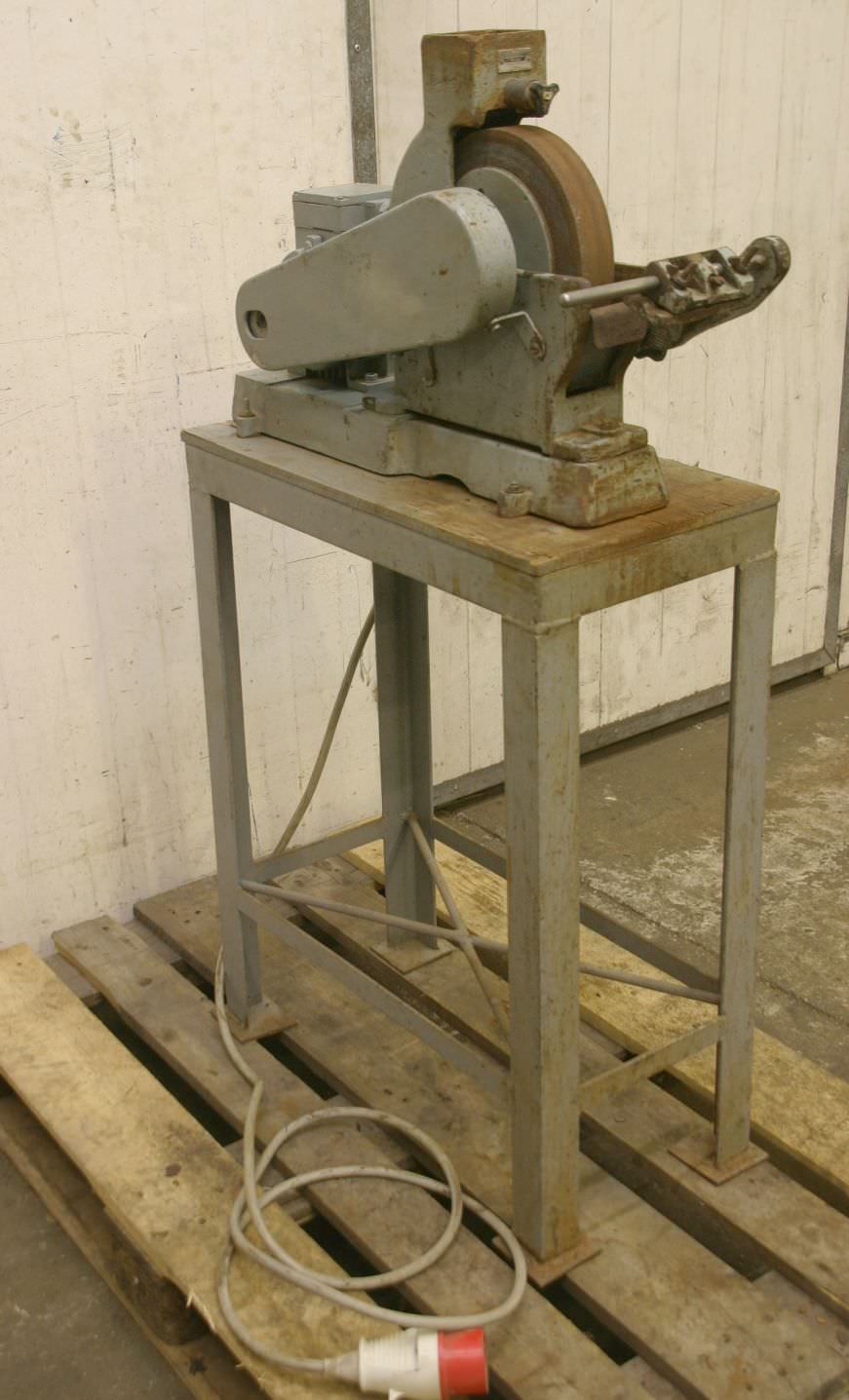

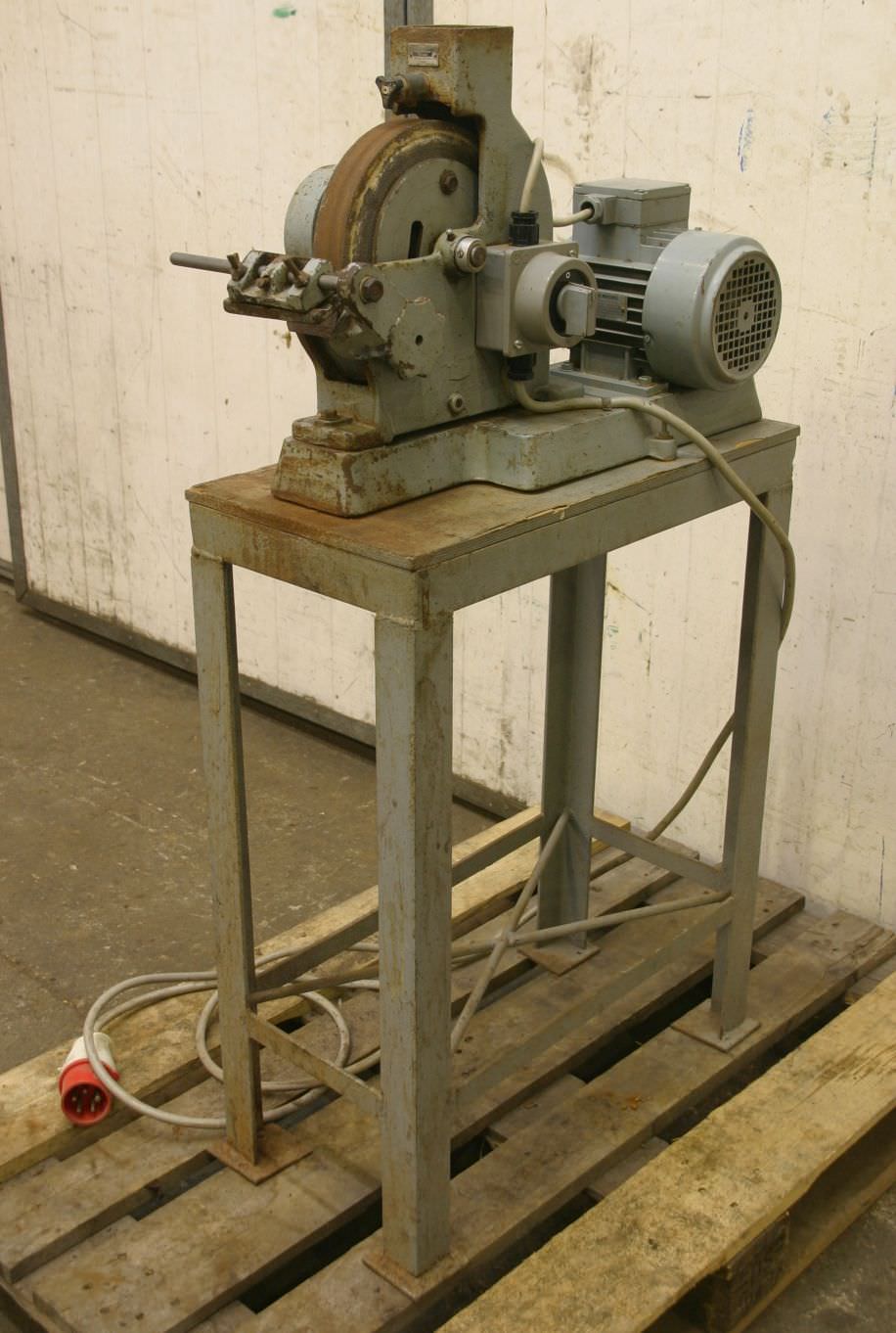

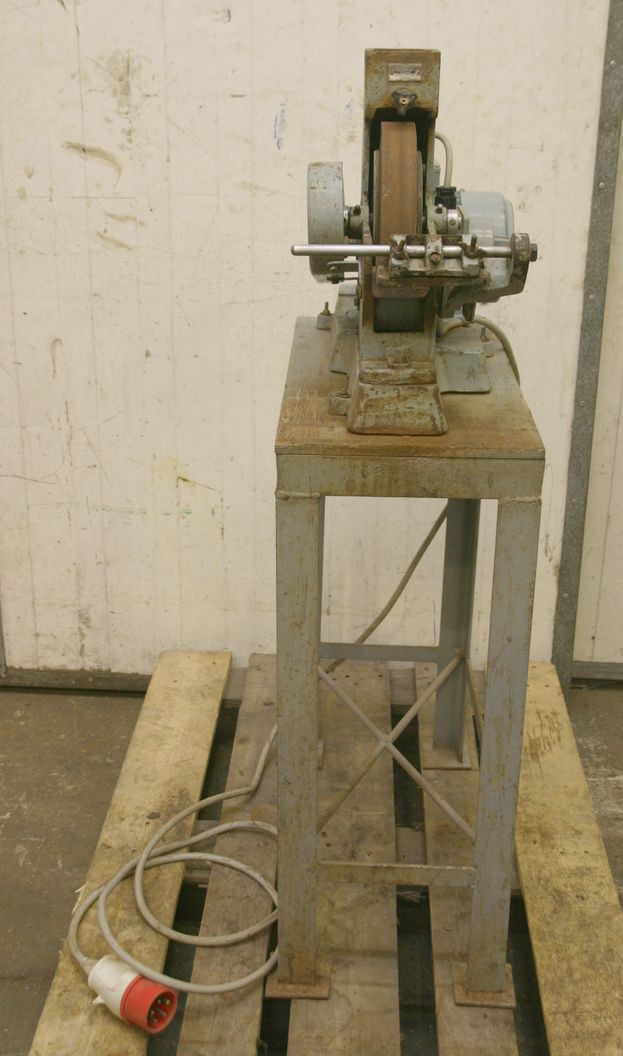

no. of working stations:1 Stücktool adaptor:1650 W revolutions per minute:2990 U/mintotal power requirement:380V, 2,7 Aweight of the machine ca.:33 kg
Grinding wheel holder, standard flanges, special flanges, grinding wheel flange-Grinding wheel holder: with grinding stone-Mounting: Ø 55 mm, thread M60 see photos-Whetstone: Dorfnerwerk type 5A 100-JOT8-UEH 400 x 30 mm-Transport dimensions: Ø 400 x 80 mm-Weight: 28.7 kg
no. of working stations:1 Stücktool adaptor:1650 W revolutions per minute:2990 U/mintotal power requirement:380V, 2,7 Aweight of the machine ca.:33 kg
grinding diameter:5-55 mmgrinding length:500 mmtotal power requirement:44 kW-- Intended use and general information --Fully automated external and surface grinding of synchronous ringsCentre height: 200 mmGrinding length: 500 mmGrinding wheel arrangement: right, 30° angled Grinding wheel dimensions: 600 x 30 x 203.2 mmDrive power: 7 kW X/Z axis drive: ball screw Travel speed: 0.01 - 10,000 mm/min. Resolution: 1 µm Concentricity of workpiece spindle: < 1 µmWorkpiece changing system: Fanuc robot Control: Siemens Sinumerik 840-DMachine weight: 7,000 kgCentre height: 200 mmGrinding length: 500 mm
working width:1400 mmWorkpiece thickness max.: 80 mmwork height max.:1000 mmFeed speed:4m/min I Stufe, 8 II Stuf m/min.Required air-pressure:max. 5 barvoltage:50 Hz, 380 Vworkpiece length:320 mmworkpiece thickness min.:1 mmweight of the machine ca.:3500 kgDocuments:vorhanden
grinding diameter:200 mmgrinding length:320 mmtotal power requirement:3,5 kWweight of the machine ca.:9 tspace required L x W X H:5,28 x 4,5 x 2,4 mmax. wheel dia.:200 mmSpindle drives Arena SiemensFor Worm grinding we have not module, but pitch. Pitch is freely programmable from 0.001 to big value i.e. 500mm
workpiece length:350 mmwork piece width:150 mmdiameter:Tellerradius 200 mmtool taper:M32 x 1,5 spindle diameter:32 mmgrinding width:max.450 mmturning speeds:3385 U/minwork table::Höhe 1000 mmworkpiece height max.:100 mmtotal power requirement:1,1 kWweight of the machine ca.:300 kgdimensions of the machine ca.:700 x 800 x 1170 mm

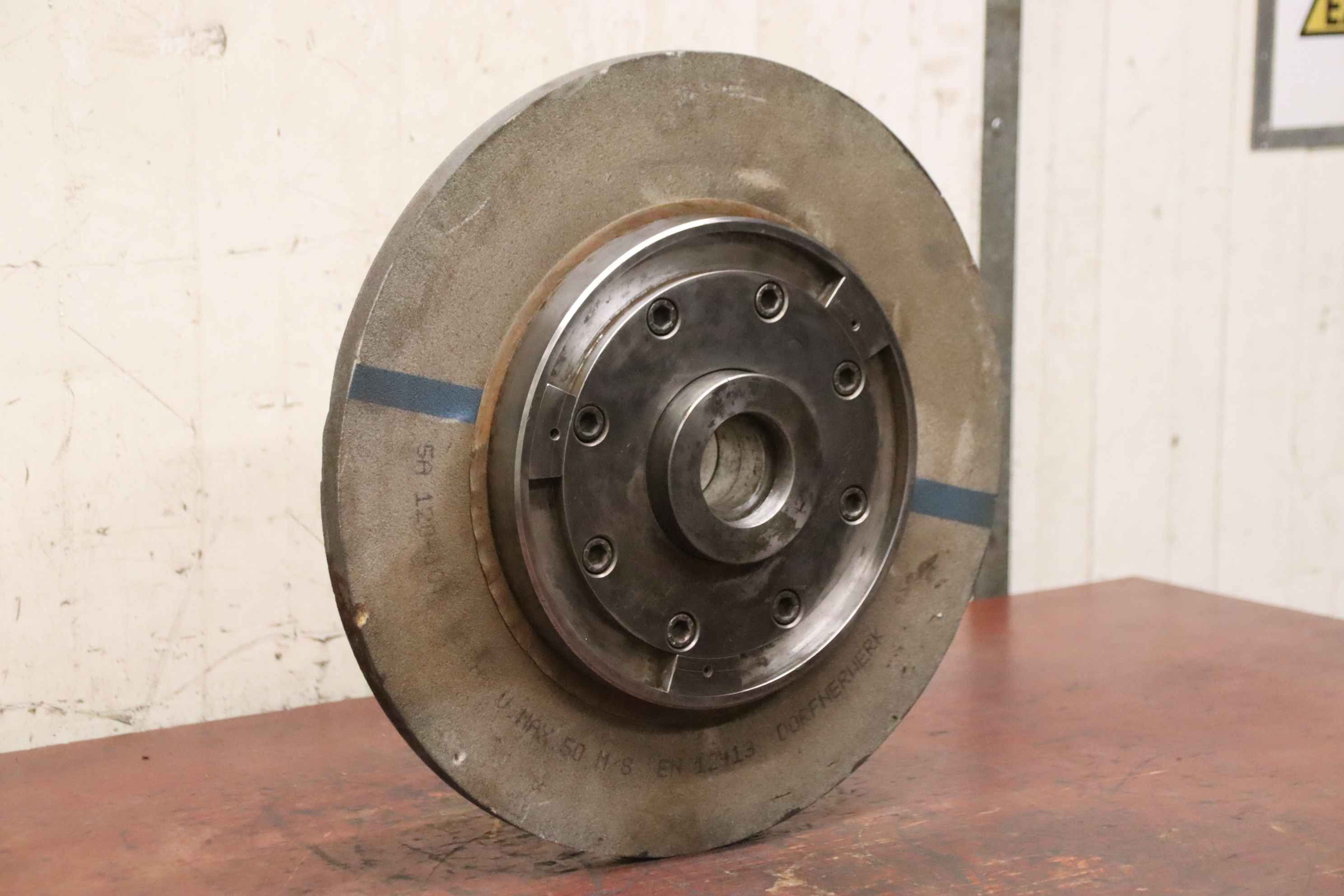

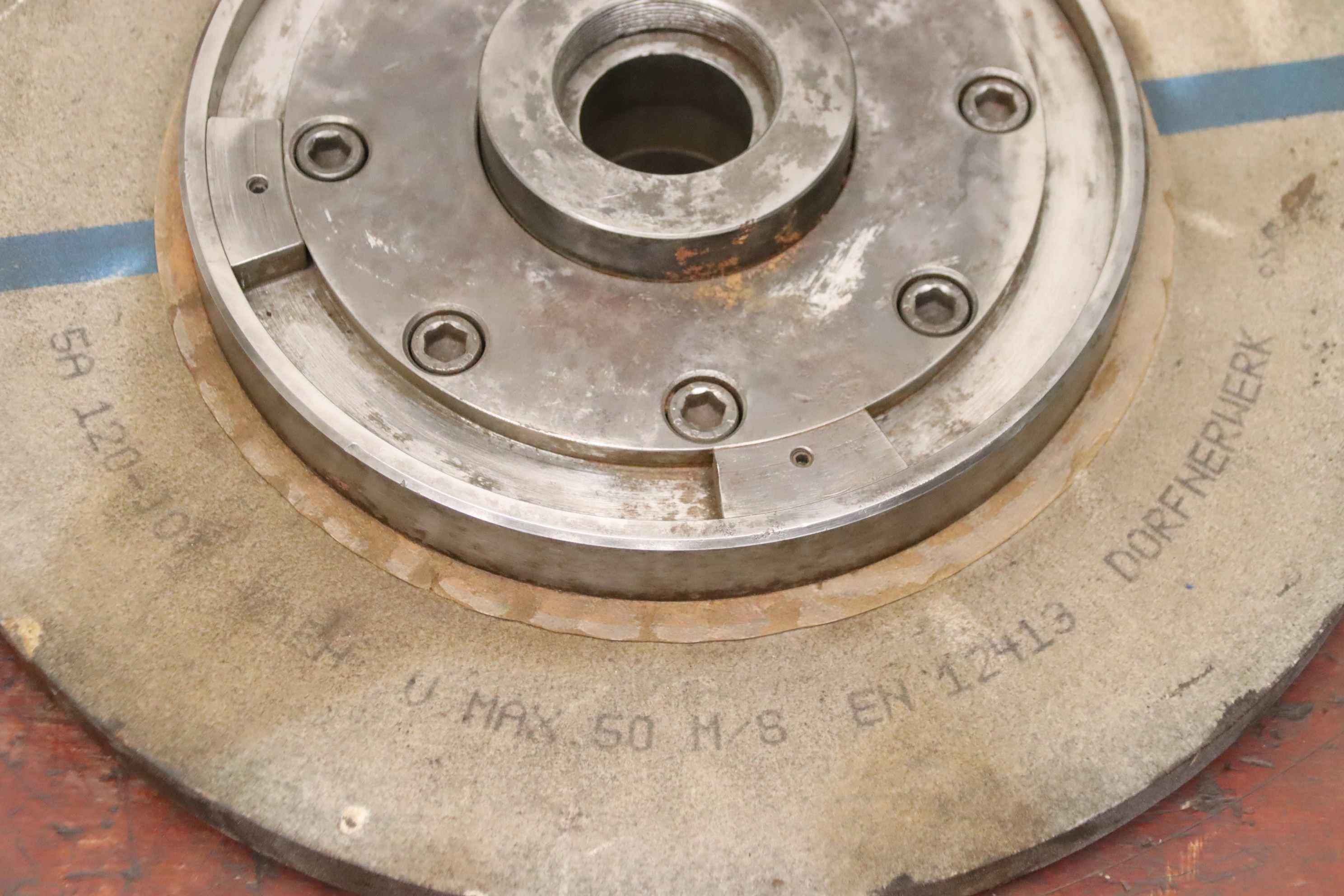

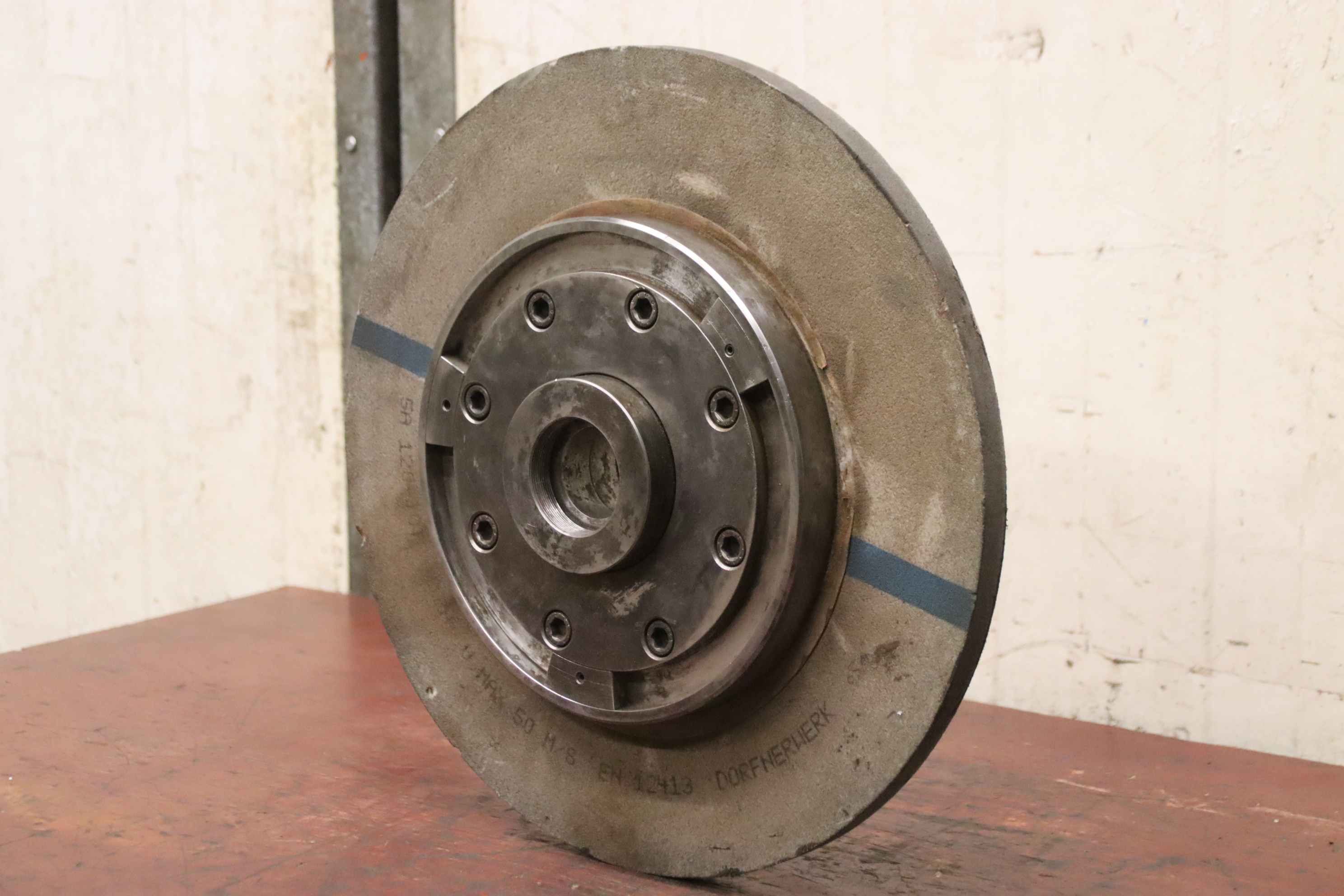

Grinding wheel holder, standard flanges, special flanges, grinding wheel flange-Grinding wheel holder: with grinding stone-Mounting: Hole shaft cone Ø47-55 mm, thread M60 see photos-Grindstone: Dorfnerwerk Type 5A 120-JOT8-UEH 400 x 20 mm-Transport dimensions: Ø 430 x 80 mm-Weight: 26.4 kg
table diameter:520 x 22 mmtable - swivable:45 Gradtotal power requirement:1,6 kWweight of the machine ca.:130 kgdimensions of the machine ca.:520 x 520 x 1200 mmmit SchleifzylinderZubehör: 4 ( Aluzylinder) Werkzeuge zur Aufnahme von SchleifmittelnØ 50, 70 , 90, 120 mm x 223 mmneuer Motor

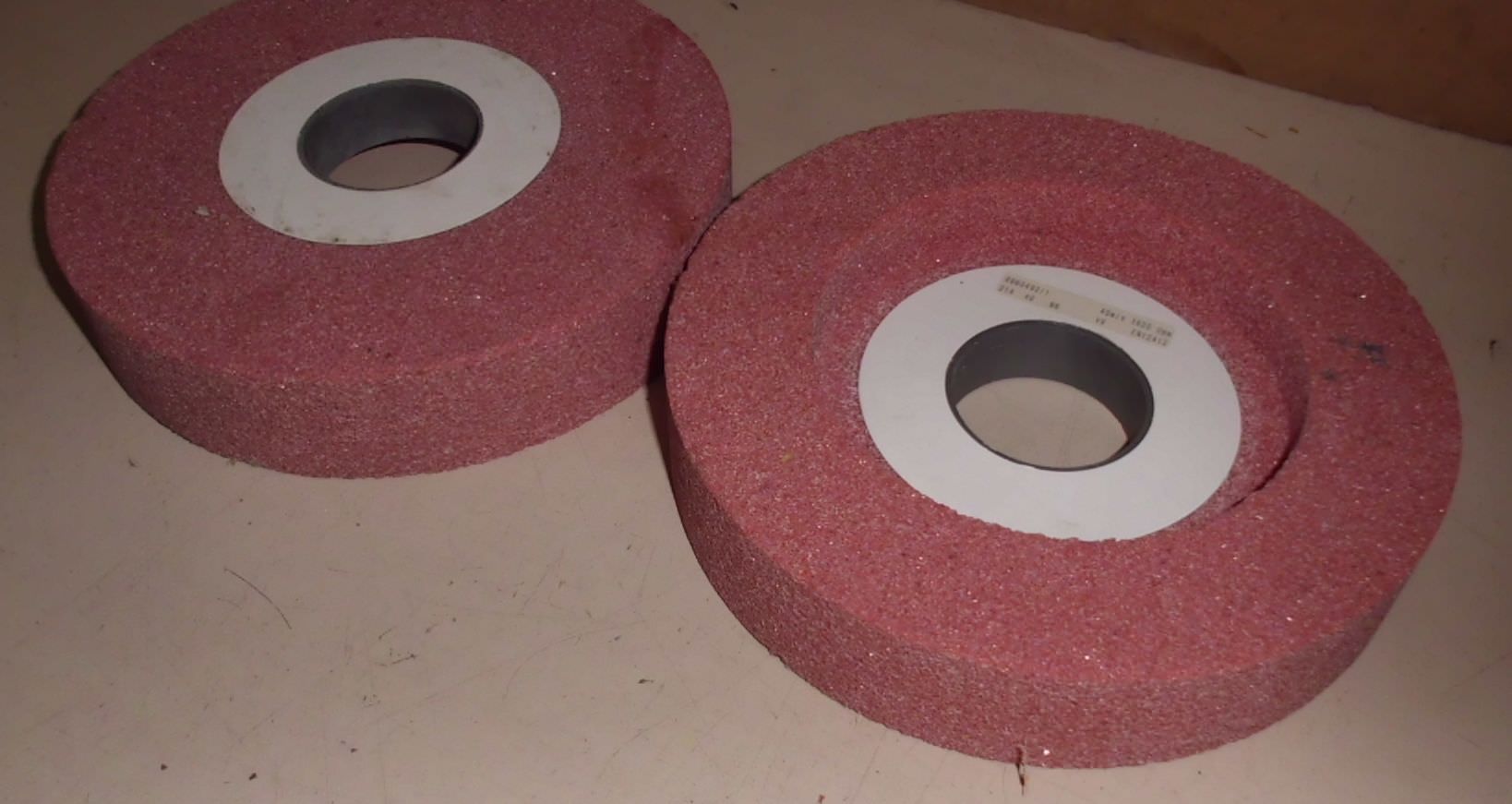

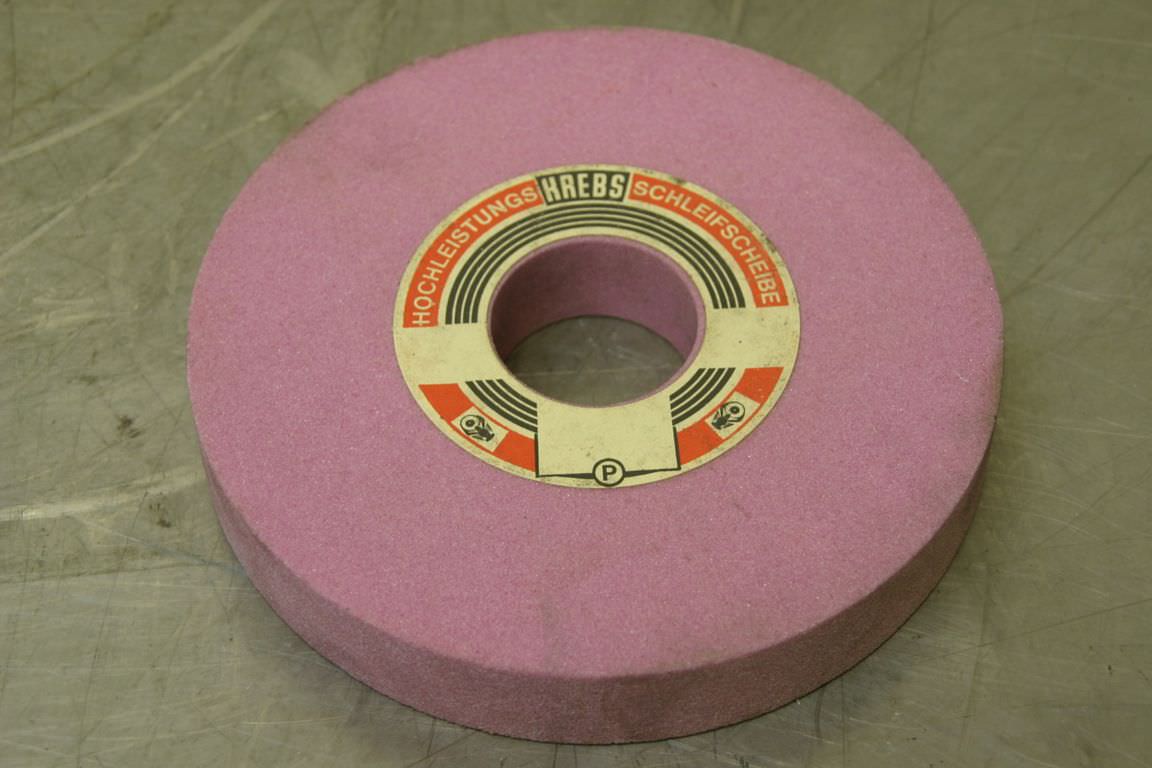

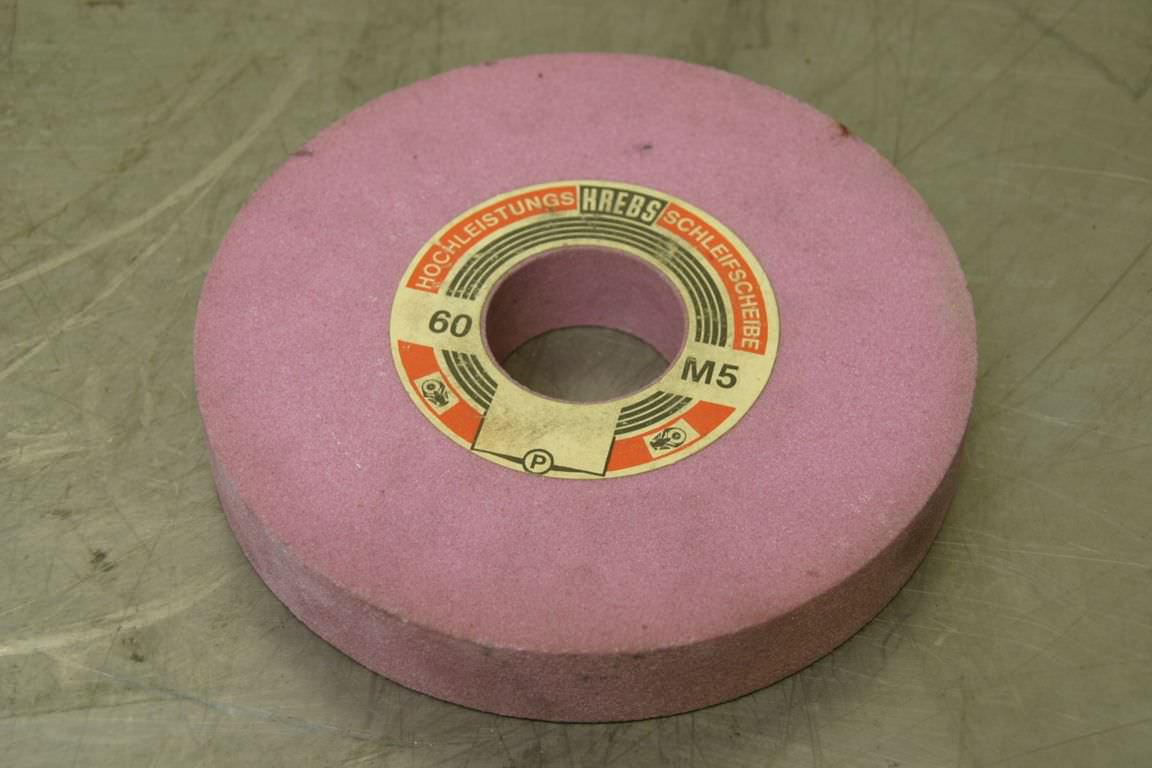

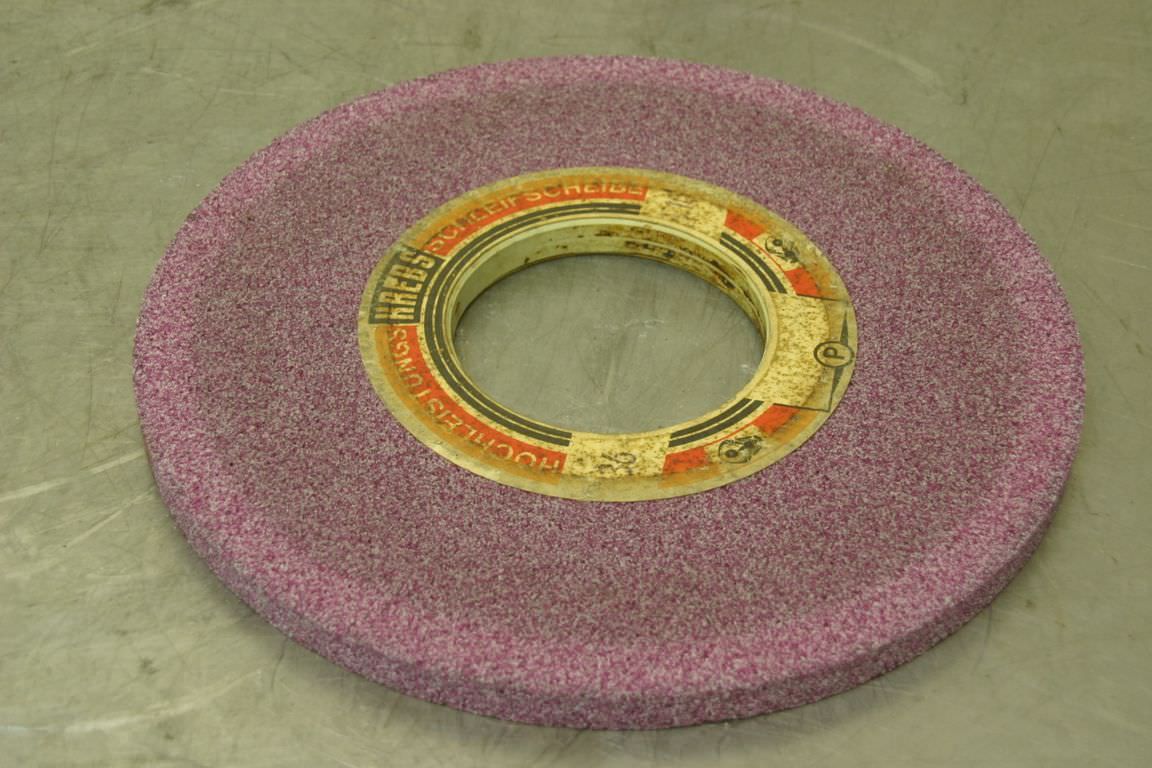

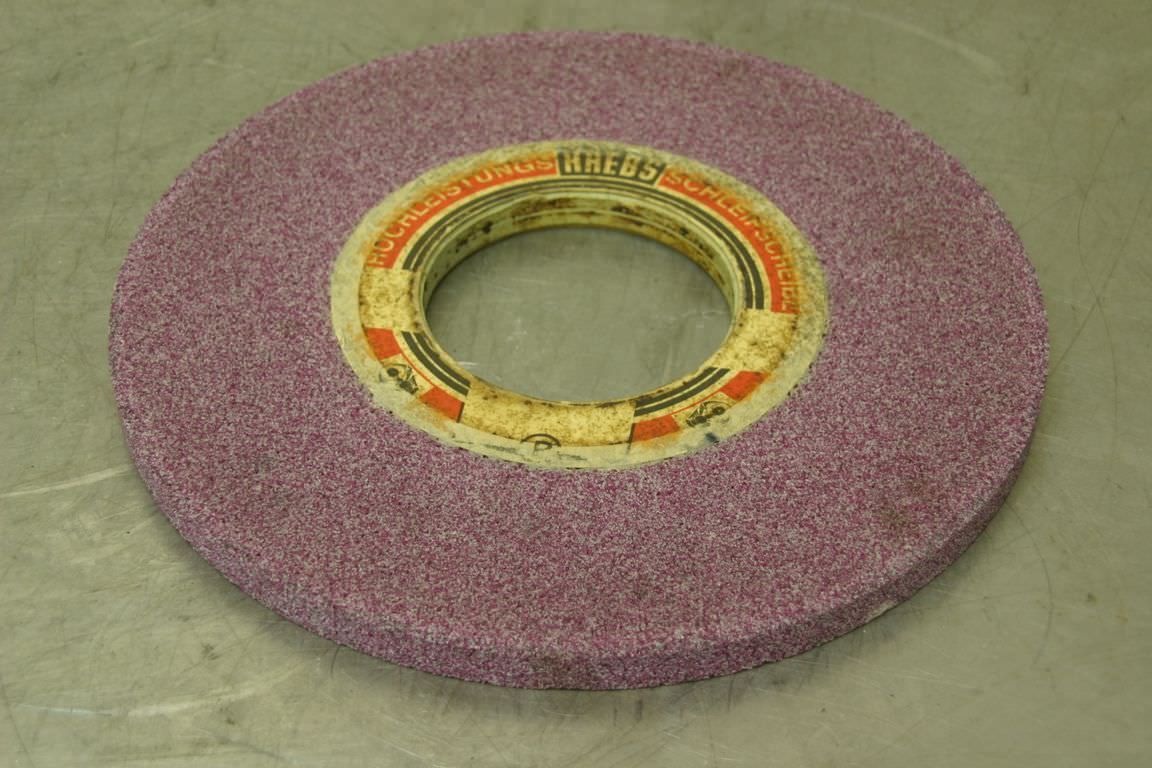

Grinding wheel, cup wheel, bench grinder, surface grinding machine, cylindrical grinding machine-Inside: Ø 51 mm-Outer: Ø 200 mm-Width: 32 mm-Price: per piece-Number: 1x available-Weight: 2.0 kg
sanding belt length:max. 470 mmworkpiece dia.:600 mmtable - swivable:0 - 6 Gradtaper:Reitstock Morse 2 turning speed range::1260 - 3100 U/mintable movement:längs 470 mmtool taper:schwenkbar 0-6 °, 90° dre total power requirement:0,4 kWweight of the machine ca.:950 kgdimensions of the machine ca.:1100 x 1100 x 1500 mmDocuments:vorhanden

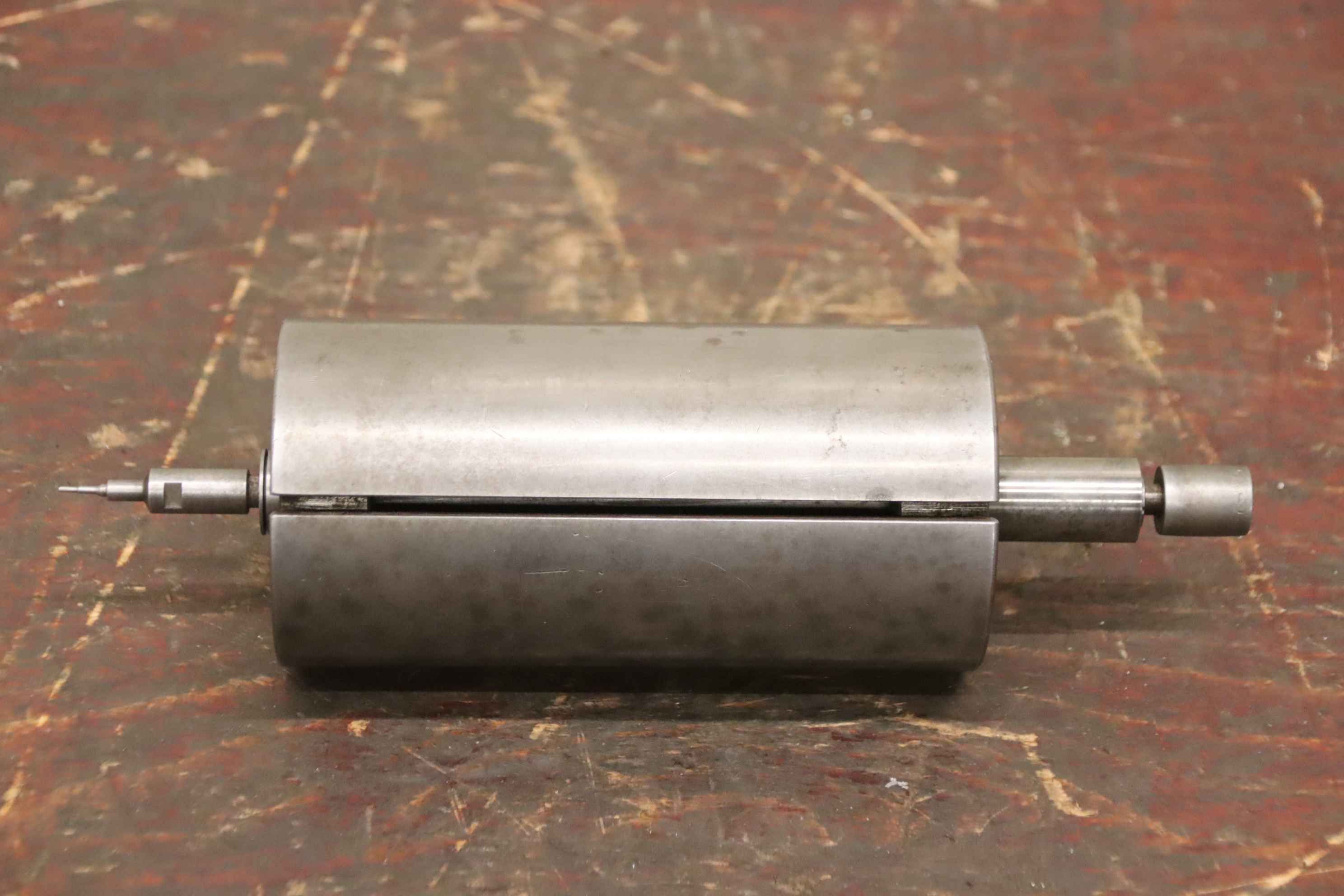

Machine spindle, precision spindle, double grinder spindle, precision spindle for belt drive, belt drive spindle, grinding spindle-Machine spindle: Grinding spindle Precision spindle-Type: unfortunately without type designation-Roll: Ø 80 x 160 mm-Total dimensions: Ø 80 x 270 mm-Weight: 3.5 kg
