: neu : ca. 12 Wochen ab Auftrags : Türkei : 27800 €: 530.98 €: 3030 mm: 4 mm: 4 mm: 2 mm: 180 mm: 4 kW: 4600 mm: 1120 mm: 1020 mm: 4250 kg3 rollsAsymmetrical rolls arrangement - with pre-bending2 driven rollsMotorized adjustment of lateral and clamping rollDigital read-out for lateral and clamping rollSwiveling top roll to the frontForward/reverse runHardened rollsMoveable control panelUser manual in GERMAN and ENGLISH(sample photo)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

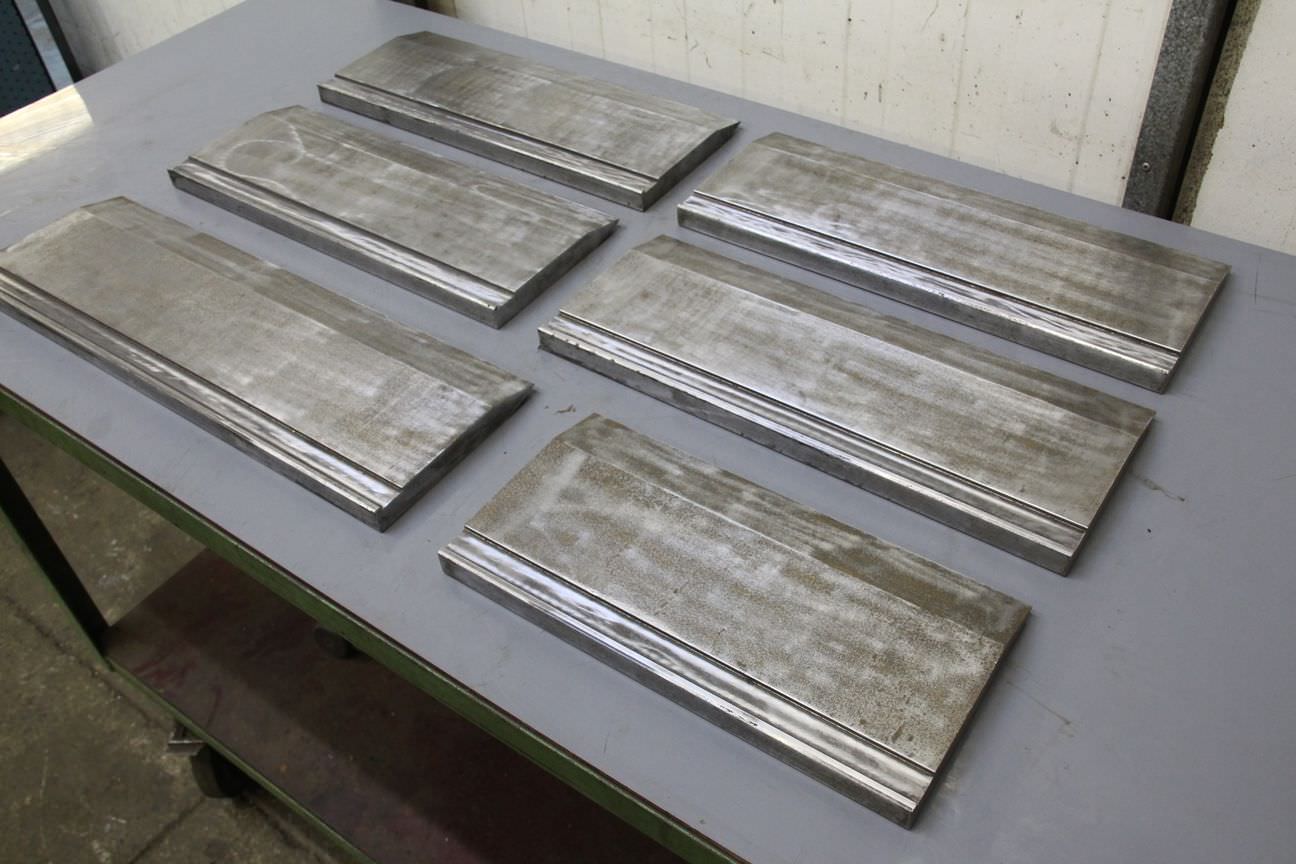

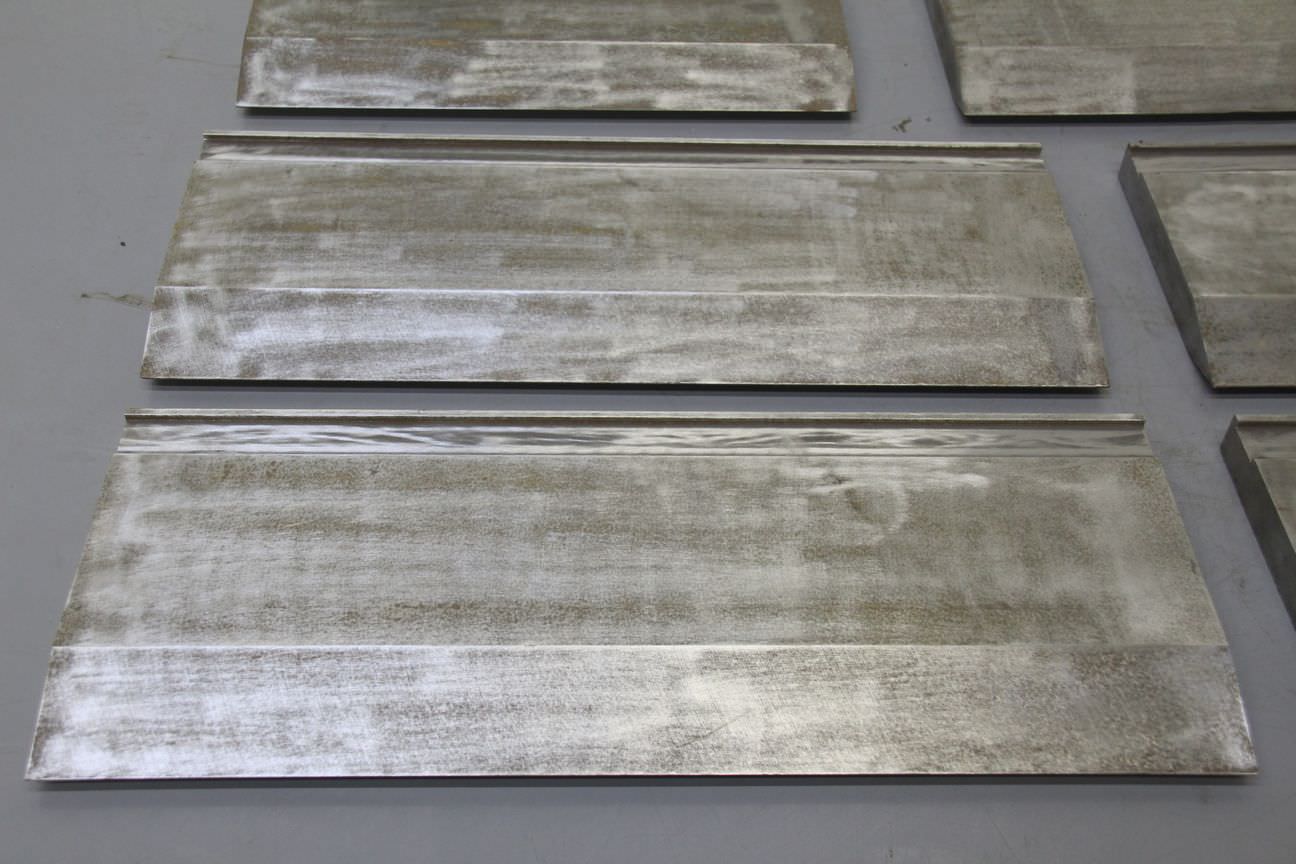

Bending tool, die, upper blade, upper tool, straightening tool -Tool for: Press brake -divided -Tool: 30° -Dimensions: 196 x 26 mm -Total length: 2997 mm -Lengths: 1x 390/4x 500/1x 607 mm -Weight: 102 kg

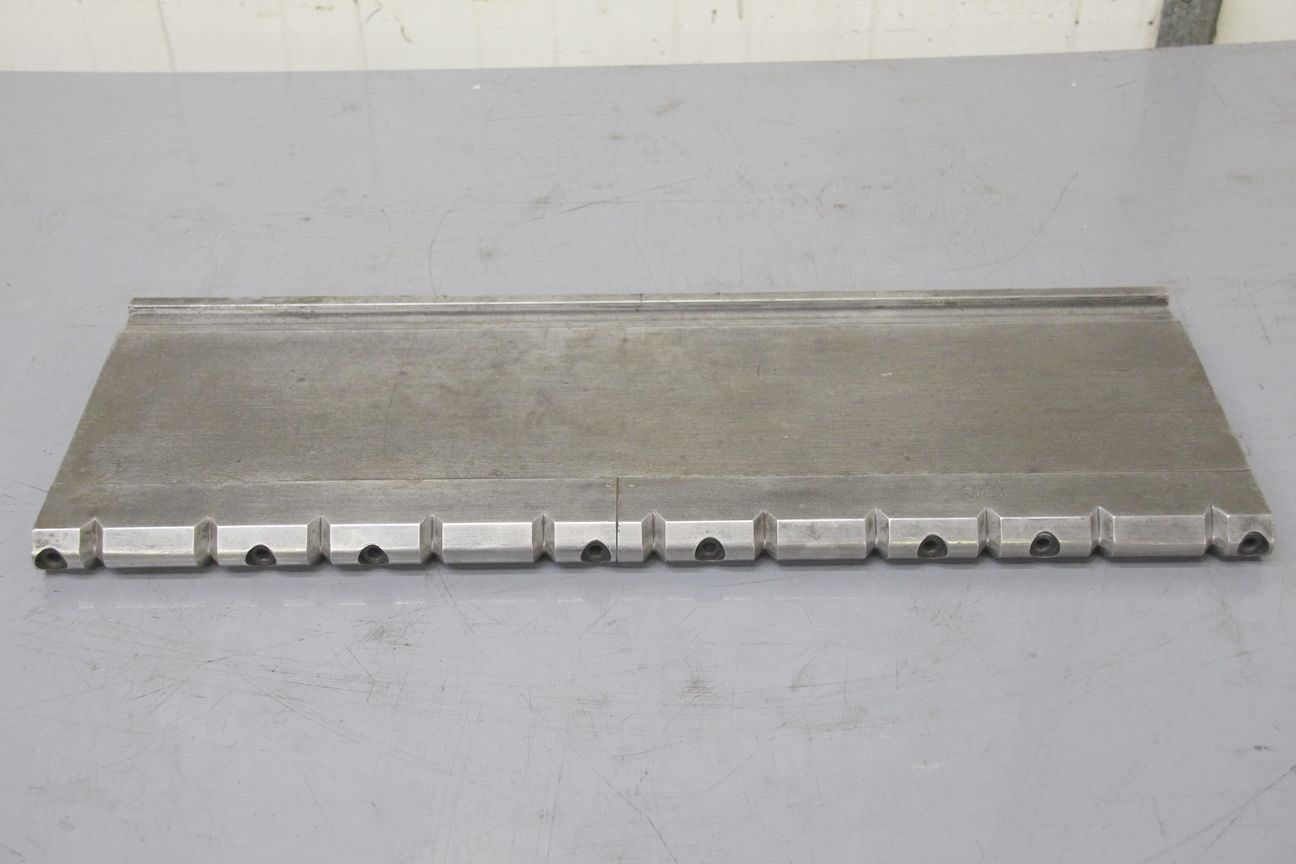

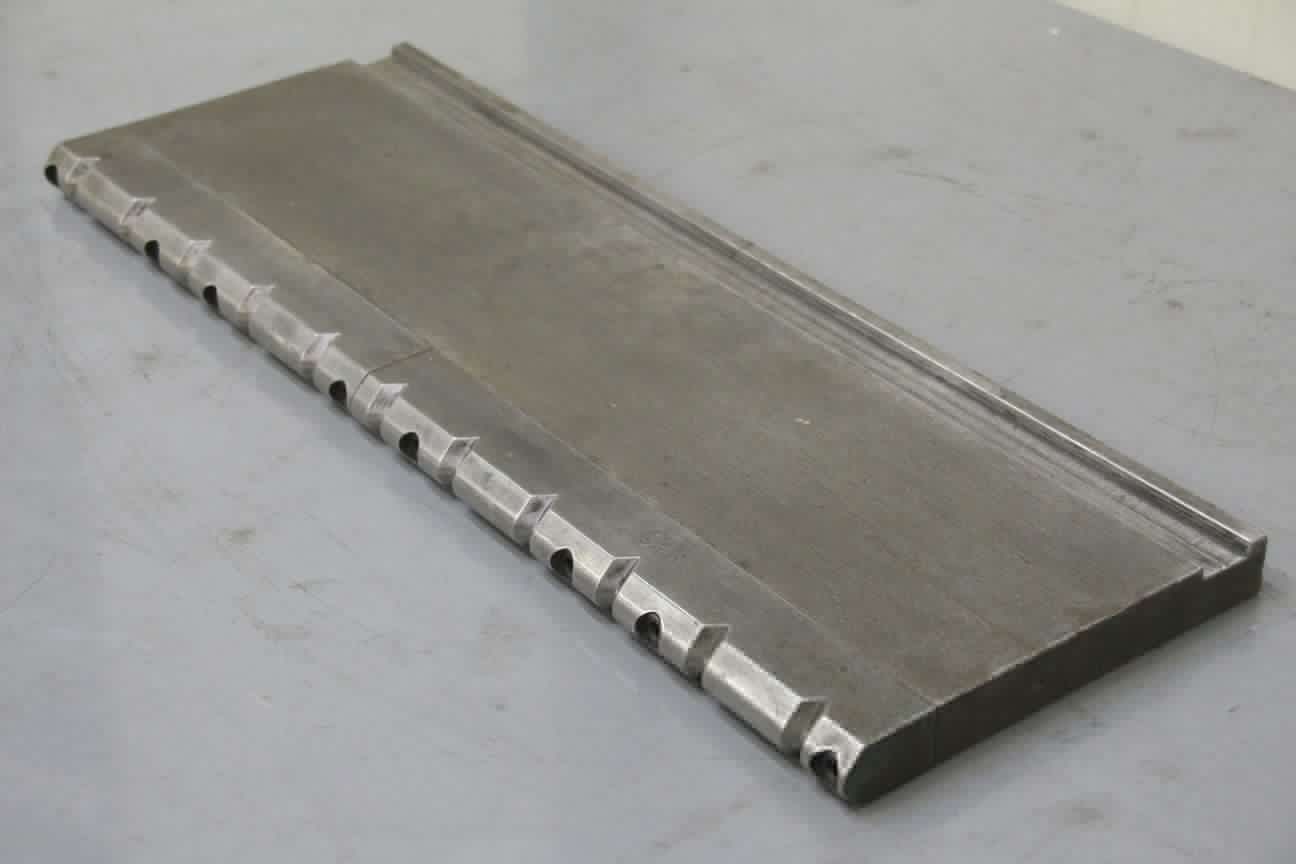

Bending tool, die, upper knife, upper tool, straight tool-Tool for: press brake-Tool for: wire mesh, mesh wire-Wire division: 50 mm-Thickness: 25 mm-Drawing with the pictures-Total length: 550 mm-Total height: 194 mm-Weight: 20 kg

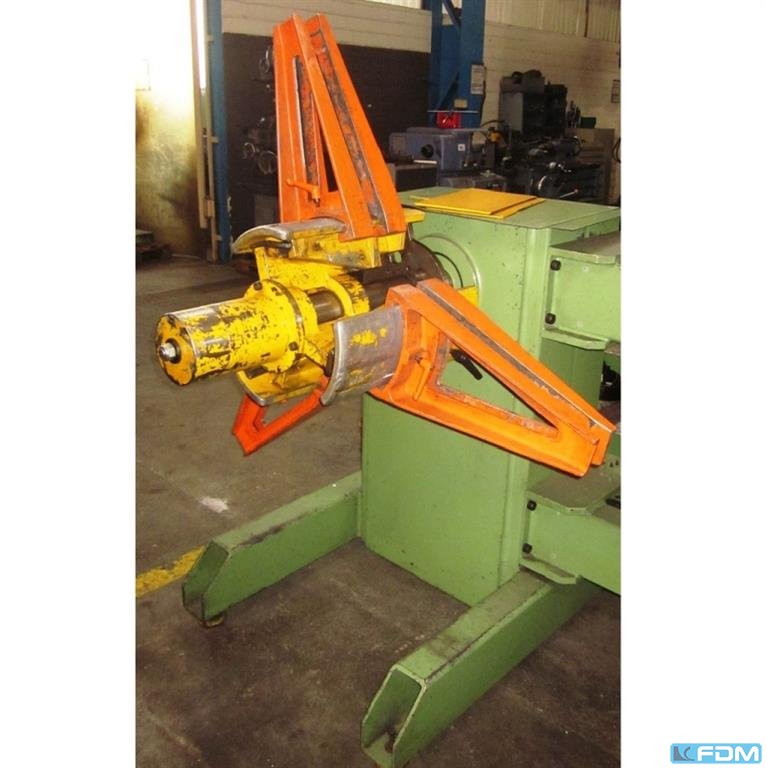

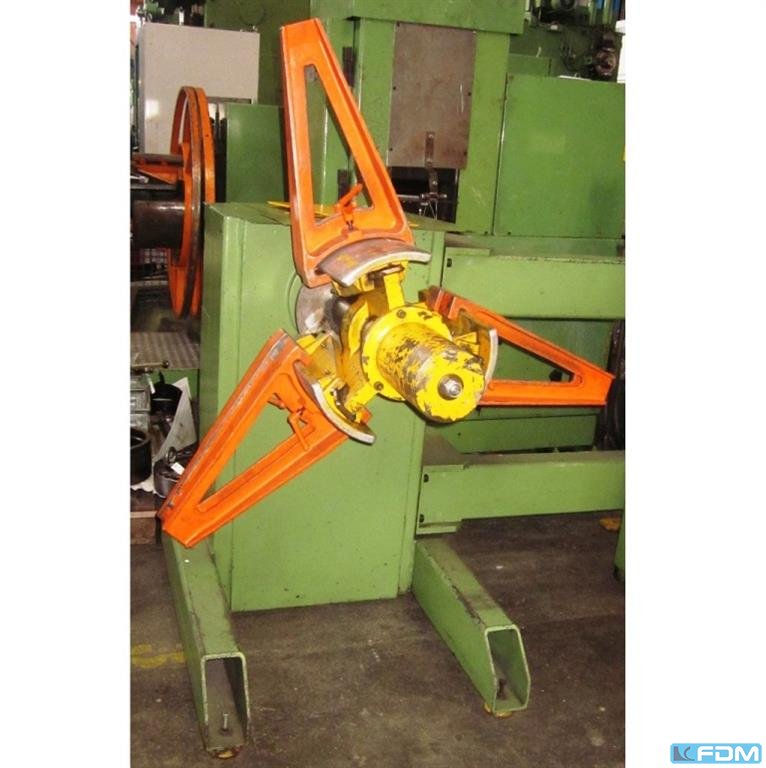

material width:300 mmcoil weight:0,5 tcoil internal diameter:420 - 520 mmcoil external diameter:1400 mmweight:0,6 tdimensions (WxDxH):0,8 x 1,2 x 1,7 mexpansion:pneumatic

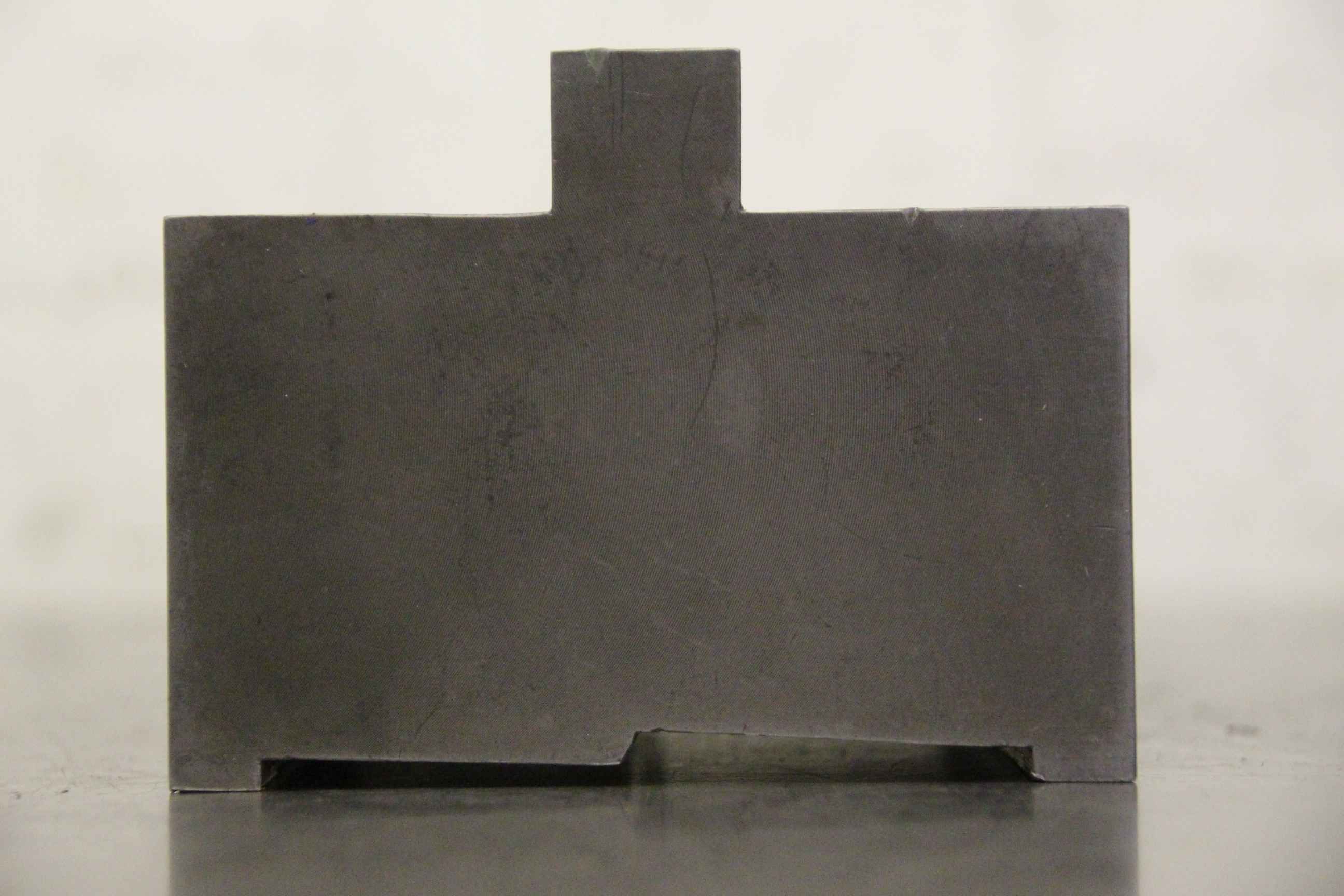

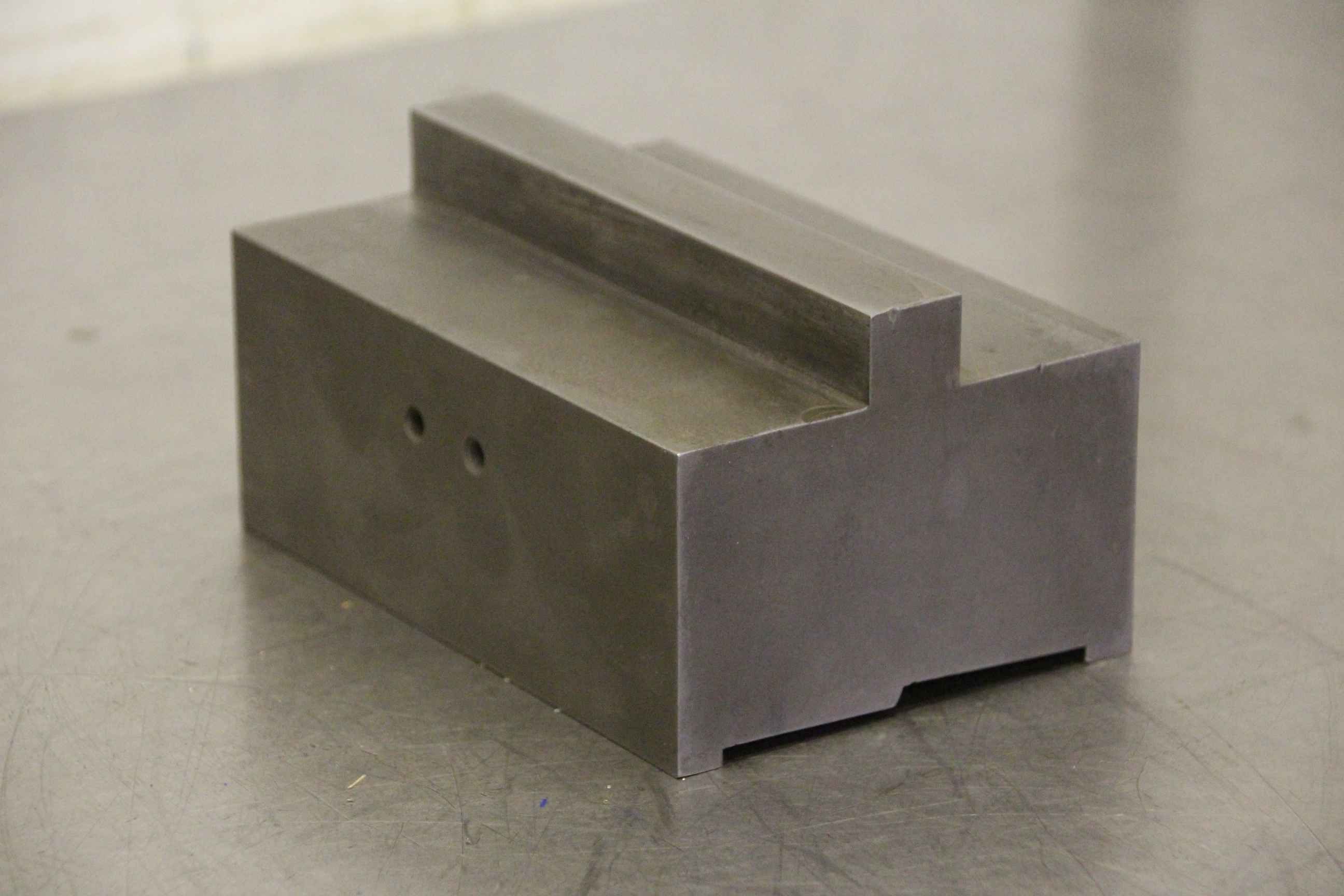

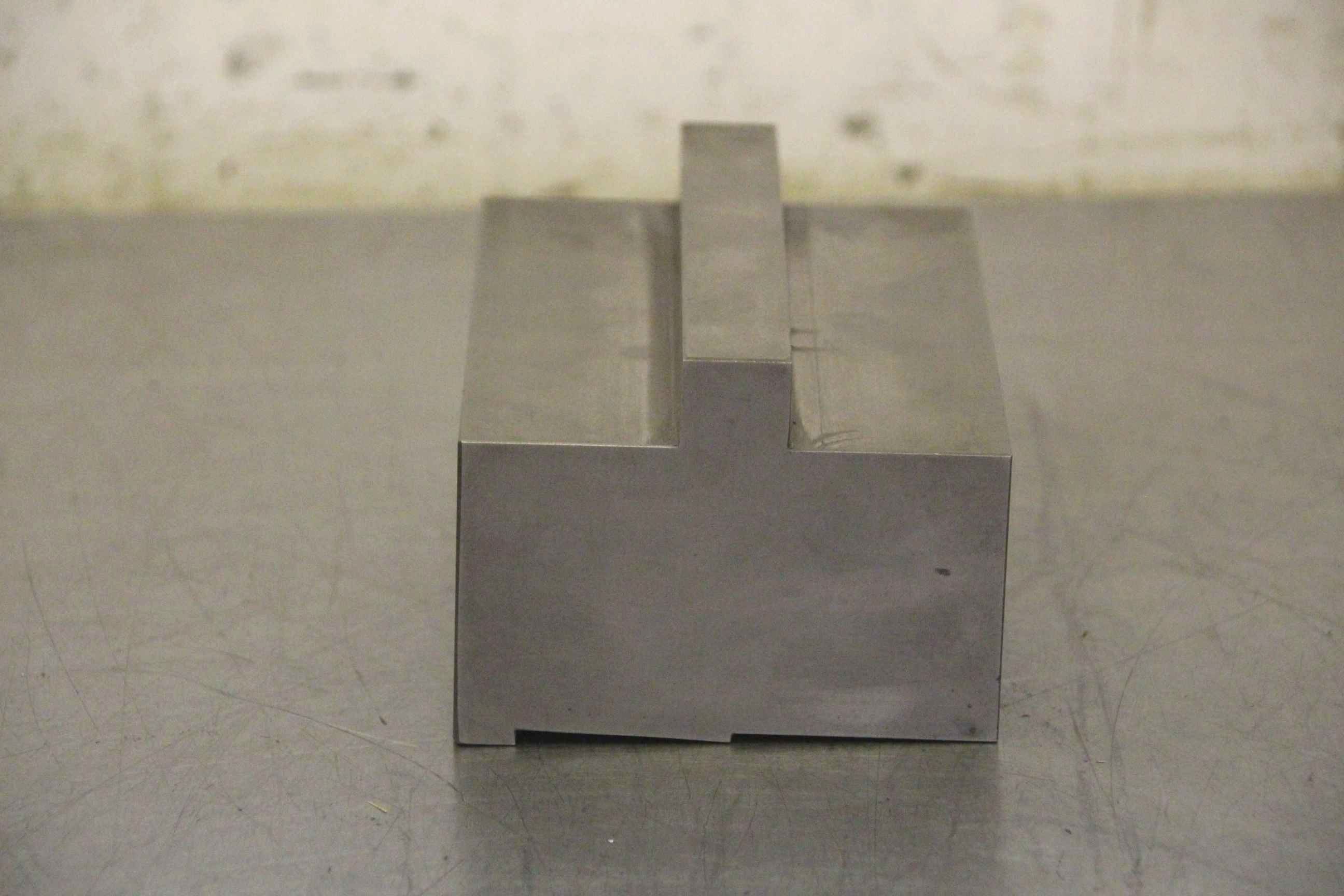

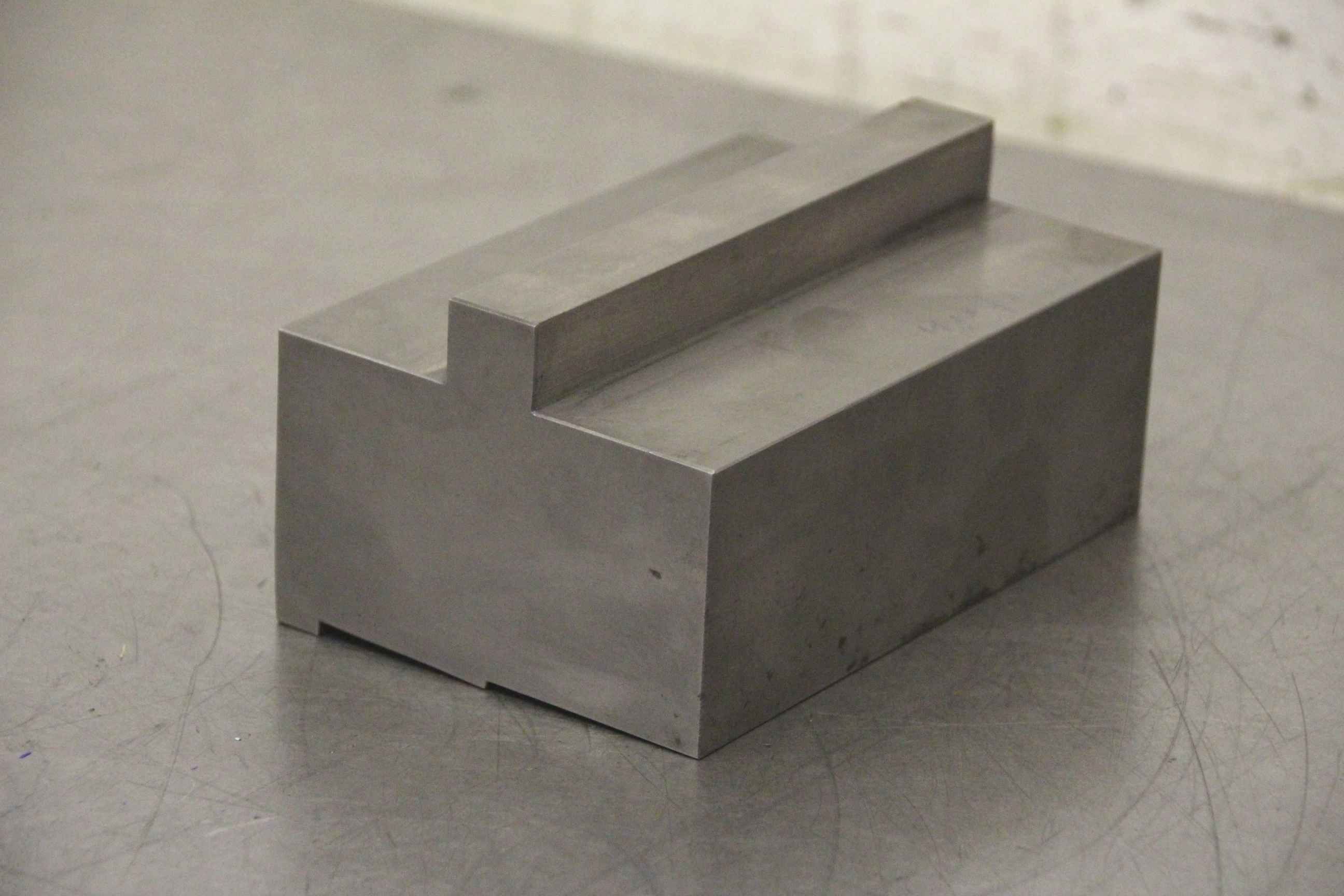

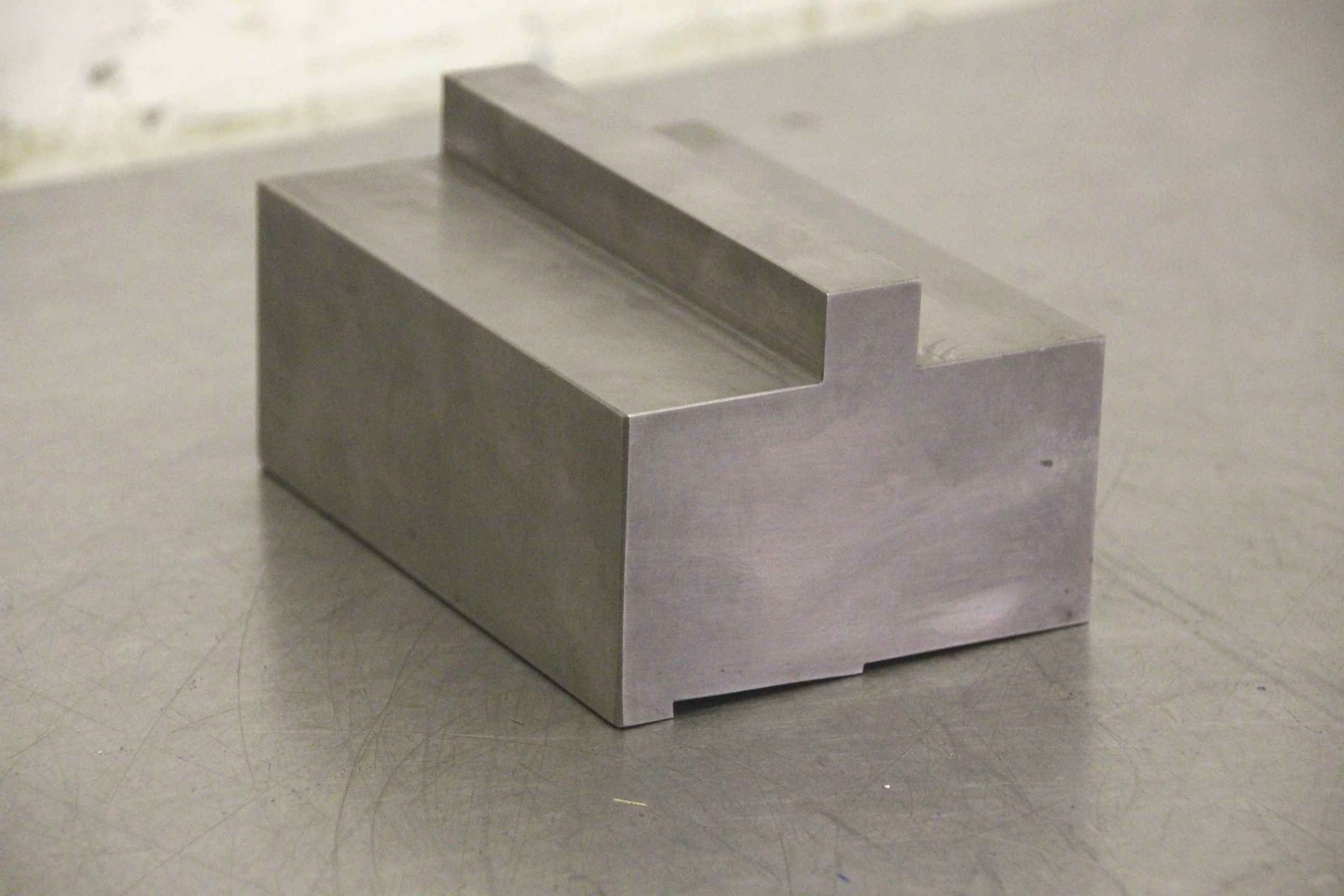

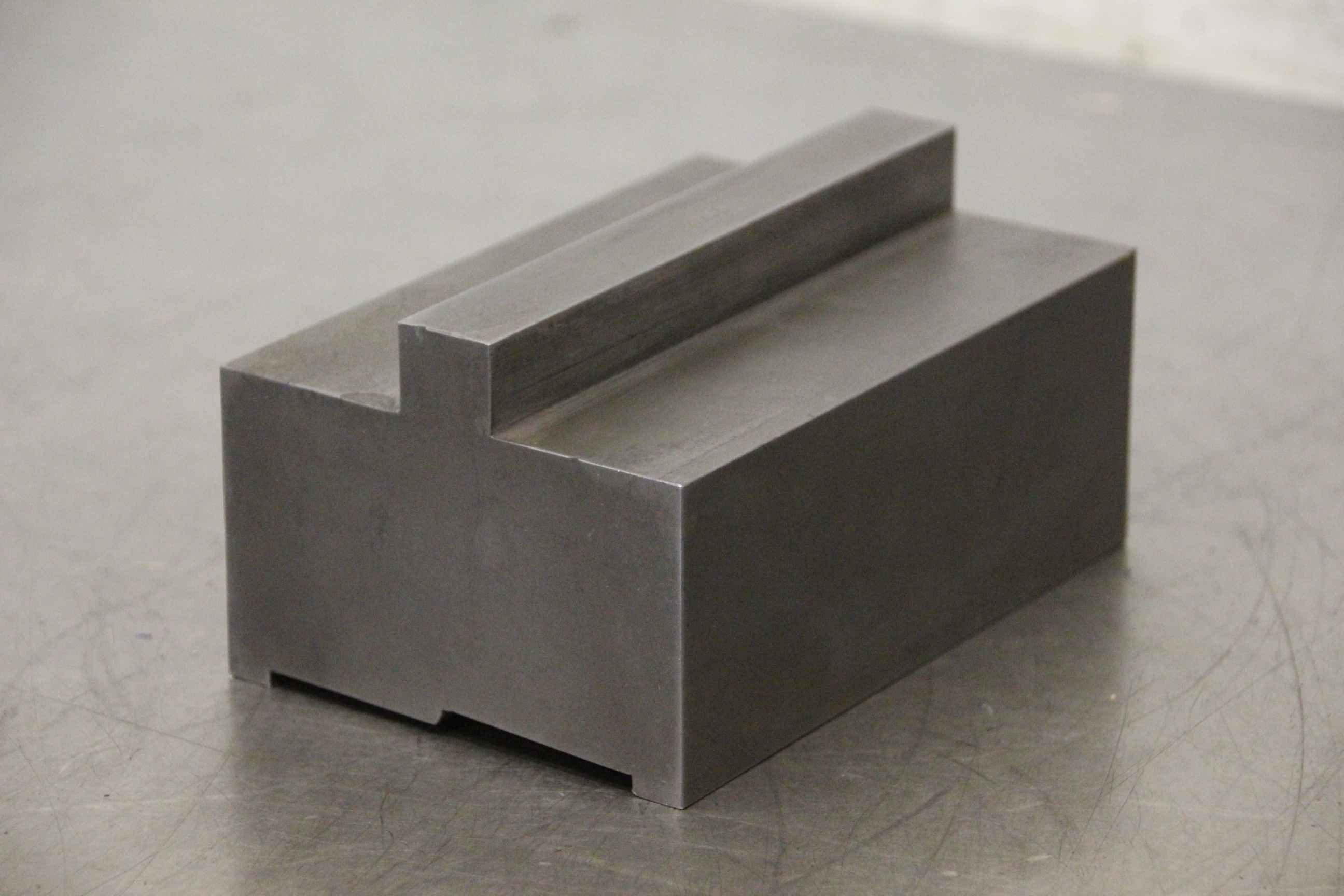

Bending tool, die, lower knife, lower tool, prism tool, reversible prism, 1-part die block for die bending machine, die tool, hemming tool-Tool: for press brake, die / hemming tool-Measures: see drawing in the photos-Dimensions: 150/101 / H75 mm / 150/77 / H159 mm-Weight: 7.2 kg / 11.4 kg

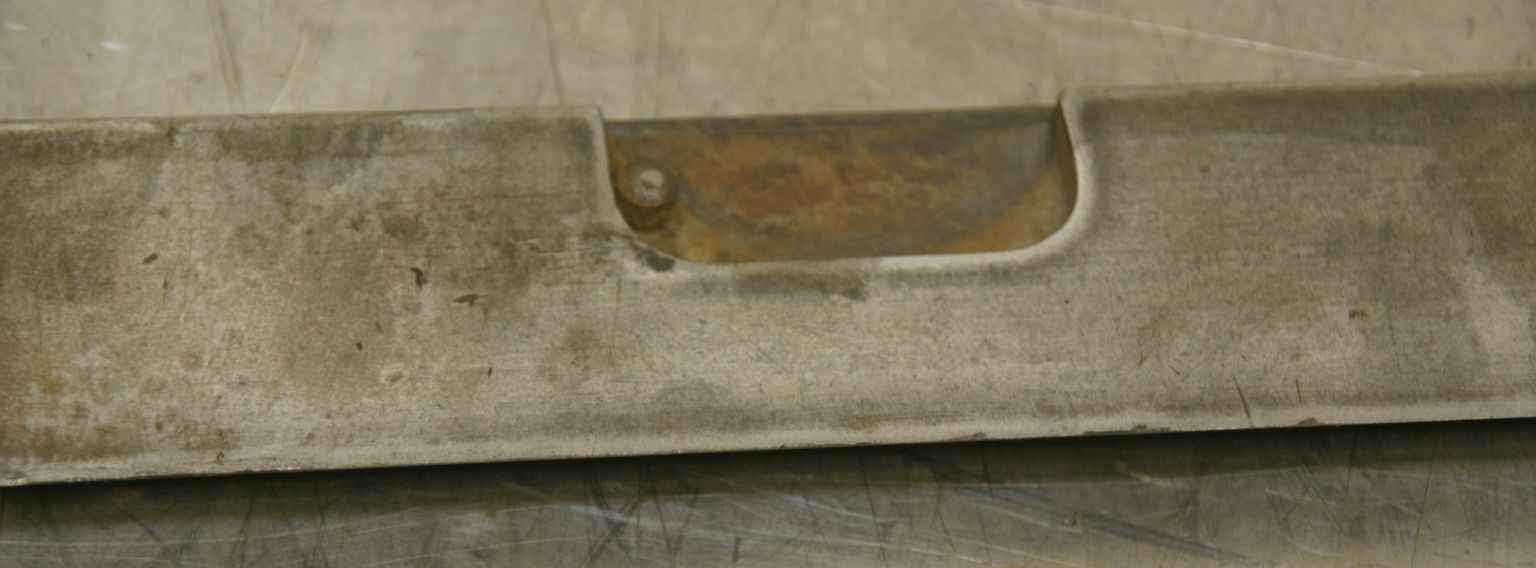

Replacement knife for table shears, replacement blades, cutting knives, shear knives-Number: 2x knives available-Angle honed: 90°-Dimensions: 20 x 80 mm-Lengths: 2x 2397 mm-Hole spacing from: 73/125/200/200/200/200/200/200/200/200/200/200/200/125/73 mm-Threaded hole-Price: complete-Weight: 56 kg

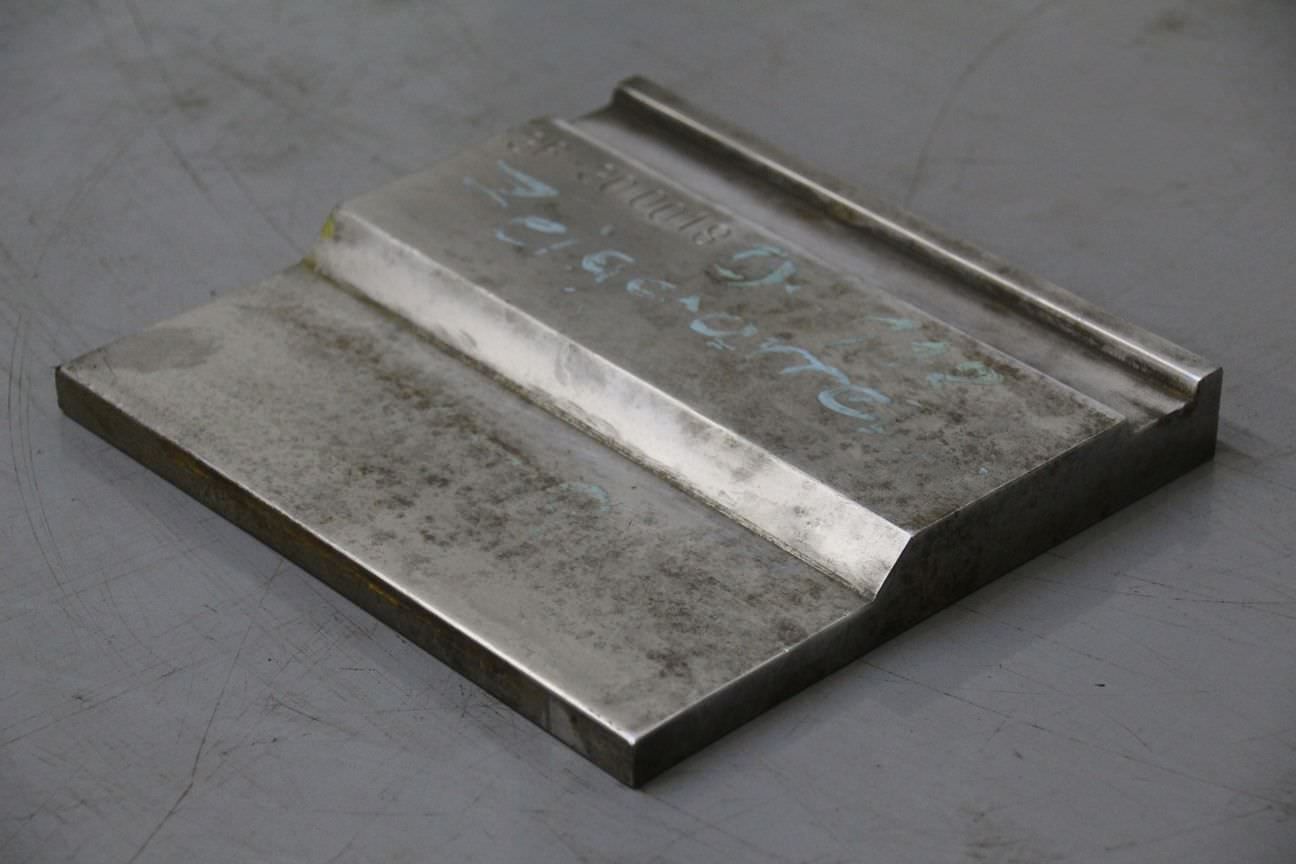

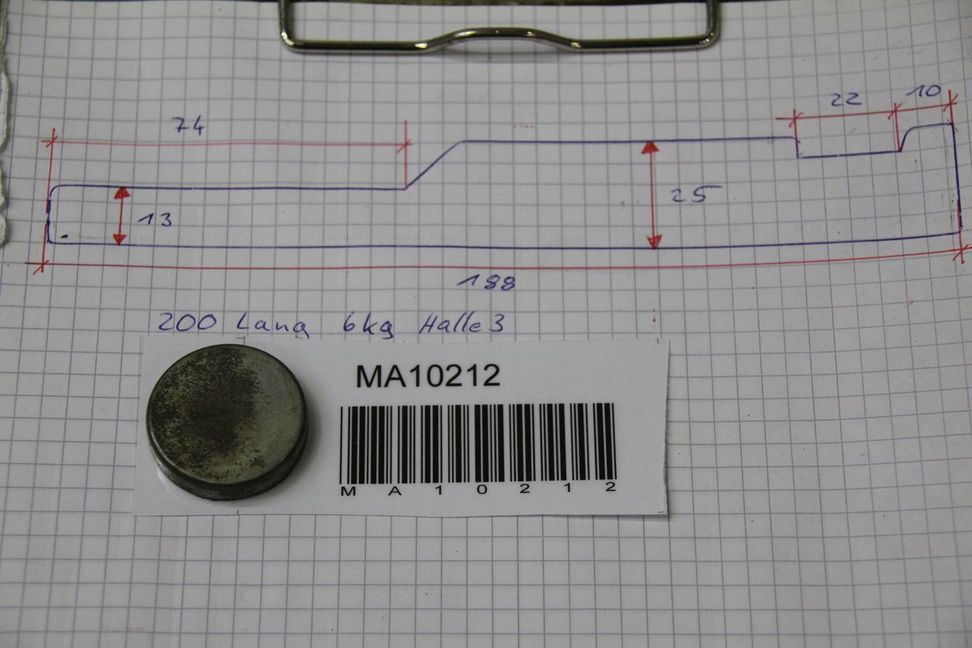

Bending tool, die, upper knife, upper tool, straight tool-Tool for: press brake-Tool as: die-Thickness: 25/13 mm-Drawing with the pictures-Total length: 200 mm-Total height: 188 mm-Weight: 6 kg

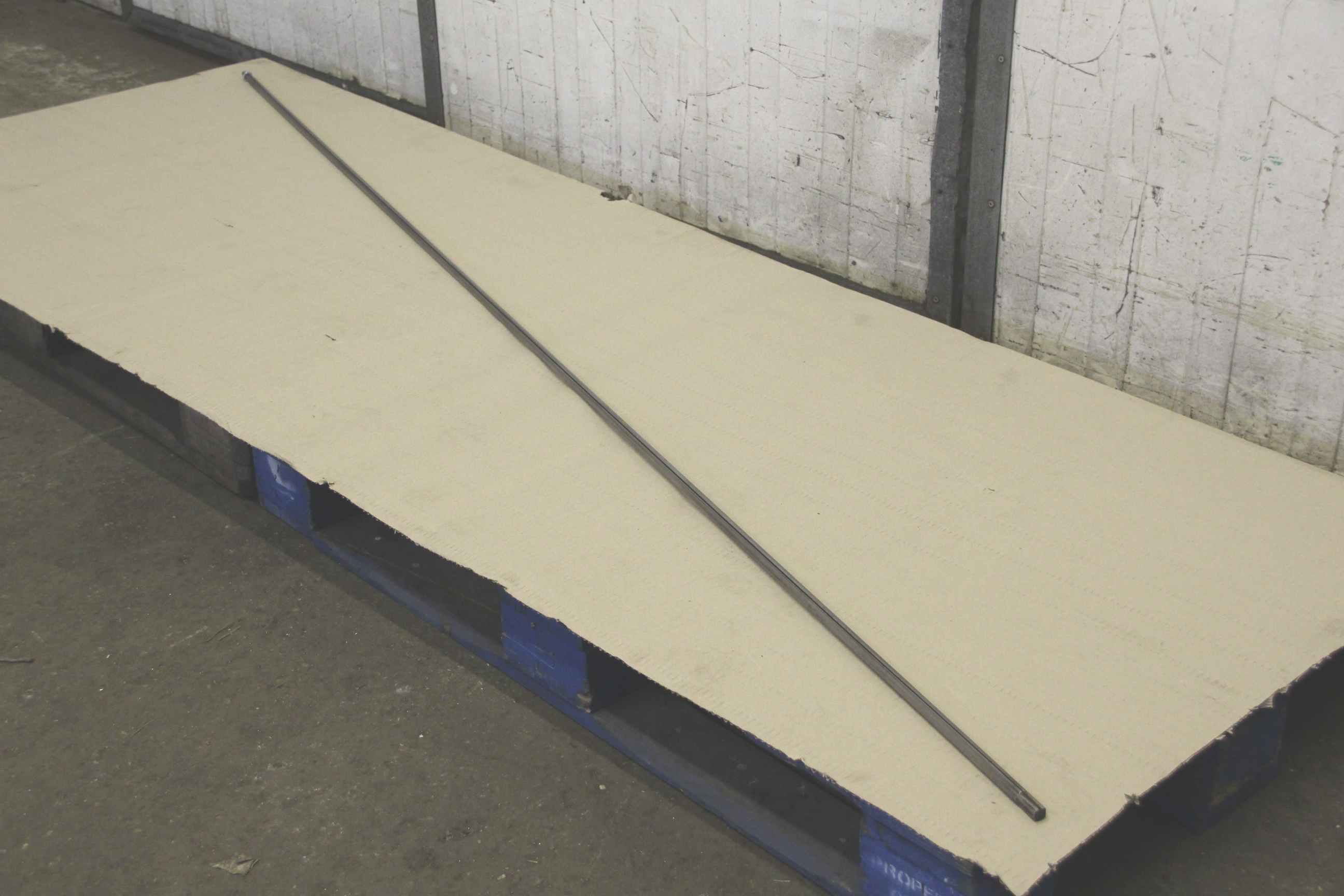

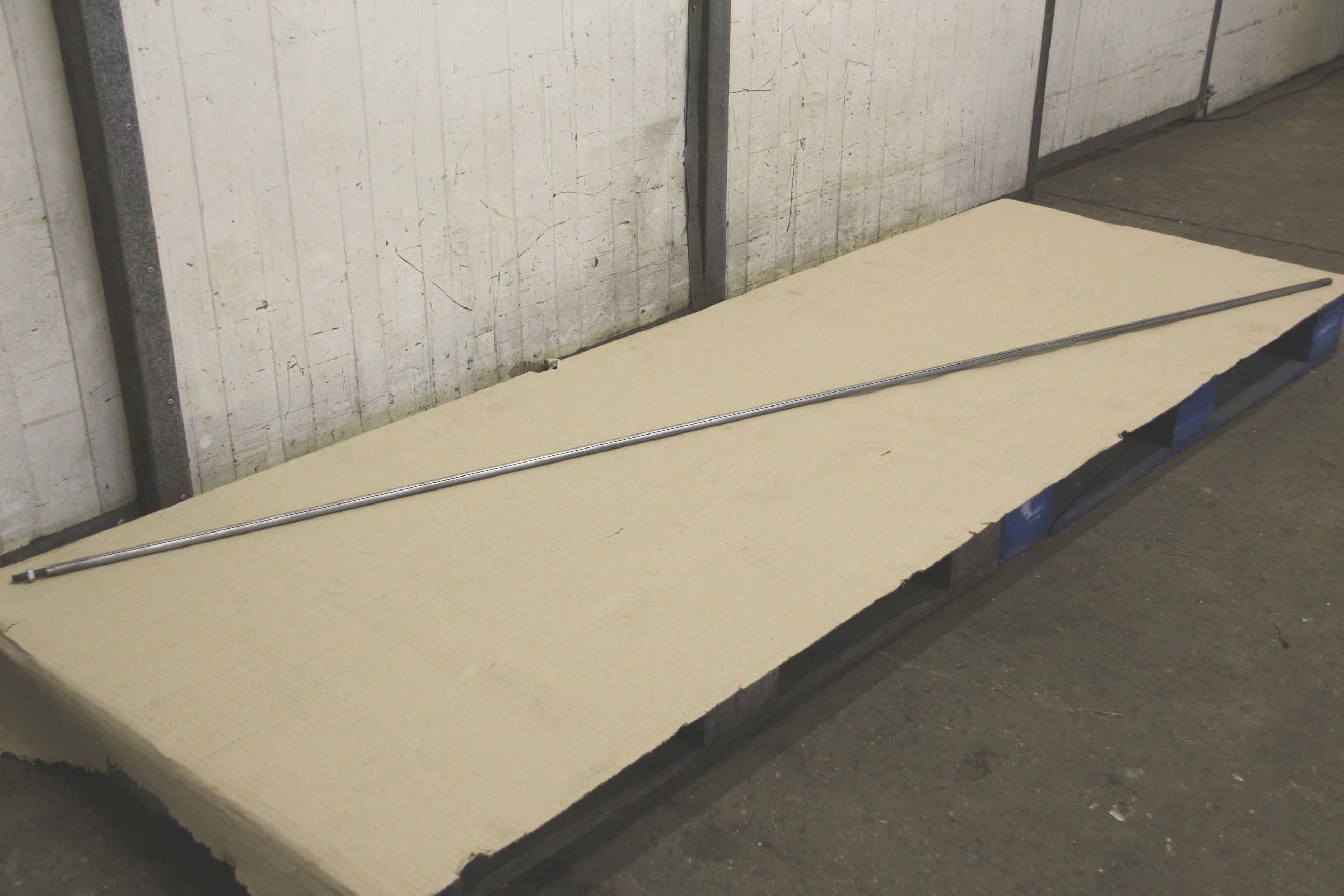

Stop shaft for Peddinghaus, Mubea, profile steel scissors, stop rail, stop rail-Stop: shaft Ø 16 mm-Takes: square 12 x 12 mm/M10 x 1,5-Dimensions: Ø 14 x 2405 mm-Weight: 2,7 kg

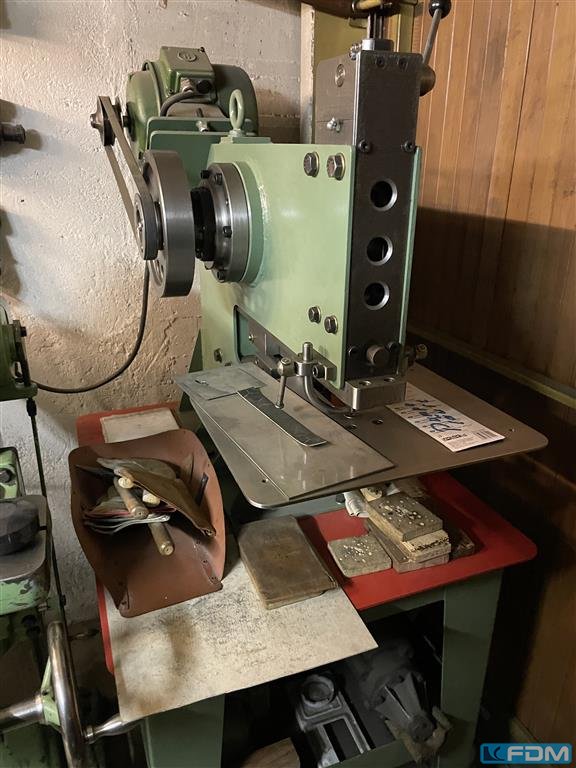

sheet width:400 mmplate length:500 mmplate thickness:4 mmtotal power requirement:0,5 kWPunching and Nibling machine with 6 x 3 mm nibling and 4 mm for cuting

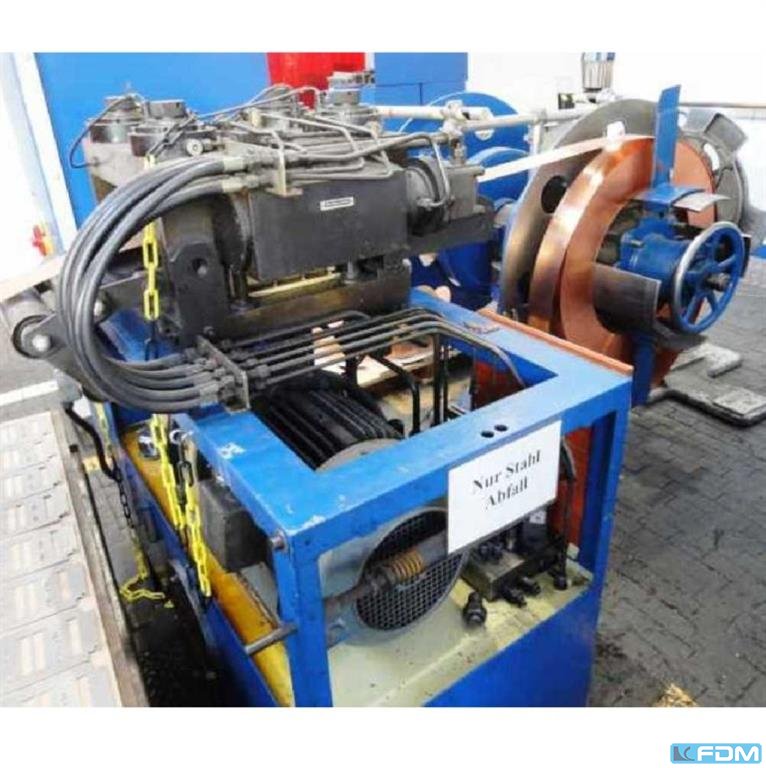

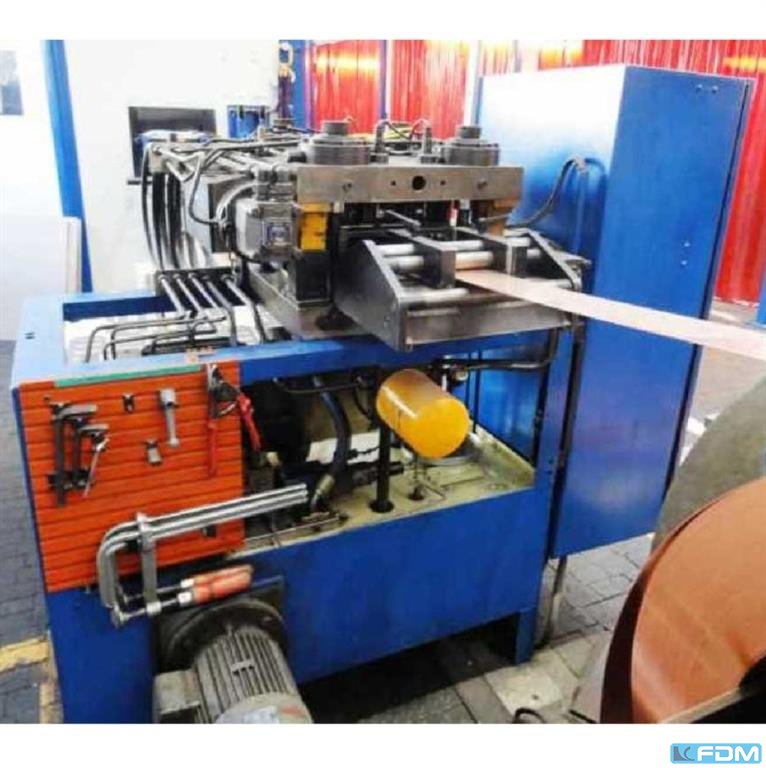

material width:250 mmmaterial thickness:0,25 - 3,0 mmno. of straightening rolls:11 straightening roll diameter:30 mmspeed:6 - 60 m/minpower requirement:15,0 kWweight:1,1 tdimensions (WxDxH):1,1 x 1,7 x 1,5 mstriaghtening pressure automatic:hydraulic coil loof control:ultrasonic
: neu : ca. 10 Wochen ab Auftrags : Türkei : 43550 €: 831.81 €: 1550 mm: 12 mm: 12 mm: 10 mm: 10 mm: 8 mm: 220 mm: 200 mm: 160 mm: 1,5 / 6 m/min: 5.5 kW: 3900 mm: 1150 mm: 1250 mm: 3600 kg4 rollsTop rolll driven by hydromotor and planetary gearbox, bottom roll driven by gear and cardan systemPinch roll and latereal rolls move with hydraulic cylindersDigital read-out for lower and side rolls positionHardened rollsConical bending deviceHydraulic load relieving of upper rollHydraulic drop-end bearing2 working speedsProtectionagainst overloadMoveable control paneAccording to CE rulesOPTIONAL EQUIPMENT:Infinitely adustable speed of rollsHydraulic side supportHydraulic top supportNC controlIMPORTANT ISSUES AT CONICAL BENDING:The max. sheet metal thickness isequivalent to 50 % of nominal capacityThe cone length can be max. 30 % oremust be more than 60 % of roll lengthHardened rolls are rec ...
material width coil line:600 mmcoil weight:2 x 3,5 tcoil internal diameter:460 - 530 mmcoil external diameter:1500 mmmaterial thickness coil line:0,5 - 3,0 mmno. of straightening rolls:7 no. of rolls at in- and outlet:4 roll diameter:80 mmfeed length:0 - 500 mmpower requirement:10,0 kWweight:10,0 tdimensions of the coil line:8,8 x 4,0 x 2,55 mstraightening machine:Dimeco, 1676 EV double decoiler:2382 FFPS lag brake:pneumatic electronic roll feed:Microfeed

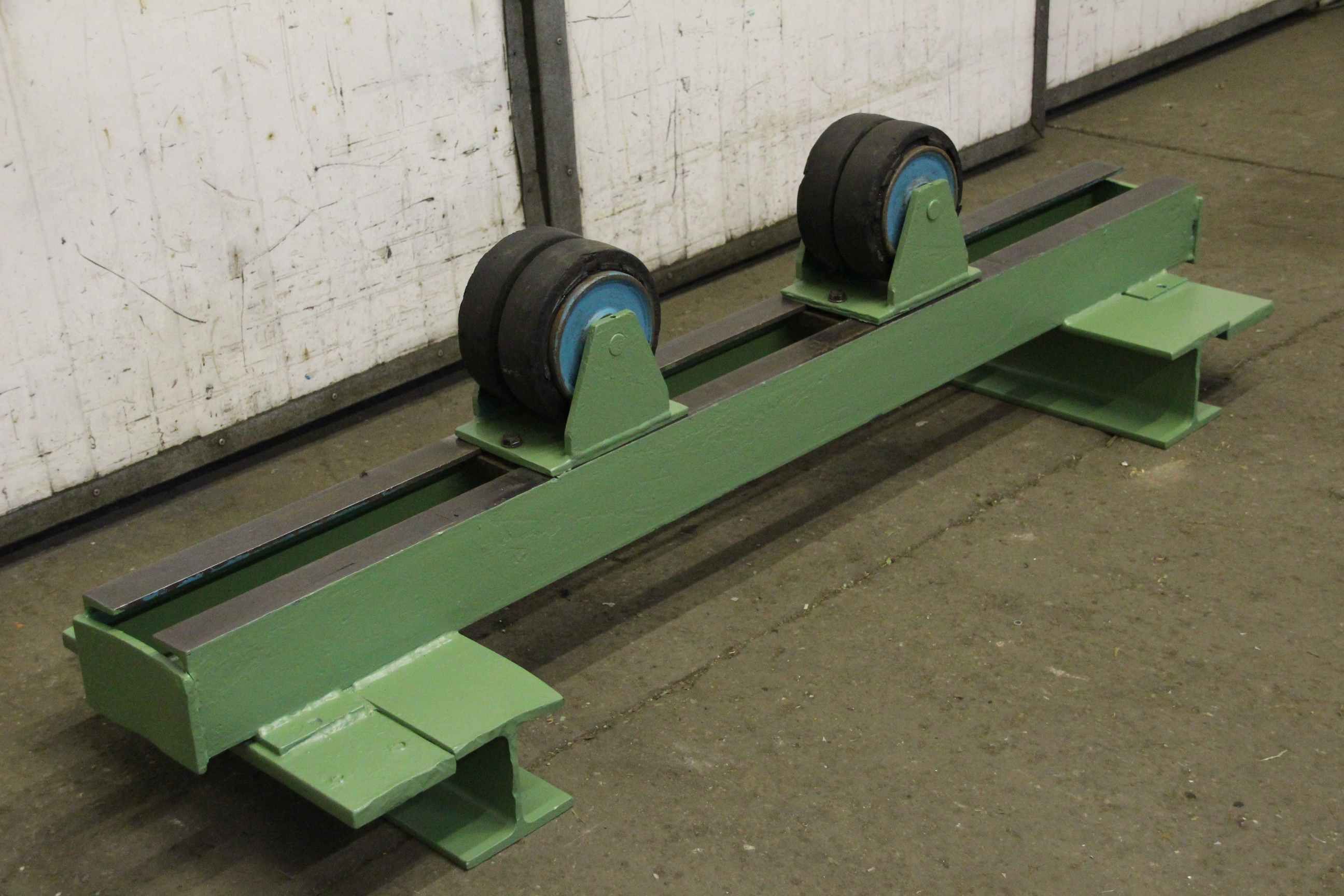

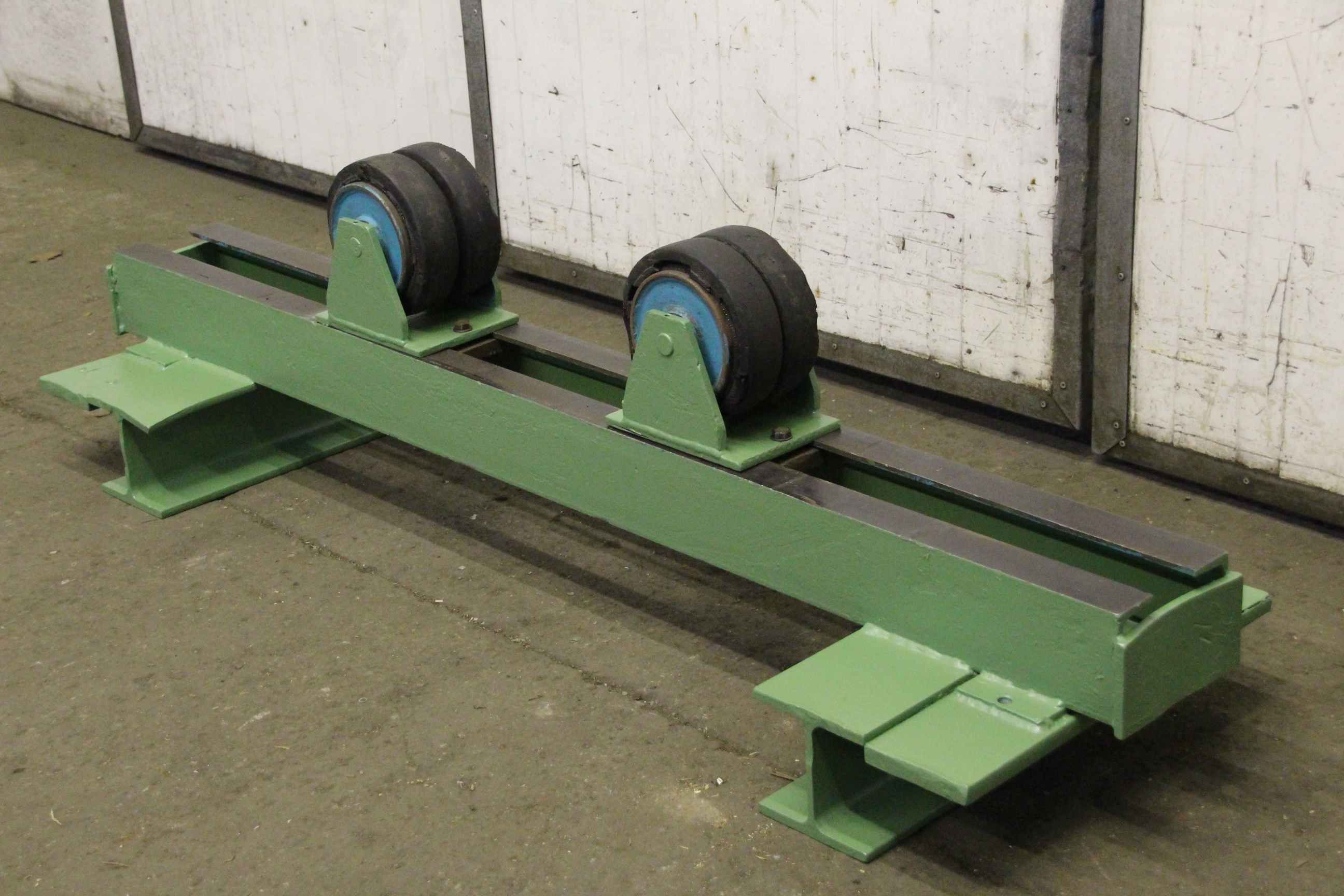

Container turning device, welding turning device, roller block, rotators, pipe straightening system, roller block turning device -Roller block: container rotating device -Roller spacing: 215 to 1470 mm -Rollers: Ø 200 mm -Load capacity: about 2000 kg -Number: 1 piece available -Dimensions: 1720/500/H500 mm -Weight: 136 kg
Ring bending machine, profile bending machine, three-roll bending machine, bending machine -Profile diameter: 50 mm -Radius: approx. 220 mm -Dimensions: 490/305/H60 mm -Weight: 27 kg

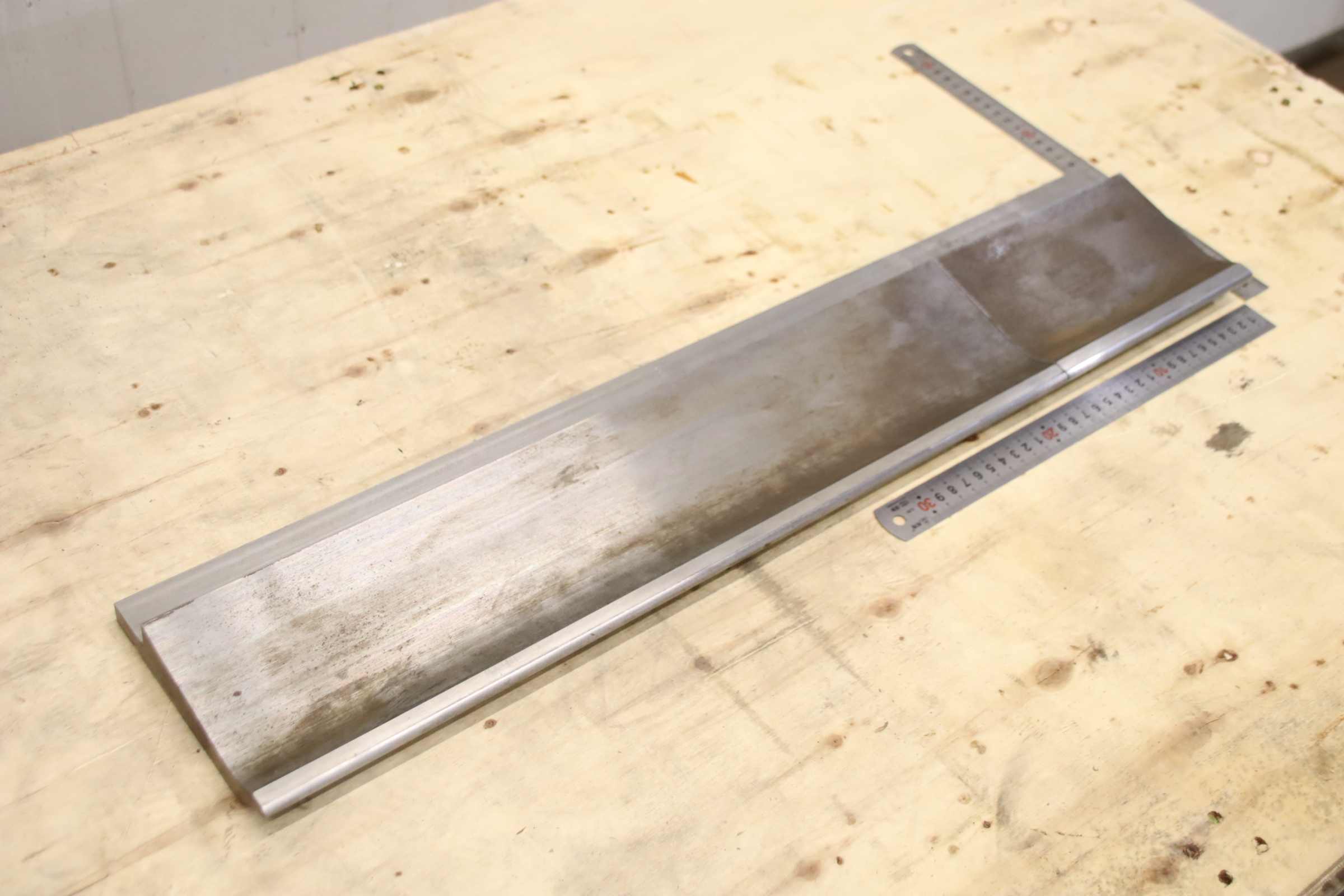

Bending tool, die, upper knife, upper tool, upper beam-Tool: for folding machine-Dimensions: 60 x 15 mm-Length: 1020 mm-Weight: 6 kg
material width:800 mmcoil weight:12,0 tcoil internal diameter:470 - 520 mmcoil external diameter:1500 mmmaterial thickness:0,4 - 2,5 mmno. of straightening rolls:8 straightening roll diameter:53 mmnumber of draw-in rolls:2 inlet roll diameter:160 mmspeed:35 m/minmaterial thickness at 150 mm material width:2,5 mmmaterial thickness at 650 mm material width:1,5 mmmaterial thickness at 800 mm material width:1,0 mmstraightening machine:RM 8-53/160-800 decoiler:HE 200-1000

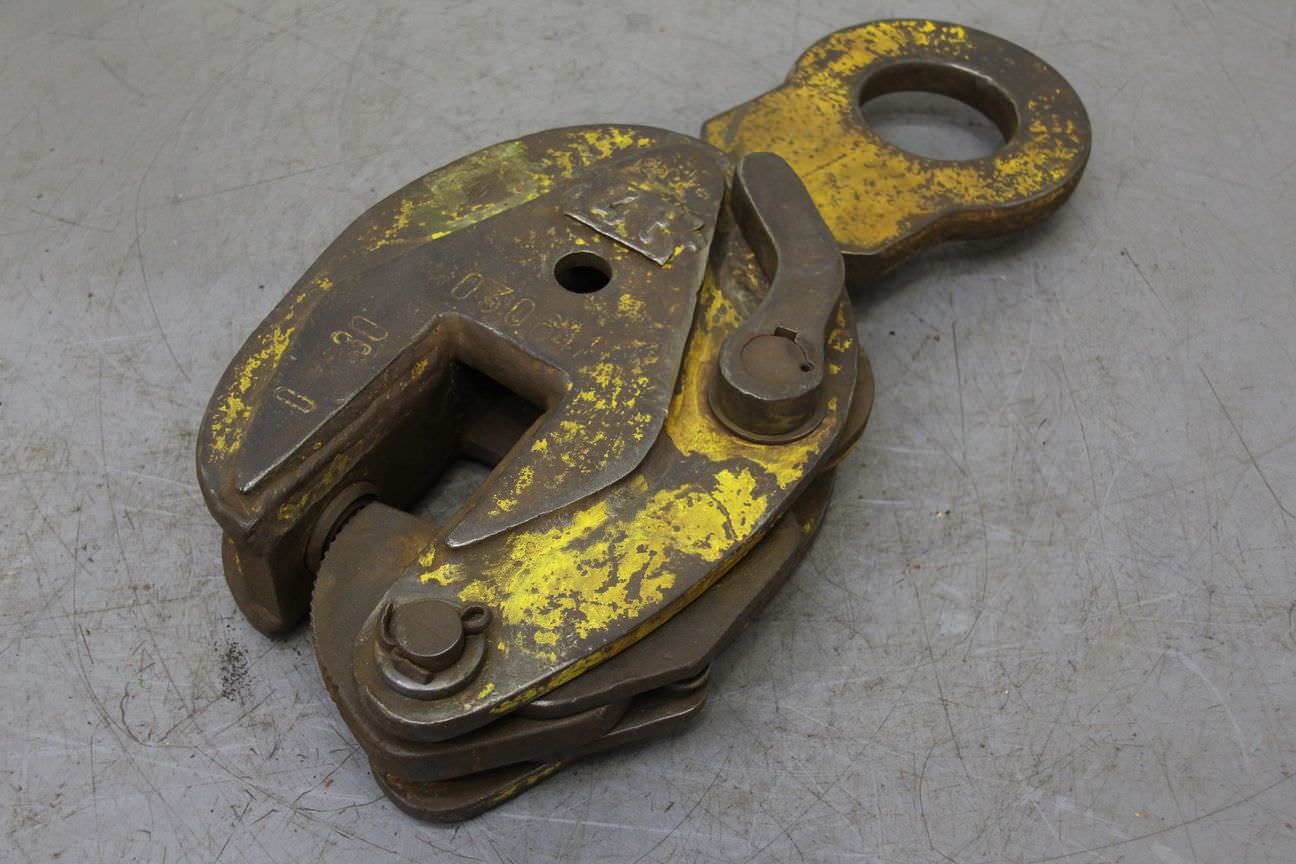

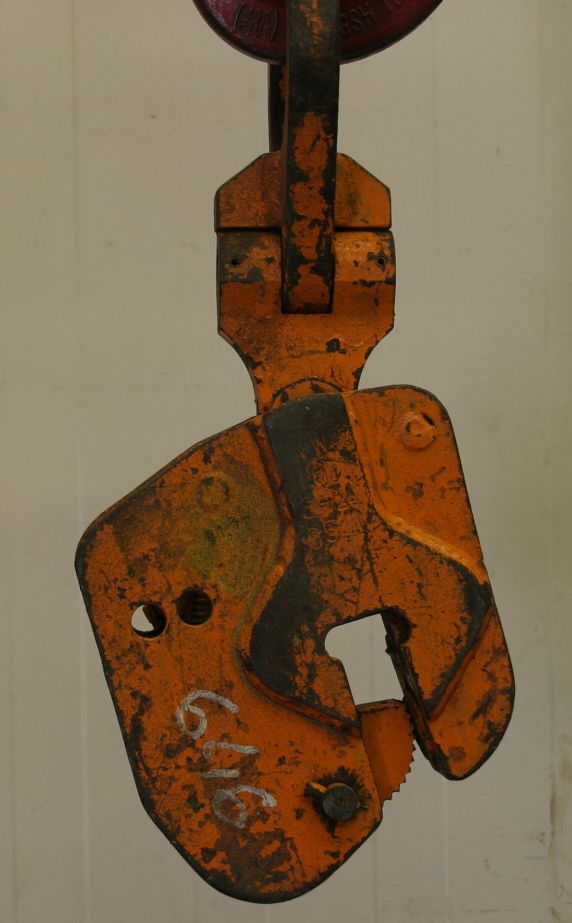

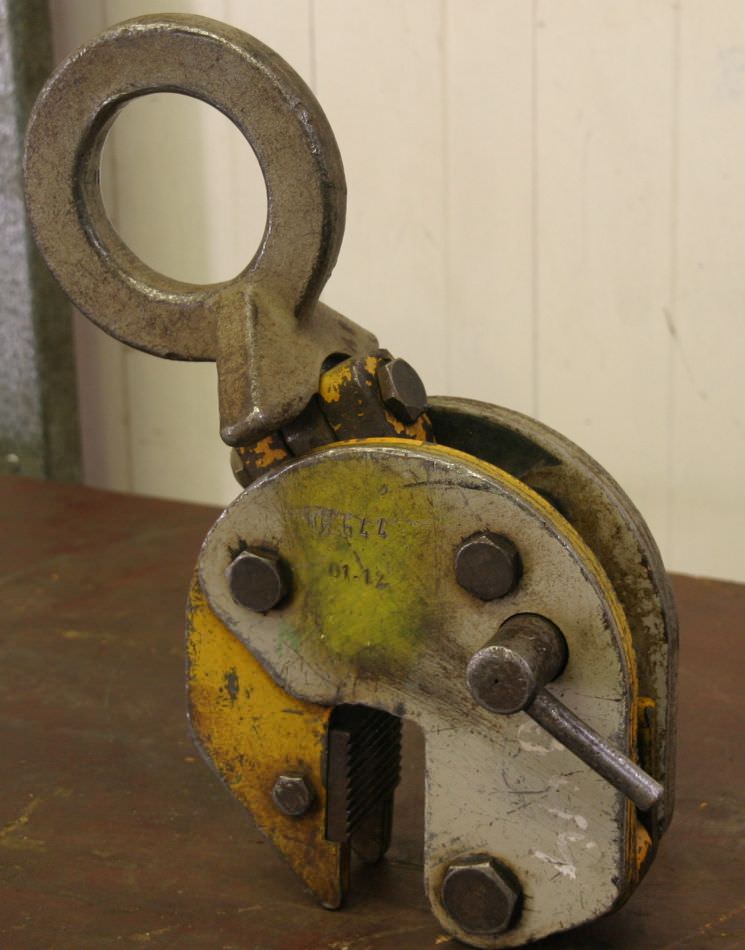

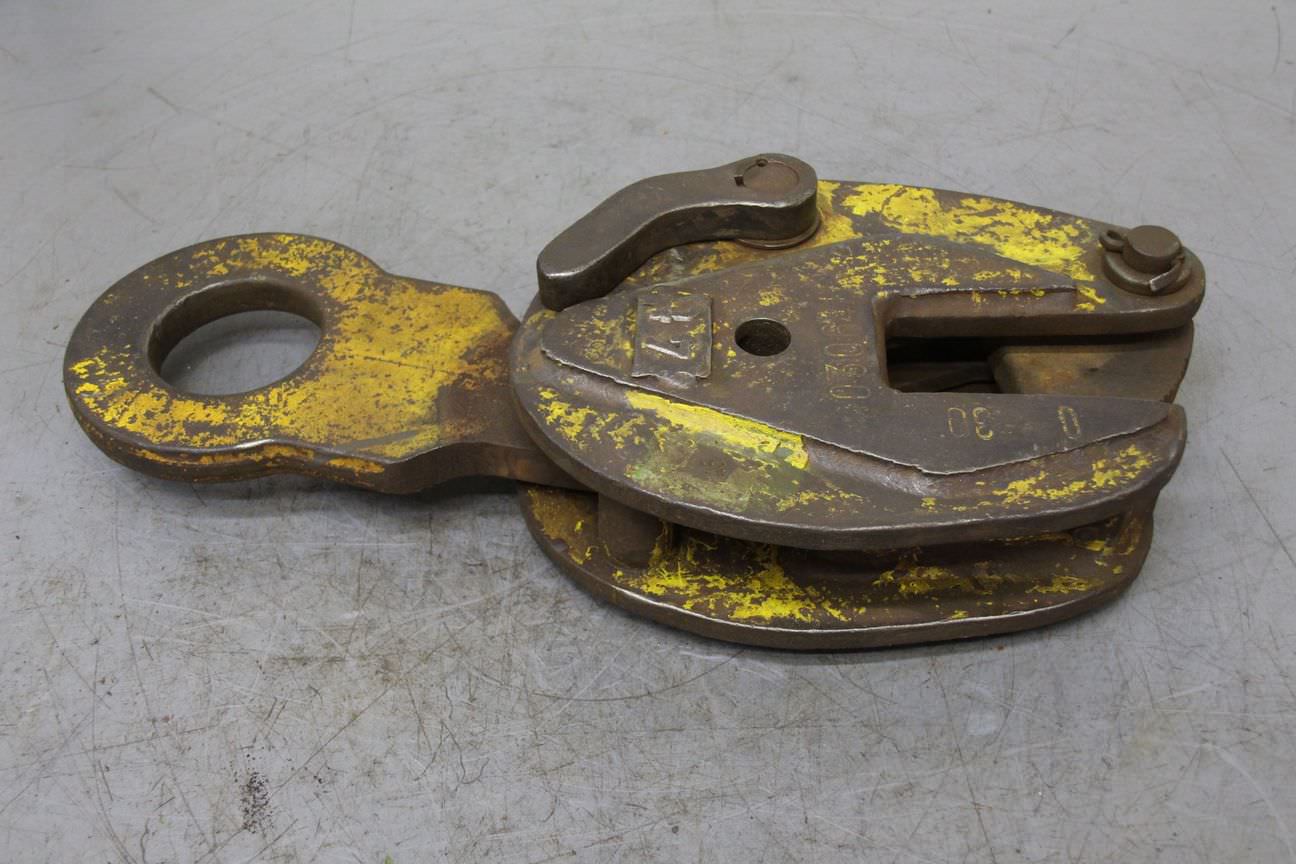

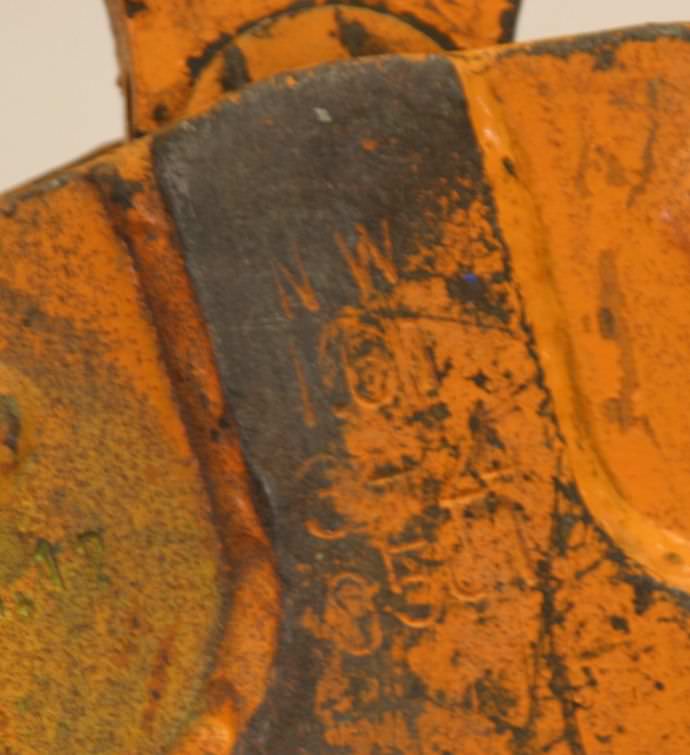

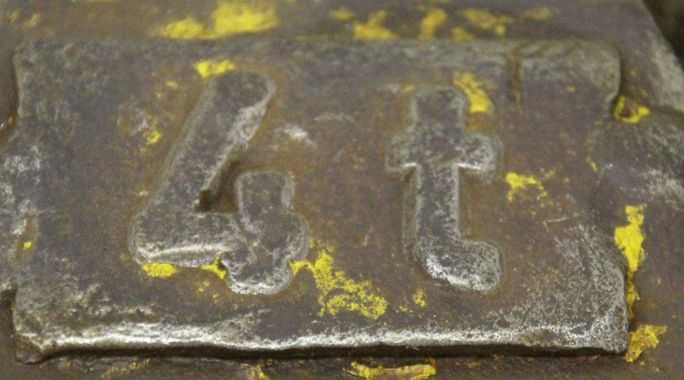

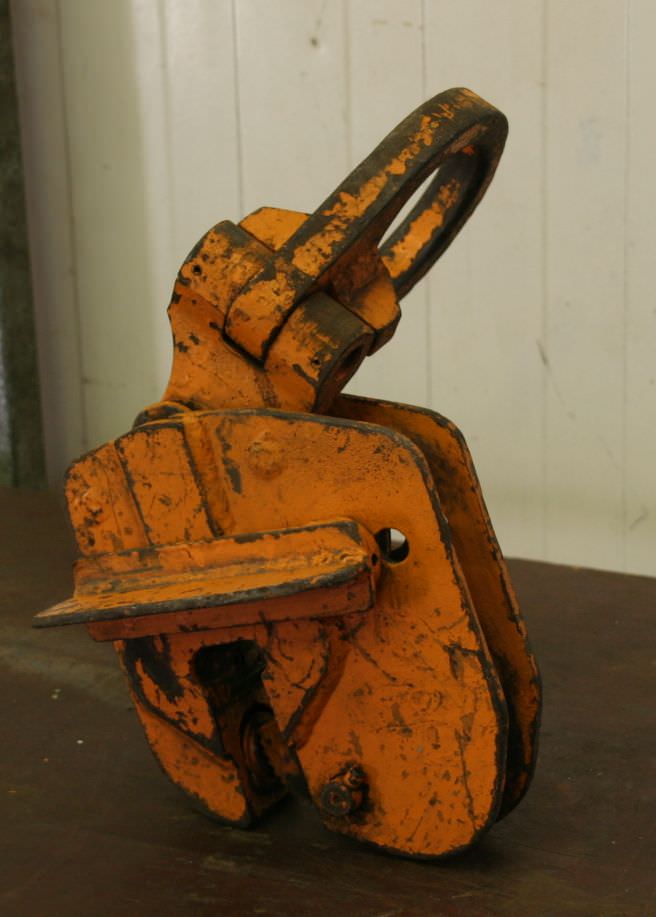

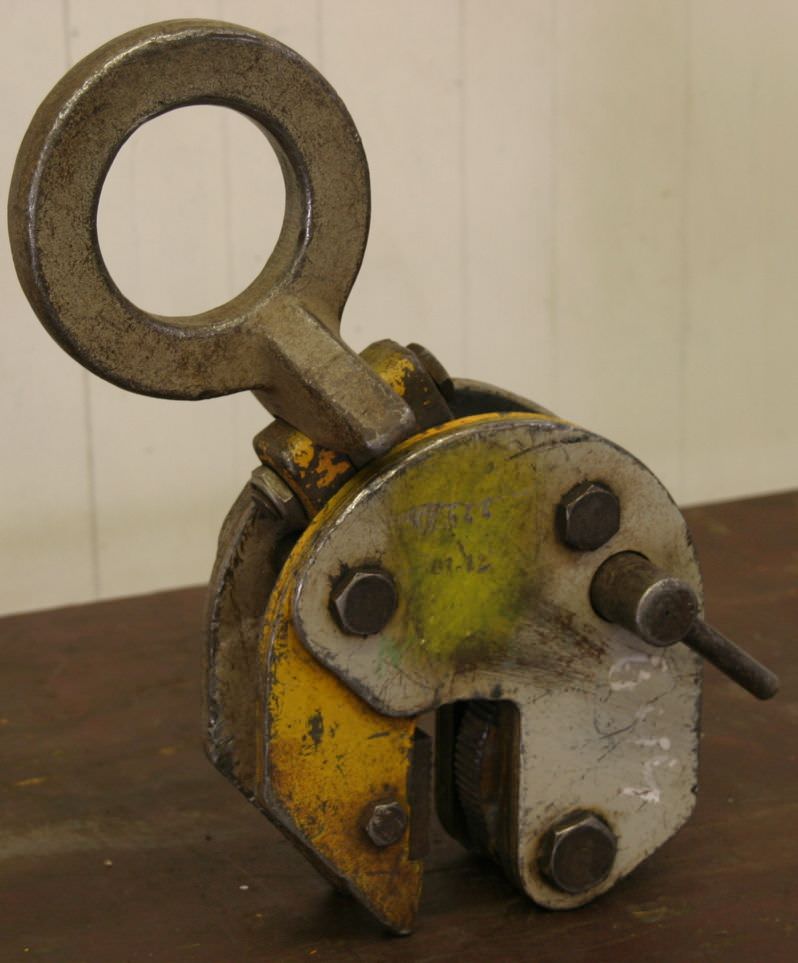

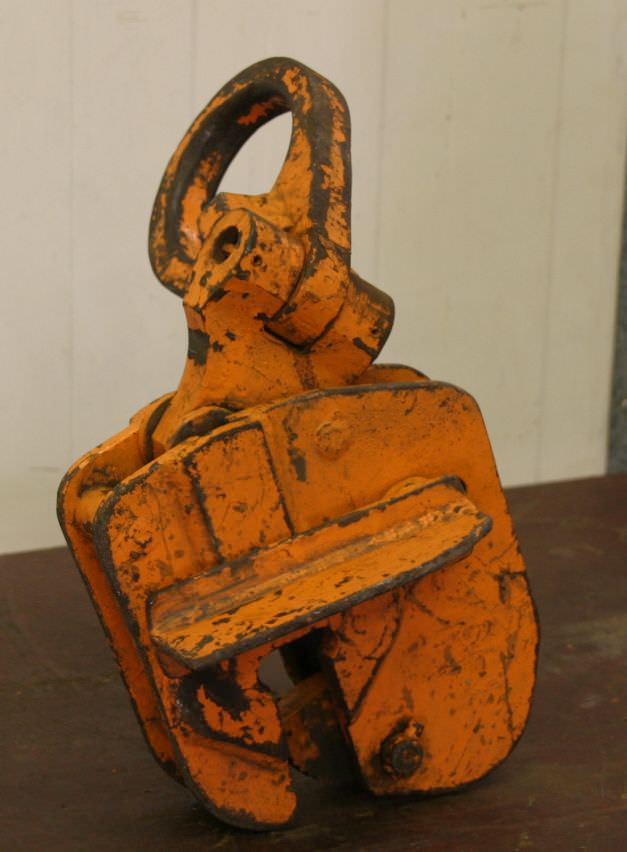

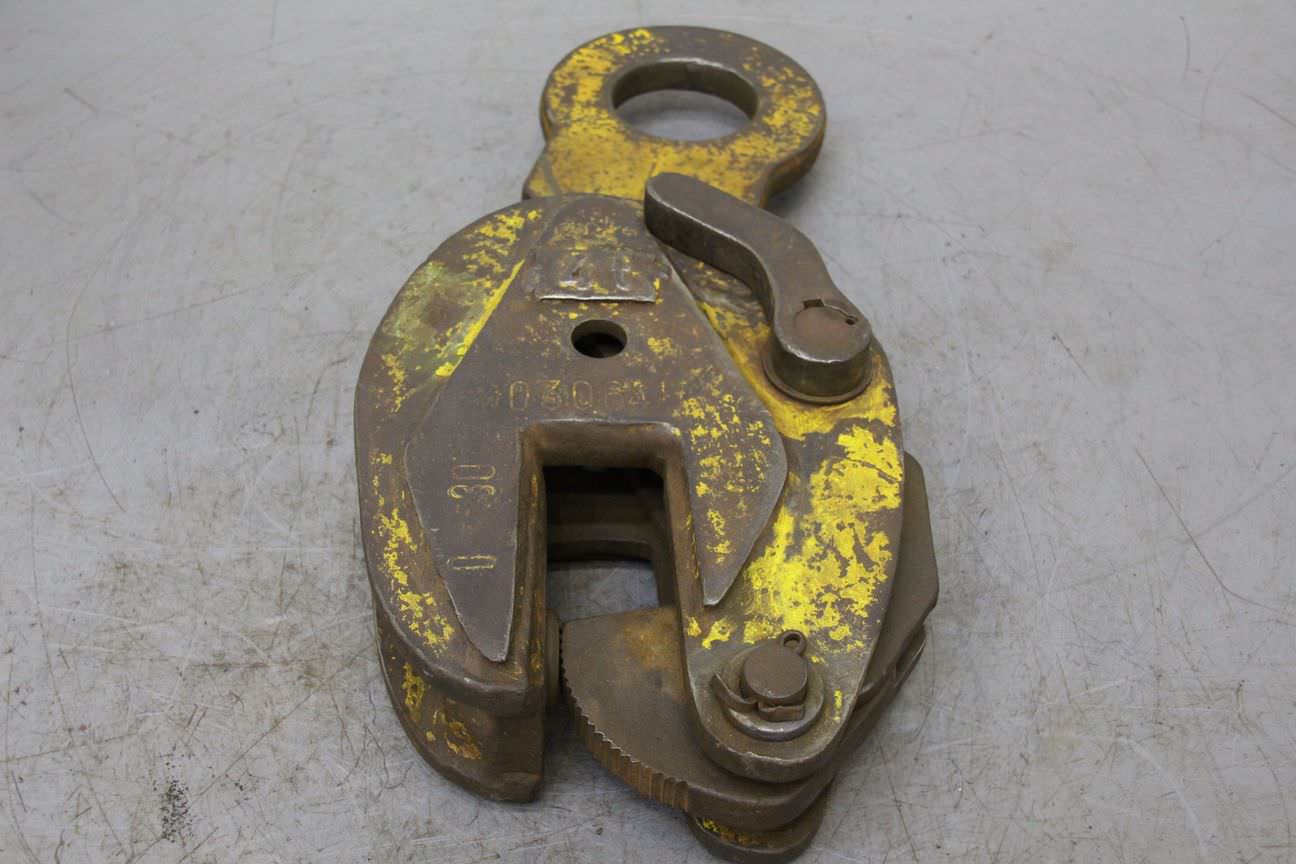

Sheet metal clamp, sheet metal claw, beam clamp, beam claw, sheet metal gripper, material gripper, material gripper -Sheet metal claws -Span: 0 to 35 mm -Load capacity: 4000 kg -Number: 1x terminal available Price: per piece -Weight: 21 kg/piece

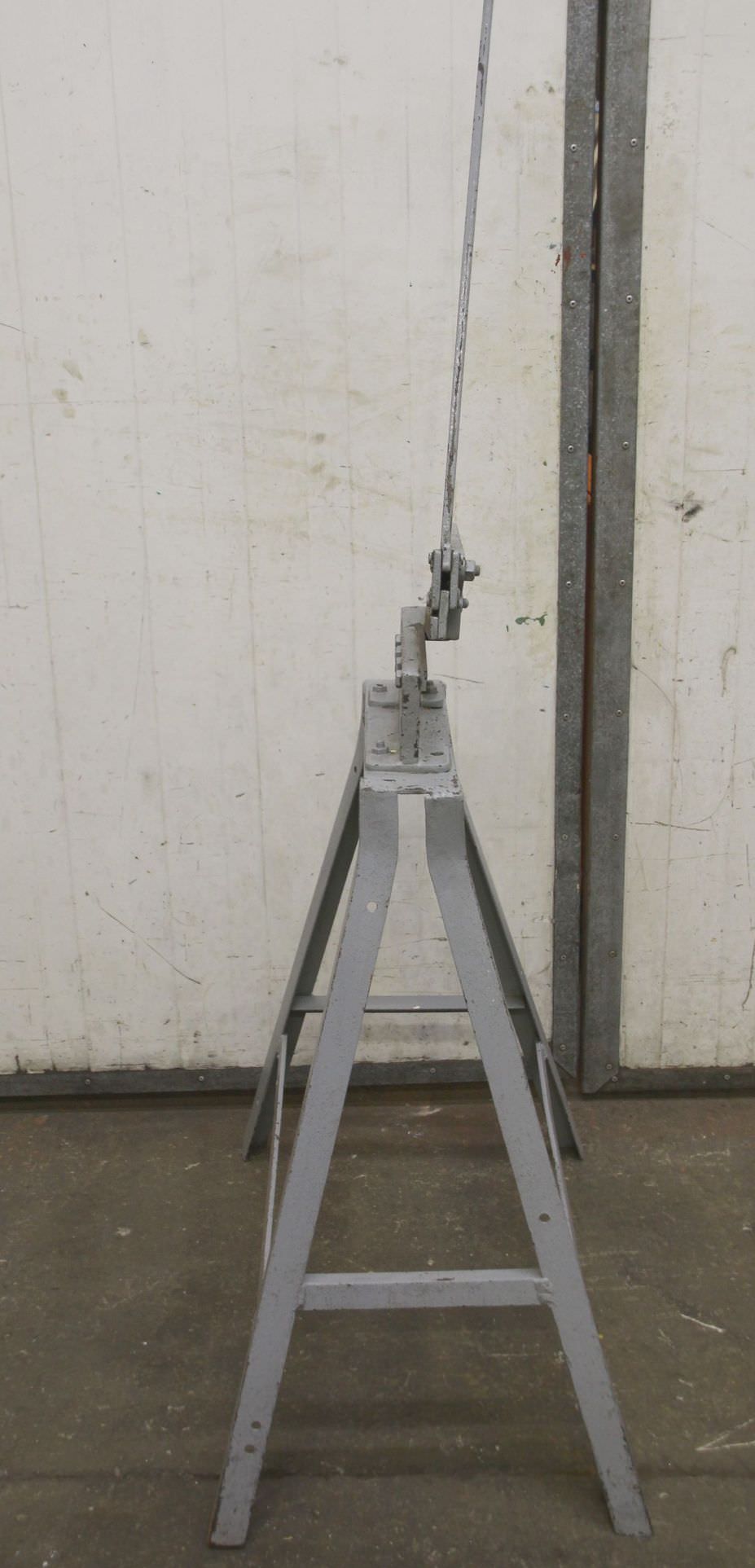

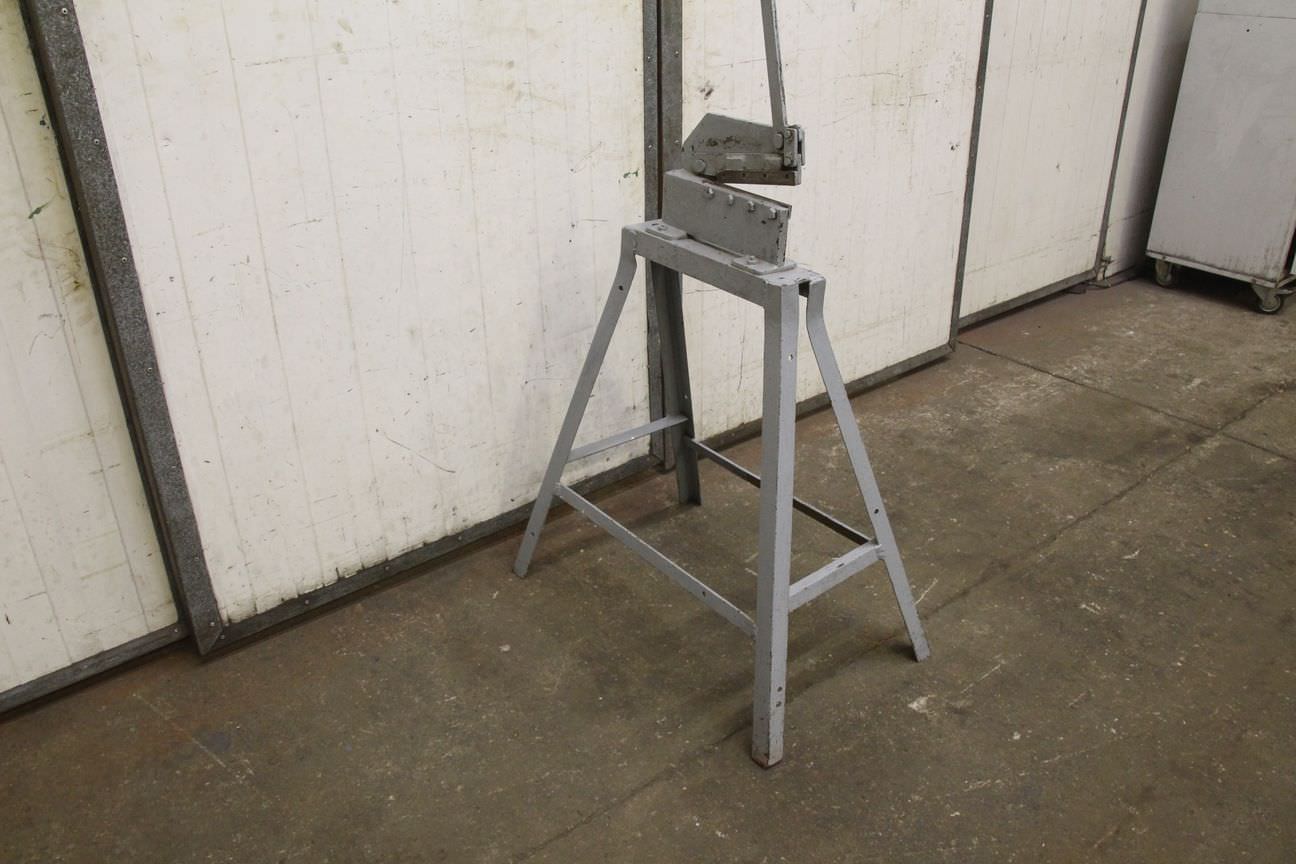

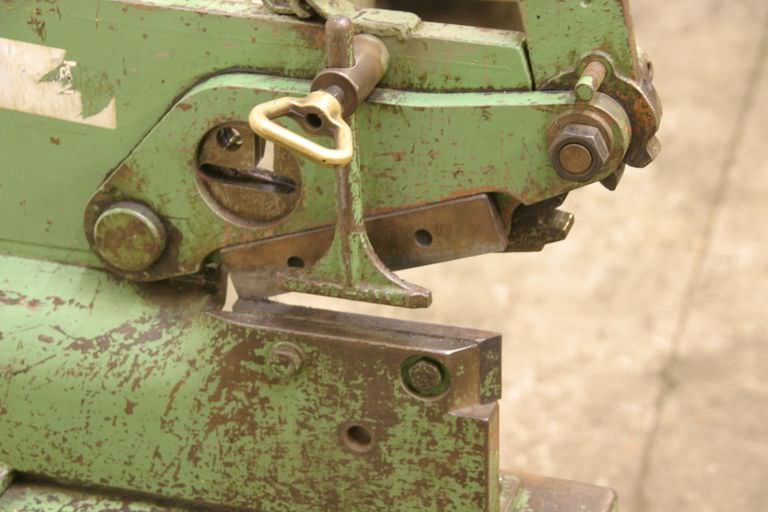

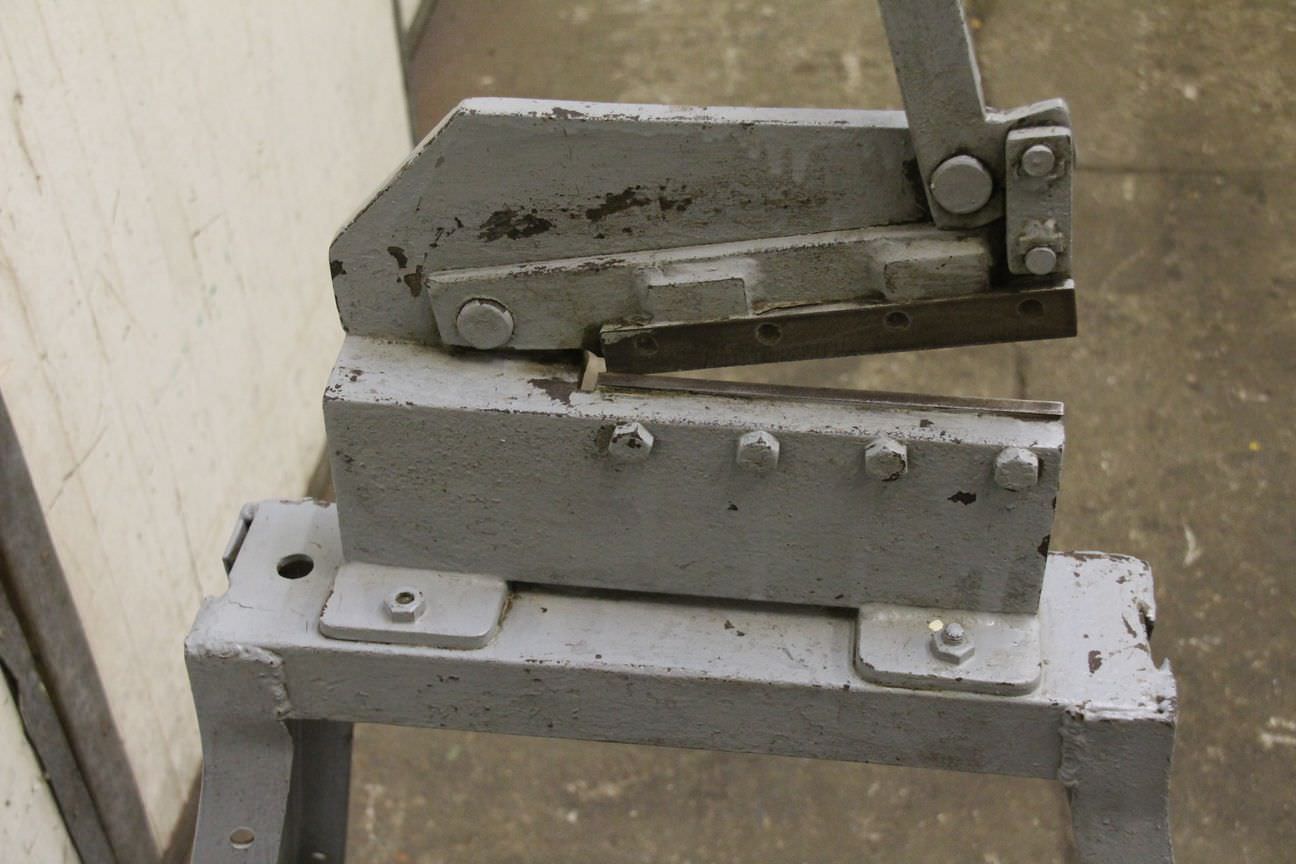

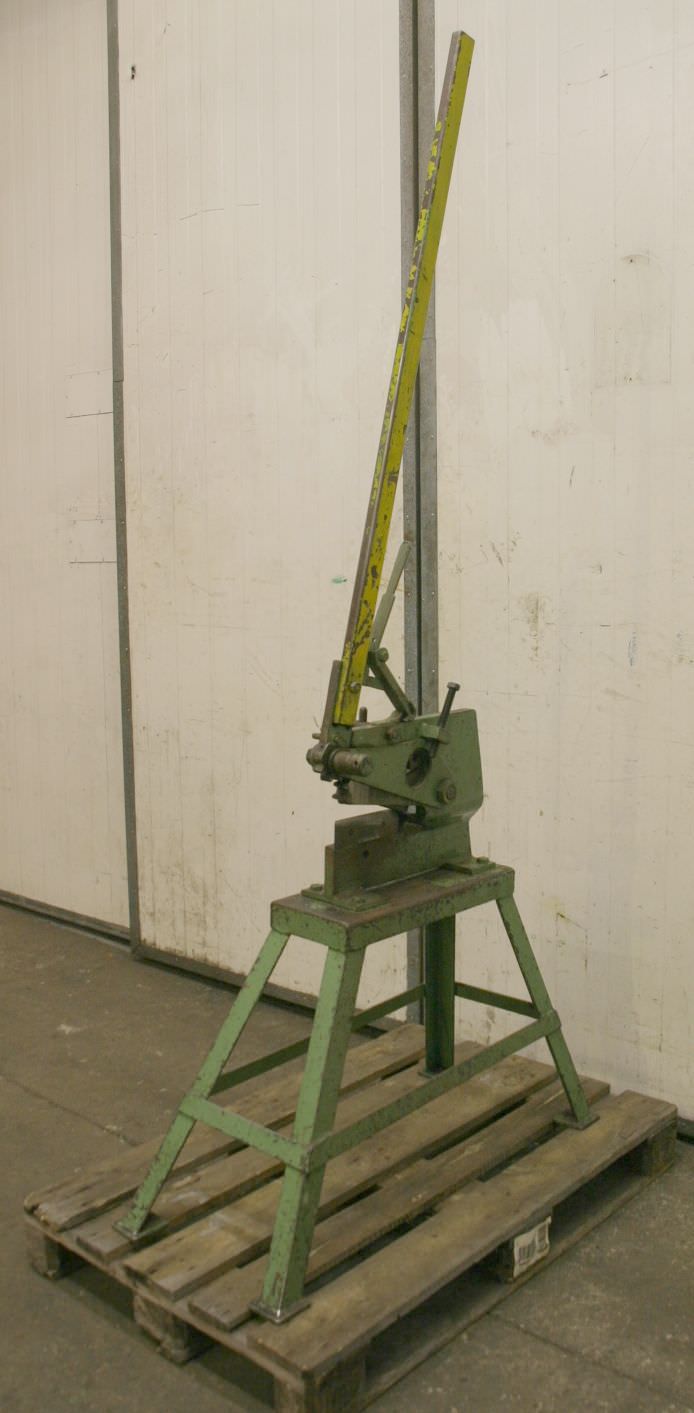

Profile steel shears, hand lever shears, hand sheet metal shears, sheet metal shears, sheet metal shears-Scissors: 185 mm-cutting: 40 mm angle iron-cutting: Ø mm round steel-Dimensions: 460/985/H2220 mm-Weight: 88 kg

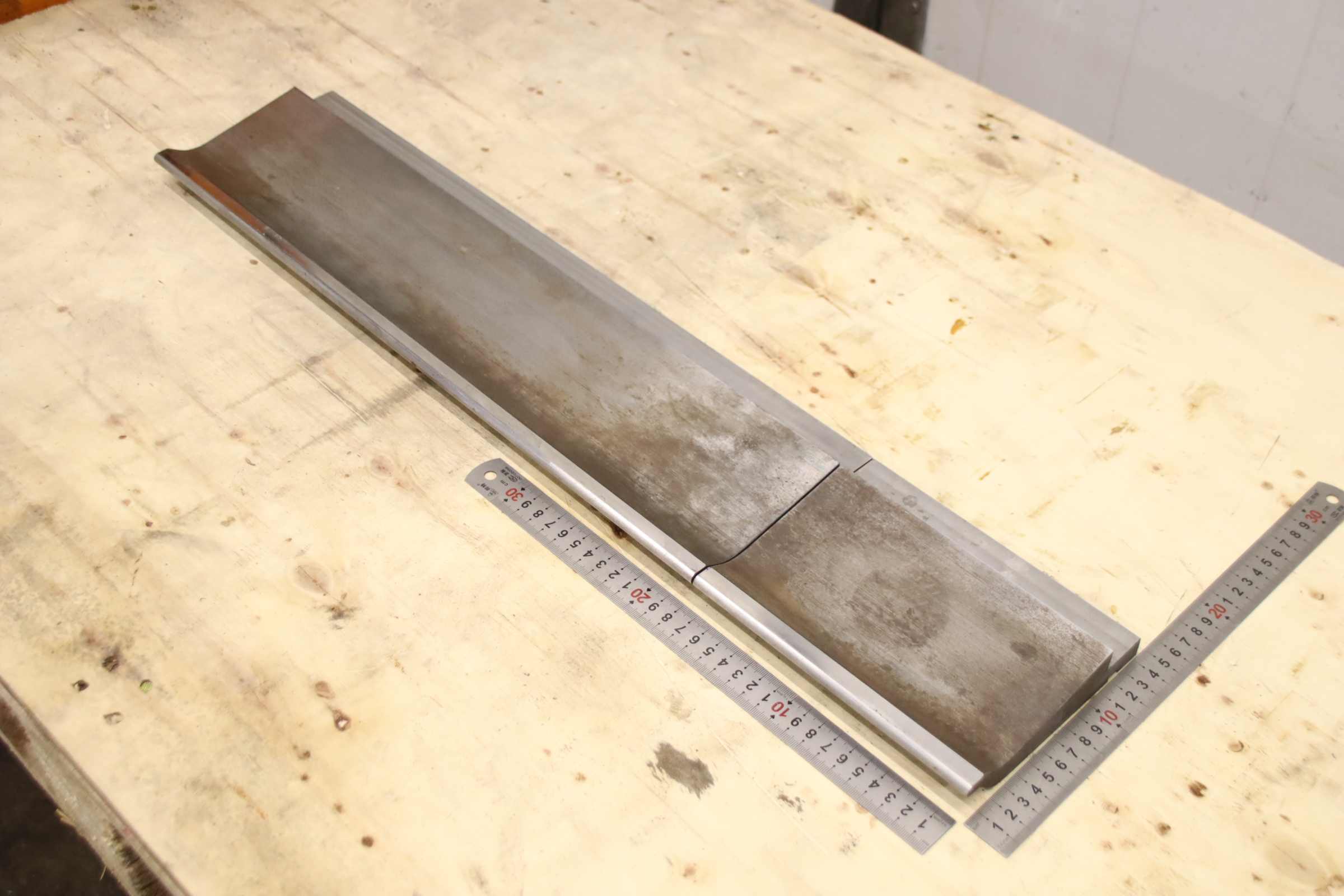

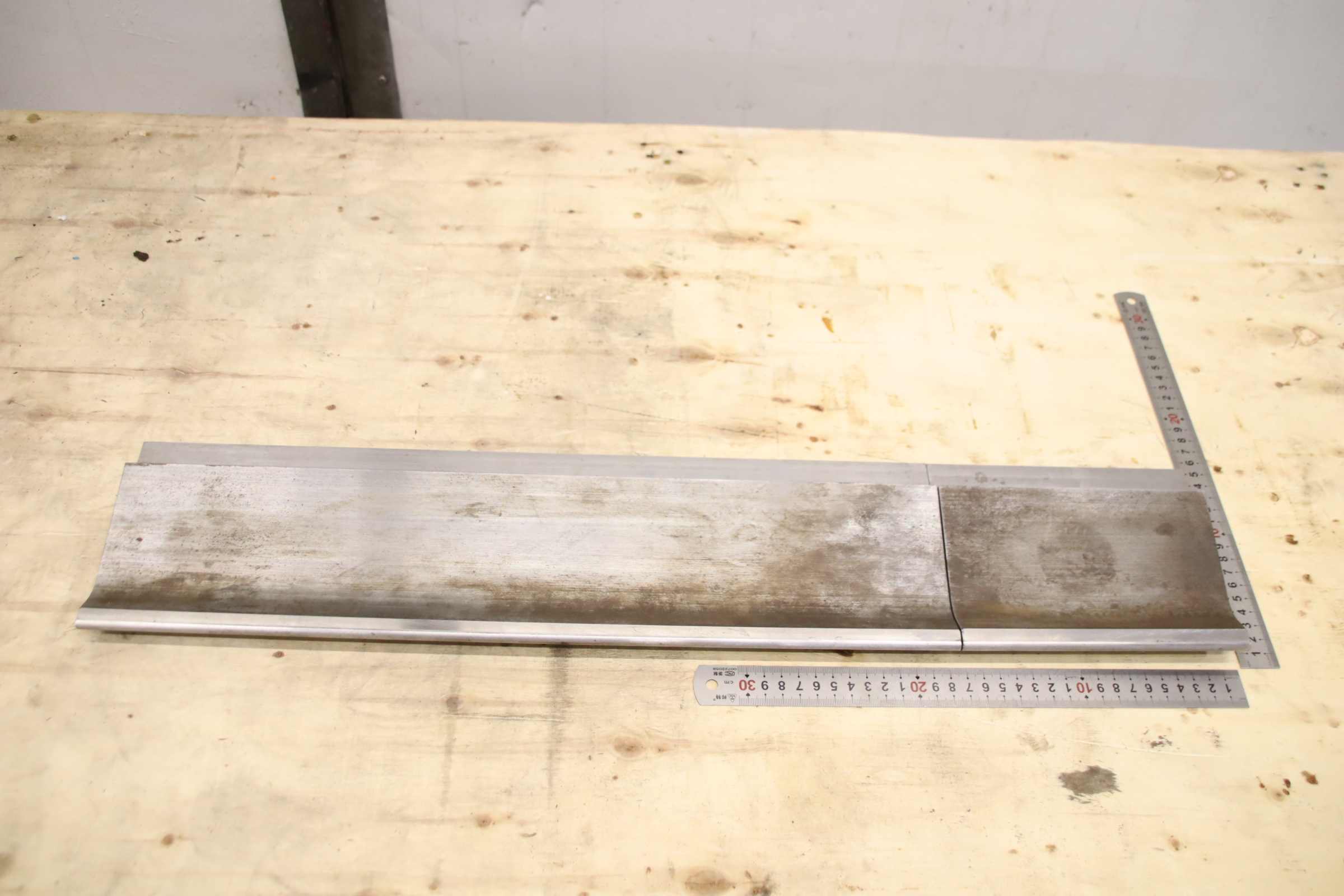

Bending tool, die, upper blade, upper tool, straightening tool -Tool: for press brake, 2-piece -Dimensions: see drawing in the photos -Total length: 682 mm / 1x 505/177 mm each -Transport dimensions: 682/143/H28 mm -Total weight: 13 kg

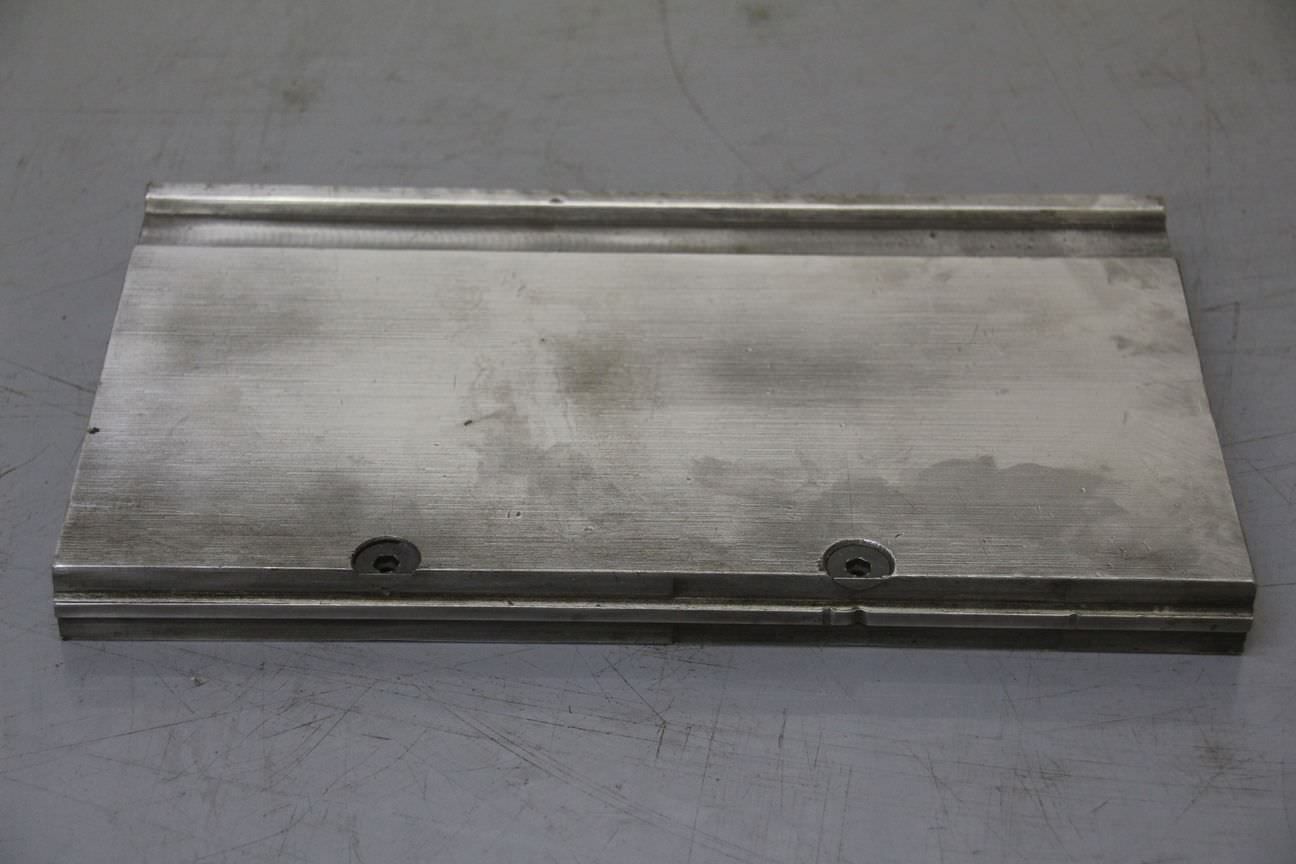

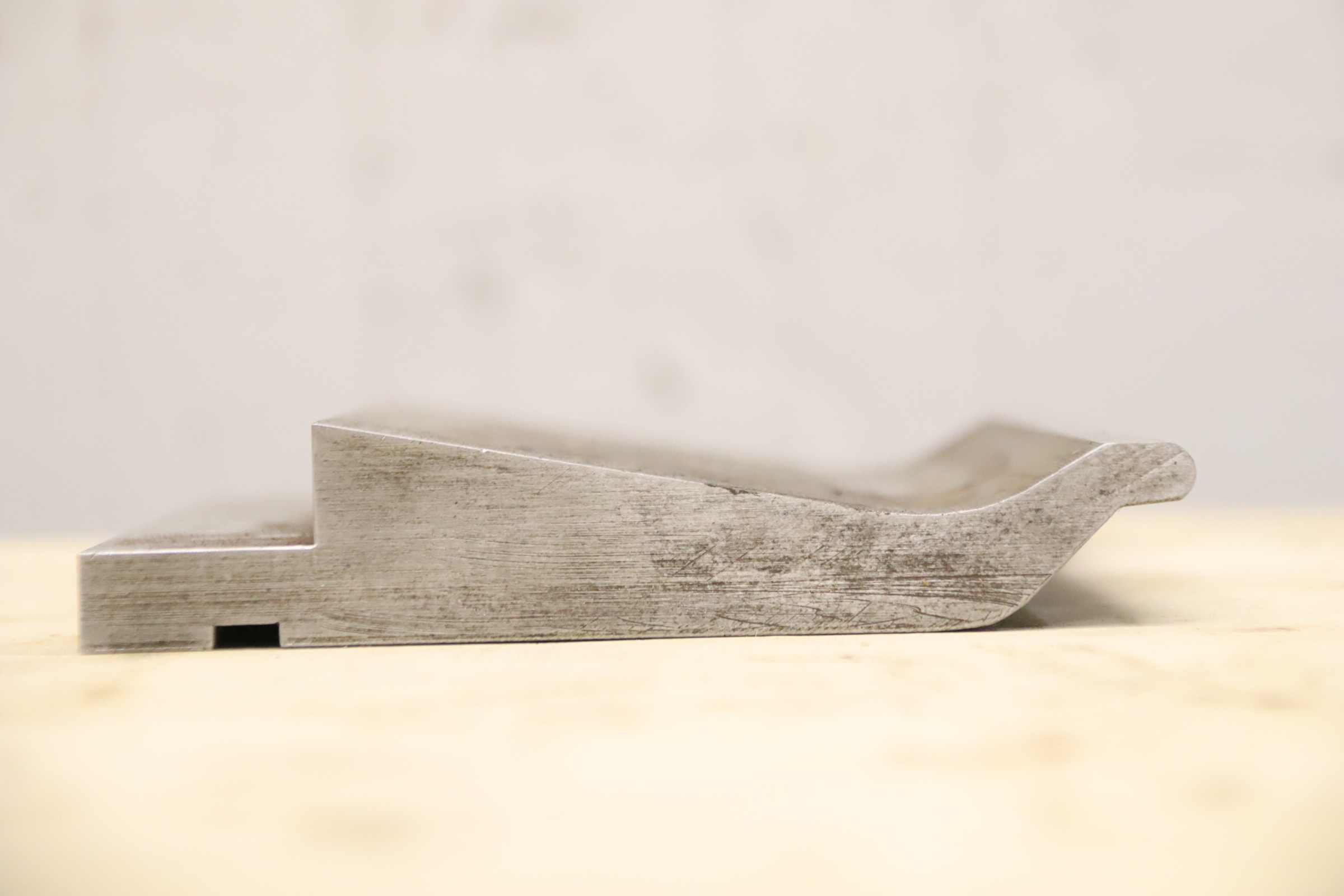

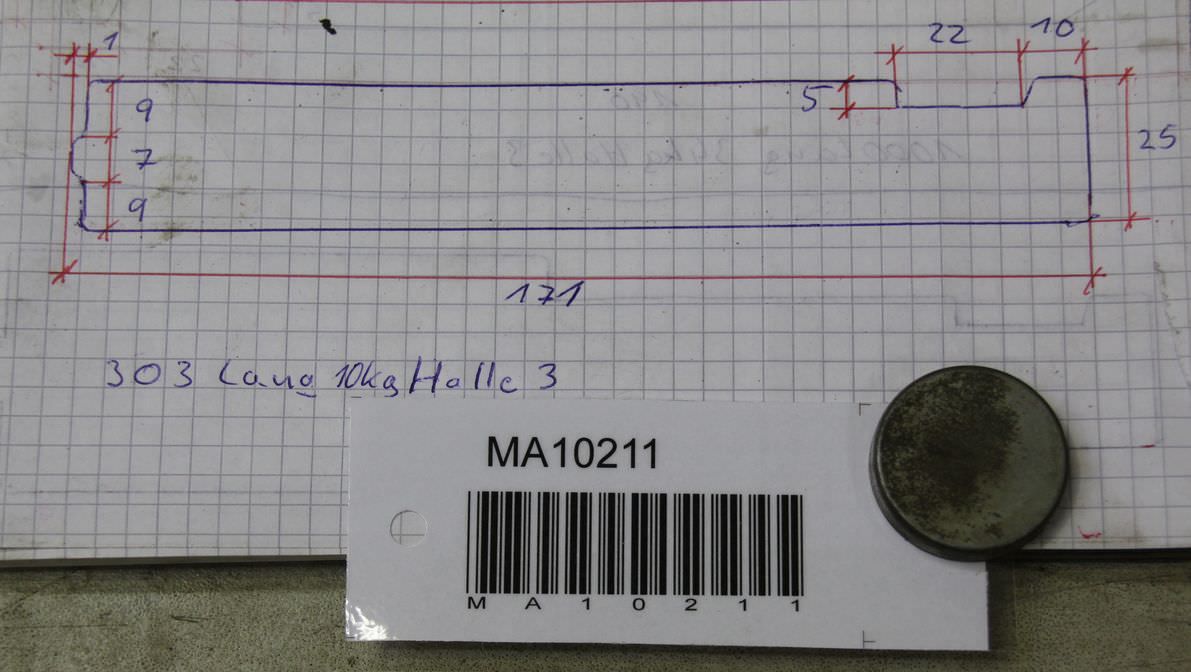

Bending tool, die, upper knife, upper tool, straight tool-Tool for: press brake-Tool as: die-Thickness: 25 mm-Drawing with the pictures-Total length: 303 mm-Total height: 171 mm-Weight: 10 kg
Bending tool, die, lower knife, lower tool, prism tool, reversible prism, 1-part die block for die bending machine, die tool, hemming tool-Tool: for press brake, die / hemming tool-Measures: see drawing in the photos-Dimensions: 150/101 / H77 mm / 150/77 / H160 mm-Weight: 6.9 kg / 11.2 kg

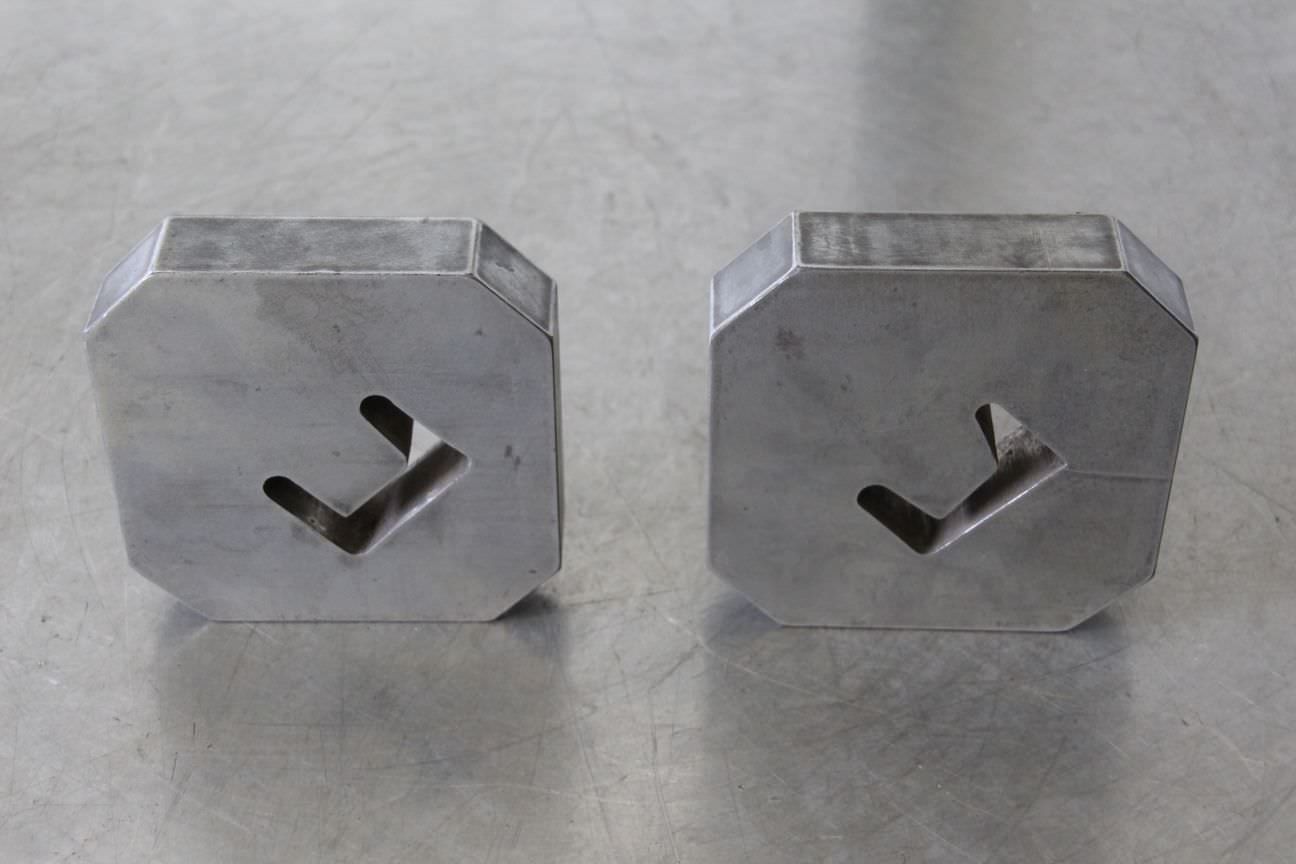

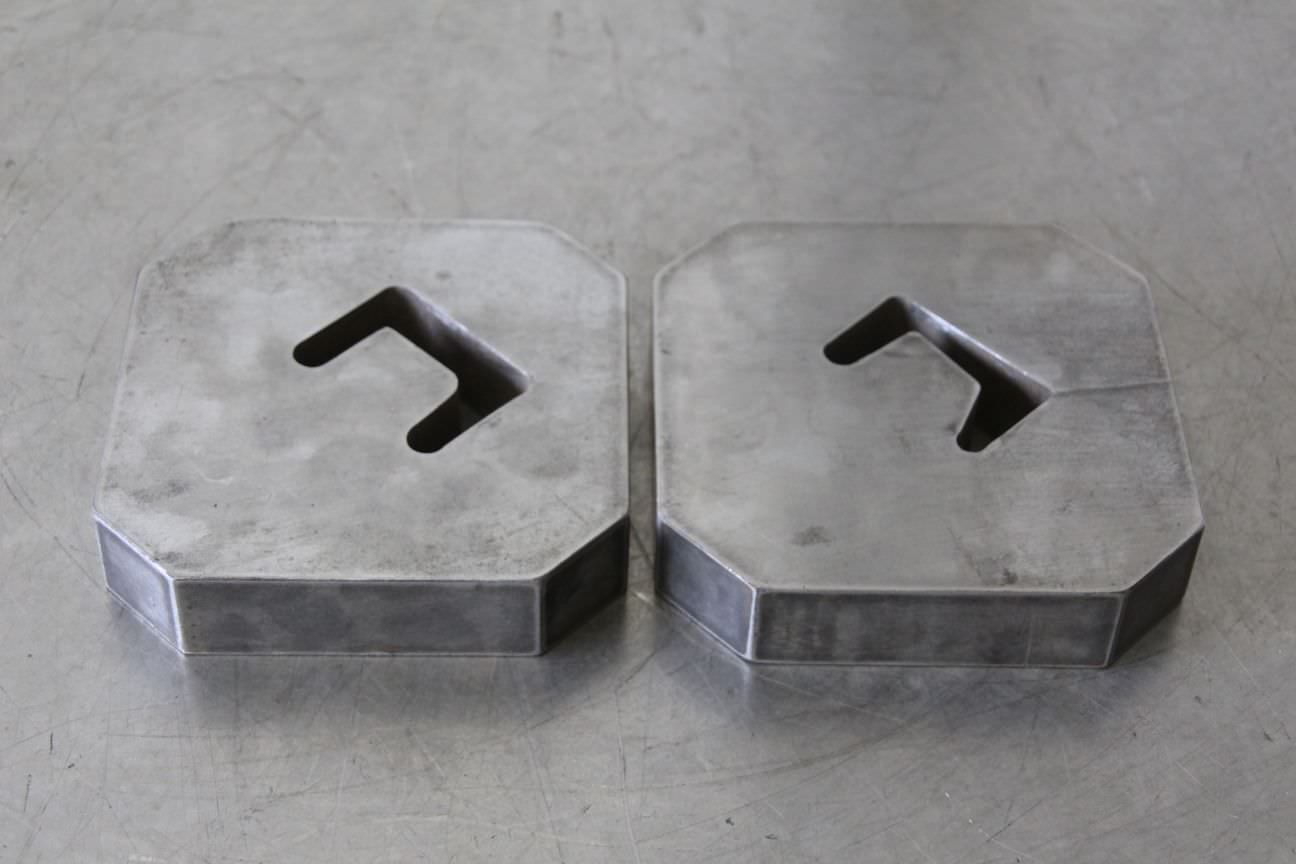

Die holder, notching tool, punching tool, punch, punching die, punching punch,-Stamping dimension: see photo with dimensions-Socket: Ø 40 mm-Dimensions: 370/270/H275 mm-Weight: 67 kg
