CALIBRATING TABLE BATTENFELD K 160 V2, 2 Speck v-pumps 4 kw / 2 sections, 16 x vacuum-connections, 12 x water-connections, Blower for drying, HAUL OFF BATTENFELD P 100 SV, 2-belt haul-off (type caterpillar), Contact 1.200 x 160 mm, Speed approx. 0,5 – 15 m/min., Motor-power approx. 4 kw, Pulling-power approx. -6.000 N maxi., SAW BATTENFELD SPR 32 P, Profile-saw upstroking, Blade Ø 300 mm, Chip/dust-suction, control panles,, Electric manuals available

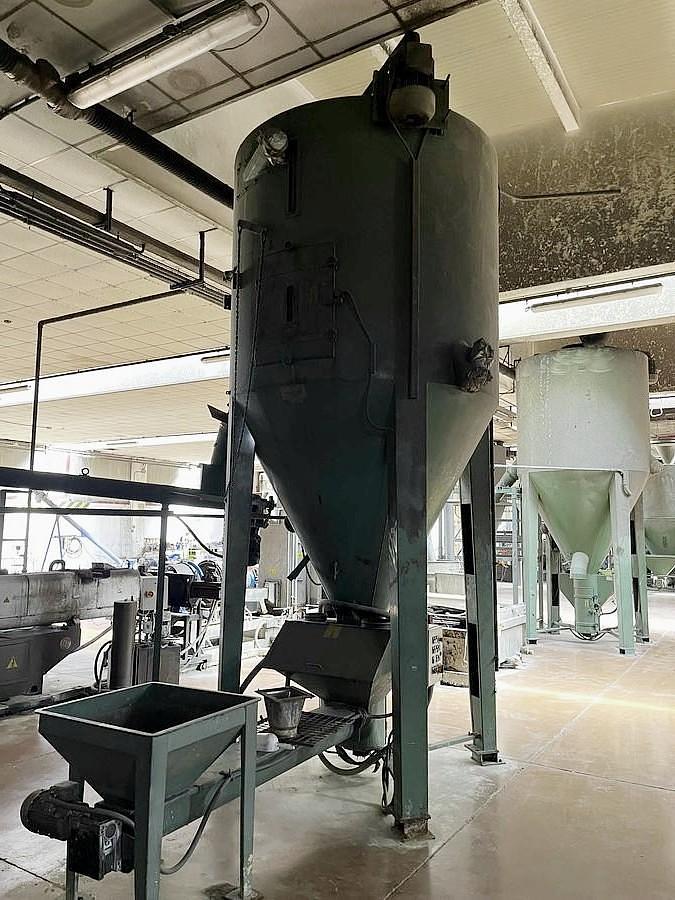

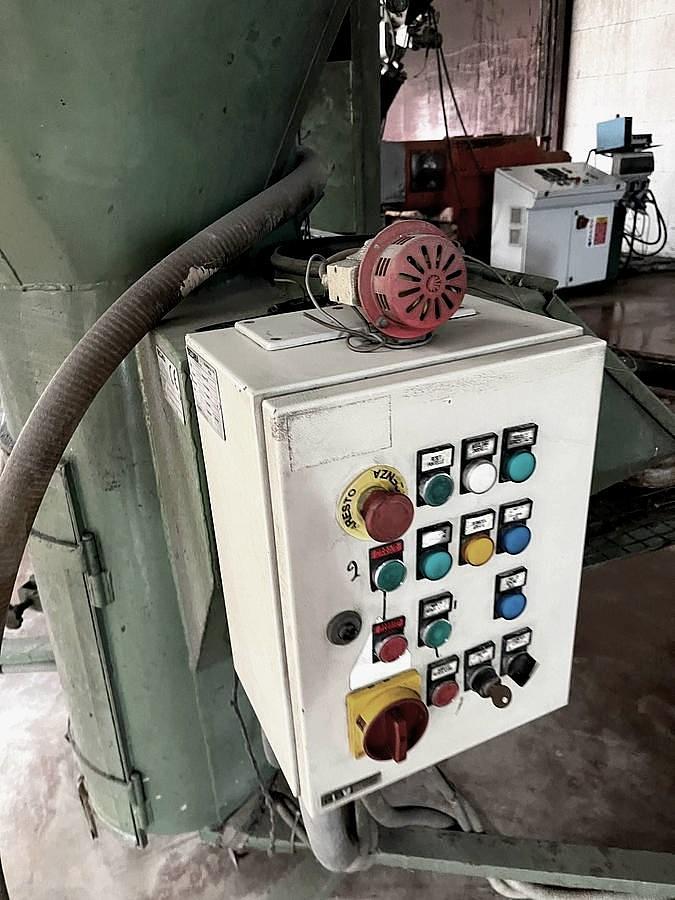

BECCARIA USED VERTICAL MIXER, mod.TS 8000, Nominal capacity 8.000 lt., complete with horizontal feeding screw and hopper, control panel, good overall conditions, availability: immediate, capacity: 8 m3, conditions: good
CACCIA HOT & COLD TURBOMIXER, Type CP1000, Hot mixer capacity 1.000 lt, 203 kw a.c.drive, + 1 CACCIA AG 3000, cooling unit, capacity 3.000 lt., installed power - used power in work: about 60-65% : 203 kw, availability: 3 weeks, capacity: 1000 hoìt -3000 cold, conditions: reconditioned, type: for PVC
BD PLAST NON-STOP SCREENCHANGER, Machine reconditioned Screen Ø 300 mm, suitable for 160 - 180 mm extruders, Heating capacity approx. 25 kW N. 4 heating areas Hydraulic pack., Machine offered reconditioned, complete with Users manual, CE compliance, el.drawings, installed power - used power in work: about 60-65% : 25
FIMIC RAS+REF 400 FULLY AUTOMATIC SCREENCHANGER, screening area 1.206cm², for PP / LDPE / LLDPE / HDPE / PS / EPS / ABS / PVB, possible setting as : continuous scraping OR scraping on an Amp.threshold OR backflush, it was mounted on extruder producing 800 kg/h with 100-150 my screening, Always used as RAS (REF equipment brand new), 30 kw drive, totally checked in 2024 by constructor, Immediately available, remote connection (Industry 4.0) with pressure control system from pulpit, 4-5 spare laser filters available, multipolar plug connectors, We can supply spare screens for this machine., Laser screen from 80 to 300 µ - Mesh from 180 to 50, Punched screen from 400 to 2.000 µ - Mesh from 40 to 10, ---------------------------------------------------------------------- -----------------, SEE ALSO OUR[OTHER FIMIC SCREENCHANGER](.germanplast/listings?q=GEMA100), installed power - used powe ...
WHEELED SCREW CONVEYOR to charge TANKER TRUCKS, for plastic granules, capacity ca.60 m3/h, Constructed in carbon steel with antirust painting, Outer Ø 300 mm, Bearing casing with dust seals, loading hopper 1.000 x 1.000 mm., 7,5 kw gearmotor, wheeled supporting structure, Total screw length 7,0 mt., Discharging height 4,5 mt., flexible pipe with capacity sensor on discharge, complete with control panel, CE compliance, Users manual, Electrical drawings., ALSO AVAILABLE IN STAINLESS STEEL VERSION, See other similar items with different features [GE751](.germanplast/listings/7506589-wheeled-tanker-loading-screw-con veyor-basic)[-GE753](.germanplast/listings/7553224-wheeled-tanker-load er-adj-height-with-automatic-retractable-sleeve)[-GE750](.germanplast/ listings/6874982-tanker-loading-system-60-m3-h-automatic-retractable-s leeve), installed power - used power in work: about 60-65% : 7,5, ...
WHEELED TANKER TRUCKS LOADING SYSTEM, for plastic granules, Loading speed 60 m3/h, Made in sturdy painted carbon steel structure, including two big bag supporting structures, n.2 frames to fix the bags on the structure by lifting the pre-hooked frames, The height of the structures can be adjusted to suit the size of the big bags, and two side ladders provide easy access to the top of the structure., The two bags rest on safety supports to prevent hands from being crushed when the bottom is opened., Sturdy hooks hold the big bag straps in place., 1.000 x1000 mm. hopper to collect the material from the big bags., A flap door at the bottom, with a safety micro, facilitates maintenance and cleaning operations., the 7,5 kw driven screw will lift material from the hopper, Discharge height 4,5 m.from floor, Screw length 8.300 mm, The screw can be lowered for storage, The bearings are dust-tight ...
WHEELED SCREW CONVEYOR to charge TANKER TRUCKS, capacity ca.60 m3//h, Constructed in carbon steel with antirust painting, Outer Ø 300 mm, Bearing casing with dust seals, loading hopper 1.000 x 1.000 mm., 7,5 kw gearmotor, wheeled supporting structure, adjustable height by manual hydraulic pump, Total screw length 7,0 mt., Discharging height 4,5 mt., flexible discharging pipe with Capacity sensor, complete with control panel, CE compliance, Users manual, Electrical drawings., ALSO AVAILABLE IN STAINLESS STEEL VERSION, See also other versions with different features [GE752-](.germanplast/listings/7553190-wheeled-tanker-loader-7-mt-long -4-5-mt-discharging-point-or-bespoke)[GE753](.germanplast/listings/755 3224-wheeled-tanker-loader-adj-height-with-automatic-retractable-sleev e)-[GE750](.germanplast/listings/6874982-tanker-loading-system-60-m3-h -automatic-retractable-sleeve), capacity: 60 ...
AMUTEC TCR S 1200, reel-to-reel pre-cut bags, Construction year 2003,, totally revisioned in 2024 by Constructors technicians, very well maintained
vibrating screen, used, reconditioned, vibrating surface 1.400 x 480 mm., height from floor 900 mm., 2 ways out: 1st screen 8 mm Ø to separate clogs, 2nd for good material
SINK-FLOAT SEPARATION TANK for PLASTIC SCRAPS, Constructed in thick AISI 304 STAINLESS STEEL with reinforced plates and profiles, Dimensions 5,0 X 1,5 mt., Inlet hopper for shredded plastics, Flanged water in/out ports, taps and ball valves, n.2 x 1,5 kw.driven rollers for material movement with Bonfiglioli gearboxes, n.1 chain conveyor on bottom to extract the sunk materials, n.1 diagonal stainless steel chain conveyor, collection drained auger for extraction of floating material, size: 5,0 x 2,4 mt., capacity: 800-1.500 kg/h depending on materials
AIR DRYING TUNNEL, for strands, dimensions 2.000 x 300 mm. (or bespoke), blower on bottom with 2 conveyors which send air through slits, constructed in AISI304 stainless steel
TANKER TRUCK LOADING SYSTEM, for plastic granules, Maximum speed 60 m3/h, Made in sturdy painted carbon steel structure, including two big bag supporting structures, n.2 frames to fix the bags on the structure by lifting the pre-hooked frames, The height of the structures can be adjusted to suit the size of the big bags, and two side ladders provide easy access to the top of the structure., The two bags rest on safety supports to prevent hands from being crushed when the bottom is opened., Sturdy hooks hold the big bag straps in place., 1,000 x1000 mm. hopper to collect the material from the big bags., A flap door at the bottom, with a safety micro, facilitates maintenance and cleaning operations., the 7,5 kw driven screw will lift material from the hopper at a rate of 60 m3 per hour, the 300 mm.Ø screw can be lifted and lowered to easily move inside and outside., Maximum discharge heig ...
VERTICAL MIXER, 5.000 lt.capacity Total height approx 5.000 mm Max diam. 1,850 mm. Constructed in painted electro- welded carbon steel. Inner auger diam.280 mm. Loading hopper with safety grid and sampling shutter, 600 x 500 mm. Pulley and belt transmission, protected by carters Inspection door with safety limits, Cleaning hinged door on bottom of cone for complete discharging, with safety opening Side discharging pipe to big bag with valve at 1.000 mm from ground Bottom discharging pipe propeller type max level indicator automatic greasing kit 7,5 kw electric motor Complete with control panel. Electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V CE compliance and instruction manual, installed power - used power in work: about 60-65% : 7.5, capacity: 5.000 lt.
VIBRO CLASSIFIER FOR GRANULATES, 2 outlets, dimensions : 500 x 1.400 mm., screen holes 8 mm Ø, all parts in contact with water are in AISI304 stainless steel, wheeled supporting structure, complete with connecting plug, machine offered checked for good conditions, total dimensions : 1.900 x 850 x 1.000 kg.300
3,0 m3 capacity Total height approx 4.000 mm Max diam. 1.600 mm. Constructed in painted electro- welded carbon steel. Inner auger diam.280 mm. Loading hopper with safety grid and sampling shutter, 900 x 740 h 830 Pulley and belt transmission, protected by carters Inspection door with safety limits, Cleaning hinged door on bottom of cone for complete discharging, with safety opening Side discharging pipe to big bag with valve at 1.000 mm from ground Bottom discharging pipe propeller type max level indicator automatic greasing kit 5,5 kw electric motor Complete with control panel. Electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V CE compliance and instruction manual, installed power - used power in work: about 60-65% : 5.5, capacity: 3.000 lt.
GAMMA MECCANICA WATER RING PELLETIZER, Model TDA 6, stainlesse steel housing and all parts in contact with water, star blade holder for 4 knives, throughput rate 2,0 Tons/h depending on materials and feeding rate, constructed in 2013, complete with stainless steel drying centrifugeù, screen basket in stainless steel, control panel, photos taken before reconditioning, the machine is offered totally reconditioned, capacity: 2.500 kg/h
ZIG ZAG AIR SEPARATING SYSTEM, This innovative system can separate :, metals, stones,paper from plastics or, even heavier plastic flakes from lighter, No need for an air treatment system, since it works in an air closed-loop, can efficiently replace gravimetrical separation tanks or ECS systems when weight of materials is consistently different., very efficient and smart construction:, - fast and precise separation of different types of material, eliminating other more complicated and costly processing;, - constant and precise production thanks to numerous adjustments that can be made to the system;, - possibility of working on all types of material;, - robust construction and reliability;, - simple and minimal maintenance required thanks to the solutions used and the quality components installed., Capacity up to 8 m3/h, Processed material weight from dust to metals, constructed in a stu ...
VERTICAL MIXER 14.000 lt., Total height approx 5.500 mm, Loading from top with cyclone and dust sleeves collector, Max diam.2.380 mm., Constructed in painted electro-welded carbon steel., Inner auger diam.350 mm., Sampling hopper with safety grid and shutter, mm.600×500, Pulley and belt transmission, protected by carters, Inspection doors with safety limits, Cleaning hinged door with on bottom of cone for complete discharging,, with safety opening, Side discharging pipe to big bag with valve, paddle type max level indicator, automatic greasing kit, 11 kw electric motor, Complete with control panel., Electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V, CE compliance and instruction manual, installed power - used power in work: about 60-65% : 11
SINK-FLOAT SEPARATION TANK for PLASTIC SCRAPS, Constructed in thick AISI 304 STAINLESS STEEL with reinforced plates and profiles, Dimensions 5,0 X 2,4 mt., Inlet hopper for shredded plastics, Flanged water in/out ports, taps and ball valves, n.2 x 1,5 kw.driven rollers for material movement with Bonfiglioli gearboxes, n.1 chain conveyor on bottom to extract the sunk materials, n.1 diagonal stainless steel chain conveyor, collection drained auger for extraction of floating material, size: 5,0 x 2,4 mt., capacity: 800-1.500 kg/h depending on materials
VERTICAL MIXER, 8 m3 capacity, total height approx 4.500 mm including transmission group, max Ø 2.200 mm., constructed in painted electro-welded carbon steel., inner auger diam.350 mm. lower loading hopper with safety grid and sampling shutter, complete with anti-dust cover, mm.600x500, pulley and belt transmission, protected by carters, inspection doors with safety limits, cleaning hinged door on bottom of cone for complete discharging, with safety opening, side discharging pipe to big bag with valve at 2.500 mm from ground, max electric level indicator, paddle type, automatic greasing kit, 11 kw drive, complete with control panel., electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V, CE compliance and instruction manual, installed power - used power in work: about 60-65% : 11
BD PLAST SEMI-AUTOMATIC SCREENCHANGER, type BDO 400, constructed in 2017, complete with hydraulic pack, spare hydraulic piston, junction box with all connections, control cabinet is not included (available separately), offered AS IS, checked for good conditions, or totally reconditioned, (On separate offer) some new filters 24/110 and 12/64.
VIBRATING SCREN - best solution for liquids and powders, Dynamic three-dimensional vibrations., The vibratory motion of the screen spans both horizontal and vertical directions, providing the flexibility of adjustment in both axes., Minimal installation requirements., No vibration transmission from the upper section to the base, Possible addition of wheels to the base., Quick disassembly for cleaning or mesh replacement., Each screen supports the installation of 1 to 4 separation stages, yielding 2 to 5 distinct product fractions., Constructed in carbon steel or stainless steel., All parts in contact with material are on AISI 304 stainless steel Fully compliant with CE regulations most required screen diameter from 400 mm up to 2.200 mm to cover all needs, self cleaning system,, Just ask for your own vibrating screen by listing the following specs:, - material, - process, - size of good ...
PLC CONTROLLED MIXING, BAG FILLING AND WEIGHING SYSTEM, for plastic granule, customized to the project, including [vertical mixers](.germanplast.eu/it/annunci/4309783-vertical-mixers-from-5-to-3 0-m3), buffers,, pneumatic system with deviators, cyclones, .., with and without loading screws, loading cells, digital display, visual and sound alarms, all managed by a PLC
WEIGHING SYSTEM FOR BIG BAG SUPPORTING AND FILLING STATION, The system includes a sturdy painted carbon steel structure to hold 2 big bags, the pneumatic system to fill them from a source, a diverting valve set to fill the bags alternatively and automatically, a weighing platform on which tha bag rests, with loading cells and a digital scale to check and set the weight of each bag ., price options: new machine bespoke to project
VERTICAL MIXER, 10 m3 capacity, total height approx 5.400 mm including transmission group, max Ø 2.300 mm., constructed in painted electro-welded carbon steel., inner auger diam.350 mm. lower loading hopper with safety grid and sampling shutter, complete with anti-dust cover, mm.600x500, pulley and belt transmission, protected by carters, inspection doors with safety limits, cleaning hinged door on bottom of cone for complete discharging, with safety opening, side discharging pipe to big bag with valve at 2.500 mm from ground, max electric level indicator, paddle type, automatic greasing kit, 11 kw drive, complete with control panel., electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V, CE compliance and instruction manual, Possible additions: horizontal loading screw and hopper + cyclone on top + collector with dust sleeves piping + bag holding structure+bag weighing station + PLC fo ...
BD PLAST NON-STOP SCREENCHANGER, Constructed in 2013 Approx.500 operating hours. Screen diameter 250 mm Filter area 491 cm² Sealing ring PTFE / Teflon Heating capacity approx. 22 kW N. 4 heating areas Operating temp. max. 260°C Operating pressure max. 400 to 500 bar Hydraulic unit designed for quick change (accumulator preloaded with nitrogen) Weight 950 kg, installed power - used power in work: about 60-65% : 22
Constructed according to the high Italian quality standards, Made in sturdy carbon steel welded structure Flat bottom with horizontal screw and doctor blade, or conical bottom with diagonal screw (depending on project requirements) plexiglass inspection window, Electric motor bespoke to project material and size paddle type minimum level indicator Bolted inspection door, Safety devices, CE compliance, drawings, user manual, Can be integrated with our [DRYING SYSTEM](.germanplast.eu/listings/4115725-drying-system-for-vertical-mi xers), price options: size and shape bespoke to project
The system can be used for granulate, reground, agglomerate or powder, Including: hopper, injector, blower and piping length bespoke to your project., blower of suitable power, Cyclone with filtering system and a diverting valve Constructed in sturdy painted steel or galvanized steel The supporting structure can hold 1 or 2 big bags, Possible addition of weighing system for each big bag
TANKER TRUCK LOADING SYSTEM, for plastic granules, Loading speed 60 m3/h, Made in sturdy painted carbon steel structure, including two big bag supporting structures, n.2 frames to fix the bags on the structure by lifting the pre-hooked frames, The height of the structures can be adjusted to suit the size of the big bags, and two side ladders provide easy access to the top of the structure., The two bags rest on safety supports to prevent hands from being crushed when the bottom is opened., Sturdy hooks hold the big bag straps in place., 1.000 x1000 mm. hopper to collect the material from the big bags., A flap door at the bottom, with a safety micro, facilitates maintenance and cleaning operations., the 7,5 kw driven screw will lift material from the hopper, Discharge fixed height 4,5 m.from floor (or bespoke), Screw length 8.300 mm, The bearings are dust-tight and automatically greased., ...
