Dane techniczne Wrzeciono dia 125mm ISA 50 stożek skok wrzeciona 800 mm przesuw udrei stołu X 1200 mm vert. przesuw u chyliń Y 1400 mm longit. ztravel tabeli Z 1620 mm prędkość wrzeciona nieskończenie zmienna 3,5-700 obr./min rozmiar stołu 1200 x 1400 mm obciążenie stołu 6000 kg silnik główny DC 19 kw całkowite wejście 22,79 kW wrzeciona inf. zmienna 0 - 1,25 mm/zgnilizna pasze robocze inf. zmienna 0,3 - 1700 mm/min szybki trawers 2250 mm/min drobna posuw3mm/min wymiar LxWxH 7,4 x 4,8 x 3,6 m waga maszyny 21000 kg DRO Heidenhain
TOS WHN 130 MC używana maszyna Specyfikacje System Heidenhain TNC 426 Zakres roboczy Średnica wrzeciona 140 [mm] Stożek w wrzecionie ISO 50 Regulacja poprzeczna tabeli (X) 3000 [mm] Regulacja pionowa (Y) 2000 [mm] Ruch pionowy (Z) 1250 [mm] Skok wrzeciona (W) 560 [mm] 2X Powierzchnia mocująca 1800 x 1600 [mm] Zakres prędkości 10 - 2500 [obr./min] Moc silnika głównego 37,0 [kW] Max. obrabiany przedmiot wagowyƒ 8000 [kg] Akcesoria Zmieniacz narzędzi dla 60sztuk Chłodzenie narzędzia Przenośnik wiórowy
System sterowania Heidenhain TNC 415 Średnica wrzeciona 130 mm Stożkowe wrzeciono wydrążone ISO 50 Zakres prędkości wrzeciona od 10 do 1500 obr./min Tabela poprzeczna (X): 3500 mm Stojak na tańców dla (Y): 2000 mm Stelaż przemieszczenia podłużne (W): 1250 mm Wrzeciono robocze wysuwanie (Z): 800 mm Obciążenie stołu 12 000 kg Masa maszyny: 36 000 kg
BKOZ 900x1400 stożek wrzeciona MK IV skok rękawa 250mm rozmiar stołu 900x1400mm podłużna 1000mm krzyż 750mm ruch pionowy przez głowicę wrzeciona głównego 600mm prędkości wrzeciona 28-1400 Upm wrzeciona posuwu 0,02-0,8mm/U skale wieńce dla wszystkich kierunków ruchu hydr. system mocowania układ chłodzenia sep. szafka sterowniczy Silnik: 230/380V 50HZ 8KW podstawa wymiarów: 3.300 x 2.400mm wysokość: 2.500mm waga: 7.500 kg
Mikromat (MIKROMAT) Model / typ:BKoE 630x1000 Dane techniczne: > Mikromat BKoE 630 x 1000 > powierzchnia mocowania stołu 1000 x 630 mm > przesuw podłużny stół 710 mm > przesuw krzyżowy po tabeli 700 mm > przesuw głowy 630 mm > skok wrzeciona 200 mm > Odległość między nosem wrzeciona a stołem 20-850 mm
VR 4A/1250 Producent Mas Max. średnica wiercenia 50 mm Max. regulacja ramienia pionowego 750 mm Stożek w wrzecionie 4 Morse Główna moc silnika 4 kW Wymiary l x w x h 2250x1055x2970 mm Masa maszyny 2700 kg

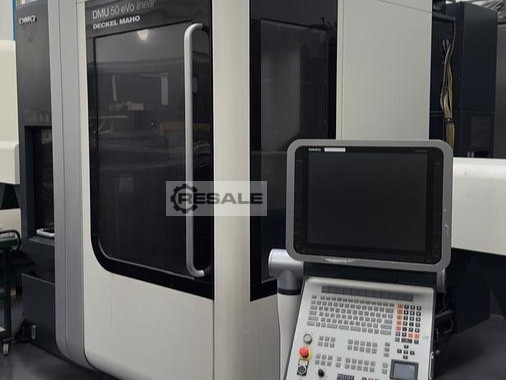

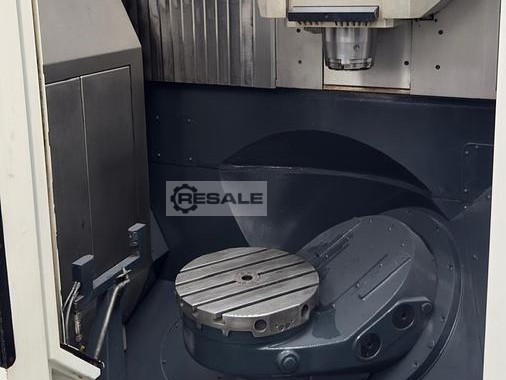

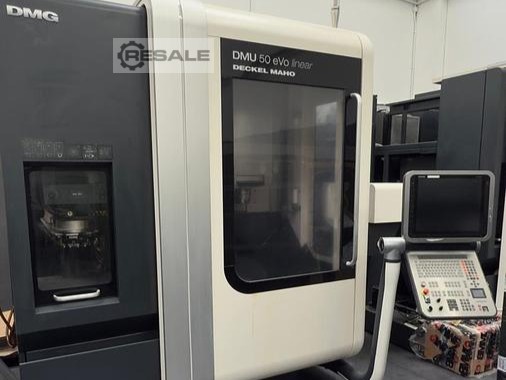

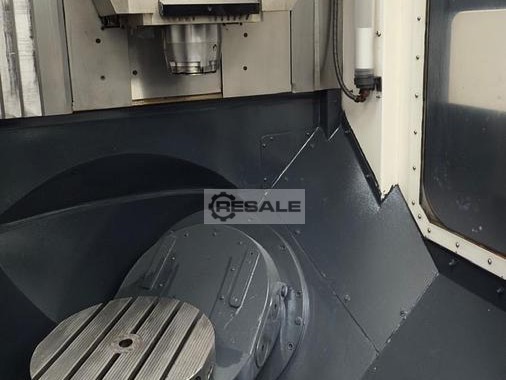

Year of construction: 2010 CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 500 Y-axis travel mm: 450 Z-axis travel mm: 400 C-axis degrees: 360º (0,001) B-axis degrees: 0º/108º (0,001) Rapid traverse m/min: 80/50/50 Milling/turning table nc: Table dimensions mm: Ø390 Maximum workpiece size (D x H) mm: Ø630x500 Max. workpiece weight kg: 200 Spindle Spindle speed rpm: 18000 Spindle drive power kW: 35/25 (40%ED/cont) Spindle torque Nm: 130/87 Tool system Tool holder: HSK-A 63 Tool magazine slots: 30 With free neighboring places mm: 130 With occupied neighboring places mm: 80 Max. Tool Length mm: 300 Chip-to-chip time s: 5 Equipment Chip conveyor Infrared probe Rinsing gun blowing air through spindle center selectable via M-function Signal lamp Laser tool measurement for measuring tool length and diameter Programmable coolant n ...
Incl. 60-fold tool changer, NC rotary table with swivel axis, incl. three-jaw chuck, jaw width: 250 mm, incl. tool holders located in the tool changer, incl. chip conveyor and coolant unitAttention: The machine can be transported on a standard truck!Additional technical specifications:• Measuring system resolution X/Y/Z: 0.001 mm• Position tolerance in X/Y/Z: 0.010 mm• Max. tool length from spindle nose: 280 mm• Max. tool weight for automatic tool change: 6 kg• T-slot spacing: 63 mm 14 H 7• Center bore: 30 mm• Swiveling speed: 26 rpm• Input and display unit: 0.001°
incl. NC rotary table, with 9 slots, incl. the tool holders located in the tool changer as well as chip conveyor and coolant unit Attention: the machine can be transported on a standard truck.Attention: the vices visible in the photos are not included in the scope of delivery!Additional technical specifications:• nominal current: 80 A
SOLID TB 15 Bench Drilling MachineManufacturerSOLIDModelTB 15ConditionuntestedLocation72589 Westerheim DELot37
Incl. 60-fold tool changer, NC rotary table, incl. tool holders located in the tool changer, incl. chip conveyor and coolant system.Attention: without the machine vise shown in the photos!Additional technical specifications:• nominal current: 100 A• Path measuring system resolution: 0,001 mm• Input resolution in X/Y/Z: 0.001 mm• Position tolerance in X/Y/Z: 0.010 mm• max. tool diameter with free adjacent places: 160 mm• tool length from spindle nose without tool breakage monitoring: 350 mm• with tool breakage monitoring: 315 mm• max. tool weight at automatic tool change: 10 kg• max. total tool weight in magazine: 200 kg• Distance of T-slots: 63 mm• Number of T-slots: 9/14 pcs• Center bore: 50 mm• max. rotation of the table top: 20 rpm• Feed: 3600°/min• Resolution of the measuring system: 0.001°
Incl. tool changer and the tool holders located inside, with chip conveyor and coolant system.Attention: The machine can be transported on a standard truck!Additional technical specifications: • Nominal current: 80 A • Table: with 9 slots • attached clamping plate, dimensions: 1200 x 810 mm • with three ALLMATIC machine vices, jaw widths: 160 mm
Attention: the tapping head seen in the photos is not included in the scope of delivery!Additional technical specifications:• Drilling units: three• table with one slot
Additional technical specifications:• Drilling machines: a total of six drilling machines• Vices: three vices• jaw width: 150 mm
Attention: the hydraulic clamping systems visible in the photos are not included in the scope of delivery!Attention: the machine can be transported on a standard truck!Additional technical specifications:• Year of manufacture: presumably 2006• Slots: 9 pieces• Swivel head: 360°• incl. protective enclosure
Incl. chip conveyor, incl. 3-D touch probe and incl. the tool holders located in the tool changer!Attention: without the machine vises seen in the photos!Attention: the machine can be transported on a standard truck!
Attention: The machine can be transported on a truck up to 3000 mm wide!Additional technical specifications:• table with 5 slots• with mounted plate, plate dimensions: 900 x 550 mm• incl. vise, jaw width: 125 mm
REXON SB 25/16 G Column Drilling MachineManufacturerREXONModelSB 25/16 GYear1990ConditionuntestedLocation72589 Westerheim DELot166
• Drilling units: four• table with one slot• vise, jaw width: 80 mm
incl. Machine vice, jaw width: approx. 135 mm
Spindeldrehzahl: von 220 bis 2500 U/min, Spindelaufnahme: MK 2, Motorleistung: 550 kW, Betriebsspannung: 400 V, Tischabmessungen: 200 x 200 mm
Attention: the machine can be transported on a truck up to 3000 mm wide! Incl. the tool holders located in the tool changer.Additional technical specifications:• Setup mode X/Y/Z: 20 - 2000 mm/min• Position measuring system X/Y/Z: 0.001 mm• with in total 32-tool changer (2 x 16 places)• Max. tool diameter with fully places magazine 1: 130 mm• Max. tool diameter with fully places magazine 2: 80 mm• max. tool weight at automatic tool changing: 8 kg• Max. total tool weight in magazine: 160 kg• NC rotary table built into the rigid table.• Number of T-slots: 14/H 12 mm• Aligning slot/one: 14/H 7 mm• T-slot spacing: 63 mm• Permissible load of work tables: Rotary table: 500 kg
Incl. NC rotary table, also a simple pallet changer system, incl. the SK 40 tool holders located in the changer as well as chip conveyor and coolant unit.Attention: the machine can be transported on a standard truck!Additional technical specifications:• nominal current: 80 A• Distance between clamping holes: 100 mm• Number of clamping holes: 33 mm• Center bore: 50 mm• Max. rotation of the table top: 13.6 rpm• Feed: 3600°/min
Attention: the machine can be transported on a truck up to 3000 mm width!Additional technical specifications:• Feed rate in X/Y/Z: 20 - 15,000 mm/min• Setup mode X/Y/Z: 20 - 2000 mm/min• with in total 32-station tool changer (2 x 16 places)• max. tool diameter when all slots in magazine 1 are occupied: 130 mm• max. tool diameter when all slots in magazine 2 are occupied: 80 mm• max. tool length from spindle nose: 315 mm• max. tool weight at automatic tool changing: 8 kg• max. total tool weight in magazine: 160 kg• T-slot spacing: 63 mm
