x-travel:560 mmy-travel:560 mmz-travel:660 mmcontrol:Celos Siemens 840D SL Operate ERGOline Multitouch turning speeds:20 - 20.000 1/minspindle drive:25/ 35 kWmax. torque on the spindle:86 / 130 tool taper:HSK-A63 Number of tool station:60 diameter of tools max.:70 mmTool diameter with no neighbouring tools:170 mmtool length - max.:450 mmweight of tools max.:12 kgnumbers of pallets:2 Pallet dimension:400 x 400 mmmax. workpiece diameter:630 mmworkpiece height max.:900 mmtable load:400 kgrapid travel x/y/z:60 m/minFeed x/y/z:60 m/mininternal coolant system feed:70 barweight of the machine ca.:8,5 tdimensions:3200 x 4800 x 2900 mmRenishaw probe (spindle):Vorbereitung / preparation only Horizontal machining center with Siemens - Celos control, full b-axis, tool magazine with 123 pos. HSK-A 63, coolant through spindle 40 bar.The machine has just received a new milling spindle.

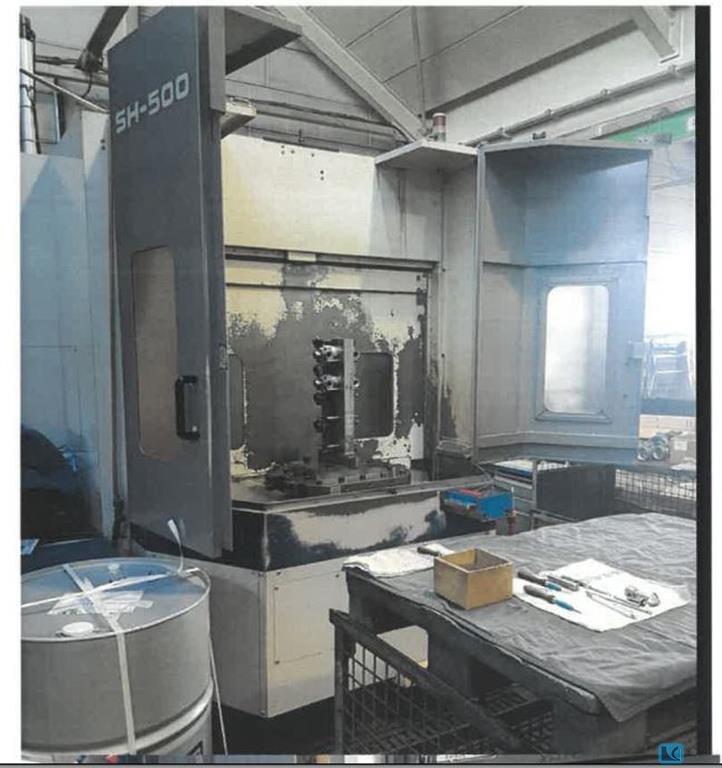

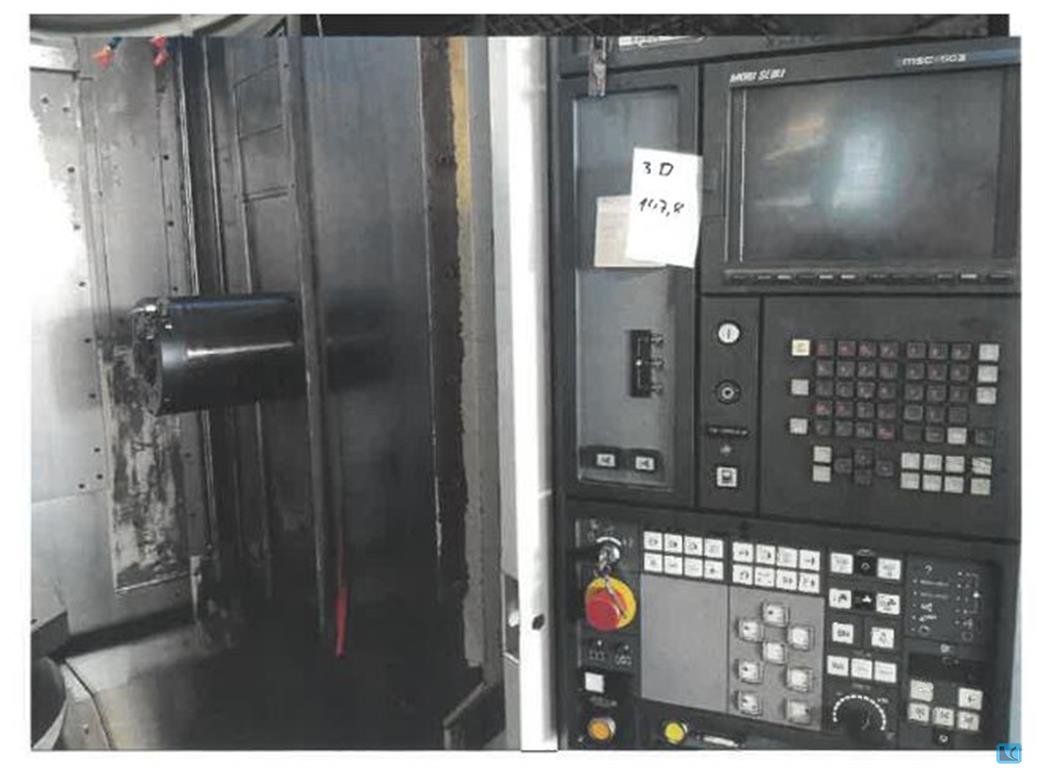

x-travel:630 mmy-travel:600 mmz-travel:650 mmcontrol:MSC 502 (Fanuc 16) Spindle RPM:12000 1/minspindle drive:22 / 18,5 kWrapid travel x/y/z:32 m/minPallet dimension:500x500 mmnumbers of pallets:2 table load:0,5 tworking diameter:max. 610 mmNumber of tool station:60 BT40max. tool length:360 mmmax. tool weight:12 kgtool changing time:1,3 secB-axis positioning (non continuous):1 total power requirement:50 kVAweight of the machine ca.:14 tdimensions of the machine ca.:3,3 x 5,8 x 3,2 mspindle load monitor:Typ C This horizontal machining center comes with a pallet changer with 2 pallets, and has the following options:ATC 60 tool stations, High pressure coolant trough spindle interface,
x-travel:630 mmy-travel:630 mmz-travel:630 mmpallet size::400 x 500 mmspindle taper::HSK 63spindle turning speed - stepless:10 - 16000 U/mintotal power requirement:55 kWweight of the machine ca.:11 tMachine with SIEMENS 840 D control for 4 axis- digital drives- palette changer 4-fold- tool changer 160-fold - coolant device with coolant through spindle- full B-axis- chip conveyor- hydr. workpiece clamping
x-travel:630 mmy-travel:630 mmz-travel:630 mmcontrol:Unipro 90 Pallet changer 2x:400 x 500 workpiece - installed height:800 mmmax. clampable workpiece diameter:720 - 850 mmspindle taper::SK 40 spindle turning speed - stepless:10 - 8000 1/minSpindle power:20 / 30 kWSpindle Torque:95/143 Nmtool magazin::80 SK 40total power requirement:55 kWweight of the machine ca.:11 tMachine with Unipro 90 control for 5 axis- twin palette changer- tool magazine 80 HSK-A 63 - coolant device with coolant through spindle 7 pressure levels- full A & B-axis- chip conveyor
spindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-axis:1520 mmw-axis:1000 mmtable surface area:2000 x 1800 mmworkpiece weight:8 tspindle motor:18 kWspindle taper ISO:50 spindle turning speed range:4,5 - 900 U/minfaceplate diameter:785 mmrapid traverse:5 m/mintotal power requirement:40 kWdimensions of the machine ca.:5,5 x 6,9 x 5,2 mweight of the machine ca.:35 tMachine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control- inf. variable spindle spped- 4 x 90° table positioning- diverse toolholders- dDust exhauster
spindle diameter:120 mmx-travel:1250 mmy-travel:1250 mmz-travel:800 mmW-axis (spindle longitudinal):600 mmSpeed of boring spindles:1- 2000 U/min.spindle taper ISO:50 table surface area:1000 x 1000 mmtotal power requirement:55 kWweight of the machine ca.:18 twith CNC HEIDENHAIN TNC 426autom. toolchnager 40-pocketscoolant attachment
spindle diameter:160 mmx-travel:6500 mmy-travel:3000 mmW-axis (spindle longitudinal):1000 mmdimension of the ram:400 x 420 mmram stroke:1000 mmbore spindle turning speed range:1 - 2000 U/minspindle taper ISO:50 feed speeds:2 - 6000 - 8000 mm/minrapid speed:8/10 m/mintotal power requirement:100 kWweight of the machine ca.:76 tdimensions of the machine ca.:12 x 4 x 7,5 ( 5,4 ü.F. ) mwith CNC Steuerung HEIDENHAIN iTNC 530autom. toolchanger 40-pocketsautom. Pickup Station for universal milling head, and facing headrotary table 2500 x 2500 mm , max load 25 to.1500 mm longitudinal movementfloor plate 4000 x 2000 mmmeasuring probe, chip conveyor and coolant attachment
x-travel:800/945 mmy-travel:800 mmz-travel:600 mmspindle motor:27 kWspindle turning speed range:10 - 8000 U/minspindle taper ISO:40 c-axis:360.000 x 0,001 table load capacity:600 kgtable clamping surface::800 630 mmtotal power requirement:55 kWweight of the machine ca.:16 tMachine with Heidenhain iTNC 530 CNC control for 5 axis- pendulum operation with turn- swivil table left and fixed table right- tool changer for 30 tools- coolant device, chip conveyor- complete splash housing
spindle diameter:130 mmspindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-travel:1000 mmw-axis:1075 mmtable surface area:2000 x 1800 mmworkpiece weight max.:8000 kgspindle turning speed range:4,5 x 900 U/minspindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/minfaceplate diameter:785 mmrapid traverse::5000 mm/mintotal power requirement:40 kWweight of the machine ca.:35 tdimensions of the machine ca.:5,5 x 6,9 x 5,2 mMachine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds- table indexing 4 x 90°- facing head 785 mm- exhauster- various arbors and tooling
x-travel:600 mmy-travel:580 mmz-travel:530 mmdistance spindle center to column:630 mmdistance spindle center to table:100-600 mmmilling feed range:1-10.000 mm/minmax. table load:200/100 kgmax. tool weight:8 kgpositioning accuracy:+/- 0,01 mm:8000/15000 1/minspindle drive:7,5/11,5 /5,5 kWrepeating accuracy:+/- 0,008 mmweight of the machine ca.:7,4 / 7,65 tBrand-new CNC vertical machining center with CNC control FANUC or HEIDENHAINWarranty: 12 monthsMore information can be found in the Appendix.
distance spindle /table:min /max 190 / 570 mmdistance spindle /table:190 - 570 mmsurface area:650 x 300 mmBoring power:in GG 20 40 mmbore capacity in steel:ST 60 32 mmturning speed range::50 - 5000 UpMtotal power requirement:2,2 kWthreading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kgtable load:max. 150 kgtable height:770 mmtraversing speed:max X-, Y- u. W-Achse 5 m/min max.traversing speed:Z-Achse 3 m/minw-axis:380 mmworkpiece height max.:495 mmtool changing time:ca. 3 secx-travel:450 mmy-travel:300 mmz-travel:180 mmworkpiece weight:1,5 kg
x-travel:800 mmy-travel:690 mmz-travel:630 mmtotal power requirement:76 kWweight of the machine ca.:25,5 tb-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kgspindle turning speed range:15000 U/minBoring power:30 mmplate size:630 x 630 mmDimension:6000 x 2900 x 2400 mmspindle taper::HSK 63 Documents:vorhanden
x-travel:630 mmy-travel:560 mmz-travel:560 mmtotal power requirement:10 /15 kWweight of the machine ca.:6500 kgdimensions of the machine ca.: 4,4 x 5,4 x 2,9 mTable dimensions:1000 x 610 mmLoading:400 kgrapid traverse::X 26, Y 26, Z 20 m/minspeeds::20 - 12.000 min -1tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St.control:CNC MillPlus/TNC430 Documents:vorhanden

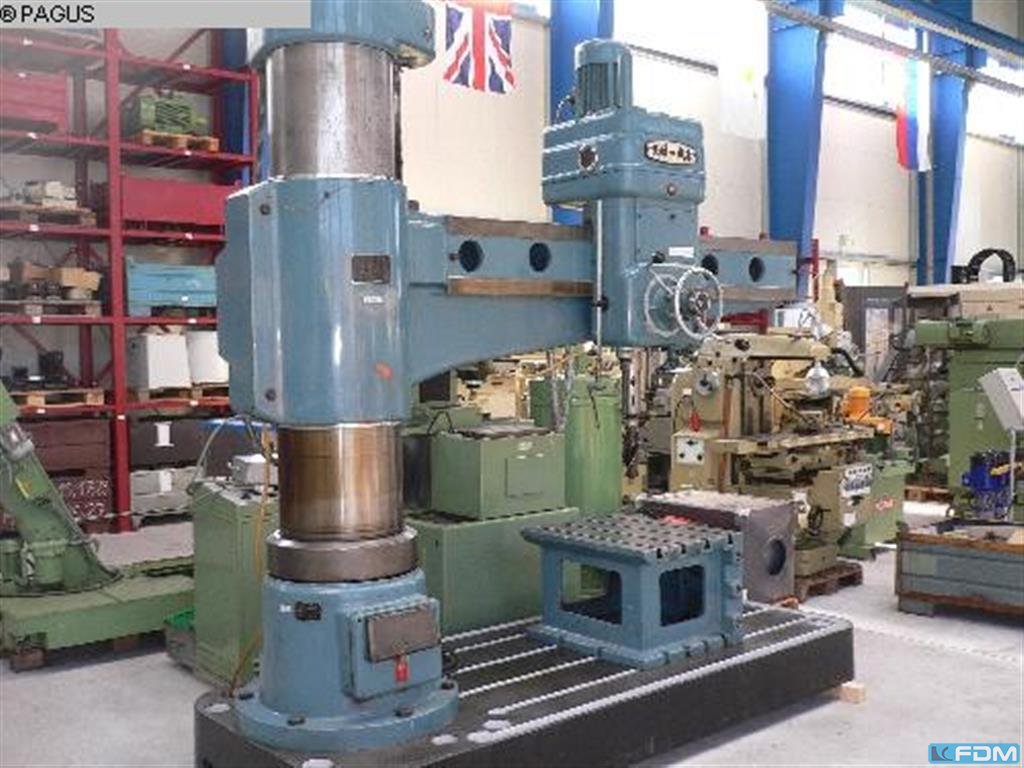

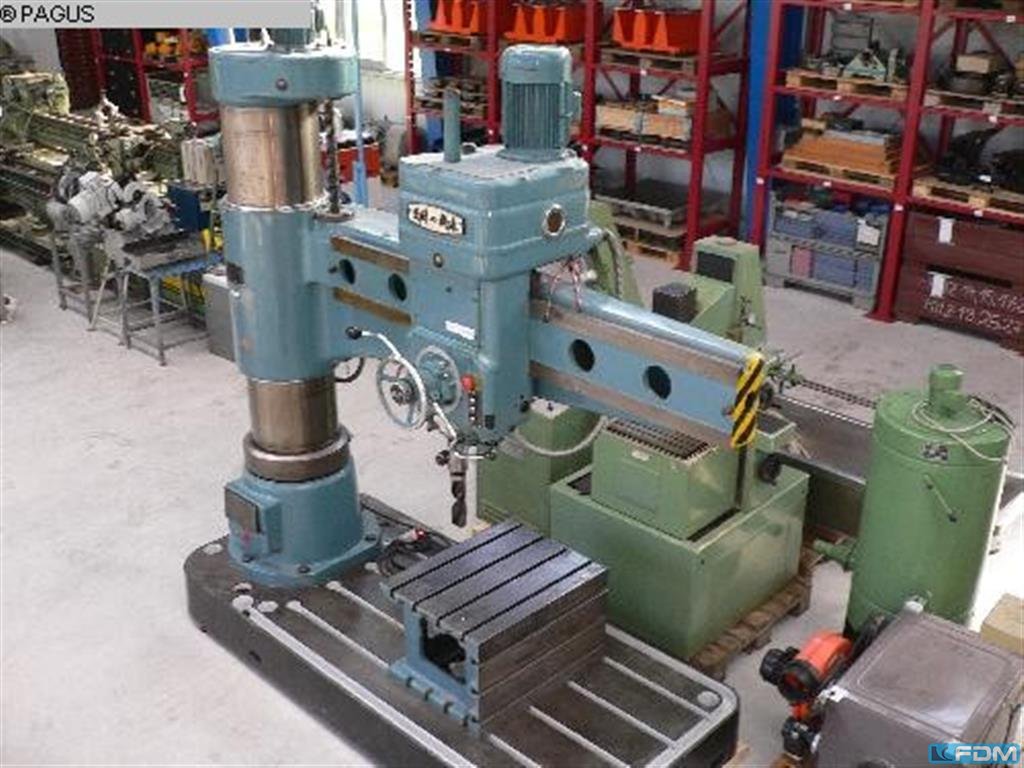

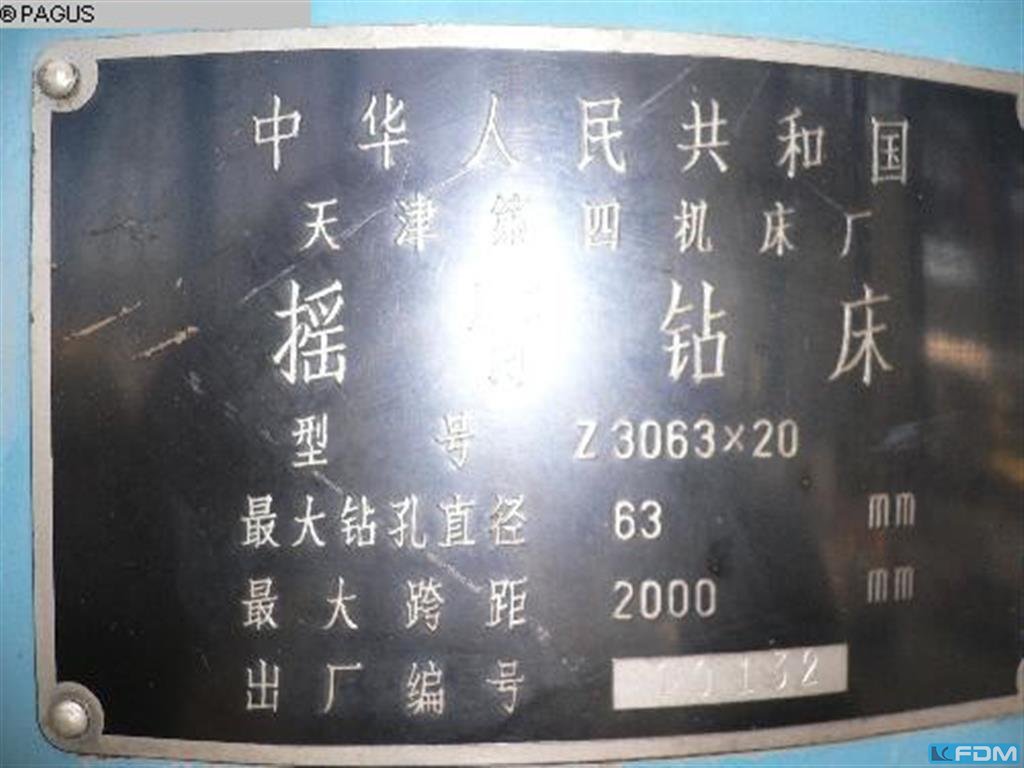

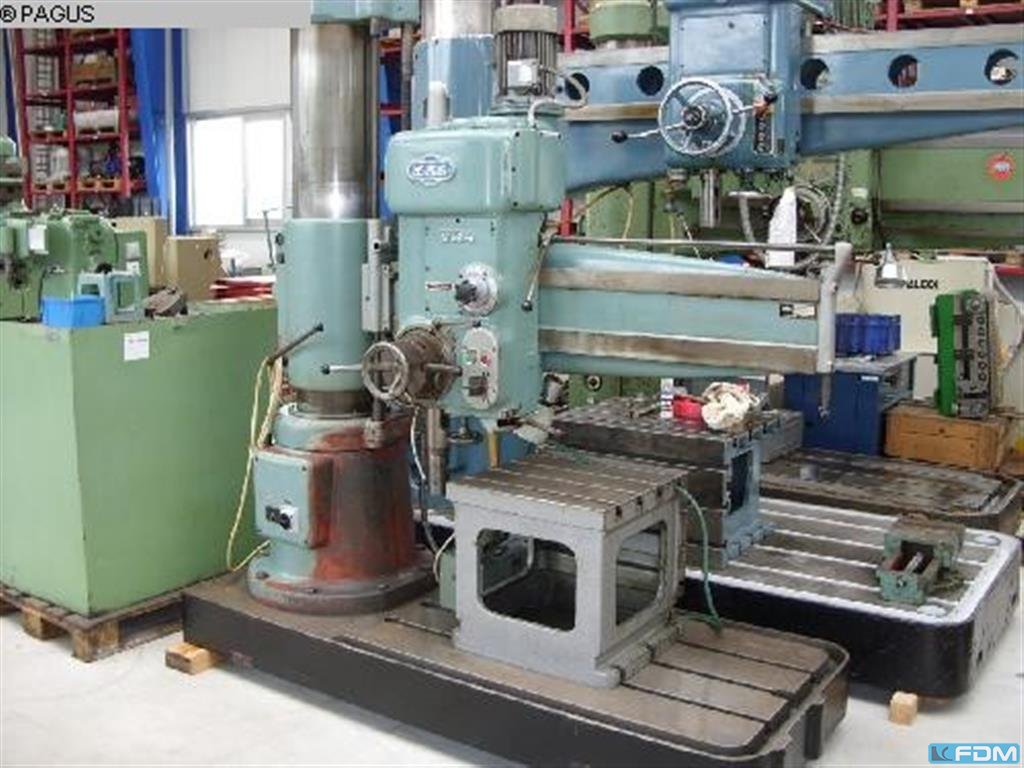

bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990
bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990
bore capacity in steel (diameter):40 mmarm length:1200 mmworkpiece height max.:1227 mmsurface area:1475 x 900 mmno. of flutes:3 groove width:25/ 50 mmspindle cone:MORSE 4 number of spindle speeds:45- 2800 U/minspindle headstock:Bew.Arm : 945 mmwith vertical adjustment:Arm 710 mmspindle diameter:35 mmbore depth:300 mmtotal power requirement:3,0 kWweight of the machine ca.:2800 kgdimensions of the machine ca.:2290 x 910 x 2860 mm
bore capacity in steel (diameter):40 mmarm length:1200 mmworkpiece height max.:1227 mmsurface area:1475 x 900 mmno. of flutes:3 groove width:25/ 50 mmspindle cone:MORSE 4 number of spindle speeds:45- 2800 U/minspindle headstock:Bew.Arm : 945 mmwith vertical adjustment:Arm 710 mmspindle diameter:35 mmbore depth:300 mmtotal power requirement:3,0 kWweight of the machine ca.:2800 kgdimensions of the machine ca.:2290 x 910 x 2860 mm

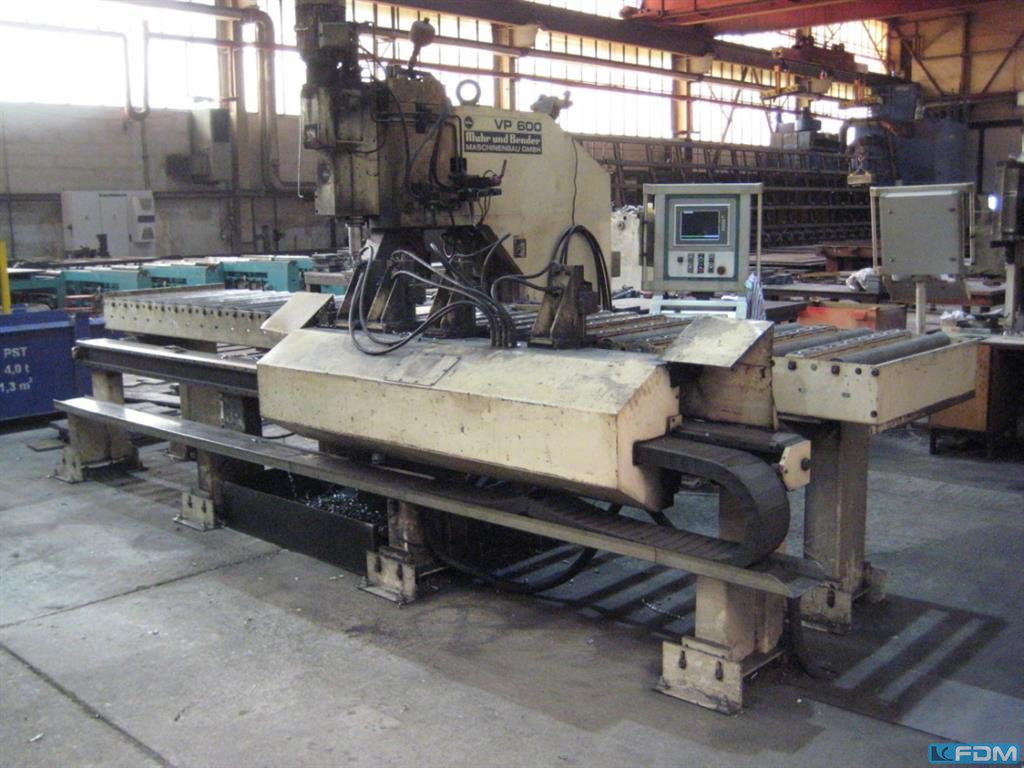

workpiece thickness max.:80 mmworkpiece thickness min.:5 mmplate size without being adjusted:2000x1000 mmsize of plate min.:100x100 mmcontrol:CNC Mubea Matic100 hole diameter:min/max:10/40 mmworkpiece weight:750 kgdeburring device max.:d=40 mmtraversing speed:80 m/minwork height max.:1050 mmpositioning accuracy:+/- 0,5 mmopening of gripping pliers min/max.:Typ I: 5/45 mmopening of gripping pliers min/max.:Typ II: 45/85 mmfeed length:max. 150 mmrapid traverse::8 m/minspindle turning speed range:112-180-224-280-355-560 U/minwork table::L:2500;B:950 mmarm gripping device:4 Stück tool taper:Kegel DIN 6327 longitudinal travel:x=2800 mmcross travel:y=1000 mmbore spindle stroke:max. 150 mmtotal power requirement:25,0 kWweight of the machine ca.:5,5 tspace requirements approx. LxWxH:5,0x5,5x2,7 mplate size with beeing adjusted also 1000x4000 mm possiblewith roller conveyor 2x1000mmmaterial supp ...
bore capacity in steel (diameter):5 - 30 mmx-travel:450 mmy-travel:380 mmtotal power requirement:1,4 / 2,2 kWweight of the machine ca.:1.100 kgdimensions of the machine ca.:1.000 x 1.400 x 2.900 mmgear box:85 - 2.000 U/minspindle diameter:72 mmbore depth:700 mmthroat:300 mmspindle taper MT:3 T-slots:3 x 16/25 mmtable-size:700 x 300 mmspindle turning speed range:85/170/250/355/475/710/1000/2000 U/minmotor speeds::705/1425 Year:ca. 1975
x-travel: 1100 mmy-travel: 600 mmz-travel: 510 mmTable dimensions: 1300 x 600 mmtable load: 1,0 ttool taper: ISO 40 DIN 69871Aspindle turning speed range: 60 - 12000 U/minrapid traverse: 32 m/minpower capacity: 10 / 17 kWno. of tools in the magazine: 32 Stücktool length - max.: 300 mmTool diameter: 76 / 127 mmweight of tools max.: 8 kgtool changing time: 2,5 sectotal power requirement: 30 kWweight of the machine ca.: 8,5 tdimensions of the machine ca.: 4400 x 2250 x 2920 mmInfrared measuring device: Machine with only 3.311 spindle running hours ! Heidenhain iTNC 530 CNC control 32-station ATC Internal coolant system: 20 bar Coolant tank: 480 l Chip conveyor Heidenhain glass scales in X/Y/Z Oil-cooler Infrared measuring deviceThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 6 Monate ab Auftragse : Taiwan : 16900 €: 324.48 €: 32 mm: MK 4 : 220 - 950 mm: 73 - 1.247 (6) U/min: Stahl: M 25, Guss: M 32 : 1800 mm: 830 mm: 2190 mm: 1250 kg: 350 - 1.210 mm: 0,05 - 0,15 (3) mm/min: 1.5 kW: 210 mm: 220 mm: 1.260 x 640 x 160 mm: 0,75 kW: 600 x 445 x 380 mm: 2320 mmleft/right rotationautomatic feeddrilling depth limitmanual headstock adjustment with mechanical clampingelectric height adjustment of extension arm and mechanical clampingmechanical clamping of swivel movement of extension armcentral operation panel on the front sidepower load readout for drilling spindlehand wheel for spindle fine feedcoolant equipmentmachine lampbox tablemachine and equipment according to the CE-regulationsoperating manual in GERMAN and ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 6 Monate ab Auftragse : Taiwan : 30100 €: 574.91 €: 50 mm: MK 5 : 360 - 1.250 mm: 44 - 1.206 (12) U/min: Stahl/Guß: M40/M50 : 2060 mm: 995 mm: 2240 mm: 2300 kg: 441 - 1.345 mm: 0,06 - 0,2 (3) mm/min: 3.7 kW: 300 mm: 270 mm: 1.785 x 785 x 190 mm: 0,75 kW: 635 x 520 x 420 mm: 2645 mm: 0,75 kWleft/right rotationautomatic feeddrilling depth limitmanual headstock adjustment with hydraulic clampingelectric height adjustment of extension arm andhydraulic clampinghydraulicclamping of swivel movement of extension armcentral operation panel on the front sidepower load readout for drilling spindlehand wheel for spindle fine feedcoolant equipmentmachine lampbox tablemachine and equipment according to the CE-regulationsoperating manual in GERMAN and ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 6 Monate ab Auftragse : Taiwan : 39200 €: 748.72 €: 50 mm: MK 5 : 350 - 1.600 mm: 56 - 1.450 (12) U/min: Stahl/Guß: M40/M50 : 2670 mm: 1120 mm: 2410 mm: 3300 kg: 465 - 1.420 mm: 0,06 - 0,2 (3) mm/min: 3.7 kW: 320 mm: 270 mm: 2.550 x 970 x 200 mm: 1,5 kW: 630 x 500 x 500 mm: 2760 mm: 0,75 kWleft/right rotationautomatic feeddrilling depth limitmanual headstock adjustment with hydraulic clampingelectric height adjustment of extension arm andhydraulic clampinghydraulicclamping of swivel movement of extension armcentral operation panel on the front sidepower load readout for drilling spindlehand wheel for spindle fine feedcoolant equipmentmachine lampbox tablemachine and equipment according to the CE-regulationsoperating manual in GERMAN and ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 6 Monate ab Auftragse : Taiwan : 51700 €: 977.13 €: 65 mm: MK 5 : 440 - 1.580 mm: 40 - 1.920 (12) U/min: Stahl/Guß: M50/M60 : 2850 mm: 1400 mm: 2940 mm: 4600 kg: 380 - 1.600 mm: 0,07 - 0,96 (6) mm/min: 5.5 kW: 432 mm: 370 mm: 2.480 x 1.050 x 210 mm: 1,5 kW: 700 x 500 x 400 mm: 3170 mm: 0,75 kWleft/right rotationautomatic feeddrilling depth limitmanual headstock adjustment with hydraulic clampingelectric height adjustment of extension arm andhydraulic clampinghydraulicclamping of swivel movement of extension armcentral operation panel on the front sidepower load readout for drilling spindlehand wheel for spindle fine feedcoolant equipmentmachine lampbox tablemachine and equipment according to the CE-regulationsoperating manual in GERMAN and ENGLISH(sample photo)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 6 Monate ab Auftragse : Taiwan : 21300 €: 408.96 €: 42 mm: MK 4 : 280 - 1.100 mm: 44 - 1.500 (12) U/min: Stahl: M 25, Guss: M 38 : 1880 mm: 870 mm: 2210 mm: 1800 kg: 470 - 1.270 mm: 0,05 - 0,15 (3) mm/min: 2.2 kW: 260 mm: 280 mm: 1.725 x 715 x 180 mm: 635 x 520 x 415 mm: 2530 mmleft/right rotationautomatic feeddrilling depth limitmanual headstock adjustment with mechanical clampingelectric height adjustment of extension arm and mechanical clampingmechanical clamping of swivel movement of extension armcentral operation panel on the front sidepower load readout for drilling spindlehand wheel for spindle fine feedcoolant equipmentmachine lampbox tablemachine and equipment according to the CE-regulationsoperating manual in GERMAN and ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 730 mmy-travel: 730 mmz-travel: 850 mmcontrol: MSX 701 IV MAPPS 4Main spindle:: max. spindle speed: 14.000 min/-1power capacity - milling spindle: 22 / 18,5 kWtool taper: HSK A-63 distance ground floor - table top edge: 1.200 mmdistance Spindlenose and center of table: 100 - 950 mmpallet changer:: numbers of pallets: 2 size of pallet: 500 x 500 mmmax. workpiece weight: 500 kgmax. workpiecediameter: 800 mmmax. workpiece height: 1.000 mmchange time of pallets: 7 secIndexing-time: 1,57 secB-axis (table): 0,001 °Tool-Presetter:: number of toolpositions: 120 pos.tool taper: HSK A-63 max. tool diameter: 70 mmmax. tool-dia with free toolbox: 140 mmmax. tool length: 500 mmmax. tool weight: 12 kgfeeds:: rapid traverse: 50 m/minfeed speeds: max. 50.000 mm/minTipp feed: 0 - 1.260 mm/mintotal power requirement: 51 kVAweight of the machine ca.: 12 tdimensions of the machine ca.: 5,5 x ...
x-travel: 762 mmy-travel: 460 mmz-travel: 460 mmtable surface area: 1.000 x 460 mmcontrol: Okuma OSP 20 M rapid traverse: 40/40/32 m/mintable load: 0,7 tturning speed range: 12000 U/minpower capacity - milling spindle: 22/18,5 kWmax. torque on the spindle: 198 Nmno. of tools in the magazine: 32 Stückinternal coolant system feed: 20/43 bartool taper: BT 40 weight of the machine ca.: 6,8 tdimensions: 2.22 x 2,9 x 2,75 mCNC- vertical machining centre with internal coolantFirst installation 2014- coolant through the spindel 15 bar, 20 ltr/min- air throug the spindle- chip conveyor- signal lamp- Dual tool change arm- external electric hand weel- tool lenght measuring and toolbreak detection- filter system- X- axis in gantry style- spindle oil cooler- thermal compensation spindel and bed- USB and Ethernet port- Hi-Cut Pro high speed control- 100 Zero offsets- thread millingThe data for this a ...
• Centrum obróbki CNC • Numer seryjny 0-250-06-1632 • Całkowita instalowana moc ok. 18 kW • Użyteczna powierzchnia robocza, około 2750 x 1000 mm • Oś X drogi podróży: 3455 mm, oś Y: 1480 mm, oś Z: 260 mm • Maksymalna prędkość ruchu w kierunku osi x-y-z: 80-60-20 m/min • Magazynek narzędziowy z 8 pozycjami • Elektrowrzeciono: moc 7,50 kW maksymalnie, 24000 obr./min, automatyczna wymiana narzędzi, dla uchwytu HSK F63, chłodzone cieczą • Grupa frezarska / piłowa z silnikiem 1,50 kW • Jednostka piły do rowka • Pionowe wrzeciona wiertnicze w kierunku osi X: 11 • Pionowe wrzeciona wiertnicze w kierunku osi Y: 8 • Poziome wrzeciona wiertnicze w kierunku osi X: 3 + 3 • Sterowanie numeryczne NUM 1040 • Oprogramowanie Windows 95 / HOMAG WOODWOP • 6 konsol z 2 przyssawkami każda • 6 modułów podnoszących do ciężkich elementów • Pompa ...
• Numer srejski AA1/013786 • Wymiary stołu roboczego 3050 x 1200 mm • Wysokość przejścia panelowego 280 mm • Oś X drogi podróży: 4420 mm, oś Y: 1720 mm, oś Z: 400 mm • Maksymalna prędkość ruchu w kierunku osi x-y-z: 105-80-25 min • Magazynek narzędziowy z 12 pozycjami • Elektrowrzeciono: moc 11 kW, maksymalnie, 18000 obr./min, automatyczna wymiana narzędzi, dla uchwytu HSK F63, chłodzone cieczą • Jednostka piłowa z silnikiem 2,20 kW • Pionowe wrzeciona wiertnicze w kierunku osi X: 5 • 2 głowice do wiertarek poziomych • Sterowanie numeryczne NUM POWER 1040 • Oprogramowanie Windows / Xilog Plus • Pompa próżniowa RIETSCHLE VTB 250 o wydajności 250 m³/h • Warunki pracy tej maszyny: niekontrolowane. • Przedmiot ten jest dostarczany ciężarówką. Koszty demontażu i załadunku określane są jako dodatkowe koszty. Auction-ID: A7-508 ...
1.400 €
