turning diameter:1600 mmturning length:3000 mmcentre height:800 mmturning diameter over bed:1600 mmturning diameter over bed slide:1400 mmturning dia. over face-slide:1200 mmmax. workpiece weight between centers:20 tospeeds:5,6 -800 1/mintransmission ratio:3 spindle bore:112 mmturret (x-stations):8 / VDI 60 travel -x axis:850 mmtravel -z axis:3020 mmrapid power traverse in X-and Z direction:6 / 10 m/minpower maindrive:46 kWweight of the machine ca.:22 to.dimensions of the machine ca.:7,2 x 4 (3,11) x 2,7 mtech-in lathe, flatbed,tailstock,8-pos. BARUFFALDI turret with 4 live tools, power 9kW,4-pos. BARUFFALDI square-headed turret horizontal,C-axis,3-jaw hydr. chuck SMW Autoblock KNCS 800/165, dia. 800mm,quick adjustment, power cylinder with 2 pressure clamping system,chipconveyor,coolant device,accessories
TOKARKA CNC Z PODWRZECIENIEM I OSIĄ Y Inv. nr 13.032C1 Make MAZAK Model SQT250MSY Control T-PLUS Odległość środkowa 495 mm Maks. huśtawka nad łóżkiem Ø 525 mm Maks. huśtawka nad przesuwem poprzecznym Ø 350 mm Średnica wrzeciona Ø 64 mm R.P.M. 35 – 4 000 (16x) kW 18 Volty 380 Cykle 50 W tym: 12 poz. A.T.C. (narzędzia sterowane) Hydrauliczna skurcz Ø250mm Auction-ID: A1-45737-9
turning diameter:230 mmturning length:810 mmcentre distance:1.000 mmturning diameter over bed:460 mmspindle passage:56 mmchucking diameter:200 mmturret head:8 x VDI 30 Pos.turning speeds:3.100 1/minmax. workpiece weight:570 kgspindle motor:18 kWdimensions of the machine ca.:3,7 x 1,9 x 1,8 mweight of the machine ca.:2,9 tteach-in lathe,PARAT tooling-system,hand operated collet chuck,3 jaw chuck,4 toolholders
swing diameter:320 mmcontrol:840 D SIEMENSturning speeds:5000 1/minspindle drive:20 / 27 kWchucking diameter:250 mmtravel -x axis:650 mmtravel -z axis:300 mmturret head:12 Pos.tool holder:VDI 40 toolpiece turning speed range:4000 1/minwork piece power:max. 11,7 kWweight of the machine ca.:8 tCNC vertical lathe,live tools,C-axis,high pressure pump 20 bar, 500l, filter,flush gun,3-jaw chuc,EWAB loading station right,chipconveyor,approx. 23.500h "machine on", approx. 8.000h "spindle on" (in total)MACHINE WILL GET NEW (OVERHAULED) SPINDLE (0 hours)

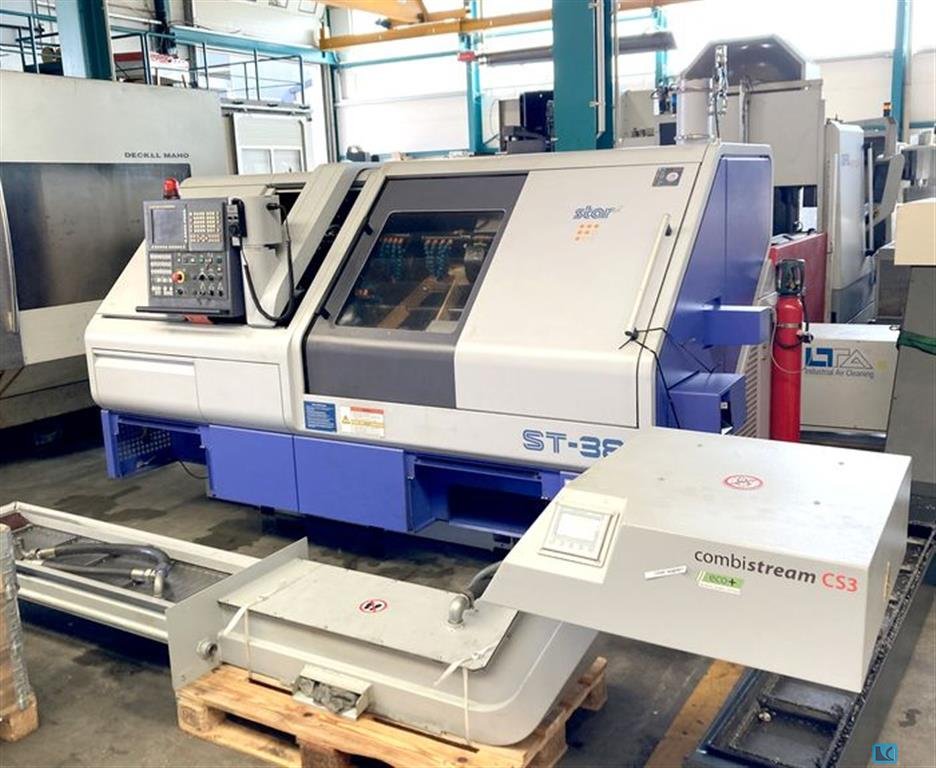

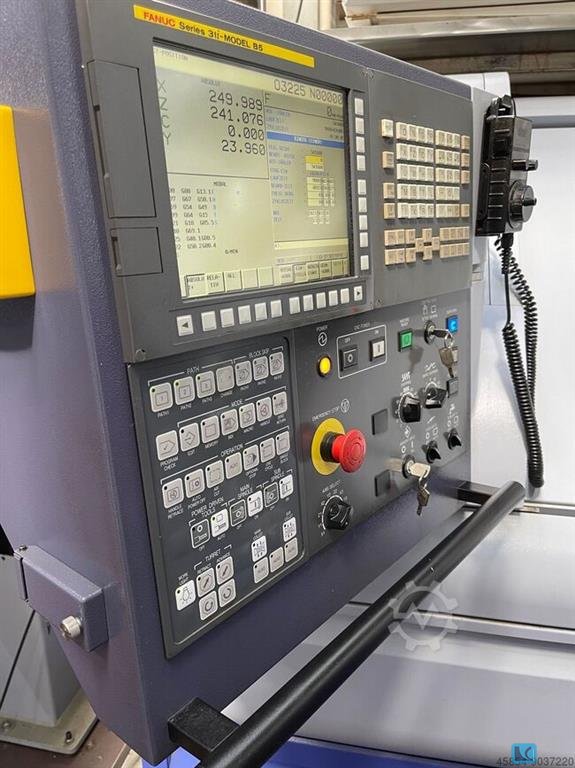

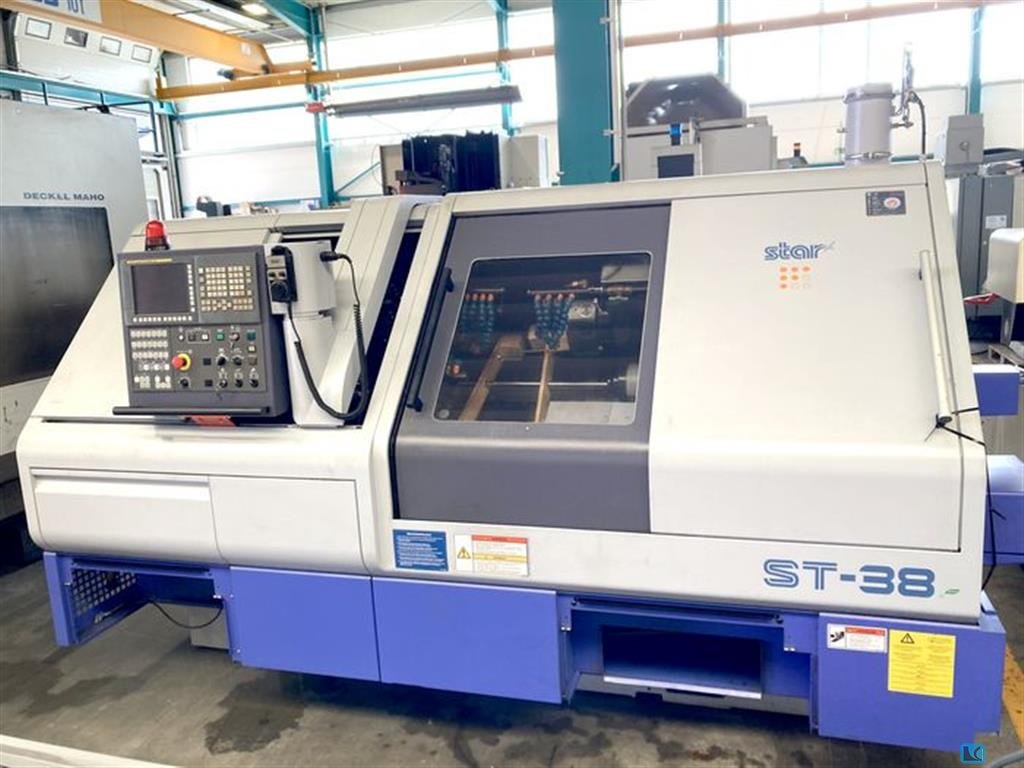

bar material dia.:38 mmturning length:350 mmturning speeds:7.000 / 7.000 U/minnumber of tools:30 (3 x 10) driven tools:ja / yes control:FANUC 31i-B5 rapid traverse:30 m/mintotal power requirement:10,5 kVAweight of the machine ca.:6,5 tdimensions of the machine ca.:2,50 x 1,45 x 1,75 plus Lademagazin mwork piece power:4 kWtoolpiece turning speed range:5.700 1/minmain spindle power:11 kWsub spindle power:7,5 kWCNC sliding headstock machine STAR ST 38,3 turrets,12 CNC Axis (X1/Z1/Y1/C1/X2/Z2/Y2/YA2/C2/X3/Z3/Y3,Fireextinguisher KRAFT und BAUER FB 703,partscatcher and conveyor belt (for long parts),LTA oilmist suction,chiller for oil,machining with oil as coolant,reading hours:approx. 14.500 hours "machine on", approx. 4.100 hours "machining"
bar material dia.:65 mmturning length:644 mmturning dia. over bed:600 mmturning diameter over slide:430 mmy-axis:100 (+-50) mmturning speeds:2x 5.000 1/minpositive location each:2x C-Achse, 0,001° GradSub spindle:ja/yes turret (x-stations):2x 12 VDI 30 Pos.driven tools:2x 12 Pos.turning speeds:2x 4.000 1/mincontrol:FANUC 18 iTB total power requirement:30 kVAweight of the machine ca.:8 tdimensions of the machine ca.:3,5 x 2,5 x 2,3 mturning- milling center with Y-axis,collet device on main and subspindle,high pressure pumps 2x 14bar,parts catcher/conveyor,barloader ENTL 10-65,chip conveyor,lot of accessoriesapprox. 54.500 hours "machine on", 30.500 h "automatic", 14.000 h "feeding"
turning diameter:1000 / 700 mmturning length:3000 mmface slide travel:600 mmturning diameter over slide:700 mmturning speeds:1-1.800 1/mintransmission ratio:2 spindle:46 (60%) kWspindle bore:132 mmquill stroke:280 mmworkpiece weight max.:2.560 kgtotal power requirement:38 kWweight of the machine ca.:6 tdimensions of the machine ca.:5 x 2,6 x 1,9 mteach in lathe,PARAT tooling system,SCHUNK ROTA NC 500-160 hydr. power chuck,tailstock,chipconveyor

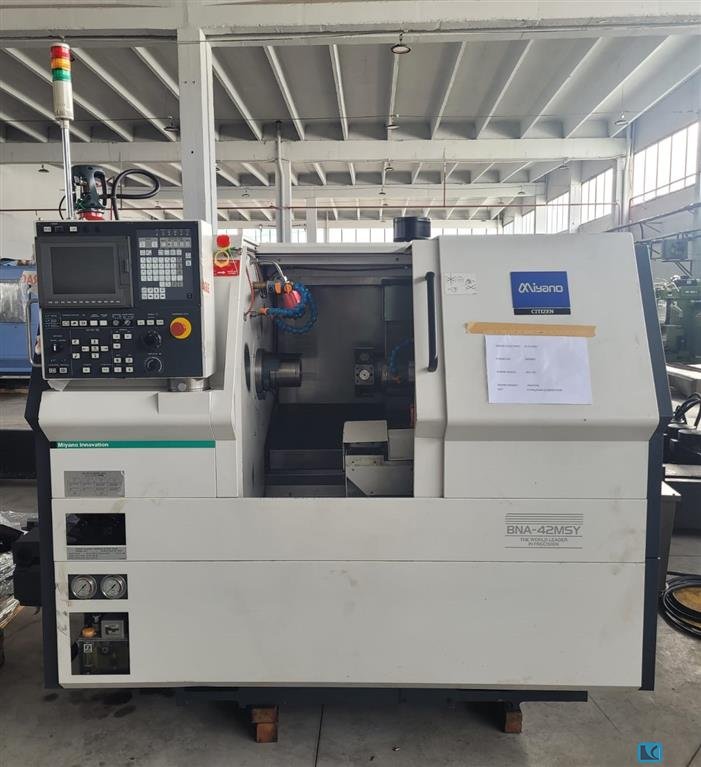

turning diameter:80 mmturning length:235 mmmax. bar capacity:42 mmpower capacity - driven tools:1 kWspeeds spindle 1:6000 1/minspeeds spindle 2:5000 1/minnumbers of turret head positions:8 posdrive capacity - spindle motor:SP1 11 / SP2 5,5 kWTools speed:60-6000 1/minweight of the machine ca.:ca. 3 tdimensions of the machine ca.:2,4 x 1,5 x 1,6 mHigh Performance CNC Turning- and Milling Center - chipconveyor- subspindle- live tools- C-axis- brake- partscatcher and partsconveyor- tool eye- barloader LNS HYDROBAR MINI-SPRINT approx. 5000 working hours

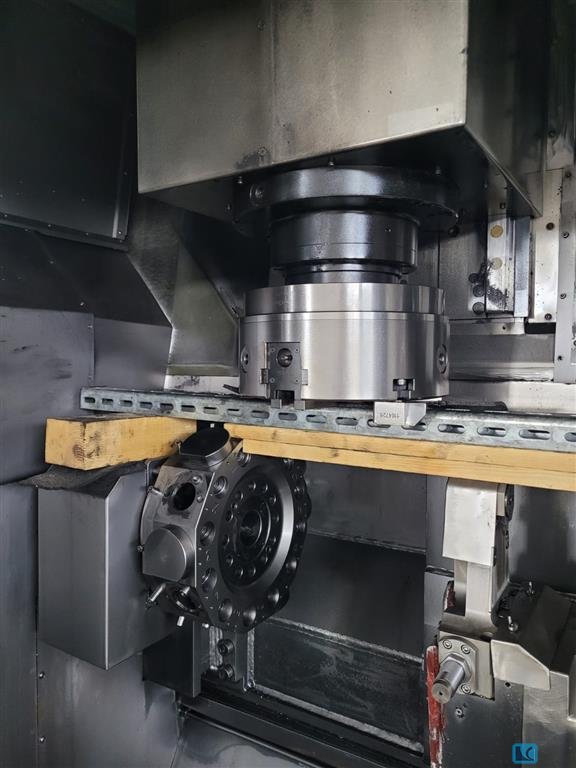

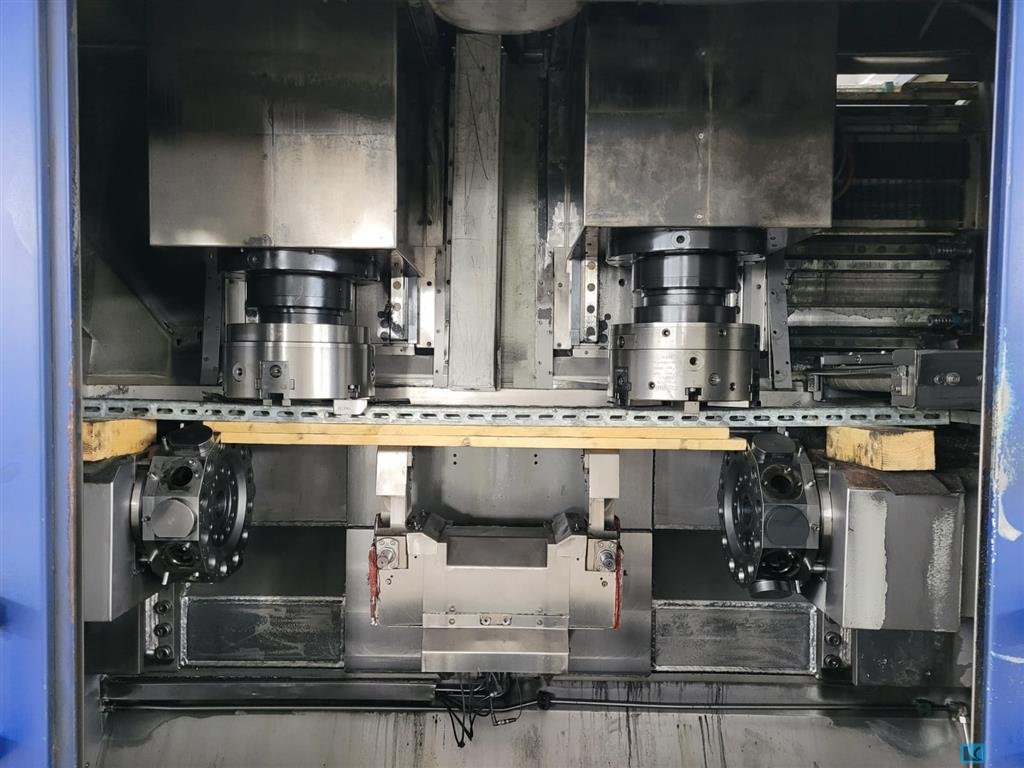

swing diameter:260 mmcontrol:840 D SIEMENSturning speeds:3.500 1/minspindle drive:36 / 28 kWchucking diameter:260 mmtravel -x axis:900 mmtravel -z axis:400 mmturret head:12 Pos.tool holder:VDI 40 rapid power traverse in X-and Z direction:100 / 30 m/mindimensions of the machine ca.:5,3 x 2,4 x 3,31 mCNC vertical lathe with 2 spindles,2x RÖHM power chucks dia. 315mm,
turning diameter:420 turning length:1230 mmswing over bed:700 mmswing diameter over slide rest:550 mmcentre distance:1390 mmy-axis:+/- 60 mmturning speeds:3500 1/minturret (x-stations):12 power capacity:22 / 18,5 kW:1 / 12 x BMT rapid traverse x + z axis:20 / 24 m/min:76 mmtotal power requirement:50 kVAweight:7,8 tdimensions of the machine ca.:4,10 x 2,05 x 2,21 mCNC lathe with Y-Axis and driven tools,C-axis,tool eye,hydraulic 3-chaw-juck D= 250 mm,reinforced pump 15 bar,pressure-compensated clamping cylinder ,2 step clamping pressure,prepared for steady (without steady),progr. tailstock (dragging device),live tool device (3,7 kW, 3.000 rpm),chipconveyor,1 pcs. live tool includedapprox. 15.500 working hours

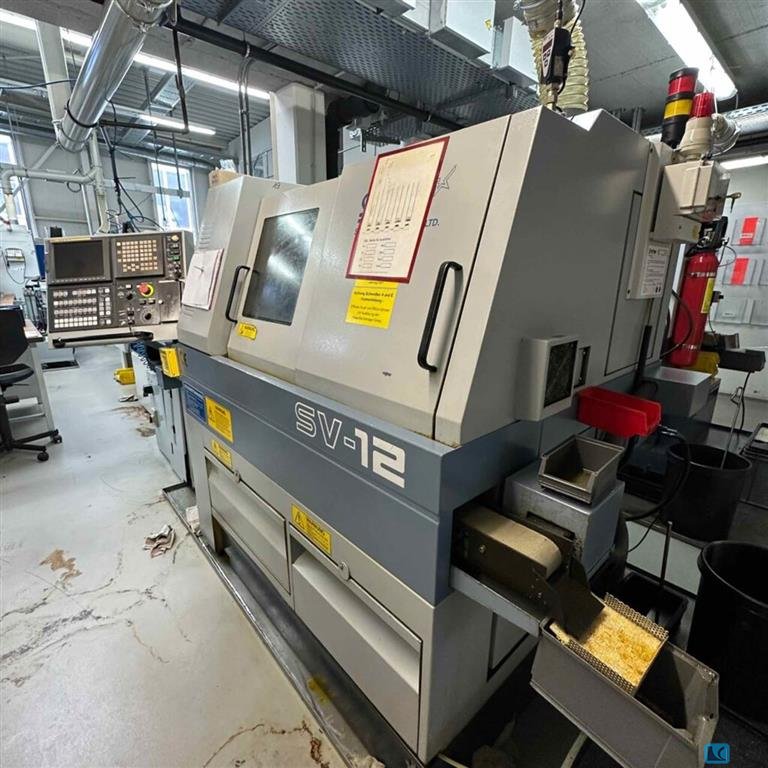

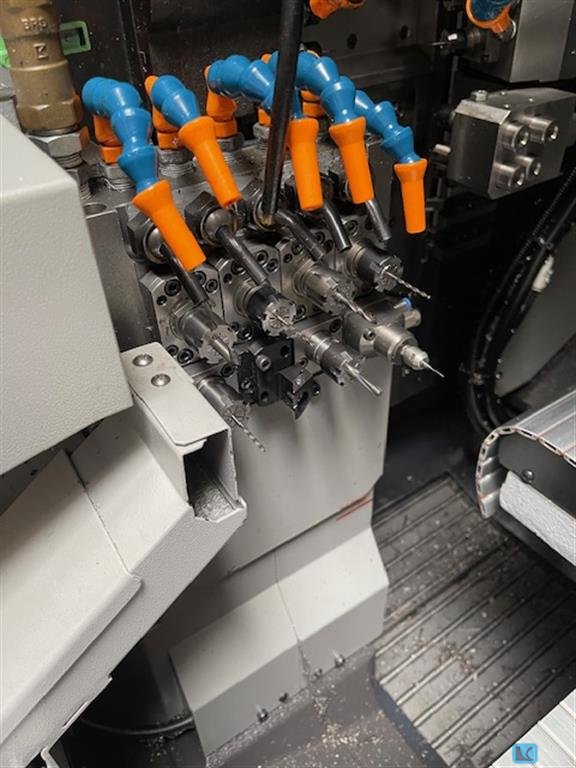

bar material dia.:13 mmturning length:205 mmturning speeds:12.000 / 12.000 U/minnumber of tools:29 driven tools:ja / yes 19 control:FANUC 16 iT total power requirement:9 kVAweight of the machine ca.:1,7 tdimensions of the machine ca.:2,7 x 1,4 x 1,7 mCNC sliding headstock machine,subspindle,Year 2003 (0450)FANUC 16i-T control with 9 axes,9 axes (X / C1 / Y / E / B / A / X / c2),Main spindle, speed max. 12,000 rpm, C-axis,Counter spindle with collet, speed max. 12,000 rpm, C-axis,4-fold tool holder3 transverse drilling apparatusesRevolver with 8 stationsvarious additional tool holders, quills,Extinguishing system Kraft and BauerHigh pressure system SF-Systeme Büchele /SHD 150/ 150bar / 2 x 40 um /3 valves,Parts conveyor beltManuals Operation/Programming/Electrical/Spare PartsOperating tool machineUp to 29 turning tools and up to 19 attachments possible9.0KVATank capacity 170LLoading maga ...
turning diameter over bed:20 mmspindle passage:3-20 mmturning length:250 mmcontrol:FANUC 31 i-A main-spindle speed:10.000 1/minsubspindle speed:10.000 1/minMain spindle capacity:3,7 kWsubspindle power:2,2 kWnumber of tools:35 weight of the machine ca.:3,3 tdimensions of the machine ca.:2,11 x 1,2 x 1,89 mCNC sliding headstock turning/milling centre with B-axisControl system: Fanuc 31i-AMachining length: max. 250 mmNumber of controlled axes: 7 axes and max. 5 axes simultaneouslyB-axis: 0°-130° freely programmableRod passage: Ø 3 mm to max. Ø 20 mmDrive power main spindle: 3.7 kWDrive power counter spindle: 2.2 kWMain spindle speed: 10,000 rpmCounter spindle speed: 10,000 rpmC-axis: Main and counter spindleNumber of linear supports: 2 piecesTotal number of tools: 35 piecesDimensions (LxWxH) in mm: 2,110×1,200×1,885Weight: 3,300 kgConversion from long to short turningDeep hole drillin ...
turning diameter:33 mmturning length:330 mmcontrol: 840 total power requirement:20 kWweight of the machine ca.:6 tdimensions of the machine ca.:3850,2000,2100 m17 axes3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axesBarfeederMachine On-time 58,133 hours
turning diameter:120 mmturning length:100 mmcontrol:Fanuc Spindle 1 power:7,5 kWSpindle 1 RPM:4500 1/minSpindle 2 power:7,5 kWSpindle 2 RPM:4500 1/minDistance between spindle noses:600 mmTurret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kWRPM of rotary tools turret 1:4000 1/minTurret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kWRPM of rotary tools turret 2:4000 1/minTravel x/z turret 1:250 / 300 mmTravel x/z turret 2:250 / 920 mmBar capacity spindle 1:51 mmBar capacity spindle 2:51 mmpower chuck:165 mm Spindle bore sp. 1:62 mmSpindle bore sp. 2:62 mmdimensions of the machine ca.:3700 x 2300 x 3000 mmweight of the machine ca.:5600 kgUsed CNC-2-spindle CNC turning and milling center with gantry loader- 2x 15 station turret-automatic gantry loader with turnaround station.14 station-magazin right sideMax. Parts size Ø 120 x 100 mmDoublegripper ...

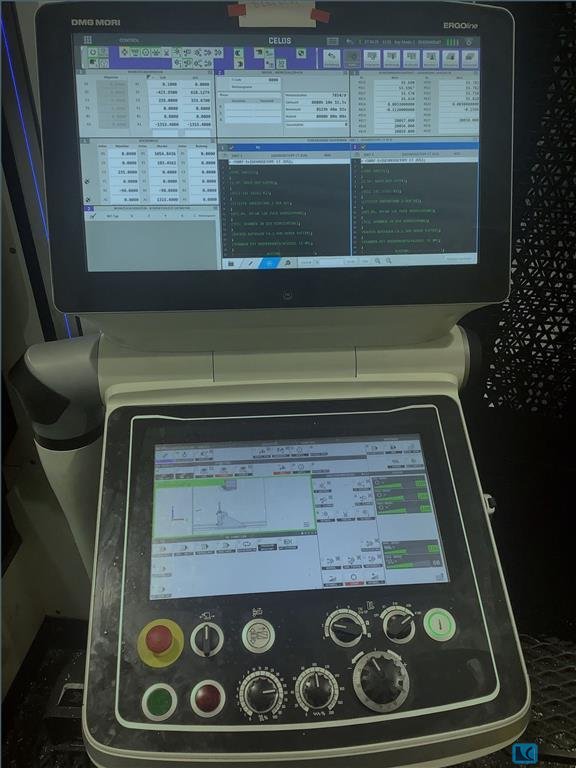

turning diameter:356 mmturning length:705 mmcontrol: CELOS M730 UM MAPPS swing dia.:742 mmstandard turning diameter:275 mmtravel -x axis:260 mmtravel -y axis:100 ( ±50) mmtravel -z axis:795 mmrapid travel - longitudinal/face:30 / 30 m/minRapid travel B-axis (parts transfer subspindle):734 m/minSpindle 1 RPM:4000 1/minSpindle 1 Power:15/18,5/18,5 kWSpindle 1 Torque:409/505 /599 NmSpindle 1 max. bar diameter:80 mmSpindle 2 RPM:4500 1/minSpindle 2 power:7,5/11 kWturret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min:3.7/5,5/5,5 kWtorque rotary tools:14 / 24 Nmtotal power requirement:38 kVAweight of the machine ca.:6,3 tdimensions of the machine ca.:4 (9) x 2,1 x 2,2 mParts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Milling Centre with Y-axi ...
turning diameter:370 mmturning length:200 mmSpindle 1 RPM:4000 1/mincontrol:Siemens 840 D Spindle 2 RPM:4000 1/minpower capacity:L / R 18/24 kWmax. torque on the spindle:630 nMC-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40Turret No.2 stations / rotary tools:12/12 VDI 40turning speed range - milling:3000 1/minpower capacity - milling spindle:8,8 kWtorque rotary tools:28 NmBar capacity spindle 1:85 mmtotal power requirement:65 kVAweight of the machine ca.:13 tdimensions of the machine ca.:5,7x2,4x2,1 mTravel x1:260 mmTravel x2:260 mmTravel Y1:600 mmTravel y2:600 mmPower Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.
turning length:400 mmtotal power requirement:45 kWweight of the machine ca.:4 tdimensions of the machine ca.:3,58 x 1,91 x 2,05 mspindle passage:45 mm
turning diameter:65 mmturning length:120 mmcontrol:Index C200-4D SL z-axis main spindle travel:390 mmz-axis subspindle travel:390 mmx-axis subspindle travel:600 mmTravel Y1:± 80 mmTravel y2:± 80 mmx-axis rapids:45 m/miny-axis rapids:15 m/minz-axis rapid travel:45 m/minSpindle 1 RPM:5000 1/minSpindle 1 Power:35,5/27,5 kWSpindle 1 Torque:170 /125 NmSpindle 2 RPM:5000 1/minSpindle 2 power:35,5/27,5 kWSpindle 2 torque:170/125 Nmc-axis:0,00014 °bar material dia.:65 mmspindle nose:AD 140 spindle bore:85 mmMilling spindle 1 RPM:18000 1/minMilling spindle 1 power:11 kWMilling Spindle1 torque:19 NmMilling spindle 2 RPM:18000 1/minMilling Spindle 2 power:11 kWMilling spindle 2 torque:19 NmB-axes swivel angle:230 °B-axes torque:440 NmB-axes angle resolution:0,001 °Milling spindle 1 & 2 tool magazine:80 HSK A40 Milling spindle 2 tool magazine static tools :6 x VDI 25 internal coolant system fee ...
turning diameter:500 mmturning length:1000 mmweight of the machine ca.:7,3 tdimensions of the machine ca.:6,5 x 4,45 x 2,21 m
turning diameter:640 / 400 mmturning length:1500 mmcontrol:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mmSwivle angle milling spindle (B-axis):±120° interpol. °Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/minRPM milling spindle:12000 1/minpower capacity - milling spindle:12 / 23 kWTorque of milling spindle:100 NmTool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 sSpindle 1 RPM:4000 1/minSpindle 1 power:36/ 45 kWSpindle 1 Torque:730 NmSpindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/minSpindle 2 power:36 / 45 kWSpindle 2 torque:730 NmSpindle 2 max. bar diameter:90 c-axis:0,001 °Travel turret 2 x:225 mmTravel Turret 2 z:1595 mmRPM of rotary tools turret 2:4000 1/minno. of tools in turret 2:12 VDI 40 high-pressure pump:20 bartotal power requirement:110 kVAweight of t ...
turning diameter:670 mmturning length:1540 mmcontrol:F31iB5 Celos Fanuc 35iB5swing diameter max. over bed cover:700 mmTravel turret No.1 (milling spindle) x/y/z:495 / ± 150 / 1562(+164) mmRotation B-axis:-30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z:40/40/40 m/minRPM milling spindle:12000 1/minpower capacity - milling spindle:20,2/18,8 kWTorque of milling spindle:120 / 44 Nmtool taper milling spindle:Coromant Capto C6 Tool magazine for milling spindle (turret 1):76 Tool change time tool/tool, milling spindle:1,25 sSpindle 1 RPM:3000 1/minSpindle 1 Power:36 / 30 / 25 kWC-axis spindle 1:0,001 °Bar capacity spindle 1:102 mmSpindle 2 RPM:4000 1/minSpindle 2 power:26 / 22 / 15 kWC-axis spindle 2:0,001 °Bar capacity spindle 2:80 mmdimensions of the machine ca.:7,8 x 3,6 x 2,9 mLinear scales on axis:X, Y programmable steady:KLU-A530 & SLU-X3.2 Spindle 1 Chuck:Kitagawa 250 ...
turning diameter:500 mmturning length:1000 mmcontrol:Siemens 840 D spindle:42 / 28 kWspindle turning speed - stepless:31 - 4000 1/minmax. torque on the spindle:345 Nmc-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/minrapid traverse:10000 mm/minturret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/mindiameter of quill:90 mmquill stroke:80 mmtailstock quill taper ISO:SK 30 Tailstock Travel:600 mmPower rotary tools:3,5 kW:22,5 NmRotary tool holders:4 ax./ 4 rad. spindle passage:66 mmtotal power requirement:30 kWweight of the machine ca.:7,5 tdimensions of the machine ca.:8x 3 x 4 m

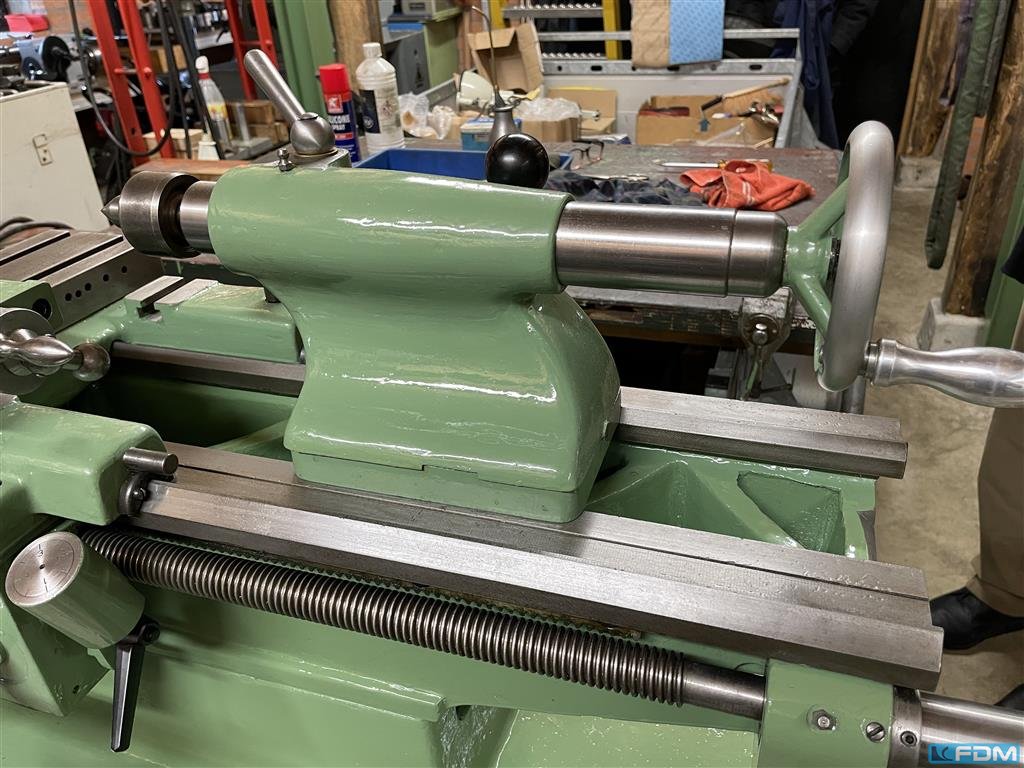

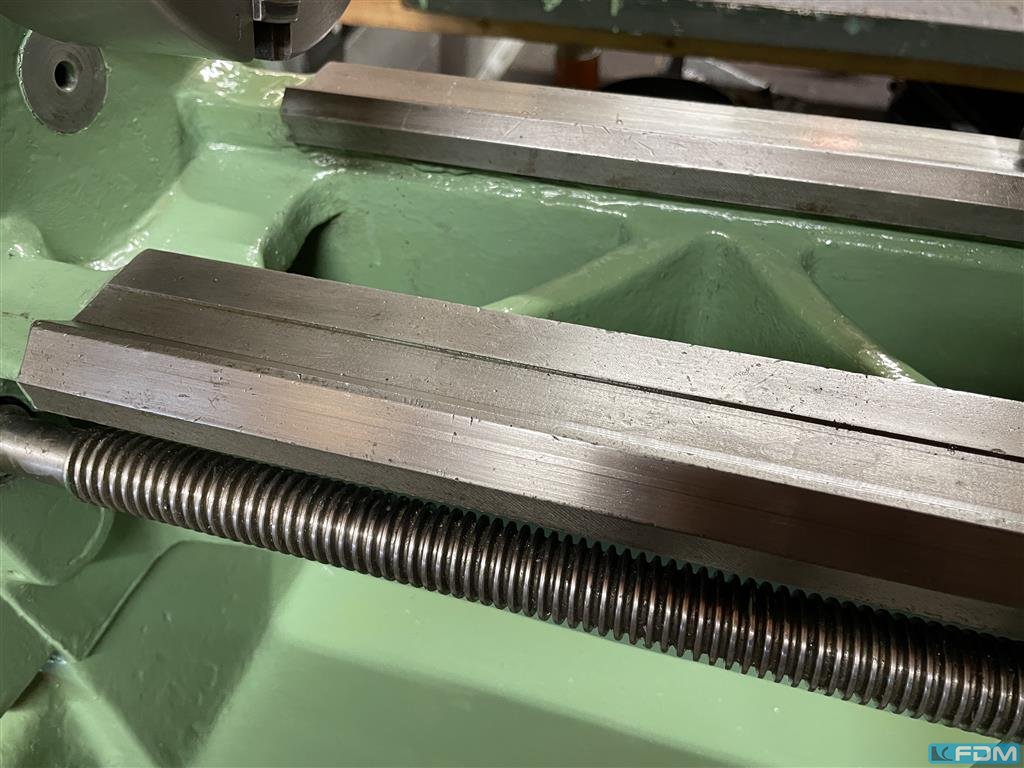

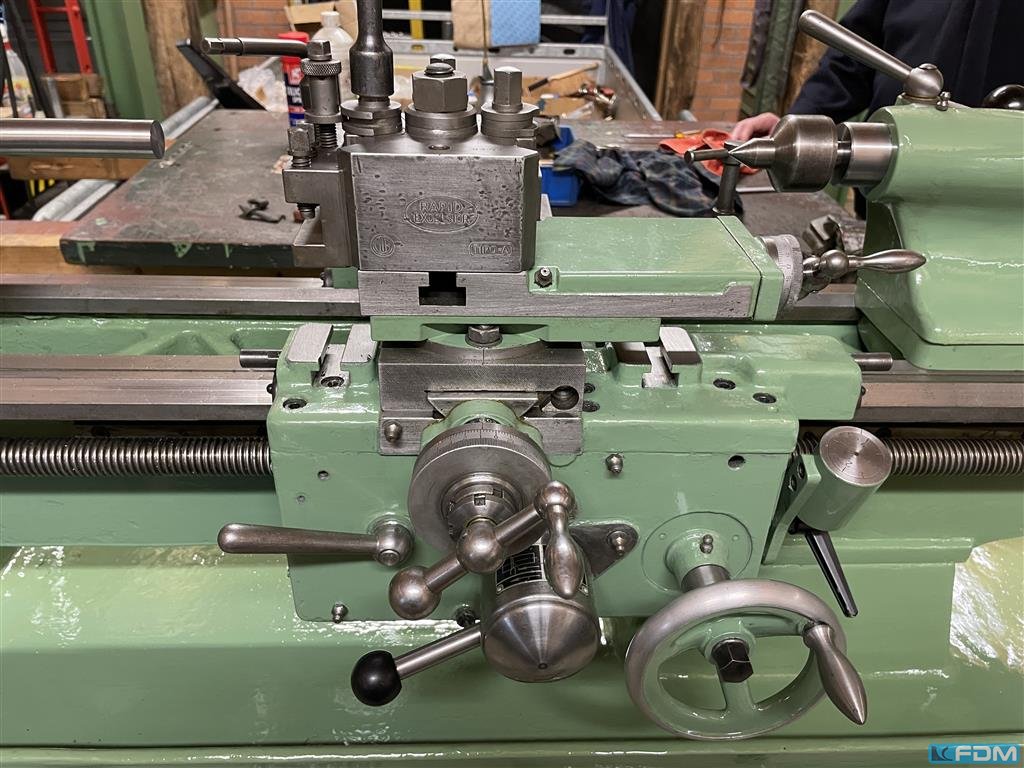

turning diameter over bed:350 mmturning diameter over slide rest:240 mmturning length:800 mmSpindle RPM:40 - 2000 in 8 Stufen 1/mintotal power requirement:3 kWSpindle bore:26 mmtailstock quill taper MT:MK 2 dimensions of the machine ca.:1,5 x 1,0 x 1,6 mweight of the machine ca.:1,9 tVery well maintened center lathe with accessories- 3-jaw, 4-jaw chuck- tailstock with center- 1 boring head- RAPID quick tool change device with 3 holder- saddle mounted steady rest- collant device- set of collets appr. 75% size B 32
turning diameter:1600 mmturning length:12000 mmcontrol:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories.For further technical data and accessories, pls browse the Appendix.Parallellathe WMWmod. 4 GUIDE-WAYS¦ CNC: FAGOR 8050¦ bed: monolithic¦ centres height: 800 mm¦ centres distance: 12000 mm¦ swing over cross-slide: 1250 mm¦ turret: automatic 4 positions¦ tailstock: motorized¦ tailstock connection: hydraulic¦ platform: diam. 1000 mm¦ steady rests: nr.02¦ chip conveyorWarranty: noneTake advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.

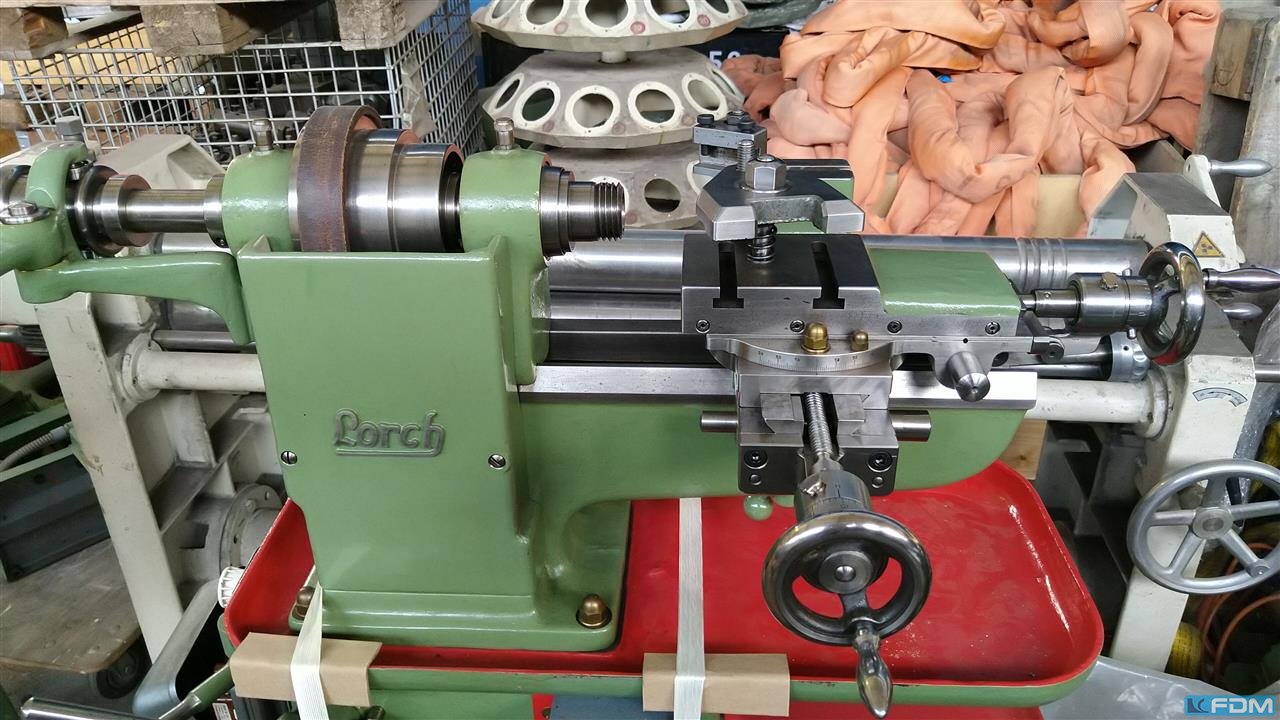

turning diameter over bed:100 mmturning diameter over slide rest:70 mmturning length:80 mmtotal power requirement:1,0 kWweight of the machine ca.:0,5 tdimensions of the machine ca.:0,7 x 0,6 x 1,2 mfacing lathe with manual feed, various accessories
turning diameter:1390 mmturning length:14000 mmweight of the machine ca.:13 tMore information can be found in the Appendix.

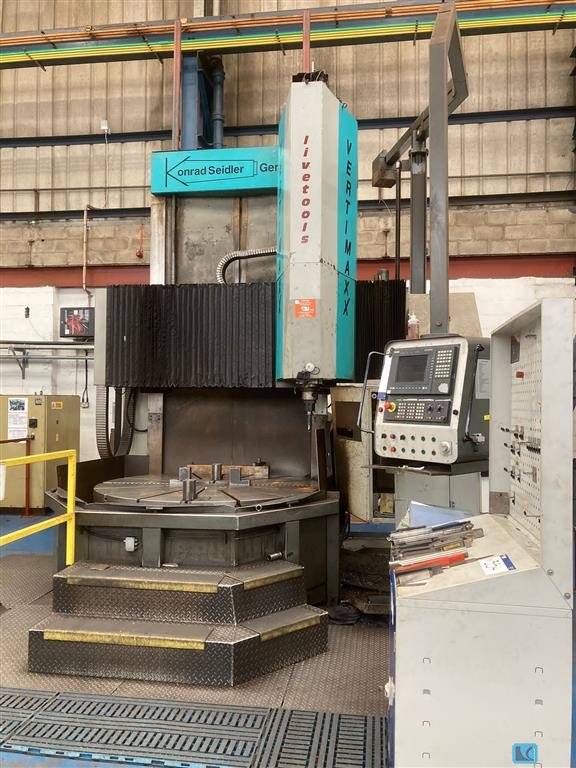

faceplate diameter:2000 mmswing diameter:2130 mmturning height:1400 mmram stroke range:1000 mmworkpiece weight:10 tfaceplate turning speed range:1 -200 U/minmain drive:60 kWtotal power requirement:95 kWweight of the machine ca.:24 tdimensions of the machine ca.:6,0 x 4,0 x 5,6 mwith CNC SIEMENS 840 DC-axis driven tooling 15/22 kWautomatic toolchnager 16-pocketsthrough spindle coolantsplash guarding and chip conveyor
faceplate diameter:1800 mmswing diameter:2000 mmturning height:1170 mmz-axis:1000 mmcross rail adjustment - vertical:800 mmfaceplate speeds::2,5 - 280 workpiece weight:12 tfeeds:1 - 6000 mm/minmax. torque on the faceplate:50000 Nmtotal power requirement:85 kWweight of the machine ca.:41 tdimensions of the machine ca.:5,6 x 4,8 x 4,6 mMachine retrofit and overhould in 2005 with SIEMENS 840 D powerline control- 6 jaw hydraulic power chuck- tool changer for 12 tools- chip conveyor, coolant attachment, splash housing- various tool holders
faceplate diameter:1000 mmswing diameter:1600 mmturning height:1200 mmmain drive:75 kWfaceplate speeds from - to:7 - 800 U/minmilling motor:25 kWmilling head speed:7 - 3000 U/minmilling spindle - taper:ISO 50cross rail adjustment - vertical:800 mmram head dimension:240 x 240 mmweight of the machine ca.:40 todimensions of the machine ca.:9 x 7,8 x 6,0 mMachine general overhould in 2004 and equiped with Siemens 840 D control- tool changer rack magazine- C-axis, live tooling, - Transmit function electronical Y-axis- angular milling head - complete splash housing - coolant device, chip conveyor
