faceplate diameter:1000 mmswing diameter:1600 mmturning height:1200 mmmain drive:75 kWfaceplate speeds from - to:7 - 800 U/minmilling motor:25 kWmilling head speed:7 - 3000 U/minmilling spindle - taper:ISO 50cross rail adjustment - vertical:800 mmram head dimension:240 x 240 mmweight of the machine ca.:40 todimensions of the machine ca.:9 x 7,8 x 6,0 mMachine general overhould in 2004 and equiped with Siemens 840 D control- tool changer rack magazine- C-axis, live tooling, - Transmit function electronical Y-axis- angular milling head - complete splash housing - coolant device, chip conveyor
faceplate diameter:1400 mmswing diameter:2000 mmturning height:1270 mmmain drive:80 kWfaceplate speeds from - to:1 - 355 U/minmax. workpiece weight:6.000 kgmilling motor:37 kWmilling head speed:7 - 3000 U/minmilling spindle - taper:ISO 50cross rail adjustment - vertical:800 (8 x 100 mm) mmram head dimension:240 x 240 mmmax. ram stroke:1250 mmweight of the machine ca.:50 tototal power requirement:133 kVAdimensions of the machine ca.:11 x 5 x 6,4 mMachine general overhould in 2008 and equiped with CNC SIEMENS 840 D control- tool changer for 72 tools- C-axis, live tooling- angular- and straight tool holder head with CAPTO taper - Transmit function- complete splash housing - coolant device, chip conveyor- diverse accessories
turning diameter:300 mmswing diameter:350 mmturning height:275 mmx-axis:925 mmz-axis:250 mmclamping chuck diameter:200 mmFeed speed:30 m/min.total power requirement:45 kWweight of the machine ca.:7 tMachine was used just from time to time in the last years - very good condition!with CNC SIEMENS 840 D12-station turret head with driven toolingsworkpiece in and out conveyor beltcoolantattachment and chip conveyordiverse accessories
turning diameter over bed:1000 mmturning diameter over slide rest:745 mmturning length:3000 mmturning speed range:4,5 - 900 U/minspindle bore:110 mmmax. workpiece weight between centres:12500 kgtotal power requirement:30 kWweight of the machine ca.:9 tdimensions of the machine ca.:5,2 x 2,3 x 2 m3-axes digital readoutrapid feed, feed at upper support 350 mm 1 fixed steadyface plate diameter 1000 mmcoolant attachment
turning diameter:275 mmturning length:900 mmspindle passage:65 mmpower capacity at 100 % load:25/20 kWspindle turning speed range:1 - 5000 U/minspindle diameter in front bearing:110 mmc-axis:1 - 500 U/min.number of workpiece supports:4 tool turret:1 x-axis:290 mmy-axis:165 mmz-axis:360 mmb-axis:360 °rapid speed:18/30 m/minnumber of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mmtoolpiece turning speed range:8000 / 2000 U/minpower capacity:25% ED 5,8 kWtool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mmz-axis:600/950 mmy-axis:+/- 60 mmrapid speed:18/15/30 m/minnumber of driven tools:10 mmtoolpiece turning speed range:1 - 6000 U/minpower capacity:25% ED 5,8 kWtool taper:DIN 69880 40 x 63 total power requirement:95 kWweight of the machine ca.:16 tdimensions of the machine ca.:10,0 x 3,5 x 3,0 mwith CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000,Main and Sub spindle with C-axis1 ...
turning diameter:830 mmturning length:4000 mmturning diameter over bed slide:540 mmspindle bore:130 mmturning speed range:2 - 1600 U/minrapid speed:4 / 5 m/minfeed speeds:1 - 2000 mm/mintotal power requirement:55 kWweight of the machine ca.:7,5 tdimensions of the machine ca.:7 x 2,2 x 2 mwith Teach In controll R&D MTC-KMULTIFIX toolpost size Dcoolant attachment
turning diameter:500 mmturning length:1500 mmturning diameter over bed slide:290 spindle bore:71 mmturning speed range:3 - 2800 U/minrapid speed:10 / 5 m/minfeed speeds:1 - 2000 mm/mintotal power requirement:22 kWweight of the machine ca.:3,2 tdimensions of the machine ca.:3,0 x 1,6 x 2 mwith Teach In controll R&D MTC-KPARAT toolpost 1 fixed steday dia. 100 mm4 jaw face plate dia. 500 mmcoolant attachment
turning diameter over bed:340 mmturning diameter over slide rest:190 mmturning length:700 mmspindle bore:50 mmspindle turning speed range:40 - 3000 U/mintotal power requirement:6 kWweight of the machine ca.:1,0 tdimensions of the machine ca.:2 x 1 x 1,6 m
turning diameter:800 mmturning length:2965 mmmax. turning dia. over saddle:520 mmspindle bore:92 mmturning speed range:3 - 1800 U/minspindle head:Größe 11 total power requirement:37 kWweight of the machine ca.:6,5 tdimensions of the machine ca.:5,2 x 2,2 x 1,9 mTeach In Control MTC-K3-jaw chuck ROTAS Dia. 400 mmface plate RÖHM Dia. 630 mm4-station toolholder system PARAT 1 fixed steady coolant attachment and chip conveyor
turning diameter:480 mmturning length:800 mmtotal power requirement:30 kWturning diameter over bed slide:240 spindle bore:65 mmdisc turret:12 fachrapid travel range:20 / 10 m/minweight of the machine ca.:4,5 tdimensions of the machine ca.:4 x 2,2 x 2,1 mwith CNC TRAUB TX 8 H C-axis driven tooling, 6 positions 3,5 kW / 4000 rpmpower chuckcoolant attachment, chip conveyordiverse toolholders
turning diameter:120 mmturning length:100 mmcontrol:Fanuc Spindle 1 power:7,5 kWSpindle 1 RPM:4500 1/minSpindle 2 power:7,5 kWSpindle 2 RPM:4500 1/minDistance between spindle noses:600 mmTurret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kWRPM of rotary tools turret 1:4000 1/minTurret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kWRPM of rotary tools turret 2:4000 1/minTravel x/z turret 1:250 / 300 mmTravel x/z turret 2:250 / 920 mmBar capacity spindle 1:51 mmBar capacity spindle 2:51 mmpower chuck:165 mm Spindle bore sp. 1:62 mmSpindle bore sp. 2:62 mmdimensions of the machine ca.:3700 x 2300 x 3000 mmweight of the machine ca.:5600 kgUsed CNC-2-spindle CNC turning and milling center with gantry loader- 2x 15 station turret-automatic gantry loader with turnaround station.14 station-magazin right sideMax. Parts size Ø 120 x 100 mmDoublegripper ...
turning diameter:370 mmturning length:200 mmSpindle 1 RPM:4000 1/mincontrol:Siemens 840 D Spindle 2 RPM:4000 1/minpower capacity:L / R 18/24 kWmax. torque on the spindle:630 nMC-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40Turret No.2 stations / rotary tools:12/12 VDI 40turning speed range - milling:3000 1/minpower capacity - milling spindle:8,8 kWtorque rotary tools:28 NmBar capacity spindle 1:85 mmtotal power requirement:65 kVAweight of the machine ca.:13 tdimensions of the machine ca.:5,7x2,4x2,1 mTravel x1:260 mmTravel x2:260 mmTravel Y1:600 mmTravel y2:600 mmPower Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.
standard turning dia.:200 turning length:max. 810 mmcontrol:MSX-701 MAPPS IV greates pass round over bed:800 mmMax. distance between centres:1130 mmmax. turning diameter:320 mmmax. workpiecediameter:300 mmbar material dia.:65 mmTraverse X-Axis 1:210 Traverse X-Axis 2:210 mmTraverse X-Axis 3:210 mmTraverse Y-Axis 1:110 (+65/-45) mmTraverse Y-Axis 2:110 (+45,/-65) mmTraverse Z-Axis 1:300 mmTraverse Z-Axis 3:300 mmTraverse Z-Axis 2:810 mmTraverse B-Axis:870 mmturning speed range - spindle:5.000 1/minNumber of spindle speed ranges:2 .spindle nose:JIS A2-6 spindle bore:73 mmspindle bearing diameter:120 mmC-Axis:0,001 °turning speed range - spindle:5.000 1/minspindle nose:JIS A2-6 spindle bore:73 mmbar material dia. max:65/52 mmspindle bearing diameter:120 mmC-Axis:0,001 °Number of Turrets:3 .Number of tool stations:16 x 3=48 posSchank height for square tool:20 mmDiameter of boring bar:32 mm ...
turning diameter:640 / 400 mmturning length:1500 mmcontrol:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mmSwivle angle milling spindle (B-axis):±120° interpol. °Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/minRPM milling spindle:12000 1/minpower capacity - milling spindle:12 / 23 kWTorque of milling spindle:100 NmTool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 sSpindle 1 RPM:4000 1/minSpindle 1 power:36/ 45 kWSpindle 1 Torque:730 NmSpindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/minSpindle 2 power:36 / 45 kWSpindle 2 torque:730 NmSpindle 2 max. bar diameter:90 c-axis:0,001 °Travel turret 2 x:225 mmTravel Turret 2 z:1595 mmRPM of rotary tools turret 2:4000 1/minno. of tools in turret 2:12 VDI 40 high-pressure pump:20 bartotal power requirement:110 kVAweight of t ...
turning diameter:500 mmturning length:1000 mmcontrol:Siemens 840 D spindle:42 / 28 kWspindle turning speed - stepless:31 - 4000 1/minmax. torque on the spindle:345 Nmc-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/minrapid traverse:10000 mm/minturret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/mindiameter of quill:90 mmquill stroke:80 mmtailstock quill taper ISO:SK 30 Tailstock Travel:600 mmPower rotary tools:3,5 kW:22,5 NmRotary tool holders:4 ax./ 4 rad. spindle passage:66 mmtotal power requirement:30 kWweight of the machine ca.:7,5 tdimensions of the machine ca.:8x 3 x 4 m
standard turning dia.:200 turning length:max. 810 mmcontrol:MSX-701 MAPPS III greates pass round over bed:800 mmMax. distance between centres:1130 mmmax. turning diameter:320 mmmax. workpiecediameter:300 mmbar material dia.:65 mmTraverse X-Axis 1:210 Traverse X-Axis 2:210 mmTraverse X-Axis 3:210 mmTraverse Y-Axis 1:110 (+65/-45) mmTraverse Y-Axis 2:110 (+45,/-65) mmTraverse Z-Axis 1:300 mmTraverse Z-Axis 3:300 mmTraverse Z-Axis 2:810 mmTraverse B-Axis:870 mmturning speed range - spindle:5.000 1/minNumber of spindle speed ranges:2 .spindle nose:JIS A2-6 spindle bore:73 mmspindle bearing diameter:120 mmC-Axis:0,001 °turning speed range - spindle:5.000 1/minspindle nose:JIS A2-6 spindle bore:73 mmbar material dia. max:65/52 mmspindle bearing diameter:120 mmC-Axis:0,001 °Number of Turrets:3 .Number of tool stations:16 x 3=48 posSchank height for square tool:20 mmDiameter of boring bar:32 m ...
turning diameter:160 mmturning length:300 mmcontrol:Siemens 840D Spindle 1 Power:22 kWSpindle 1 RPM:5000 1/minSpindle 1 max. bar diameter:65 Spindle 1 Torque:150 NmSpindle 2 power:16,8 kWSpindle 2 RPM:5000 1/minSpindle 2 torque:100 NmTravel for pick up of 2nd Spindle:W2=690 mmdimensions of the machine ca.:´4,5x2,0x2,3 mweight of the machine ca.:9 tCNC turning center with 3 turrets with rotary tool drives and 2 spindles.There is an internal coolant system for the turrets with individual pumps
turning diameter:33 mmturning length:330 mmcontrol: 840 total power requirement:20 kWweight of the machine ca.:6 tdimensions of the machine ca.:3850,2000,2100 m17 axes3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axesBarfeederMachine On-time 58,133 hours
turning diameter:190 mmturning length:503 mmcontrol: Fanuc 31i - TA Travel x/z turret 1:135 / 503 mmTravel Y1:62 (± 31) mmTravel x/z turret 2:135 /503 mmc-axis:Sp. 1 / 2 Spindle 1 RPM:6000 1/minSpindle 1 Power:11/7,5 kWSpindle 1 max. bar diameter:42 mmSpindle 2 RPM:6000 1/minSpindle 2 power:11/7,5 kWTurret No.1 stations / rotary tools:12/12 Turret 1 tool RPM:6000 1/minTurret 1 power rotary tools:7,1 / 2,2 kWTurret No.2 stations / rotary tools:12/12 Turret 2 tool RPM:6000 1/minTurret 2 power rotary tools:7,1 / 2,2 kWtotal power requirement:53 kVAweight of the machine ca.:5700 tdimensions of the machine ca.:2,3 x 1,6 x 1,94 mHigh precision cnc turning center, rotary tools and y-axis on upper turret, Robot loader for shafts.
turning diameter:410 mmturning length:500 mmcontrol:Fanuc 21i TB standard turning diameter:275 mmtravel -x axis:277 mmtravel -y axis:82 (±41) mmtravel -z axis:500 mmSpindle 1 RPM:4500 1/minSpindle 1 Power:18,5/18,5/15 kWSpindle 1 max. bar diameter:65 mmturret stations / rotary tool stations:12/12 Power rotary tools:5,5 kWRPM of rotary tools:6000 1/mintotal power requirement:39,2 kVAweight of the machine ca.:6,2 tdimensions of the machine ca.:3,1 x 2,0 x 2,2 mcollet chuck:Hainbuch High precision Turning and Milling Centre with Y-axis and robot loading.Stäubli Robot for shaft loading.
standard turning dia.:42 / 140 turning length:170 mmcontrol:Mitsubishi max. turning diameter:140 mmbar material dia.:42 mmturning speed range - spindle:80-8000 1/minspindle bearing diameter:120 mmC-Axis:0,001 °turning speed range - spindle:60-6000 1/minspindle nose:JIS A2-6 bar material dia. max:42 mmcollet chuck:173E C-Axis:0,001 °Number of Turrets:2 .Number of tool stations:12 x 2=24 pospower capacity - driven tools:7,5 / 5,5 kWtotal power requirement:92,7 kVAweight of the machine ca.:3,3 tdimensions of the machine ca.:2,4 x 1,6 x 2,2 mThe Boley BE 42 2 has 2 spindles und 2 turrets with 12 toolstations VDI 20 each.It can work simultaneus with 7 Achsen.The machine has ca. 22.000 run hrs.The coolant system has a cooling unit15 collets 173E come with the machine.A bar feeder interface is installed.
turning length:400 mmtotal power requirement:45 kWweight of the machine ca.:4 tdimensions of the machine ca.:3,58 x 1,91 x 2,05 mspindle passage:45 mm
turning diameter:1600 mmturning length:6200 mmturning diameter over bed slide:1250 Turning rate:5 - 710 U/min.total power requirement:37/52 kWweight of the machine ca.:16 tdimensions of the machine ca.:12 x 4 x 2 mCNC SIEMENS Sinumerik3-jaw chuck SCHUNK Rota Plus Dia. 630 mm3 x fixed steadies ( 1200 / 570 / 400 mm ) coolant attachment and chip conveyordiverse accessories

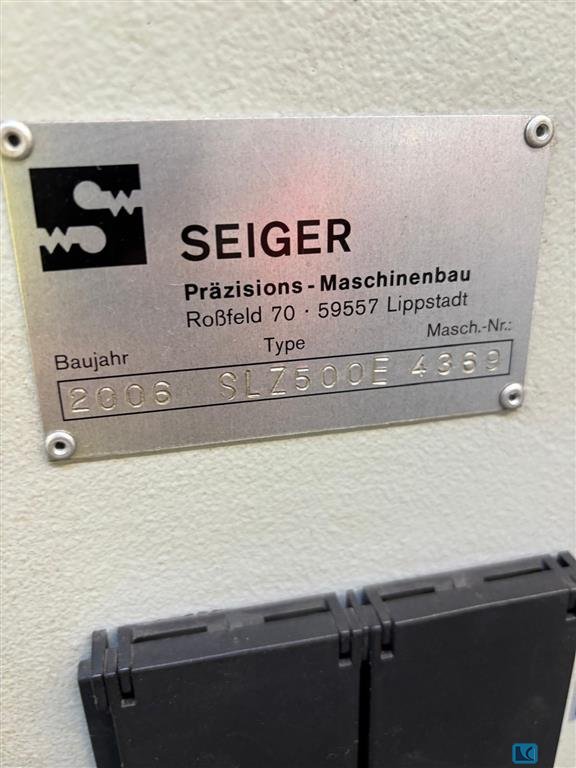

turning diameter:500 mmturning length:1000 mmweight of the machine ca.:7,3 tdimensions of the machine ca.:6,5 x 4,45 x 2,21 m
faceplate diameter:4000 mmswing diameter:4300 mmturning height:330 mmfaceplate turning speed range:1 - 92 U/minworkpiece weight:18 tfeeds:1 - 4000 mm/minmain drive motor:55 kWtotal power requirement:85 kVAweight of the machine ca.:64 tdimensions of the machine ca.:90, x 7,2 x 5,5 mwith CNC SIEMENS 840 D for 4 axis2 Vertical Supports tool Basic holderchip conveyor
faceplate diameter:4770 mmswing diameter:7000 mmturning height:1000 mmslide stroke:1000 mmworkpiece weight max.:100000 kgfaceplate turning speed range:2 - 20 U/minfeed speeds:1 - 10000 mm/minrapid traverse:10 m/minram head dimension:250 x 250 mmmain drive:100 kWtotal power requirement:200 kWwith CNC SIEMENS 840 D2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpmChip conveyor and coolant attachment
turning diameter over bed:350 mmturning diameter over slide rest:240 mmturning length:800 mmSpindle RPM:40 - 2000 in 8 Stufen 1/mintotal power requirement:3 kWSpindle bore:26 mmtailstock quill taper MT:MK 2 dimensions of the machine ca.:1,5 x 1,0 x 1,6 mweight of the machine ca.:1,9 tVery well maintened center lathe with accessories- 3-jaw, 4-jaw chuck- tailstock with center- 1 boring head- RAPID quick tool change device with 3 holder- saddle mounted steady rest- collant device- set of collets appr. 75% size B 32
turning diameter:325 mmturning length:600 mmtotal power requirement:35 kWspindle drive:25 kWspindle turning speed range:5000 U/minspeeds of tool:4500 U/minrapid traverse X-axis:60 m/mindiverse toolholders:VDI 40 rapid traverse Z-axis:45 m/minweight of the machine ca.:6,5 tdimensions of the machine ca.:3,5 x 2,5 x 2,1 mMachine with SIEMENS 840 D control power line with shopturn- C and Y-axis, driven tools- bar loader IRCO ILS-RBK- coolant device with coolant throough revolving head- Revolver- counter spindle- chip conveyor- collet clamping - part catcher
turning diameter:626 mmturning length:3000 mmTurning diameter:600 mmspindle bore:100 mmspindle turning speed range:2800 U/minweight of the machine ca.:18 tMachine overhold and retrofit in 2003 with SIEMENS 840 D control- NC steady rest- 12-fold revolving head- splash doors- tailstock- coolant device
